ID: 790930
Product code: CP-9020232-EU
In stock 10 units
Warranty: 2 years

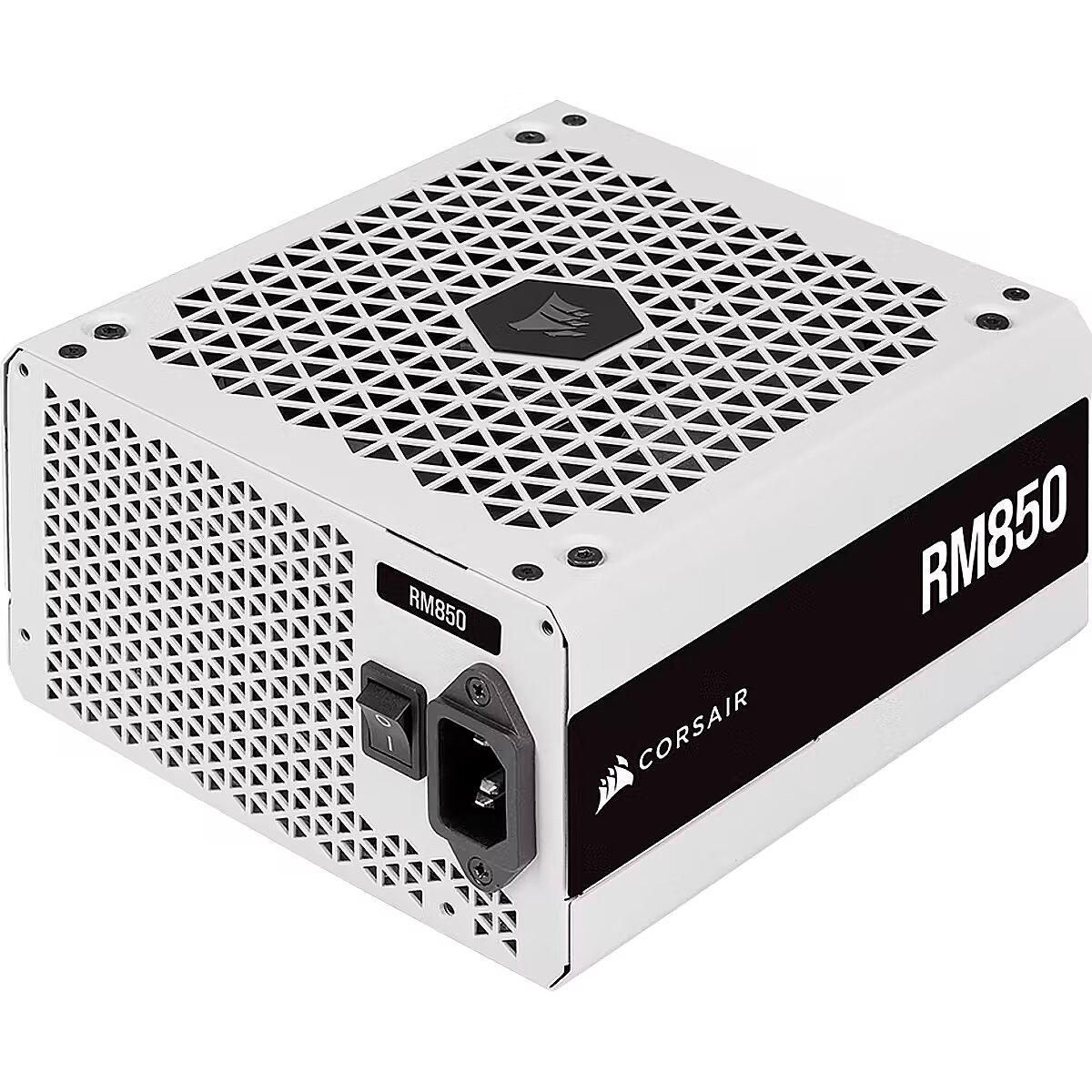

Corsair RM850 (2021), 850W, 80PLUS Gold, White
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 19.11.2024
- Delivery to Omniva parcel machine free of charge: 19.11.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 19.11.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 19.11.2024
- Delivery to address in Riga 3.99 €: 19.11.2024
- Delivery to address in Latvia 6.99 €: 19.11.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: on Thursday, 14.11.2024 after 15:00
Main product parameters All parameters
- Producer: Corsair
- Power output: 850W
- 80 PLUS certification: 80 PLUS Gold
- Fan size: 140 mm
- Modular cables: Fully-Modular
- Processor plug-in: 3 x 8-pin(4+4) EPS
- PCI-E: 4 X 6+2pin
Description
This Corsair brand power supply unit has an 80 PLUS Gold energy efficiency certificate and a power output of 850W.
850W power supply will be suitable for a powerful workstation or gaming computer. It will provide power for a high-end video card (for example, RTX 4070 Ti SUPER), multiple hard drives (SSD/HDD), water cooling, and a top-tier processor (possibly overclocked).
This power supply unit is equipped with a 140 mm fan. It will be significantly quieter than a regular 120 mm fan and will provide adequate cooling at lower speeds, thanks to the massive blade size.
The power supply has been awarded the 80 PLUS Gold energy efficiency certificate, which provides at least 90% efficiency at 50% load. This indicates that at least 90 W out of 100 W of power drawn from the electrical grid by the power supply is delivered to the computer components, with the remaining 10 W lost as heat.
The color of the block is Balta. The block has flat cables, whose color is Balta.
ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.
This power supply's noise level is 25-30 dB and it has a Cybenetics A - noise level certificate.

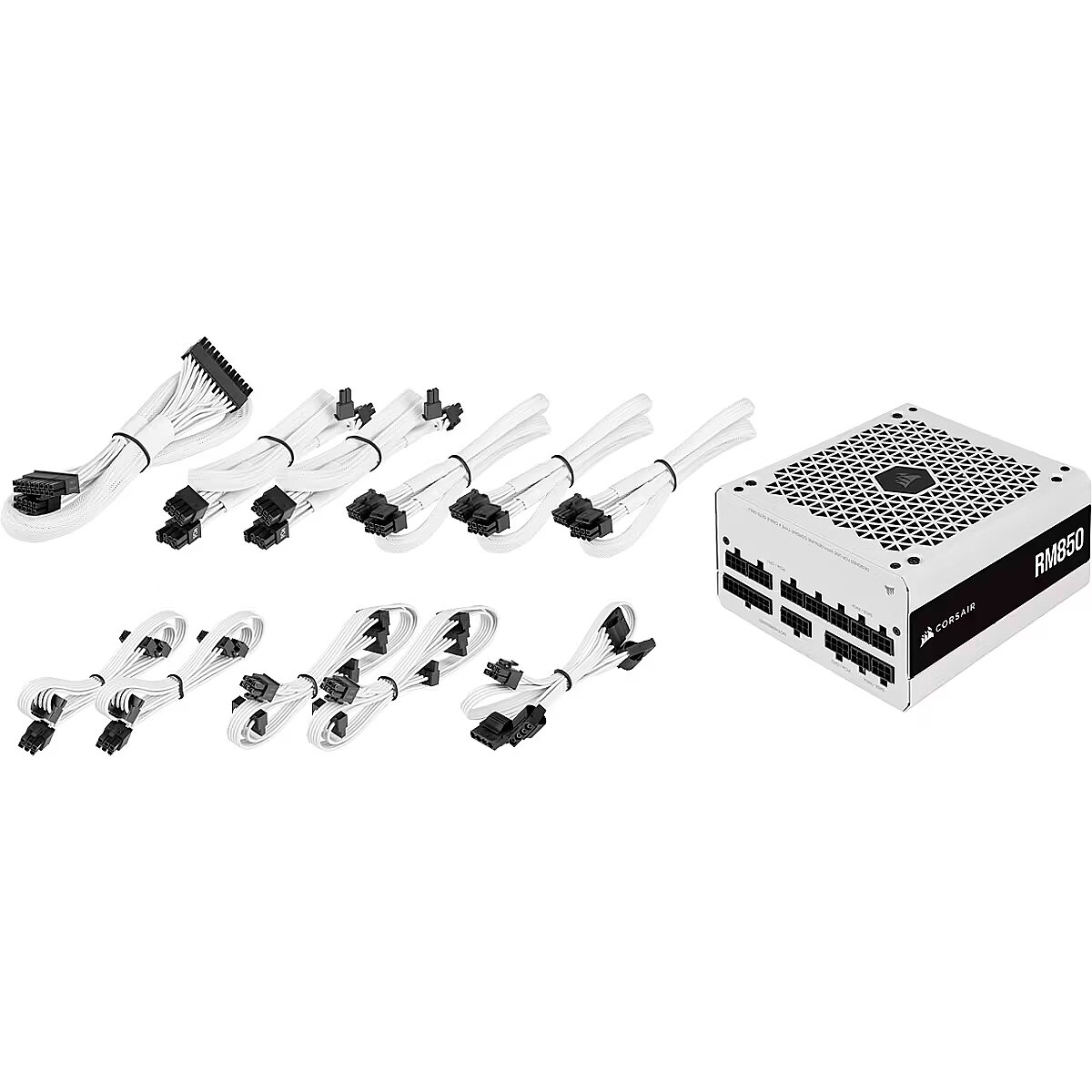

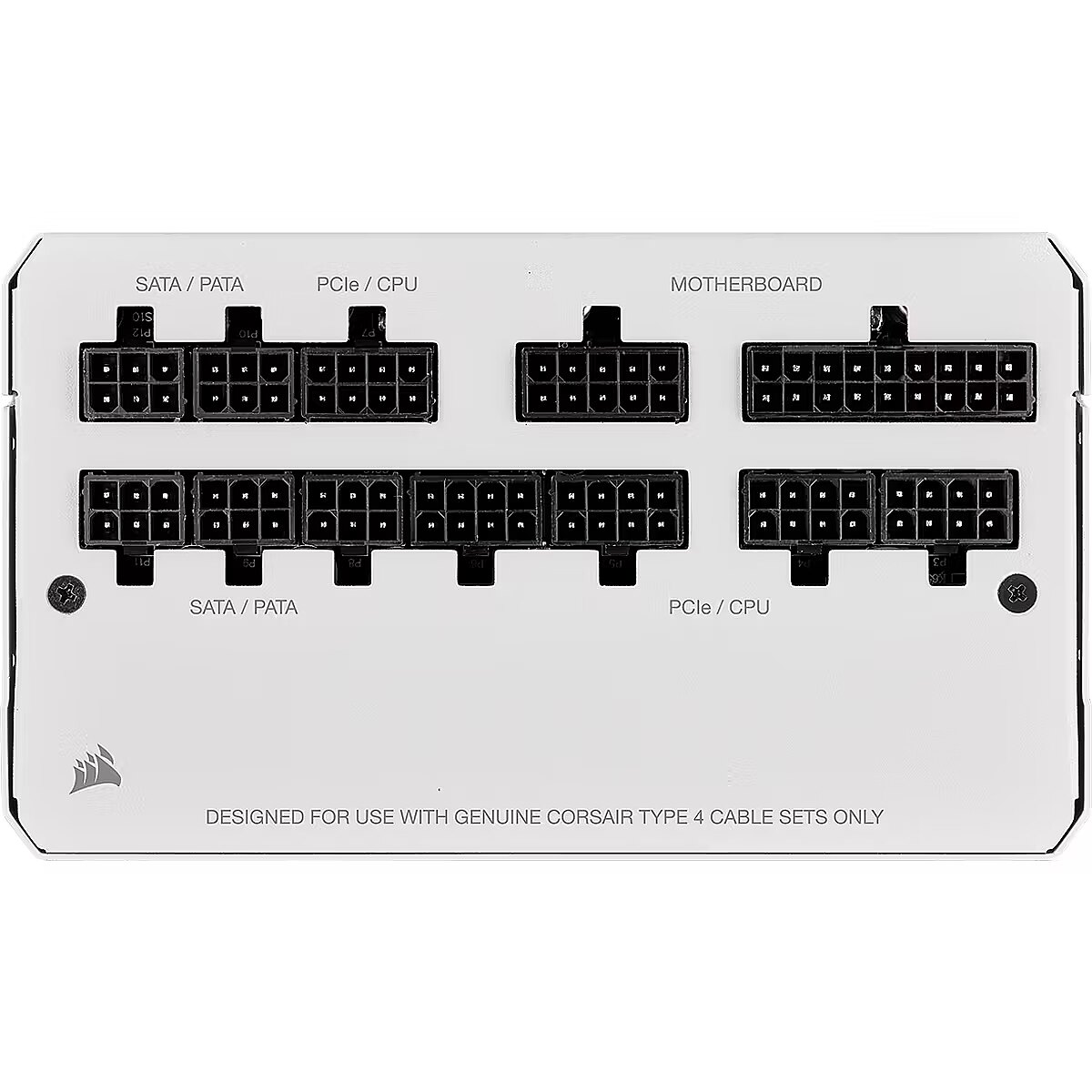

This power supply has modular cables, which provide the possibility to add video card cables, hard disk cables, etc. as needed from the supplied range. This way, the wire clutter in the computer is reduced, improving ventilation and the aesthetic factor (particularly important for those who purchase a partially transparent case).
Basic information
Cybenetics Efficiency certification
: Cybenetics Gold
Cybenetics Noise level certification
: Cybenetics A -
Power supply type
: ATX
Power output
850W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Gold
Total amperage (+12V)
: 70.8A
Fan size
: 140 mm
Functionality
Cable colour
: White
Lighting
: Nav
Color
: White
Modular cables
: Fully-Modular
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 3 x 8-pin(4+4) EPS
Motherboard power
: 24-pin
PCI-E
: 4 X 6+2pin
SATA cconnectors
: Eight Core
4pin Molex
: 4
More detailed specification
Category 1 - Netzteile
Certificates > Certification - 80 PLUS Gold certified
Code - CP-9020232-EU
Design - Cooling type - Active
Design - Fan diameter - 14 cm
Design - Number of fans - 1 fan(s)

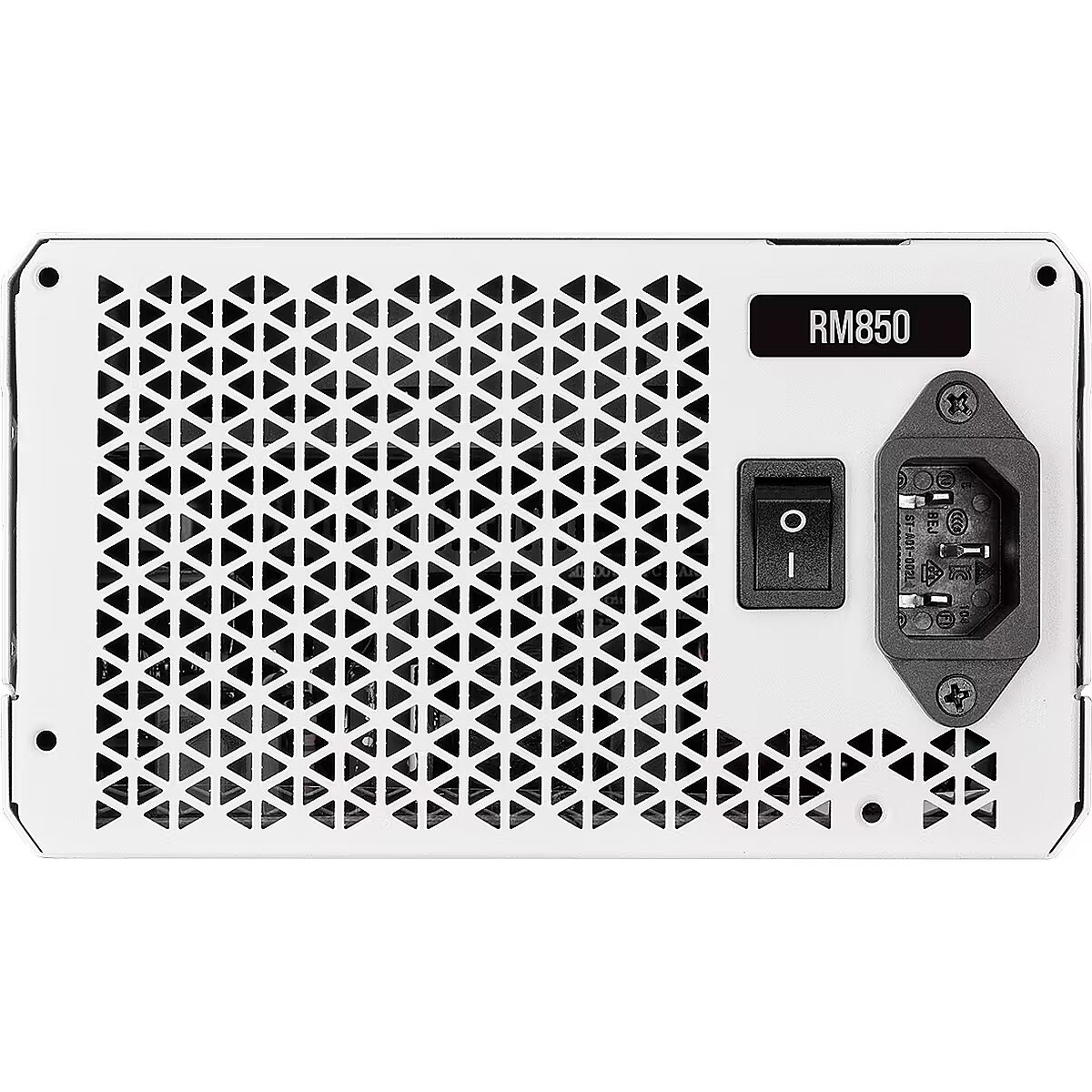

Design - On/off switch - Yes
Design - Product colour - White
Design > Colour of product - White
dimensionalWeight - 1794
EAN - 840006628835
EAN - 0840006628835
Link - https://www.corsair.com/eu/en/Categories/Products/CORSAIR-White-PC-Build/RM-Series-White/p/CP-9020232-EU#tab-overview
Logistics data - Harmonized System (HS) code - 84733020
Manufacturer - Corsair
MPN - CP-9020232-EU
Name - 850W Corsair White Series RM850 80+ Gold
Name - Corsair | Fully Modular PSU | RM White Series RM850 | 850 W
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 150 mm
Package features > Gross height (mm) - 86 mm
Package features > Gross width (mm) - 140 mm
Package features > Packing quantity - 1 pc(s)
Package features > Palette Qty - 455 pc(s)
Package features > Paper/Pasteboard - 350 g
Package features > Plastic (No PET) - 50 g
Package features > Tare weight (kg) - 0.4 kg
Package features > Volume (m3) - 0.001806 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - CPU, PATA, PCIe, SATA
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 2.4
Performance - Bearing technology - Rifle
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance > Form factor - ATX
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 65 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - PCI Express power cable length - 75 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - Peripheral (Molex) power cable length - 750 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 5
Ports & interfaces - SATA power cable length - 750
Ports & interfaces - SATA power cable length - 850 mm
Ports & interfaces > ATX power connector (20+4 pin) - 1
Ports & interfaces > Number of SATA power connectors - 14
Ports & interfaces > PCI Express power connectors (6+2 pin) - 4
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 150 W
Power - Combined power (+5V) - 150 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 850 W
Power - Combined power (-12V) - 3.6 W
Power - Input current - 10 - 5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 70.8 A
Power - Max output current (-12V) - 0.3 A
Power - Total power - 850 W
Power > Nominal power - 850 W
producerCode - CP-9020232-EU
Producer product family - Fully Modular PSU
Producer product name - RM White Series RM850
productName - Corsair RPS0120 power supply unit 850 W 24-pin ATX ATX White
productSize - Normal
sizeX - 230
sizeY - 130
sizeZ - 300
Technical details > Gross weight - 2.2 kg
Technical details > Net weight - 1.8 kg
Technical details > Other features - 140mm rifle bearing fan with a specially calculated fan curve ensures that fan noise is kept to a minimum
Technical details > Producer - Corsair
Technical details > Warranty - 120 month(s)
Warranty - 120
warrantyLength - 24
warrantyType - G
Weight - 3.14
weight - 3100
Weight & dimensions - Weight - 1.65 kg
