ID: 1152107
Product code: COREREACTORII1200G-BKCEU
In stock 2 units
Warranty: 3 years

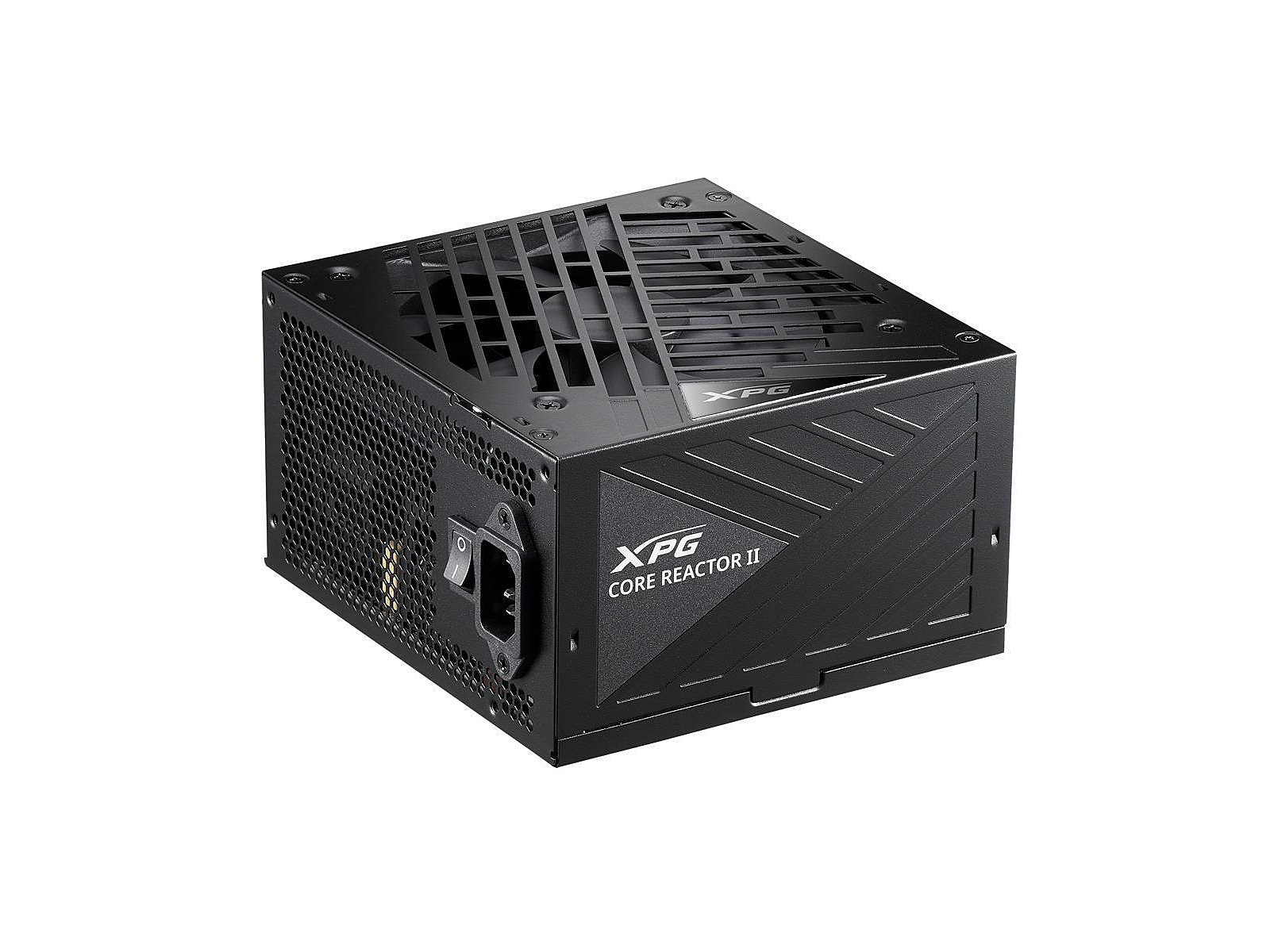

ADATA CORE REACTOR II, 1200W, 80PLUS Gold, PCIe 5.0
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: on Thursday, 28.11.2024
- Delivery to Omniva parcel machine free of charge: on Thursday, 28.11.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: on Thursday, 28.11.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: on Thursday, 28.11.2024
- Delivery to address in Riga 3.99 €: on Thursday, 28.11.2024
- Delivery to address in Latvia 6.99 €: on Thursday, 28.11.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: on Thuesday, 26.11.2024 after 15:00
Main product parameters All parameters
- Producer: Adata
- Power output: 1200W
- 80 PLUS certification: 80 PLUS Gold
- Fan size: 135 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 8 x 6+2pin
Description
This ADATA brand power supply unit has an 80 PLUS Gold energy efficiency certificate and a power output of 1200W.
This power supply is equipped with an exceptionally large 135 mm fan. Thanks to the larger blade size, it provides better airflow at lower speeds and quieter operation compared to standard 120 mm fans.
The power supply has received the 80 PLUS Gold energy efficiency certificate, which guarantees at least 90% efficiency at 50% load. This means that for every 100W of power received from the electrical grid, at least 90W is delivered to your computer components, and the remaining 10W is lost as heat.
This power supply unit is equipped with a 1 x 600W 12VHPWR plug intended for use with modern graphics cards – Nvidia GeForce RTX 4070 and up. The RTX 4060 uses a standard 8-pin connector.
The color of this power supply is Melna. The cable color is Melna and they are flat.
This is a power supply unit compliant with ATX 3.0 requirements. It indicates that it has a 16-pin (12VHPWR) port, which can power the latest generation (RTX 30 and 40 series) PCIe 5.0 graphics cards with up to 600 W of power. Furthermore, ATX 3.0 allows the current to be increased by 200% for a millisecond, ensuring smoother power delivery to the components.
This power supply unit has fully-modular cables (Fully-modular) – you can connect and disconnect all the included cables as needed, reducing clutter and improving ventilation. This will be useful for those with a partially transparent computer case and for whom the aesthetic factor is particularly important.
Basic information
Cybenetics Efficiency certification
: Cybenetics Platinum
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
1200W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Gold
Total amperage (+12V)
: 100A
Fan size
: 135 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Fully-Modular
Ports and equipment
PCI-E 5.0
: 1 x 600W 12VHPWR
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 8 x 6+2pin
SATA cconnectors
: 9
4pin Molex
: 3
More detailed specification
Brand - XPG
BrandPartCode - 75261221
Category - Power Supply Units
Category Code - PSU
CnCode CnCode - 85044095
Colour - Black
Cooling System - 13.5cm fan
Description - CORE REACTOR II is a top-performing power supply unit designed for ATX 3.0 compliance with a modular cable design and an 80 PLUS GOLD certification. These power supplies thrive in high-performance scenarios like servers or workstation setups, where a lot of power is needed.
Design - Fan diameter - 13.5 cm
Design - Product colour - Black
Dimensions - 160 x 150 x 86mm
Efficiency - 80 PLUS GOLD
Full Description Line - CORE REACTOR II|For gaming|ATX 3.0|1200 Watts|Cooling System 13.5cm fan|80 PLUS GOLD|Colour Black
GTIN - 0842243029437
GTIN - 842243029437
GTIN - 4711085942401
LongDesc - CORE REACTOR IIIMPROVE YOUR CORE, ENHANCE YOUR PERFORMANCECORE REACTOR II is a top-performing power supply unit designed for ATX 3.0 & ATX 3.1 compliance with a modular cable design and an 80 PLUS GOLD certification. These power supplies thrive in high-performance scenarios like servers or workstation setups, where a lot of power is needed.Next-Gen Ready - ATX 3.0 & ATX 3.1 COMPLIANTCORE REACTOR II series power supply units meet Intel ATX 3.0 & ATX 3.1 design guide specifications and feature a 12VHPWR connector. By upgrading to an ATX 3.0 & ATX 3.1-compliant power supply, you'll be fully equipped for the upcoming wave of high-performance components. A must for the modern gamer, creator, or AI developer. Stay ahead of the curve by upgrading to an ATX 3.0 & ATX 3.1 PSU, the new standard in PC hardware.Certified GOLD EfficiencyCORE REACTOR II units recieved 80 PLUS GOLD certifications for efficiency, achieving up to 91.40% (115V) efficiency at 50% load. It comes in 1200W, 1000W, 850W, 750W, and 650W models for varying user needs and scenarios. It's the perfect PSU for mid-to-high level components, including the latest CPUs and GPUs.Intelligent Fan-Curve DesignThe intelligent fan curve ensures quiet operation, even under full power load. By starting the fan at a low RPM, fan performance is both enhanced and extended, thereby increasing the power supply unit's lifespan.Premium all 105°C Japanese CapacitorsCORE REACTOR II features top-tier 105°C Japanese capacitors, ensuring exceptional stability and reliability of the PSU for many years of dependable performance.PEAK PERFORMANCE AND RELIABILITYAll XPG ATX 3.0 and ATX 3.1 power supplies are designed to support up to 235% power excursion, enabling the system to handle sudden power spikes, ensuring stability, and preventing crashes during intense workloads like gaming, rendering, and data processing.
LongProductName - 1200 W, PLATINUM, GOLD, ATX 12V v3.0 und EPS v2.92, 0.99 PFC, 2400 RPM
LongSummaryDescription - XPG COREREACTOR II 1200W Power Supply. Total power: 1200 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 13.5 cm. Width: 160 mm, Depth: 150 mm, Height: 86 mm
Model - COREREACTORII1200G-BKCEU
Model name - CORE REACTOR II
Packaging data - Package depth - 338 mm
Packaging data - Package height - 157 mm
Packaging data - Package weight - 3.43 kg
Packaging data - Package width - 210 mm
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.0
Performance - Bearing technology - FDB
Performance - Certification - CE | CB| FCC(IC) | TUV | cTUVus | TUV S-Zeichen | NOM | BSMI | UKCA | EAC | CCC | RCM
Performance - EPS version - 2.92
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - ATX power connector (12+4 pin) - Yes
Ports & interfaces - ATX Power connector (24-pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 9
Ports & interfaces - PCI Express power connectors (6+2 pin) - 8
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Input current - 15 A
Power - Max output current (+3.3V) - 22 A
Power - Max output current (+5V) - 22 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 100 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.99
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage
Power - Total power - 1200 W
ProductName - XPG COREREACTOR II 1200W Power Supply
PSU - ATX 3.0
PSU features - For gaming
PSU Output Power - 1200 Watts
Shipping Box Depth Shipping/Package Box Dimensions - 44.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 36 cm
Shipping box quantity - 4
Shipping Box Weight Shipping/Package Box Dimensions - 16.2 kg
Shipping Box Width Shipping/Package Box Dimensions - 33.5 cm
ShortSummaryDescription - XPG COREREACTOR II 1200W Power Supply, 1200 W, 100 - 240 V, 50/60 Hz, 15 A, 22 A, 100 A
Technical details - Compliance certificates - BSMI, CB, CE, China Compulsory Certification (CCC), EAC, Federal Communications Commission (FCC), Norma Oficial Mexicana (NOM), RCM, cTUVus, UKCA
Title - XPG COREREACTOR II 1200W Power Supply
Unit Box Height - 0.212
Unit Box Length - 0.34
Unit Box Width - 0.16
Unit Brutto Volume - 0.01342 cubm
Unit Gross Weight - 4.05 kg
Unit Net Weight - 3.05 kg
URL - https://www.xpg.com/en/xpg/pc-components-core-reactor-ii
Vendor Homepage - www.xpg.com/us/xpg/pc-components-core-reactor-ii?tab=desc
Warranty - 36 months
WarrantyInfo - 10 years
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 160 mm
