ID: 705013
Product code: BN322
Can be ordered 41 units Availability: 14 days after order approval
Warranty: 3 years

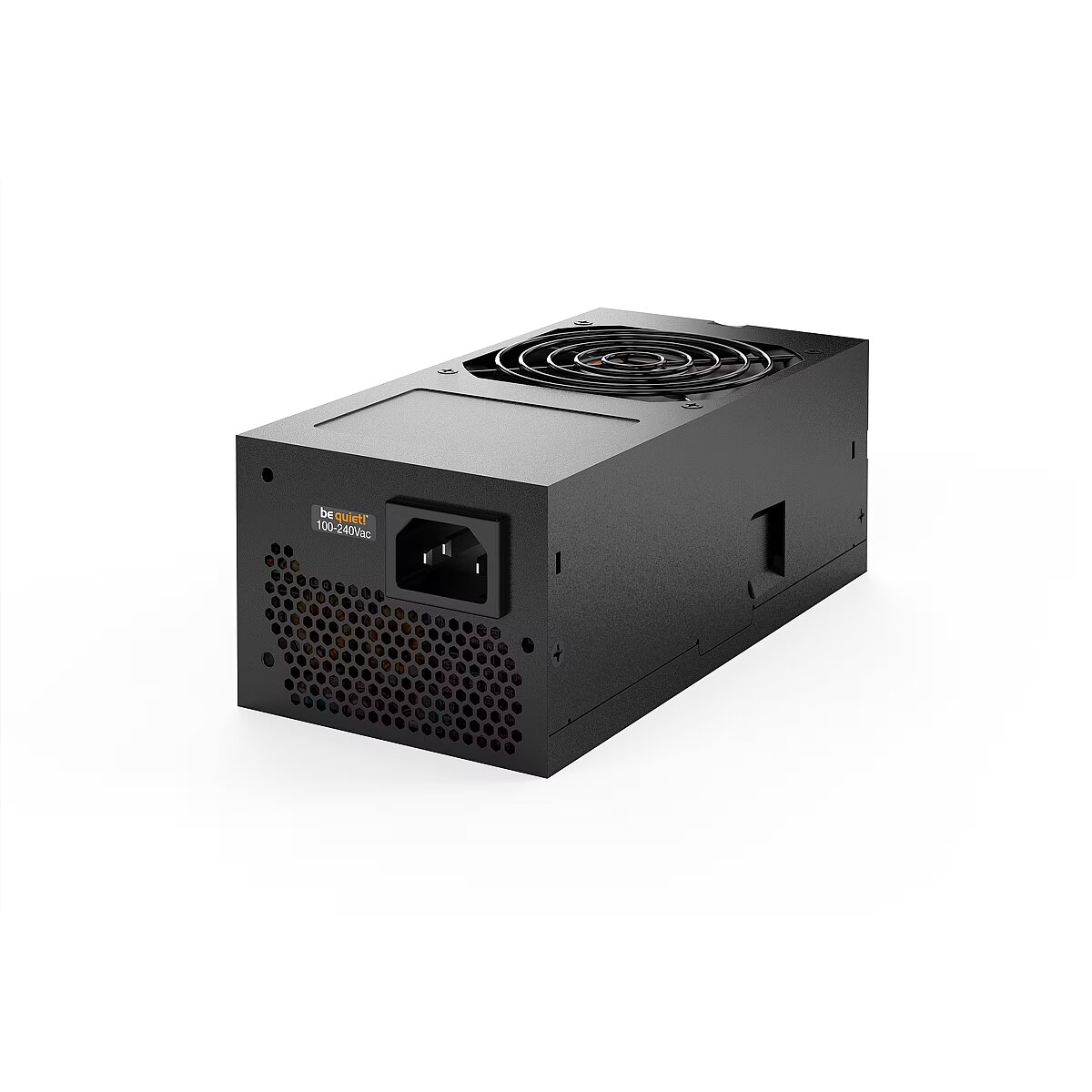

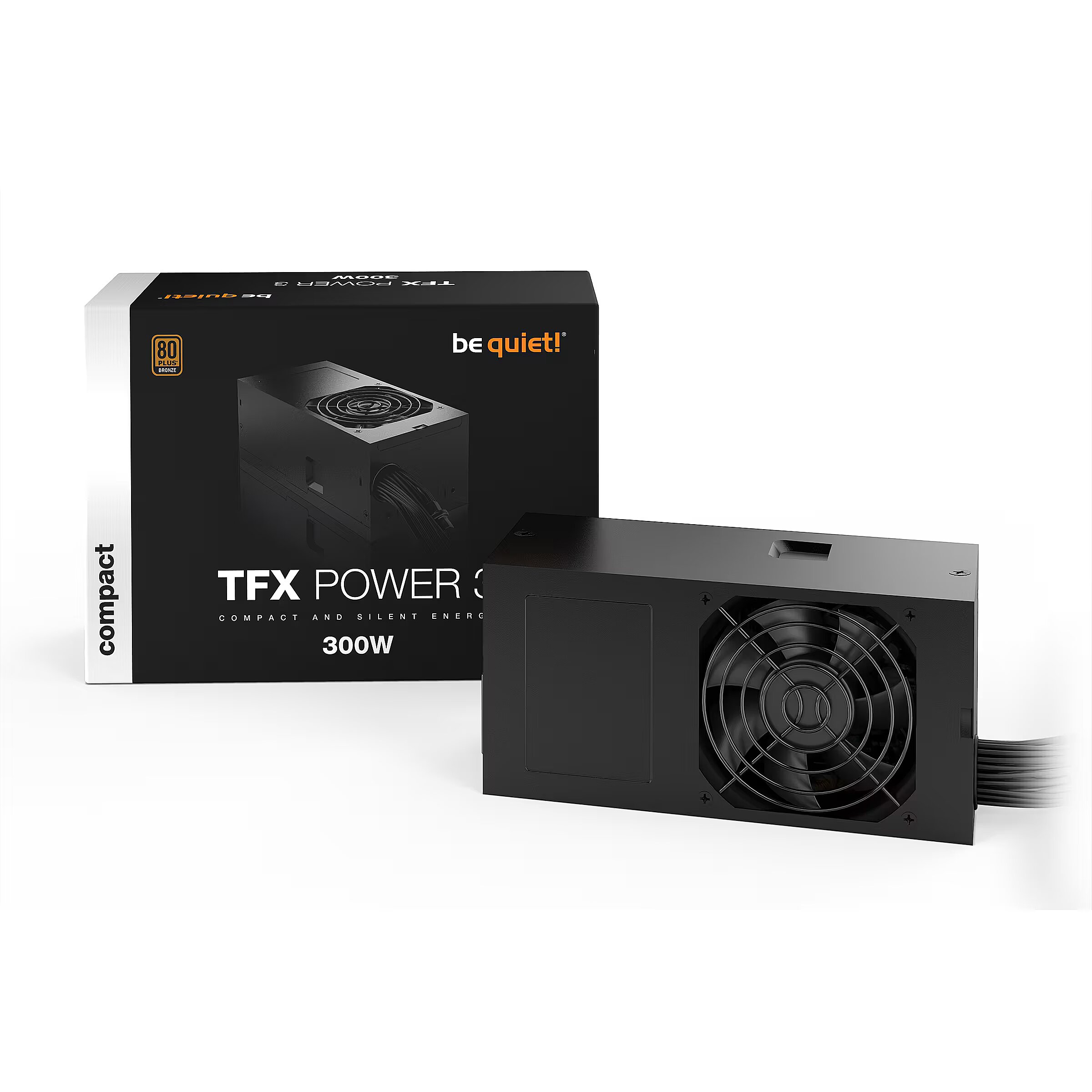

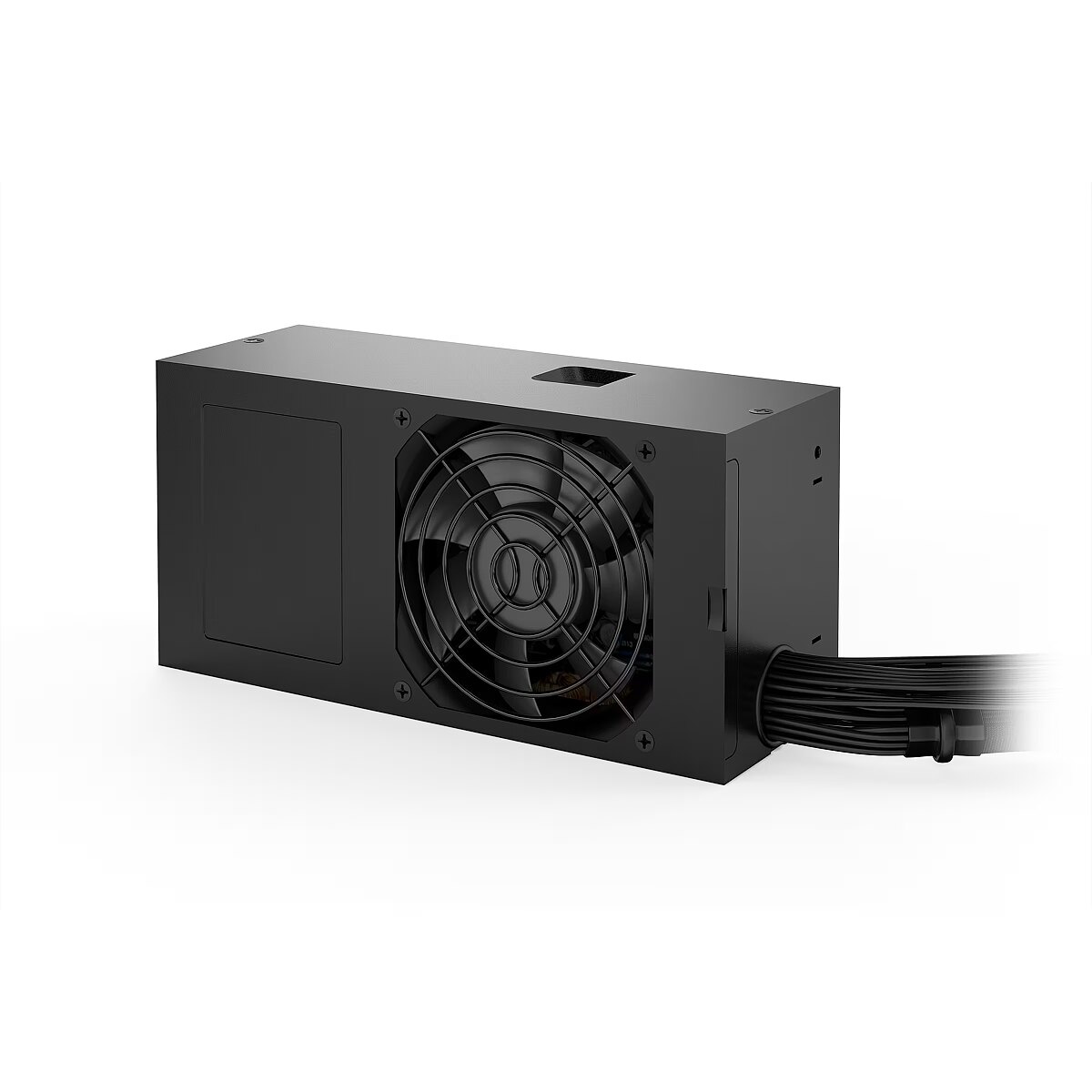

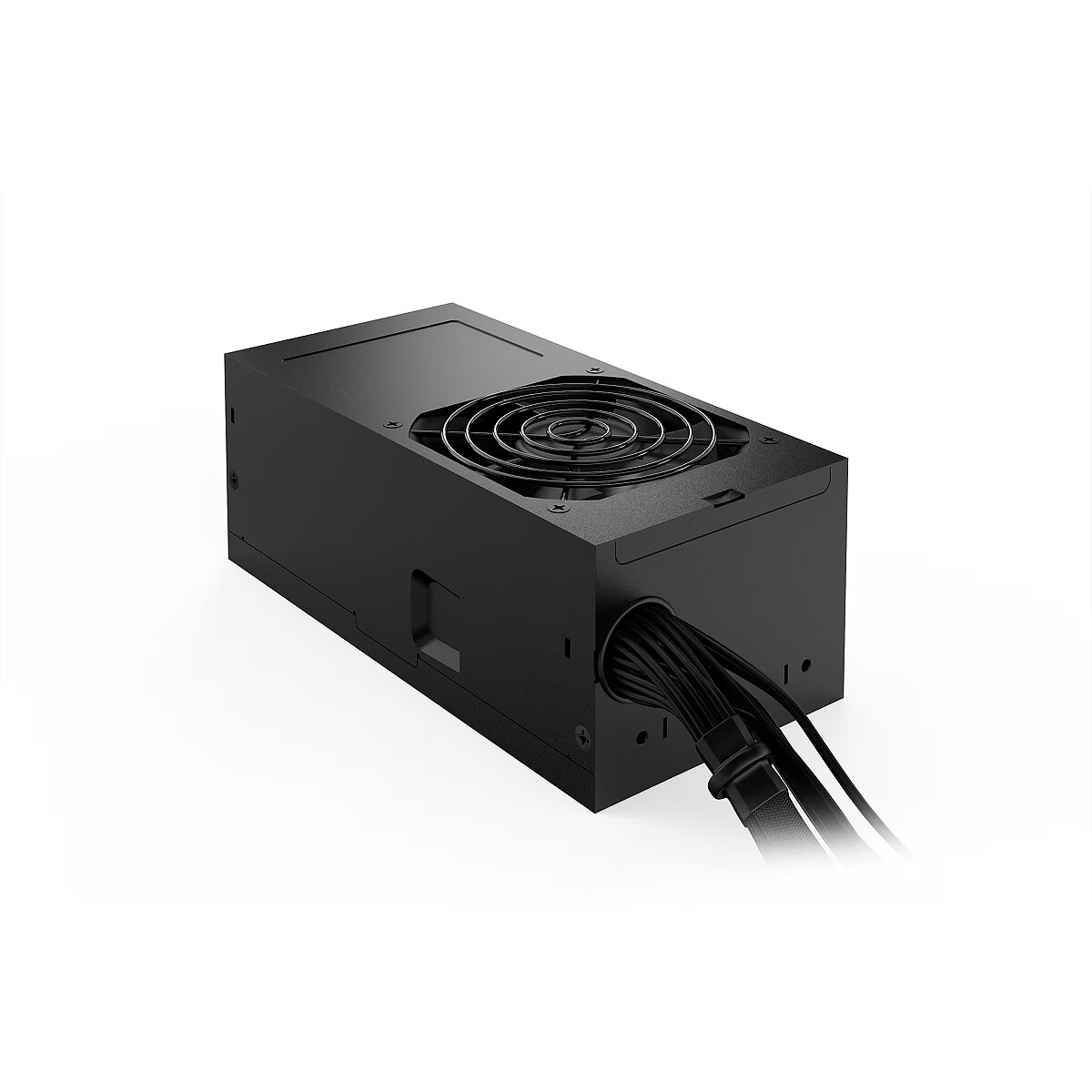

Be Quiet TFX Power 3, 300W, 80PLUS Bronze
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 10.12.2024
- Delivery to Omniva parcel machine free of charge: 10.12.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 10.12.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 10.12.2024
- Delivery to address in Riga 3.99 €: 10.12.2024
- Delivery to address in Latvia 6.99 €: 10.12.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 05.12.2024 after 15:00
Main product parameters All parameters
- Producer: Be Quiet
- Power output: 300W
- 80 PLUS certification: 80 PLUS Bronze
- Fan size:
- Modular cables: Nav
- Processor plug-in: 1 x 4-pin EPS
- PCI-E: 1 X 6+2pin
Description
This Be Quiet brand power supply unit has an 80 PLUS Bronze energy efficiency certificate and a power output of 300W.
The power supply has been awarded the 80 PLUS Bronze energy efficiency certificate, which ensures at least 85% efficiency at 50% load. This indicates that at least 85 W out of 100 W of power received by the power supply from the electrical grid is delivered to the computer components, with the remaining 15 W being lost as heat.
The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.
This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.
This power supply unit does not have modular cables – all its cables are attached to the unit and are not detachable. Despite the simple design, it will fulfill its functions just as well as a power supply unit with modular cables.
This power supply manufacturer is Be Quiet. See all Be Quiet power supplies here.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: TFX
Power output
300W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Bronze
Total amperage (+12V)
: 25A
Fan size
:
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Nav
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 1 x 4-pin EPS
Motherboard power
: 20+4pin
PCI-E
: 1 X 6+2pin
SATA cconnectors
: 3
4pin Molex
: 2
More detailed specification
Brand - be quiet!
BrandPartCode - BN322
category - PC Components|Power Supplies|80 Plus Bronze
Category - Power Supply Units
Category_1 - Power
Category_2 - Computer Power Supplies
code - BN322
Design - Cooling type - Active
Design - Fan diameter - 8 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
ean - 4260052188286
EAN_code - 4260052188286
GTIN - 4260052188286
Logistics data - Harmonized System (HS) code - 84733020
Logistics data - Products per shipping (inner) case - 6 pc(s)
Logistics data - Shipping (inner) case gross weight - 8.25 kg
Logistics data - Shipping (inner) case height - 19.5 cm
Logistics data - Shipping (inner) case length - 47.4 cm
Logistics data - Shipping (inner) case width - 27.5 cm
LongDesc - TFX Power 3 300W Bronze, the advanced be quiet! compact PSU gives you more for your mini or media PC. It supports the latest standards while providing solid voltages and enough power to support a PCIe graphics card. The combination of quiet operation and reliability make the TFX Power 3 300W Bronze the perfect choice for PCs with TFX form factor.80 PLUS® BRONZE CERTIFICATIONEfficient operationThe 80 PLUS Bronze certification of TFX Power 3 300W Bronze with an efficiency rating of up to 88.3% is convincing evidence of this PSU’s power saving operation.STRONG SINGLE 12V RAILFor maximum powerThe 12V rail design supports high stability as the CPU receives its power through an independent rail. For demanding peripherals like a graphics card, a PCIe connector is included. This makes the TFX Power 3 300W Bronze the ideal PSU for all who strive for enough power to support small systems at low noise.QUIET AND SAFEOptimized for low-noise operationThe temperature-controlled fan ensures a quiet operation and produces little wasted heat. Since TFX Power 3 300W Bronze meets the latest safety requirements, it defends the PC system against overcurrents, over- and undervoltage, short circuit, overloads and comparable failures.
LongProductName - 300W, ATX TFX12V V2.52, EPS 2.92, 1x 80mm (1859RPM), 80 PLUS Bronze
LongSummaryDescription - be quiet! TFX POWER 3 300W Bronze. Total power: 300 W, AC input voltage: 100 - 240 V, Peak power: 350 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 35 cm, SATA power cable length: 300,450,600 mm. Purpose: PC, Power supply unit (PSU) form factor: TFX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 8 cm. Width: 85 mm, Depth: 175 mm, Height: 65 mm
Manufacturer - Be quiet
Manufacturer_code - BN322
Name - be quiet! TFX Power 3 80 + Bronze 300W TFX - BN322
name - be quiet! TFX Power 3 Netzteil, 80 PLUS Bronze - 300 Watt
Packaging data - Package depth - 80 mm
Packaging data - Package height - 215 mm
Packaging data - Package type - Box
Packaging data - Package weight - 1.24 kg
Packaging data - Package width - 159 mm
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 2.52
Performance - Bearing technology - Rifle
Performance - EPS version - 2.92
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Noise level - 29.1 dB
Performance - Power supply unit (PSU) form factor - TFX
Performance - Purpose - PC
Performance - Safety - CE, CB, TÜV, CU
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU P4 connector (4-pin) - 1
Ports & interfaces - CPU power cable length - 35 cm
Ports & interfaces - Floppy disk drive cable length - 60 cm
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power cable length - 35 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 3
Ports & interfaces - PCI Express power cable length - 40 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 300,450 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Ports & interfaces - SATA power cable length - 300,450,600 mm
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 85 W
Power - Combined power (+5V) - 85 W
Power - Combined power (+12V) - 300 W
Power - Efficiency - 86.4%
Power - Hold time - 22 ms
Power - Input current - 4/1.5 A
Power - Maximum input current (@110V) - 4 A
Power - Maximum input current (@220V) - 1.5 A
Power - Max output current (+3.3V) - 16 A
Power - Max output current (+5V) - 16 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V1) - 25 A
Power - Max output current (-12V) - 0.3 A
Power - Peak power - 350 W
Power - Power factor - 0.96
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current, Over power, Over voltage, Short circuit, Under voltage
Power - Total power - 300 W
ProductName - TFX POWER 3 300W Bronze
ShortSummaryDescription - be quiet! TFX POWER 3 300W Bronze, 300 W, 100 - 240 V, 350 W, 50 - 60 Hz, 4/1.5 A, 4 A
Technical details - Compliance certificates - RoHS, WEEE
Technical details - Sustainability certificates - ENERGY STAR, ErP
Technical details - Sustainability compliance - Yes
Title - be quiet! TFX POWER 3 300W Bronze power supply unit 20+4 pin ATX Black
URL - https://www.bequiet.com/en/download/powersupply/2312?utm_source=newsletter
WarrantyInfo - 3 Years
Weight - 1,25
Weight & dimensions - Depth - 175 mm
Weight & dimensions - Height - 65 mm
Weight & dimensions - Weight - 900 g
Weight & dimensions - Width - 85 mm
