ID: 1155300
Product code: STC500
In stock 5 units
Warranty: 2 years

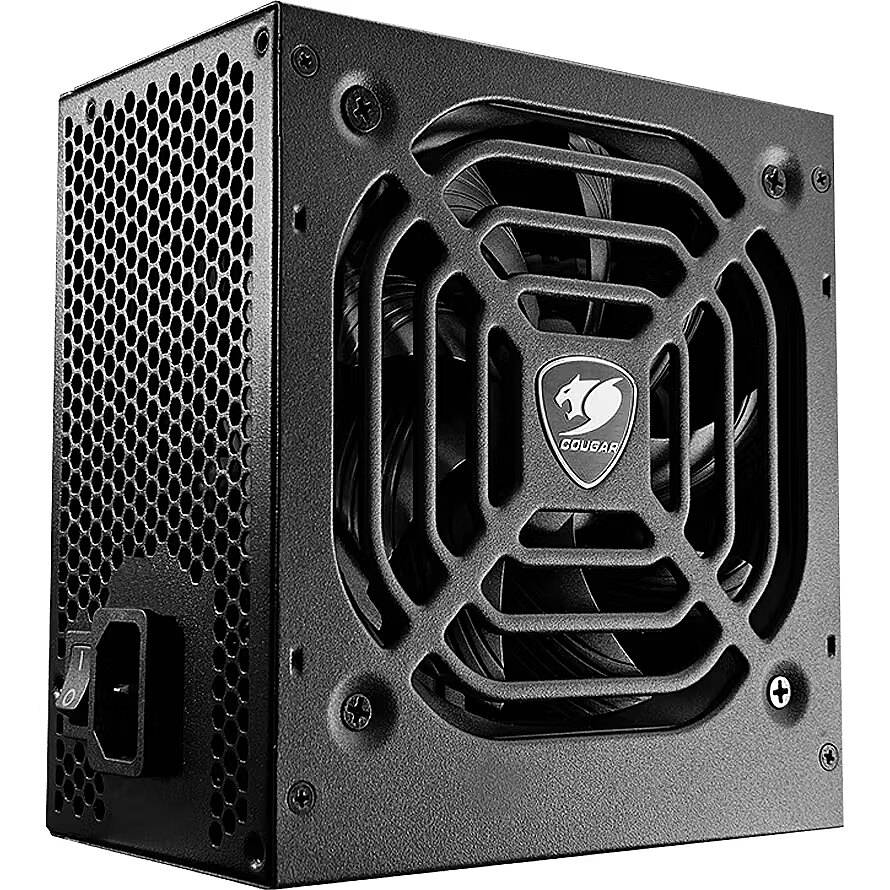

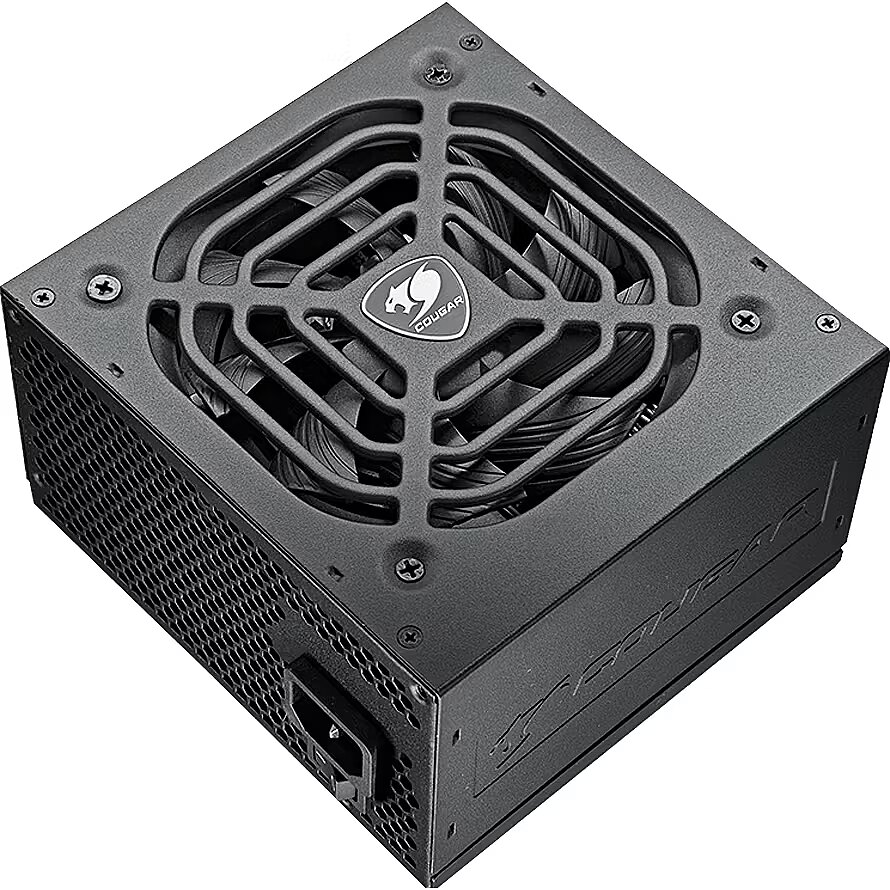

Cougar STC500, 500W, 80PLUS
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: on Thursday, 28.11.2024
- Delivery to Omniva parcel machine free of charge: on Thursday, 28.11.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: on Thursday, 28.11.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: on Thursday, 28.11.2024
- Delivery to address in Riga 3.99 €: on Thursday, 28.11.2024
- Delivery to address in Latvia 6.99 €: on Thursday, 28.11.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: on Thuesday, 26.11.2024 after 15:00
Main product parameters All parameters
- Producer: Cougar
- Power output: 500W
- 80 PLUS certification: 80 PLUS (White)
- Fan size: 120 mm
- Modular cables: Nav
- Processor plug-in: 1 x 8-pin(4+4) EPS
- PCI-E: 2 X 6+2pin
Description
Available for purchase is a power supply produced by Cougar with a power output of 500W. The product has been awarded an 80 PLUS (White) energy efficiency certificate.
120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.
80 PLUS (White) energy efficiency certificate, which this power supply unit has received, guarantees at least 80% efficiency. In other words, for every 100 W of energy the power supply unit gets from the electrical grid, at least 80 W goes to your computer components, while the remaining 20 W is lost as heat.
The color of this power supply is Melna. The cable color is Raiba and they are flat.
This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.
This power supply has no removable cables and all cables are attached to the power supply. It has a simple design, but it works just as well as a power supply with modular cables.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
500W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS (White)
Total amperage (+12V)
: 38A
Fan size
: 120 mm
Functionality
Cable colour
: Raiba
Lighting
: Nav
Color
: Melna
Modular cables
: Nav
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 1 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 2 X 6+2pin
SATA cconnectors
: 5
4pin Molex
: 2
More detailed specification
+3.3V - 16 A (55 W)
+5V - 16 A (55 W)
+5VSB - 2.5 A
+12V - 38 A (456 W)
-12V - 0.3 A
4-pin Peripheral Power Connector - 2
4/8-pin +12V Power Connector - 1
6/8-pin PCI Express Connector - 2
20+4-pin Main Connector - 1
Box Weight Brutto (kg) - 18.4 kg
Circuit Protection - Over Voltage Undervoltage Over Temperature Short Circuit Protection Over Power
EAN Code - 4710483774317
Efficiency - 86%
External Color - Melna
Fan Diameter - 120 mm
Fans Installed Quantity - 1
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/240119150028948286.jpg
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/240119150028991351.jpg
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/240119150029038324.jpg
Included Accessories - Īsa lietotāja rokasgrāmata
Input Frequency - 50 Hz
Input Voltage - AC 200-240 V
Maximum Non-Operating Ambient Temperature - 70 °C
Maximum Non-Operating Humidity - 95 %
Maximum Operating Ambient Temperature - 40 °C
Maximum Operating Humidity - 85 %
Maximum Output Power - 500 W
Minimum Non-Operating Ambient Temperature - -40 °C
Minimum Non-Operating Humidity - 5 %
Minimum Operating Ambient Temperature - 10 °C
Minimum Operating Humidity - 20 %
Package Type - Box
Packs in Box - 9
Pack Weight Brutto (kg) - 1.76 kg
Pack Weight Netto (kg) - 0.28 kg
Pieces in pack - 1
Power Adapter and Power Supply Features - Active PFCLow noise
Power Device Location - Plug-in-module
Power Device Type - Power Supply
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=240117074000035621&THEME=asbis&LANG=lv
ProductCategory - Kabeļi
ProductCode - STC500
ProductDescription - COUGAR PSU STC500 / 500W
ProductType - Power Supply Unit
Retail Packaging Net Weight Carton - 0.25 kg
Retail Packaging Net Weight Plastic - 0.03 kg
S-ATA Connector - 5
Vendor - COUGAR GAMING
Warranty Products Returnable - Yes
Warranty Term (month) - 24 mēneši
Warranty validation Criteria - Serial Number
+5V - 16 A (55 W)
+5VSB - 2.5 A
+12V - 38 A (456 W)
-12V - 0.3 A
4-pin Peripheral Power Connector - 2
4/8-pin +12V Power Connector - 1
6/8-pin PCI Express Connector - 2
20+4-pin Main Connector - 1
Box Weight Brutto (kg) - 18.4 kg
Circuit Protection - Over Voltage Undervoltage Over Temperature Short Circuit Protection Over Power
EAN Code - 4710483774317
Efficiency - 86%
External Color - Melna
Fan Diameter - 120 mm
Fans Installed Quantity - 1
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/240119150028948286.jpg
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/240119150028991351.jpg
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/240119150029038324.jpg
Included Accessories - Īsa lietotāja rokasgrāmata
Input Frequency - 50 Hz
Input Voltage - AC 200-240 V
Maximum Non-Operating Ambient Temperature - 70 °C
Maximum Non-Operating Humidity - 95 %
Maximum Operating Ambient Temperature - 40 °C
Maximum Operating Humidity - 85 %
Maximum Output Power - 500 W
Minimum Non-Operating Ambient Temperature - -40 °C
Minimum Non-Operating Humidity - 5 %
Minimum Operating Ambient Temperature - 10 °C
Minimum Operating Humidity - 20 %
Package Type - Box
Packs in Box - 9
Pack Weight Brutto (kg) - 1.76 kg
Pack Weight Netto (kg) - 0.28 kg
Pieces in pack - 1
Power Adapter and Power Supply Features - Active PFCLow noise
Power Device Location - Plug-in-module
Power Device Type - Power Supply
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=240117074000035621&THEME=asbis&LANG=lv
ProductCategory - Kabeļi
ProductCode - STC500
ProductDescription - COUGAR PSU STC500 / 500W
ProductType - Power Supply Unit
Retail Packaging Net Weight Carton - 0.25 kg
Retail Packaging Net Weight Plastic - 0.03 kg
S-ATA Connector - 5
Vendor - COUGAR GAMING
Warranty Products Returnable - Yes
Warranty Term (month) - 24 mēneši
Warranty validation Criteria - Serial Number
