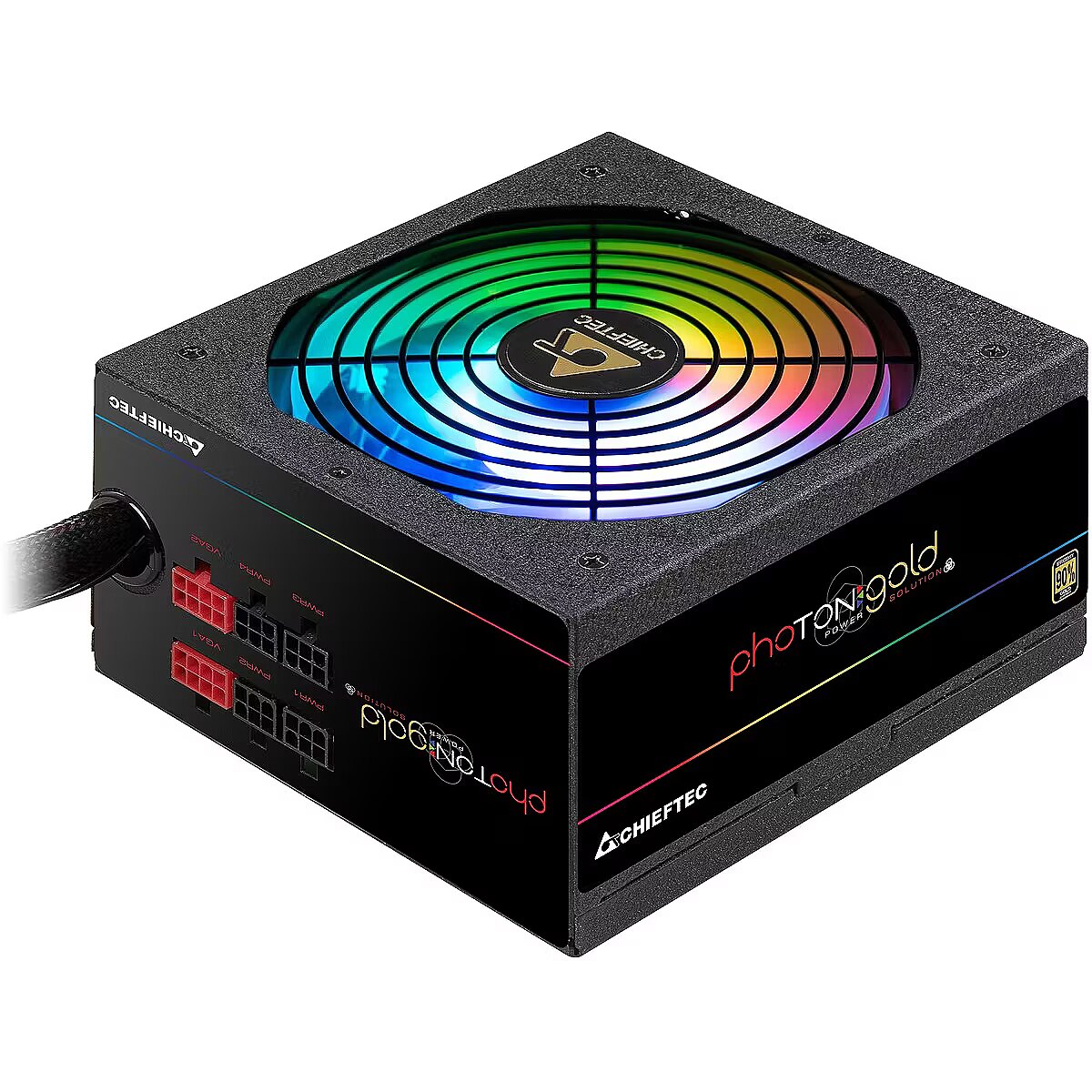

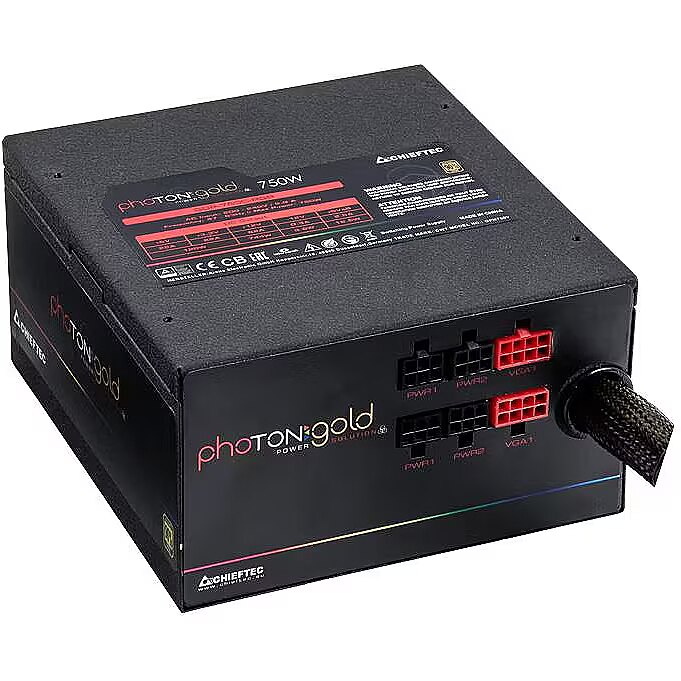

Chieftec Photon Gold Series RGB, 750W, 80PLUS Gold

Name: Chieftec Photon Gold Series RGB, 750W, 80PLUS Gold
Brand: Chieftec
SKU: 309373
Price: 104.15 EUR
Availability: OutOfStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 309373 Product code: GDP-750C-RGB

Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

Dateks.lv website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years

Compare

Main product parameters All parameters

Producer: Chieftec
Power output: 750W
80 PLUS certification: 80 PLUS Gold
Fan size: 140 mm
Modular cables: Semi-Modular
Processor plug-in: 1 x 8-pin(4+4) EPS
PCI-E: 4 X 6+2pin

Similar Products

Basic information
	This product Chieftec Photon Gold Series RGB, 750W, 80PLUS Gold	Gigabyte P750GM, 750W, 80PLUS Gold	Deepcool PN750M, 750W, Sleeved Cables, 80PLUS Gold, PCI-E 5.0	Gigabyte UD1000GM, 1000W, 80PLUS Gold	Gigabyte UD850GM, 850W, 80PLUS Gold
Show similar specs. Hide similar specs.	104.15 €	93.49 €	114.92 €	131.35 €	103.01 €
Cybenetics Efficiency certification	Nav	Cybenetics Platinum	Cybenetics Gold	Nav	Cybenetics Platinum
Cybenetics Noise level certification	Nav	Cybenetics Standard ++	Cybenetics Standard ++	Nav	Cybenetics Standard ++
Power supply type	ATX	ATX	ATX	ATX	ATX
Power output	750W	750W	750W	1000W	850W
80 PLUS certification	80 PLUS Gold	80 PLUS Gold	80 PLUS Gold	80 PLUS Gold	80 PLUS Gold
Total amperage (+12V)	62A	61A	62.5A	83.3A	70.8A
Fan size	140 mm	120 mm	120 mm	120 mm	120 mm
Functionality
Cable colour	Raiba	Melna	Melna	Melna	Melna
Lighting	RGB	Nav	Nav	Nav	Nav
Color	Melna	Melna	Melna	Melna	Melna
Modular cables	Semi-Modular	Fully-Modular	Fully-Modular	Fully-Modular	Fully-Modular
Ports and equipment
PCI-E 5.0	Nav	Nav	1 x 450W 12VHPWR	Nav	Nav
Processor plug-in	1 x 8-pin(4+4) EPS	2 x 8-pin(4+4) EPS	2 x 8-pin(4+4) EPS	2 x 8-pin(4+4) EPS	2 x 8-pin(4+4) EPS
Motherboard power	20+4pin	20+4pin	20+4pin	20+4pin	20+4pin
PCI-E	4 X 6+2pin	4 X 6+2pin	3 x 6+2pin	6 x 6+2pin	4 X 6+2pin
SATA cconnectors	Eight Core	Eight Core	Eight Core	Eight Core	Eight Core
4pin Molex	3	3	2	3	3

Description

We offer to purchase a Chieftec power supply unit with a power capacity of 750W, which has received the 80 PLUS Gold energy efficiency certification.

For polite mid-range computer game playing, a power supply with a 750W capacity will be suitable. This unit can power a computer with a powerful mid-range graphics card (for example, RTX 4070), multiple SSDs and hard drives, and a high-end processor.

This power supply unit is equipped with a 140 mm fan. Thanks to its massive size, it will provide excellent airflow, better cooling even at lower speeds, and will be noticeably quieter than a standard 120 mm fan.

The power supply has been awarded the 80 PLUS Gold energy efficiency certificate, which provides at least 90% efficiency at 50% load. This indicates that at least 90 W out of 100 W of power drawn from the electrical grid by the power supply is delivered to the computer components, with the remaining 10 W lost as heat.

The color of this power supply is Melna. The cable color is Raiba and they are flat.

ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.

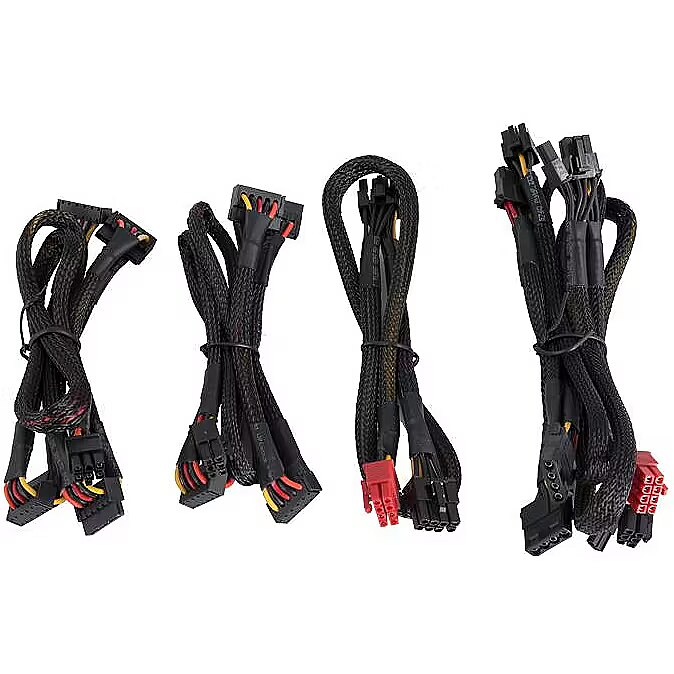

This power supply unit uses semi-modular cables. It has cables attached to the unit, and others that can be added or removed as needed. We recommend such power supplies for those who do not want a fully modular system but desire some flexibility.

The power supply is equipped with RGB lighting.

Basic information

Cybenetics Efficiency certification : Nav

Cybenetics Noise level certification : Nav

Power supply type : ATX

Power output 750W

The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.

80 PLUS certification : 80 PLUS Gold

Total amperage (+12V) : 62A

Fan size : 140 mm

Functionality

Cable colour : Raiba

Lighting : RGB

Color : Melna

Modular cables : Semi-Modular

Ports and equipment

PCI-E 5.0 : Nav

Processor plug-in : 1 x 8-pin(4+4) EPS

Motherboard power : 20+4pin

PCI-E : 4 X 6+2pin

SATA cconnectors : Eight Core

4pin Molex : 3

More detailed specification

Brand - Chieftec
BrandPartCode - GDP-750C-RGB
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category_1 - Power
Category_2 - Computer Power Supplies
Design - Cooling type - Active
Design - Fan location - Top
Design - Illumination - Yes
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
dimensionalWeight - 1039
Eans - 0753263075901
EAN_code - 0753263075901
GTIN - 753263075901
GTIN - 0753263075901
Logistics data - Harmonized System (HS) code - 84733020

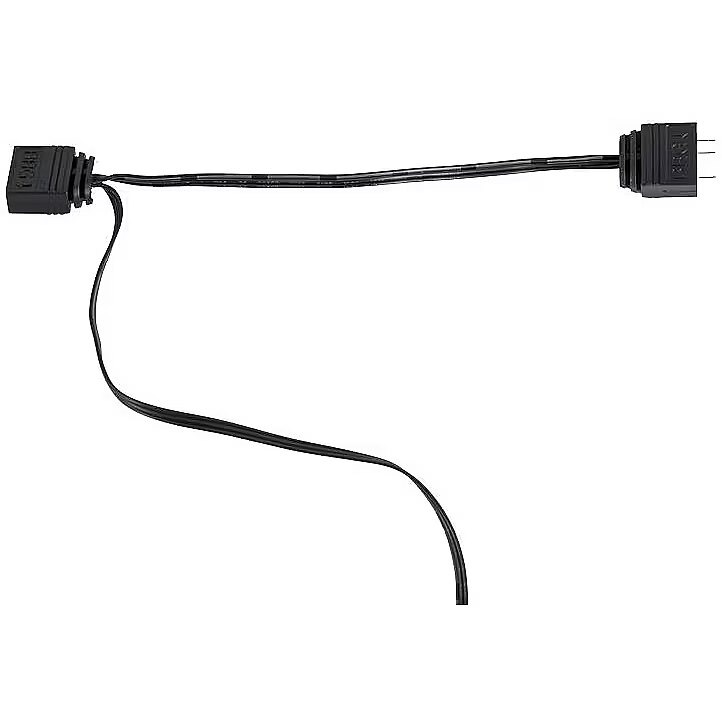

LongDesc - The highly innovative Photon GOLD series are aimed at gamers and enthusiasts, looking for the ultimate in power, longevity, performance and of course, RGB lightning effects and all this at a highly affordable price. The +5V addressable LED connector of the PSU offers an extreme wide range of lightening modes and effects, supports all renowned RGB lightening synchronization systems such as ASUS AURA SYNC, MSI MYSTIC LIGHT SYNC, ASROCK POLYCHROME SYNC and GIGABYTE RGB FUSION.Photon GOLD series in addition provide a vast number of predefined and MBindependent lightening modes and effects, which are set via a button on the rear of the power supply while a minute toggle switch, equally located on the rear of the PSU allows the choice between the M/B RGB control (if available) or the integrated modes and effects. With its vast amount of extra-long cables and an efficiency of 90% @230V, the models of the Photon GOLD series stands out as a perfect RGB gaming solutions.
LongProductName - 750W, 200-240V, 5A, 47-63 Hz, ATX, PS II, 20+4-pin, 4+4-pin, 4x 6+2-pin, 8x SATA, 3x Molex, Floppy, RGB
LongSummaryDescription - Chieftec Photon GOLD. Total power: 750 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, SATA power cable length: 150,550 mm, Peripheral (Molex) power cable length: 150,550 mm. Purpose: PC, Power supply unit (PSU) form factor: PS/2, Supported motherboard form factors: ATX. Product colour: Black, Cooling type: Active, Number of fans: 1 fan(s). Width: 150 mm, Depth: 160 mm, Height: 87 mm
Manufacturer - Chieftec
Manufacturer_code - GDP-750C-RGB
Name - Chieftec GDP-750C-RGB
Name - Chieftec Photon GDP-750C-RGB 750W ATX23 - Photon gold
Other features - Illumination colour - Blue
Other features - Illumination colour - Blue, Green, Red
Other features - Illumination colour - Green
Other features - Illumination colour - Red
Performance - Power supply unit (PSU) form factor - PS/2
Performance - Purpose - PC
Performance - Supported motherboard form factors - ATX
Ports & interfaces - Cabling type - Semi-Modular
Ports & interfaces - CPU power cable length - 55 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express power cable length - 55 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - Peripheral (Molex) power cable length - 150
Ports & interfaces - Peripheral (Molex) power cable length - 150,550 mm
Ports & interfaces - Peripheral (Molex) power cable length - 550
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Ports & interfaces - SATA power cable length - 150
Ports & interfaces - SATA power cable length - 150,550 mm
Ports & interfaces - SATA power cable length - 550
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 200 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Input current - 5 A
Power - Max output current (+3.3V) - 22 A
Power - Max output current (+5V) - 22 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V1) - 62 A
Power - Max output current (-12V) - 0.3 A
Power - Total power - 750 W
Producer - Chieftec
producerCode - GDP-750C-RGB
ProducerCode - GDP-750C-RGB
productName - Chieftec Photon GOLD power supply unit 750 W 20+4 pin ATX PS/2 Black
ProductName - Photon GOLD
productSize - Normal
ShortDescription - 750 | ATX | 140 mmRGB| 20 + 4 pin | 160mm x 87mm x 150mm | 90 GOLD | standard |
ShortSummaryDescription - Chieftec Photon GOLD, 750 W, 200 - 240 V, 47 - 63 Hz, 5 A, 120 W, 120 W
sizeX - 220
sizeY - 225
sizeZ - 105
Title - Chieftec Photon GOLD power supply unit 750 W 20+4 pin ATX PS/2 Black
URL - https://www.chieftec.eu/en/psus/ps-2/photon-gold-series/gdp-750c-rgb.html
WarrantyInfo - 24 Months
warrantyLength - 24
warrantyType - G
Weight - 2,60
weight - 2554
Weight & dimensions - Depth - 160 mm
Weight & dimensions - Height - 87 mm
Weight & dimensions - Weight - 2.3 kg
Weight & dimensions - Width - 150 mm
