Cougar GEX X2, 850W, 80PLUS Gold, PCI-E 5.0

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1117975 Product code: CGR GEX X2 850
In stock 8 units
Warranty: 2 years
135.38 €
Delivery options More about shipping
  • Delivery to Smartpost free of charge: 02.01.2025
  • Delivery to Omniva parcel machine free of charge: 02.01.2025
  • Piegāde uz DPD Pickup Paku Skapi free of charge: 02.01.2025
  • Delivery to Latvian post office, parcel locker or Circle K free of charge: 02.01.2025
  • Delivery to address in Riga 3.99 €: 02.01.2025
  • Delivery to address in Latvia 6.99 €: 02.01.2025
  • Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: on Friday, 27.12.2024 after 15:00
Main product parameters All parameters
  • Producer: Cougar
  • Power output: 850W
  • 80 PLUS certification: 80 PLUS Gold
  • Fan size: 120 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 3 x 6+2pin
Description

This Cougar brand power supply unit has an 80 PLUS Gold energy efficiency certificate and a power output of 850W.

850W power supply unit designed for a high-performance gaming computer or workstation. It will be able to power a top-tier processor (possibly overclocked), a high-end graphics card (for example, RTX 4070 Ti SUPER), multiple hard drives (SSD/HDD), and water cooling.

The diameter of this power supply unit's fan is 120 mm, which will ensure quiet operation in mid-range computers. For especially quiet power supply unit operation, we recommend selecting a fan with a 135 mm or 140 mm diameter.

The power supply has been awarded the 80 PLUS Gold energy efficiency certificate, which provides at least 90% efficiency at 50% load. This indicates that at least 90 W out of 100 W of power drawn from the electrical grid by the power supply is delivered to the computer components, with the remaining 10 W lost as heat.

The power supply unit contains a connector designed for modern graphics cards, such as the Nvidia GeForce RTX 4070 or more powerful ones, the 1 x 12VHPWR plug. Lower-level graphics cards (for example, RTX 4060) will suffice with a standard 8-pin connector.

The color of this power supply is Melna. The cable color is Melna and they are flat.

This power supply is assigned the ATX 3.0 standard. This means that the unit has a 16-pin (12VHPWR) connector, providing up to 600W of power for the newest generation (RTX 30 and 40 series) PCIe 5.0 graphics cards. Additionally, the ATX 3.0 standard supports a 200% power increase for 1 millisecond to ensure more stable power for the components.

The power supply has a Cybenetics A + noise level certification, which means that its noise level is 15-20 dB.

This power supply has modular cables, which provide the possibility to add video card cables, hard disk cables, etc. as needed from the supplied range. This way, the wire clutter in the computer is reduced, improving ventilation and the aesthetic factor (particularly important for those who purchase a partially transparent case).

Basic information
Cybenetics Efficiency certification : Cybenetics Platinum
Cybenetics Noise level certification : Cybenetics A +
Power supply type : ATX
Power output 850W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Gold
Total amperage (+12V) : 70.8A
Fan size : 120 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Fully-Modular

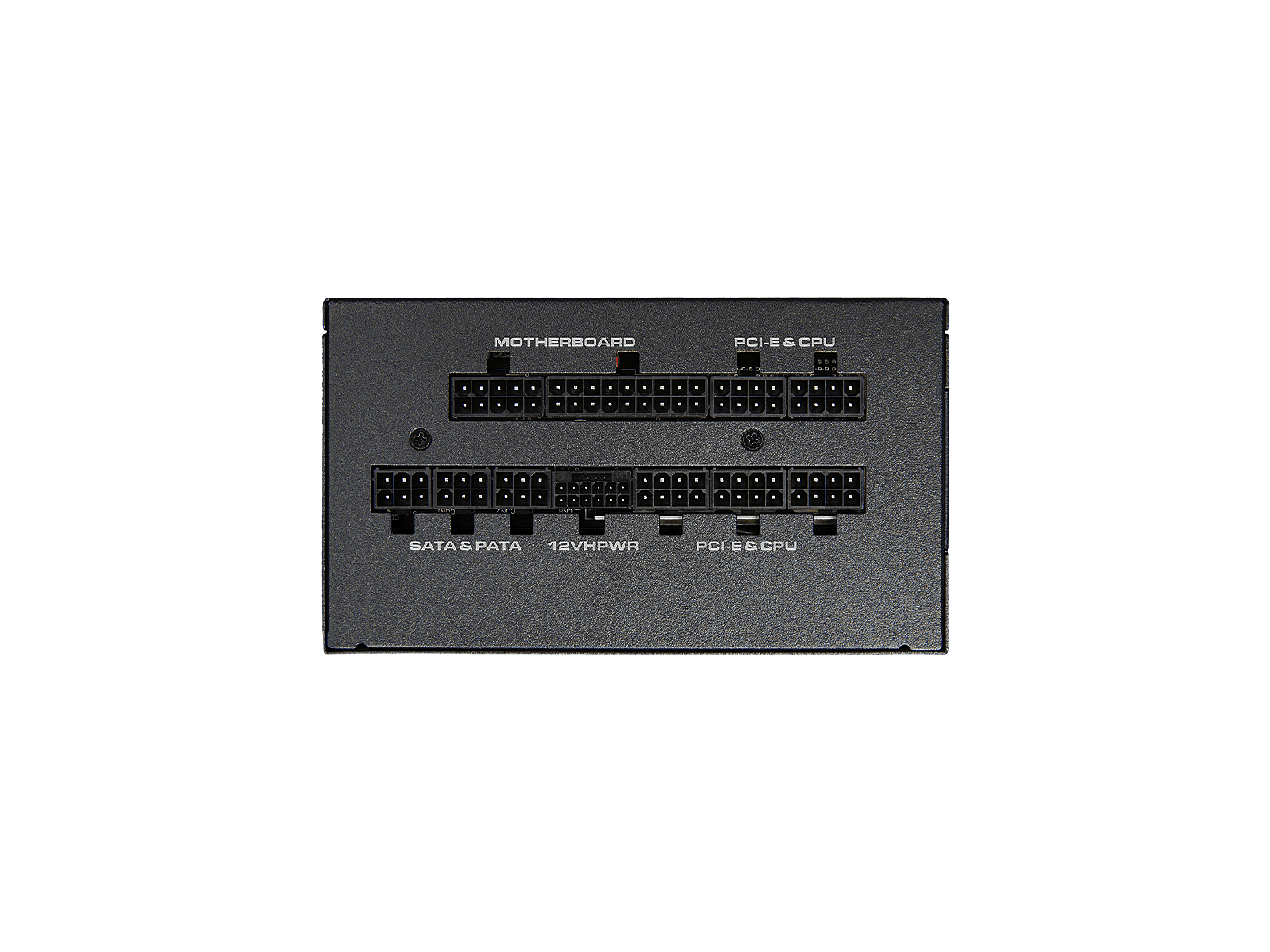

Ports and equipment
PCI-E 5.0 : 1 x 12VHPWR
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 3 x 6+2pin
SATA cconnectors : 10
4pin Molex : 2
Case
More detailed specification
+3.3V - 20 A
+5V - 20 A
+5VSB - 3 A (15 W)
+12V - 70.8 A (850 W)
-12V - 0.3 A (3.6 W)
4-pin Peripheral Power Connector - 2
4/8-pin +12V Power Connector - 1
6/8-pin PCI Express Connector - 3
8-pin +12V Power Connector - 1
16-pin PCI Express 5.0 Connector - 1
20+4-pin Main Connector - 1
80 Plus Certification - 80 Plus Gold
Box Height (mm) - 241 mm
Box Length (mm) - 550 mm
Box Weight Brutto (kg) - 15.68 kg
Box Width (mm) - 345 mm
Cable Included - Modular Cables
Circuit Protection - Over Voltage Undervoltage Over Temperature Over Current Short Circuit Protection Over Power
Depth (mm) - 140 mm
EAN Code - 4710483775437
Efficiency - 91%
External Color - Melna
Form Factor - ATX
Height (mm) - 86 mm
Image - https://content.it4profit.com/pimg/s/resize/600x600x600x600/240528160013736237.jpg
Image - https://content.it4profit.com/pimg/s/resize/600x600x600x600/240528160013808153.jpg
Included Accessories - Documentation
Input Frequency - 50/60 Hz
Input Power Connectors Quantity - 1
Input Power Connectors Type - IEC-320 C14
Input Voltage - AC 100-240 V
Modular Power Supply - Yes
Nominal Weight - 1.54 kg
Package Type - Box
Pack Height (mm) - 107 mm
Pack Length (mm) - 330 mm
Packs in Box - 5
Pack Weight Brutto (kg) - 2.76 kg
Pack Weight Netto (kg) - 1.16 kg
Pack Width (mm) - 215 mm
Pieces in pack - 1
Power Device Location - Internal
Power Device Type - Power Supply
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=240226064235616337&THEME=asbis&LANG=lv
ProductCategory - Kabeļi
ProductCode - CGR GEX X2 850
ProductDescription - Cougar | GEXX2 850 (Fully Modular) | PSU 80plus Gold | 850W | PCI-E 5.0 support
ProductType - Power Supply Unit
Retail Packaging Net Weight Carton - 0.93 kg
Retail Packaging Net Weight Plastic - 0.23 kg
S-ATA Connector - 10
Vendor - COUGAR GAMING
Warranty Products Returnable - Yes
Warranty Term (month) - 24 mēneši
Warranty validation Criteria - Serial Number
Width (mm) - 150 mm
