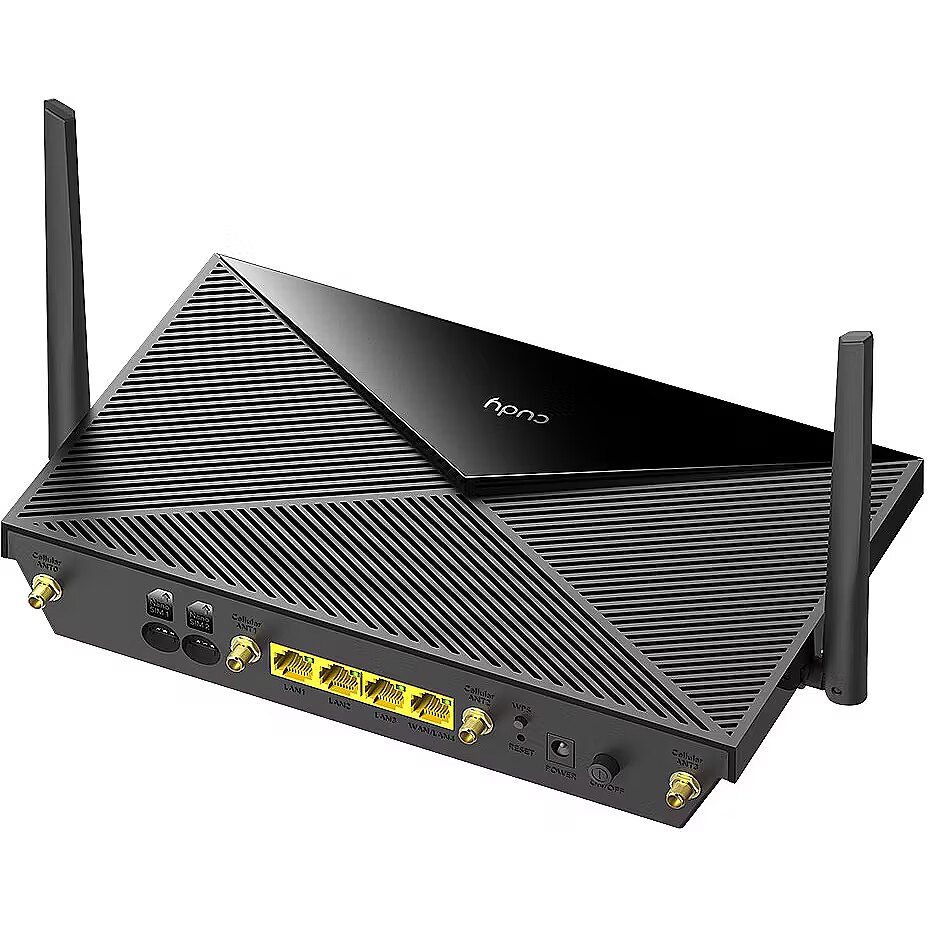

Cudy Router P5_EU Mesh Gigab AX3000 5G Dual SIM

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 974184 Product code: P5_EU
Can be ordered 67 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
304.58 €
Delivery options More about shipping
  • Delivery to Smartpost free of charge: 08.01.2025
  • Delivery to Omniva parcel machine free of charge: 08.01.2025
  • Piegāde uz DPD Pickup Paku Skapi free of charge: 08.01.2025
  • Delivery to Latvian post office, parcel locker or Circle K free of charge: 08.01.2025
  • Delivery to address in Riga 3.99 €: 08.01.2025
  • Delivery to address in Latvia 6.99 €: 08.01.2025
  • Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 06.01.2025 after 15:00
Main product parameters All parameters
  • Speed index: 3000
  • Type of device: LTE Router
  • Wi-Fi standard: Wi-Fi 6 (802.11ax)
Basic information
Speed index : 3000
Type of device LTE Router

Access Point - bezvadu piekļuves punkts, kas nodrošina kabeļu tīkla paplašināšanas pārraidi bezvadu tīklā izmantojot vienu LAN pieslēgvietu. Access point nav rūteris, un nespēj sadalīt vienu interneta pieslēguma adresi vairākiem datoriem, tamdēļ šo iekārtu slēdziet tikai aiz esoša kabeļu rūtera.

Router, jeb maršrutētājs - bezvadu piekļuves punkts, kas nodrošina viena interneta pieslēguma sadalīšanu vairākiem datoriem, gan caur tīkla vadiem, gan bezvadu tīklā. Parasti bezvadu maršrutētājam ir viena kabeļu interneta pieslēgvieta, četras datoru pieslēgvietas (kuras var papildināt, izmantojot switch komutatoru) un antenas, kas nodrošina apraidi datoriem un citām WiFi iekārtām.

Range Extender - bezvadu tīkla apraides attāluma pastiprinātājs. Paredzēts esoša signāla pastiprināšanai, lai palielinātu uzveršanas un pārraides attālumu.

Wifi adapter - Bezvadu tīkla karte, paredzēta datora pieslēgšanai pie bezvadu WiFi rūtera vai piekļuves punkta. PCI, PCI-E ir paredzēti galddatoriem, savukārt PCMCIA un USB - portatīvajiem datoriem. Jāpiebilst, ka lielākā daļa portatīvo datoru jau rūpnīcā tiek komplektēti ar bezvadu tīkla kartēm.

USB tīkla karte ir pēdējā izvēle, jo USB2.0 caurlaidības ātrums ir samērā zems ~22MB/s, kas nozīmē to, ka netiks izmantots bezvadu tīkla maksimālais iespējamais ātrums. Ja ir iespēja, labāk izvēlēties kādu citu pieslēguma veidu.

Wi-Fi standard : Wi-Fi 6 (802.11ax)
Functionality
3G/4G support Nav

A possibility to put the SIM card of mobile operators or the USB Dongle adapter in the router providing access to the 3G mobile Internet.

Prior to buying a router with the 3G support you should verify whether the device supports the 3G USB Dongle receiver of the particular mobile communications operator at the manufacturer's website.

Band mode Dual-Band

SingleBand is a standard wireless technology characteristic of all the modern wireless devices.

DualBand is 2.4GHz with an additional 5.0GHz channel providing better receiving of the signal and more stable high-speed operation. For using this function both devices, i.e. the router and the wireless network card, have to support the DualBand mode.

Ethernet 100/1000

LAN or ethernet cables connection slots operational mode.

10/100 MB.s is the standard speed characteristic of almost all the routers.

10/100/1000 MB.s, or GigaBit is tens of times faster standard which, in combination of GigaBit LAN network cards, provides great data transmission speed advantages between computers connected within the internal network. This solution is usually required in offices where large data volumes are copied between computers or fast Internet connection is used (no ~30 MB/s) simultaneously in several computers.



Ports and equipment
LAN ports : 4
More detailed specification
Accessories included - 5G WiFi6 Router Charger RJ45 ethernet cable Quick Installation Guide
Antenna - Detachable external
Antenna - Fixed external
Category - Root/Electronics/Networks and communication/Routers
Color - Black
Data transmission - LTE
Data transmission - UMTS
Description - P5 5G SA/NSA AX3000 WiFi 6 CPE 5G SA/NSA CPE (Sub-6) AX3000 dual-band Wi-Fi (2.4GHz & 5GHz) Qualcomm Chipset Inside Dual Nano SIM slots 4x Gigabit Ethernet (WAN Failover) 4 x Detachable Cellular Antenna 2 x Fixed WiFi antenna DNS over Cloudflare/NextDNS/Google PPTP/L2TP/OpenVPN/WireGuard/IPSec/ZeroTier
dimension depth - 240 mm
dimension height - 410 mm
Dimensions - 252.5 x 161 x 48.2 mm
dimension weight - 1199 g
dimension width - 60 mm
ean - 6971690792282
Eans - 6971690792282
Environment requirements - Operating temperature: from 0°C to +45°C Storage temperature: -40°C to +70°C Relative humidity: 5% to 95% non-condensing
guarantee - 24
guarantee_type - normal

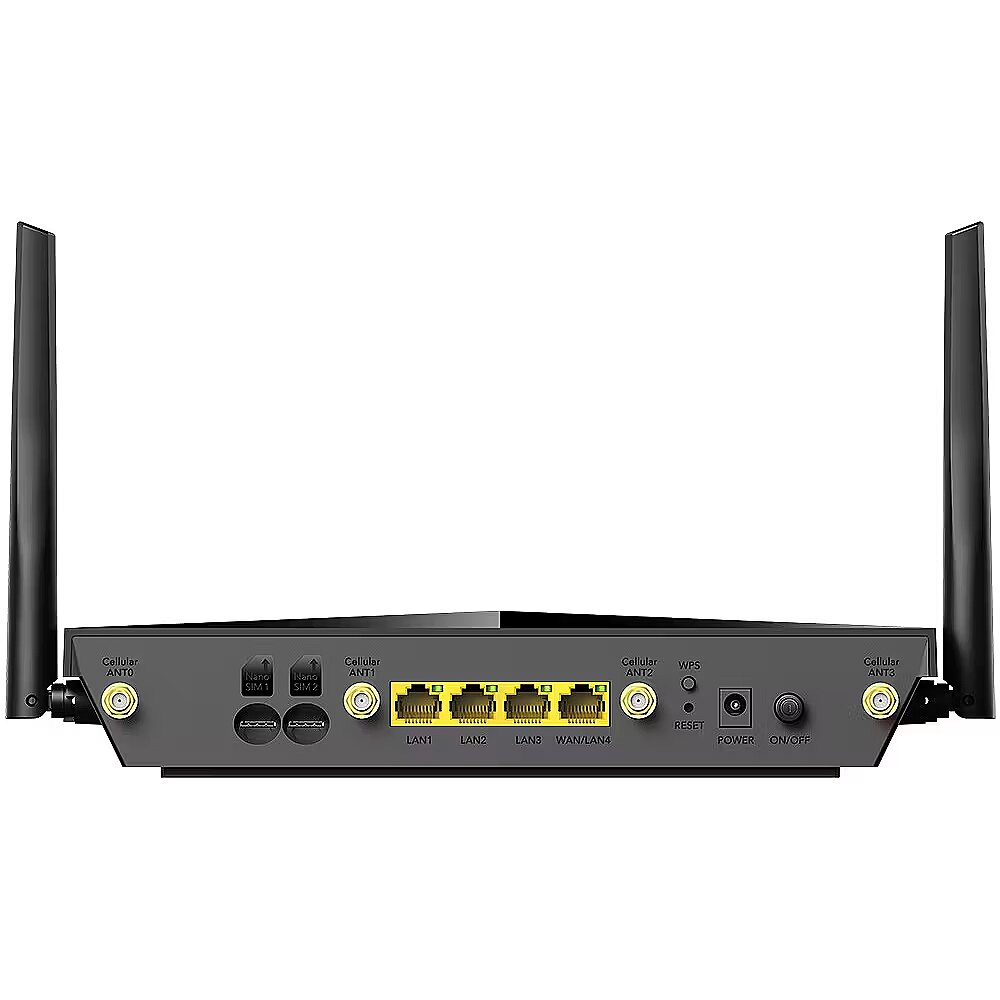

I/O ports - 1 x 10/100/1000Base-T RJ-45 port (WAN)
I/O ports - 2 x SIM card slot
I/O ports - 3 x 10/100/1000 Mbit/s
Max download speed - 2.8 Gb/s
Max upload speed - 900 Mbit/s
Model - P5
Name - Cudy P5
name - Router P5_EU Mesh Gigab AX3000 5G Dual SIM
Number of antennas - 6
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Other features - CPU: Qualcomm IPQ5018 (Dual Core 1GHz) 5G: Quectel 5G Module (Qualcomm X62) DRAM: 256MB DDR3 Flash: 128MB Nand WPS button reset button Data transmission speed Wi-Fi network: 2.4GHz (802.11ax/n/g/b, MIMO 574Mbps) 5GHz (802.11ax/ac/n/a, MIMO 2402Mbps) 5G Module data transmission speed: 5G SA Sub-6: Max. 2.4Gbps(DL)/900Mbps(UL) 5G NSA Sub-6: Max. 2.8Gbps(DL)/550Mbps(UL) LTE-FDD: Max. 1.6Gbps(DL)/200Mbps(UL) WCDMA: Max. 42Mbps(DL)/5.76Mbps(UL)
Power supply - AC Adapter: Input: 90 ~ 260V; Output: 12V, 2.5A DC Input (12V-2.5A) Barrel Plug
producer - Cudy
Producer - Cudy
ProducerCode - P5
Security -
ShortDescription -
SIM card - Not applicable
Software -
Special functions - DHCP: Server, Client List, Address Reservation NAT: Port Forwarding, Port Triggering, UPnP, DMZ Firewall: Mac Filter, IP Filter, Domain Filter DDNS: Compatible with 15 more DDNS providers VPN Sever & Client: PPTP/L2TP/OpenVPN/WireGuard/IPSec/Zerotier DNS over TLS: Cloudflare/NextDNS/Google Schedule: Schedule Reboot /Wi-Fi Schedule IPv6: Relay, Dynamic(SLAAC/DHCPv6), Static (Fixed IP), Passthrough, MAP-E (Dual-stack), DS-Lite (Dual-stack) Quality of Service (QoS) IPTV / VLAN configuration TTL configuration Band Selection CWMP Protocol: TR069 / TR098 / TR111 / TR181
Standards - 802.11a
Standards - 802.11ac
Standards - 802.11ax
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
Standards - IPv4
Standards - IPv6
Supported operating systems - Linux
Supported operating systems - Mac OS
Supported operating systems - Novell NetWare
Supported operating systems - Unix
Supported operating systems - Windows 7
Supported operating systems - Windows 8
Supported operating systems - Windows 8.1
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Supported operating systems - Windows 98 SE
Supported operating systems - Windows 2000
Supported operating systems - Windows NT
Supported operating systems - Windows Vista
Supported operating systems - Windows XP
System Requirements - Firefox 12.0, Chrome 20.0, Safari 4.0 or other Java-enabled browser
Type - GSM 3G/4G
Type - v
vendpn - P5_EU
