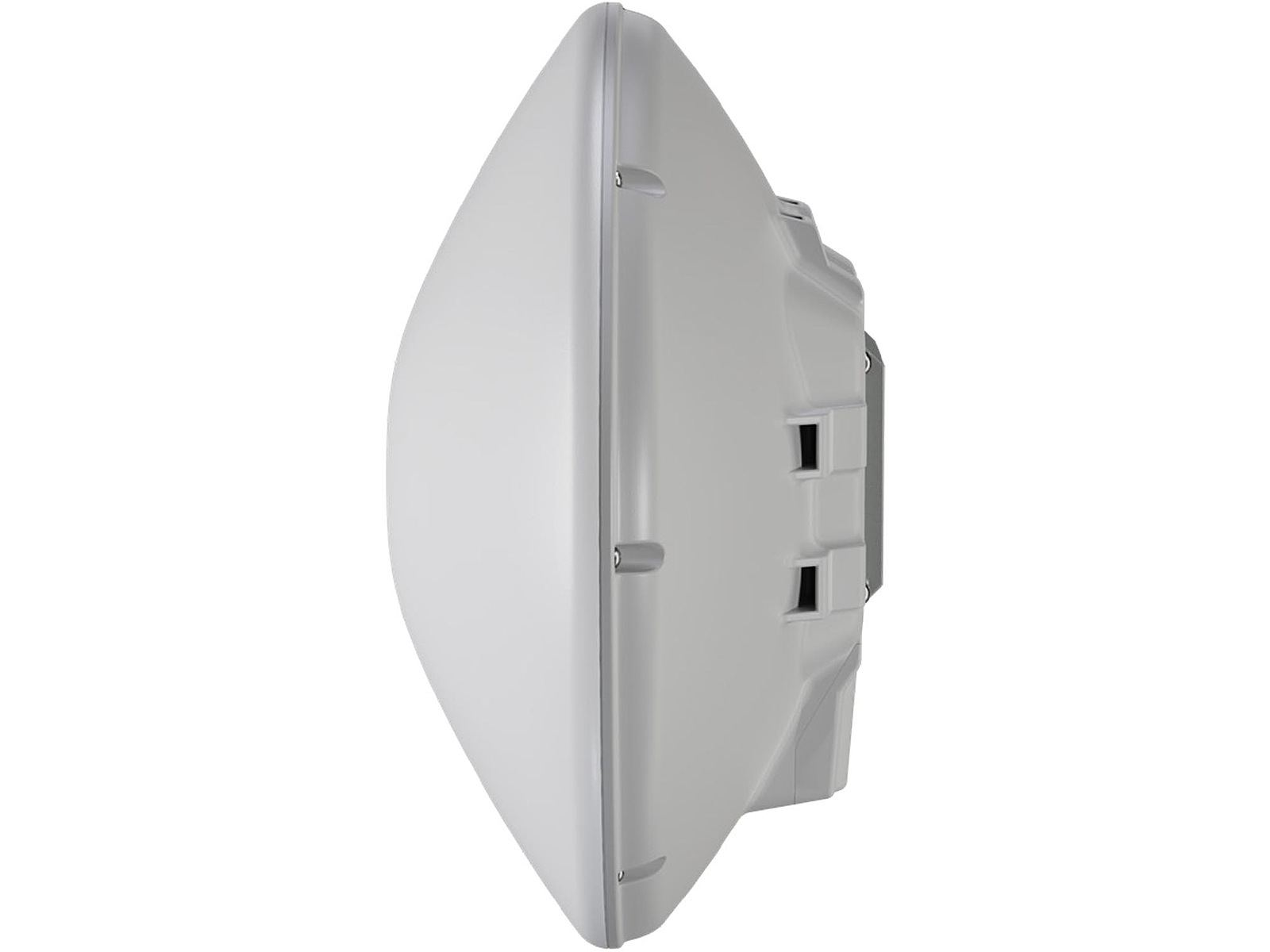

MikroTik ATL LTE18 kit

Accessories included -
Aero2 support - No
Antenna - Built-in
Antenna > Antenna type - Internal
brand - MikroTik
Card reader - None
category - MikroTik > Mobilā tīkla produkti > LHG
Category 1 - Netzwerk
Category 2 - Accesspoints
Category Code - WAE
Certificates - CE EAC ROHS
Code - ATLGM&EG18-EA
Color - White
Colour - White
Data transmission - LTE
Description -
Description - ATL LTE18 kit An advanced technology level (ATL) LTE solution with wide range MIMO 4x4 antennas for fast and stable connectivity in rural and urban areas. Make the most of your mobile coverage! The world keeps changing, but one thing remains certain: you’ve got to stay connected. Immediate access to information is vital. That’s why we’ve developed the ATL: an advanced technology level directional LTE solution for those who want to squeeze the most out of LTE base stations. ATL features a phenomenal Category 18 LTE modem and a Gigabit Ethernet port with PoE-in. Combined with the modern ARM CPU, this means speeds up to 1 Gbps, no bottlenecks! One of the key features is the 4x4 MIMO or multiple-input, multiple-output support. More antennas to work with – higher speed and better signal! You can expect fantastic performance in the cities with modern base stations. But ATL can also do wonders in rural areas as it supports a wider frequency band range for lower band antennas. There are 4 high-gain middle band (1.7 – 2.7 GHz) and 2 high-gain low band antennas (700 MHz – 1 GHz, LTE Band 28). Why is that important? Two reasons. First of all, the 700 and 800 MHz LTE band is one of the most popular frequency options in the world. It is used by countless mobile operators everywhere, so ATL will always be able to find some signal. And the second reason is the nature of the lower frequency itself: this type of radio wave can travel very far. It all depends on many factors, including how flat the terrain is, but rest assured – with ATL you are in good hands. At first glance, the ATL LTE18 kit looks like a spaceship, but there’s a good reason for that. This design prevents snow and water from collecting and freezing up. So not only is it compact and easy to ship, it can also handle some of the roughest weather conditions. ATL is an excellent tool for fast and stable connections in cold, snowy cities without having to clean the antenna all the time. And the LTE Category 18 modem is pretty future-proof, so you won’t have to worry about upgrades for quite some time.
dimension depth - 345 mm
dimension height - 195 mm
Dimensions - 315 x 315 x 170 mm
Dimensions - Diameter 315 mm x depth 170 mm
dimension weight - 2000 g
dimension width - 365 mm
EAN - 4752224008312
ean - 4752224008312
Environment requirements - Operating temperature: -40°C to 70°C
Features > Mesh Support - No
Features > Mobile Broadband - No mobile broadband
Features > MU-MiMO - Yes
Full Description Line - Antenna|700MHz-2.7GHz|Colour White
GSM network - None
guarantee - 12
guarantee_type - normal
height - 0.23 m
I/O ports - 1 x 10/100/1000 Mbit/s PoE
I/O ports - 1 x SIM card slot
length - 0.37 m
LTE network - 700 MHz
LTE network - 800 MHz
LTE network - 850 MHz
LTE network - 900 MHz
LTE network - 1800 MHz
LTE network - 2100 MHz
LTE network - 2300 MHz
LTE network - 2500 MHz
LTE network - 2600 MHz
Management, monitoring, configuration -
Manufacturer - MikroTik
Max download speed - 1.2 Gb/s
Max upload speed - 150 Mbit/s
Model - ATL LTE18
Model - ATL LTE18 kit
mpn - ATLGM&EG18-EA
MPN - ATLGM&EG18-EA
Name - ATL LTE18 kit | ATLGM&EG18-EA | 10/100/1000 Mbit/s | Ethernet LAN (RJ-45) ports 1 | Mesh Support No | MU-MiMO Yes | No mobile broadband | Antenna type Internal
Name - MikroTik ATLGM&EG18-EA
name - Router ATL LTE18 kit 4x4 MIMO, ATLGM&EG18-EA
Network Device Type - Antenna
Number of antennas - 6
Other features - Processor: Dual-core 88F3720 1.2 GHz RAM: 256 MB DDR3L Flash memory: 16 MB LTE modem: R11mL-EG18-EA
Other features > Ethernet LAN (RJ-45) ports - 1
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 330.00 mm
Package features > Gross height (mm) - 190.00 mm
Package features > Gross width (mm) - 330.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 84 pc(s)
Package features > Paper/Pasteboard - 100.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.12 kg
Package features > Volume (m3) - 0.02 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
PDF - https://www.blobs.lt/products/1/3/2/6/7/3/7a2873121b076e06b4812f583b656273/original.pdf
Performance > Ethernet LAN data rates - 10/100/1000 Mbit/s
Power supply - PoE 802.3af/at 12-57 V
producer - MikroTik
Producer product family - ATL LTE18 kit
Producer product name - ATLGM&EG18-EA
Security -
Shipping Box Depth Shipping/Package Box Dimensions - 34 cm
Shipping Box Height Shipping/Package Box Dimensions - 37 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.782 kg
Shipping Box Width Shipping/Package Box Dimensions - 19 cm
SIM card - Micro
Software - RouterOS v7
Special functions -
System Requirements -
Technical details > Gross weight - 0.42 kg
Technical details > Net weight - 0.30 kg
Technical details > Producer - MikroTik
title - MikroTik ATL LTE18 kit
Type - GSM 3G/4G
UMTS network - None
Unit Box Height - 0.37
Unit Box Length - 0.34
Unit Box Width - 0.19
Unit Brutto Volume - 0.0239 cubm
Unit Gross Weight - 1.78 kg
Unit Net Weight - 0.3 kg
Vendor Homepage - mikrotik.com/product/atl18
vendpn - ATLGM&EG18-EA
Warranty - 12
Warranty - 12 month(s)
Warranty - 12 months
Weight - 1.84
weight - 2.2 kg
width - 0.34 m
Wireless Frequency Range - 700MHz-2.7GHz
