Accessories included - RUTX10 router 18W power supply 2 x WiFi antenna (rotatable, male RP-SMA) Bluetooth antenna (magnetic mounting, RP-SMA plug, 1.5 m cable) Ethernet cable (1.5 m) Quick start guide RMS leaflet
Antenna - Detachable external
Antenna > Antennas quantity - 3
Category 1 - Netzwerk
Category 2 - Router
Certificates -
Code - RUTX10000000
Color - Aluminium

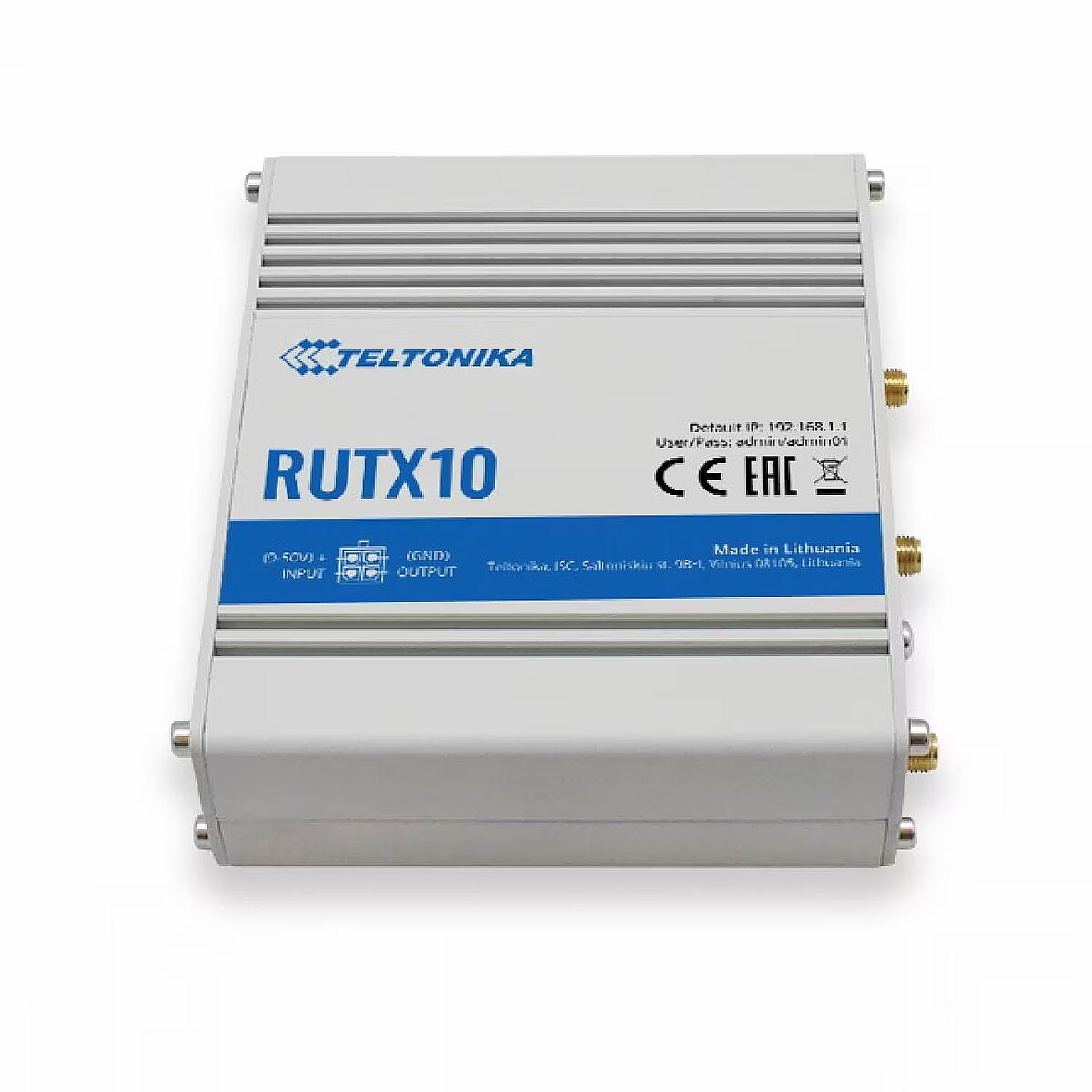

Description - RUTX10 router This professional router combines the best of wired and wireless routing with Gigabit Ethernet, Bluetooth LE and Wi-Fi AC. Advanced remote management capabilities, along with numerous supported security and networking protocols, make the RUTX10 an ideal choice for professional applications.
Description - TELTONIKA IOT ROUTER RUTX10 ETH+WIFI+BT
Design > Indication light - Yes
dimension depth - 70 mm
dimension height - 175 mm
Dimensions - 115 x 32.2 x 95.2 mm
dimension weight - 683 g
dimension width - 150 mm
EAN - 4779027312453
ean - 4779027312453
Environment requirements - Operating temperature: -40 C to 75 C Humidity during operation: 10% to 90% non-condensing
Features > Mesh Support - No
Features > Mobile Broadband - No mobile broadband
Features > MU-MiMO - No
guarantee - 24
guarantee_type - normal
Height - 150.000000
I/O ports - 1 x USB 2.0
I/O ports - 4 x 10/100/1000 Mbit/s
Length - 150.000000
Link - https://teltonika-networks.com/lt/product/rutx10/#features
Link - https://wiki.teltonika-networks.com/view/RUTX10
Management, monitoring, configuration - Routing: Static routes, Dynamic routes (BGP, OSPFv2, RIPv1/v2, EIGRP, NHRP), Routing rules VPN: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, WireGuard, ZeroTier Monitoring and management: WEB UI, CLI, SSH, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS Connection monitoring Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection Cloud solutions: RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx Hotspot: External/Internal Radius, SMS OTP, MAC authentication, Walled Garden Supported Hotspot Platforms: IronWiFi, HotspotSystem, Cloud4Wi, SAI + WiFi, MugiCloud, Purple.ai Services: DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Network shares (Samba), Traffic Logging Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, PPPoE, DHCP, Telnet
Management features > Quality of Service (QoS) support - Traffic priority queuing by source/destination, service, protocol or port, traffic priority quening by source/destination, service, protocol or port, WMM, 802.11e
Manufacturer - TELTONIKA
Manufacturer - Teltonika
ManufacturerPartNumber - RUTX10000000
Model - RUTX10
MPN - RUTX10000000
Name - Industrial Router | RUTX10 | 802.11ac | 867 Mbit/s | 10/100/1000 Mbit/s | Ethernet LAN (RJ-45) ports 4 | Mesh Support No | MU-MiMO No | No mobile broadband | 1 | 24 month(s)
name - Router RUTX10 3xLAN, 1xWAN, BLE, WI-FI
Name - Teltonika RUTX10 WiFi Dual Band Industrial Router
Network architecture - GigabitEthernet
Networking > IP routing - Static routing, Dynamic routing (Optional - BGP, OSPF v2, RIP v1/v2)
Number of antennas - 3-złącza na anteny
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Other features - Processor: Qualcomm, 4 x ARM Cortex A7, 717 MHz Flash memory: 256 MB RAM: 256 MB Bluetooth: 4.0 (Low energy)
Other features > Ethernet LAN (RJ-45) ports - 4
Other features > Special features - Bluetooth LE
Other features > USB ports quantity - 1
Other features > Wi-Fi - Yes
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 170 mm
Package features > Gross height (mm) - 70 mm
Package features > Gross weight - 0.68 kg
Package features > Gross width (mm) - 150 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 484 pc(s)
Package features > Paper/Pasteboard - 149 g
Package features > Tare weight (kg) - 0.149 kg
Package features > Volume (m3) - 0.001785 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Performance > Built-in processor - Yes
Performance > Ethernet LAN data rates - 10/100/1000 Mbit/s
Performance > Firmware upgradeable - Yes
Performance > Flash memory - 256 MB
Performance > Internal memory - 256 MB
Performance > Processor frequency - 717 MHz
Performance > Wi-Fi data rate (max) - 867 Mbit/s
PeriodofWarranty - 2 Y
Power supply - 4-pin socket, 9-50 VDC
producer - TELTONIKA
Producer product family - Industrial Router
Producer product name - RUTX10
Protocols > DHCP client - Static and dynamic IP allocation
Protocols > Supported network protocols - TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, MQTT (optional)
Security - Authentication: Pre-shared key, digital certificates, X.509 certificates Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) VLAN: Port and tag based VLAN separation WEB filter: Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter WiFi security: WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation
Security > Firewall - Pre-configured firewall rules via web-ui
Software - RutOS (OpenWrt based Linux OS)
Software > Operating system installed - RutOS (OpenWrt based linux OS)
Special functions -
Standards - 802.11a
Standards - 802.11ac
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
System Requirements -
Technical details > Net weight - 0.531 kg
Technical details > Producer - Teltonika
Technical details > Warranty - 24 month(s)
Type - xDSL
vendpn - RUTX10000000
Warranty - 24
Weight - 0.64
Weight - 0.600000
Weight - 355 g
Width - 170.000000
Wireless LAN features > Wi-Fi band - 802.11ac
Wireless LAN features > Wi-Fi standards - IEEE 802.3, IEEE 802.3u, 802.3az
