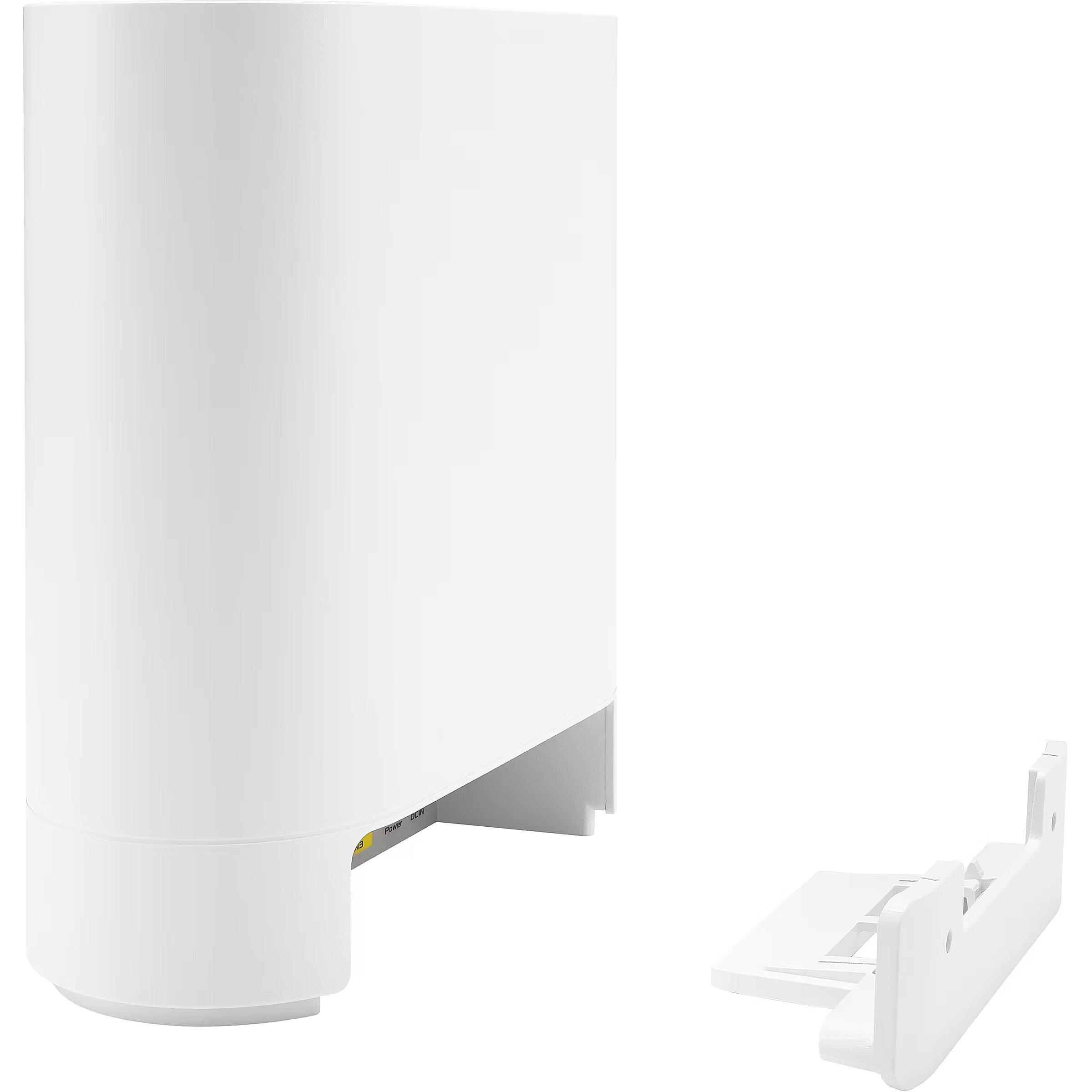

Accessories included - WiFi Expert EBM68 RJ-45 cable Charger Warranty Card Quick start guide Wall mounting kit
Antenna - Built-in
Antenna > Antennas quantity - 6
Antenna > Antenna type - Internal
Brand - ASUS
BrandPartCode - 90IG07V0-MO3A40
Category - Mesh Wi-Fi Systems
Category - Root/Electronics/Networks and communication/Routers
Category_1 - Network and Servers
Category_2 - Network - Routers
Certificates -
Code - 90IG07V0-MO3A40
Color - White
Description - The expert solution for your business Wi-Fi connectivity ASUS ExpertWiFi EBM68 delivers a fast, secure and scalable network with a broad set of features tailored to the needs of mid-sized enterprises. ExpertWiFi EBM68 can be used on its own or extended with other ASUS ExpertWiFi solutions, but in each case it can be easily adapted to the needs of your business network. Accelerating your business activities The fastest mesh routers on the market for business applications, for fast file downloads and interruption-free video conferencing. Maximum connectivity for your business Four times faster network bandwidth, which can reduce latency when multiple devices compete for network access. ExpertWiFi supports Virtual Local Area Network (VLAN) management. The VLAN management function allows you to easily, quickly and flexibly segment your wired and wireless network. You can separate one Ethernet port, which will provide additional security for your company EBM68 provides reliable and stable Internet access for business owners. With a dual-WAN failover solution, enterprises can easily switch to a backup WAN connection. This minimizes downtime due to network disruptions, ensuring the continued operation of retail service (POS) systems. Additionally, business owners can use their smartphone as a backup Internet connection by connecting it to the router's USB port. No complicated setup required, just plug and play. Extensibility and scalability ExpertWiFi networking products can scale your network to meet your needs, whether you are using it in a small business or a large manufacturing facility. With support for connections to up to 12 nodes, companies can significantly expand their network by adding additional ExpertWiFi devices. Additionally, EBM68 can easily support up to 100 active devices per node.
Design - Antennas quantity - 6
Design - Antenna type - Internal
Design - LED indicators - Power
Design - Product colour - White
Design - Product type - Mesh router
Design - Reset button - Yes
Design > Colour of product - White
dimension depth - 140 mm
dimension height - 260 mm
Dimensions -
dimension weight - 3360 g
dimension width - 400 mm
EAN - 4711081864530
ean - 4711081864530
Eans - 4711081864530
EAN_code - 4711081864530
Environment requirements -
Features - BeamForming - Yes
Features - Built-in processor - Yes
Features - DHCP server - Yes
Features - Firewall security - Keyword Filter, Network Service Filter, URL Filter
Features - Flash memory - 256 MB
Features - Internal memory - 1000 MB
Features - Port forwarding - Yes
Features - Processor frequency - 1.7 GHz
Features - Quality of Service (QoS) support - Yes
Features - SSID Broadcast - Yes
Features > Mesh Support - Yes
Features > Mobile Broadband - No mobile broadband
Features > MU-MiMO - No
GTIN - 4711081864530
guarantee - 36
guarantee_type - normal

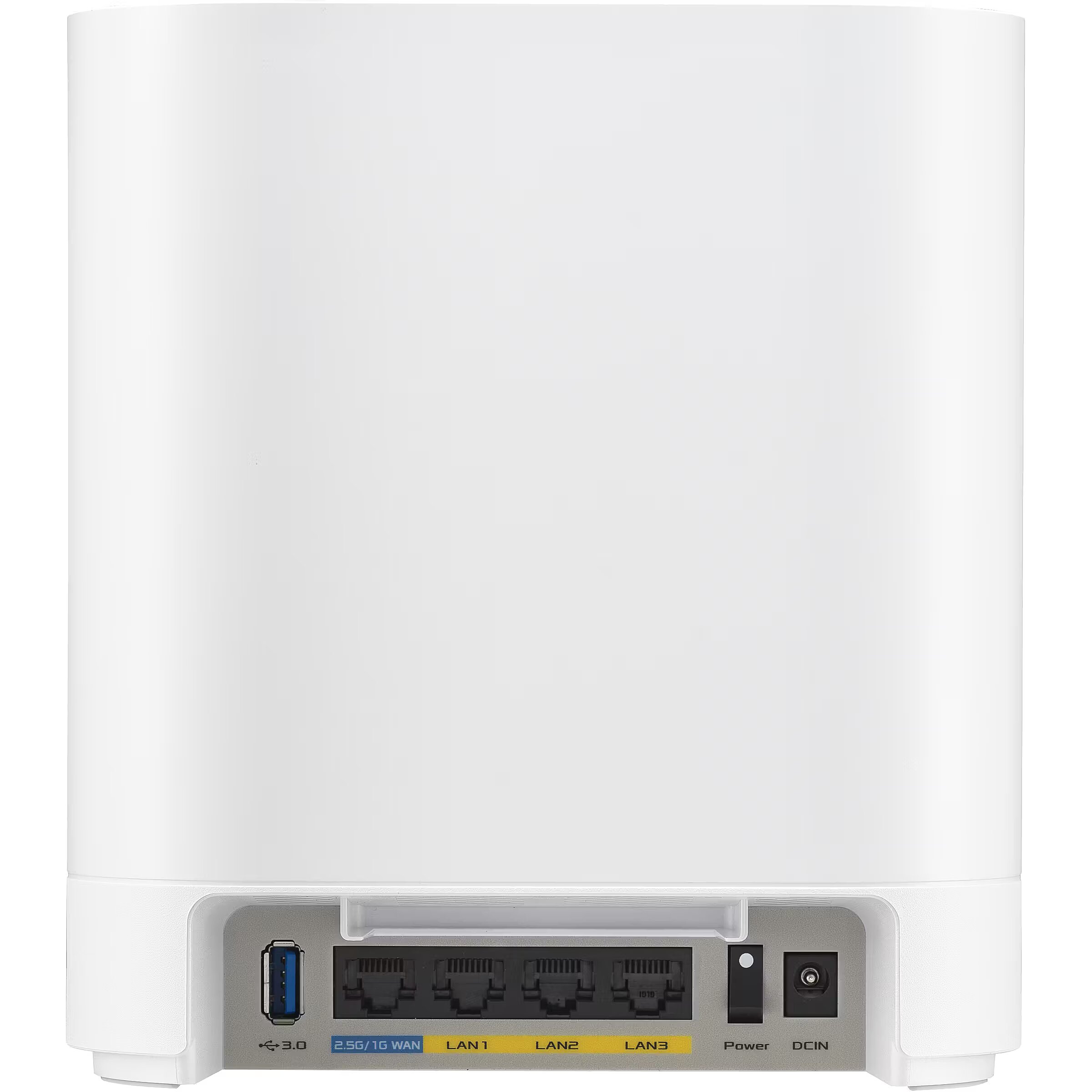

I/O ports - 1 x 10/100/1000/2500 RJ-45 port
I/O ports - 1 x USB 3.0
I/O ports - 3 x 10GBASE-T
LongDesc - Your Business WiFi Expert Within ReachThe ASUS ExpertWiFi EBM68 provides a fast, secure, and scalable network with rich features tailored for mid-sized businesses. Whether used independently or extended with other ASUS ExpertWiFi solutions, the ExpertWiFi EBM68 can easily adapt to your business network needs.For remote employees or those running small businesses, ExpertWiFi provides stable and reliable internet connections. And with comprehensive VPN protocols, users can access their networks with site-to-site VPNs for encrypted office or home network connections, easily and securely.ExpertWiFi provides an all-new platform for innovative business services. Brand information and advertising can be promoted via a Guest Portal, to engage with your customers in different ways.ExpertWiFi networking products are prepared to scale to the customers’ needs. The ExpertWiFi series can support up to 12 node connections, so a businesses can greatly expand the size of its network when using ExpertWiFi devices.To make sure all data and information is secured, the ExpertWiFi series offers Commercial-grade network security through a free subscription to ASUS AiProtection Pro and Safe Browsing features.Speed up your businessThe fastest business mesh routers on the market for downloading and smooth video calls.Connect your business to the max4X greater network capacity, which can lower latency when demand is highStable business operationExpertWiFi supports virtual local area network (VLAN) management. VLAN management enables an easy, fast and flexible way to segment the network wired and wirelessly. You can dedicate an Ethernet port that provides additional security for your business.The EBM68 provides reliable and stable internet access for business owners. With the dual WAN failover solution, businesses can easily switch to a backup WAN connection to minimize downtime during a network interruption, ensuring their POS system remains operational. In addition, business owners can use their smartphone as a backup internet provider by plugging it into the router's USB port. No complicated setup is needed — just plug it in and use it.Easy setting for your businessSeparate profile and usageA Self-defined Network (SDN) provides up to five SSIDs to separate and prioritize devices for various business usages and network alternatives. Network segments can be made for employees, guest portals, guest networks, scheduled networks, IoT networks and VPN networks.Scenario explorerThe scenario explorer can guide network novices through the network setup process. Just click on a scenario that suits your business the most, and it will customize your router’s settings to complete the process in just a few steps.Create your styleGuest portals can be tailored to meet your business needs, with custom portal types, branding and visual templates to fit particular business styles and to engage with customers in different ways.Manage all devices at onceExpertWiFi series lets business owners with multiple offices or workplaces connect all network devices under one administrator account. In addition, they can easily manage various network devices in the ASUS ExpertWiFi mobile app anywhere, anytime.Extendable and scalableExpertWiFi networking products are prepared to scale to the customer’s needs, whether it’s a small business or a large factory. With support for up to 12 node connections, companies can significantly expand their network size by adding more ExpertWiFi devices. Additionally, the EBM68 can comfortably support up to 100 active devices per node.The ASUS ExpertWiFi series is compatible with all ASUS AiMesh products, but supported features may vary based on model.Control your business network all in one appWith the ASUS ExpertWiFi app, you can set up and manage your business network easily and conveniently.Commercial-grade network securitySite-to-site VPNs are useful for companies that prioritize private, protected traffic. They are particularly helpful for organizations that have multiple locations spread out over great distances, such as chain stores and overseas branch offices. Using a site-to-site VPN can quickly help you build up your private network to connect all these places and to share information or resources between intranets from different locations.ASUS AiProtection leverages powerful cybersecurity solutions and cloud data centers from Trend Micro to shield your business and all connected devices from cyber threats — with no subscription fee!Check your security level with one tap, instead of fiddling with complicated settings.HardwareEasy wall-mountingThe ExpertWiFi EBM68 has built-in wall-mounting holes and a wall-mounting stand, making it easy to install right where it’s needed. By just flipping the stand, it can also act as a cable organizerDesign that makes signal betterThe ExpertWiFi EBM68 features a quad-core CPU to deliver full performance potential for all businesses. Its vertical housing holds a specially designed antenna and circuit board that optimizes WiFi signal strength and provides better airflow, improving thermal performance for reliable operation.Special designed vents for increased airflowDouble heatsink for maximized heat dissipation45° antennas ensure strong WiFi in multi-story locationsVertical housing with space between antennas and circuit board for minimal WiFi signal interferenceVersatile connectivityA 2.5 Gbps WAN port, a USB 3.2 Gen 1 port and three gigabit LAN ports with LAN aggregation* to suit your networking needs.The LAN Aggregation can be operated by pairing the LAN2 and LAN3 portEnvironmental CertificationASUS ExpertWiFi is stringently tested to meet the requirements of world-leading sustainability certifications. These tests include a comprehensive database of up-to date criteria, independent verification and a structured system for continuous improvement.Eco-friendly MaterialsExtensive research and development ensure that ASUS ExpertWiFi products are made from more eco-friendly materials such as post-consumer recycled (PCR) plastics, without affecting performance. With the antenna and the PCB tray, up to 22% of the EBM68 is made of PCR plastic.Eco-friendly PackagingAll ExpertWiFi products come with environmentally friendly packaging sourced from FSC-certified responsible forestry, and they benefit from more active management of the use of chemicals in the production process, to improve the recycling of packaging and substances, and to reduce environmental impact.
LongProductName - ExpertWiFi EBM68 Set of 2 Tri-Band WiFi 6 Mesh WiFi System (Up to 5 SSIDs, Custom Guest Portal, 2.5Gbps Port, Enterprise-Grade Network Security, Easy Management App)
LongSummaryDescription - ASUS EBM68(2PK) – Expert Wifi. Product colour: White, Antenna type: Internal, Product type: Mesh router. Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 4804 Mbit/s. Processor frequency: 1.7 GHz, Internal memory: 1000 MB, Flash memory: 256 MB. AC input voltage: 110 - 240 V, AC input frequency: 50 - 60 Hz, AC adapter output voltage: 12 V. Width: 167 mm, Depth: 77 mm, Height: 186 mm
Management, monitoring, configuration - Manage multiple sites Configuration backup and restore Diagnostic tools Feedback system System log Notification when a new device is connected Login Captcha Connection diagnosis Automatic firmware update
Manufacturer - Asus
Manufacturer_code - 90IG07V0-MO3A40
Model - AX7800
name - ASUS EBM68(2PK) System WiFi AX7800 ExpertWiFi
Name - ASUS ExpertWiFi EBM68 ( 2-pack) biały
Name - ASUS ExpertWiFi EBM68 Pack of 2, Mesh Access Point (white, 2 devices)
Name - Wifi 6 802.11ax Tri-band Business Mesh System | EBM68 (2-Pack) | 802.11ax | 4804 Mbit/s | 10/100/1000 Mbit/s | Ethernet LAN (RJ-45) ports 3 | Mesh Support Yes | MU-MiMO No | No mobile broadband | Antenna type Internal | 1
Network architecture - GigabitEthernet
Number of antennas - 6
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Other features -
Other features > Ethernet LAN (RJ-45) ports - 3
Other features > USB ports quantity - 1
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 425.00 mm
Package features > Gross depth master carton - 276.50 mm
Package features > Gross height (mm) - 140.00 mm
Package features > Gross width (mm) - 280.00 mm
Package features > Gross width master carton - 168.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 100 pc(s)
Package features > Paper/Pasteboard - 800.00 g
Package features > PET - 1 g
Package features > Plastic (No PET) - 200.00 g
Package features > Tare other - 2 g
Package features > Tare weight (kg) - 1.00 kg
Package features > TI weight (kg) - 0 kg
Package features > Volume (m3) - 0.02 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - AC adapter included - Yes
Packaging content - Ethernet cable - Yes
Packaging content - Number of products included - 2 pc(s)
Packaging content - Number of units included - 2 pc(s)
Packaging data - Package depth - 264 mm
Packaging data - Package height - 147 mm
Packaging data - Package weight - 3.7 kg
Packaging data - Package width - 400 mm
Performance > Ethernet LAN data rates - 10/100/1000 Mbit/s
Performance > Frequency band - 2.4 GHz/5 GHz
Performance > Wi-Fi data rate (max) - 4804 Mbit/s
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 3
Ports & interfaces - Ethernet WAN - Yes
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Power - AC adapter output current - 3 A
Power - AC adapter output voltage - 12 V
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 110 - 240 V
Power supply - AC input: 110V ~ 240V (50 ~ 60Hz) DC output: 12V with max. 3 Current
producer - Asus
Producer - Asus
ProducerCode - EBM68
Producer product family - Wifi 6 802.11ax Tri-band Business Mesh System
Producer product name - EBM68 (2-Pack)
ProductName - EBM68(2PK) – Expert Wifi
Security - AiProtection VPN WiFi Encryption WPS Let's Encrypt DNS-over-TLS SSH Firewall Maximum Firewall Keyword Filter: 64 Maximum Firewall Network Service Filter: 32 Maximum Firewall URL Filter: 64
ShortDescription -
ShortSummaryDescription - ASUS EBM68(2PK) – Expert Wifi, White, Internal, Mesh router, Power, Tri-band (2.4 GHz / 5 GHz / 5 GHz), Wi-Fi 6 (802.11ax)
Software -
Special functions -
Standards - 802.11a
Standards - 802.11ac
Standards - 802.11ax
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
Standards - IPv4
Standards - IPv6
System Requirements -
Technical details > Gross weight - 1.81 kg
Technical details > Net weight - 0.81 kg
Technical details > Producer - Asus
Title - ASUS EBM68(2PK) – Expert Wifi Tri-band (2.4 GHz / 5 GHz / 5 GHz) Wi-Fi 6 (802.11ax) White 3 Internal
URL - https://www.asus.com/networking-iot-servers/business-network-solutions/asus-expertwifi/asus-expertwifi-ebm68/
vendpn - EBM68(2PK)
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo -
Weight - 3,37
Weight - 808 g
Weight & dimensions - Depth - 77 mm
Weight & dimensions - Height - 186 mm
Weight & dimensions - Weight - 808 g
Weight & dimensions - Width - 167 mm
Wireless LAN features - Dynamic DNS (DDNS) - Yes
Wireless LAN features - Guest access - Yes
Wireless LAN features - IGMP snooping - Yes
Wireless LAN features - Networking standards - IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wireless LAN features - Point-to-point protocol over Ethernet (PPPoE) - Yes
Wireless LAN features - Security algorithms - SSH, WPS
Wireless LAN features - Static IP - Yes
Wireless LAN features - Top Wi-Fi standard - Wi-Fi 6 (802.11ax)
Wireless LAN features - VPN support - VPN Client L2PT
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
Support Surfshark
Support Nord VPN
Wireless LAN features - Wi-Fi band - Tri-band (2.4 GHz / 5 GHz / 5 GHz)
Wireless LAN features - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wireless LAN features - WLAN data transfer rate (first band) - 574 Mbit/s
Wireless LAN features - WLAN data transfer rate (max) - 4804 Mbit/s
Wireless LAN features - WLAN data transfer rate (second band) - 2402 Mbit/s
Wireless LAN features - WLAN data transfer rate (third band) - 4804 Mbit/s
Wireless LAN features > Wi-Fi band - 802.11ax
Wireless LAN features > Wi-Fi standards - 802.11a/b/g/n/ac/ax
