Accessories included - Certyfikat niezawodności TUF Uchwyt na kartę graficzną TUF Gaming Rzep TUF Karta kolekcjonerska Karta z podziękowaniami Instrukcja Speedsetup
Brand - ASUS
BrandPartCode - 90YV0K20-M0NA00
Card's length - > 280 mm
Category - Graphics Cards
category - PC Components|Graphics Cards|AMD
Category 1 - Grafikkarten
Category 2 - AMD PCI-Express Grafikkarten
Category Code - VGP
Category_1 - Graphics Cards
Category_2 - Graphics Cards PCIe - AMD
Chipset - AMD Radeon RX 7600 XT
Chipset - Radeon RX 7600 XT
Chipset manufacturer - AMD
CnCode CnCode - 84718000
code - 90YV0K20-M0NA00
Cooling - Active
Cooling system - Dual Slot Fansink
Core Boost frequency - 2810 MHz
Core frequency - 2830 MHz
CUDA Cores - 2048
Description - ASUS TUF Gaming Radeon RX 7600 XT OC Edition 16 GB GDDR6 zoptymalizowany wewnątrz i na zewnątrz, aby zapewnić niższe temperatury i trwałość. Konstrukcja wentylatora Axial-tech: Mniejszy hub wentylatora umożliwia zastosowanie dłuższych łopatek i pierścienia barierowego, który zwiększa ciśnienie powietrza w dół Podwójne łożyska kulkowe wentylatora wytrzymują nawet dwa razy dłużej niż konwencjonalne konstrukcje Kondensatory klasy wojskowej o wartości znamionowej 20 tys. godzin przy 105°C sprawiają, że szyna zasilania GPU jest bardziej wytrzymała Metalowy egzoszkielet zwiększa sztywność strukturalną i otwory wentylacyjne, aby zwiększyć rozpraszanie ciepła Automatyczna produkcja z precyzją Auto-Extreme dla większej niezawodności Oprogramowanie GPU Tweak III zapewnia intuicyjne dostosowywanie wydajności, sterowanie termiczne i monitorowanie systemu

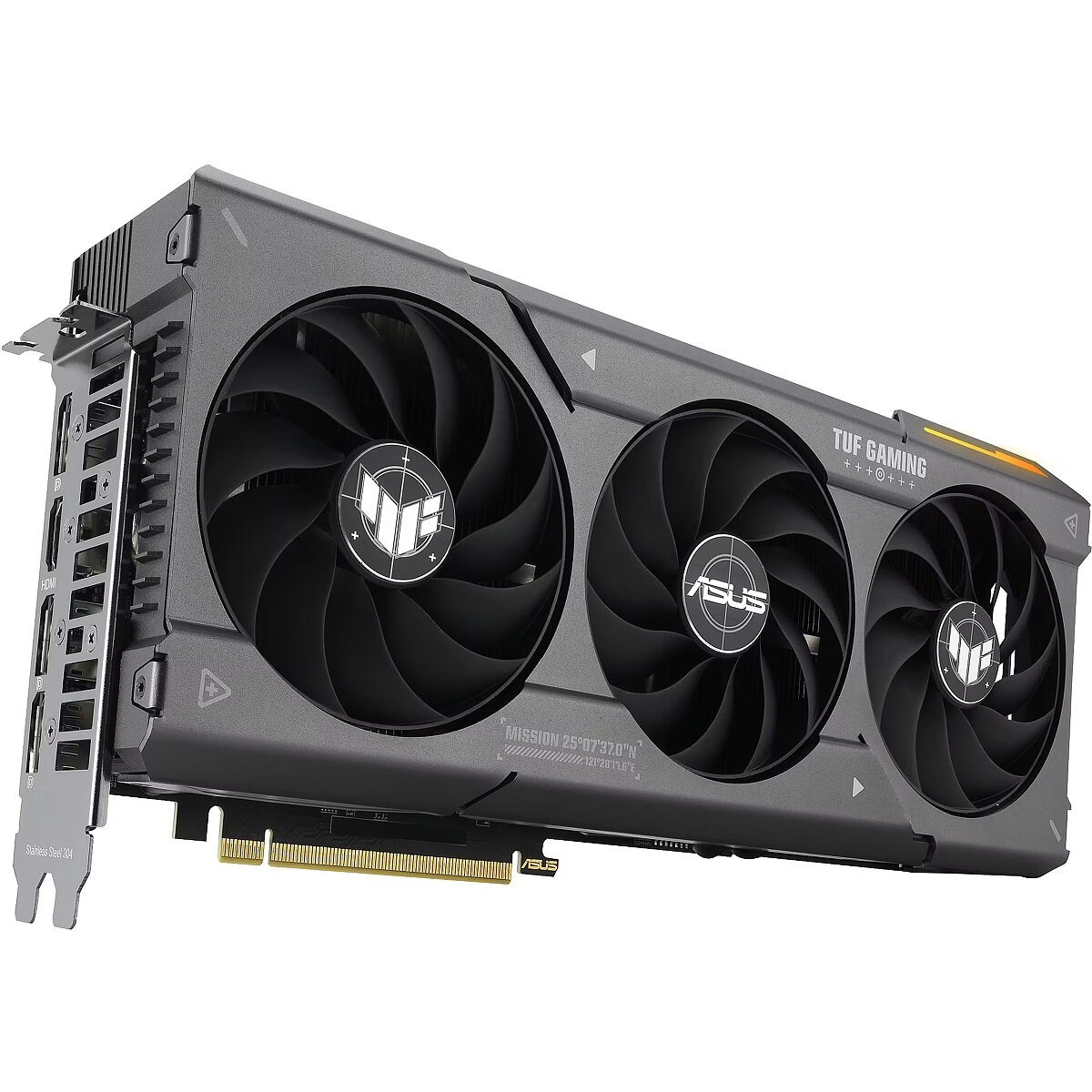

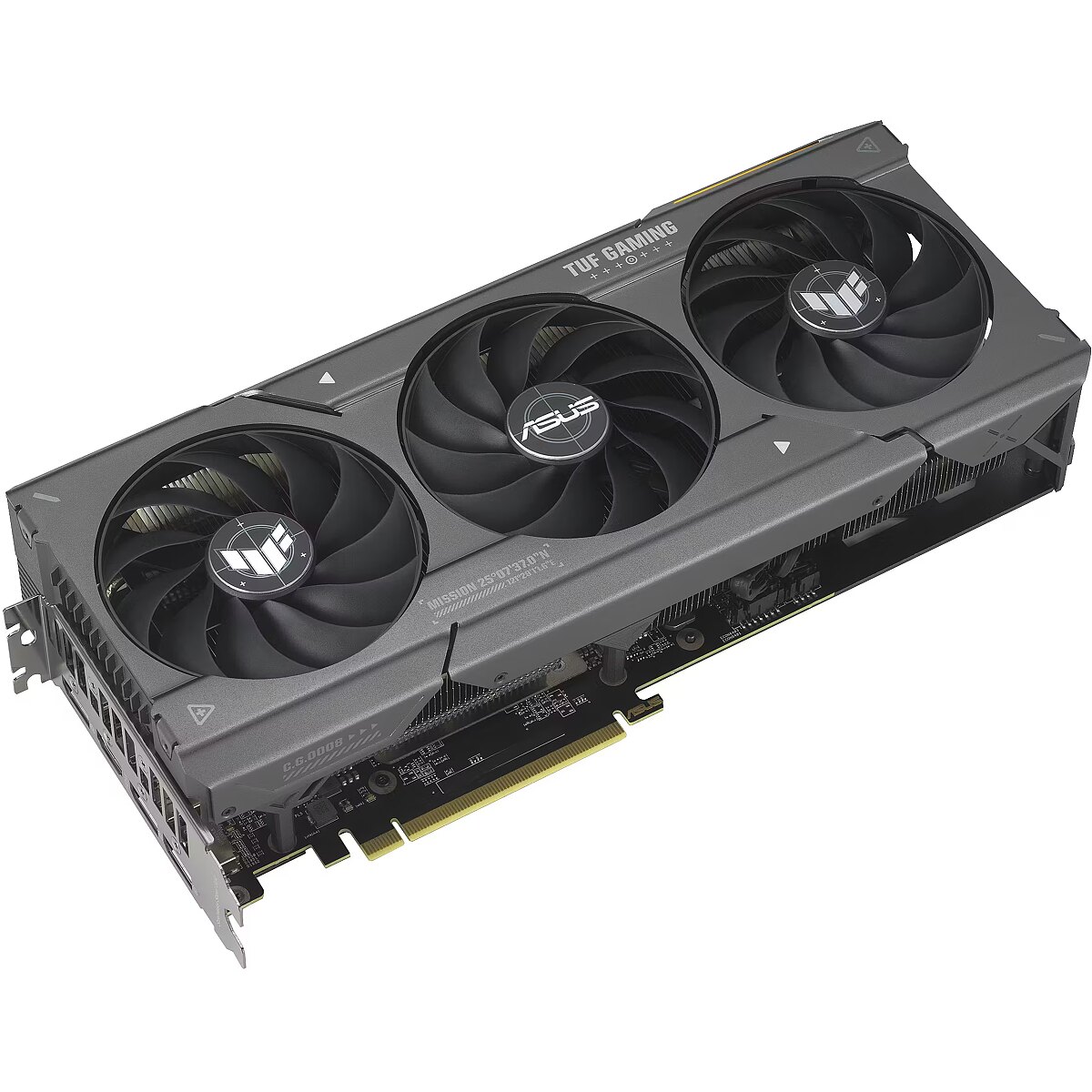

Description - ASUS TUF Gaming Radeon™ RX 7600 XT OC Edition 16GB GDDR6 optimized inside and out for lower temps and durability. - Axial-tech fan design: A smaller fan hub facilitates longer blades and a barrier ring that increases downward air pressure - Dual ball fan bearings last up to twice as long as conventional designs - Military-grade capacitors rated for 20K hours at 105C make the GPU power rail more durable - Metal exoskeleton adds structural rigidity and vents to increase heat dissipation - Auto-Extreme precision automated manufacturing for higher reliability - GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring
Design - Cooling technology - ASUS Axial-tech
Design - Cooling type - Active
Design - Form factor - Full-Height/Full-Length (FH/FL)
Design - Illumination - Yes
Design - Illumination colour - Multi
Design - Number of fans - 3 fan(s)
Design - Number of slots - 2.96
Design - Product colour - Black
dimension depth - 85 mm
dimension height - 425 mm
Dimensions - 59,2 x 142,75 x 300,2 mm
Dimensions - 300.2 x 142.75 x 59.2 mm
dimension weight - 1920 g
dimension width - 225 mm
DisplayPort Input/Output connectors - 3
ean - 4711387452295
EAN - 4711387452295
EAN_code - 4711387452295
Full Description Line - AMD Radeon RX 7600 XT|Graphics memory size 16 GB|GDDR6|128 bit|PCIE 4.0 8x|Memory clock 2029 MHz|Memory CLK 18 Gbps|GPU boost clock 2539 MHz|7680x4320|Cooling Dual Slot Fansink|1xHDMI|3xDisplayPort
GPU boost clock - 2539 MHz
Graphic card features - Gaming/HDCP/Overclock Edition
Graphics card connector - PCI-E ver. 4.0
Graphics connector - PCIE 4.0 8x
Graphics memory size - 16 GB
Graphics memory type - GDDR6
GTIN - 0197105478213
GTIN - 197105478213
GTIN - 4711387452295
GTIN - 4711387478219
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1

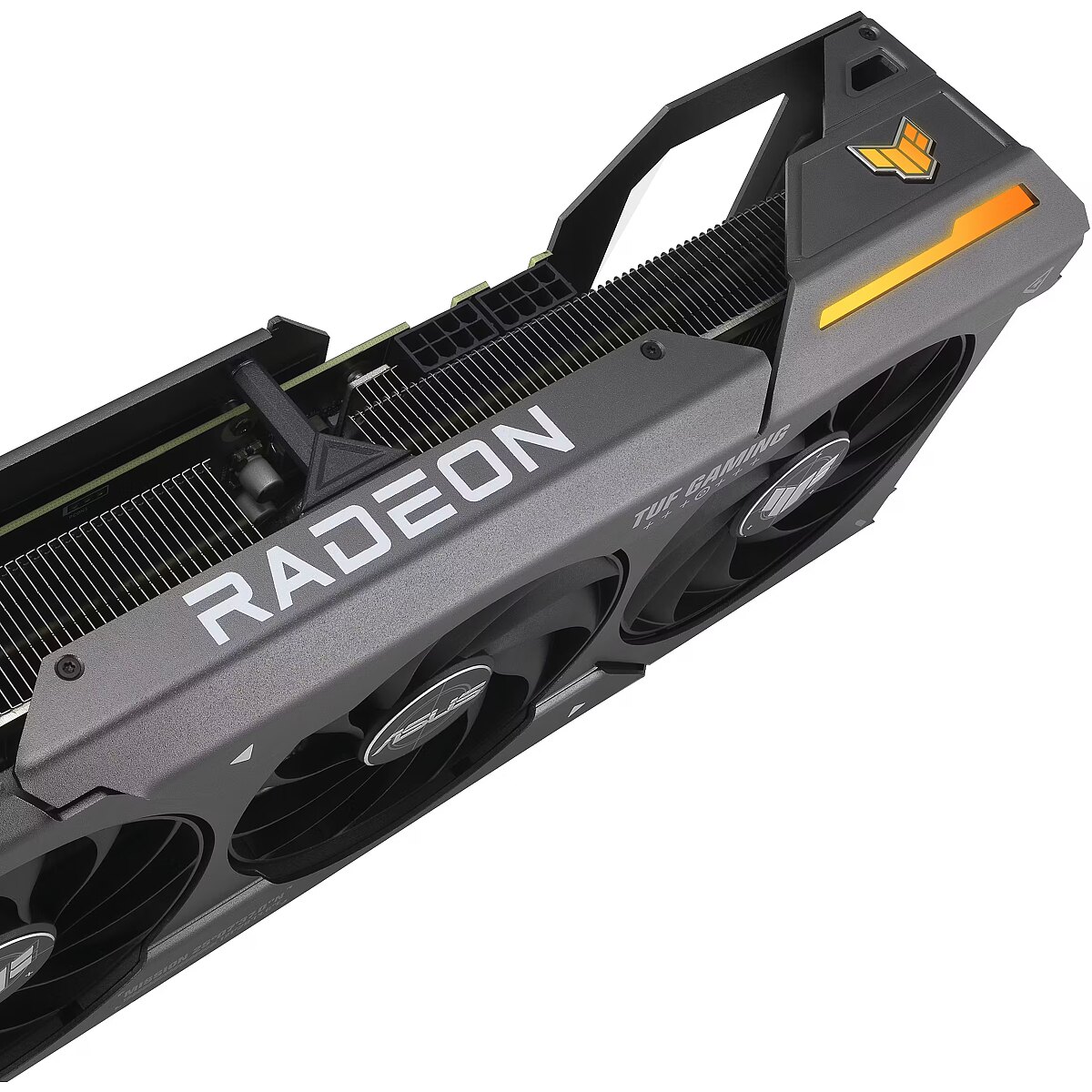

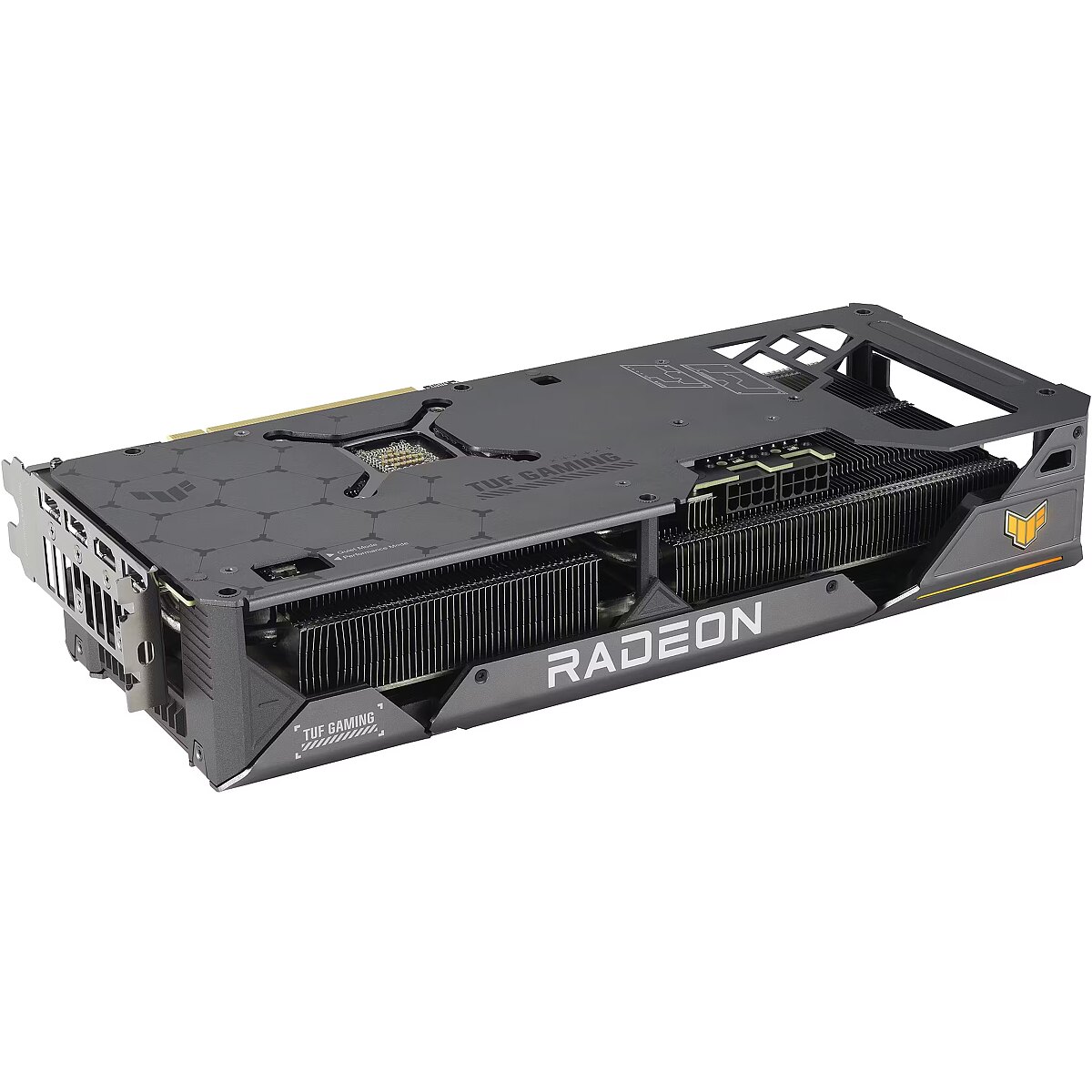

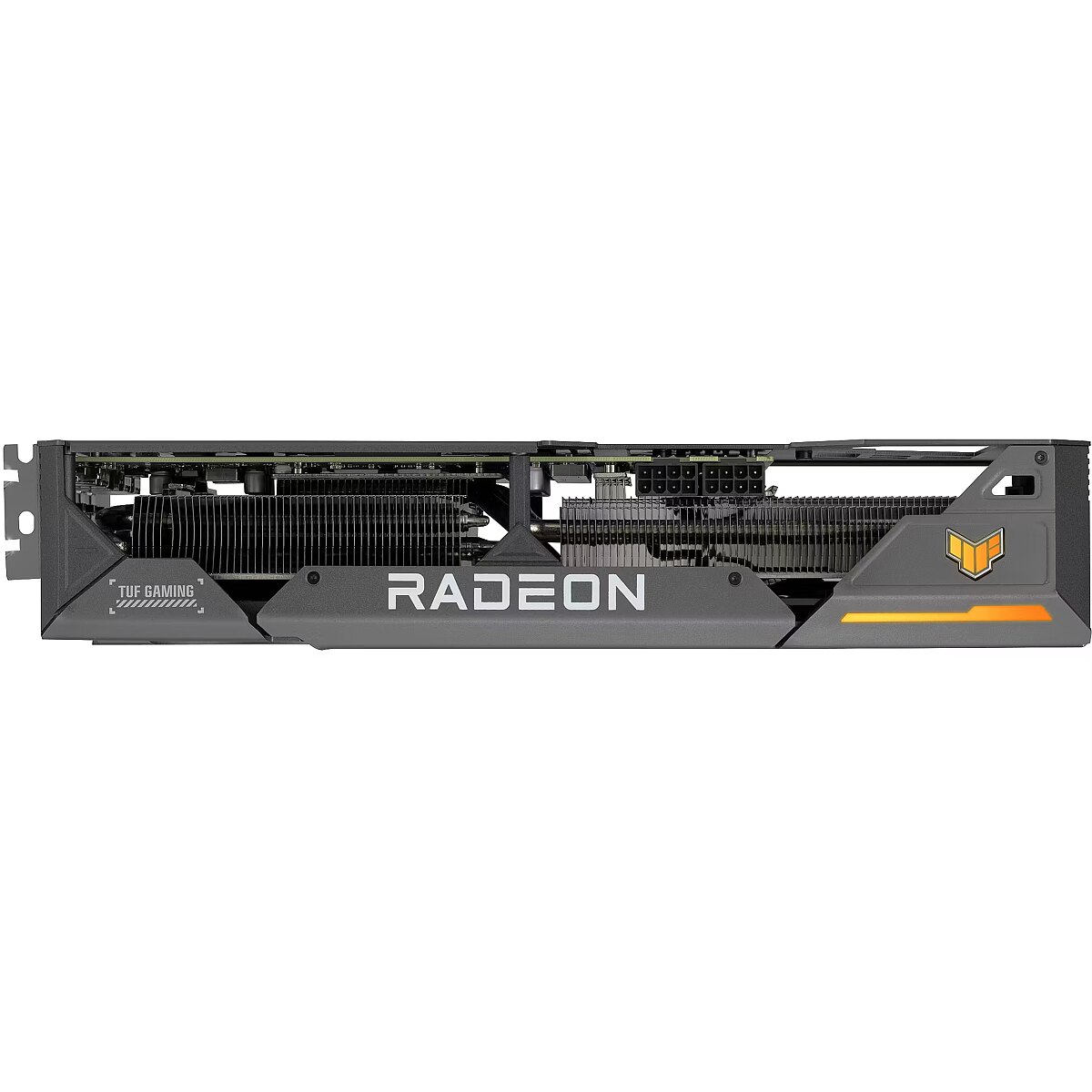

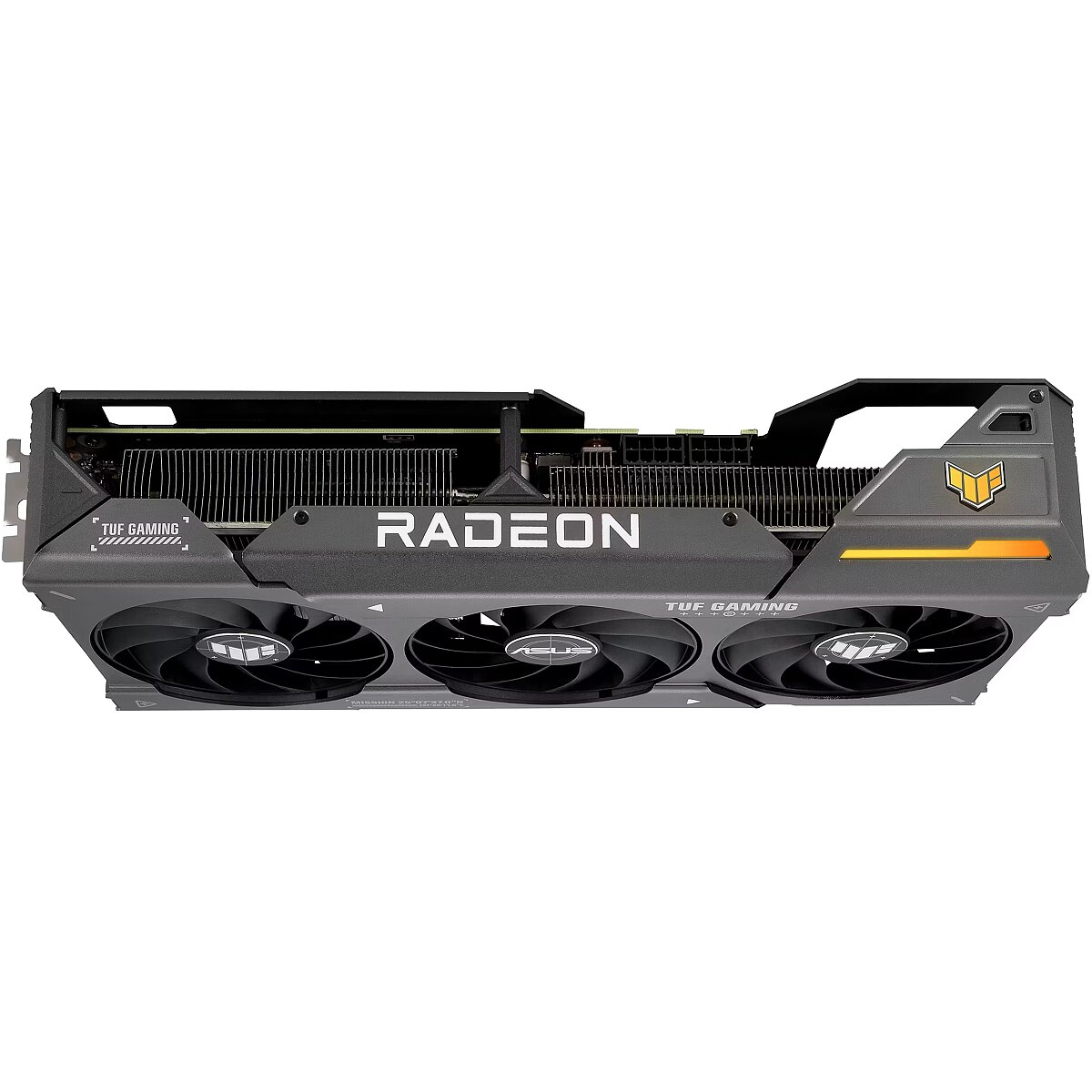

LongDesc - FLYIN’ TUFThe AMD RDNA™ 3 Architecture elevated by buffed cooling and power delivery to effortlessly churn out frames at 4K resolution and beyond, and backed with an arsenal of rugged reinforcements to cover your six.Lock, load, and dominate with the TUF Gaming Radeon™ RX 7600 XT.AXIAL-TECH UPGRADESAir SuperiorityThree tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressureNEW DIRECTIONWell-maintained FormationThe two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 55 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 60 Celsius, referencing a speed curve that balances performance and acoustics for work or play.2.96-SLOT DESIGNPhase That BlazeA generously sized heatsink efficiently soaks up heat from the AMD Radeon™ RX 7600 XT GPU, allowing it to be whisked away by the three Axial-tech fans.MILITARY-GRADE 20K CAPACITORSResilient SquadronA lineup of capacitors rated to last 20,000 hours at 105 Celsius brings higher temperature and ripple tolerance to the GPU power rail, arming the card for long-term deployment in challenging conditions.METAL EXOSKELETONSuit UpAn aluminum shroud and backplate prevent PCB flex and feature large vents to further increase heat dissipation.LOCK, LOAD, AND LET THE PERFORMANCE FLOWThe Radeon™ RX 7600 XT gloriously presented on a backdrop of low noise and rugged durability.AUTO-EXTREME TECHNOLOGYRELIABILITY BOOSTAuto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.AURA SYNCLight ‘em Up!Aura-compatible ARGB lighting on the shroud adds a dash of customizable color or functional effects to your build. Pair up with a vast range of compatible system components and coordinate the glow to create a theme that’s uniquely you.GRAPHICS CARD HOLDERPillar of SupportThe bundled graphics card holder banishes sag and also contains a screwdriver to help you build.SOFTWAREGPU Tweak IIIMonitor, tweak, and tuneASUS GPU Tweak III is more intuitive and feature-rich than ever before. A revamped interface offers greater accessibility by integrating core functions into a centralized dashboard, and our Voltage-Frequency tuner has been overhauled to make overclocking even easier. Additional goodies like 0dB fan technology, automatic profile swapping, a fully customizable on-screen display, and logging capabilities ensure that you get the most out of your graphics card.QuantumCloudProfit from GPU powerQuantumCloud is a safe and easy-to-use application that lets you effortlessly earn extra money by sharing your graphics card’s computing power. Earnings are accessible through your PayPal or WeChat account, and QuantumCloud also supports multiple exchange methods, including Steam. In addition, QuantumCloud doesn’t collect any personal data, so your privacy stays protected. Get started right away with just one click!AMD SoftwareChange the way you gameThe latest AMD Software unleashes the full potential of your GPU with day-0 drivers optimized for new game releases and a highly customizable gaming experience.
LongProductName - TUF Gaming Radeon RX 7600 XT OC Edition 16GB GDDR6 gaming graphics card black (AMD Radeon RX7600XT, PCIe 4.0, 1x HDMI 2.1, 3x DisplayPort 2.1, TUF-RX7600XT-O16G-GAMING)
LongSummaryDescription - ASUS TUF Gaming TUF-RX7600XT-O16G-GAMING. Graphics processor family: AMD, Graphics processor: Radeon RX 7600 XT. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 3 fan(s), Illumination colour: Multi
Manufacturer - Asus
Manufacturer - ASUS
Manufacturer_code - 90YV0K20-M0NA00
Max resolution - 7680x4320
Memory - Discrete graphics card memory - 16 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bandwidth (max) - 18 GB/s
Memory - Memory bus - 128 bit
Memory bus - 128 bit
Memory bus - 128-bit
Memory CLK - 18 Gbps
Memory clock - 2029 MHz
Memory frequency - 18 Gbps
Memory type - DDR6
Model - GeForce RX 7600XT
Model - TUF-RX7600XT-O16G-GAMING
MPN - 90YV0K20-M0NA00
Name - ASUS Radeon RX 7600 XT TUF GAMING OC, graphics card (RDNA 3, GDDR6, 2x DisplayPort, 2x HDMI 2.1)
name - ASUS Radeon RX 7600 XT TUF O16G, 16384 MB GDDR6
name - Graphics card GeForce RX 7600XT TUF GAMING OC 16GB GDDR6 128bit 3DP
Name - RX 7600 XT 16GB Asus TUF Gaming Radeon OC GDDR6
Other features -
Other information -
Packaging content - Manual - Yes
Packaging data - Package depth - 227 mm
Packaging data - Package height - 88 mm

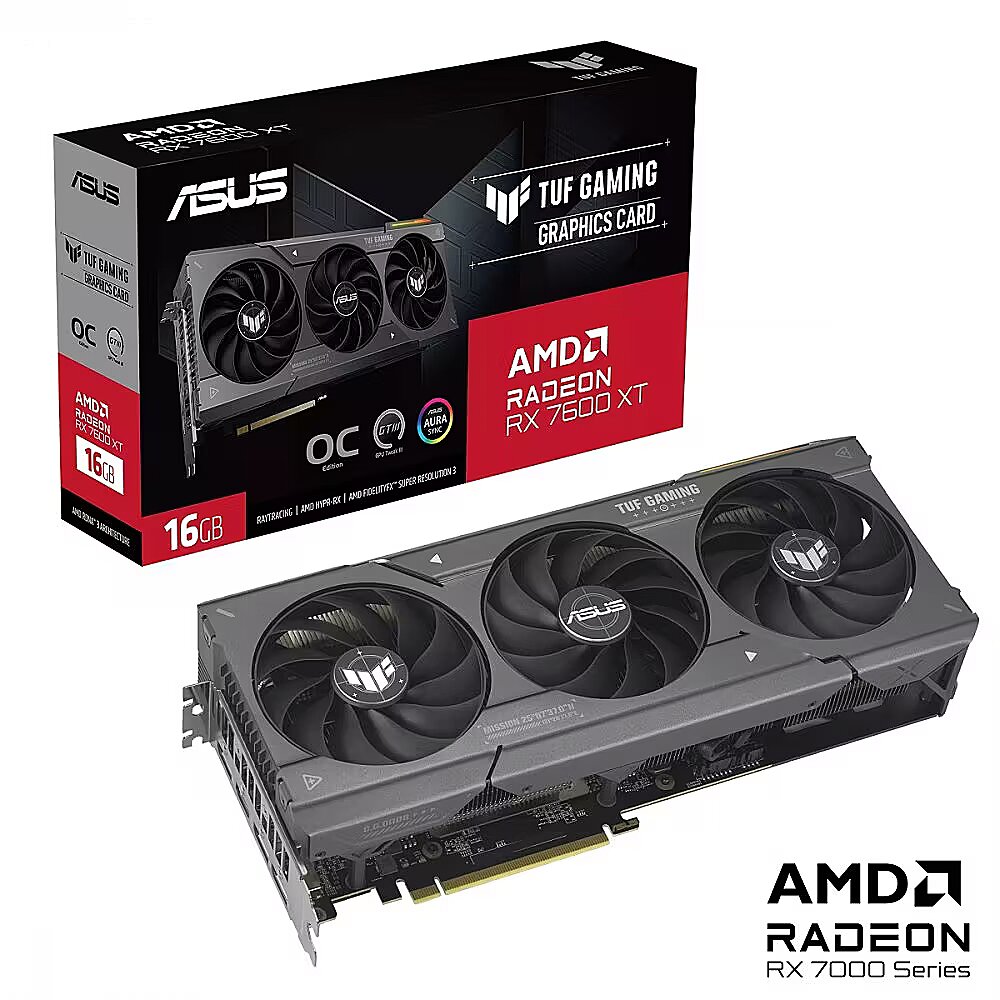

Packaging data - Package type - Box
Packaging data - Package weight - 1.92 kg
Packaging data - Package width - 421 mm
Performance - AMD FreeSync - Yes
Performance - DirectX version - No
Performance - Dual Link DVI - No
Performance - HDCP - Yes
Performance - HDCP version - 2.3
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No

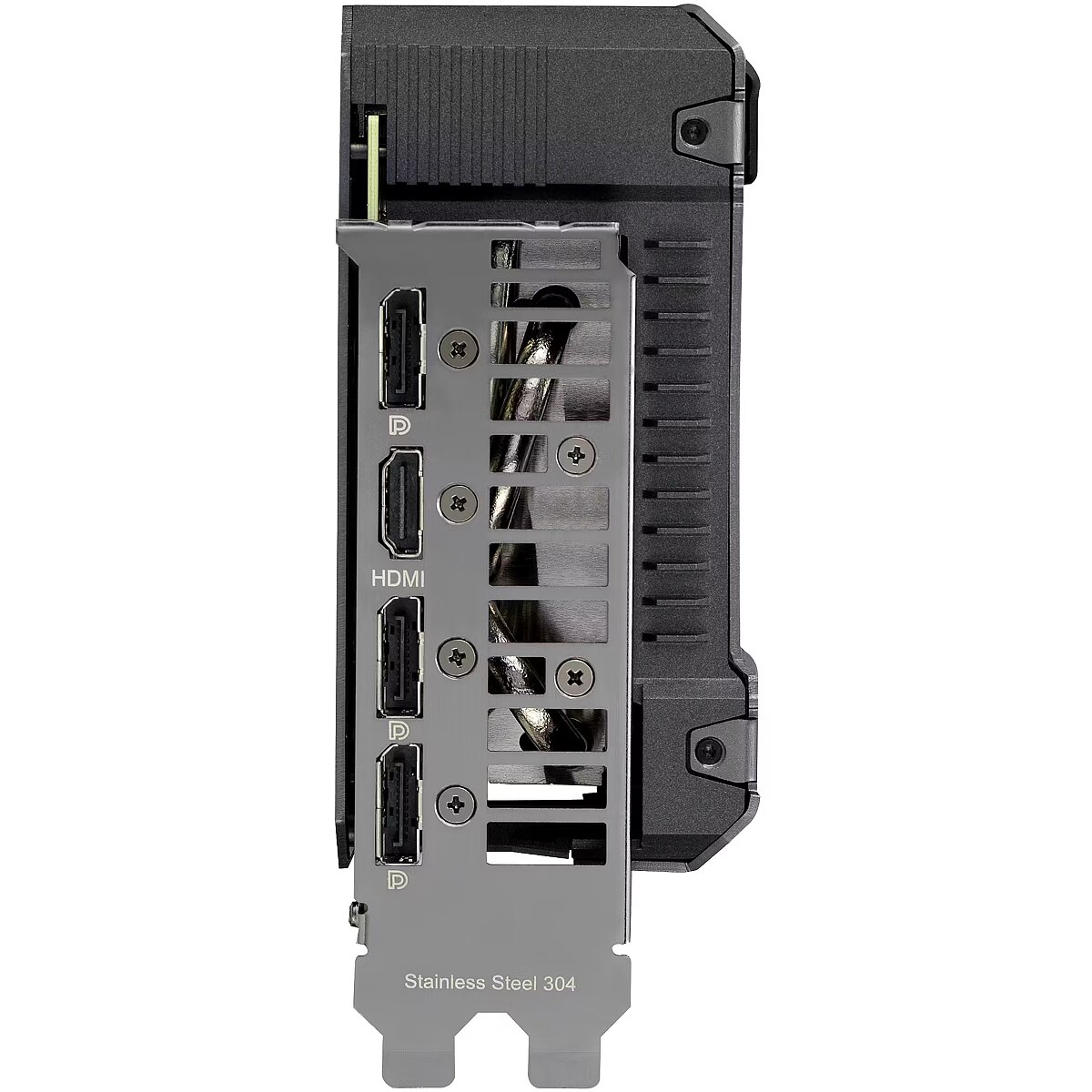

Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - DisplayPort version - 2.1
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1
Ports & interfaces - Interface type - PCI Express 4.0
Power - Minimum system power supply - 600 W
Power - Supplementary power connectors - 2x 8-pin
Power connectors - 8+8 pin
Power consumption - 600 Watts
Processor - CUDA - No
Processor - Graphics processor - Radeon RX 7600 XT
Processor - Graphics processor family - AMD
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor boost clock speed - 2810 MHz
Processor - Processor boost clock speed (Gaming mode) - 2559 MHz
Processor - Processor boost clock speed (OC mode) - 2830 MHz
Processor - Stream processors - 2048
producer - Asus
ProductName - TUF-RX7600XT-O16G-GAMING
Shipping Box Depth Shipping/Package Box Dimensions - 55.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 25.5 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 12.65 kg
Shipping Box Width Shipping/Package Box Dimensions - 44 cm
ShortSummaryDescription - ASUS TUF Gaming TUF-RX7600XT-O16G-GAMING, Radeon RX 7600 XT, 16 GB, GDDR6, 128 bit, 7680 x 4320 pixels, PCI Express 4.0
Supported standards - OpenGL 4.6
System requirements - Windows operating systems supported - Yes

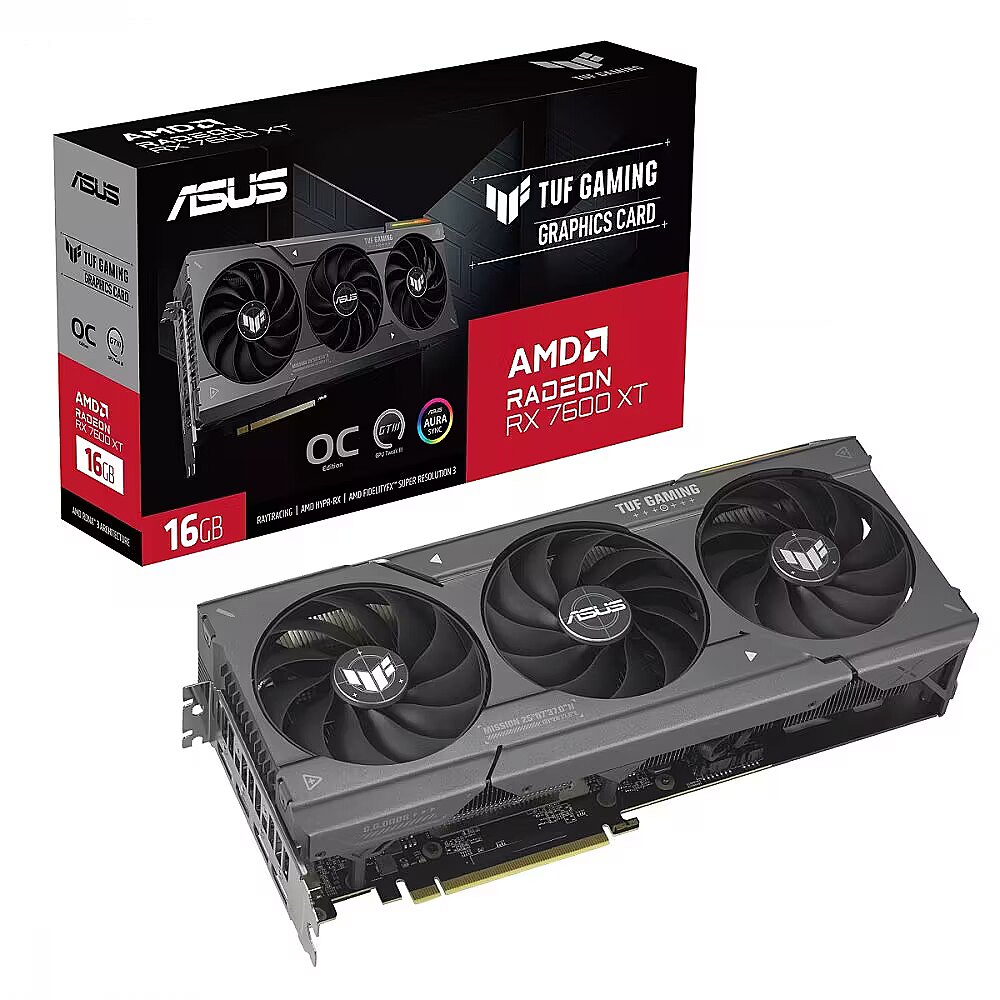

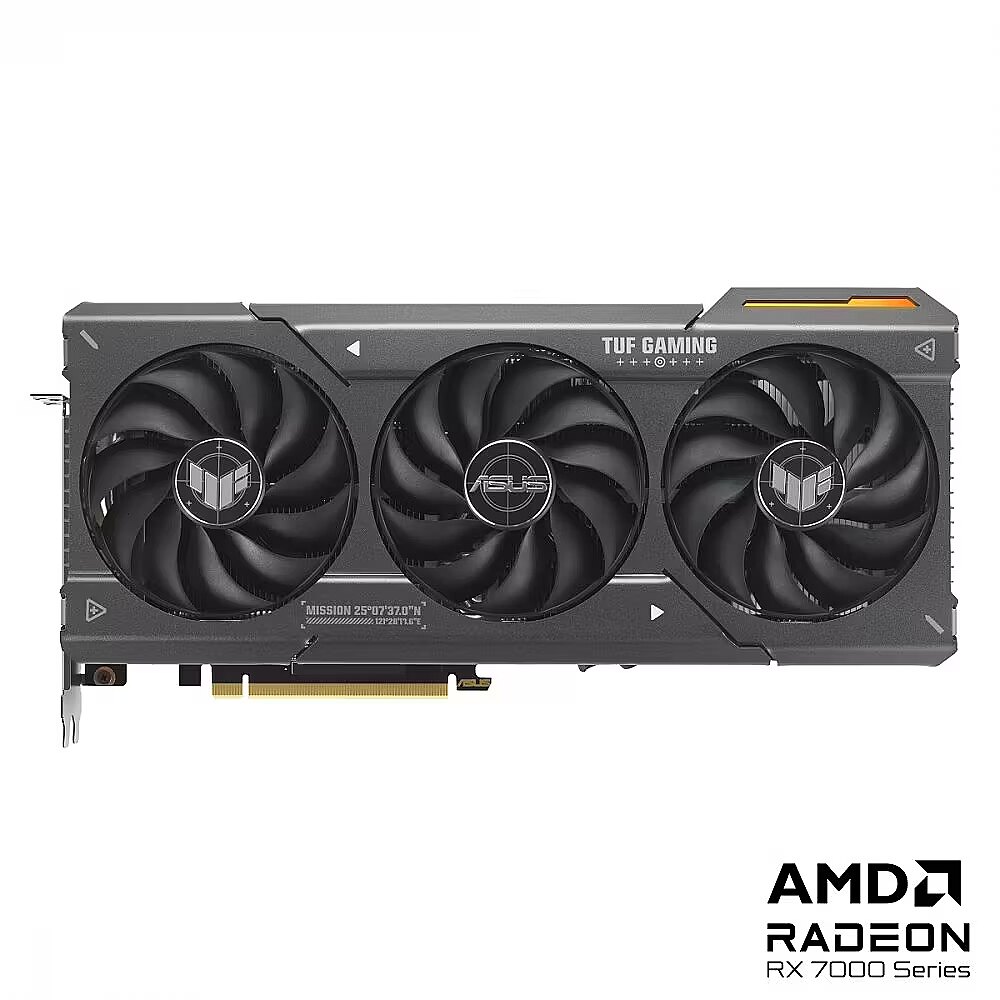

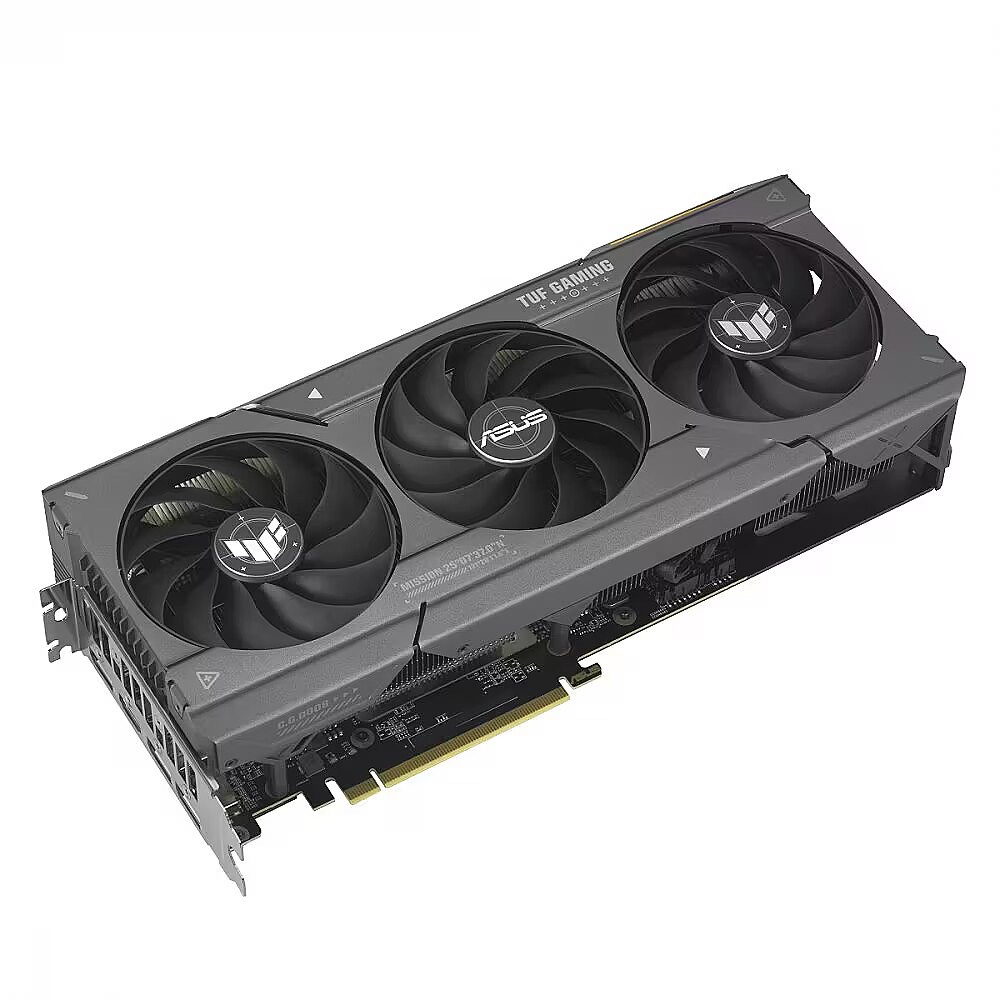

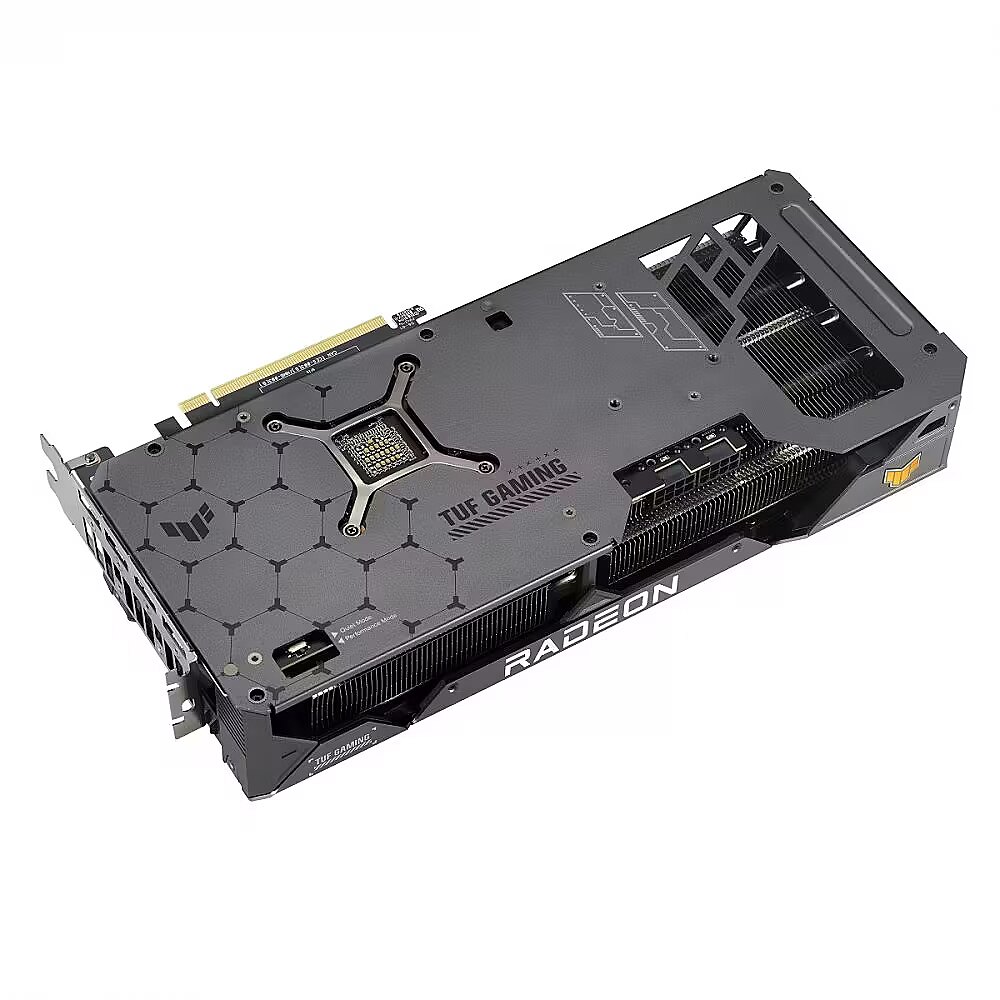

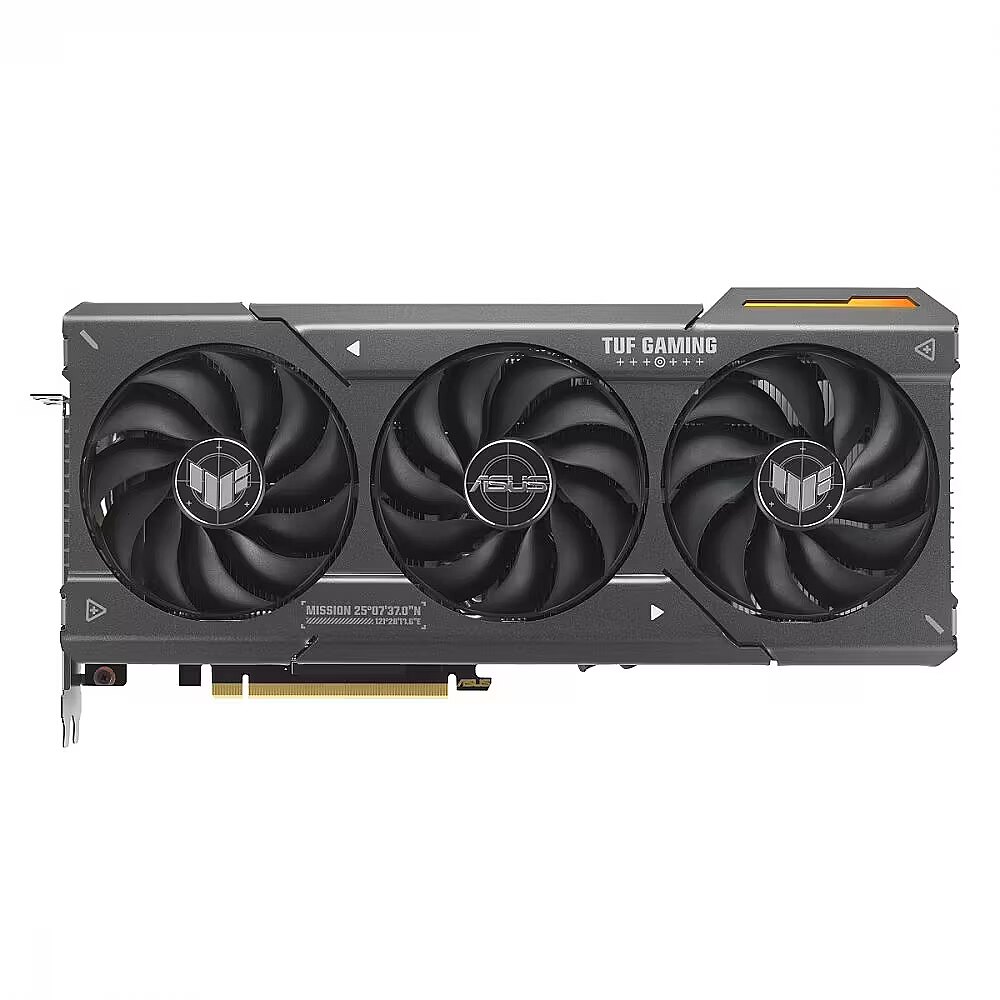

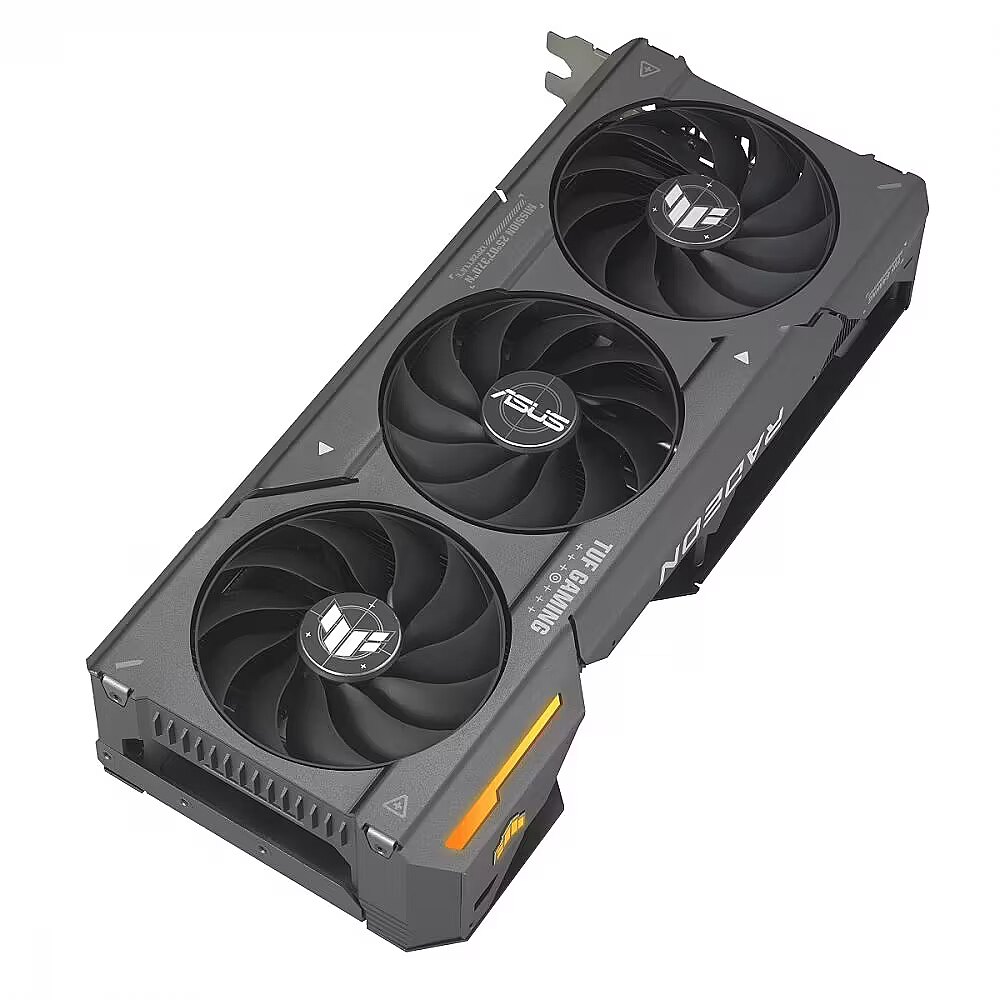

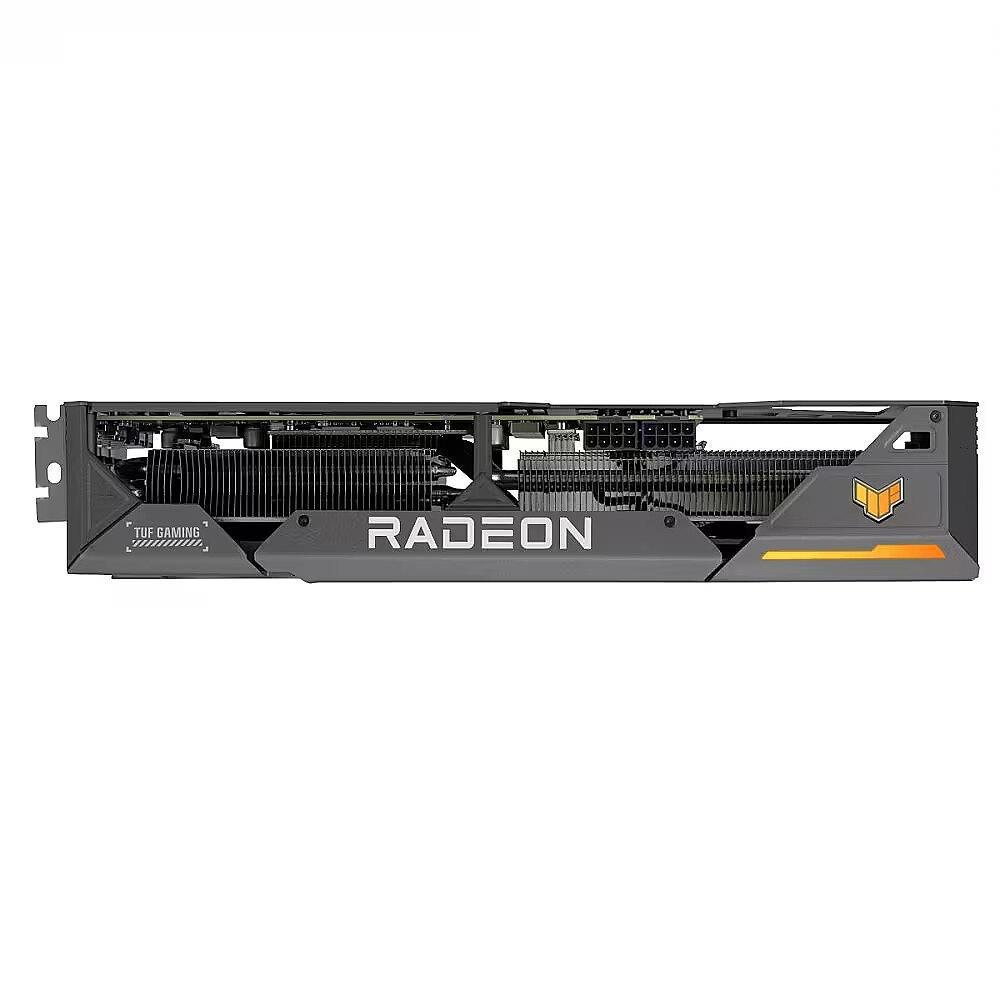

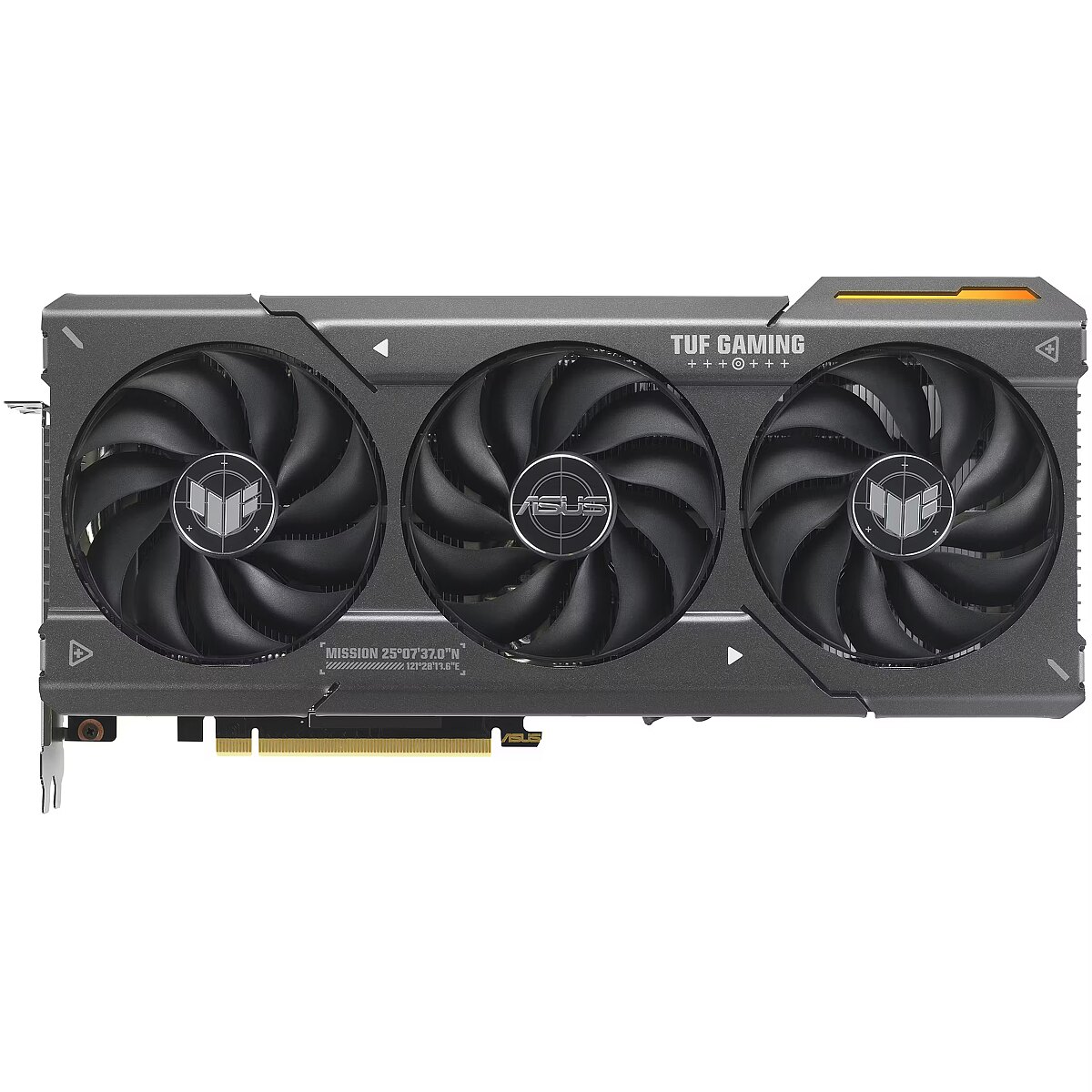

Title - ASUS TUF Gaming TUF-RX7600XT-O16G-GAMING AMD Radeon RX 7600 XT 16 GB GDDR6
Unit Box Height - 0.22
Unit Box Length - 0.42
Unit Box Width - 0.09
Unit Brutto Volume - 0.01245 cubm
Unit Gross Weight - 2.53 kg
Unit Net Weight - 2 kg
URL - https://www.asus.com/motherboards-components/graphics-cards/tuf-gaming/tuf-rx7600xt-o16g-gaming/
Vendor Homepage - www.asus.com/motherboards-components/graphics-cards/tuf-gaming/tuf-rx7600xt-o16g-gaming/
vendpn - TUF-RX7600XT-O16G-GAMING

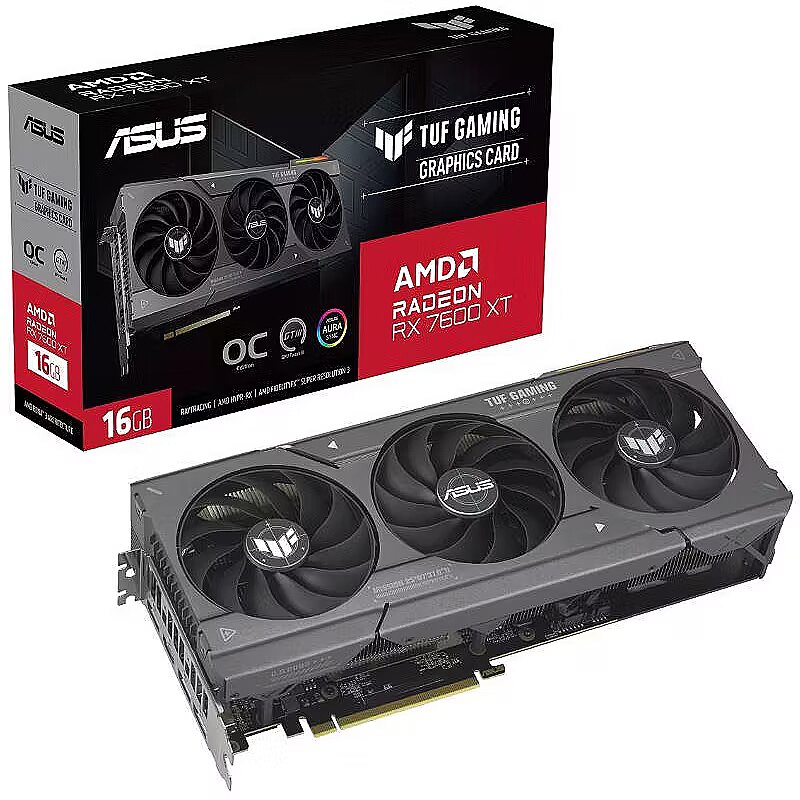

Version - Box

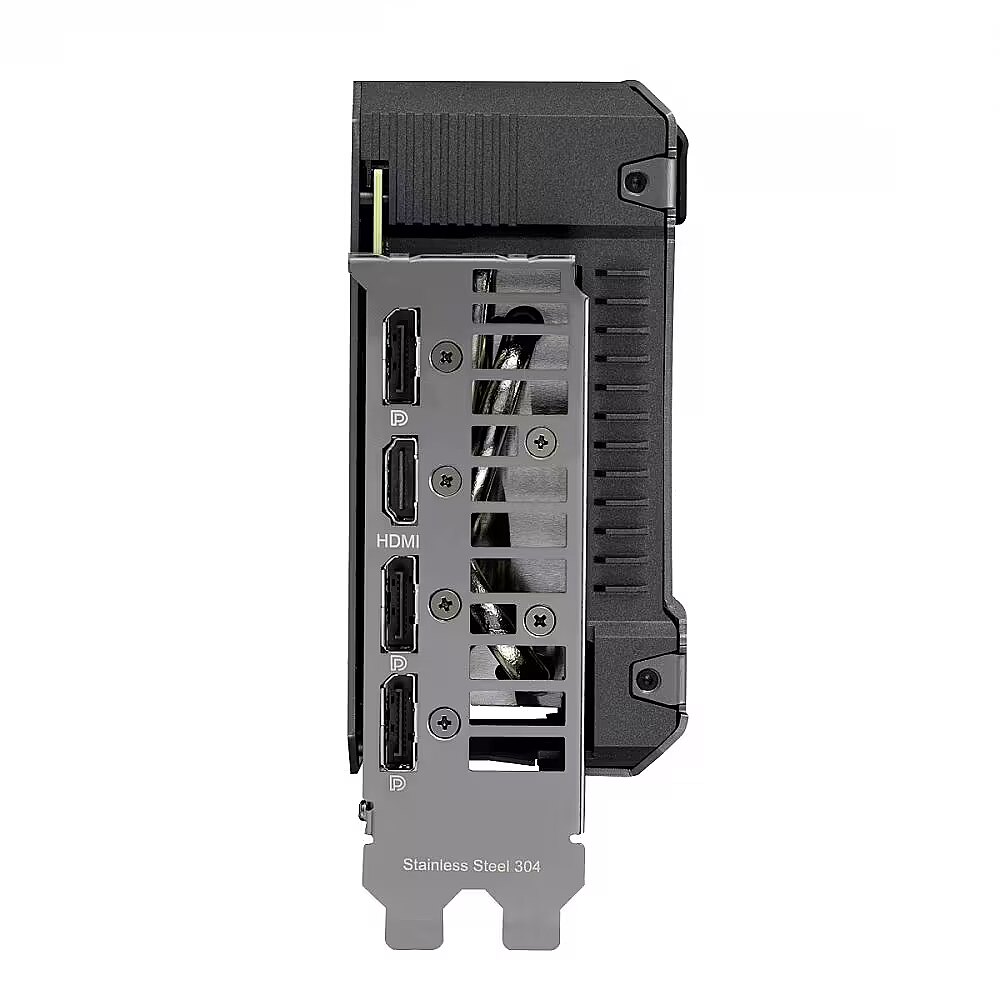

Video ports - 1 x HDMI
Video ports - 3 x DisplayPort
VRAM memory size - 16 GB
Warranty - 36 months
WarrantyInfo -
Weight - 1,96
Weight - 1.94
Weight & dimensions - Depth - 59.2 mm
Weight & dimensions - Height - 142.8 mm
Weight & dimensions - Length - 300.2 mm
Weight & dimensions - Weight - 1.16 kg
