TP-LINK Recorder VIGI NVR2008H-8 MP 8 Channel PoE+

15pin D-sub Input/Output connectors - 1
Accessories included - Rejestrator VIGI NVR2008H-8MP Zasilacz Kabel zasilający Kable zasilające do dysków HDD Kable danych do dysków HDD Akcesoria montażowe Mysz Instrukcja szybkiej instalacji
ARTIKEL1 - 8 CHANNEL POE+ NVR
ARTIKEL2 - 2 SATA INTERFACE(UP TO 10 TB)
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Audio compression - G.711a
Audio compression - G.711u
Audio compression - G.726
Brand - TP-Link
BrandPartCode - VIGI NVR2008H-8MP
Breite - 0
Category - Network Video Recorders (NVR)
Category Code - NVR
Certificates - CE EAC UKCA RCM Triman BSMI VCCI FCC IC
Channels - 8

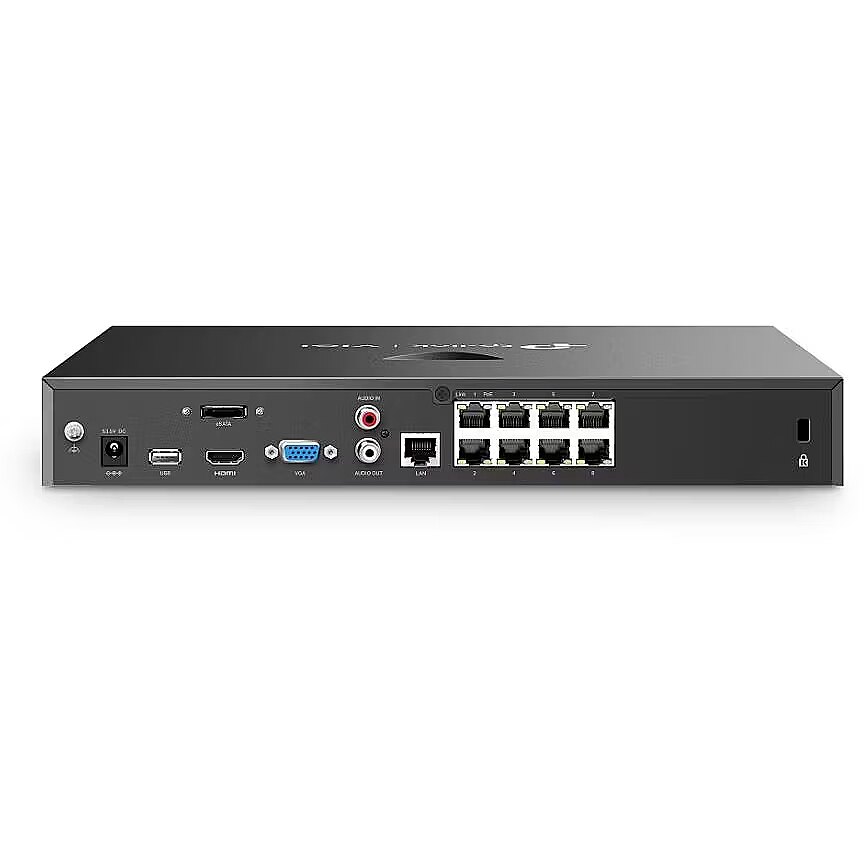

Connectors - 1 x D-Sub
Connectors - 1 x HDMI
Connectors - 2 x USB 2.0
Connectors - 9 x RJ-45
Connectors - Audio in
Connectors - Audio out
Connectors - eSATA
Description - VIGI 8 Channel PoE+ Network Video Recorder 8-Channel Live View and 4K HDMI Video Output 8× 10/100 Mbps PoE+ Ports with 93 W PoE Budget 4-ch @ 4MP/ 8-ch @ 2MP Decoding Capability 8-Channel Synchronous Playback† 80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth 2× SATA Interfaces and 1 Up to 10 TB (1× 2TB HDD Preinstalled) H.265+ Compression Technology HDMI and VGA Simultaneous Output Remote Monitoring
Description - VIGI NVR2008H-8MP 8-kanałowy sieciowy rejestrator wideo VIGI z zasilaniem PoE+ Podgląd na żywo z 8 kanałów i wyjście wideo 4K HDMI 8 portów PoE+ 10/100 Mb/s o łącznej mocy 93 W PoE Możliwość dekodowania 4 kanałów @ 4MP / 8 kanałów @ 2MP Jednoczesne odtwarzanie 8 kanałów Pasmo przychodzące 80 Mb/s i pasmo wychodzące 60 Mb/s 2 złącza SATA (do 16 TB każde) - Dyski HDD nie znajdują się w zestawie Kompresja H.265+ Jednoczesne wyjście HDMI i VGA Monitoring zdalny Szybka konfiguracja dzięki Automatycznemu inicjowaniu Kliknij "Inicjuj automatycznie", aby szybko skonfigurować Kamerę IP i parametry dysku twardego, zmniejszając w ten sposób czas potrzebny na ich konfigurację.
Desktop/pedestal Mounting Type - Yes
dimension depth - 140 mm
dimension height - 400 mm
Dimensions - 330 x 285 x 45 mm
Dimensions - 330 × 285 × 45 mm
dimension weight - 3650 g
dimension width - 350 mm
ean - 8885020622027
EANCode - 8885020622027
Environment requirements - Dopuszczalna temperatura przechowywania: -40 - 70 °C Dopuszczalna wilgotność przechowywania: 10%~90% RH, Bez kondensacji Dopuszczalna temperatura podczas pracy: NVR: -10 - 55 °C, Zasilacz: 0 - 40 °C Dopuszczalna wilgotność podczas pracy: 10%~90% RH, Bez kondensacji
eSATA Input/Output connectors - 1

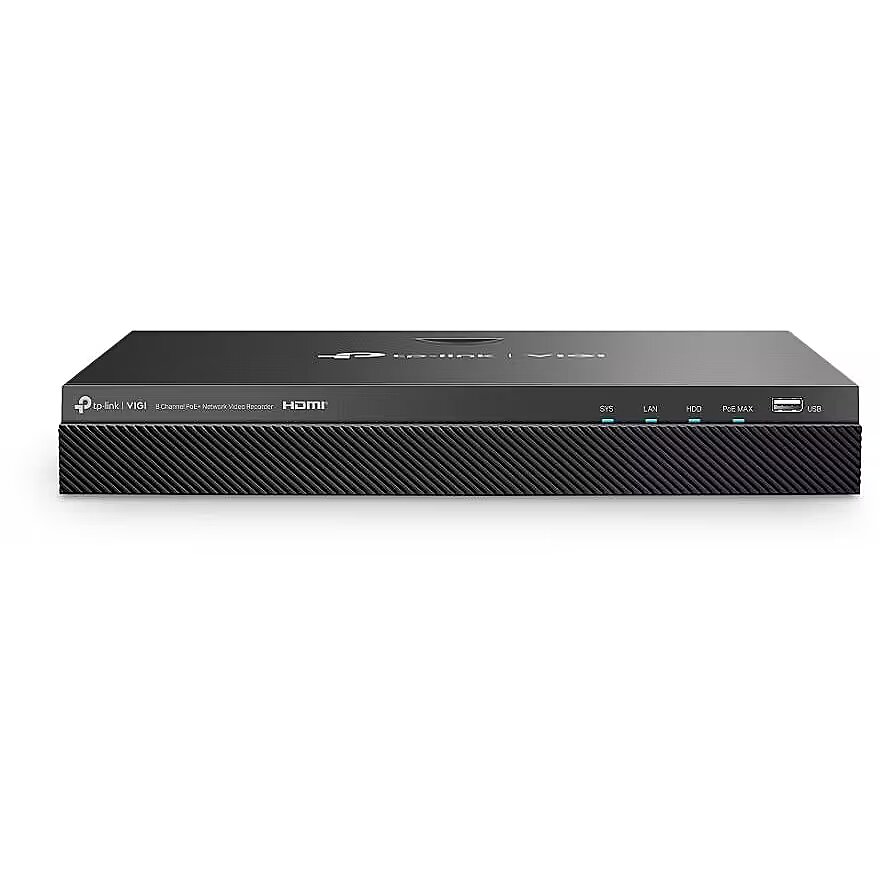

Features - LED indicators - Yes
Features - Product colour - Black
Full Description Line - Channels 8|Drives/bays 2|Desktop/pedestal|Integrated LAN 10/100|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xeSATA|1xRJ45|Power supply requirements 53.5V DC/2.43A|Power consumption 35 Watts|Dim. 330 × 285 × 45 mm
Gewicht - 3.66
GRUPPE1 - Security
GRUPPE2 - Signal Enhancers
GTIN - 8885020622027
guarantee - 36
guarantee_type - normal
Hard drive - HDD interface - SATA
Hard drive - Maximum storage capacity - 32 TB

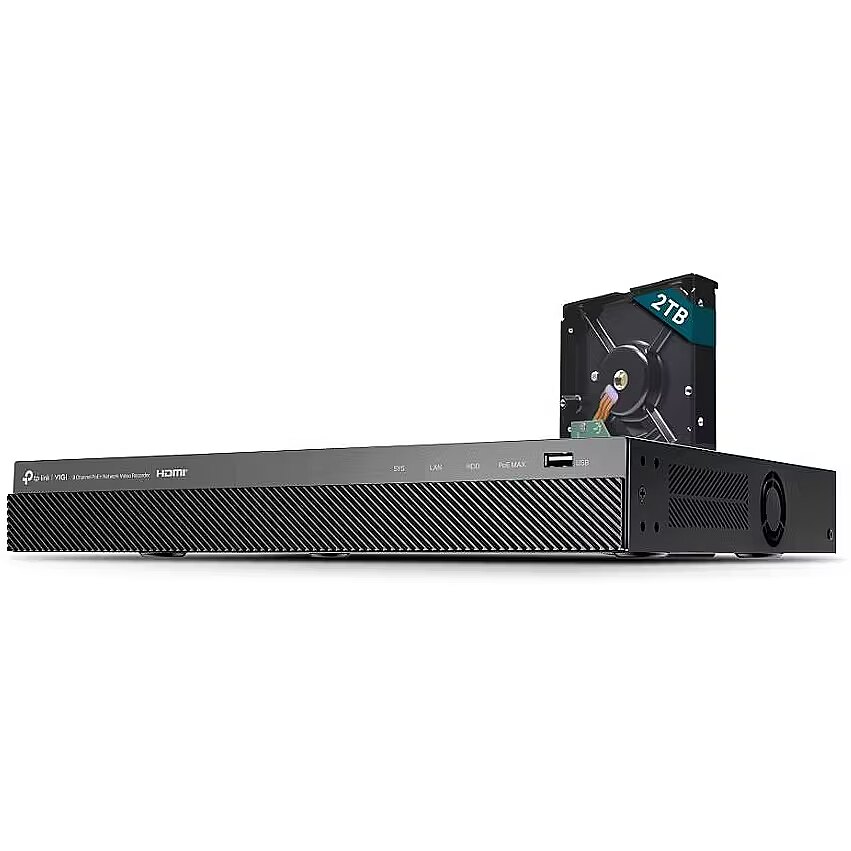

Hard drive - Number of HDDs supported - 2
HDD interface - SATA
HDMI Input/Output connectors - 1
HERSTELLER - TP-LINK
Hoehe - 0
HSTNUMMER - VIGI NVR2008H-8MP
Integrated LAN - 10/100
Laenge - 0
LongDesc - Security Never Shuts DownVIGI NVR2008H-8MP 8 Channel PoE+ Network Video Recorder- 8-Channel Live View- 4K HDMI Video Output- 93W PoE Budget- 8-Channel Live View- Smart Video Coding- Comprehensive Compatibility- Auto Initialize- 2× SATA Interfaces (1 Up to 16 TB)Auto Initialize for Quick ConfigurationJust click “Auto Initialize” to set up basic IPC and hard disk parameters, greatly reducing your configuration time.
LongProductName - 8-Ch, 80 Mbps In, 60 Mbps Out, 3840x2160/30Hz, 330 x 285 x 45 mm
LongSummaryDescription - TP-Link VIGI 8 Channel PoE+ Network Video Recorder. Video input channels: 8 channels, Maximum resolution: 3840 x 2160 pixels, Supported resolutions: 3840x2160, 1920x1080, 1680x1050, 1440x900, 1280x1024, 1280x720. Maximum storage capacity: 32 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100 Mbit/s. Product colour: Black. Power consumption (typical): 35 W, Output current: 2.43 A, Output voltage: 53.5 V
Max. capacity of disks - 32 TB
Max. number of disks - 2
Model - VIGI NVR2008H-8MP
name - Recorder VIGI NVR2008H-8MP 8 Channel PoE+
Number of Channels - 8
Number of drives/bays - 2
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Operational conditions - Storage relative humidity (H-H) - 10 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - Standard PoE: 802.3at/af Budżet PoE: 93 W dostępne łącznie dla wszystkich portów PoE+, maksymalnie 30 W na port
Performance - Audio formats supported - G.711, G.711u, G.726
Performance - Input bandwidth - 80 Mbit/s
Performance - Maximum frame rate - 60 fps
Performance - Maximum resolution - 3840 x 2160 pixels
Performance - Output bandwidth - 60 Mbit/s
Performance - Supported resolutions - 3840x2160, 1920x1080, 1680x1050, 1440x900, 1280x1024, 1280x720
Performance - Video formats supported - H.264, H.264+, H.265, H.265+
Performance - Video input channels - 8 channels
Performance - Video loss detection - Yes
Performance - Video motion detection - Yes
PoE+ ports - 8
Ports & interfaces - Audio RCA inputs - 1
Ports & interfaces - Audio RCA outputs - 1
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - eSATA - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 9
Ports & interfaces - Ethernet LAN data rates - 10,100 Mbit/s
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Power over Ethernet (PoE) - Yes
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - VGA (D-Sub) output ports - 1
Power - Output current - 2.43 A
Power - Output voltage - 53.5 V
Power - Power consumption (typical) - 35 W
Power - Power over Ethernet (PoE) power per port - 30 W
Power - Total Power over Ethernet (PoE) budget - 93 W
Power consumption - 35 Watts
Power supply requirements - 53.5V DC/2.43A
producer - TP-LINK
ProductName - VIGI 8 Channel PoE+ Network Video Recorder
Recording modes - Nagrywanie ręczne Harmonogram nagrywania Nagrywanie wykrytego ruchu
Resolution - 3840 x 2160
RJ45 Input/Output connectors - 1
Shipping Box Depth Shipping/Package Box Dimensions - 40 cm
Shipping Box Height Shipping/Package Box Dimensions - 35 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 3.68 kg
Shipping Box Width Shipping/Package Box Dimensions - 14 cm
ShortSummaryDescription - TP-Link VIGI 8 Channel PoE+ Network Video Recorder, 8 channels, 3840 x 2160 pixels, 3840x2160, 1920x1080, 1680x1050, 1440x900, 1280x1024, 1280x720, G.711, G.711u, G.726, H.264, H.264+, H.265, H.265+, 60 fps
Special functions - Alarm ogólny: Wykrywanie ruchu Manipulacja wideo Wykrywanie przekroczenia linii Wykrywanie wtargnięcia Wykrywanie wejścia na obszar Wykrywanie wyjścia z obszaru Wykrywanie pozostawienia/zabrania obiektu Wykrywanie pojazdów Wykrywanie ludzi Smart Frame   Alarm nieoczekiwanego zdarzenia: Utrata wideo Offline i Konflikt IP Błąd dysku Błąd logowania Błąd wentylatora   Powiązanie alarmu: Nagrywanie Alarm białym światłem Buzzer Dziennik Alarm dźwiękowy
Stck_Kart - 3
Stck_Pal - 0
Storno - Y
Title - TP-Link VIGI 8 Channel PoE+ Network Video Recorder
Unit Box Height - 0.35
Unit Box Length - 0.4
Unit Box Width - 0.14
Unit Brutto Volume - 0.0196 cubm
Unit Gross Weight - 3.68 kg
Unit Net Weight - 2.1 kg
URL - https://www.tp-link.com/en/business-networking/vigi-network-video-recorder/vigi-nvr2008h-8mp/
USB 2.0 Input/Output connectors - 2
Vendor Homepage - www.tp-link.com/cl/business-networking/vigi-network-video-recorder/vigi-nvr2008h-8mp/
vendpn - VIGI NVR2008H-8MP
Video compression - H.264
Video compression - H.264+
Video compression - H.265
Video compression - H.265+
Viewing modes - Natychmiastowe odtwarzanie Zwykłe odtwarzanie Odtwarzanie znacznika Odtwarzanie zdarzeń
Warranty - 36 months
WarrantyInfo - 3 Years
Weight - 2.1 kg
Weight & dimensions - Depth - 285 mm
Weight & dimensions - Height - 45 mm
Weight & dimensions - Package weight - 4.1 kg
Weight & dimensions - Weight - 2.1 kg
Weight & dimensions - Width - 330 mm
Wireless communication - No
Wireless LAN features - Wi-Fi - No
