ID: 926849
Product code: ARB1606
In stock 2 units
Warranty: 2 years

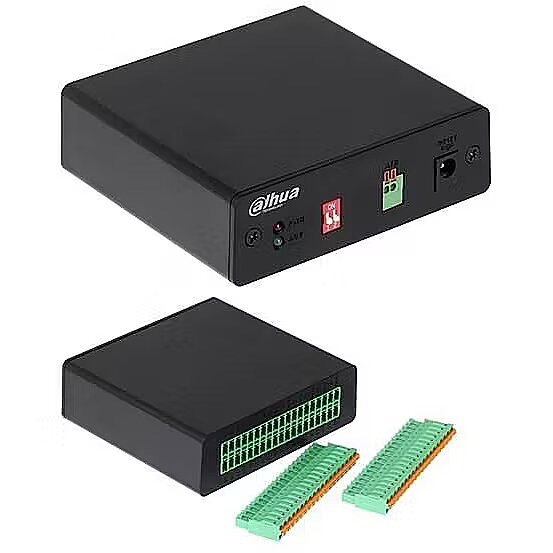

Dahua ALARM BOX NVR XVR/I/O MODULE ARB1606
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: on Wednesday, 27.11.2024
- Delivery to Omniva parcel machine free of charge: on Wednesday, 27.11.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: on Wednesday, 27.11.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: on Wednesday, 27.11.2024
- Delivery to address in Riga 3.99 €: on Wednesday, 27.11.2024
- Delivery to address in Latvia 6.99 €: on Wednesday, 27.11.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: on Monday, 25.11.2024 after 15:00
More detailed specification
Alarm In Input/Output connectors - 16
Alarm Out Input/Output connectors - 6
Brand - Dahua Technology
BrandPartCode - DHI-ARB1606
Category - Alarm Receivers
Category Code - IPC
Description - Alarm Box Input/Output module for Dahua NVR/XVR > Support through RS485 access to NVR&XVR > Support 16ch Alarm In/ 6ch Alarm Out interface > Support universal 12V power supply > Linked alarm can be configured on the alarm input and output interface when the communication is established between XVR/NVR device and the alarm box.
Features - Built-in display - No
Features - Form factor - Desktop
Features - On/off button - Yes
Features - Operating temperature (T-T) - -10 - 55 °C
Features - Product colour - Black
Full Description Line - 1xRS-485|16xAlarm In|6xAlarm Out|Power supply requirements 12V/1A (or use 1 to 2 power cable to use the DVR power)
GTIN - 6939554916045
LongDesc -
LongProductName - Alarm Box, RS485 port, 2-bit, Desktop installation
LongSummaryDescription - Dahua Technology Alarm Box. Form factor: Desktop, Operating temperature (T-T): -10 - 55 °C, Product colour: Black. Width: 97.7 mm, Depth: 33 mm, Height: 90.3 mm
Model - ARB1606
Power supply requirements - 12V/1A (or use 1 to 2 power cable to use the DVR power)
ProductName - Alarm Box
RS-485 Input/Output connectors - 1
Shipping Box Depth Shipping/Package Box Dimensions - 13.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 5.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.2 kg
Shipping Box Width Shipping/Package Box Dimensions - 11.5 cm
ShortSummaryDescription - Dahua Technology Alarm Box, Desktop, -10 - 55 °C, Black, 97.7 mm, 33 mm, 90.3 mm
Technical details - Compliance certificates - CE, Federal Communications Commission (FCC)
Technical details - Sustainability certificates - CE, Federal Communications Commission (FCC)
Title - Dahua Technology Alarm Box
Unit Box Height - 0.055
Unit Box Length - 0.135
Unit Box Width - 0.115
Unit Brutto Volume - 0.0008539 cubm
Unit Gross Weight - 0.2 kg
Unit Net Weight - 0.18 kg
URL - https://www.dahuasecurity.com/products/All-Products/HDCVI-Cameras/HDCVI-Accessories/Alarm-Box/ARB1606
Vendor Homepage - www.dahuasecurity.com/ceen/products/All-Products/HDCVI-Cameras/HDCVI-Accessories/Alarm-Box/ARB1606
Warranty - 24 months
WarrantyInfo -
Weight & dimensions - Depth - 33 mm
Weight & dimensions - Height - 90.3 mm
Weight & dimensions - Weight - 200 g
Weight & dimensions - Width - 97.7 mm
