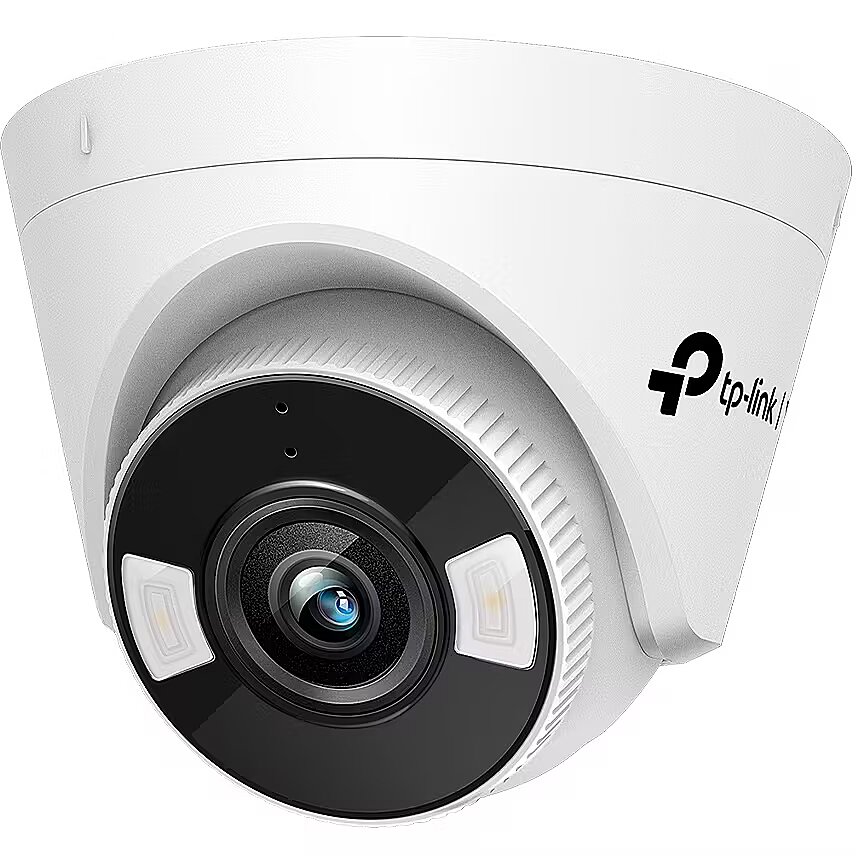

TP-LINK VIGI C430(4mm), 1296p, 3MP, White

Brand - TP-Link
BrandPartCode - VIGI C430(4MM)
Camera - Lens viewing angle, diagonal - 106.9°
Camera - Lens viewing angle, horizontal - 89.1°
Camera - Lens viewing angle, vertical - 45.1°
Camera - Minimum illumination - 0.005 lx
Camera design - Eyeball
Category - Security Cameras
Category Code - FNC
CnCode CnCode - 85258900
Colour - White
Description - VIGI 3MP Full-Color Turret Network Camera - 3MP Super-High Definition: The camera comes with 3MP–more than enough pixels to pick up some of the more discrete details. - 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights. - Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications. - Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects. - Built-In Microphone: Features a built-in microphone to record anything going on within a 15-ft radius of the camera. - H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality. - Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision. - PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy. - Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.
Design - Form factor - Dome
Design - Housing material - Plastic
Design - Mounting type - Ceiling
Design - Product colour - Black, White
Dimensions - 123 × 123 × 83 mm
Focal Length - 4mm
Full Description Line - Pixel Resolution 3 Mega Pixel|Focal Length 4mm|IR Illumination|Sensor size 1/2.8” Progressive Scan CMOS|Microphone Built-in|Lens Mount M12|Min. Illumination 0.005 Lux|1xRJ45|Power options PoE/12V|Power supply requirements 12V DC ± 5%, 5.5mm Coaxial Power Plug; PoE (802.3af/at, class 0)|Operating temperature range -30–60 °C|Included Accessories Quick Start Guide;Mounting Accessories|Colour White|Dimensions 123 × 123 × 83 mm
Image sensor - Number of sensors - 1
Image sensor - Optical sensor size - 25.4 / 2.8 mm (1 / 2.8")
Image sensor - Progressive scan - Yes
Image sensor - Sensor type - CMOS
Included Accessories - Quick Start Guide;
Mounting Accessories
IR Illumination - Yes
Lens Mount - M12
Lens system - Lens diameter - 4 mm
Lens system - Maximum aperture number - 1.6
Lens system - Number of lenses - 1
LongDesc - All The Colors, All The Time3MP Full-Color Turret Network CameraClarity and Colors, All in OneMonitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 3MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.Human & Vehicle ClassificationIntegrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.We keep an eye on your business.Smart DetectionBacked by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.No more silent surveillance.Built-In MicrophoneThe VIGI camera features a built-in microphone to record anything going on within a 15-ft radius of the camera. This gives you more detailed monitoring for greater peace of mind.Never miss a detail.SmartVid-Smart Video EnhancementVIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.More compression. More savings. Same quality.Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.Plug & Play with One CableEnjoy simple wiring with PoE connections. Connect your camera with an RJ45 cable, then your power supply and data transmission are all settled.Flexible ManagementTake full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger. Flexible Installation Gives You More Convenience.Easily route your camera’s cable into a dropped ceiling or avoid drilling by slotting it through the camera’s side outlet.One system. Full security.Run your business with peace of mind.The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
LongProductName - VIGI 3MP Full-Color Turret Network Camera
LongSummaryDescription - TP-Link VIGI C430. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.005 lx, Lens viewing angle, horizontal: 89.1°, Lens viewing angle, vertical: 45.1°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Lens diameter: 4 mm
Management features - Behavior analysis - Intrusion detection, Line crossing detection
Management features - Web browser - Yes
Microphone - Built-in
Min. Illumination - 0.005 Lux
Model - VIGI C430(4MM)
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet LAN - Yes
Network - Networking standards - IEEE 802.3af, IEEE 802.3at
Network - Supported network protocols - TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Night vision - LED type - IR
Night vision - Night vision - Yes
Night vision - Night vision distance - 30 m
Operating temperature range - -30–60 °C
Operational conditions - Operating temperature (T-T) - -30 - 60 °C
Packaging content - Mounting kit - Yes
Packaging content - Number of cameras - 1
Panoramic camera - Digital Wide Dynamic Range (DWDR) (panoramic camera) - Yes
Performance - Certification - CE/BSMI/VCCI/ONVIF
Performance - Connectivity technology - Wired
Performance - Day/night mode - Yes
Performance - Placement supported - Indoor & outdoor
Performance - Type - IP security camera
Performance - Wide Dynamic Range (WDR) - Yes
Pixel Resolution - 3 Mega Pixel
Power - DC output voltage - 12
Power - Power source type - DC, PoE
Power consumption - 4.2 Watts
Power options - 12V/PoE
Power supply requirements - 12V DC ± 5%, 5.5mm Coaxial Power Plug; PoE (802.3af/at, class 0)
ProductName - VIGI C430
RJ45 Input/Output connectors - 1
Security - Digest authentication - Yes
Security - HTTPS encryption - Yes
Security - IP address filtering - Yes
Security - Mirror - Yes
Security - Password protection - Yes
Security - Password reset via email - Yes
Sensor size - 1/2.8” Progressive Scan CMOS
Shipping Box Depth Shipping/Package Box Dimensions - 16 cm
Shipping Box Height Shipping/Package Box Dimensions - 12 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.391 kg
Shipping Box Width Shipping/Package Box Dimensions - 16 cm
ShortSummaryDescription - TP-Link VIGI C430, IP security camera, Indoor & outdoor, Wired, CE/BSMI/VCCI/ONVIF, Ceiling, Black, White
Storage - Built-in HDD - No
Title - TP-Link VIGI C430 Dome IP security camera Indoor & outdoor 2304 x 1296 pixels Ceiling
Unit Box Height - 0.12
Unit Box Length - 0.16
Unit Box Width - 0.16
Unit Brutto Volume - 0.003072 cubm
Unit Gross Weight - 0.391 kg
Unit Net Weight - 0.3 kg
URL - https://www.tp-link.com/ae/business-networking/vigi-network-camera/vigi-c430/
Vendor Homepage - www.tp-link.com/my/business-networking/vigi-network-camera/vigi-c430/
Video - Back Light Compensation (BLC) - Yes
Video - Bit rate - 64 Kbps to 4 Mbps
Video - Frame rate - 30 fps
Video - Highlight Compensation (HLC) - Yes
Video - Image quality adjustment - Brightness, Contrast, Sharpness
Video - Maximum resolution - 2304 x 1296 pixels
Video - Noise reduction - Yes
Video - Noise reduction technology - 3D noise reduction
Video - Privacy masking - Yes
Video - Smart IR - Yes
Video - Total megapixels - 3 MP
Video - Video compression formats - H.264, H.264+, H.265, H.265+
Video - Video streaming - Yes
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Depth - 83 mm
Weight & dimensions - Height - 123 mm
Weight & dimensions - Width - 123 mm
