ID: 1221867
Product code: IPC-HDW1639T-AIL0280BS6-B
In stock 30 units
Warranty: 3 years

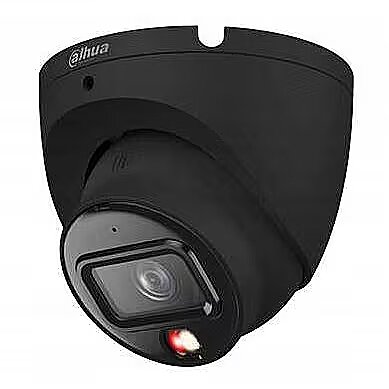

Dahua Eyeball, 3200x1800p, 6MP, Black
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Receiving goods at the Dateks office0.00 € -
DPD Pickup Parcel CabinetWithin 1-2 working days0.00 € -
Parcel terminalWithin 1-2 working days0.00 € -
Post OfficeWithin 1-2 working days0.00 €
-
Omniva parcel machineWithin 1-2 working days0.00 € -
SmartPosti parcel terminalWithin 1-2 working days0.00 € -
Delivery throughout Latvia.Within 1-2 working days4.99 €
All parameters
Aperture
: N/A
Atmiņas kartes ligzda
: Nav
Colour
: Melna
Encoding
: H.264, H.265
Feeding
: 12V adapteris, PoE
FPS at maximum resolution
: 20
Microphone
: Ir
Network connections
: Nav
Number of cameras per set
: 1
Operating temperature MAX (°C)
: 60
Operating temperature MIN (°C)
: -40
Resolution
: 3200x1800
SIM card socket
: Nav
Use
: Indoor/Outdoor
Viewing angle
: 110°
Water resistance
: IP67
Weight (g)
: 450
More detailed specification
3D NR (Noise Reduction) Video - Yes
B/W night vision distance Night vision - 30 m
Back Light Compensation (BLC) Video - Yes
Built-in microphone Audio - Yes
Category Code - FNC
Connectivity technology Performance - Wired
DC output voltage Power - 12
Description - IPC-HDW1639T-AIL0280BS6-B > 1/2.7" CMOS image sensor, low luminance, and high definition image. > Outputs max. 6 MP (3200 × 1800) @20 fps, and supports 2688 × 1520@25/30 fps. > H.265 codec, high compression rate, ultra-low bit rate. > Built-in Multi-core Light, the max. IR distance is 30 m and the max. warm light distance is 30 m. > ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments. > Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. > Built in Mic. > 12 VDC/PoE power supply, easy for installation. > IP67 protection. > Supports human detection. > Focal Length 2.8 mm, Field of View 110°
Diameter Weight & dimensions - 94 mm
Digital Wide Dynamic Range (DWDR) Video - Yes
Ethernet LAN (RJ-45) ports Ports & interfaces - 1
Field of view (FOV) angle Camera - 110 °
Fixed focal length Lens system - 2.8 mm
Form factor Design - Eyeball
Height Weight & dimensions - 85.6 mm
Highlight Compensation (HLC) Video - Yes
International Protection (IP) code Design - IP67
LED type Night vision - IR
Lens mount interface Technical details - M12
Maximum resolution Video - 3200 × 1800 pixels
Minimum illumination Camera - 0.0007 lx
Model - IPC-HDW1639T-AIL0280BS6-B
Night vision Night vision - Yes
Operating temperature (T-T) Operational conditions - –40 °C to +60 °C °C
Power consumption (typical) Power - 5.3 W
Power source type Power - DC,PoE
Product colour Design - Black
RAM capacity Storage - 256 MB
ROM capacity Storage - 128 MB
Storage temperature (T-T) Operational conditions - –40 °C to +60 °C °C
Total megapixels Video - 6 MP
Type Performance - IP security camera
Unit Box Height - 0.11
Unit Box Length - 0.115
Unit Box Width - 0.11
Unit Calculated Volume - 0.0013915 cubm
Unit Calculated Weight - 0.45 kg
Units per Shipping Box - 1
Vendor Homepage - material.dahuasecurity.com/uploads/cpq/prm-os-srv-res/smart/datasheetzipfiles/IPC-HDW1639T-A-IL_S6_datasheet_20240702.pdf
Warranty - 36 months
Weight Weight & dimensions - 340 g
B/W night vision distance Night vision - 30 m
Back Light Compensation (BLC) Video - Yes
Built-in microphone Audio - Yes
Category Code - FNC
Connectivity technology Performance - Wired
DC output voltage Power - 12
Description - IPC-HDW1639T-AIL0280BS6-B > 1/2.7" CMOS image sensor, low luminance, and high definition image. > Outputs max. 6 MP (3200 × 1800) @20 fps, and supports 2688 × 1520@25/30 fps. > H.265 codec, high compression rate, ultra-low bit rate. > Built-in Multi-core Light, the max. IR distance is 30 m and the max. warm light distance is 30 m. > ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments. > Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. > Built in Mic. > 12 VDC/PoE power supply, easy for installation. > IP67 protection. > Supports human detection. > Focal Length 2.8 mm, Field of View 110°
Diameter Weight & dimensions - 94 mm
Digital Wide Dynamic Range (DWDR) Video - Yes
Ethernet LAN (RJ-45) ports Ports & interfaces - 1
Field of view (FOV) angle Camera - 110 °
Fixed focal length Lens system - 2.8 mm
Form factor Design - Eyeball
Height Weight & dimensions - 85.6 mm
Highlight Compensation (HLC) Video - Yes
International Protection (IP) code Design - IP67
LED type Night vision - IR
Lens mount interface Technical details - M12
Maximum resolution Video - 3200 × 1800 pixels
Minimum illumination Camera - 0.0007 lx
Model - IPC-HDW1639T-AIL0280BS6-B
Night vision Night vision - Yes
Operating temperature (T-T) Operational conditions - –40 °C to +60 °C °C
Power consumption (typical) Power - 5.3 W
Power source type Power - DC,PoE
Product colour Design - Black
RAM capacity Storage - 256 MB
ROM capacity Storage - 128 MB
Storage temperature (T-T) Operational conditions - –40 °C to +60 °C °C
Total megapixels Video - 6 MP
Type Performance - IP security camera
Unit Box Height - 0.11
Unit Box Length - 0.115
Unit Box Width - 0.11
Unit Calculated Volume - 0.0013915 cubm
Unit Calculated Weight - 0.45 kg
Units per Shipping Box - 1
Vendor Homepage - material.dahuasecurity.com/uploads/cpq/prm-os-srv-res/smart/datasheetzipfiles/IPC-HDW1639T-A-IL_S6_datasheet_20240702.pdf
Warranty - 36 months
Weight Weight & dimensions - 340 g
