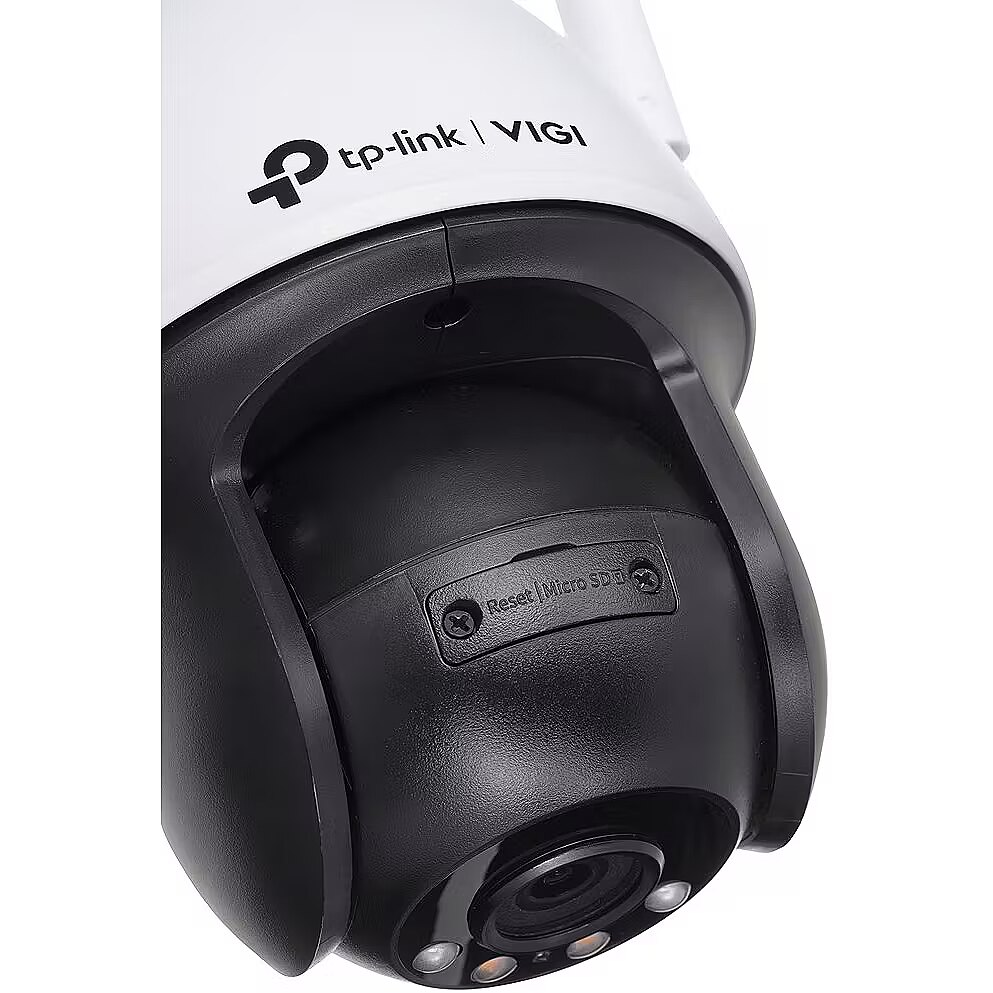

TP-LINK VIGI C540-W(4mm), 1440p, App Control, Spotlight, Black/White

Audio - Built-in microphone - Yes
Audio - Built-in speaker(s) - Yes
Brand - TP-Link
BrandPartCode - VIGI C540-W(4MM)
Camera - Camera pan control - Yes
Camera - Camera tilt control - Yes
Camera - Lens viewing angle, diagonal - 93°
Camera - Lens viewing angle, horizontal - 79°
Camera - Lens viewing angle, vertical - 43°
Camera - Pan range - 0 - 350°
Camera - Tilt angle range - 0 - 120°
Category - Security Cameras
Design - Form factor - Turret
Design - Housing material - Plastic
Design - International Protection (IP) code - IP66
Design - Mounting type - Ceiling/wall
Design - Product colour - Black
Design - Product colour - Black, White
Design - Product colour - White
dimensionalWeight - 1920
Features - Basic event - Motion Detection, Camera Tampering Detection, Exception
GTIN - 4897098683798
Image sensor - Optical sensor size - 25.4 / 3 mm (1 / 3")
Image sensor - Sensor type - CMOS
Lens system - Lens diameter - 4 mm
Lens system - Number of lenses - 1
Lens system - Zoom capability - Yes
LongDesc - Powerful Pan TiltCover every corner flexibly with VIGI’s Pan Tilt camera. Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve the security within your property.Outdoor Wi-Fi Connection, Simple WiringJust power up your camera, then the transmission starts by its 2×2 MIMO antennas. Waterproof hardware protects stable performance in outdoor scenarios.Clarity and Colors, All in OneMonitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.We keep an eye on your business.Smart DetectionReceive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.Active DefenseWarn potential intruders instantly with sound and light when abnormal events are detected.Every Event is Under Your Control.VIGI camera intelligently detects activities, informs you instantly, and responds automatically by smart detection and two-way audio.Smart IRKeeps objects from being under-rendered when far away or overexposed when close to the camera at night.Wide Dynamic RangeAdjusts for lighting contrast to minimize shadowing effects and renders images true to life.3D DNRRemoves abnormal pixelation to provide clearer video and eliminate distortion.More compression. More savings. Same quality.Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.Flexible Management and StorageTake full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger. Local storage is available for each method, as well as on-board storage with an SD card slot (up to 256 GB).
LongProductName - 1/3” Progressive Scan CMOS, 4 mm: F1.6, 2560 X 1440, 60 fps, WLAN 802.11 b/g/n, 1x RJ45 10/100M
LongSummaryDescription - TP-Link VIGI 4MP Outdoor Full-Color Wi-Fi Pan Tilt Network Camera. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired & Wireless. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Turret. Lens viewing angle, horizontal: 79°, Lens viewing angle, vertical: 43°, Lens viewing angle, diagonal: 93°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Lens diameter: 4 mm
Management features - Behavior analysis - Intrusion detection, Line crossing detection
Management features - Reset button - Yes
Network - Bluetooth - No
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet LAN - Yes
Network - Live view - Yes
Network - Number of simultaneous live view channels - 3 channels
Network - Supported network protocols - TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Night vision - LED type - IR
Night vision - Night vision - Yes
Night vision - Night vision distance - 30 m
Operational conditions - Operating temperature (T-T) - -30 - 60 °C

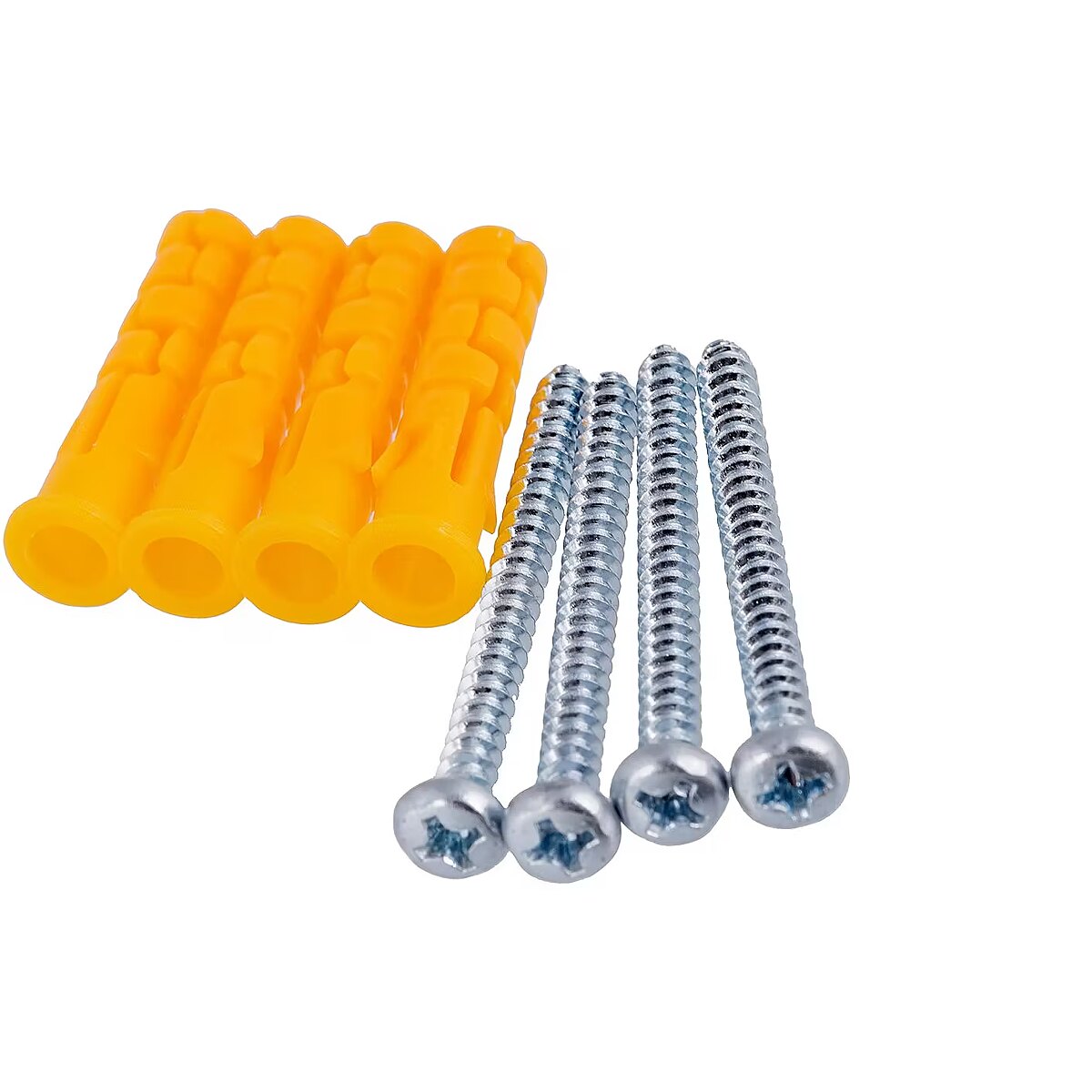

Packaging content - Mounting kit - Yes
Packaging content - Number of cameras - 1
Performance - Certification - RCM, BSMI, VCCI, NCC, JRF, KC
Performance - Connectivity technology - Wired & Wireless
Performance - Placement supported - Indoor & outdoor
Performance - Type - IP security camera
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - DC output voltage - 12
Power - Power consumption (Power over Ethernet (PoE)) - 14 W
Power - Power source type - PoE
producerCode - C540-W(4MM)
productName - TP-LINK VIGI C540-W(4mm) camera
ProductName - VIGI 4MP Outdoor Full-Color Wi-Fi Pan Tilt Network Camera
productSize - Normal
Security - Digest authentication - Yes
Security - HTTPS encryption - Yes
Security - Intelligent Video Surveillance (IVS) system features - Human detection
Security - IP address filtering - Yes
Security - Mirror - Yes
Security - Password protection - Yes
Security - Security algorithms - WPA
Security - Security algorithms - WPA, WPA2-PSK
Security - Security algorithms - WPA2-PSK
ShortSummaryDescription - TP-Link VIGI 4MP Outdoor Full-Color Wi-Fi Pan Tilt Network Camera, IP security camera, Indoor & outdoor, Wired & Wireless, RCM, BSMI, VCCI, NCC, JRF, KC, Ceiling/wall, Black, White
sizeX - 250
sizeY - 160
sizeZ - 240
Storage - Built-in HDD - No
Storage - Card reader integrated - Yes
Storage - Compatible memory cards - MicroSD (TransFlash)
Storage - Maximum memory card size - 256 GB
Technical details - Compliance certificates - CE, RoHS
Technical details - Sustainability certificates - CE
Technical details - Sustainability certificates - CE, RoHS
Technical details - Sustainability certificates - RoHS
Title - TP-Link VIGI 4MP Outdoor Full-Color Wi-Fi Pan Tilt Network Camera
URL - https://www.tp-link.com/en/business-networking/vigi-network-camera/vigi-c540-w/v1/#overview
Video - Bit rate - 256 Kbps - 4 Mbps
Video - Digital Wide Dynamic Range (DWDR) - Yes
Video - Frame rate - 30 fps
Video - Image quality adjustment - Brightness
Video - Image quality adjustment - Brightness, Contrast, Mirror, Saturation, Sharpness
Video - Image quality adjustment - Contrast
Video - Image quality adjustment - Mirror
Video - Image quality adjustment - Saturation
Video - Image quality adjustment - Sharpness
Video - Maximum resolution - 2560 x 1440 pixels
Video - Noise reduction - Yes
Video - Noise reduction technology - 3D noise reduction
Video - Privacy masking - Yes
Video - Supported graphics resolutions - 320 x 240
Video - Supported graphics resolutions - 320 x 240, 352 x 288, 640 x 480 (VGA), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Video - Supported graphics resolutions - 352 x 288
Video - Supported graphics resolutions - 640 x 480 (VGA)
Video - Supported graphics resolutions - 1920 x 1080 (HD 1080)
Video - Supported graphics resolutions - 2048 x 1280
Video - Supported graphics resolutions - 2304 x 1296
Video - Supported graphics resolutions - 2560 x 1440
Video - Total megapixels - 4 MP
Video - Video compression formats - H.264
Video - Video compression formats - H.264+
Video - Video compression formats - H.264, H.264+, H.265, H.265+
Video - Video compression formats - H.265
Video - Video compression formats - H.265+
Video - Video streaming - Yes
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 1150
Weight & dimensions - Depth - 172 mm
Weight & dimensions - Height - 198 mm
Weight & dimensions - Package depth - 243 mm
Weight & dimensions - Package height - 243 mm
Weight & dimensions - Package weight - 1.21 kg
Weight & dimensions - Package width - 163 mm
Weight & dimensions - Width - 120 mm
