ID: 684423
Product code: ACFAN00187A
In stock 50 units
Warranty: 2 years

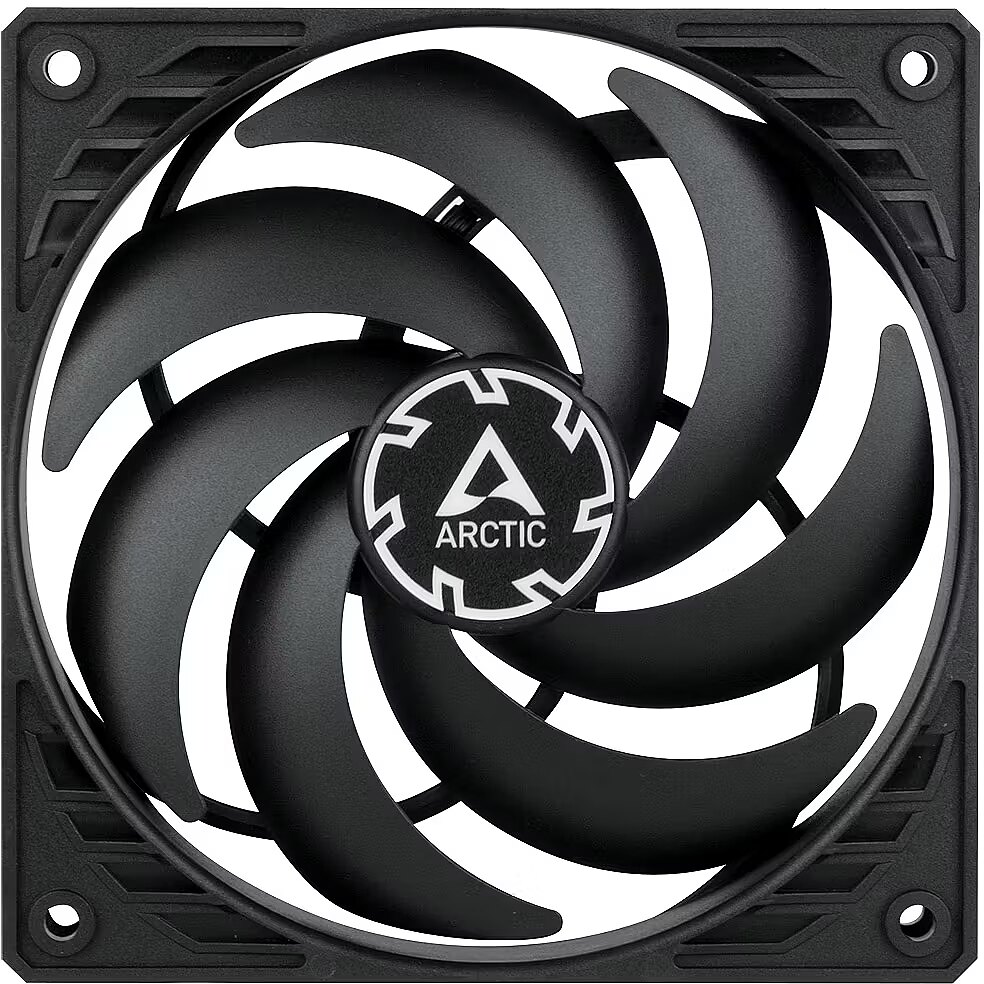

Arctic P12 Slim PWM PST, Black
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Omniva parcel machine free of charge: 02.01.2025
- Piegāde uz DPD Pickup Paku Skapi free of charge: 02.01.2025
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 02.01.2025
- Delivery to address in Riga 3.99 €: 02.01.2025
- Delivery to address in Latvia 6.99 €: 02.01.2025
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: on Friday, 27.12.2024 after 15:00
Main product parameters All parameters
- Producer: Arctic
- LED izgaismojuma krāsa: Nav
- Output Interface: 4-pin (PWM)
- Revolutions (MIN), rpm: 300
- RPM (MAX), rpm: 2100
- Size, mm: 120
- Sound level (MAX), dB(A): 23.5
- Units in package: 1
All parameters
Producer
: Arctic
Type of lighting
: Bez apgaismojuma
Basic information
LED izgaismojuma krāsa
: Nav
Output Interface
: 4-pin (PWM)
RPM (MAX), rpm
: 2100
Size, mm
: 120
Sound level (MAX), dB(A)
: 23.5
Units in package
: 1
More detailed specification
Air flow - 42.1 cfm
Bearing type - Fluid
Brand - ARCTIC
BrandPartCode - ACFAN00187A
category - Aircooling|Fans|PWM Fans
Category - Computer Cooling Systems
Category - Root/Electronics/PC parts/Cooling/Casing fans
Category Code - COS
Category_1 - Computer Cases and Cooling
Category_2 - Fans
code - ACFAN00187A
Colour - Black
Description - P12 Slim PWM PST Pressure-optimised 120 mm PWM Fan with integrated Y-cable Because the fan design of the P12 Slim PWM PST is optimised for focused airflow, it generates high static pressure. The fan enables extremely efficient cooling and good airflow— even with increased air resistance. This makes the P12 Slim PWM PST particularly well-suited for use on concealed case intakes, dust filters, radiators, and generally in small cases that have little space for free airflow due to compactly placed hardware.
Design - Material - Plastic
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
Dimensions - 120x120x15mm
ean - 4895213703130
Eans - 4895213703130
EAN_code - 4895213703130
Fan size group - 120mm
Fan speed - 300 - 2100 rpm
Full Description Line - P12 Slim PWM PST|Air flow 42.1 cfm|Colour Black|Dimensions 120x120x15mm
GTIN - 4895213703130
Logistics data - Harmonized System (HS) code - 84733080
LongDesc - Our coolers have pushed the limits further every year - and all that at dropping noise levels. We have put our utmost effort into innovative technologies and fair prices, what made us well known for products with an unparalleled price/performance ratio. We provide you headroom for over-clocking and guarantee you lowest noise levels at affordable prices.
LongProductName - 120 mm, 300-2100 RPM, 41.1 CFM, 71.53 m³/h, 0.12 A / 12V, PWM PST, 85 g
LongSummaryDescription - ARCTIC P12 Slim PWM PST Pressure-optimised 120 mm PWM Fan with integrated Y-cable. Type: Fan, Fan diameter: 12 cm, Rotational speed (min): 300 RPM, Rotational speed (max): 2100 RPM, Noise level: 0.3 sone, Maximum airflow: 41.1 cfm, Airflow: 71.53 m³/h, Maximum air pressure: 1.45 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 120 mm, Depth: 120 mm, Height: 15 mm. Product colour: Black
Manufacturer - Arctic
Manufacturer_code - ACFAN00187A
Model - ACFAN00187A
Model name - P12 Slim PWM PST
Name - Arctic P12 Slim PWM PST 120x120x15, case fan (black)
name - Arctic P12 Slim PWM PST Lüfter - 120mm
Name - Arctic P12 Slim PWM PST wentylator - 120mm
Other features - Country of origin - China
Packaging content - Mounting kit - Yes
Packaging content - Package type - Box
Packaging content - Screws included - Yes
Performance - Airflow - 71.53 m³/h
Performance - Bearing type - Fluid Dynamic Bearing (FDB)
Performance - Compatible processor series - Not supported
Performance - Fan diameter - 12 cm
Performance - Maximum airflow - 41.1 cfm
Performance - Maximum air pressure - 1.45 mmH2O
Performance - Noise level - 0.3 sone
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Quantity per pack - 1 pc(s)
Performance - Rotational speed (max) - 2100 RPM
Performance - Rotational speed (min) - 300 RPM
Performance - Suitable location - Computer case
Performance - Supported processor sockets - Not supported
Performance - Type - Fan
Power - Rated current - 0.12 A
Power - Starting voltage - 4 V
Power - Voltage - 12 V
Producer - Arctic
ProducerCode - ACFAN00187A
ProductName - P12 Slim PWM PST Pressure-optimised 120 mm PWM Fan with integrated Y-cable
Shipping Box Depth Shipping/Package Box Dimensions - 41 cm
Shipping Box Height Shipping/Package Box Dimensions - 52 cm
Shipping box quantity - 132
Shipping Box Weight Shipping/Package Box Dimensions - 16.5 kg
Shipping Box Width Shipping/Package Box Dimensions - 21 cm
ShortDescription -
ShortSummaryDescription - ARCTIC P12 Slim PWM PST Pressure-optimised 120 mm PWM Fan with integrated Y-cable, Fan, 12 cm, 2100 RPM, 0.3 sone, 41.1 cfm, 71.53 m³/h
Title - ARCTIC P12 Slim PWM PST Pressure-optimised 120 mm PWM Fan with integrated Y-cable
Unit Brutto Volume - 0.0003392 cubm
Unit Gross Weight - 0.125 kg
Unit Net Weight - 0.085 kg
URL - https://www.arctic.de/en/P12-Slim-PWM-PST/ACFAN00187A
Vendor Homepage - www.arctic.de/en/P12-Slim-PWM-PST/ACFAN00187A
Warranty - 24 months
WarrantyInfo - 10 year
Weight - 0,12
Weight & dimensions - Cable length - 0.48 m
Weight & dimensions - Depth - 120 mm
Weight & dimensions - Height - 15 mm
Weight & dimensions - Package depth - 123 mm
Weight & dimensions - Package height - 16 mm
Weight & dimensions - Package weight - 110 g
Weight & dimensions - Package width - 127 mm
Weight & dimensions - Weight - 85 g
Weight & dimensions - Width - 120 mm
