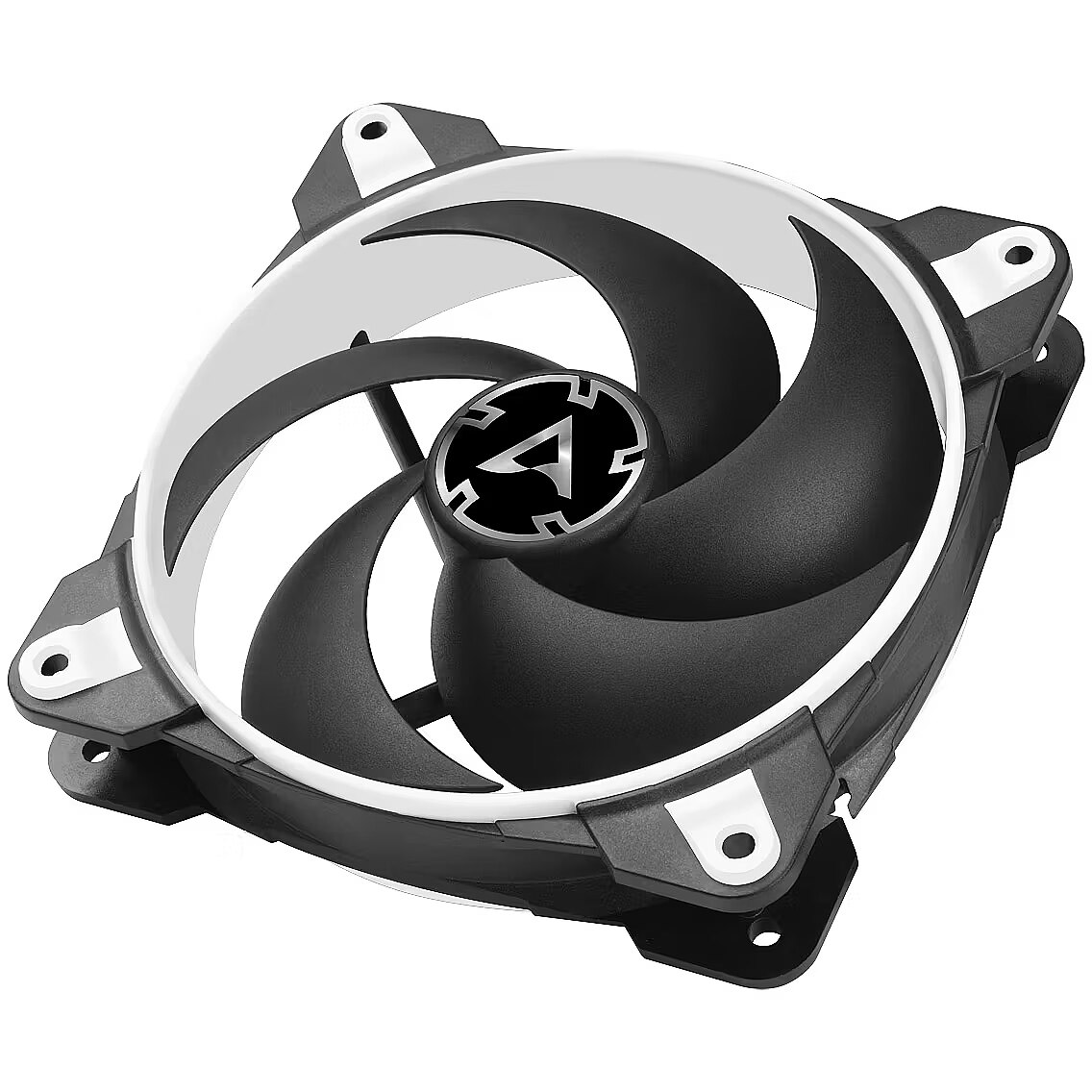

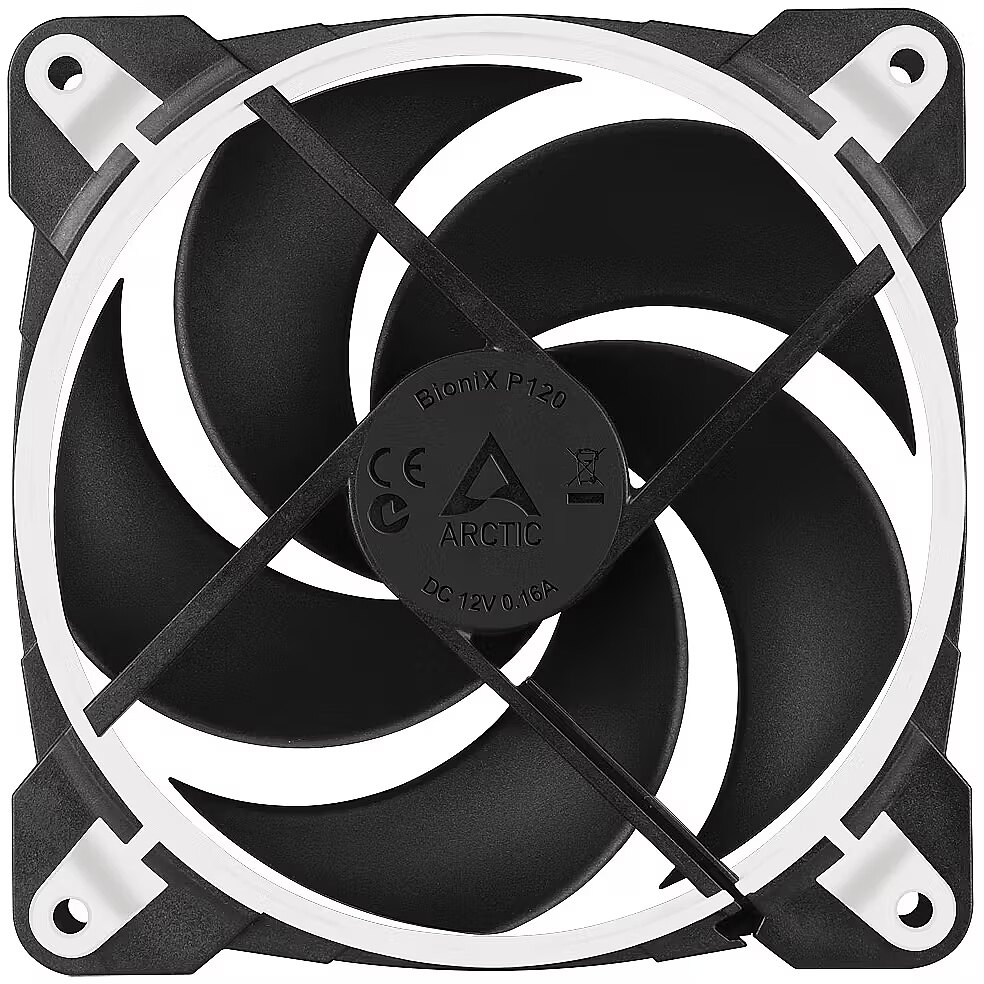

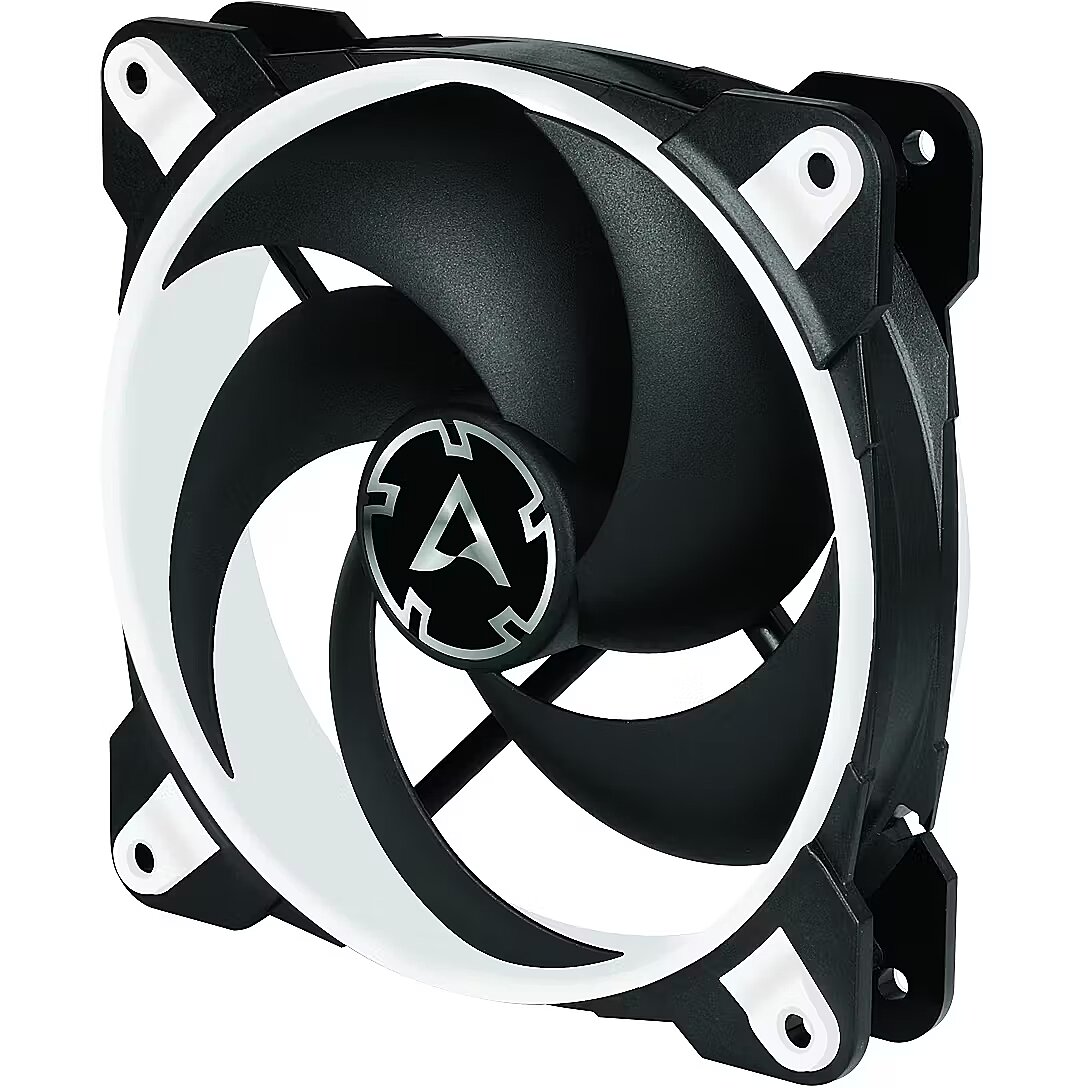

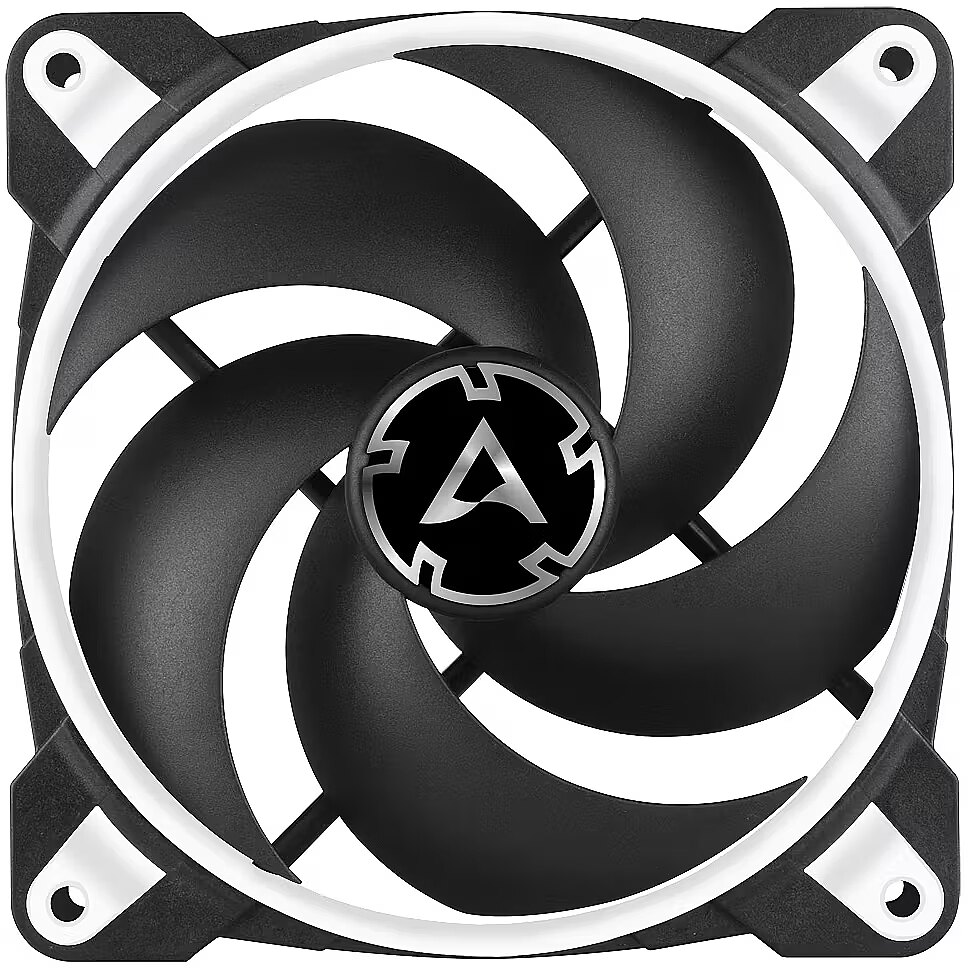

Arctic BioniX P120 PWM PST, Black/White

Brand - ARCTIC
BrandPartCode - ACFAN00116A
Category - Computer Cooling Systems
Category - Datortehnika :: Datoru komponentes :: Korpusa ventilatori
Category_1 - Computer Cases and Cooling
Category_2 - Fans
Code - ACFAN00116A
Desc - Ligdza (socket): 4-pin, Diametrs: 120 mm, Ventilators ātrums (apgr.min.): 2100 apgr. min., Apgaismojums: Nav, Skaits komplektācijā: 1, Garantija: 2 gadi
Design - Fan connector - 4-pin + 4-pin
Design - Number of fan blades - 5
Design - Number of fans - 1 fan(s)
Design - Product colour - Black, White
EAN - 4895213701297
EAN_code - 4895213701297
GTIN - 0872767009257
GTIN - 872767009257
GTIN - 4895213701297
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_71214_1.jpg
LargeDescHTML -
Logistics data - Harmonized System (HS) code - 84733080
LongDesc - The BioniX P120 fan features completely redesigned fanblades and is optimised for high static pressure. Thus, the BioniX P120 is especially effective when used on heatsinks and with higher air resistance.The wide RPM range from 200 to 2100 RPM can be regulated seamlessly and synchronously with other fans thanks to ARCTIC's PWM Sharing Technology (PST).The newly developed motor with a low coil temperature significantly increases the life span of the fan. Therefore we have extended the warranty to 10 years.
LongProductName - 120 mm, 200 - 2100 RPM, PWM, 67.56 CFM, 114.79 m3/h, 12 V DC, 2x 4-pin, 140 g, White
LongSummaryDescription - ARCTIC BioniX P120 (White) – Pressure-optimised 120 mm Gaming Fan with PWM PST. Type: Fan, Fan diameter: 12 cm, Rotational speed (min): 200 RPM, Rotational speed (max): 2100 RPM, Noise level (high speed): 25.5 dB, Noise level: 0.45 sone, Maximum airflow: 67.56 cfm, Airflow: 114.79 m³/h, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 120 mm, Depth: 120 mm, Height: 27 mm. Product colour: Black, White
Manufacturer - Arctic
Manufacturer_code - ACFAN00116A
Name - Arctic BioniX P120 PWM white 120x120x27 - ACFAN00116A
Name - Arctic BioniX P120 White
Other features - Country of origin - China
Other features - Mounting hole pattern (W x D) - 105 x 105 mm
Packaging content - Number of screws - 4

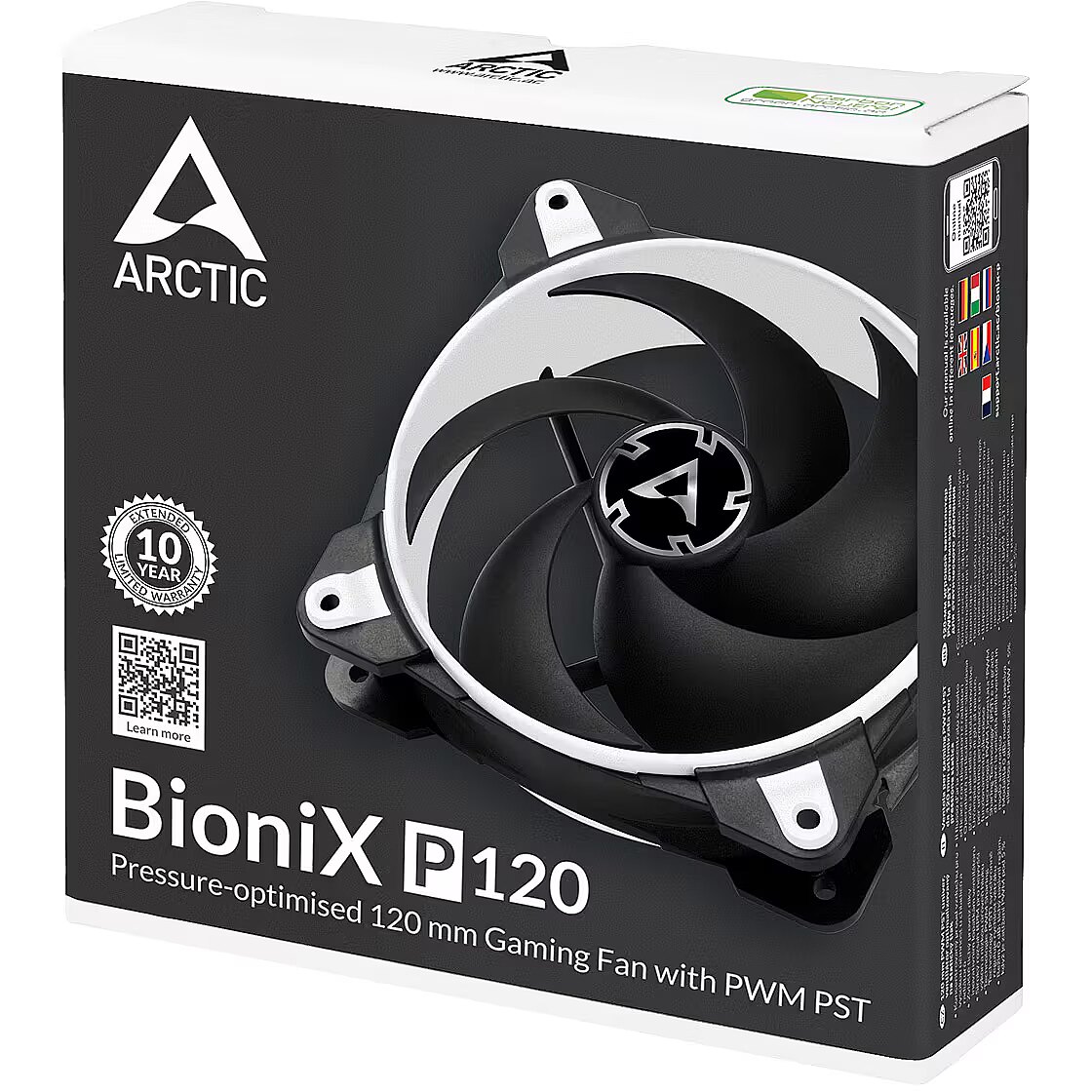

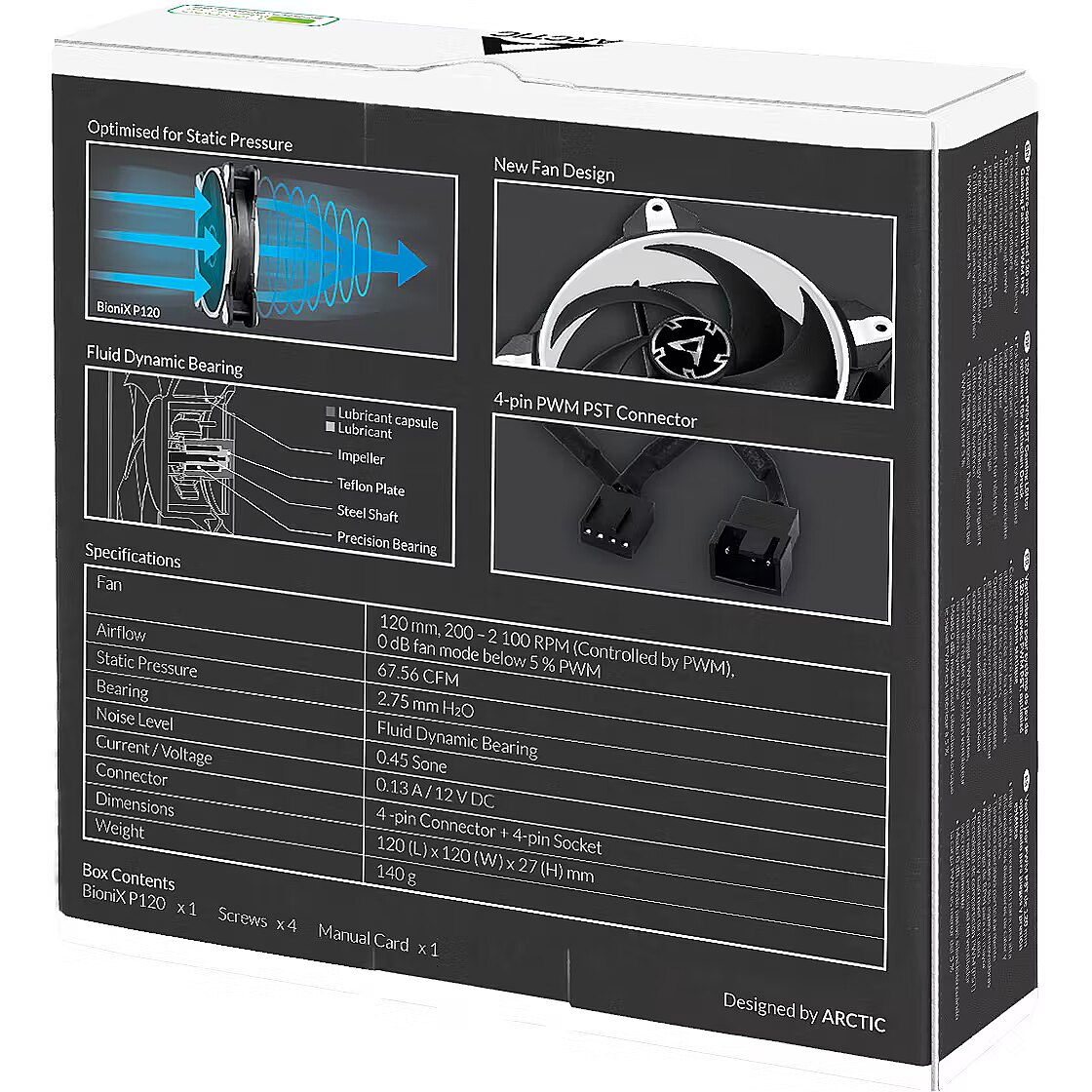

Packaging content - Package type - Box
Packaging content - Screws included - Yes
Performance - Airflow - 114.79 m³/h
Performance - Bearing type - Fluid Dynamic Bearing (FDB)
Performance - Compatible processor series - Not supported
Performance - Fan diameter - 12 cm
Performance - Maximum airflow - 67.56 cfm
Performance - Noise level - 0.45 sone
Performance - Noise level (high speed) - 25.5 dB
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Rotational speed (max) - 2100 RPM
Performance - Rotational speed (min) - 200 RPM
Performance - Suitable location - Computer case
Performance - Supported processor sockets - Not supported
Performance - Type - Fan
Power - Power consumption (typical) - 1.56 W
Power - Rated current - 0.13 A
Power - Voltage - 12 V
ProductName - BioniX P120 (White) – Pressure-optimised 120 mm Gaming Fan with PWM PST
ShortSummaryDescription - ARCTIC BioniX P120 (White) – Pressure-optimised 120 mm Gaming Fan with PWM PST, Fan, 12 cm, 2100 RPM, 25.5 dB, 67.56 cfm, 114.79 m³/h
Technical details - Compliance certificates - RoHS
Title - ARCTIC BioniX P120 (White) – Pressure-optimised 120 mm Gaming Fan with PWM PST
URL - https://www.arctic.ac/eu_en/bionix-p120.html
WarrantyInfo - 10 years
Weight - 0,17
Weight & dimensions - Cable length - 0.4 m
Weight & dimensions - Depth - 120 mm

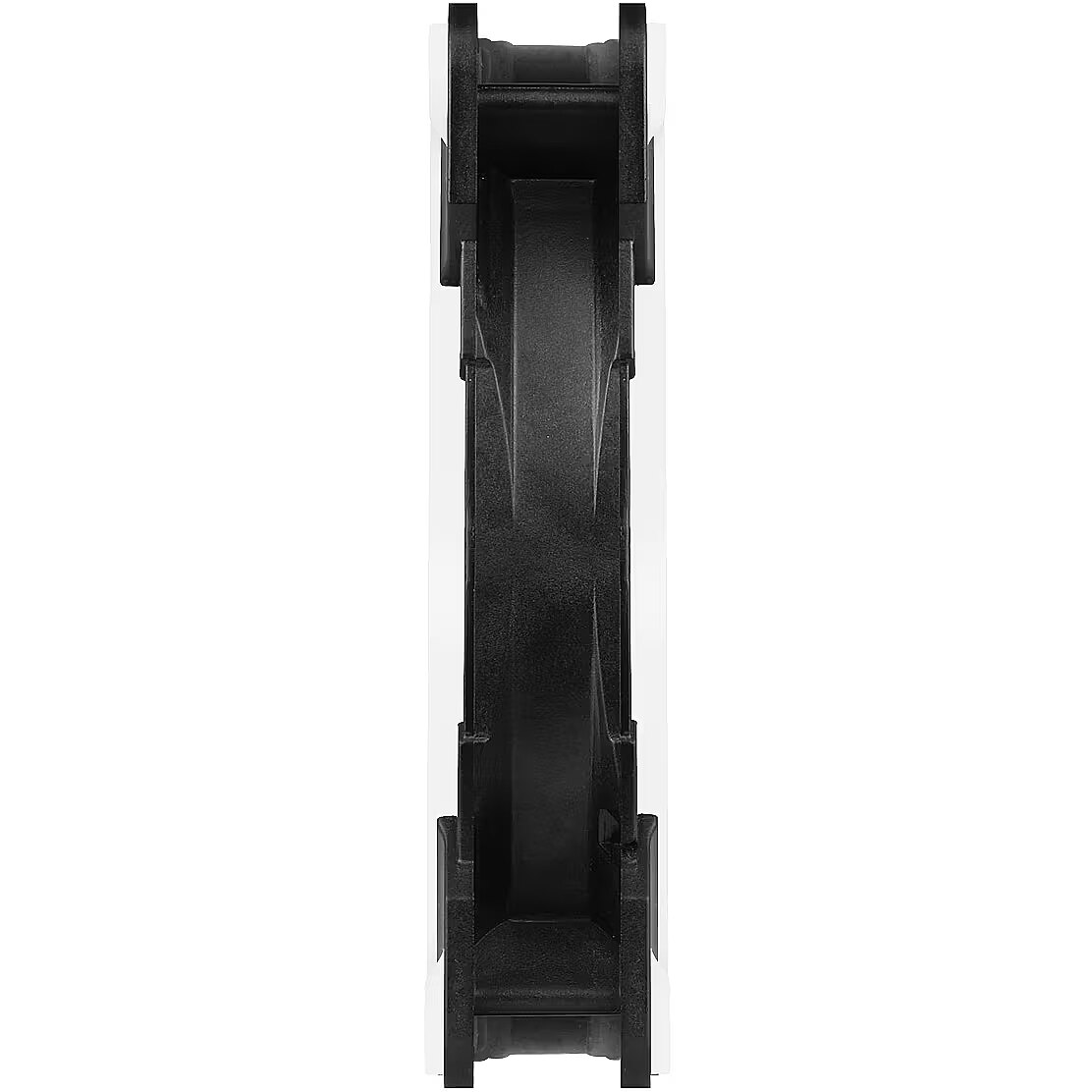

Weight & dimensions - Height - 27 mm
Weight & dimensions - Package depth - 125 mm
Weight & dimensions - Package height - 34 mm
Weight & dimensions - Package weight - 175 g
Weight & dimensions - Package width - 130 mm
Weight & dimensions - Weight - 140 g
Weight & dimensions - Width - 120 mm
