ID: 601149
Product code: ACFAN00126A
In stock 30 units
Warranty: 2 years

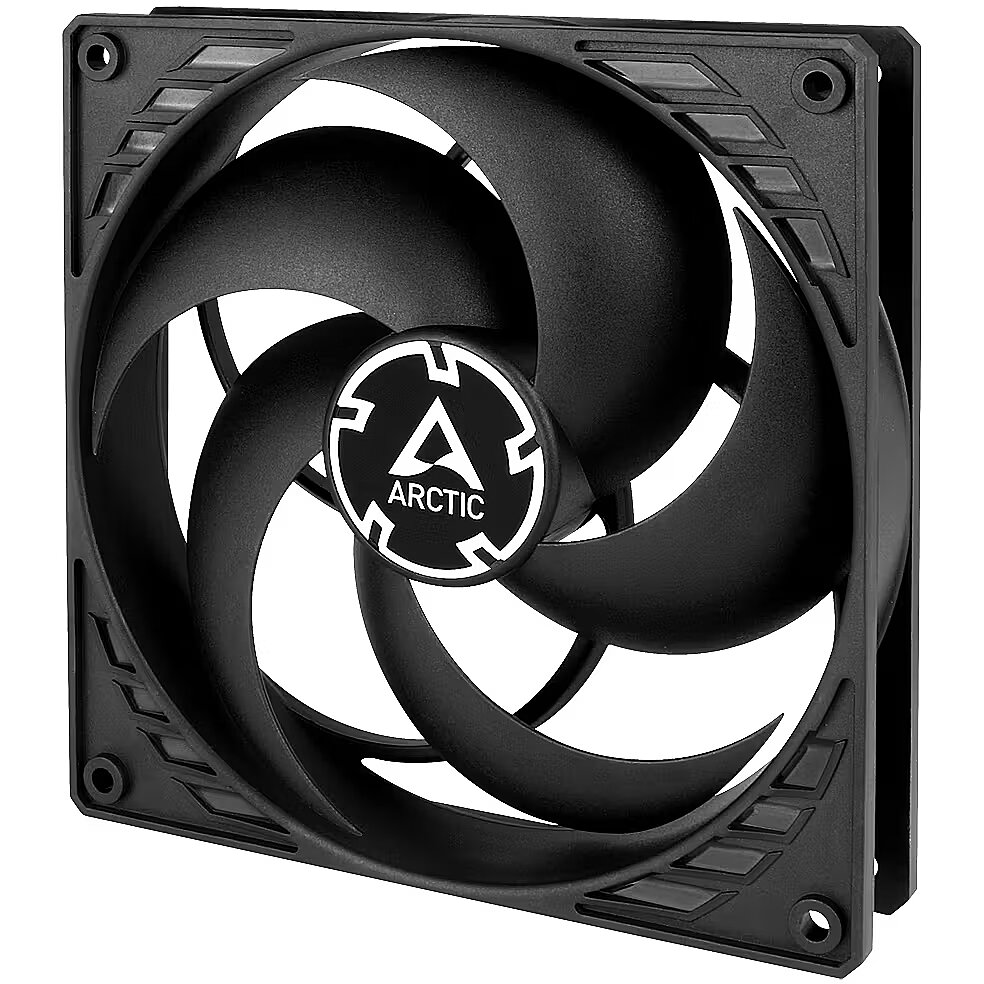

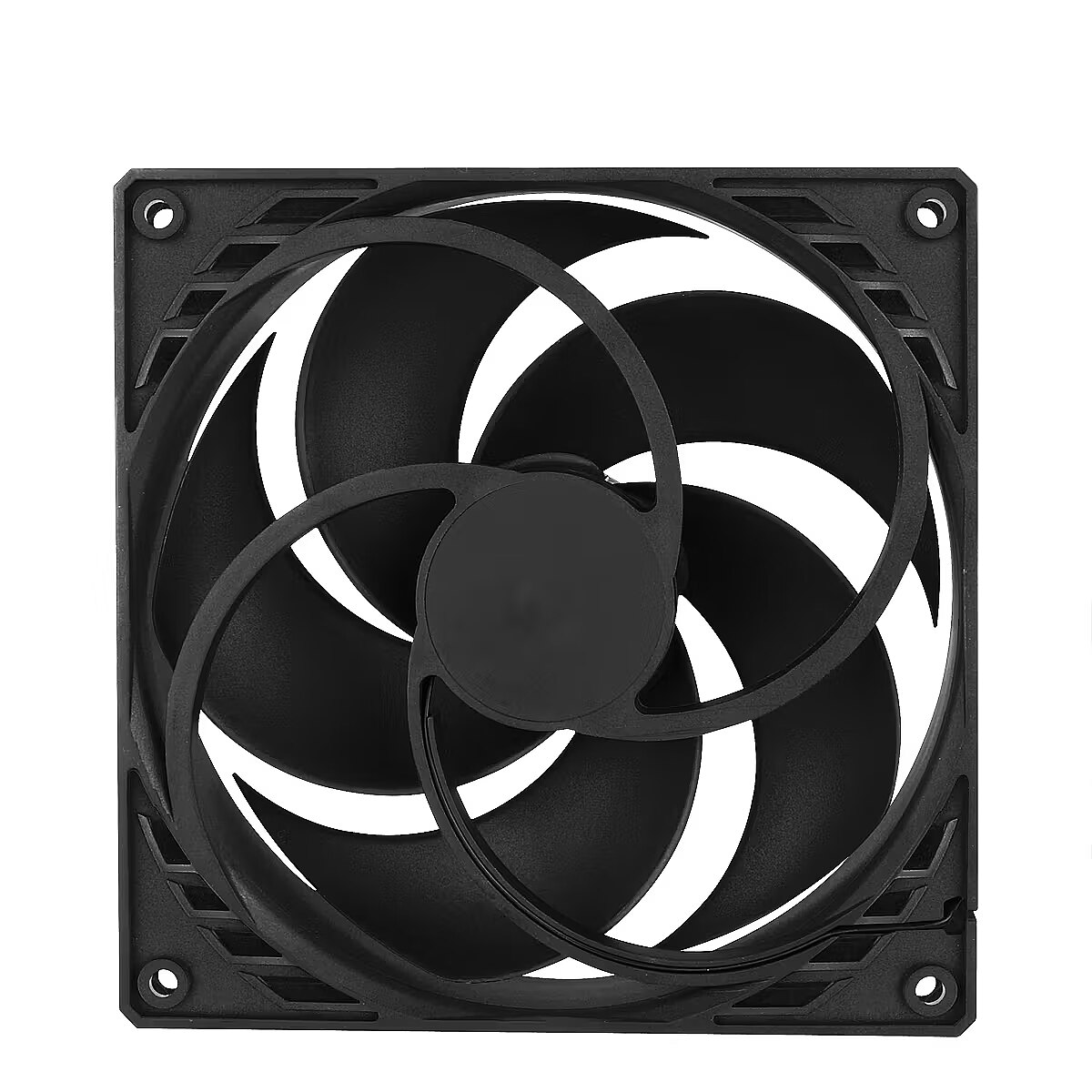

Arctic P14 PWM PST CO, Black
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 03.01.2025
- Delivery to Omniva parcel machine free of charge: 03.01.2025
- Piegāde uz DPD Pickup Paku Skapi free of charge: 03.01.2025
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 03.01.2025
- Delivery to address in Riga 3.99 €: 03.01.2025
- Delivery to address in Latvia 6.99 €: 03.01.2025
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: on Monday, 30.12.2024 after 15:00
Main product parameters All parameters
- Producer: Arctic
- LED izgaismojuma krāsa: Nav
- Output Interface: 4-pin (PWM)
- Revolutions (MIN), rpm: 200
- RPM (MAX), rpm: 1700
- Size, mm: 140
- Sound level (MAX), dB(A): 22.5
- Units in package: 1
All parameters
Producer
: Arctic
Type of lighting
: Bez apgaismojuma
Basic information
LED izgaismojuma krāsa
: Nav
Output Interface
: 4-pin (PWM)
RPM (MAX), rpm
: 1700
Size, mm
: 140
Sound level (MAX), dB(A)
: 22.5
Units in package
: 1
More detailed specification
Air flow - 72.8 cfm
Bearing type - Fluid
Brand - ARCTIC
BrandPartCode - ACFAN00126A
Category - Computer Cooling Systems
Category Code - COS
Category_1 - Computer Cases and Cooling
Category_2 - Fans
Colour - Black
Description - P14 PWM PST CO Pressure-optimised 140 mm Fan with PWM PST for Continuous Operation OPTIMISED FOR STATIC PRESSURE During the development of the new P14 PWM PST CO, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 PWM PST CO is particularly suitable for use on heatsinks and radiators.
Design - Fan connector - 4-pin + 4-pin
Design - Number of fan blades - 5
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
Dimensions - 140x140x27mm
EAN_code - 4895213701570
Fan size group - 140mm
Fan speed - 200 - 1700 rpm
Full Description Line - P14 PWM PST CO|Air flow 72.8 cfm|Colour Black|Dimensions 140x140x27mm
GTIN - 0872767009516
GTIN - 872767009516
GTIN - 4895213701570
Logistics data - Harmonized System (HS) code - 84733080
LongDesc - Our coolers have pushed the limits further every year - and all that at dropping noise levels. We have put our utmost effort into innovative technologies and fair prices, what made us well known for products with an unparalleled price/performance ratio. We provide you headroom for over-clocking and guarantee you lowest noise levels at affordable prices.
LongProductName - 140 mm, 200 - 1700 RPM, PWM, 72.8 CFM, 123.76 m3/h, 12 V DC, 4-pin + 4-pin, 194 g
LongSummaryDescription - ARCTIC P14 PWM PST CO Pressure-optimised 140 mm Fan with PWM PST for Continuous Operation. Type: Fan, Fan diameter: 14 cm, Rotational speed (min): 200 RPM, Rotational speed (max): 1700 RPM, Noise level (high speed): 24.5 dB, Noise level: 0.3 sone, Maximum airflow: 72.8 cfm, Airflow: 123.76 m³/h, Maximum air pressure: 2.4 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 140 mm, Depth: 140 mm, Height: 27 mm. Product colour: Black
Mainboard connection - 4-pin
Manufacturer - Arctic
Manufacturer_code - ACFAN00126A
Model - ACFAN00126A
Model name - P14 PWM PST CO
Name - Arctic P14 PWM PST CO 140x140x25 - ACFAN00126A
Other features - Country of origin - China
Packaging content - Number of screws - 4
Packaging content - Package type - Box
Packaging content - Screws included - Yes
Performance - Airflow - 123.76 m³/h
Performance - Bearing type - Fluid Dynamic Bearing (FDB)
Performance - Compatible processor series - Not supported
Performance - Fan diameter - 14 cm
Performance - Maximum airflow - 72.8 cfm
Performance - Maximum air pressure - 2.4 mmH2O
Performance - Noise level - 0.3 sone
Performance - Noise level (high speed) - 24.5 dB
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Rotational speed (max) - 1700 RPM
Performance - Rotational speed (min) - 200 RPM
Performance - Suitable location - Computer case
Performance - Supported processor sockets - Not supported
Performance - Type - Fan
Power - Power consumption (typical) - 1.44 W
Power - Rated current - 0.12 A
Power - Starting voltage - 3.9 V
Power - Voltage - 12 V
ProductName - P14 PWM PST CO Pressure-optimised 140 mm Fan with PWM PST for Continuous Operation
Shipping Box Depth Shipping/Package Box Dimensions - 52 cm
Shipping Box Height Shipping/Package Box Dimensions - 31 cm
Shipping box quantity - 68
Shipping Box Weight Shipping/Package Box Dimensions - 16.1 kg
Shipping Box Width Shipping/Package Box Dimensions - 31 cm
ShortSummaryDescription - ARCTIC P14 PWM PST CO Pressure-optimised 140 mm Fan with PWM PST for Continuous Operation, Fan, 14 cm, 1700 RPM, 24.5 dB, 72.8 cfm, 123.76 m³/h
Title - ARCTIC P14 PWM PST CO Pressure-optimised 140 mm Fan with PWM PST for Continuous Operation
Unit Brutto Volume - 0.0007349 cubm
Unit Gross Weight - 0.237 kg
Unit Net Weight - 0.194 kg
URL - https://www.arctic.ac/eu_en/p14-pwm-pst-co.html
Vendor Homepage - www.arctic.de/en/P14-PWM-PST-CO/ACFAN00126A
Warranty - 24 months
WarrantyInfo - 10 years
Weight - 0,24
Weight & dimensions - Cable length - 0.4 m
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 27 mm
Weight & dimensions - Package depth - 143 mm
Weight & dimensions - Package height - 29 mm
Weight & dimensions - Package weight - 234 g
Weight & dimensions - Package width - 143 mm
Weight & dimensions - Weight - 194 g
Weight & dimensions - Width - 140 mm
