ID: 273472
Product code: FD-FAN-PRI-AL12-PWM
Can be ordered 1 units Availability: 14 days after order approval
Warranty: 2 years

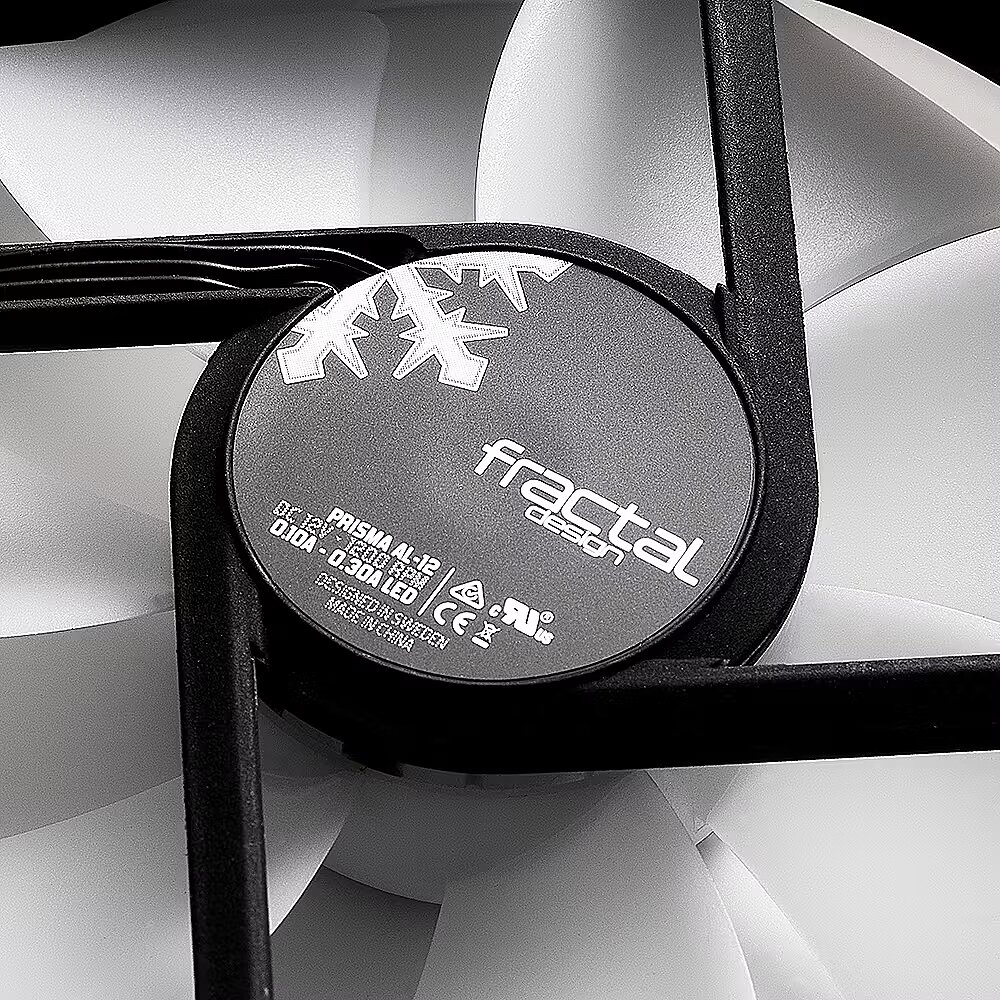

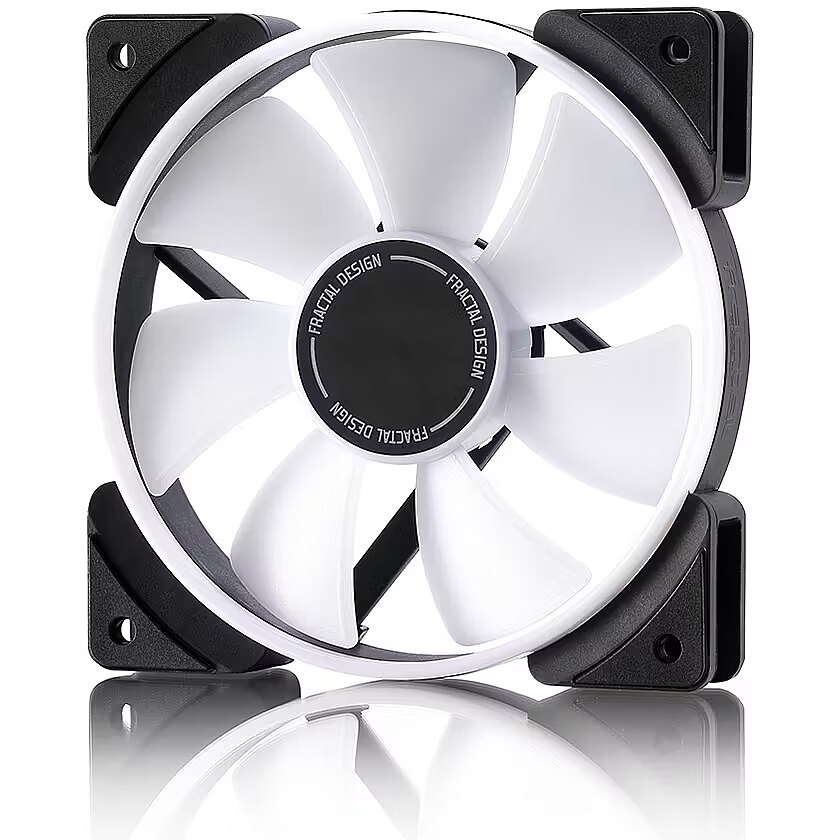

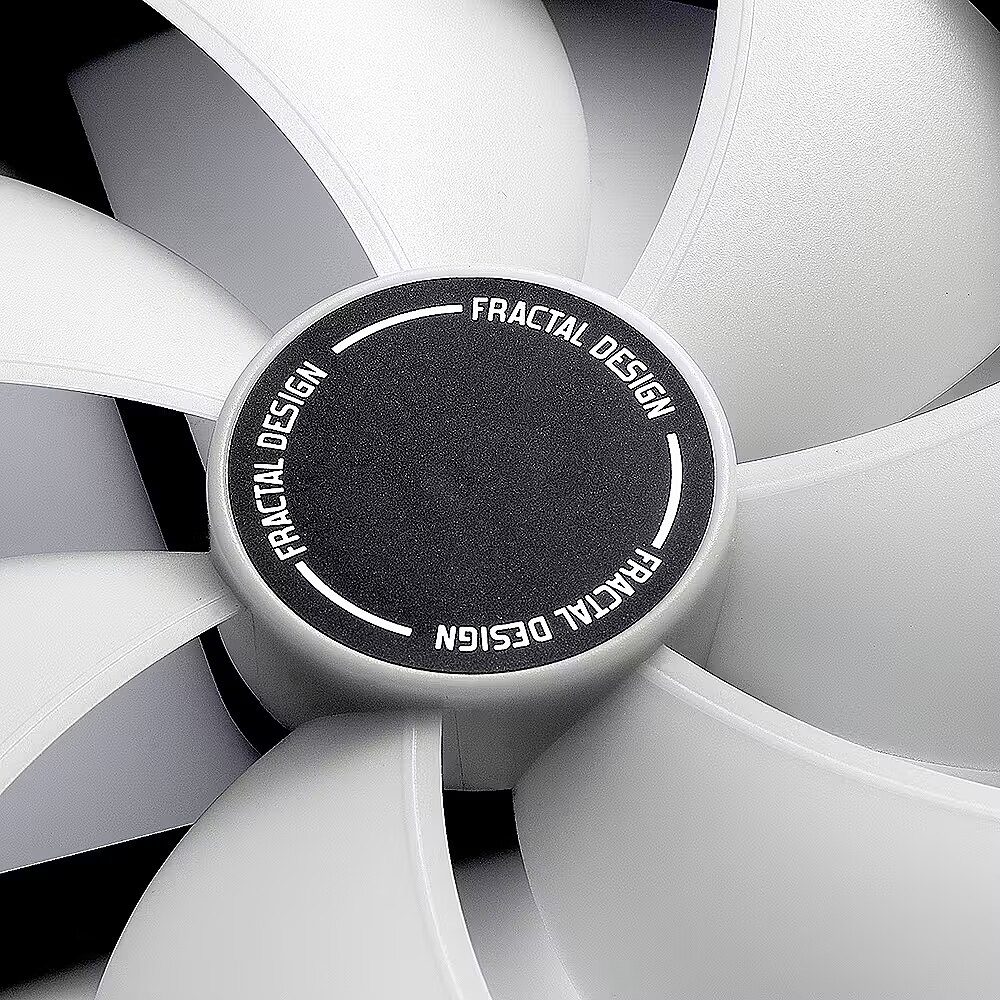

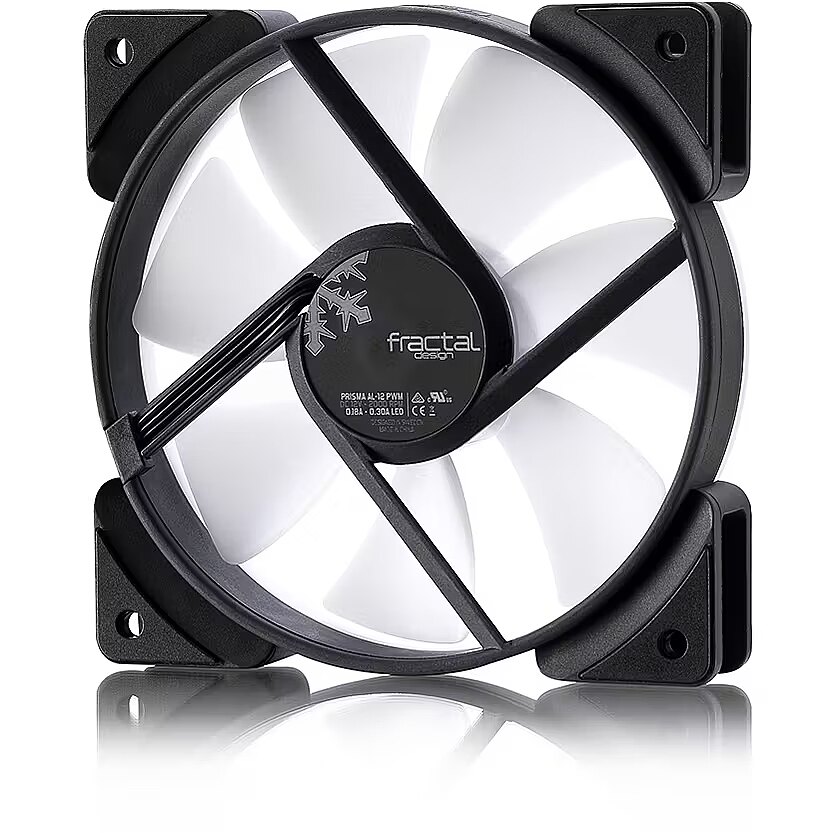

Fractal Design Prisma AL-12 PWM
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 29.11.2024
- Delivery to Omniva parcel machine free of charge: 29.11.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 29.11.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 29.11.2024
- Delivery to address in Riga 3.99 €: 29.11.2024
- Delivery to address in Latvia 6.99 €: 29.11.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 27.11.2024 after 15:00
Main product parameters All parameters
- Producer: Fractal Design
- LED izgaismojuma krāsa: RGB
- Output Interface: 4-pin (PWM)
- Revolutions (MIN), rpm: 500
- RPM (MAX), rpm: 2000
- Size, mm: 120
- Sound level (MAX), dB(A): 32.7
- Units in package: 1
All parameters
Producer
: Fractal Design
Type of lighting
: 5V RGB (3-pin)
Basic information
LED izgaismojuma krāsa
: RGB
Output Interface
: 4-pin (PWM)
RPM (MAX), rpm
: 2000
Size, mm
: 120
Sound level (MAX), dB(A)
: 32.7
Units in package
: 1
More detailed specification
Category_1 - Computer Cases and Cooling
Category_2 - Fans
Code - FD-FAN-PRI-AL12-PWM
Design > Illumination colour - Addressable RGB
EAN - 7340172701590
EAN_code - 7340172701590
Gross weight - 0.215 kg
Link - https://www.fractal-design.com/home/product/casefans/prisma-series/prisma-al-12
Manufacturer - Fractal Design
Manufacturer_code - FD-FAN-PRI-AL12-PWM
Name - Fractal Design prism AL-12 PWM ARGB, housing fan (white / transparent, single fan)
Name - Fractal Design | Prisma AL-12 ARGB PWM | Case fan
Other features > Airflow - 85.71 CFM
Other features > Air pressure - 2.78 mmH2O
Other features > Bearing technology - LLS
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 147 mm
Package features > Gross height (mm) - 30 mm
Package features > Gross width (mm) - 122 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 1493 pc(s)
Package features > Plastic (No PET) - 7.00 g
Package features > Tare weight (kg) - 0.153 kg
Package features > Volume (m3) - 0.00053802 m³
Package features > WEEE tax - No
Performance > Rotational speed (max) - 2000 RPM
Performance > Rotational speed (min) - 500 RPM
Performance > Type - Case fan
Technical details > Fan connector - 4-pin
Technical details > Net weight - 0.062 kg
Technical details > Noise level (max) - 32.7 dB

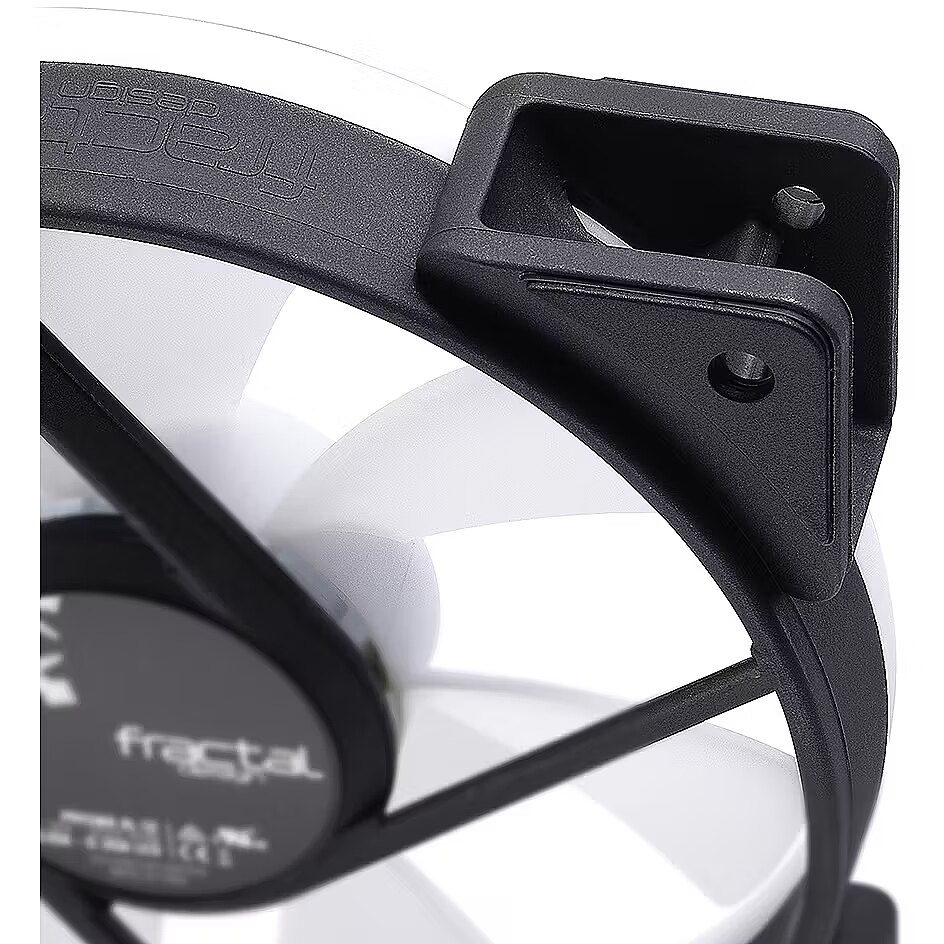

Technical details > Other features - •Six individually addressable hub-mounted RGB LEDs •Specially designed fan blades and outer ring produce an exceptionally uniform glow •LLS (Long Life Sleeve) bearings provide silent operation with a long lifespan •Integrated vibration-damping corners made from high-quality synthetic rubber •Trip Wire technology introduces a micro-turbulent layer for enhanced blade efficiency •Aerodynamic stator struts with embedded wiring reduce noise and turbulence •Chainable RGB cables simplify wiring and make the most of available connections •PWM control with a wide speed range ideal for CPU heatsinks and radiators (PWM versions only) •Black sleeved power cables offer an extra touch of style •Asus AURA, Gigabyte Fusion, MSI Mystic Light, and ASRock Polychrome support •Adjust R1 RGB controller (sold separately) enables physical control of colors and effects •3-pin/PWM versions and 120/140mm sizes available individually or in 3-pack sets
Technical details > Producer - Fractal Design
Technical details > Producer product name - Prisma AL-12 ARGB PWM
Technical details > Quantity - Package contents: Prisma AL-12 PWM 120mm fan. 4 x fan screws
Warranty - 24
Warranty - 24 month(s)
Weight - 0,22
Weight & dimensions > Fan dimensions (W x D x H) - 120 x 120 x 25 mm
