ID: 172737
Product code: NF-A12x25 PWM
Can be ordered 197 units Availability: 14 days after order approval
Warranty: 3 years

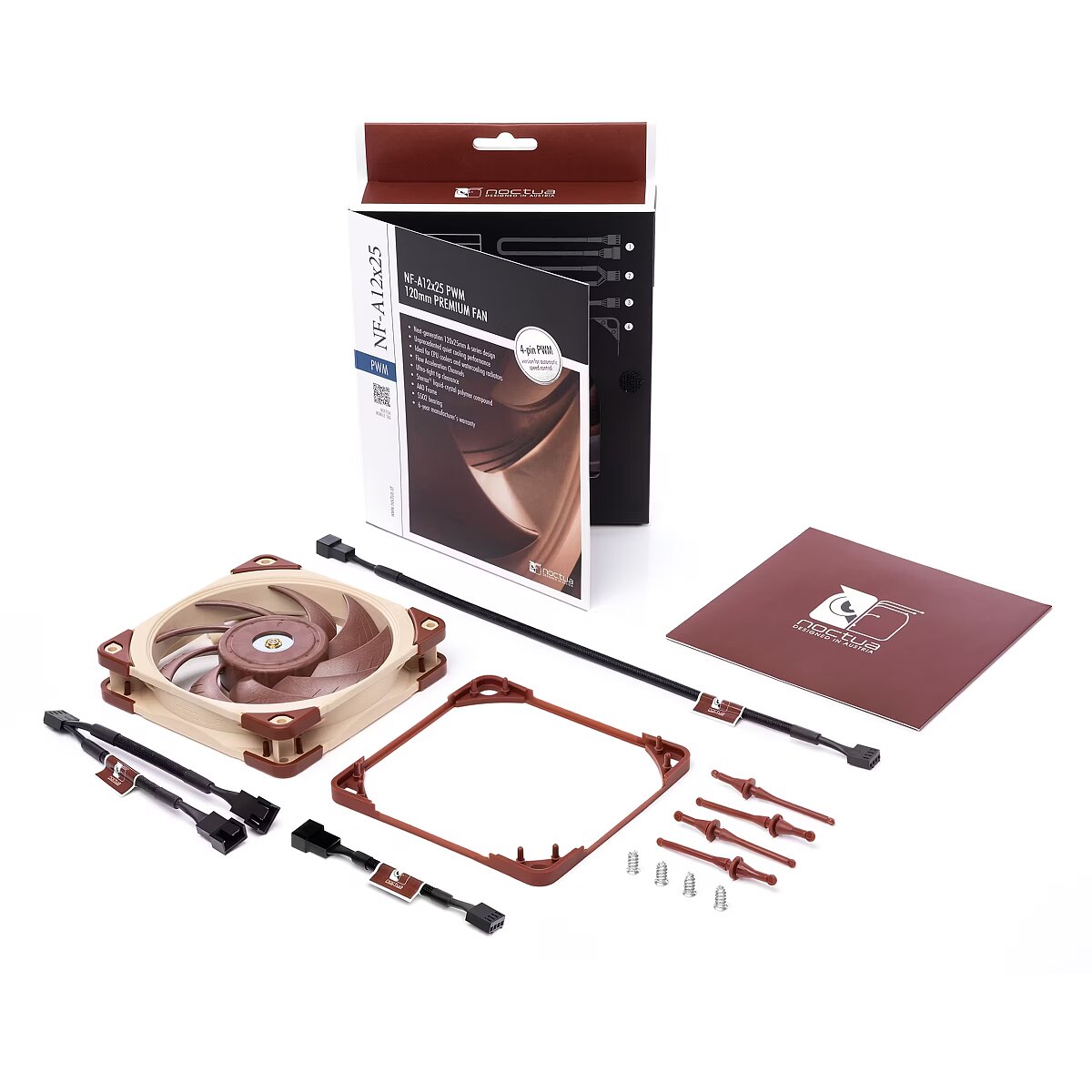

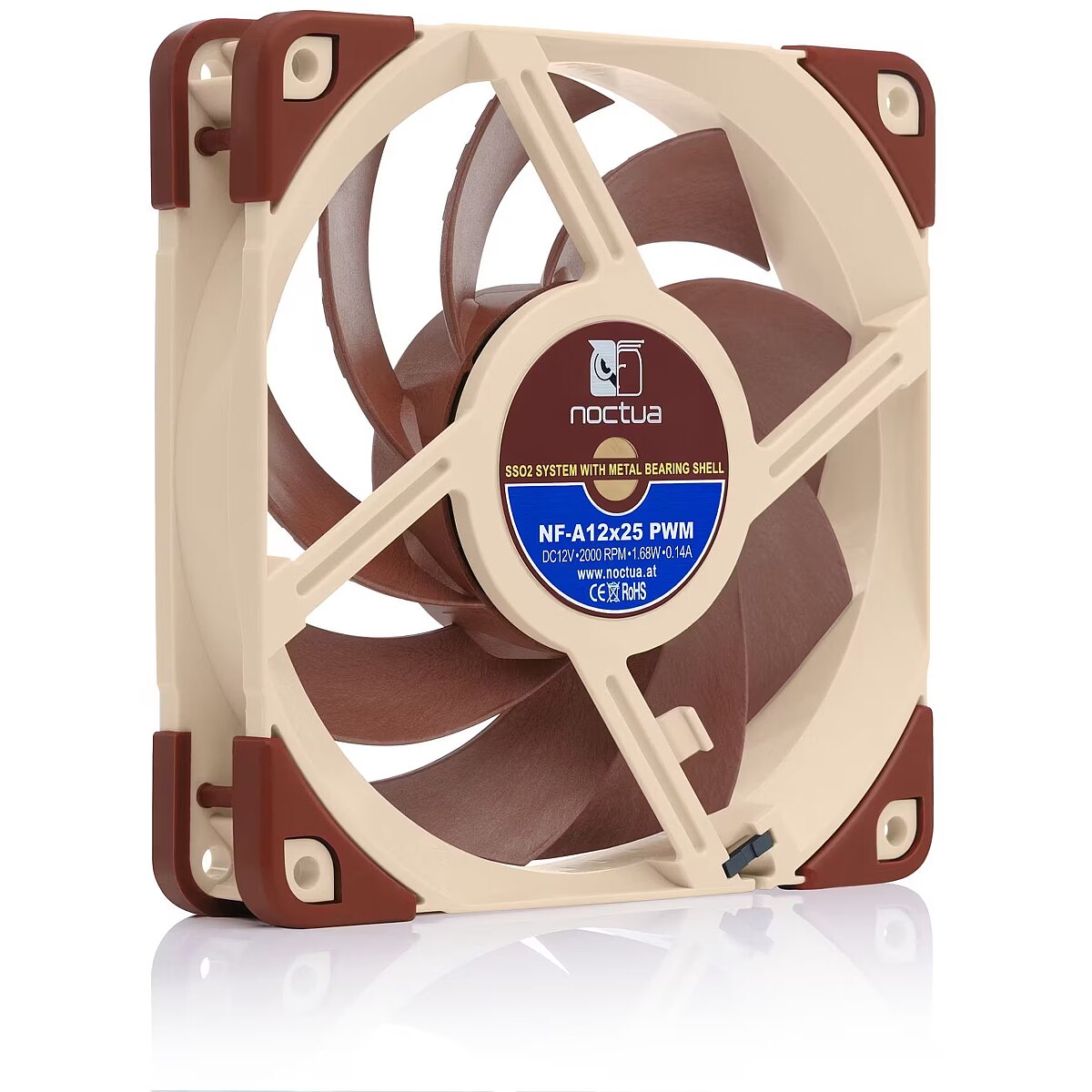

Noctua NF-A12x25 PWM
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 08.01.2025
- Delivery to Omniva parcel machine free of charge: 08.01.2025
- Piegāde uz DPD Pickup Paku Skapi free of charge: 08.01.2025
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 08.01.2025
- Delivery to address in Riga 3.99 €: 08.01.2025
- Delivery to address in Latvia 6.99 €: 08.01.2025
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 06.01.2025 after 15:00
Main product parameters All parameters
- Producer: Noctua
- LED izgaismojuma krāsa: Nav
- Output Interface: 4-pin (PWM)
- Revolutions (MIN), rpm: 400
- RPM (MAX), rpm: 2000
- Size, mm: 120
- Sound level (MAX), dB(A): 22.6
- Units in package: 1
All parameters
Producer
: Noctua
Type of lighting
: Bez apgaismojuma
Basic information
LED izgaismojuma krāsa
: Nav
Output Interface
: 4-pin (PWM)
RPM (MAX), rpm
: 2000
Size, mm
: 120
Sound level (MAX), dB(A)
: 22.6
Units in package
: 1
More detailed specification
category - Aircooling|Fans|PWM Fans
Category - Root/Electronics/PC parts/Cooling/Casing fans
Category_1 - Computer Cases and Cooling
Category_2 - Fans
code - NF-A12X25 PWM
Design - Fan connector - 4-pin
Design - Material - Liquid Crystal Polymer (LCP)
Design - Number of fans - 1 fan(s)
Design - Product colour - Beige
Design - Product colour - Red
dimensionalWeight - 234
ean - 9010018100396
Eans - 9010018100396
EAN_code - 9010018100396
Logistics data - Master (outer) case gross weight - 14.4 kg
Logistics data - Master (outer) case height - 375 mm
Logistics data - Master (outer) case length - 380 mm
Logistics data - Master (outer) case width - 380 mm
Logistics data - Products per master (outer) case - 36 pc(s)
Manufacturer - Noctua
Manufacturer_code - NF-A12x25 PWM
Name - Noctua NF-A12x25 PWM - 120mm
name - Noctua NF-A12x25 PWM Fan - 120mm
Name - Noctua NF-A12x25 PWM Sterrox
Other features - Mean time to failure (MTTF) - 150000 h
Packaging content - Cables included - Fan
Packaging content - Low-noise adaptor (LNA) - Yes
Packaging content - Screws included - Yes
Performance - Airflow - 102.1 m³/h
Performance - Airflow with LNA (max) - 84.5 m³/h
Performance - Bearing type - Self-Stabilising Oil-pressure Bearing (SSO)
Performance - Compatible processor series - Not supported
Performance - Fan diameter - 12 cm
Performance - Maximum air pressure - 2.34 mmH2O
Performance - Noise level (high speed) - 22.6 dB
Performance - Noise level with LNA (max) - 18.8 dB
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Rotational speed (max) - 2000 RPM
Performance - Rotational speed (min) - 450 RPM
Performance - Rotational speed with LNA (max) - 1700 RPM
Performance - Suitable for - Computer case
Performance - Supported processor sockets - Not supported
Performance - Type - Fan
Power - Power supply - 1.68 W
Power - Voltage - 12 V
Producer - Noctua
producerCode - NF-A12X25 PWM
ProducerCode - NF-A12x25 PWM
productName - Noctua NF A12x25 PWM Computer case Fan 12 cm Beige, Red
productSize - Normal
ShortDescription - Wentylator|120|PWM|12V|
sizeX - 155
sizeY - 36
sizeZ - 210
warrantyLength - 72
warrantyType - F
Weight - 0,30
weight - 364
Weight & dimensions - Depth - 25 mm
Weight & dimensions - Height - 120 mm
Weight & dimensions - Package depth - 34 mm
Weight & dimensions - Package height - 210 mm
Weight & dimensions - Package weight - 355 g
Weight & dimensions - Package width - 150 mm
Weight & dimensions - Width - 120 mm
