ID: 158978
Product code: NF-S12A PWM
Can be ordered 104 units Availability: 14 days after order approval
Warranty: 3 years

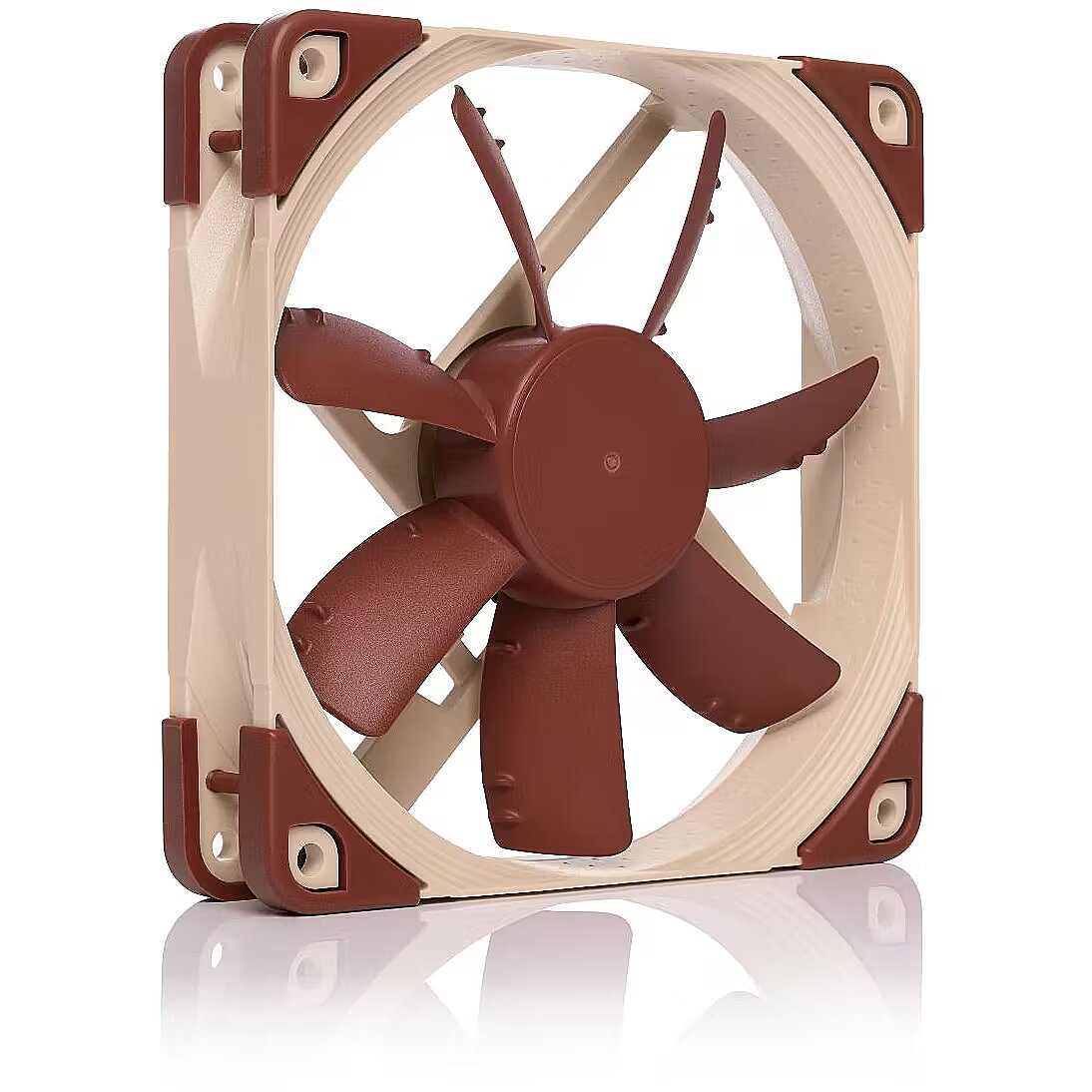

Noctua NF-S12A PWM
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 29.11.2024
- Delivery to Omniva parcel machine free of charge: 29.11.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 29.11.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 29.11.2024
- Delivery to address in Riga 3.99 €: 29.11.2024
- Delivery to address in Latvia 6.99 €: 29.11.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 27.11.2024 after 15:00
Main product parameters All parameters
- Producer: Noctua
- LED izgaismojuma krāsa: Nav
- Output Interface: 4-pin (PWM)
- Revolutions (MIN), rpm: 300
- RPM (MAX), rpm: 1200
- Size, mm: 120
- Sound level (MAX), dB(A): 17.8
- Units in package: 1
All parameters
Producer
: Noctua
Type of lighting
: Bez apgaismojuma
Basic information
LED izgaismojuma krāsa
: Nav
Output Interface
: 4-pin (PWM)
RPM (MAX), rpm
: 1200
Size, mm
: 120
Sound level (MAX), dB(A)
: 17.8
Units in package
: 1
More detailed specification
category - Aircooling|Fans|PWM Fans
Category - Root/Electronics/PC parts/Cooling/Casing fans
Category_1 - Computer Cases and Cooling
Category_2 - Fans
code - NF-S12A PWM
Design - Product colour - Bronze
dimensionalWeight - 189
ean - 4716123314929
Eans - 4716123314929
EAN_code - 4716123314929
Manufacturer - Noctua
Manufacturer_code - NF-S12A PWM
Name - Noctua NF-S12A PWM
Name - Noctua NF-S12A PWM - 120mm
name - Noctua NF-S12A PWM Lüfter - 120mm
Other features - Connector(s) - 4-pin
Other features - Speed detection - Yes
Performance - Airflow - 107.5 m³/h
Performance - Compatible processor series - Not supported
Performance - Fan diameter - 12 cm
Performance - Maximum air pressure - 1.19 mmH2O
Performance - Mean time between failures (MTBF) - 150000 h
Performance - Minimum air pressure - 0.73 mmH2O
Performance - Noise level (high speed) - 17.8 dB
Performance - Noise level (low speed) - 10.7 dB
Performance - Rotational speed (max) - 1200 RPM
Performance - Rotational speed (min) - 300 RPM
Performance - Suitable for - Computer case
Performance - Supported processor sockets - Not supported
Performance - Type - Fan
Power - Maximum current - 0.12 A
Power - Voltage - 12 V
Producer - Noctua
producerCode - NF-S12A PWM
ProducerCode - NF-S12A PWM
productName - Noctua NF-S12A PWM computer cooling component Computer case Fan 12 cm Brown
productSize - Normal
ShortDescription - Wentylator|120|PWM|12V|
sizeX - 210
sizeY - 150
sizeZ - 30
Technical details - Bearing technology - SSO2
Technical_details - The NF-S12A marks the third generation of Noctua’s signature S12 series quiet case fans, which have received more than 250 awards and recommendations from the international press. Featuring a further refined blade design with Anti-Stall Knobs that works in tandem with the new AAO (Advanced Acoustic Optimisation) frame, the NF-S12A improves the airflow/noise efficiency of its renowned predecessor by up to 8%. The PWM version sports Noctua’s custom designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers and comes with a Low-Noise-Adaptor to reduce the maximum speed during PWM control from 1200 to 900rpm. Its superb running smoothness, SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for quiet case cooling. Attachment screwed Power Connection PWM fan connector Fan Bearing SSO Power Input 0 - 1.44 watt(s) Voltage Range 0 - 12 V Number of Revolutions 900 - 1200 rpm Volume 10.7 - 17.8 dB(A) Volumetric Flow 83.2 - 107.5 m3/h, 49 - 63.3 cfm Dimensions Fans Fan 1 120 x 120 x 25 mm
warrantyLength - 72
warrantyType - F
Weight - 0,28
weight - 295
Weight & dimensions - Cable length - 0.3 m
