ARTIKEL1 - APC SMART-UPS RT 5KVA 230V
ARTIKEL2 -
Battery - Automatic battery test - Yes
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 4 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Battery voltage - 96 V
Battery - Cold start - Yes
Battery - Hot-swap battery - Yes
Battery life (max), years - 3 - 5
Battery recharge time, h - 4
Battery voltage, V - 96
Brand - APC
BrandPartCode - SRTG5KXLI
Breite - 0
Category - Uninterruptible Power Supplies (UPSs)
Connections - RJ-45 Serial
Connections - USB
Depth, mm - 620
Description - APC SMART-UPS ON-LINE 5KVA/5KW 230V RACK/TOWER, NETWORK CARD, W/O RAIL KIT
Design - Certification - CE, EN/IEC 62040-1

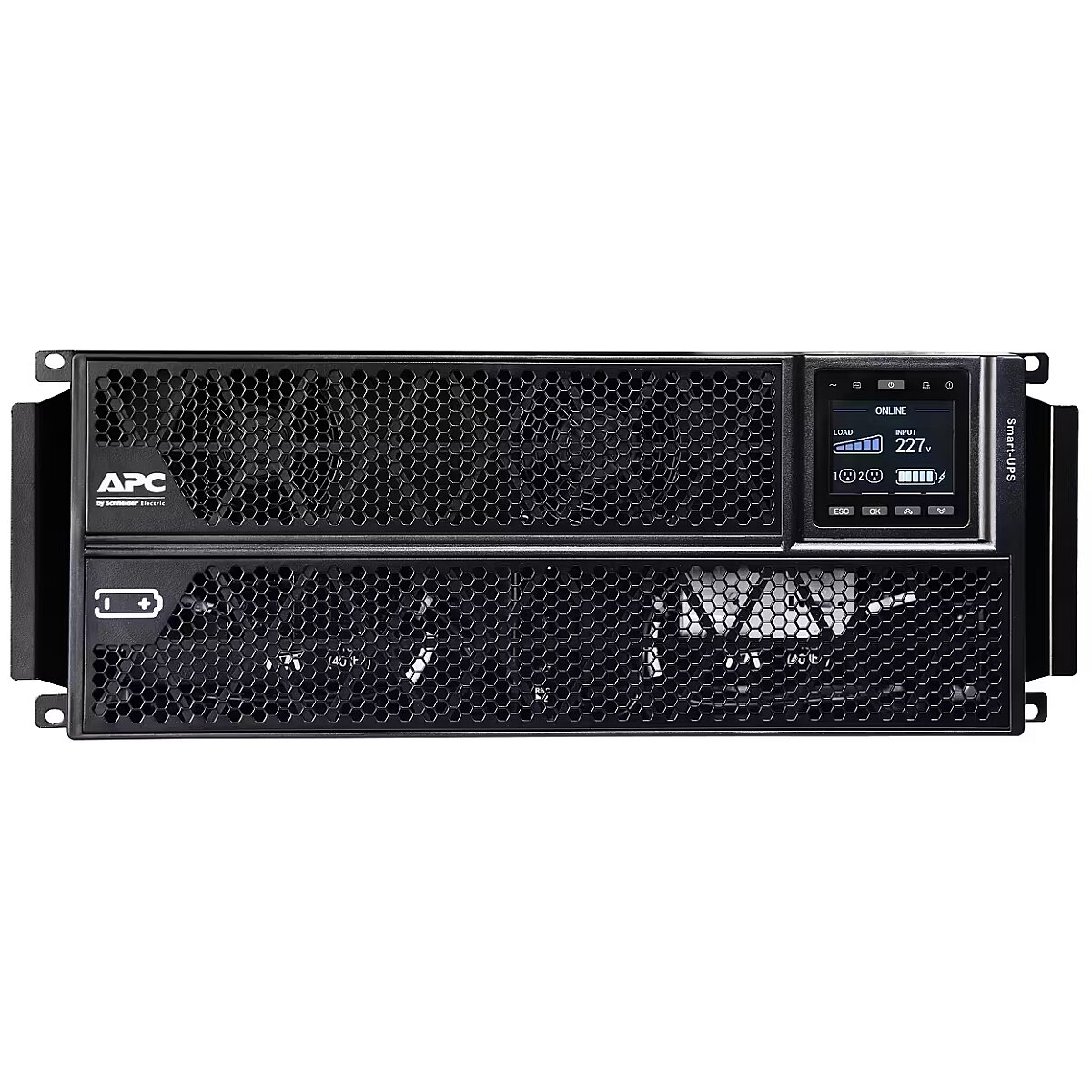

Design - Display type - LCD
Design - Form factor - Compact
Design - International Protection (IP) code - IP20
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack capacity - 4U
EANCode - 0731304411802
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Alarm when on battery, Low battery alarm, Overload alarm
Features - Crest factor - 3:1
Features - ECO mode - Yes
Features - Emergency Power Off (EPO) - Yes
Features - Input frequency - 40/70 Hz
Features - Input operation voltage (max) - 285 V
Features - Input operation voltage (min) - 100 V
Features - Noise level - 55 dB
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 5000 W
Features - Output power capacity - 5 kVA
Features - Output voltage Total Harmonic Distortion (THD) - 2%
Features - Surge energy rating - 600 J
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Sine
Form factor - Rack / Tower
Frequency range, Hz - 40 - 70
Gewicht - 74
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 0731304411796
GTIN - 731304411796
GTIN - 0731304411802
GTIN - 731304411802
Height - 280.000000
Height, mm - 178
HERSTELLER - APC
Hoehe - 0
HSTNUMMER - SRTG5KXLI
IP classification - IP20
Laenge - 0
Length - 790.000000
LongDesc - Automatic restart of loads after UPS shutdownAutomatically starts up the connected equipment upon the return of utility power.Automatic self-testPeriodic battery self-test ensures early detection of a battery that needs to be replaced.Battery failure notificationProvides early-warning fault analysis on batteries enabling timely preventive maintenanceECO ModeOperating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protectionLCD Status DisplayProvides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.Cold-start capableProvides temporary battery power when the utility power is out.Safety-agency approvedEnsures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.Resettable circuit breakerEasy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)Power conditioningProtects connected loads from surges, spikes, lightning, and other power disturbances.Input Power Factor CorrectionMinimizes installation costs by enabling the use of smaller generators and cabling.Generator compatibleEnsures clean, uninterrupted power to protected equipment when generator power is used.Frequency and voltage regulationGives higher application availability by correcting poor frequency and voltage conditions without using the battery.SmartSlotCustomize UPS capabilities with management cards.Network manageableMost models provide remote power management options of the UPS over the network. Many do not have NMC embedded.Serial connectivityProvides management of the UPS via a serial port.InfraStruXure Manager CompatibleEnables centralized management via the APC InfraStruXure Manager.LED status indicatorsQuickly understand unit and power status with visual indicators.
LongProductName - 5 kVA, 5 kW, 100-285V, 40/70Hz, 600J, LCD, IP20
LongSummaryDescription - APC SRTG5KXLI. UPS topology: Double-conversion (Online), Output power capacity: 5 kVA, Output power: 5000 W. AC outlet types: C13 coupler, C19 coupler, AC outlets quantity: 3 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 96 V, Battery life (max): 5 year(s). Form factor: Compact, Product colour: Black, Rack capacity: 4U. Width: 440 mm, Depth: 620 mm, Height: 178 mm
Manufacturer - APC
ManufacturerPartNumber - SRTG5KXLI
Nominal input voltage, V - 160 - 285
Nominal output voltage, V - 220 - 240
Operational conditions - Non-operating altitude - 0 - 15240 m
Operational conditions - Operating altitude - 0 - 2011 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Output power, W - 5000
Output power capacity (VA) - 5000
PeriodofWarranty - 3 Y

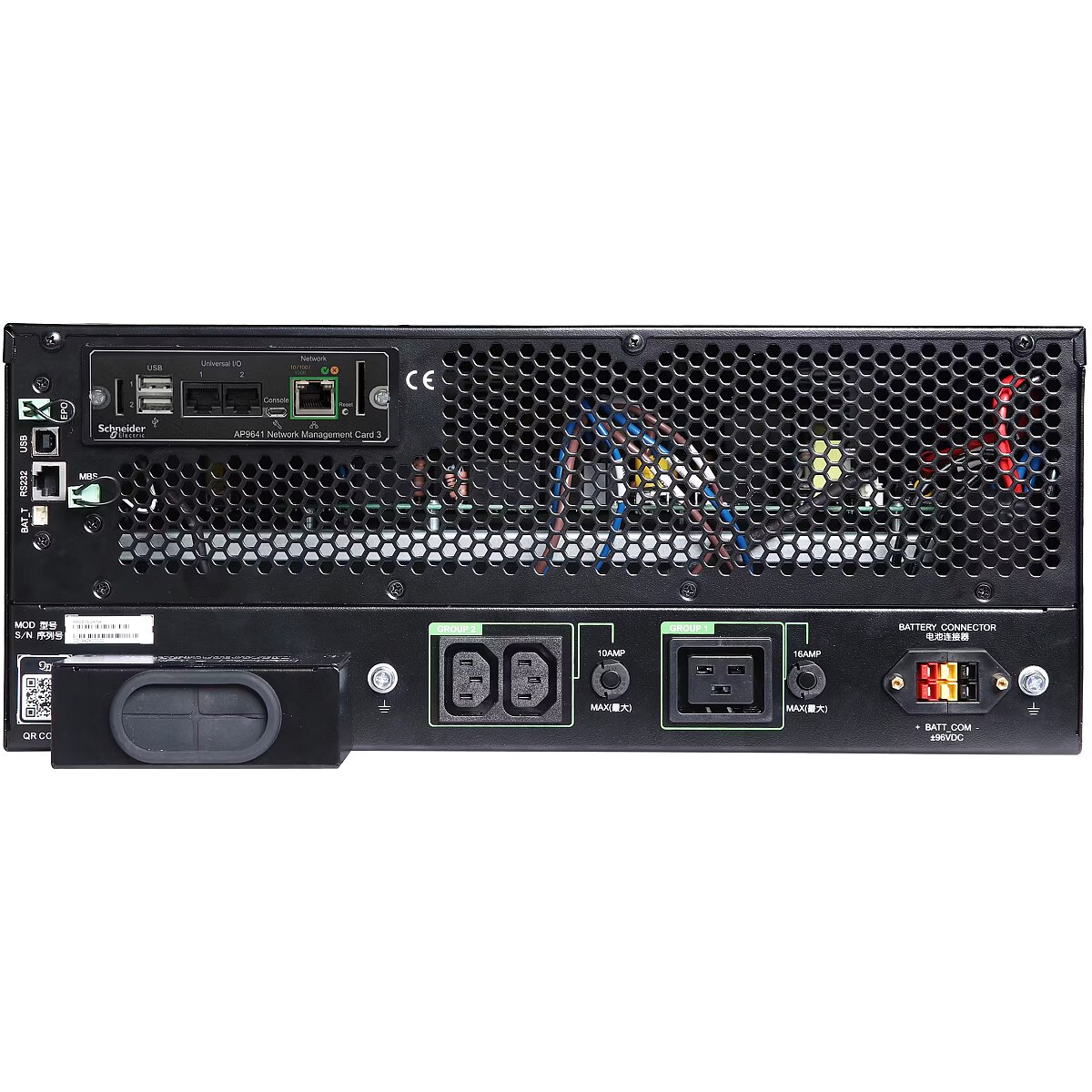

Ports & interfaces - AC outlets quantity - 3 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler, C19 coupler
Ports & interfaces - Emergency Power Off (EPO) connector - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Serial interface - Yes
Ports & interfaces - SmartSlot - Yes
Ports & interfaces - USB port - Yes
ProductName - SRTG5KXLI
ShortSummaryDescription - APC SRTG5KXLI, Double-conversion (Online), 5 kVA, 5000 W, Sine, 100 V, 285 V
Stck_Kart - 1
Stck_Pal - 1
Storno - N
Title - APC SRTG5KXLI uninterruptible power supply (UPS) Double-conversion (Online) 5 kVA 5000 W 3 AC outlet(s)
UPS devices and accessories - Yes
URL - https://www.apc.com/shop/rw/en/products/APC-Smart-UPS-RT-5kVA-230V/P-SRTG5KXLI
WarrantyInfo -
Weight - 54.500000
Weight & dimensions - Depth - 620 mm
Weight & dimensions - Height - 178 mm
Weight & dimensions - Package depth - 790 mm
Weight & dimensions - Package height - 275 mm
Weight & dimensions - Package weight - 59 kg
Weight & dimensions - Package width - 590 mm
Weight & dimensions - Weight - 51.9 kg
Weight & dimensions - Width - 440 mm
Weight, kg - 51.9
Width - 590.000000
Width, mm - 440
