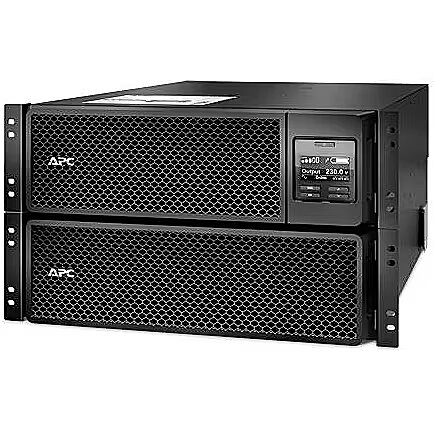

APC Smart-UPS SRT8KRMXLI 8000VA, 8000W, IEC, 6U

Accessories included - - CD z oprogramowaniem
- Dokumentacja na CD
- Instrukcja użytkownika
- Klamry do montażu w szafach przemysłowych
- Sprzęt do montazu urządzeń w szafie
- Wsporniki montażowe do szaf przemysłowych
- Czujnik temperatury
- Kabel USB
- Karta gwarancyjna
Active power - 8000 W
Apparent power - 8 kVA
ARTIKEL1 - SRT 8000VA RM 230V
ARTIKEL2 - IN
Backup time (100% load) - 5.2 min
Battery - Automatic battery test - Yes
Battery - Battery capacity - 1728 VAh
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 1.5 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - Yes
Battery - Typical backup time at full load - 5.2 min
Battery - Typical backup time at half load - 14.5 min
Battery recharge time, h - 1.5
Brand - APC
BrandPartCode - SRT8KRMXLI
Breite - 0.6
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Certification - CE, CE Mark
Charging time - 1.5 h
Chassis type - Rack
Color - Black
Connections - Contact Closure
Connections - RJ-45 10/100 Base-T
Connections - RJ-45 Serial
Connections - SmartSlot
Connections - USB
Connectors - 1 x USB (Typ B)
Connectors - RJ-45
Connectors - SmartSlot
Depth, mm - 715
Description - APC SMART-UPS SRT 8000VA RM 230V
Description - APC Smart-UPS SRT 8000VA RM 230V
APC Smart-UPS On-Line, 8000 Watts /8000 VA, na wejściu 230V, 400V 3PH /na wyjściu 230V, Interface Port Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB, Extended runtime model, Wysokość w szafie przemysłowej 6 U
Design - Certification - REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE
Design - Display type - LCD
Design - Form factor - Rackmount/Tower
Design - LED indicators - Status
Design - Product colour - Black
Design - Rack capacity - 6U
dimension depth - 600 mm
dimension height - 350 mm
Dimensions - - Wysokość: 263 mm
- Szerokość: 432 mm
- Głębokość: 715 mm
- Wysokość w szafie przemysłowej: 6U
dimension weight - 120000 g
dimension width - 1000 mm
ean - 731304304296
EAN - 0731304304296
EANCode - 0731304304296
Environment requirements - - Temperatura otoczenia pracy: 0-40 stopni C
- Wilgotność względna podczas pracy: 0-95% (bez kondensacji)
- Wysokość n.p.m. podczas pracy: 0-3000 m
- Temperatura (przechowywanie): -15 - 45 stopni C
- Wilgotność względna (przechowywanie): 0-95 % (bez kondensacji)
- Wysokość n.p.m. (przechowywanie): 0-15000 m
- Poziom hałasu: 55.00 dBA
- Odprowadzanie ciepła: 1497 BTU/godz
- Klasa ochrony: IP20
Features - Audible alarm(s) - Yes
Features - Auto-restart - Yes
Features - Crest factor - 3:1
Features - Efficiency - 94.8%
Features - Emergency Power Off (EPO) - Yes
Features - Input frequency - 40 - 70 Hz
Features - Input operation voltage (max) - 476 V
Features - Input operation voltage (min) - 100 V
Features - Noise level - 55 dB
Features - Number of output phases - 1
Features - Output frequency regulation - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 8000 W
Features - Output power capacity - 8 kVA
Features - Output voltage Total Harmonic Distortion (THD) - 3%
Features - Surge energy rating - 480 J
Features - Surge protection - Yes
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Sine
Form factor - Rack
Frequency range, Hz - 50/60 +/- 3
Gewicht - 55
Gross Weight Kg - 130
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304304296
GTIN - 0731304304296
guarantee - 36
guarantee_type - external
Height - 470.000000
Height, mm - 263
HERSTELLER - APC
Hoehe - 0.46
HSTNUMMER - SRT8KRMXLI
Input connection - Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
Input frequency, Hz - 45 - 65
Input power ports - Hard Wire 3-wire (1PH + N + G)
Input power ports - Hard Wire 5-wire (3PH + N + G)
Laenge - 1
Length - 600.000000
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per pallet - 1 pc(s)
LongDesc - This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 8kVA on-line 6U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire(1P+N+E)/5-wire(3P+N+E) input, 6x IEC 320 C13, 4x IEC 320 C19 outlets, and 3x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It conforms to CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, and VDE. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
LongProductName - Smart-UPS On-Line, 8kVA/8kW, Rackmount 6U, 230V 3:1 and 1:1, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit
LongSummaryDescription - APC Smart-UPS On-Line, 8kVA/8kW, Rackmount 6U, 230V 3:1 and 1:1, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit. UPS topology: Double-conversion (Online), Output power capacity: 8 kVA, Output power: 8000 W. AC outlet types: C13 coupler, C19 coupler, Power plug: Terminal, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 1728 VAh, Typical backup time at full load: 5.2 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 6U. Width: 715 mm, Depth: 432 mm, Height: 263 mm
Manufacturer - APC
Manufacturer Code - SRT8KRMXLI
Manufacturer Name - APC by Schneider Electric
ManufacturerPartNumber - SRT8KRMXLI
Maximum power, W - 8000
MPN - SRT8KRMXLI
Name - APC Smart UPS SRT8KRMXLI 8000VA 19" 5U
name - SRT8KRMXLI Smart-UPS SRT 8000VA Rack 230V
No. of batteries - 2
Noise level, dB - 55
Nominal input voltage, V - 230 (220, 240)
Nominal output voltage, V - 230 (220, 240)
Number of phases input - 1 (230V)
Number of phases input - 3 (400V)
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features - - Napięcie wyjściowe: 220/230/240V 50/60Hz
- Współczynnik szczytu: 3:1
- Typ przebiegu: sinusoida
- 3x IEC Jumpers
- Wewnętrzny tor obejściowy (automatyczny lub ręczny)
- Napięcia wejściowe: 220/230/240/380/400/415V 45-65Hz
- Port - zwarcie styków
- Awaryjny wyłącznik zasilania
- Znamionowa energia przepięcia: 480 Dżule
Other features - Packaging content - Web/SNMP Management Card

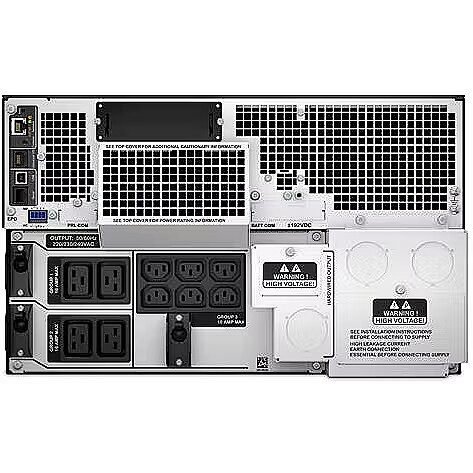

Output interface - 1 x Hard Wire 3-wire (H N + G), 6 x IEC 320 C13, 4 x IEC 320 C19, 3 x IEC Jumpers
Output power, W - 8000
Output power capacity (VA) - 8000
Output power ports - 1 x Hard Wire 3-wire (1PH + N + G)
Output power ports - 4 x IEC-C19
Output power ports - 6 x IEC-C13
Packaging data - Bracket - Yes
Packaging data - Cables included - USB cable
Packaging data - Quick installation guide - Yes
Packaging data - Rack mount kit - Yes
Packaging data - Software CD - Yes
Packaging data - Temperature sensor - Yes
Packaging data - Warranty card - Yes
PeriodofWarranty - 3 Y
Ports & interfaces - AC outlets quantity - 10 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler, C19 coupler
Ports & interfaces - Number of output IEC jumpers - 3
Ports & interfaces - Power plug - Terminal
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RJ-45
Ports & interfaces - SmartSlot - Yes
Ports & interfaces - USB port - Yes
producer - APC
ProductName - Smart-UPS On-Line, 8kVA/8kW, Rackmount 6U, 230V 3:1 and 1:1, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit
Rack height (units) - 6
Runtime - 5 min (full load) / 16 min (half load)
Short description - APC Smart-UPS SRT 8000 VA RM SRT8KRMXLI +++
ShortSummaryDescription - APC Smart-UPS On-Line, 8kVA/8kW, Rackmount 6U, 230V 3:1 and 1:1, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit, Double-conversion (Online), 8 kVA, 8000 W, Sine, 100 V, 476 V
Software -
Special functions - - Graficzny wyświetlacz LCD
- Połączenie typu 10/100 BaseT
- Tryb ekologiczny
- Powiadomienie o awarii akumulatora
- Automatyczny wewnętrzny tor obejściowy
- Elastyczny czas podtrzymania
- Inteligentne zarządzanie akumulatorami
- Akumulatory wymienialne przez użytkownika "na gorąco"
- Automatyczne włączenie UPS-a po powrocie zasilania
- Ładowanie akumulatorów dostosowane do temperatury
- Zarządzalne sieciowo
- Kompatybilny z InfraStruXure Manager
- Gniazdo typu SmartSlot
- Wskaźnik statusu LED
- Port szeregowy
- Akumulatory zewnętrzne typu Plug-and-play
- Możliwość zastosowania w wersji wolnostojącej i montażu w szafie Rack
- Oprogramowanie sprzętowe w pamięci flash z możliwością uaktualniania
- Automatyczny test
- Powiadamianie o przewidywanych awariach
- Powiadomienie o rozłączeniu akumulatora
- Alarmy dźwiękowe
- Regulacja częstotliwości i napięcia
- Filtrowanie napięcia
- Korekta współczynnika mocy obciążenia
- Kompatybilny z generatorem
- Możliwość zimnego startu
- Wyłącznik obwodu z możliwością resetu
Stck_Kart - 1
Stck_Pal - 1
Storage temperature range (T-T), °C - -15 - 45
Storno - Y
Surge energy rating, J - 480
Technical details - Compliance certificates - RoHS
Title - APC Smart-UPS On-Line, 8kVA/8kW, Rackmount 6U, 230V 3:1 and 1:1, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit
UPS Architecture - on-line double conversion
UPS devices and accessories - Yes
URL - https://www.apc.com/
vendpn - SRT8KRMXLI
WarrantyInfo - 3 years
Weight - 111.82 kg
Weight - 115.000000
Weight & dimensions - Depth - 432 mm
Weight & dimensions - Height - 263 mm
Weight & dimensions - Package depth - 1000 mm
Weight & dimensions - Package height - 461 mm
Weight & dimensions - Package weight - 130 kg
Weight & dimensions - Package width - 600 mm
Weight & dimensions - Weight - 111.8 kg
Weight & dimensions - Width - 715 mm
Weight, kg - 111.82
Width - 1000.000000
Width, mm - 432
