Accessories included -
Active power - 600 W
Alarm -
Alarm when on battery distinctive low battery alarm overload continuous tone alarm
Apparent power - 750 VA
ARTIKEL1 - SMART-UPS X 750VA RACK/TOWERR
ARTIKEL2 - LCD 230V WITH NETWORKING CARD IN
Backup time (100% load) - 14.2 min
Battery - Automatic battery test - Yes
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 3 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - Yes
Battery life (max), years - 3-5
Battery recharge time, h - 3
BatteryType - Maintenance-free sealed Lead-Acid battery with suspended electrolyteleakproof
Brand - APC
BrandPartCode - SMX750INC
Breite - 0.6
Category - Uninterruptible Power Supplies (UPSs)
Certificates - Certification - CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH
Charging time - 3 h
Chassis type - Tower
Color - Black
Connections - RJ-45 10/100 Base-T
Connections - RJ-45 Serial
Connections - Smart-Slot
Connections - USB
ControlPanel - Multi-function LCD status and control console
Depth - 490 mm
Depth, mm - 490
Description - APC SMART-UPS X 750VA RACK/TOWERR LCD 230V WITH NETWORKING CARD
Description - APC Smart-UPS X 750VA Rack / TowerR LCD 230V z kartą sieciową
Design - Display type - LED
Design - Form factor - Rackmount/Tower
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack capacity - 2U
Designation - CE+WEEE
dimension depth - 245 mm
dimension height - 590 mm
Dimensions - 89 x 432 x 490 mm
dimension weight - 25400 g
dimension width - 630 mm
ean - 731304327745
EANCode - 0731304327745
Environment requirements -
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Alarm when on battery, Low battery alarm, Overload alarm
Features - Auto-restart - Yes
Features - Emergency Power Off (EPO) - Yes
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 302 V
Features - Input operation voltage (min) - 151 V
Features - Noise level - 40 dB
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 600 W
Features - Output power capacity - 0.75 kVA
Features - Surge energy rating - 645 J
Features - Surge protection - Yes
Features - Temperature voltage compensation - Yes
Features - UPS topology - Line-Interactive
Features - Waveform - Pure sine
Features - Web-based management - Yes
FormFactor - RackTower
Form factor - Rack / Tower
Gewicht - 26
GrossWeight - 26.150 kg
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304327745
GTIN - 0731304327745
guarantee - 36
guarantee_type - external
Height - 89 mm
Height - 248.000000
Height, mm - 89
HERSTELLER - APC
Hoehe - 0.25
HSTNUMMER - SMX750INC
I/O connectors - 1 x RJ-45 (iLO Remote Management Network)
I/O connectors - 1 x RJ-45 LAN
I/O connectors - 1 x USB 2.0
Input connection - IEC-320 C14
InputConnections - IEC-320 C14
InputFrequency - 50/60 Hz +/- 3 Hz (auto sensing)
Input frequency, Hz - 50/60 +/- 3
Input power ports - IEC-C14
InputVoltage - 230V
InterfacePorts - RJ-45 10/100 Base-TRJ-45 SerialSmartSlotUSB
Laenge - 0.64
Length - 633.000000
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per pallet - 8 pc(s)
Logistics data - Total carbon footprint (kg of CO2e) - 578.01
LongDesc - 03-07 (296)
LongDesc - Stay always online and prevent data lossAs soon as the power fails, an APC Smart-UPS immediately supplies emergency power to all connected equipment. Because an APC UPS does this automatically, you prevent unwanted failure of, for example, a PC, server or switch. With the APC PowerChute Network Shutdown software, you can even have critical IT hardware shut down automatically and in a controlled manner when the UPS battery is almost empty. This prevents data loss, downtime and physical damage to hardware.Extend the runtimeYou can easily increase the number of minutes that the APC SMX UPS can independently supply emergency power by connecting external battery packs (SMX48RMBP2U).A runtime of several hours is even possible.SafetyIn addition, a Smart-UPS protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for (small) business use.Manage your Smart-UPSThanks to the pre-installed network card (ap9641), you can easily connect the APC UPS to the network. This allows you to monitor and manage the UPS remotely (SNMP) and the UPS can send a shutdown signal to multiple physical and/or virtual servers using PowerChute Network Shutdown software.PowerChute Network ShutdownPowerChute Network Shutdown is UPS management software that works with the UPS Network Management Card to protect Windows, Linux and Host ESXi, but also hyperconverged and virtual infrastructure*. In the event of a power failure, PowerChute can shut down your virtual machines correctly and the pre-configured boot sequence ensures that they are turned back on.*For HCI and virtual machine support an additional license is required:1 year: SWPCNS1Y-DIGI3 years: SWPCNS3Y-DIGI5 years: SWPCNS5Y-DIGIRemote management and monitoring of your networkThe network card can be managed remotely via the user-friendly web browser interface, remote management software EcoStruxure™ IT (SFTWES1-DIGI) or another SNMP-compatible system. Tip EcoStruxure™ IT also includes the functionalities of the support contract below.Support contractThe optional network card support contract license* ensures that you are always up-to-date and secure and includes additional benefits such as frequent updates with:• New and improved functions• Security updates• Advanced support*The above license is available in the following variants:1 year: SWNMC3SU-1Y-DIGI3 years: SWNMC3SU-3Y-DIGI5 years: SWNMC3SU-5Y-DIGIEase of useThe basic functionalities can be set and read using physical buttons and an LCD screen.Rack/tower convertibleThe APC Smart-UPS SMX is rack/tower convertible. Because both the feet and the front post rack brackets are included, you can mount it in a rack (2U) or place it upright. If you prefer to mount it on all four rack uprights, order the optional SU032A.Extend the lifespanThe internal battery cartridge (APCRBC116) can be replaced easily, safely and independently by the user. This without having to switch off the APC SMX750INC or connected equipment. This allows you to easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment will always remain online.Warranty extensionThe factory warranty of the SMX750INC is 3 years, with the exception of the battery cartridge, which has a factory warranty of 2 years. Both are extended by 3 years to 6 and 5 years respectively with the APC service pack (WBEXTWAR3YR-SP-02).Switched Outlet Groups: Remote reboot and phased start-upThanks to the Switched Outlet Groups, it is possible to configure a phased/delayed power-on per UPS outlet group. This reduces the peak load on the UPS and brings it closer to the constant load, which can limit oversizing of the UPS.It is also possible to reset a group of multiple UPS outputs and the equipment connected to them. In combination with Ecostruxure IT Expert (SFTWES1-DIGI), this can even be done remotely.You can also switch off non-critical loads; this extends the runtime for critical equipment.This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 750VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C14 input, 8x IEC 320 C13 outlets, and 2x IEC jumper cables. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature. The 1 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
LongProductName - APC Smart-UPS X SMX750INC - 750VA, 8x C13 output, USB, expandable runtime, NMC
LongSummaryDescription - APC Smart-UPS X SMX750INC - 750VA, 8x C13 output, USB, expandable runtime, NMC. UPS topology: Line-Interactive, Output power capacity: 0.75 kVA, Output power: 600 W. AC outlet types: C13 coupler, IEC Jumpers, Power plug: C14 coupler, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery life (max): 5 year(s), Battery recharge time: 3 h. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Certification: CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH
Manufacturer - APC
ManufacturerPartNumber - SMX750INC
MANUFDATASHEET - https://www.apc.com/shop/ae/en/products/APC-Smart-UPS-X-750VA-Rack-TowerR-LCD-230V-with-Networking-Card/P-SMX750INC
Maximum power, W - 600
name - SMX750INC SMART X 750VA USB/AP9631/LCD/RT
No. of batteries - 1
Noise level, dB - 40
Number of phases input - 1 (230V)
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features -

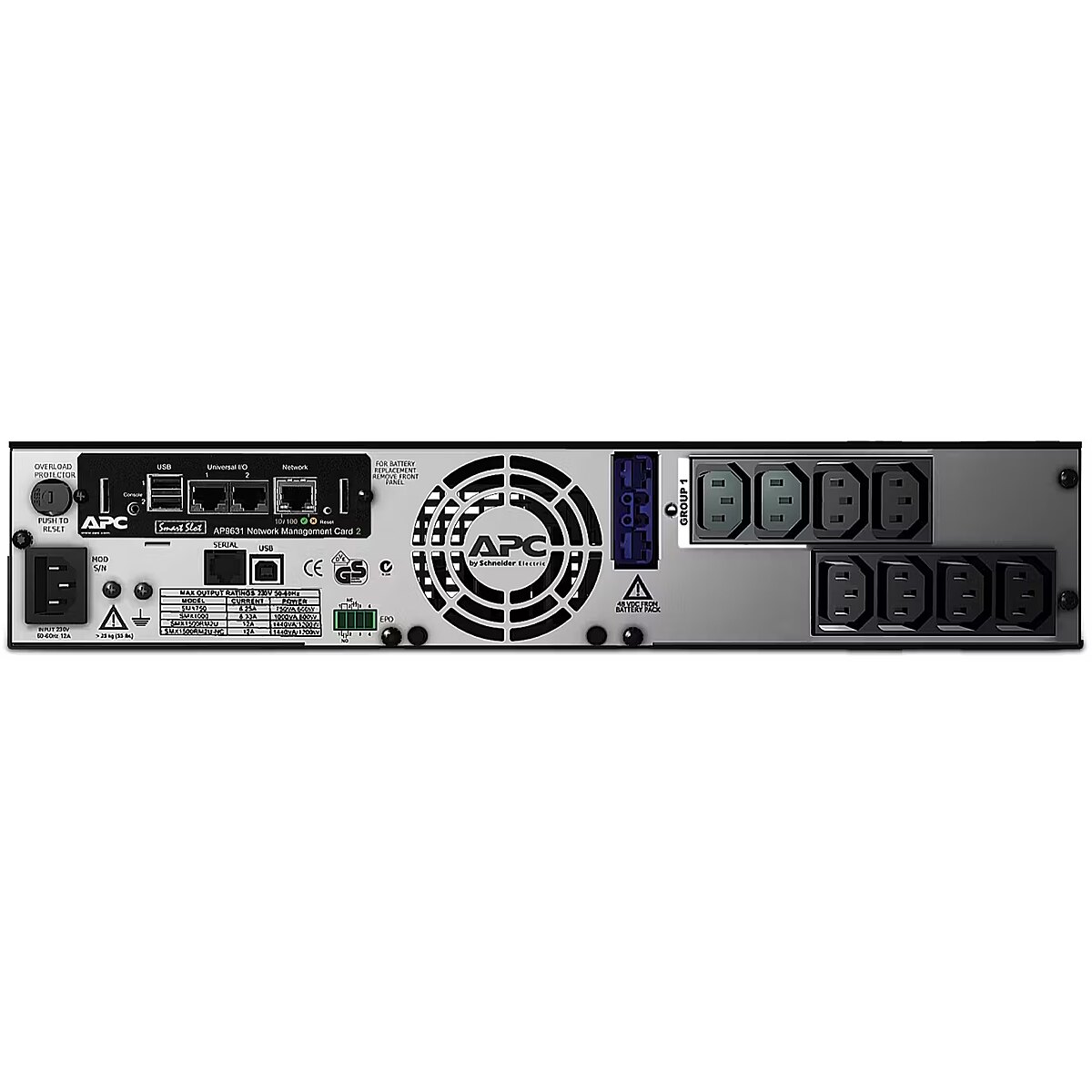

OutputConnections - (2) IEC Jumpers (Battery Backup)(8) IEC 320 C13 (Battery Backup)
OutputFrequency - 50/60Hz +/- 3 Hz
Output power, W - 600
Output power capacity (VA) - 750
Output power ports - 8 x IEC-C13
OutputVoltage - 230 V
PackageContents - CD with softwareDocumentation CDInstallation guideRack Mounting bracketsSmart UPS signalling RS-232 cableTemperature ProbeUSB cable
Packaging content - Cables included - RS-232, USB cable
Packaging content - Quick installation guide - Yes
Packaging content - Rack mount kit - Yes
Packaging data - Package depth - 620 mm
Packaging data - Package height - 246 mm
Packaging data - Package weight - 26.4 kg
Packaging data - Package width - 589 mm
Packaging data - Resource CD - Yes
Packaging data - Software CD - Yes
PeriodofWarranty - 3 Y
Ports & interfaces - AC outlets quantity - 10 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler, IEC Jumpers
Ports & interfaces - Cabling technology - 10/100Base-T
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Power plug - C14 coupler
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RJ-45
Ports & interfaces - Serial ports quantity - 1
Ports & interfaces - SmartSlot - Yes
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - Yes
PowerVAW - 750 VA
PowerW - 600 W
ProdDesc - APC Smart-UPS X 750VA Rack/TowerR LCD 230V with Networking Card
producer - APC
ProductName - APC Smart-UPS X SMX750INC - 750VA, 8x C13 output, USB, expandable runtime, NMC
ProductPicture - http://www.tdbaltic.ee/images/ds4/SMX750INC-01.jpg
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
RechargeTime - 3 h
RJ45 - Yes
Runtime - 37.8/14.2
ShortSummaryDescription - APC Smart-UPS X SMX750INC - 750VA, 8x C13 output, USB, expandable runtime, NMC, Line-Interactive, 0.75 kVA, 600 W, Pure sine, 151 V, 302 V
SmartSlot - Yes
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 1
Storage temperature range (T-T), °C - -15 - 45
Storno - N
Title - APC Smart-UPS X SMX750INC - 750VA, 8x C13 output, USB, expandable runtime, NMC
Topology - Online
UPS Architecture - line-interactive
UPS devices and accessories - Yes
URL - https://www.apc.com/
USB - Yes
vendpn - SMX750INC
Warranty - -
WarrantyInfo - 3 years
WaveformType - Sine wave
Weight - 22 kg
Weight - 22.000 Kg
Weight - 26.100000
Weight & dimensions - Depth - 490 mm
Weight & dimensions - Height - 89 mm
Weight & dimensions - Weight - 22 kg
Weight & dimensions - Width - 432 mm
Weight, kg - 22
Width - 432 mm
Width - 590.000000
Width, mm - 432
