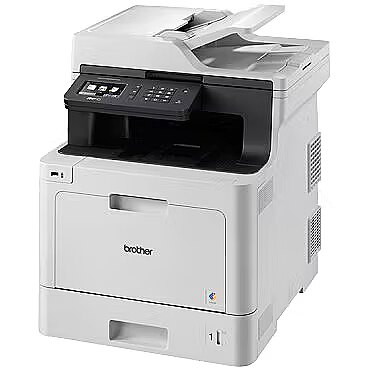

Brother MFC-L8690CDW

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 874065 Product code: MFCL8690CDWZW1
Can be ordered 2 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
543.42 €
Delivery options More about shipping
  • Delivery to Smartpost free of charge: 27.11.2024
  • Delivery to Latvian post office, parcel locker or Circle K free of charge: 27.11.2024
  • Delivery to address in Riga 3.99 €: 27.11.2024
  • Delivery to address in Latvia 6.99 €: 27.11.2024
  • Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 25.11.2024 after 15:00
Main product parameters All parameters
  • Max. print size: A4
  • Native resolution: 2400 x 600 dpi
  • Print speed (monochrome): 31 lpp/min
  • Type: Laser Colour Printer
  • Cartridges: 4
Basic information
Max. print size A4

The size of paper that can be placed in the printer feeder and printed in the particular printer. If this index of the printer is, for example, A4 it means that this particular printer can print for sure also smaller size paper, for example, A5. This possibility has certain restrictions that can be found in the detailed specification of the printing size and type of paper supported.

Native resolution 2400 x 600 dpi

The resolution of the printer determines the number of dots that the printer printing head can print horizontally and vertically. By applying various additional methods a printer can print a higher resolution result. This parameter indicates the natural resolution of the printer without using compression. A higher resolution means a higher image quality and detail.

Print speed (monochrome) 31 lpp/min

The average index of the number of black and white pages with 5% average coverage that can be printed by this printer per minute.

Type Laser Colour Printer

The type of printing is the main criterion for selecting the princter because it determines the printer application.

Ink - this technology will be suitable for the users who want to print colour photos at high quality. The costs per print-out are quite high, also ink cartridges dry out when the printer is on stand-by for a long time.

Black and white laser - the best type of printing from the economic point of view, produces good quality print-outs of black and white documents at the lowest cost per print-out. The best buy for the home and office needs. Printers of more expensive models have considerably bigger toner cartridges which will certainly pay back if more than ten pages per day are printed.

Colour laser - this technology allows to print black and white laser print-outs at the same costs per page as with the black and white laser printer and to produce colour print-outs at comparatively low costs per print-out.

The quality of the colour printing by this technology is much lower than with the ink printing, therefore this device is worth buying only if tens of colour graphics, models, product samples photos and colour logos have to be printed every day. This technology currently is not suitable for printing photos.

The size of paper that can be placed in the printer feeder and printed in the particular printer. If this index of the printer is, for example, A4 it means that this particular printer can print for sure also smaller size paper, for example, A5. This possibility has certain restrictions that can be found in the detailed specification of the printing size and type of paper supported.

Functionality
ADF (automatic document feeder) Ir

ADF means automatic document feeding. This is implemented by means of a special scanner cover where it is possible to place several pages at once, for example, a pack of copied or scanned documents.

Auto Duplex function Ir

Double-sided printing that is quite often implemented as a semi-automated function which means that the printer prints one side of the page and then the user has to put all the pack of print-outs in the feeder manually.

There can also be Duplex printers that are able to turn the page during the printing process. Prior to buying the printer you should read the detailed specification about how the Duplex function is implemented.

Cartridges 4

The number of toners or cartridges that the particular printer has. In case of ink printing a higher number of cartridges means better printing quality and more economical replacement of cartridges.

Copier Ir

An option to place a printed document in the feeder and copy it.

Fax Ir

A possibility to connect the device to the phone line and phone for sending and receiving fax messages.

Scanner Ir

A possibility to place a printed paper in the feeder and to receive a scanned document in the computer as a file.

Ports and equipment
LAN interface Ir

A very useful function if the printer is used from various computers connected in a network. If there is LAN connection it is possible to place the printer at any place where the network and power connection is available and to produce print-outs from any computer without the necessity to connect the printer to any particular computer and to maintain this computer switched on.

LPT interface Nav

This is an obsolete standard and required only in few cases when a company uses DOS software that cannot print from any other ports except LPT. This type of connection is very slow, therefore in most cases a printer with LPT has also the much faster USB or LAN connection.

USB 2.0 interface Ir

The most stable, convenient and fastest connection of the printer if the printer is located close to the computer and is used for printing from one computer. The USB connection slot is available with almost all portable computers and desktop computers.

Wireless connections
Bluetooth Nav

A possibility to connect this printer to the computer via the Bluetooth wireless connection. Usually this type of connection is available for portable computers of average or expensive category. Desktop computers usually do not have the Bluetooth, therefore it will be necessary to buy a low priced USB Bluetooth transmitter for being able to use this functionality.

WiFi Ir

An excellent way of connecting a computer within a wireless network if you use exclusively wireless network connection at home or at office or if the printer is placed at a location where it is not possible to connect a LAN cable.

USB Cable
More detailed specification
Additional information in manufacturers website Brother MFC-L8690CDW
Acoustic pressure emissions, dB - 49
All-in-one functions - Fax
All-in-one functions - Print
Brand - Brother
BrandPartCode - MFC-L8690CDW
Category - Multifunction Printers
Code - MFCL8690CDWZW1
Colour printing - Yes
Copying - Copier resize - 25 - 400%
Copying - Copying - Colour copying
Copying - Copy speed (black, normal quality, A4) - 31 cpm
Copying - Copy speed (colour, normal quality, A4) - 31 cpm
Copying - ID-card copy function - Yes
Copying - Maximum copy resolution - 1200 x 600 DPI
Copying - Maximum number of copies - 99 copies
Copying - N-in-1 copy function - Yes
Copying - N-in-1 copy function (N=) - 2, 4
Copying - PC free copying - Yes
Copying - Time to first copy (black, normal) - 17 s
Copy speed (normal quality, black, A4), cpm - 31
Description - BROTHER MFC-L8690CDW
Design - Built-in display - Yes
Design - Colour display - Yes
Design - Control type - Touch
Design - Display - LCD
Design - Market positioning - Business
Design - Product colour - Black, Grey
Design - Touchscreen - Yes
Dimensions W x D x H, mm - 435 x 526 x 539
Display - 9.3 cm wide color touch screen
Duplex printing - Yes
EAN - 4977766774420
Energy Star certified - Yes
Fax - Auto-redialing - Yes
Fax - Auto reduction - Yes
Fax - Fax broadcasting - 350 locations
Fax - Fax delayed sending - Yes
Fax - Fax dual access - Yes
Fax - Fax forwarding - Yes
Fax - Fax forwarding to - FTP, PC
Fax - Faxing - Mono faxing
Fax - Fax memory - 500 pages
Fax - Modem speed - 33.6 Kbit/s
Features - Digital sender - Yes
Features - Maximum duty cycle - 40000 pages per month
Features - Number of print cartridges - 4
Features - Page description languages - BR-Script 3, PCL 6, PDF 1.7, XPS
Features - Printing colours - Black, Cyan, Magenta, Yellow
Features - Recommended duty cycle - 0 - 3000 pages per month
Features > Product type - Color Laser Multifunction Printer
First page out (b&w, A4, ready), s - 15
First page out (colour, A4, ready), s - 15
Gross weight - 33.70 kg
GTIN - 4002352009980
GTIN - 4977766774376
GTIN - 4977766774383
GTIN - 4977766774390
GTIN - 4977766774406
GTIN - 4977766774413
GTIN - 4977766774420
GTIN - 4977766774437
GTIN - 4977766774604
Height - 650.000000
Input & output capacity - Auto document feeder (ADF) input capacity - 50 sheets
Input & output capacity - Multi-Purpose tray - Yes
Input & output capacity - Multi-Purpose tray input capacity - 50 sheets
Input & output capacity - Paper input type - Paper tray
Input & output capacity - Total input capacity - 250 sheets
Input & output capacity - Total number of input trays - 1
Input & output capacity - Total output capacity - 150 sheets
Internal memory, MB - 512
Length - 550.000000
Link - https://www.brother.lt/printers/laser-printers/mfc-l8690cdw
Logistics data - Harmonized System (HS) code - 84433210
LongDesc - A professional colour laser printer, the MFC-L8690CDW provides great print speeds, combined with comprehensive mobile and cloud connectivity options, making integration into your office seamless.- Up to 31 ppm colour & mono print speed- 28ipm (56ipm) scan speed colour & mono- 9.3cm touchscreen- 300 sheet standard paper capacity- USB, Wireless and Gigabit Wired network- 3,000 Black and 1,800 Cyan, Magenta & Yellow Toners InboxBetter reliabilityBuilt to perform for longer and meet the demands of high output work environments, the L5000 range has been totally remodelled with robust build quality that’s even more resilient and hardwearing.Save timeHigh-resolution colour laser all-in-one printer, with outstanding print speeds of up to 31ppm and duplex scan speeds of up to 56ipm in both colour and mono. You can be confident that efficiency has been at the heart of the design.
LongProductName - 2400dpi, 31ppm, Duplex, 19200dpi scan, IEEE 802.11b/g/n, Fax, Wi-Fi Direct, 9.3cm LCD Touch
LongSummaryDescription - Brother MFC-L8690CDW. Print technology: Laser, Printing: Colour printing, Maximum resolution: 2400 x 600 DPI, Print speed (colour, normal quality, A4/US Letter): 31 ppm. Copying: Colour copying, Maximum copy resolution: 1200 x 600 DPI. Scanning: Colour scanning, Optical scanning resolution: 1200 x 2400 DPI. Faxing: Mono faxing. Maximum ISO A-series paper size: A4. Wi-Fi. Direct printing. Product colour: Black, Grey
Manufacturer - BROTHER
ManufacturerPartNumber - MFCL8690CDWZW1
Maximum copy resolution, DPI - 1200 x 600
Maximum resolution - 2400 x 600
Modem speed, Kbit/s - 33,6
Monthly duty cycle (max), pages - 3000
Name - Brother MFC-L8690CDW | Laser | Colour | Color Laser Multifunction Printer | A4 | Wi-Fi
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Mobile printing technologies - Apple AirPrint, Brother iPrint & Scan, Google Cloud Print, Mopria Print Service
Network - Security algorithms - 64-bit WEP, 128-bit WEP, SMTP-AUTH, SNMP, SSL/TLS, WPA-AES, WPA-PSK, WPA-TKIP
Network - Supported network protocols (IPv4) - ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, POP3*, SMTP Client, IPP/ IPPS, FTP Client and Server, CIFS Client, TELNET Server, SNMPv1/v2c/v3, HTTP/ HTTPS server, TFTP client and server, ICMP, Web Services (Print/Scan), SNTP Client, LDAP, IMAP4
Network - Supported network protocols (IPv6) - NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/ Port9100, IPP/IPPS, POP3*, SMTP Client, FTP Client and Server, CIFS Client, TELNET Server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMPv6, SNTP Client, LDAP, Web Services (Print/Scan), IMAP4* *When Internet FAX is downloaded.
Network - Wi-Fi - Yes
Network - Wi-Fi Direct - Yes
Network - Wi-Fi standards - 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Networking > Ethernet LAN - Yes
Networking > Wi-Fi - Yes
Network ready - Yes
Other features - Network ready - Yes
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 663.00 mm
Package features > Gross height (mm) - 645.00 mm
Package features > Gross width (mm) - 542.00 mm
Package features > Packing quantity - 1 pc(s)
Package features > Palette Qty - 4 pc(s)
Package features > Paper/Pasteboard - 1800.00 g
Package features > Plastic (No PET) - 4000.00 g
Package features > Tare weight (kg) - 5.80 kg
Package features > Volume (m3) - 0.23 m³
Package features > WEE classification - CL109:4:2017-04-01
Package features > WEEE tax - Yes
Packaging data - Package depth - 542 mm
Packaging data - Package height - 654 mm
Packaging data - Package weight - 33.7 kg
Packaging data - Package width - 663 mm
Paper handling - Auto Document Feeder (ADF) media weight - 64 - 90 g/m²
Paper handling - ISO A-series sizes (A0...A9) - A4, A5, A6
Paper handling - Maximum ISO A-series paper size - A4
Paper handling - Multi-purpose tray media types - Bond paper, Glossy paper, Letterhead, Plain paper, Recycled paper
Paper handling - Multi-Purpose Tray media weight - 60 - 163 g/m²
Paper handling - Non-ISO print media sizes - Executive, Folio
Paper handling - Paper tray media types - Plain paper, Recycled paper
Paper handling - Paper tray media weight - 60 - 105 g/m²
Paper handling > Maximum print size - A4
Performance - Built-in processor - Yes
Performance - Internal memory - 512 MB
Performance - Processor frequency - 800 MHz
Performance - Sound pressure level (printing) - 49 dB
Performance - Sound pressure level (quiet mode) - 44 dB
Performance > Copying - Yes
Performance > Duplex functions - Yes
Performance > Faxing - Yes
Performance > Printing - Colour
Performance > Print technology - Laser
Performance > Scanning - Colour
PeriodofWarranty - 24 M
Ports & interfaces - Direct printing - Yes
Ports & interfaces - Standard interfaces - RJ-45, USB 2.0, Wireless LAN
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces > Interface - USB 2.0, 2 x USB Host, Wired Network, Wireless
Power - Power consumption (average operating) - 580 W
Power - Power consumption (off) - 0.03 W
Power - Power consumption (ready) - 70 W
Power - Power consumption (sleep) - 1.4 W
Power - Power consumption (standby) - 10 W
Power consumption, W - 580
Printing - Barcode printing - Yes
Printing - Duplex printing - Yes
Printing - Duplex printing mode - Auto/Manual
Printing - Duplex print speed (black, normal quality, A4/US Letter) - 14 ppm
Printing - Duplex print speed (colour, normal quality, A4/US Letter) - 14 ppm
Printing - Maximum resolution - 2400 x 600 DPI
Printing - N-in-1 print function - Yes
Printing - N-up printing - 2, 4, 9, 16, 25
Printing - Poster printing function - Yes
Printing - Printing - Colour printing
Printing - Print speed (black, normal quality, A4/US Letter) - 31 ppm
Printing - Print speed (colour, normal quality, A4/US Letter) - 31 ppm
Printing - Print technology - Laser
Printing - Time to first page (black, normal) - 15 s
Printing - Time to first page (colour, normal) - 15 s
Printing - Warm-up time - 31 s
Printing - Warm-up time (from sleep mode) - 31 s
Printing - Watermark printing - Yes
Printing > Print speed (ISO/IEC 24734) colour - 31 ipm
Printing > Print speed (ISO/IEC 24734) mono - 31 ipm
Print speed (black, normal quality, A4), ppm - 31
Print speed (colour, normal quality, A4), ppm - 31
Print technology - Laser color
Print technology > Maximum resolution - 2400 x 600 DPI
Producer product name - MFC-L8690CDW
ProductName - MFC-L8690CDW
Scanner Resolution, DPI - 1200 x 2400 dpi (valotustasolta)
1200 x 600 dpi (syöttölaitteesta)
19200 x 19200 dpi interpoloituna
Scanning - Document formats supported - PDF
Scanning - Duplex scan speed (black) - 56 ppm
Scanning - Duplex scan speed (colour) - 56 ppm
Scanning - Greyscale levels - 256
Scanning - Maximum scan resolution - 19200 x 19200 DPI
Scanning - Optical scanning resolution - 1200 x 2400 DPI
Scanning - Scan drivers - ISIS, TWAIN, WIA
Scanning - Scanner type - ADF scanner
Scanning - Scanning - Colour scanning
Scanning - Scan speed (black) - 28 ppm
Scanning - Scan speed (colour) - 28 ppm
Scanning - Scan technology - CIS
Scanning - Scan to - E-mail, File, Image, USB
Scanning > Maximum scan resolution - 2400 x 1200 DPI
Security algorithms supported - WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES) APOP, SMTP-AUTH, SSL/TLS (IPPS, HTTPS, SMTP, POP3, IMAP4), SNMP v3, Kerberos, IPsec, 802.1x (LEAP, EAP-FAST, PEAP, EAP-TLS, EAPTTLS)
ShortSummaryDescription - Brother MFC-L8690CDW, Laser, Colour printing, 2400 x 600 DPI, A4, Direct printing, Black, Grey
Standard input capacity, sheets - 250
Standard interfaces - Ethernet 10Base-T/100Base-TX/1000Base-T
Standard interfaces - IEEE 802.11 B/G/N
Standard interfaces - USB
Standard interfaces - Wi-Fi Direct
Supported network protocols - SMTP-AUTH, SSL/TLS (IPPS, HTTPS, SMTP), SNMP v3 802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), Kerberos, IPSec
Sustainability - Sustainability certificates - ENERGY STAR
System requirements - Mac operating systems supported - Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra
System requirements - Server operating systems supported - Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
System requirements - Windows operating systems supported - Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Technical details > Functions - Print, Scan, Copy, Fax
Technical details > Net weight - 27.90 kg
Technical details > Producer - Brother
Technical details > Warranty - 36 month(s)
Title - Brother MFC-L8690CDW multifunction printer Laser A4 2400 x 600 DPI 31 ppm Wi-Fi
Touch sensitive screen - Yes
URL - https://www.brother.co.uk/printers/colour-laser-printers/mfc-l8690cdw
Warranty - 36
WarrantyInfo - 1 year
Weight - 35.000000
Weight & dimensions - Depth - 526 mm
Weight & dimensions - Height - 539 mm
Weight & dimensions - Weight - 27.9 kg
Weight & dimensions - Width - 435 mm
Weight, g - 27900
Wi-Fi - Yes
Width - 660.000000
WLAN type - IEEE 802.11b/g/n
543.42 €
Brother MFC-L8690CDW
Tālr. 67275758 gsm 26117175 (p.o.t.c.p. 9:00-18:00)
Intel technology provider Platinum 2020
All categories
