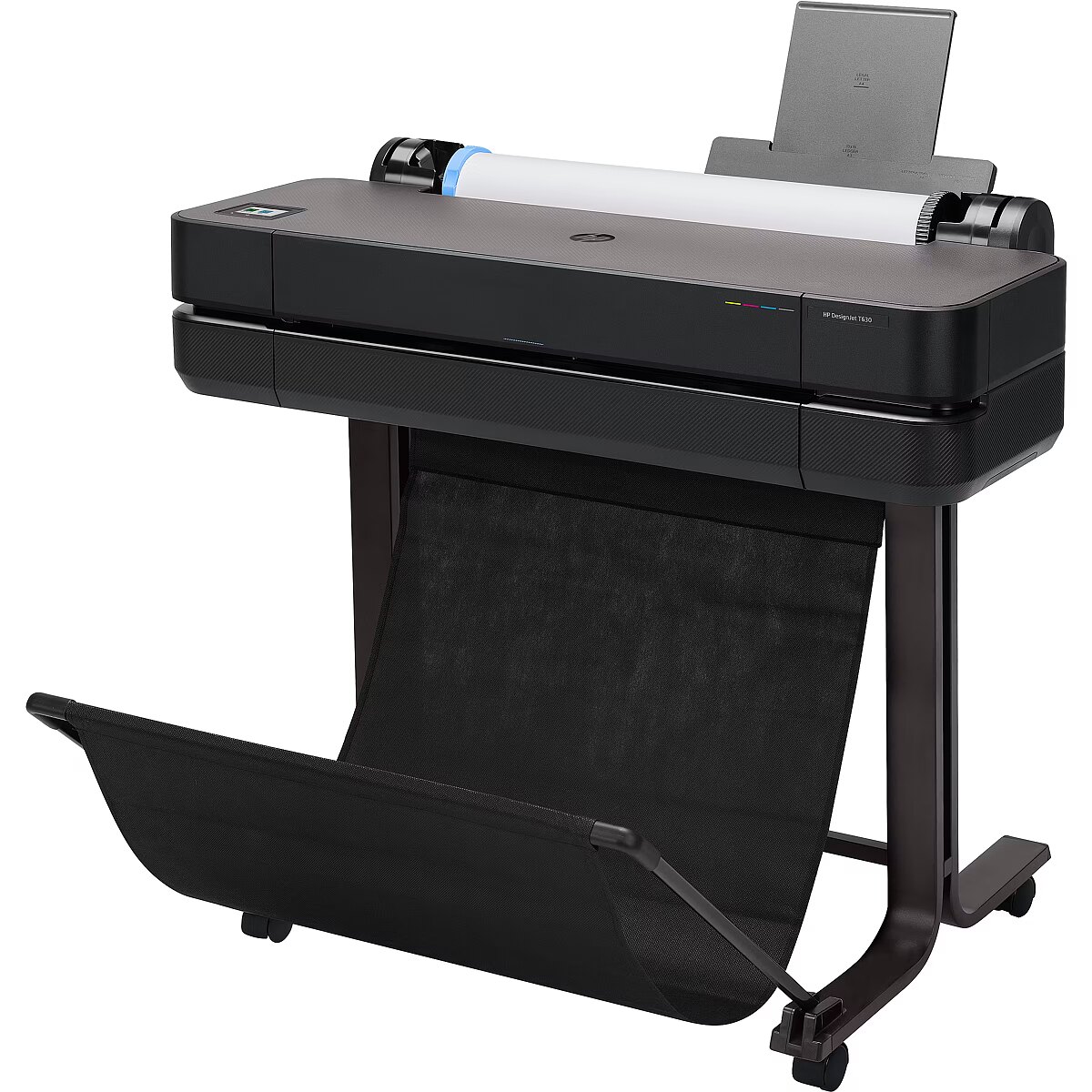

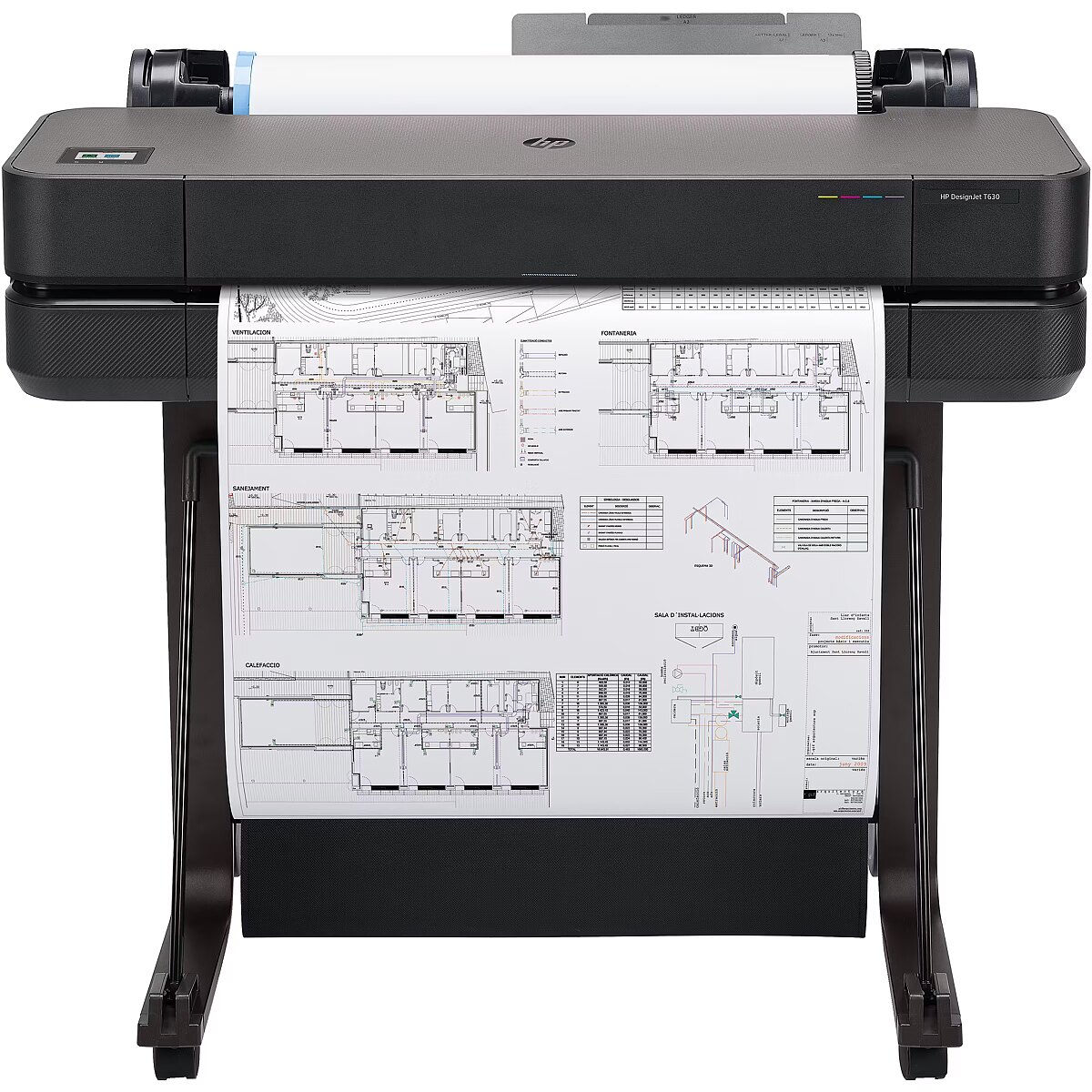

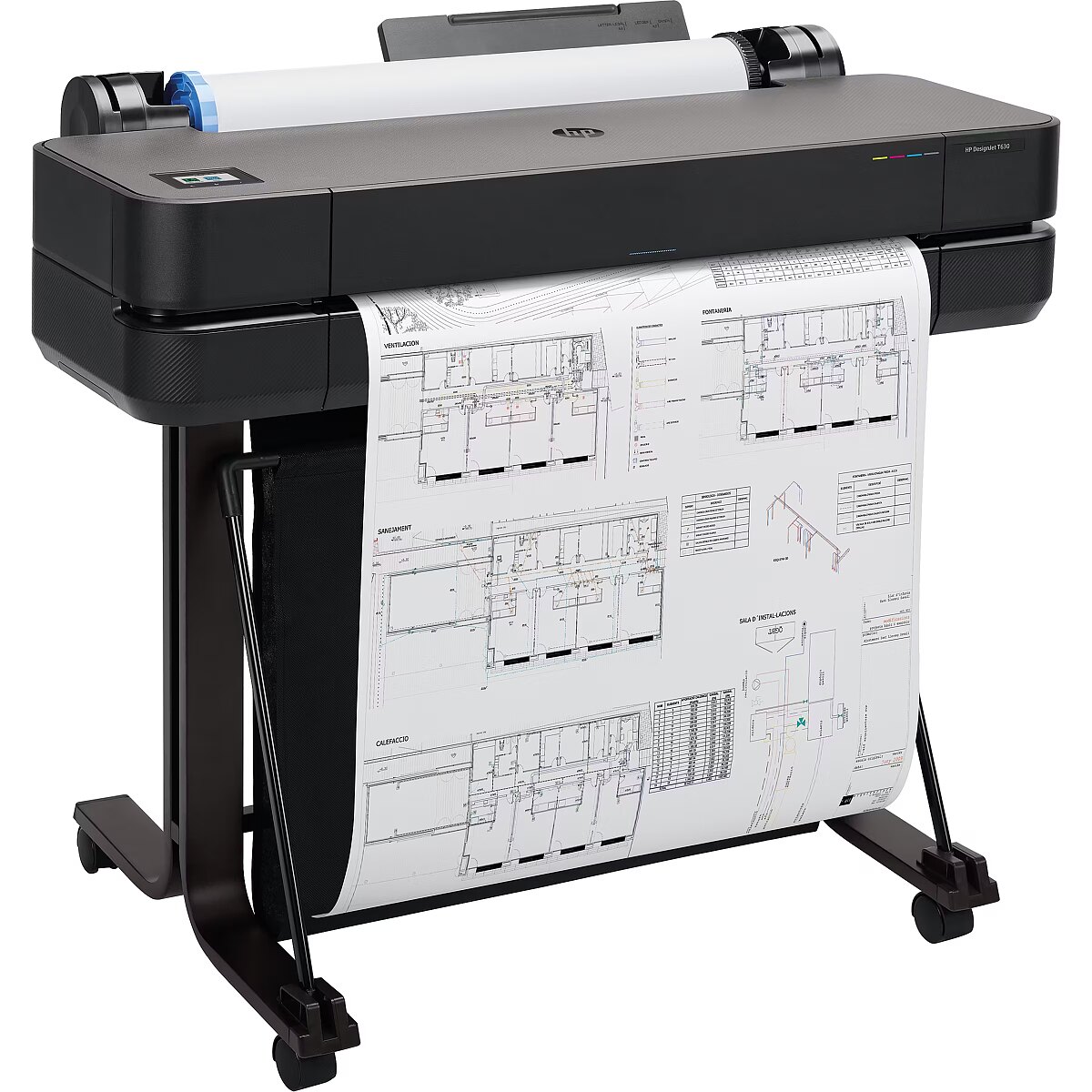

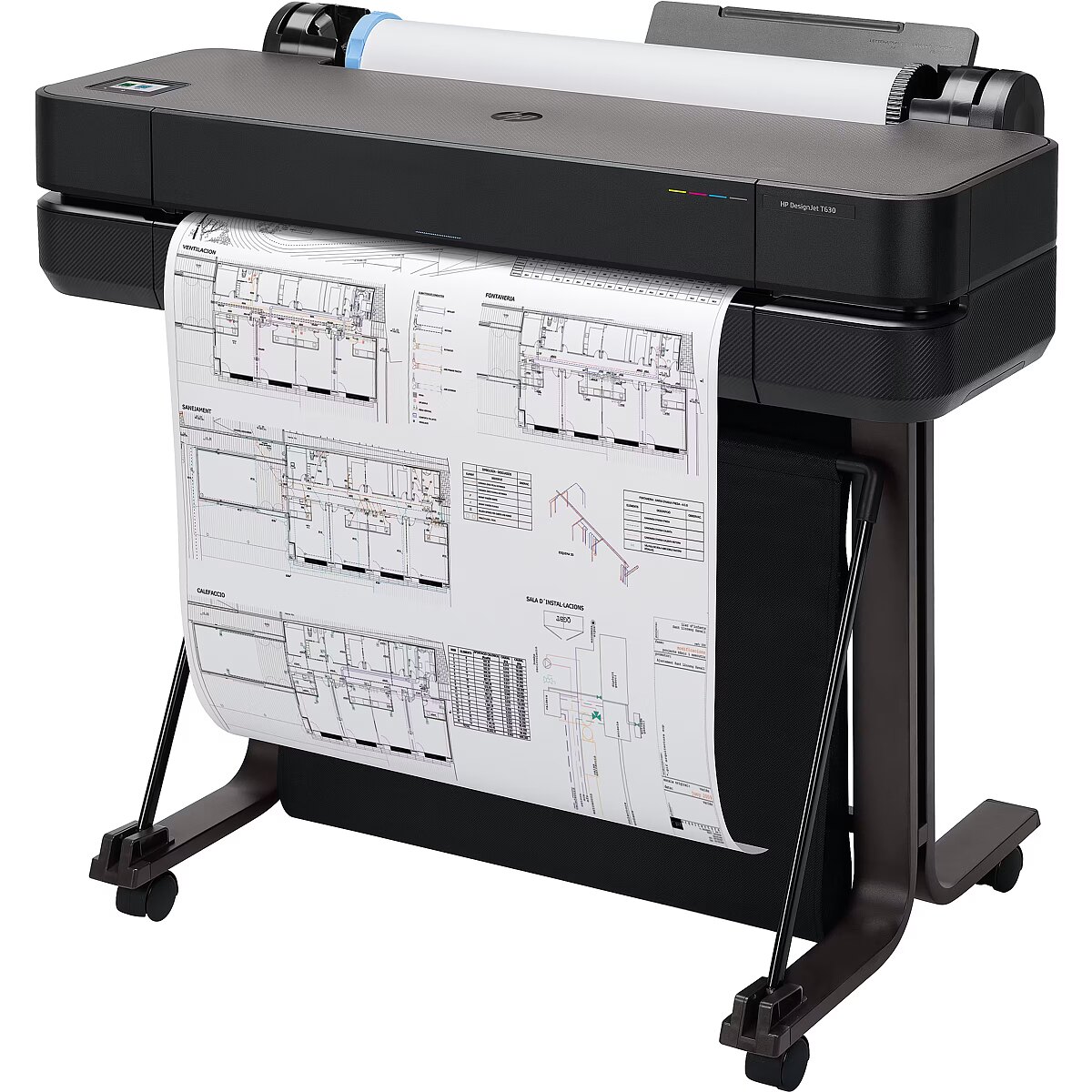

Hewlett Packard DesignJet T630 24"

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 592516 Product code: 5HB09A#B19
Can be ordered 15 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
1,301.47 €
Delivery options More about shipping
  • Delivery to Smartpost free of charge: 27.11.2024
  • Delivery to Latvian post office, parcel locker or Circle K free of charge: 27.11.2024
  • Delivery to address in Riga 3.99 €: 27.11.2024
  • Delivery to address in Latvia 6.99 €: 27.11.2024
  • Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 25.11.2024 after 15:00
Main product parameters All parameters
  • Max. print size: A1
  • Native resolution: 2400 x 1200 dpi
  • Print speed (monochrome): Nav norādīts
  • Type: Inkjet
  • Cartridges: 4
Basic information
Max. print size A1

The size of paper that can be placed in the printer feeder and printed in the particular printer. If this index of the printer is, for example, A4 it means that this particular printer can print for sure also smaller size paper, for example, A5. This possibility has certain restrictions that can be found in the detailed specification of the printing size and type of paper supported.

Native resolution 2400 x 1200 dpi

The resolution of the printer determines the number of dots that the printer printing head can print horizontally and vertically. By applying various additional methods a printer can print a higher resolution result. This parameter indicates the natural resolution of the printer without using compression. A higher resolution means a higher image quality and detail.

Print speed (monochrome) Nav norādīts

The average index of the number of black and white pages with 5% average coverage that can be printed by this printer per minute.

Type Inkjet

The type of printing is the main criterion for selecting the princter because it determines the printer application.

Ink - this technology will be suitable for the users who want to print colour photos at high quality. The costs per print-out are quite high, also ink cartridges dry out when the printer is on stand-by for a long time.

Black and white laser - the best type of printing from the economic point of view, produces good quality print-outs of black and white documents at the lowest cost per print-out. The best buy for the home and office needs. Printers of more expensive models have considerably bigger toner cartridges which will certainly pay back if more than ten pages per day are printed.

Colour laser - this technology allows to print black and white laser print-outs at the same costs per page as with the black and white laser printer and to produce colour print-outs at comparatively low costs per print-out.

The quality of the colour printing by this technology is much lower than with the ink printing, therefore this device is worth buying only if tens of colour graphics, models, product samples photos and colour logos have to be printed every day. This technology currently is not suitable for printing photos.

The size of paper that can be placed in the printer feeder and printed in the particular printer. If this index of the printer is, for example, A4 it means that this particular printer can print for sure also smaller size paper, for example, A5. This possibility has certain restrictions that can be found in the detailed specification of the printing size and type of paper supported.

Functionality
ADF (automatic document feeder) Nav

ADF means automatic document feeding. This is implemented by means of a special scanner cover where it is possible to place several pages at once, for example, a pack of copied or scanned documents.

Auto Duplex function Nav

Double-sided printing that is quite often implemented as a semi-automated function which means that the printer prints one side of the page and then the user has to put all the pack of print-outs in the feeder manually.

There can also be Duplex printers that are able to turn the page during the printing process. Prior to buying the printer you should read the detailed specification about how the Duplex function is implemented.

Cartridges 4

The number of toners or cartridges that the particular printer has. In case of ink printing a higher number of cartridges means better printing quality and more economical replacement of cartridges.

Copier Nav

An option to place a printed document in the feeder and copy it.

Fax Nav

A possibility to connect the device to the phone line and phone for sending and receiving fax messages.

Scanner Nav

A possibility to place a printed paper in the feeder and to receive a scanned document in the computer as a file.

Ports and equipment
LAN interface Ir

A very useful function if the printer is used from various computers connected in a network. If there is LAN connection it is possible to place the printer at any place where the network and power connection is available and to produce print-outs from any computer without the necessity to connect the printer to any particular computer and to maintain this computer switched on.

LPT interface Nav

This is an obsolete standard and required only in few cases when a company uses DOS software that cannot print from any other ports except LPT. This type of connection is very slow, therefore in most cases a printer with LPT has also the much faster USB or LAN connection.

USB 2.0 interface Ir

The most stable, convenient and fastest connection of the printer if the printer is located close to the computer and is used for printing from one computer. The USB connection slot is available with almost all portable computers and desktop computers.

Wireless connections
Bluetooth Nav

A possibility to connect this printer to the computer via the Bluetooth wireless connection. Usually this type of connection is available for portable computers of average or expensive category. Desktop computers usually do not have the Bluetooth, therefore it will be necessary to buy a low priced USB Bluetooth transmitter for being able to use this functionality.

WiFi Ir

An excellent way of connecting a computer within a wireless network if you use exclusively wireless network connection at home or at office or if the printer is placed at a location where it is not possible to connect a LAN cable.

USB Cable
More detailed specification
Additional information in manufacturers website Hewlett Packard DesignJet T630 24"
ARTIKEL1 - DESIGNJET T630 24IN
ARTIKEL2 - PRINTER
Battery - -
Brand - HP
BrandPartCode - 5HB09A#B19
CardReader - -
Category - Large Format Printers
Category - Root/Electronics/PC peripherals/Printers, 3D printers and plotters/Plotters
ControlPanel - -
Copying - Copying - No
Depth - 605 mm
DuplexPrinting - No
DutyCycle - -
EAN - 0197850019891
EANCode - 0194850019890
Eans - 194850019890
Gewicht - 37.3
GrossWeight - 37.800 kg
Gross Weight Kg - 30
GRUPPE1 - Printer/Copier/Fax
GRUPPE2 - Inkjet Lfp
GTIN - 194850019890
GTIN - 0194850019890
HDD - -
Height - 932 mm
HERSTELLER - HP INC.
HSTNUMMER - 5HB09A#B19
InterfaceandConectivity -
  • Gigabit Ethernet (1000Base-T)
  • Hi-Speed USB 2.0
  • Wi-Fi 802.11

    • Laenge - 1.15
    Logistics data - Harmonized System (HS) code - 84433210
    LongDesc -
    LongDesc - The world's smallest wide-format printer[4] with a built-in stand, is designed to fit your office, budget, and the way you work. Print multi-size projects with ease. Print your A1 plot as fast as 30 seconds. 1 GB memory.Dynamic security enabled printer Certain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.
    LongProductName - DesignJet T630 24-in Printer
    LongSummaryDescription - HP Designjet T630 24-in Printer. Print technology: Thermal inkjet, Maximum resolution: 2400 x 1200 DPI, Page description languages: CALS G4, HP-GL/2, HP-RTL, JPEG, URF. Maximum print size: 610 x 1897 mm, Paper tray media types: Bond paper, Coated paper, Heavy paper, Recycled paper, ISO A-series sizes (A0...A9): A1, A2, A3, A4. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Internal memory: 1024 MB, Sound pressure level (printing): 42 dB. Power consumption (standby): 0.2 W, Power consumption (typical): 35 W, AC input voltage: 100 - 240 V
    Manufacturer Code - 5HB09A#B19
    Manufacturer Name - Hewlett Packard
    MANUFDATASHEET - https://store.hp.com/CanadaStore/Merch/Product.aspx?id=5HB09A&opt=B1K&sel=PRN&lang=en-CA
    MaxPrintArea -
  • Input tray: 210 x 279 to 330 x 482 mm
  • Manual feed: 210 x 279 to 610 x 1897 mm

    • MediaSizes -
  • A4, A3, A2, A1
  • A, B, C, D

    • MediaTypes -
  • Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing)
  • film (clear, matte)
  • photographic paper (satin, gloss, semigloss, polypropylene)
  • self-adhesive (adhesive, polypropylene)

    • MediaWeightMax - 280 g/m²
    MediaWeights -
  • 60 to 280 g/m² (roll/manual feed)
  • 60 to 220 g/m² (auto sheet feeder)

    • Memory - 1 GB
    MemoryMax - -
    Name - Ploter HP Design Jet T630 24"
    OperatingSystems - -
    Operational conditions - Operating relative humidity (H-H) - 20 - 80%
    Operational conditions - Operating temperature (T-T) - 5 - 40 °C
    Operational conditions - Storage temperature (T-T) - -25 - 55 °C
    PackageContents -
  • HP DesignJet T630 24-in Printer
  • Printer stand
  • Automatic sheet feeder
  • Irinthead
  • Introductory ink cartridges
  • Spindle
  • Quick reference guide
  • Setup poster
  • Power cord

    • Packaging data - Bundled software - HP Click, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant
    Packaging data - Package depth - 575 mm
    Packaging data - Package height - 475 mm
    Packaging data - Package weight - 37.4 kg
    Packaging data - Package width - 1155 mm
    PaperHandling - Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter
    Paper handling - ISO A-series sizes (A0...A9) - A1, A2, A3, A4
    Paper handling - Maximum print size - 610 x 1897 mm
    Paper handling - Maximum roll width - 61 cm
    Paper handling - Media thickness - 0.3 mm
    Paper handling - Paper tray media types - Bond paper, Coated paper, Heavy paper, Recycled paper
    PaperHandlingOutput - -
    PaperHandlingTotal - Roll size: 279 to 610 mm
    PaperInputTrays - -
    PapperTraysMax - -
    Performance - Built-in display - No
    Performance - Certification - USA and Canada (CSA certified); EU (LVD, EN 60950-1 and EN 62368-1 compliant); Russia, Belarus, Khazakstan (EAC);
    Ukraine (UA); Singapore (PSB); China (CCC); Argentina (IRAM); India (BIS); Mexico (NYCE)
    Performance - Country of origin - China
    Performance - Internal memory - 1024 MB
    Performance - Product colour - Black
    Performance - Sound pressure level (printing) - 42 dB
    Ports & interfaces - Ethernet LAN - Yes
    Ports & interfaces - Ethernet LAN data rates - 10,100,1000 Mbit/s
    Ports & interfaces - USB 2.0 ports quantity - 1
    Ports & interfaces - USB port - Yes
    Ports & interfaces - Wi-Fi - Yes
    Power - AC input frequency - 50 - 60 Hz
    Power - AC input voltage - 100 - 240 V
    Power - Power consumption (standby) - 0.2 W
    Power - Power consumption (typical) - 35 W
    PrinterLanguages -
  • HP-GL/2
  • HP-RTL
  • CALS G4
  • JPEG
  • URF

    • PrintFormat - A1
    Printing - Colour - Yes
    Printing - Maximum resolution - 2400 x 1200 DPI
    Printing - Number of print cartridges - 2
    Printing - Page description languages - CALS G4, HP-GL/2, HP-RTL, JPEG, URF
    Printing - Print head - 1
    Printing - Printing colours - Black, Cyan, Magenta, Yellow
    Printing - Print technology - Thermal inkjet
    PrintQuality - 2400 x 1200 dpi
    PrintSpeed - -
    PrintSpeedFeatures -
  • 30 sec/page on A1
  • 76 A1 prints per hour

    • PrintSpeedMono - -
    PrintTechnology - Thermal Inkjet
    ProdDesc - DesignJet T630 Printer/Plotter - 24" Roll/A4,A3,A2,A1 Color Ink, Print, Auto Sheet Feeder, LAN, WiFi, 30 sec/A1 page, 76 A1 prints/hour, with Stand
    Producer - HP
    ProducerCode - 5HB09A
    ProductName - DesignJet T630 24-in Printer
    ProductPicture - http://www.tdbaltic.ee/images/ds4/5HB09A-B19-01.jpg
    ProductPicture2 -
    ProductPicture3 -
    ProductPicture4 -
    Scanning - Scanning - No
    ShortDescription -
    Short description - HP DesignJet T630 - 610 mm (24 Zoll)
    ShortSummaryDescription - HP Designjet T630 24-in Printer, Thermal inkjet, 2400 x 1200 DPI, CALS G4, HP-GL/2, HP-RTL, JPEG, URF, Black, Cyan, Magenta, Yellow, 610 x 1897 mm, Bond paper, Coated paper, Heavy paper, Recycled paper
    Software -
  • HP Click
  • HP Smart app
  • HP Print Preview for Windows
  • HP Easy Start
  • HP DesignJet Utility for Windows
  • HP Support Assistant

    • Stck_Kart - 1
    Stck_Pal - 8
    Storno - Y
    Sustainability - Sustainability certificates - EPEAT Gold, ENERGY STAR
    Sustainability - Sustainable technologies and materials - More sustainable design reduces CO2e up to 7.3 tons/year by units sold by using up to 30% UL Validated recycled plastic.; Free, convenient HP ink cartridge and printhead recycling with HP Planet Partners; FSC®-certified papers and a range of recyclable HP media with a take-back program; ENERGY STAR® certified; EPEAT® registered
    SystemRequirements - -
    System requirements - Mac operating systems supported - Yes
    System requirements - Windows operating systems supported - Yes
    Title - HP Designjet T630 24-in Printer
    TypefacesFonts - -
    URL - https://www8.hp.com
    Warranty - 1 year
    WarrantyInfo - One-year limited hardware warranty
    Weight - 28.900 kg
    Weight & dimensions - Depth - 605 mm
    Weight & dimensions - Height - 932 mm
    Weight & dimensions - Weight - 28.9 kg
    Weight & dimensions - Width - 1013 mm
    Width - 1013 mm
    Wireless - Yes
