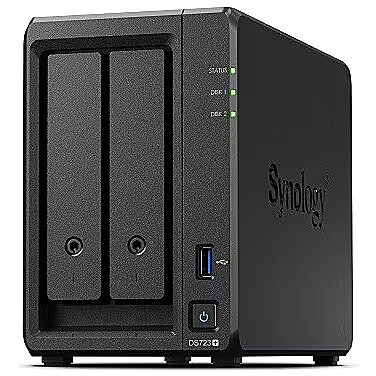

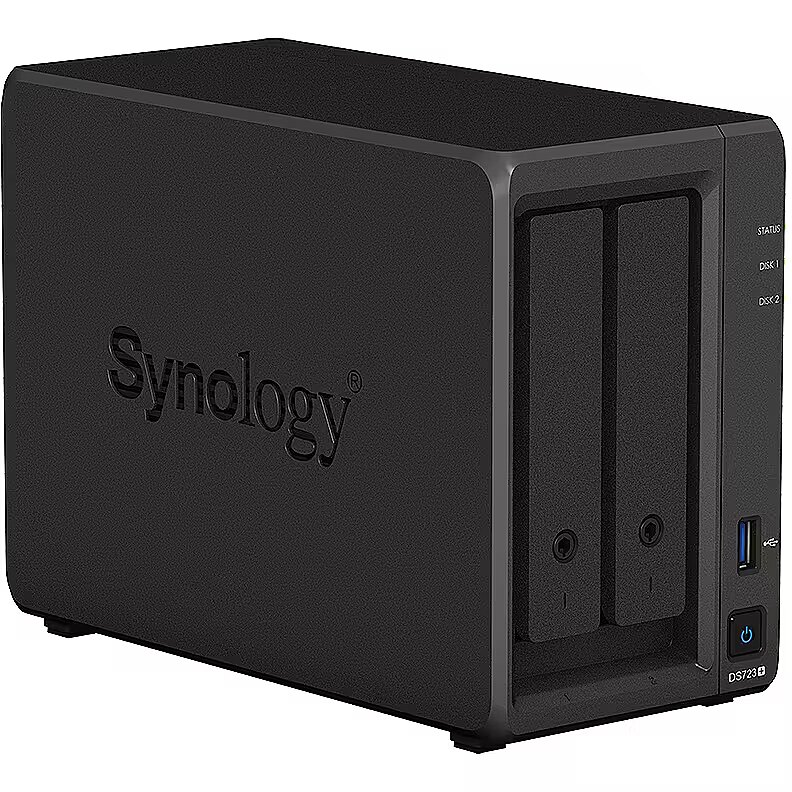

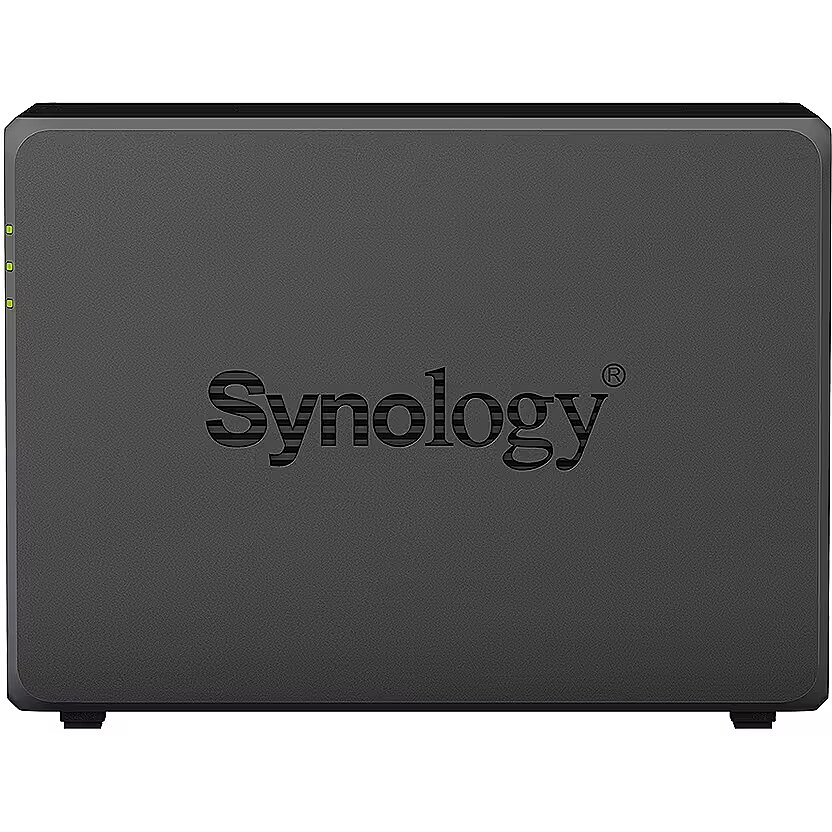

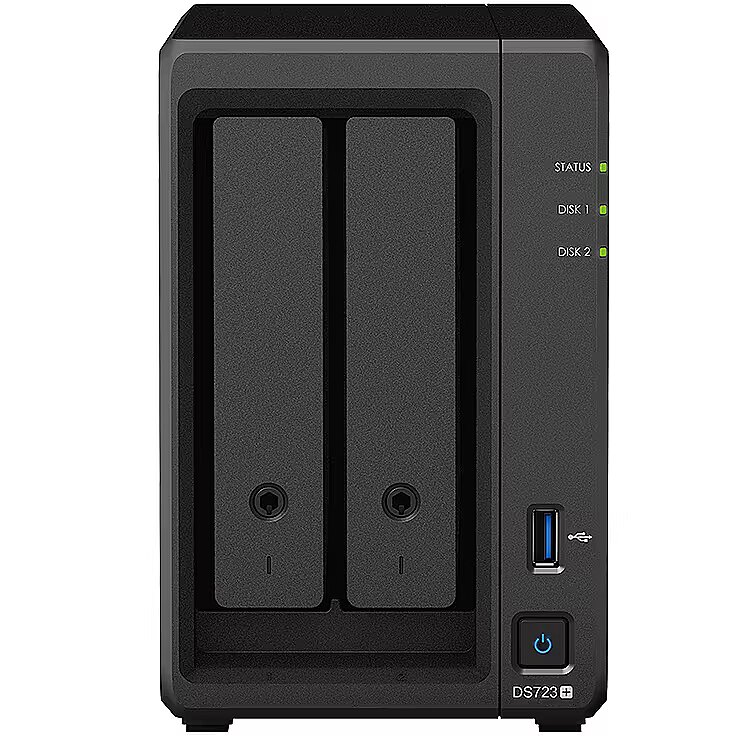

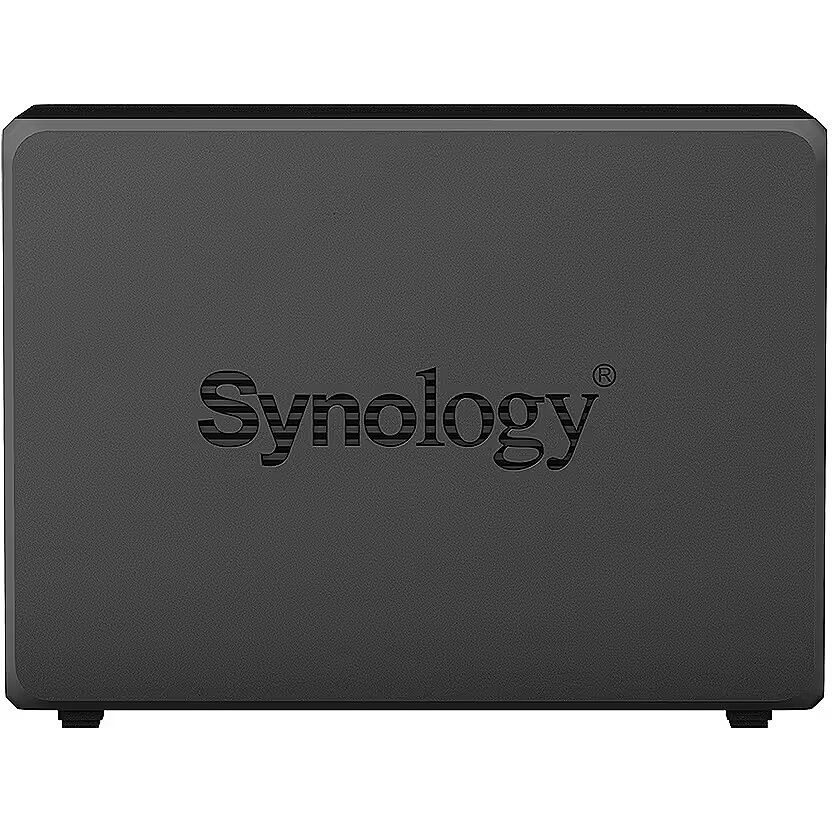

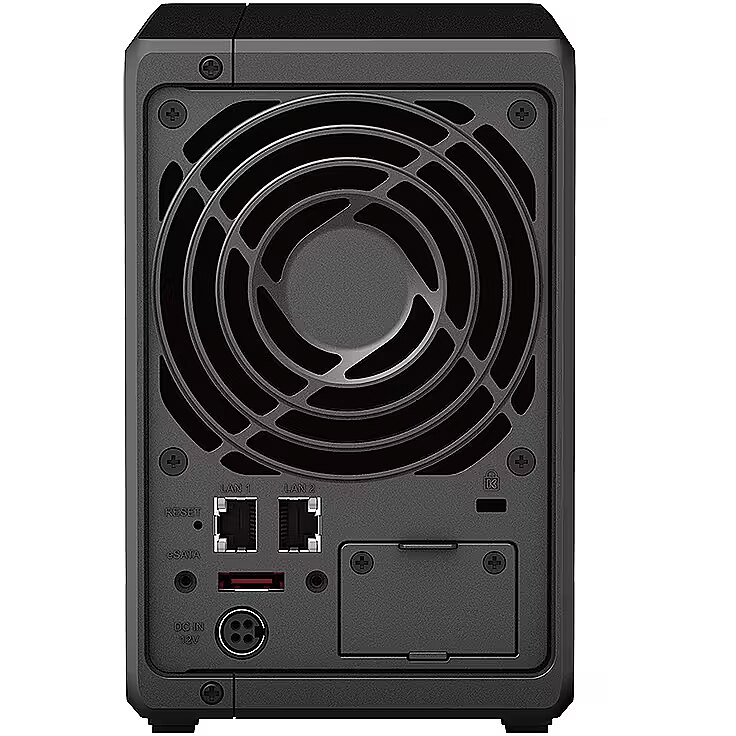

Synology DiskStation DS723+, 2-Bay

Accessories included - main unit Accessory pack Charger Power cable 2 x RJ-45 LAN Cable Quick Installation Guide
Built-in RAM memory - 2 GB
category - Peripherals|Networking & WLAN|NAS
Category - Root/Electronics/Networks and communication/NAS - file servers
Category 1 - Netzwerk
Category 2 - NAS-Systeme
Category Code - STS
Category_1 - Network and Servers
Category_2 - NAS
code - DS723+
Code - DS723+
CPU - AMD Ryzen R1600
Description - DiskStation DS723+ Compact storage with big capabilities for homes and small businesses. Ultra-compact size Big functionality in a small footprint, space for 10GbE and two NVMe drives. Consolidate and share Flexibly store and organise 50TB of data, then share it with anyone. Protect your data Hardware and software designed to protect your data - trusted by millions of users. The performance you need Reduce data transfer times with the DS723+ designed to speed up workloads. Easily add faster networks and NVMe drives to boost performance. Versatile and flexible storage Make the most of high-performance networking and file access without taking up unnecessary space. The DS723+ comes with 2 drive bays, but can be expanded to 7 bays using the DX517 expansion unit as your needs grow. Store, share and protect Manage all your documents, photos and other files, back up applications and devices and protect your assets with professional video surveillance.
Description - DiskStation® DS723+ Compact and capable storage for home and small business “This products is eligible for Synology Extended Warranty Plus. You can purchase Extended Warranty Plus either from the DSM interface (version 7.1 and above) or from your Synology Account.” “For this Synology product we are offering additional*, paid, support packages provided by Tehnogroup. Technogroup support packages includes services like on-site support, on-site post-warranty and NBD replacement. Please contact your Account Manager for individual price offer. *Synology product price do not include additional support package costs”
Design - Built-in display - No
Design - Built-in speaker(s) - No
Design - Cable lock slot - Yes
Design - Cable lock slot type - Kensington
Design - Chassis type - Tower
Design - Cooling type - Active
Design - Drive bay locking - Yes
Design - Fan diameter - 9.2 cm
Design - LED indicators - Yes
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
Design > Chassis type - Tower
dimensionalWeight - 1959
dimension depth - 120 mm
dimension height - 275 mm
Dimensions - 166 mm x 106 mm x 223 mm
Dimensions - 166 x 106 x 223 mm
dimension weight - 2525 g
dimension width - 285 mm
Disk type - HDD
Disk type - SSD
EAN - 4711174724444
ean - 4711174724444
Eans - 4711174724444
EAN_code - 4711174724444
Expansion slots - 1 x PCIe 3.0 x 2
Fan - 9.2 cm
File System - EXT4
Form factor (width) - 2,5'' (SFF)
Form factor (width) - 3,5'' (LFF)
Form factor (width) - M.2 2280
Full Description Line - NAS Ready-to-go|CPU AMD Ryzen R1600|Drives/bays 2|1xUSB 3.2|2xRJ45|Memory 2 GB|DDR4|1xPCI-E|2xM.2|File System EXT4|Included Accessories Accessory Pack X 1;AC Power Adapter X 1;AC Power Cord X 1;RJ-45 LAN Cable X 2;Quick Installation Guide X 1|Power consumption 21.07 Watts|Power supply requirements 65 W
Gross Weight Kg - 2
guarantee - 36
guarantee_type - normal
HDD interface - NVMe
HDD interface - SATA
Hot-swapping support - Yes
Housing - Tower
I/O connectors - 1 x eSATA
I/O connectors - 1 x USB 3.0
I/O connectors - 2 x RJ-45 LAN
Included Accessories - Accessory Pack X 1;
AC Power Adapter X 1;
AC Power Cord X 1;
RJ-45 LAN Cable X 2;
Quick Installation Guide X 1
Link - https://www.synology.com/en-us/products/DS723+#specs
M.2 Expansion slots - 2
Management, monitoring, configuration -
Manufacturer - Synology
Manufacturer Code - DS723+
Manufacturer Name - Synology
Manufacturer_code - DS723+
Max. number of disks - 2
Max memory size - 32 GB
Memory - 2 GB
Memory - ECC - Yes
Memory - Internal memory - 2 GB
Memory - Internal memory type - DDR4
Memory - Maximum RAM supported - 32 GB
Memory - Memory form factor - SO-DIMM
Memory - Memory slots - 2
Memory > Internal RAM - 2 GB
Memory type - DDR4
Memory type - DDR4
Model - DS723+
MPN - DS723+
Name - 2-Bay Synology DDR 4 1x USB3.2 DS723+ 2GB 2x GBE 1
name - NAS server DS723+ 2x0HDD 2GB DDR4 AMD R1600 3,1Ghz 2x1GbE RJ45 3Y
name - Synology DiskStation DS723+ NAS Server - 2GB RAM, 2x Gb LAN - 2-Bay
Name - Synology DS723+
Name - Synology DS723+, NAS (black)
Name - Synology DS723+ 2-bay/AMD Ryzen R1600/2-core 2.6 (base)/3.1 (turbo) GHz/2GB DDR4/2 x 3.5"xHot swap/2x1GbE/1xUSB3.2/eSATA/RAID 0,1/3Y | Synology | 2-Bay | DS723+ | AMD | Ryzen R1600 | Processor frequency 2.6 GHz | 2 GB
NAS features - Ready-to-go
Network - Copper ethernet cabling technology - 10BASE-T
Network - Copper ethernet cabling technology - 100BASE-TX
Network - Copper ethernet cabling technology - 1000BASE-T
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 100
Network - Ethernet LAN data rates - 1000 Mbit/s
Network - Ethernet LAN data rate supported (max) - 10000 Mbit/s
Network - iSCSI support - Yes
Network - Link aggregation - Yes
Network - Supported network protocols - SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Network - Wake-on-LAN ready - Yes
Network architecture - GigabitEthernet
Network interface - 2 x 10/100/1000 Mbit/s
Network protocols - SMB1 (CIFS) SMB2 SMB3 NFSv3 NFSv4 NFSv4.1 NFS Kerberized sessions iSCSI HTTP HTTPs FTP SNMP LDAP CalDAV
Number of available memory slots - 1
Number of drives/bays - 2
Number of fans - 1
Number of HDDs installed - 0
Number of memory slots used - 1
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Other disk parameters - Max number of drive bays with expansion unit: 7 (DX517 x 1)
Other features -
Other features - Certification - FCC
BSMI
VCCI
RCM
UKCA
EAC
CCC
KC
Other features - Compliance certificates - CE
Other features - Compliance certificates - RoHS
Other features > Drive bays - 2
Other features > Ethernet LAN (RJ-45) ports - 2
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 284.00 mm
Package features > Gross height (mm) - 120.00 mm
Package features > Gross width (mm) - 265.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 191 pc(s)
Package features > Paper/Pasteboard - 450.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.50 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - AC
Packaging content - Cables included - LAN (RJ-45)
Packaging content - External power adapter - Yes
Packaging content - Power cables quantity - 1
PCI-E Expansion slots - 1
Performance - Access Control List (ACL) - Yes
Performance - Backup features - Cloud
Performance - Backup features - iSCSI LUN
Performance - Backup function - Yes
Performance - Browser supported - Google Chrome, Firefox, Microsoft Edge, Safari
Performance - Built-in FTP server - Yes
Performance - Device class - Home & Home Office
Performance - Management protocols - SNMP
Performance - Multilingual support - Yes
Performance - Noise level - 20.7 dB
Performance - On/off switch - Yes
Performance - Reset button - Yes
Performance - Security algorithms - AES
Performance - Security algorithms - HTTPS
Performance - Security algorithms - SSH
Performance - Security algorithms - SSL/TLS
Performance - System log - Yes
Performance - Type - NAS
Performance - Video input channels - 2 channels
Ports & interfaces - Concurrent connections - 500
Ports & interfaces - eSATA ports quantity - 1
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - PCI Express x2 (Gen 3.x) slots - 1
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Ports & interfaces - USB port - Yes
Ports & interfaces > Interface - 2x1GbE, 1xUSB3.2, 1xeSATA
Power - AC input frequency - 50 / 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Number of power supply units - 1
Power - Power consumption (HDD standby) - 8.62 W
Power - Power consumption (typical) - 21.07 W
Power - Power supply location - External
Power - Power supply unit (PSU) capacity - 65 W
Power consumption - 21.07 Watts
Power supply - Power Supply: 65W AC power input voltage: 100V to 240V AC Power frequency: 50/60 Hz, single phase Power consumption: 21.07 W (access), 8.62 W (HDD hibernation)
Power supply requirements - 65 W
Processor - AMD Ryzen R1600 Number of processors: 1 Processor architecture: 64-bit Processor frequency: 2-core 2.6 (base) / 3.1 (turbo) GHz Hardware Encryption Engine (AES-NI)
Processor - Number of processors supported - 1
Processor - Processor boost frequency - 3.1 GHz
Processor - Processor cores - 2
Processor - Processor family - AMD Ryzen
Processor - Processor frequency - 2.6 GHz
Processor - Processor manufacturer - AMD
Processor - Processor model - R1600
Processor > Processor family - AMD
Processor > Processor frequency - 2.6 GHz
Processor > Processor model - Ryzen R1600
producer - Synology
Producer - Synology
producerCode - DS723+
ProducerCode - DS723+
Producer product family - 2-Bay
Producer product name - DS723+
productName - Synology DiskStation DS723+ NAS/storage server Tower AMD Ryzen R1600 2 GB DDR4 DiskStation Manager Black
productSize - Normal
RAID - Yes
RAID levels - 0
RAID levels - 1
RAID levels - 5
RAID levels - 6
RAID levels - 10 (1+0)
RAID levels - JBOD
RJ45 Input/Output connectors - 2
Shipping Box Depth Shipping/Package Box Dimensions - 29 cm
Shipping Box Height Shipping/Package Box Dimensions - 12.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.52 kg
Shipping Box Width Shipping/Package Box Dimensions - 27.5 cm
ShortDescription -
Short description - Synology NAS Disk Station DS723+ (2 Bay)
sizeX - 285
sizeY - 275
sizeZ - 125
Software - Operating system installed - DiskStation Manager
Software - Operating system version - 7.1.1
Software - Server operating systems supported - Windows Server 2016
Software - Server operating systems supported - Windows Server 2019
Storage - Hot-swap drive bays - Yes
Storage - Installed storage drive type - No
Storage - Number of M.2 (M & B) slots - 2
Storage - Number of storage drives supported - 2
Storage - Online RAID expansion - Yes
Storage - Online RAID migration - Yes
Storage - RAID levels - 0
Storage - RAID levels - 1
Storage - RAID levels - JBOD
Storage - RAID levels (expansion unit) - 5
Storage - RAID levels (expansion unit) - 6
Storage - RAID levels (expansion unit) - 10
Storage - RAID support - Yes
Storage - Storage drives installed - No
Storage - Storage drive sizes supported - 2.5
Storage - Storage drive sizes supported - 3.5"
Storage - Storage drive sizes supported - M.2
Storage - Supported file systems - BTRFS
Storage - Supported file systems - exFAT
Storage - Supported file systems - ext3
Storage - Supported file systems - ext4
Storage - Supported file systems - Fat
Storage - Supported file systems - HFS+
Storage - Supported file systems - NTFS
Storage - Supported storage drive interfaces - Serial ATA II, Serial ATA III
Storage - Supported storage drive types - HDD & SSD
Supported drives - 3.5" SATA HDD; 2.5" SATA SSD; M.2 2280 NVMe SSD
Sustainability - Sustainability compliance - Yes
Technical details > Gross weight - 2.01 kg
Technical details > Net weight - 1.51 kg
Technical details > Other features - System Fan: 92 mm x 92 mm x 1 pcs; AC Input Power Voltage 100V to 240V AC
Technical details > Producer - Synology
Total number of memory slots - 2
Unit Brutto Volume - 0.009969 cubm
Unit Gross Weight - 2.52 kg
Unit Net Weight - 1.51 kg
USB 3.2 Input/Output connectors - 1
Vendor Homepage - www.synology.com/en-us/products/DS723+#specs
vendpn - DS723+
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
warrantyLength - 36
warrantyType - G
Weight - 1.51 kg
Weight - 2,50
Weight - 2.46
weight - 2465
Weight & dimensions - Depth - 223 mm
Weight & dimensions - Height - 166 mm
Weight & dimensions - Weight - 1.51 kg
Weight & dimensions - Width - 106 mm
