10/100/1000/2500 Mbps ports - 5
Accessories included -
Application - Home and small office
ARTIKEL1 - TS-873A-SW5T 8 BAY 2.2GHZ BUNDL
ARTIKEL2 - 4C/8T AMD 8GB DDR4 2 X 2.5GBE
Breite - 0
Built-in flash memory - 5 GB
Built-in RAM memory - 8 GB
Certificates - FCC, CE, BSMI, VCCI, LVD, CCC, KCC, ASNZ
Chassis type - Desktop
Console port - No
Description - TS-873A QSW-1105-5T Bundle AMD Ryzen 8-Bay NAS with 5-Port 2.5G Switch Upgrade your network to 2.5G with a limited-time bundle offer! Goodbye Gigabit, hello 2.5GbE speeds. Gigabit Ethernet is no longer fast enough to unleash the potential of 2.5G LAN and WAN devices. Upgrade to a 2.5G switch now! ISPs Deliver Multi-Gigabit Internet for Home Use Many ISPs have begun providing multi-gigabit fiber-to-the-home (FTTH) connections to customers, delivering speeds that exceed standard Gigabit Ethernet speeds. Multi-Gigabit Connection for Wi-Fi 6 Wi-Fi 6 (802.11ax) routers or access points require multi-gigabit network devices to provide optimal wireless performance. Computers/laptops are equipped with 2.5G ports Modern computers and laptops use 2.5G ports, which allows them to meet the high-bandwidth requirements of streaming, video calling, gaming, and other modern internet services.
Design - Cable lock slot - Yes
Design - Cable lock slot type - Kensington
Design - Chassis type - Tower
Design - Cooling type - Active
Design - Drive bay locking - Yes
Design - Fan diameter - 12 cm
Design - Fan diameter 2 - 6 cm
Design - LED indicators - HDD
Design - LED indicators - LAN
Design - LED indicators - Power
Design - LED indicators - SSD
Design - LED indicators - Status
Design - LED indicators - USB
Design - Number of fans - 3 fan(s)
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 10072
dimension depth - 30 mm
dimension height - 395 mm
Dimensions - 34 x 180 x 145 mm
Dimensions - 180.2 × 329.3 × 279.6 mm
dimension weight - 8900 g
dimension width - 420 mm
Disk type - HDD
Disk type - SSD
ean - 4711103084632
EANCode - 4711103084632
Environment requirements - Temperatura robocza Od 0 do 40 stopni Celsjusza Wilgotność względna Od 10% do 90% (bez kondensacji)
Expansion slots - 2 x M.2
Expansion slots - 2 x PCIe 3.0 x 4
Fan - 6 cm
Fan - 12 cm
Fan - No
Form factor (width) - 2,5'' (SFF)
Form factor (width) - 3,5'' (LFF)
Gewicht - 9.03
GRUPPE1 - Storage
GRUPPE2 - Raid System
guarantee - 36
guarantee_type - external
HDD interface - SATA II - 3 Gb/s
HDD interface - SATA III - 6 Gb/s
HERSTELLER - QNAP
Hoehe - 0
Hot-swapping support - Yes
Housing - Tower
HSTNUMMER - TS-873A-SW5T
I/O connectors - 1 x USB (Type C)
I/O connectors - 2 x RJ-45 LAN
I/O connectors - 3 x USB 3.1
Jumbo frame size - 9 KB
L2 features -
L3 features -
Laenge - 0
MAC address table size - 16000
Management, monitoring, configuration -
Max. number of disks - 8
Max memory size - 64 GB
Memory - ECC - Yes
Memory - Flash memory - 5000 MB
Memory - Internal memory - 8 GB
Memory - Internal memory type - DDR4
Memory - Maximum RAM supported - 64 GB
Memory - Memory form factor - SO-DIMM
Memory - Memory slots - 2
Memory type - SODIMM DDR4

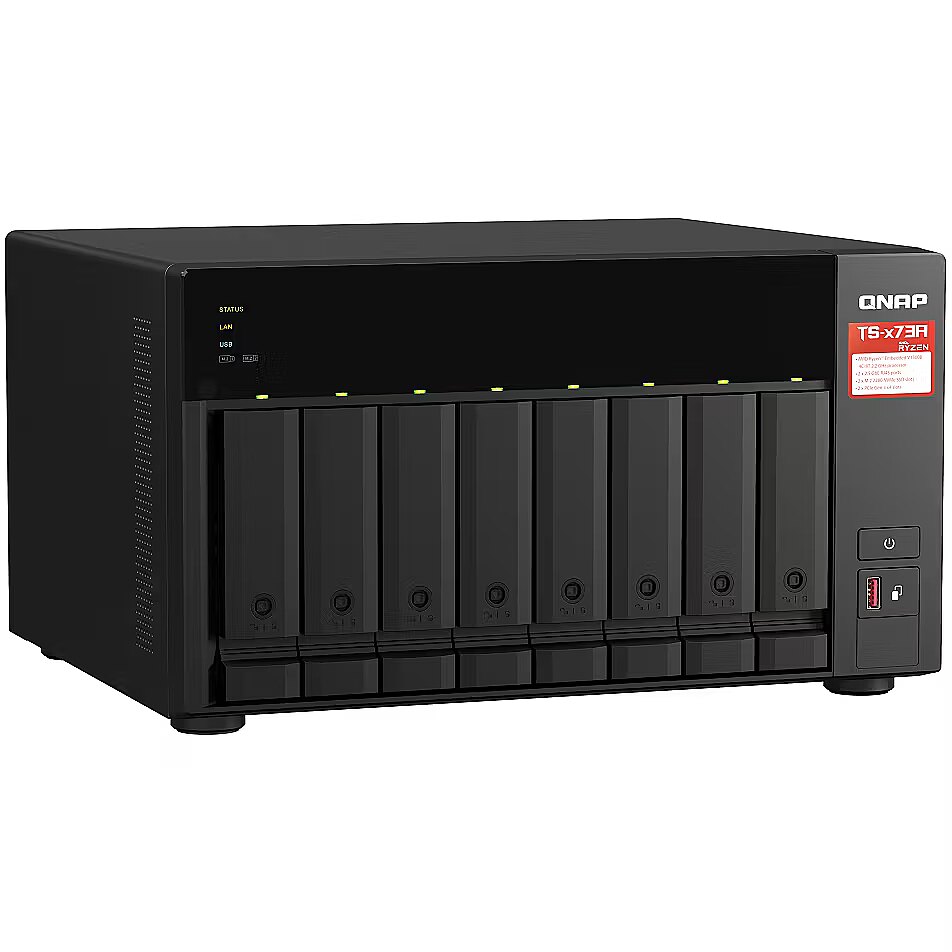

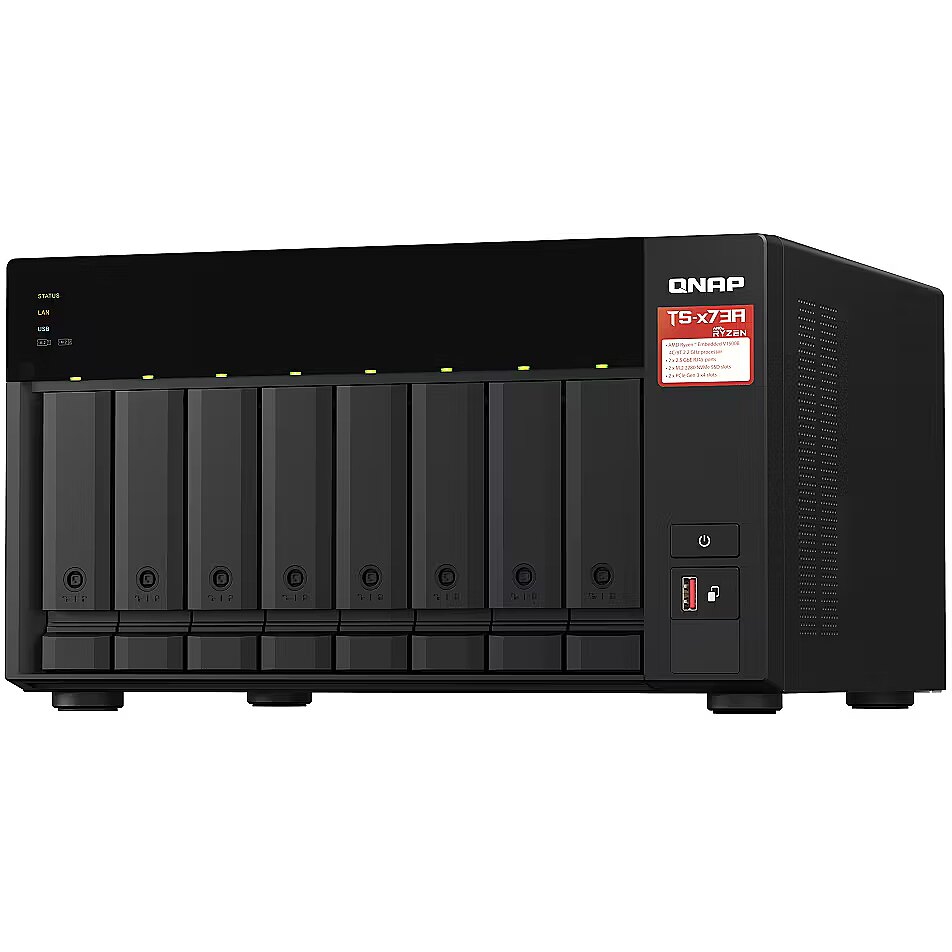

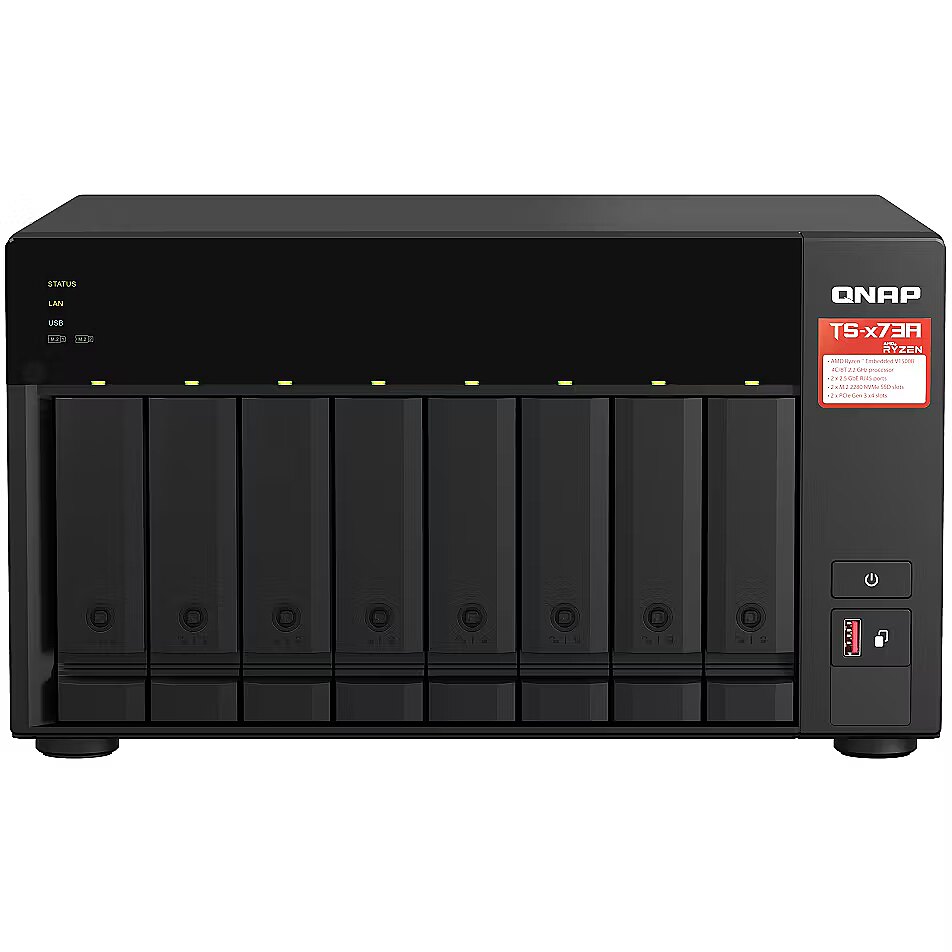

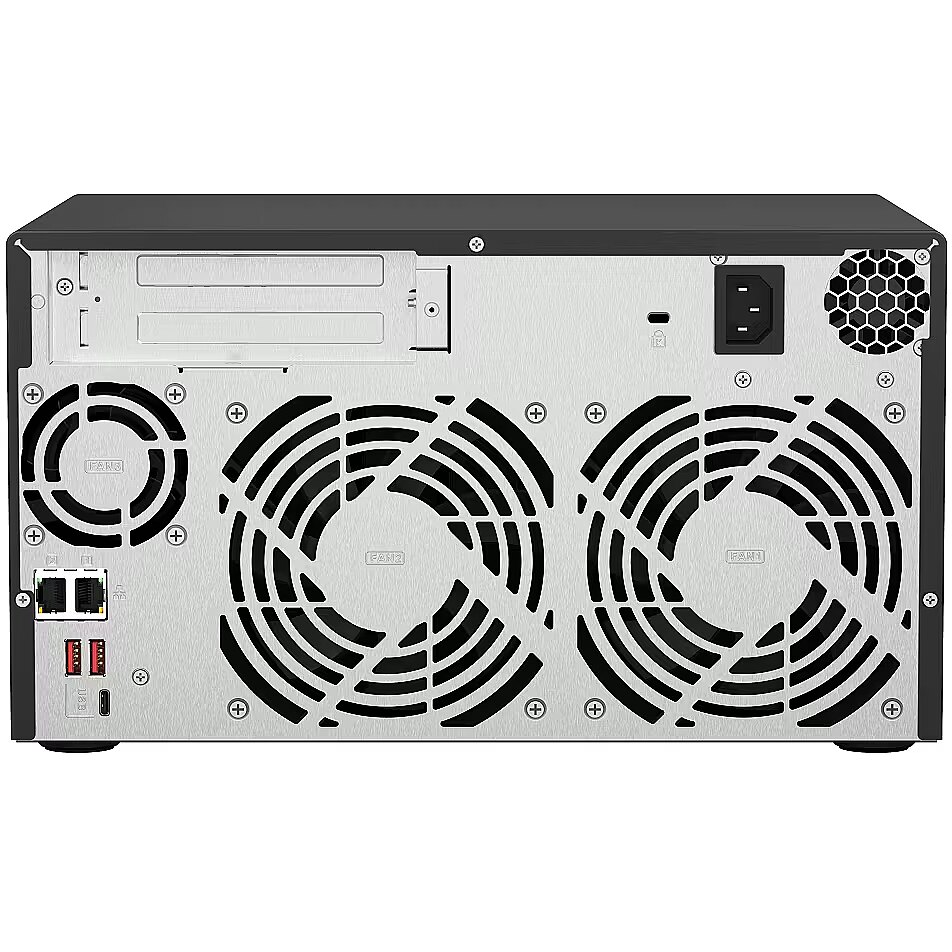

name - Bundle TS-873A-SW5T TS-873A-8G + QSW-1105-5T
Network - DHCP server - Yes
Network - Dynamic DNS (DDNS) - Yes
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 100
Network - Ethernet LAN data rates - 1000 Mbit/s
Network - Ethernet LAN data rates - 2500
Network - iSCSI support - Yes
Network - Jumbo frames support - Yes
Network - Link aggregation - Yes
Network - Load balancing system - Yes
Network - Wake-on-LAN ready - Yes
Network - WLAN adapter supported - Yes
Network architecture - GigabitEthernet
Network interface - 2 x 10/100/1000/2500 Mbit/s
Network protocols -
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - None
Number of 10Gb ports - None
Number of available memory slots - 1
Number of COMBO ports - None
Number of fans - 3
Number of HDDs installed - 0
Number of memory slots used - 1
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - None
Number of QSFP+ ports - None
Number of SFP+ ports - None
Number of SFP56 ports - None
Number of SFP ports - None
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -20 - 70 °C
Other disk parameters -
Other features -
Other functions -
Packaging content - Cables included - AC
Packaging content - Cables included - LAN (RJ-45)
Packaging content - Drive tray key included - Yes
Packaging content - Number of screws - 48
Packaging content - Power cables quantity - 1
Performance - Access Control List (ACL) - Yes
Performance - Backup features - Cloud
Performance - Backup features - iSCSI LUN
Performance - Backup features - USB drive
Performance - Backup function - Yes
Performance - Built-in FTP server - Yes
Performance - Buzzer - Yes
Performance - Device class - Home & Home Office
Performance - Hot spare - Yes
Performance - Management protocols - SNMP
Performance - Noise level - 23 dB
Performance - On/off switch - Yes
Performance - Remotely operated - Yes
Performance - Reset button - Yes
Performance - S.M.A.R.T. support - Yes
Performance - Security algorithms - 256-bit AES
Performance - Security algorithms - FIPS 140-2
Performance - Security algorithms - HTTPS
Performance - Security algorithms - SNMPv2
Performance - Security algorithms - SNMPv3
Performance - Security algorithms - SSH
Performance - Share folder access right management - Yes
Performance - Snapshot - Yes
Performance - Third-party support - Yes
Performance - Type - NAS
Performance - USB copy function - Yes
Performance - Web-based management - Yes
Ports & interfaces - Concurrent connections - 2000
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - PCI Express x4 (Gen 3.x) slots - 2
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 3
Ports & interfaces - USB port - Yes
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Number of power supply units - 1
Power - Power consumption (HDD standby) - 25.668 W
Power - Power consumption (typical) - 54.067 W
Power - Power supply location - Built-in
Power - Power supply unit (PSU) capacity - 250 W
Power consumption - 12 W
Power supply - 250 W, 100-240 VAC, 50-60 Hz, 3.5 A
Power supply - Maks. zużycie energii: 12W Typ zasilania wejściowego: DC Zakres napięcia wejściowego: 12V
Power supply - External
Processor - 4-core/8-thread AMD Ryzen V1500B 2.2 GHz embedded processor
Processor - Processor cores - 4
Processor - Processor family - Ryzen Embedded
Processor - Processor frequency - 2.2 GHz
Processor - Processor generation - AMD Ryzen Embedded V1000 Series
Processor - Processor manufacturer - AMD
Processor - Processor model - V1500B
Processor - Processor threads - 8
producer - QNAP
producerCode - TS-873A-SW5T
productName - QNAP TS-873A NAS Tower Ryzen Embedded V1500B 8 GB DDR4 30.72 TB SSD QuTS hero Black
productSize - Normal
QoS -
RAID - Yes
RAID levels - 0
RAID levels - 1
RAID levels - JBOD
Security -
Separator - 11750Przełącznik QSW-1105-5T]]>1
Separator - 11750TS-873A-8G Server]]>Serwer TS-873A-8G]]>0
sizeX - 300
sizeY - 395
sizeZ - 425
Software - Linux operating systems supported - Yes
Software - Mac operating systems supported - Yes
Software - Operating system installed - QuTS hero
Software - Operating system version - h5.0.1
Software - Windows operating systems supported - Yes
Stackability - No
Stck_Kart - 1
Stck_Pal - 0
Storage - Bad block scan - Yes
Storage - Disk roaming - Yes
Storage - Hot-swap drive bays - Yes
Storage - Installed storage drive type - SSD
Storage - Number of M.2 (M & B) slots - 2
Storage - Number of storage drives installed - 8
Storage - Number of storage drives supported - 8
Storage - Online RAID expansion - Yes
Storage - Online RAID migration - Yes
Storage - RAID levels - 0
Storage - RAID levels - 1
Storage - RAID levels - 5
Storage - RAID levels - 6
Storage - RAID levels - 10
Storage - RAID levels - 50
Storage - RAID levels - 60
Storage - RAID levels - JBOD
Storage - RAID rebuild - Yes
Storage - RAID support - Yes
Storage - Storage drive capacity - 3.84 TB
Storage - Storage drive interface - Serial ATA II, Serial ATA III
Storage - Storage drives installed - Yes
Storage - Storage drive sizes supported - 2.5
Storage - Storage drive sizes supported - 3.5"
Storage - Storage drive sizes supported - M.2
Storage - Supported file systems - exFAT
Storage - Supported file systems - ext3
Storage - Supported file systems - ext4
Storage - Supported file systems - FAT32
Storage - Supported file systems - HFS+
Storage - Supported file systems - NTFS
Storage - Supported storage drive interfaces - M.2, Serial ATA II, Serial ATA III
Storage - Supported storage drive types - HDD & SSD
Storage - Total installed storage capacity - 30.72 TB
Storno - N
Supported protocols and standards -
Support for Jumbo frames - Yes
Switch class - Unmanaged
Throughput - 12.5 Gb/s
Total number of memory slots - 2
vendpn - TS-873A-SW5T
VLAN -
warrantyLength - 36
warrantyType - F
Weight - 0.577 kg
Weight - 7.4 kg
weight - 9100
Weight & dimensions - Depth - 280.8 mm
Weight & dimensions - Height - 188.2 mm
Weight & dimensions - Width - 329.3 mm
