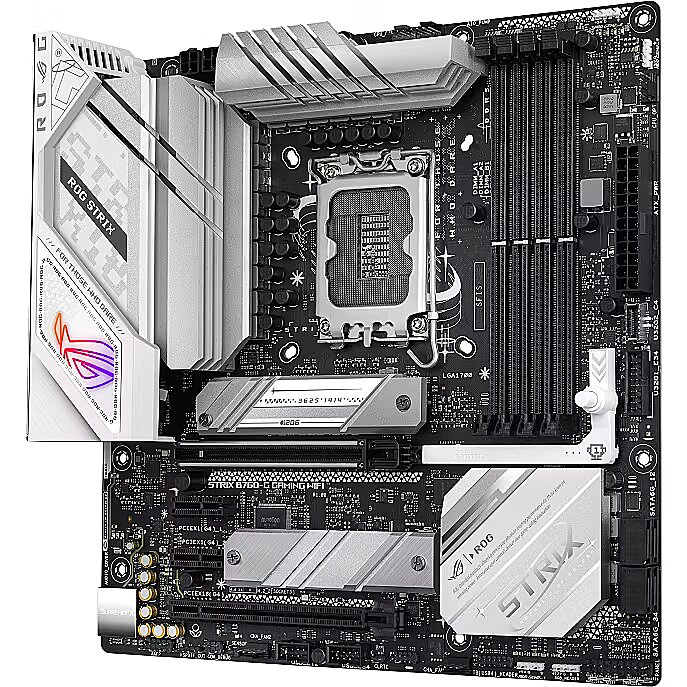

Asus ROG STRIX B760-G GAMING WIFI

Name: Asus ROG STRIX B760-G GAMING WIFI
Brand: Asus
SKU: 959937
Price: 236.83 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 959937 Product code: ROG STRIX B760-G GAMING WIFI

Can be ordered 29 units Availability: 14 days after order approval

Warranty: 2 years (Warranty for business entities 1 year)

Compare

Delivery options More about shipping

Delivery to Smartpost free of charge: 10.12.2024
Delivery to Omniva parcel machine free of charge: 10.12.2024
Piegāde uz DPD Pickup Paku Skapi free of charge: 10.12.2024
Delivery to Latvian post office, parcel locker or Circle K free of charge: 10.12.2024
Delivery to address in Riga 3.99 €: 10.12.2024
Delivery to address in Latvia 6.99 €: 10.12.2024
Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 06.12.2024 after 15:00

Main product parameters All parameters

Series: ASUS ROG Strix
CPU Socket: LGA 1700
Chipset: Intel B760
Form factor: Micro ATX
Type: DDR5
RAM Slots: 4
Built-in Wi-Fi: Ir

Basic information

Series : ASUS ROG Strix

CPU Socket LGA 1700

The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.

Chipset Intel B760

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.

Form factor Micro ATX

The physical size of the motherboard. Dateks.lv offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Random-access memory (RAM)

Type : DDR5

RAM Slots 4

The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.

Memory support DDR5 5600 (OC 7800)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card

Video card port PCI-EXPRESS

VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.

Integrated graphics Only with iGPU-ready CPU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment

PCI ports 0

PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.

D-Sub : 0

DVI : 0

HDMI : 1

DisplayPort : 1

Integrated sound card : ROG SupremeFX CODEC S1220A

Wireless connections

Built-in Bluetooth : Ir

Built-in Wi-Fi : Ir

External ports

External USB Type-C : 2

External USB 2.0 : 4

External USB 3.0 (USB 3.2 Gen1) : 3

External USB 3.1 (USB 3.2 Gen2) : 2

Internal ports

Internal A-RGB 5V (3-pin) : 3

Internal RGB 12V (4-pin) : 1

Internal USB 2.0 : 2

Internal USB 3.0 : 1

Internal USB Type-C : 1

M.2 Port : 2

SATA3 ports : 4

More detailed specification

Additional information in manufacturers website Asus ROG STRIX B760-G GAMING WIFI

BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
Brand - ASUS
BrandPartCode - 90MB1EQ0-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
code - 90MB1EQ0-M1EAY0
ean - 4711387120002
EAN_code - 4711387120002
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x1 (Gen 4.x) slots - 2
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
Features - Audio chip - SupremeFX S1220A
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel B760
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 10 x64, Windows 11
Graphics - Parallel processing technology support - Not supported
GTIN - 4711387120002
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Peripheral (Molex) power connectors (4-pin) - 1
Internal I/O - RGB LED pin header - Yes
Internal I/O - S/PDIF out connector - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
LongDesc - ROG STRIX B760-G GAMING WIFIMidsize overperformer: the ROG Strix B760-G Gaming Wi-Fi is a monochrome powerhouse, ready to propel your next mATX rig. It bears the same high-bandwidth connectivity as its trusty counterpart, but diverges with lightning-fast DDR5 memory and buffed power stages to complement high-speed Intel 13th Gen processors. White and silver accents pair perfectly with the ASUS AP201, and retro insignias give it a dash of classic Strix style.PCIE® SLOT Q-RELEASEA physical button unlocks the first PCIe slot’s security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.ALL-ROUND PERFORMANCEA finely tuned power solution and blistering-fast DDR5 memory give the ROG Strix B760-G an edge over its compact peers. Well-placed and optimized heatsinks cover the VRM and M.2 slots to keep performance pushed to the max, even in cramped quarters.TEAMED POWER ARCHITECTURE12 + 1 power stages each rated to 60A deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease.ALLOY CHOKES AND DURABLE CAPACITORSHigh-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.8+4 PIN PROCOOL POWER CONNECTORSHi-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.SIX-LAYER PCBA multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.LEADING CONNECTIVITYThe Strix B760-G is entirely well-connected with high-speed wireless and wired networking, a plethora of USB I/O, and SupremeFX audio to pump crystal-clear sound through speakers or headphones for enhanced immersion.PLAY IN STYLEThe Strix B760-G features a black PCB, bare heatsinks, and white accents, allowing it to pair with almost any component or peripheral. Customizable RGB lighting furthers its flexibility for a fully customized gaming setup that reflects your personal style.
LongProductName - LGA 1700, Intel B760 Chipset, 4 x DDR5-SDRAM up to 192GB, LAN, WLAN, 1 x RJ-45, 4 x SATA III, 2 x M.2(M), UEFI AMI, Micro ATX
LongSummaryDescription - ASUS ROG STRIX B760-G GAMING WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Manufacturer - Asus
Manufacturer_code - 90MB1EQ0-M1EAY0
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 7800 MHz
Memory - Supported memory clock speeds - 7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
name - ASUS ROG Strix B760-G Gaming WIFI, Intel B760 Mainboard, Sockel 1700, DDR5
Name - ASUS ROG STRIX B760-G GAMING WIFI, motherboard - 1700
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Packaging content - Cables included - SATA
Processor - Compatible processor series - Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
ProductName - ROG STRIX B760-G GAMING WIFI
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Rear panel I/O ports - WiFi-AP antenna jack - 1
ShortSummaryDescription - ASUS ROG STRIX B760-G GAMING WIFI, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™..., LGA 1700, DDR5-SDRAM, 192 GB
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 6
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Title - ASUS ROG STRIX B760-G GAMING WIFI Intel B760 LGA 1700 micro ATX
URL - https://rog.asus.com/motherboards/rog-strix/rog-strix-b760-g-gaming-wifi/
WarrantyInfo -
Weight - 1,50
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 244 mm
