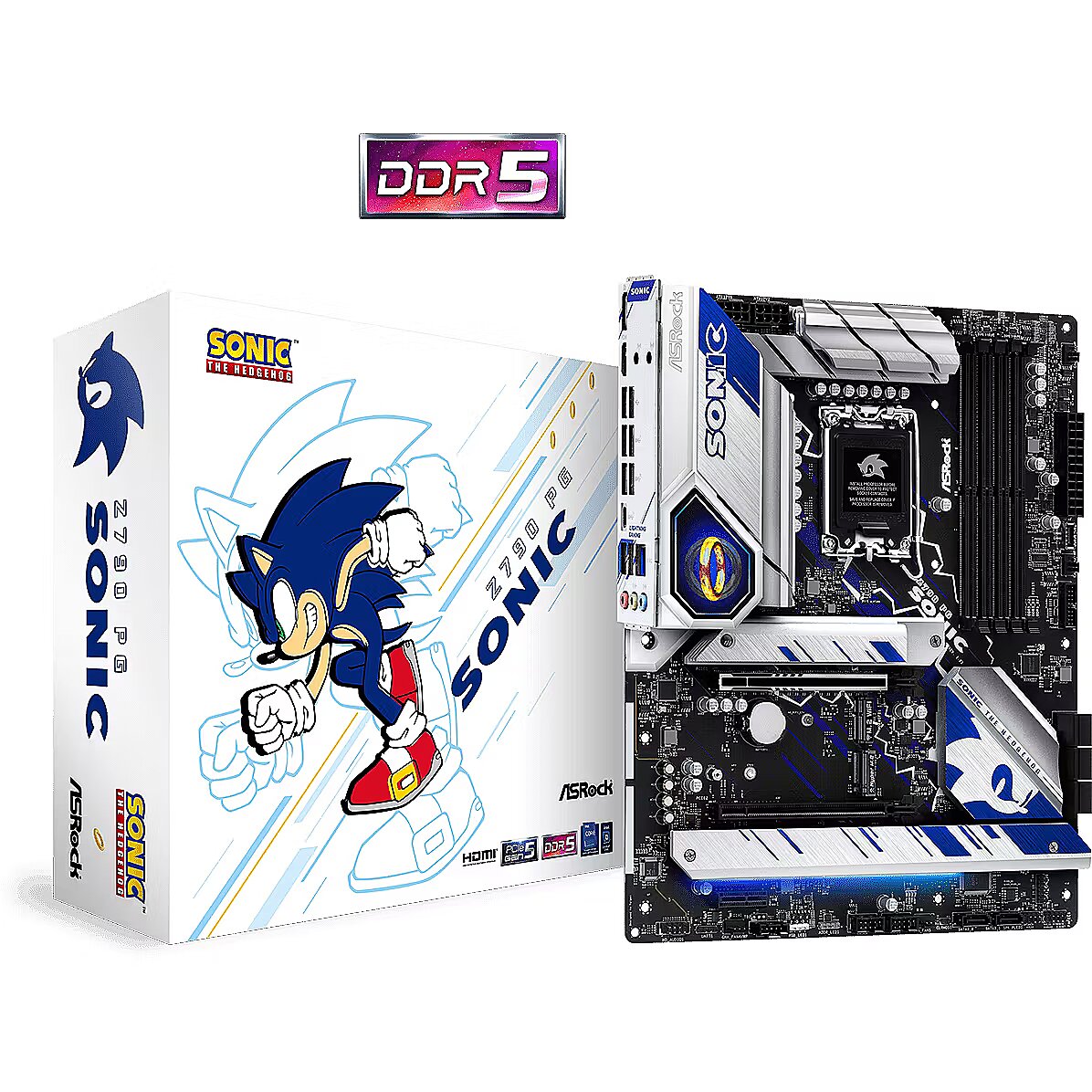

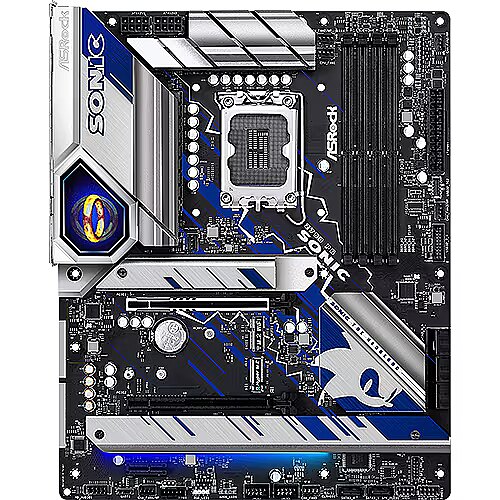

Asrock Z790 PG SONIC

Name: Asrock Z790 PG SONIC
Brand: Asrock
SKU: 922267
Price: 272.73 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 922267 Product code: Z790 PG SONIC

Can be ordered 19 units Availability: 14 days after order approval

Warranty: 3 years

Compare

Delivery options More about shipping

Delivery to Smartpost free of charge: 10.12.2024
Delivery to Omniva parcel machine free of charge: 10.12.2024
Piegāde uz DPD Pickup Paku Skapi free of charge: 10.12.2024
Delivery to Latvian post office, parcel locker or Circle K free of charge: 10.12.2024
Delivery to address in Riga 3.99 €: 10.12.2024
Delivery to address in Latvia 6.99 €: 10.12.2024
Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 06.12.2024 after 15:00

Main product parameters All parameters

Series: ASRock Phantom Gaming
CPU Socket: LGA 1700
Chipset: Intel Z790
Form factor: ATX
Type: DDR5
RAM Slots: 4
Built-in Wi-Fi: Nav

Basic information

Series : ASRock Phantom Gaming

CPU Socket LGA 1700

The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.

Chipset Intel Z790

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.

Form factor ATX

The physical size of the motherboard. Dateks.lv offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Random-access memory (RAM)

Type : DDR5

RAM Slots 4

The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.

Memory support DDR5 5600 (OC 6800)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card

Video card port PCI-EXPRESS

VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.

Integrated graphics Only with iGPU-ready CPU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment

PCI ports 0

PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.

D-Sub : 0

DVI : 0

HDMI : 1

DisplayPort : 1

Integrated sound card : Realtek ALC897

Wireless connections

Built-in Bluetooth : Nav

Built-in Wi-Fi : Nav

External ports

External USB Type-C : 1

External USB 2.0 : 2

External USB 3.0 (USB 3.2 Gen1) : 5

External USB 3.1 (USB 3.2 Gen2) : 2

Internal ports

Internal A-RGB 5V (3-pin) : 3

Internal RGB 12V (4-pin) : 1

Internal USB 2.0 : 2

Internal USB 3.0 : 1

Internal USB Type-C : 1

M.2 Port : 4

SATA3 ports : Eight Core

More detailed specification

Additional information in manufacturers website Asrock Z790 PG SONIC

ARTIKEL1 - ASROCK INTEL Z790 PG SONIC
ARTIKEL2 - INTEL Z790 PG SONIC DIMM 4 DDR5
BIOS - BIOS type - UEFI AMI
Breite - 0.32
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
code - 90-MXBKF0-A0UAYZ
dimensionalWeight - 2365
ean - 4710483941009
EANCode - 4710483941009
Eans - 4710483941009
EAN_code - 4710483941009
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - Intel Z790
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 11 x64
Gewicht - 2.09
GRUPPE1 - Memory & Processors
GRUPPE2 - Mainboard
HERSTELLER - ASROCK
Hoehe - 0.1
HSTNUMMER - 90-MXBKF0-A0UAYZ
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of SATA III connectors - 8
Internal I/O - Thunderbolt headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Laenge - 0.39
Manufacturer - Asrock
Manufacturer_code - 90-MXBKF0-A0UAYZ
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Name - ASRock Intel Z790 PG Sonic - 1700
Name - ASRock Z790 PG Sonic
name - ASRock Z790 PG SONIC, Intel Z790 Mainboard - Sockel 1700, DDR5
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Killer E3100G
Network - Wi-Fi - No
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Producer - ASRock
producerCode - Z790 PG SONIC
ProducerCode - Z790 PG Sonic
productName - Asrock Z790 PG SONIC Intel Z790 LGA 1700 ATX
productSize - Normal
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
ShortDescription - Socket 1700 | Chipset Intel Z790 | DDR5 |
sizeX - 385
sizeY - 96
sizeZ - 320
Stck_Kart - 5
Stck_Pal - 0
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storno - N
warrantyLength - 36
warrantyType - G
Weight - 2,10
weight - 2095
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
