ID: 903890
Product code: Z790M PG LIGHTNING/D4
Can be ordered 36 units Availability: 14 days after order approval
Warranty: 2 years

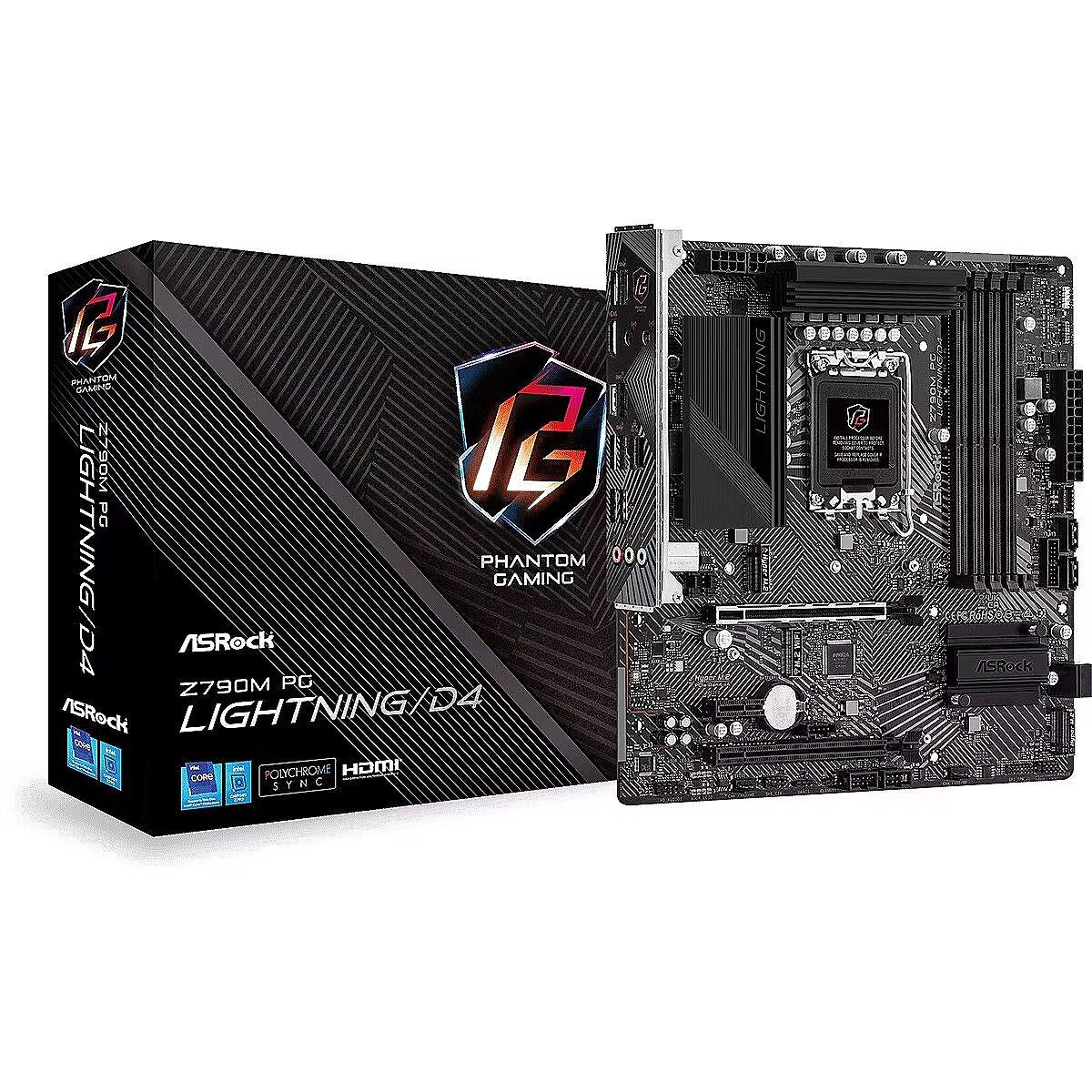

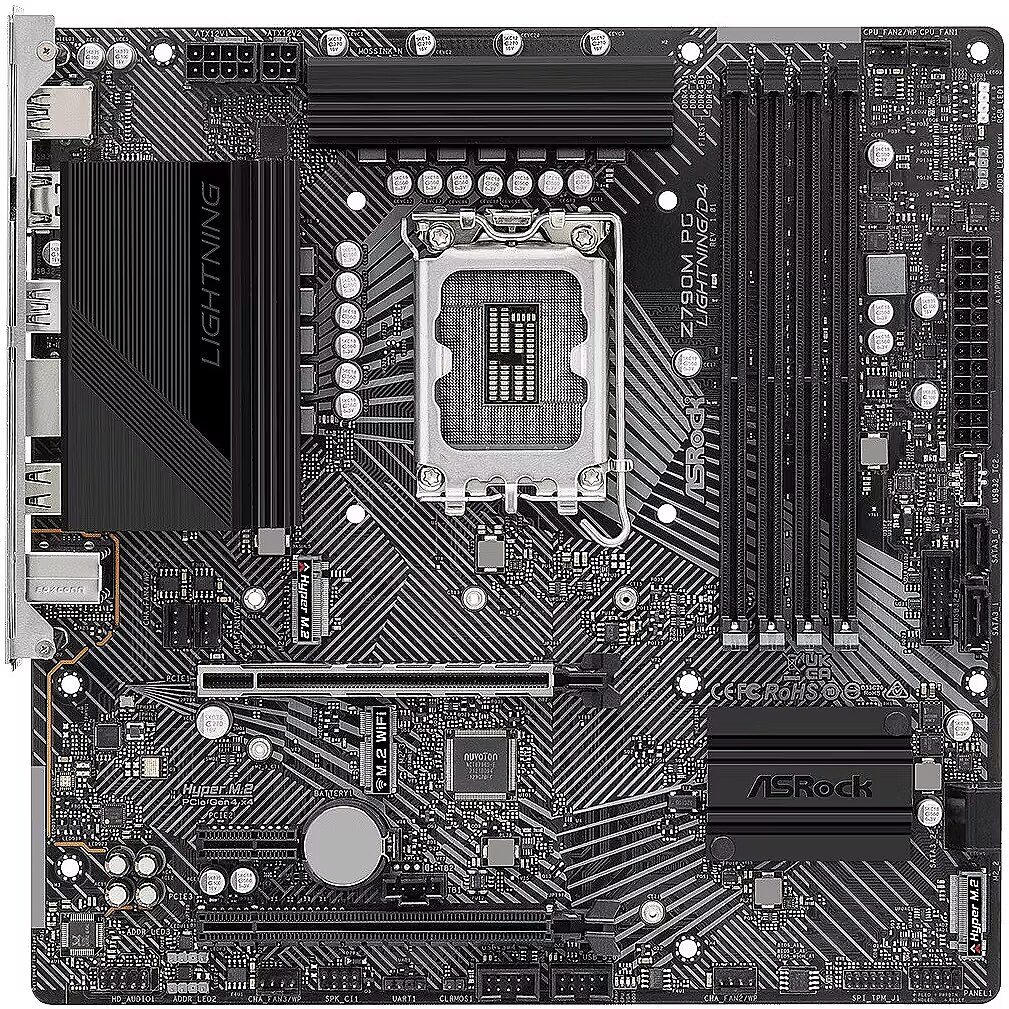

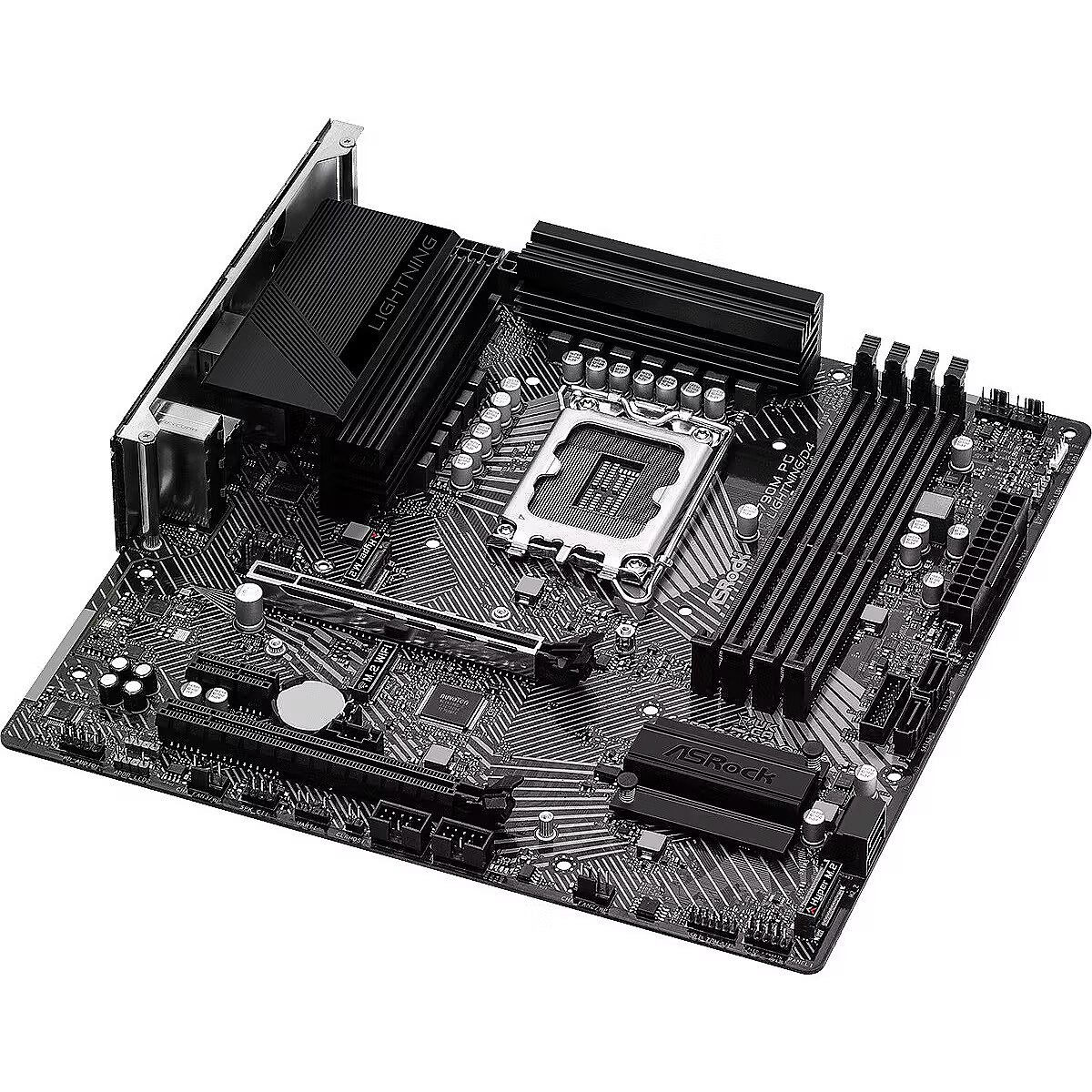

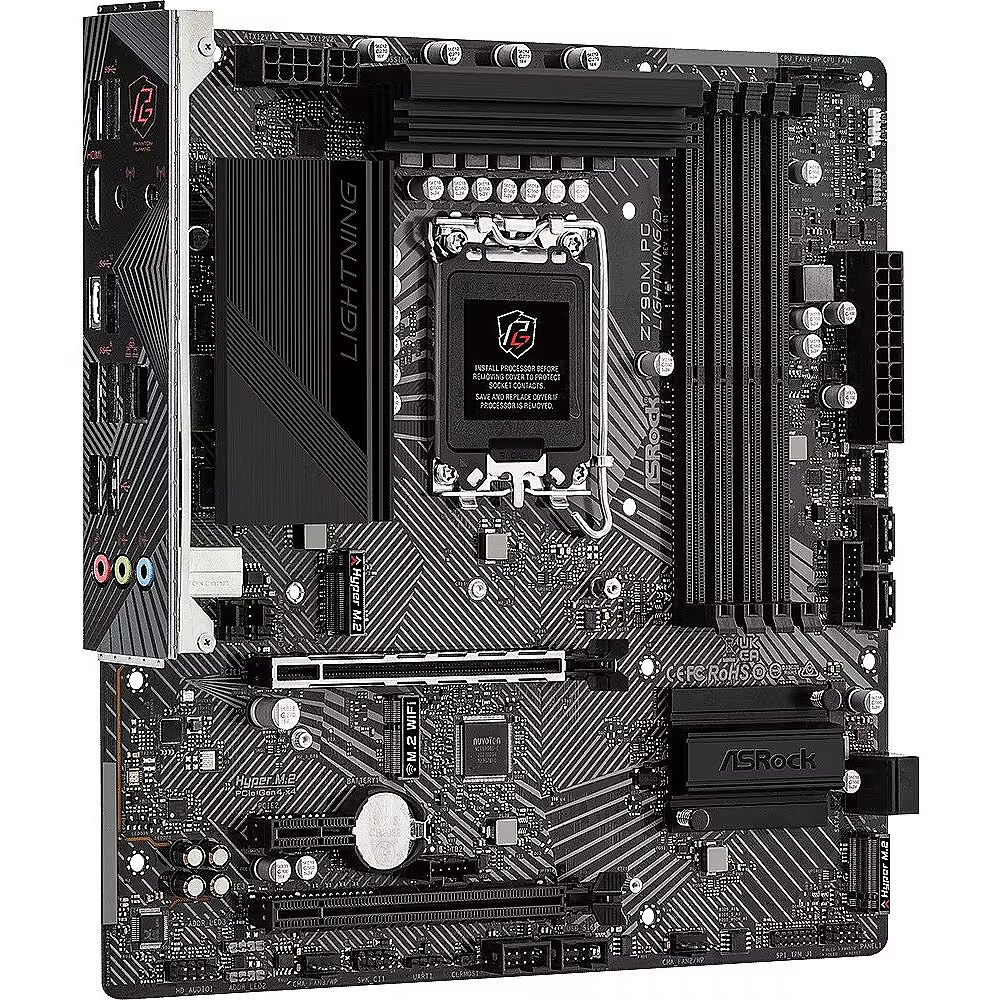

Asrock Z790M PG Lightning/D4
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 10.01.2025
- Delivery to Omniva parcel machine free of charge: 10.01.2025
- Piegāde uz DPD Pickup Paku Skapi free of charge: 10.01.2025
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 10.01.2025
- Delivery to address in Riga 3.99 €: 10.01.2025
- Delivery to address in Latvia 6.99 €: 10.01.2025
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 08.01.2025 after 15:00
Main product parameters All parameters
- Series: ASRock Phantom Gaming
- CPU Socket: LGA 1700
- Chipset: Intel Z790
- Form factor: Micro ATX
- Type: DDR4
- RAM Slots: 4
- Built-in Wi-Fi: Nav
Basic information
Series
: ASRock Phantom Gaming
CPU Socket
LGA 1700
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel Z790
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
Micro ATX
The physical size of the motherboard. Dateks.lv offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR4
RAM Slots
4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR4 3200 (OC 5333)
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 0
Integrated sound card
: Realtek ALC897
Wireless connections
Built-in Bluetooth
: Nav
Built-in Wi-Fi
: Nav
External ports
External USB Type-C
: 1
External USB 2.0
: 2
External USB 3.0 (USB 3.2 Gen1)
: 4
External USB 3.1 (USB 3.2 Gen2)
: 2
Internal ports
Internal A-RGB 5V (3-pin)
: 3
Internal RGB 12V (4-pin)
: 1
Internal USB 2.0
: 2
Internal USB 3.0
: 1
Internal USB Type-C
: 1
M.2 Port
: 2
SATA3 ports
: 4
More detailed specification
Accessories included - User manual 2 x SATA data cables 3 x screws for M.2 sockets
BIOS - 128Mb AMI UEFI Legal BIOS with GUI support
BIOS - BIOS type - UEFI AMI
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Chipset manufacturer - Intel
Chipset type - Intel Z790
code - 90-MXBJW0-A0UAYZ
Code - Z790M PG LIGHTNING/D4
COM connector / port - No
CPU socket - LGA1700
Description - Z790M PG Lightning/D4 motherboard Supports 13th and 12th generation Intel Core processors 7.1 CH HD Audio (Realtek ALC897 audio codec), Nahimic Audio Intel 1G LAN
Detailed data on disk/drive interfaces - PROCESSOR: 1 x Hyper M.2 slot (M2_1, Key M), supports type 2242/2280 PCIe Gen4x4 (64 Gbps) * Chipset: 1 x Hyper M.2 slot (M2_2, Key M), supports 2280 SATA3 6.0 Gbps and PCIe Gen4x4 (64 Gbps) modes * 4 SATA3 6.0Gb/s connectors *Supports Intel Volume Management Device (VMD) Supports NVMe SSD as bootable drives
dimensionalWeight - 909
dimension depth - 60 mm
dimension height - 260 mm
Dimensions - 24.4 x 24.4 cm
dimension weight - 1150 g
dimension width - 280 mm
EAN - 4710483940873
ean - 4710483940873
Eans - 4710483940873
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 3.0 x 16
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.1
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x SMA
External connectors - 2 x USB 2.0
External connectors - 4 x USB 3.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - Intel Z790
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - micro ATX
Graphics - Intel Xe (Gen 12) graphics architecture 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz *Intel UHD Graphics Built-in Visuals and VGA outputs can only be supported with GPU-integrated processors.
Gross weight - 2.30 kg
guarantee - 36
guarantee_type - normal
Integrated CPU - No
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://pg.asrock.com/mb/Intel/Z790M%20PG%20LightningD4/index.asp
LPT connector / port - No
Manufacturer - ASRock
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 128 GB
Memory - Maximum internal memory - 128 GB
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR4 DIMM
Memory bus frequency - 4000 MHz
Memory bus frequency - 4266 MHz
Memory bus frequency - 4400 MHz
Memory bus frequency - 5333 MHz
Memory type - DDR4
Model - Z790M PG Lightning/D4
MPN - 90-MXBJW0-A0UAYZ
Name - 1700 ASRock Z790M PHANTOM GAMING Lightning DDR4
Name - ASRock Z790M PG Lightning/D4
name - ASRock Z790M PG Lightning/D4, Intel Z790 Mainboard - Sockel 1700, DDR4
Name - ASRock | Z790M PG LIGHTNING/D4 | Processor family Intel | Processor socket LGA1700 | DDR4 DIMM | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
name - Motherboard Z790M PG Lightning/D4 S1700 4DDR4 HDMI M2 mATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Intel® I219-V
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - Intel I219V
Number of DDR4 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 2
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin 12V power
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Thunderbolt header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 4 x 4pin Chassis fan
Other information - Certifications: FCC, CE ErP/EuP ready (ErP/EuP ready power supply required)
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 70.00 mm
Package features > Gross height (mm) - 295.00 mm
Package features > Gross width (mm) - 360.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 1 pc(s)
Package features > Paper/Pasteboard - 400.00 g
Package features > Plastic (No PET) - 100.00 g
Package features > Tare weight (kg) - 0.50 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Core
producer - ASRock
Producer - ASRock
producerCode - Z790M PG LIGHTNING/D4
ProducerCode - Z790M PG Lightning/D4
Producer product name - Z790M PG LIGHTNING/D4
productName - Asrock Z790M PG Lightning/D4 Intel Z790 LGA 1700 micro ATX
productSize - Normal
RAID - Yes

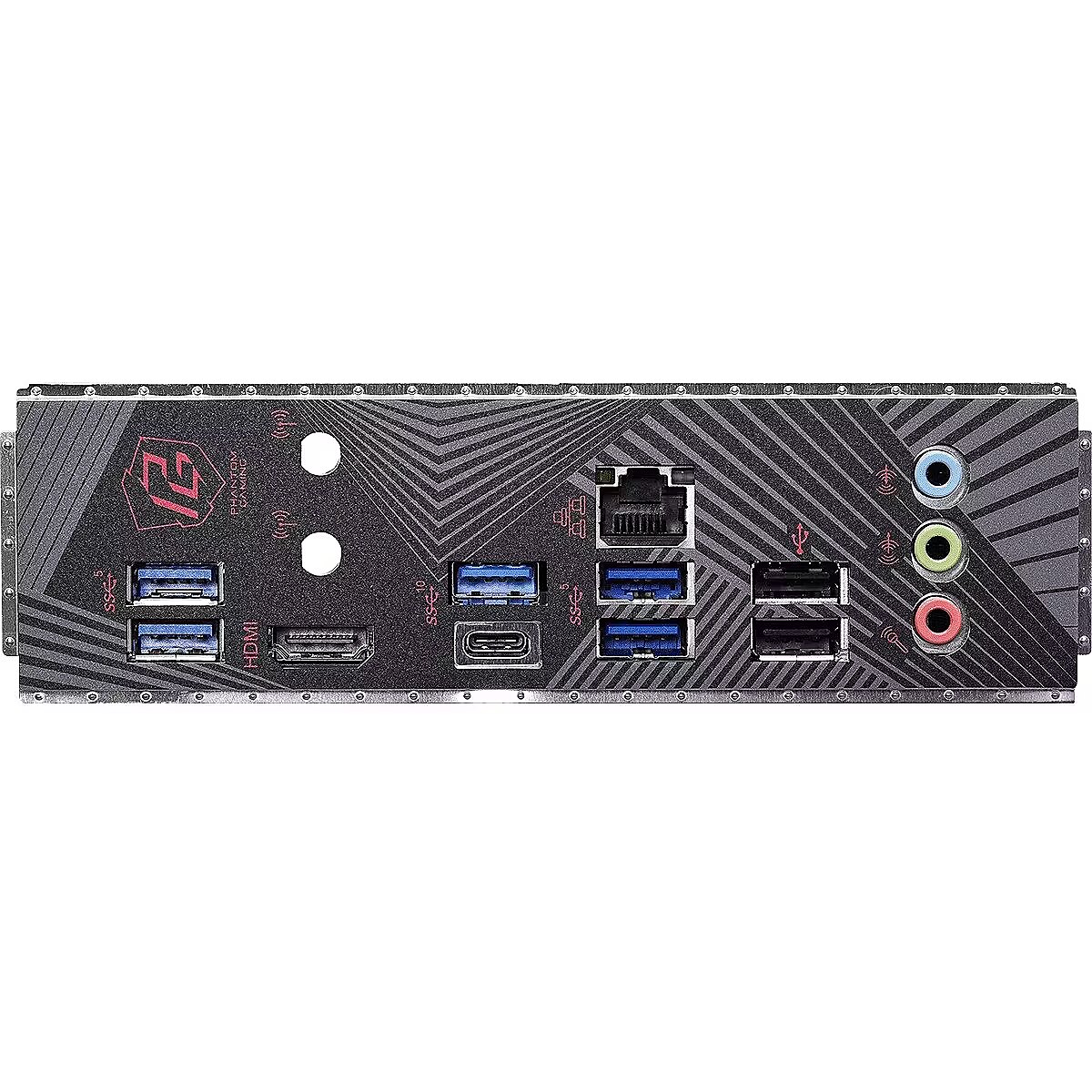

Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
ShortDescription - Socket 1700 | Chipset Intel Z790 | DDR4 |
sizeX - 282
sizeY - 62
sizeZ - 260
Software - ASRock Motherboard Utility (Phantom Gaming Tuning) ASRock Polychrome SYNC ASRock XFast LAN
Sound card - 7.1-channel HD audio (Realtek ALC897 audio codec) Nahimic Audio
Special functions -
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Supported operating systems - Windows 11
Technical details > Net weight - 1.80 kg
Technical details > Producer - ASRock
USB ports at back panel - 8
USB ports on motherboard - 7
vendpn - Z790M PG Lightning/D4
Warranty - 24
Warranty - 24 month(s)
warrantyLength - 36
warrantyType - G
Weight - 1.15
weight - 1150
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 244 mm
BIOS - 128Mb AMI UEFI Legal BIOS with GUI support
BIOS - BIOS type - UEFI AMI
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Chipset manufacturer - Intel
Chipset type - Intel Z790
code - 90-MXBJW0-A0UAYZ
Code - Z790M PG LIGHTNING/D4
COM connector / port - No
CPU socket - LGA1700
Description - Z790M PG Lightning/D4 motherboard Supports 13th and 12th generation Intel Core processors 7.1 CH HD Audio (Realtek ALC897 audio codec), Nahimic Audio Intel 1G LAN
Detailed data on disk/drive interfaces - PROCESSOR: 1 x Hyper M.2 slot (M2_1, Key M), supports type 2242/2280 PCIe Gen4x4 (64 Gbps) * Chipset: 1 x Hyper M.2 slot (M2_2, Key M), supports 2280 SATA3 6.0 Gbps and PCIe Gen4x4 (64 Gbps) modes * 4 SATA3 6.0Gb/s connectors *Supports Intel Volume Management Device (VMD) Supports NVMe SSD as bootable drives
dimensionalWeight - 909
dimension depth - 60 mm
dimension height - 260 mm
Dimensions - 24.4 x 24.4 cm
dimension weight - 1150 g
dimension width - 280 mm
EAN - 4710483940873
ean - 4710483940873
Eans - 4710483940873
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 3.0 x 16
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.1
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x SMA
External connectors - 2 x USB 2.0
External connectors - 4 x USB 3.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - Intel Z790
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - micro ATX
Graphics - Intel Xe (Gen 12) graphics architecture 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz *Intel UHD Graphics Built-in Visuals and VGA outputs can only be supported with GPU-integrated processors.
Gross weight - 2.30 kg
guarantee - 36
guarantee_type - normal
Integrated CPU - No
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://pg.asrock.com/mb/Intel/Z790M%20PG%20LightningD4/index.asp
LPT connector / port - No
Manufacturer - ASRock
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 128 GB
Memory - Maximum internal memory - 128 GB
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR4 DIMM
Memory bus frequency - 4000 MHz
Memory bus frequency - 4266 MHz
Memory bus frequency - 4400 MHz
Memory bus frequency - 5333 MHz
Memory type - DDR4
Model - Z790M PG Lightning/D4
MPN - 90-MXBJW0-A0UAYZ
Name - 1700 ASRock Z790M PHANTOM GAMING Lightning DDR4
Name - ASRock Z790M PG Lightning/D4
name - ASRock Z790M PG Lightning/D4, Intel Z790 Mainboard - Sockel 1700, DDR4
Name - ASRock | Z790M PG LIGHTNING/D4 | Processor family Intel | Processor socket LGA1700 | DDR4 DIMM | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
name - Motherboard Z790M PG Lightning/D4 S1700 4DDR4 HDMI M2 mATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Intel® I219-V
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - Intel I219V
Number of DDR4 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 2
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin 12V power
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Thunderbolt header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 4 x 4pin Chassis fan
Other information - Certifications: FCC, CE ErP/EuP ready (ErP/EuP ready power supply required)
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 70.00 mm
Package features > Gross height (mm) - 295.00 mm
Package features > Gross width (mm) - 360.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 1 pc(s)
Package features > Paper/Pasteboard - 400.00 g
Package features > Plastic (No PET) - 100.00 g
Package features > Tare weight (kg) - 0.50 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Core
producer - ASRock
Producer - ASRock
producerCode - Z790M PG LIGHTNING/D4
ProducerCode - Z790M PG Lightning/D4
Producer product name - Z790M PG LIGHTNING/D4
productName - Asrock Z790M PG Lightning/D4 Intel Z790 LGA 1700 micro ATX
productSize - Normal
RAID - Yes
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
ShortDescription - Socket 1700 | Chipset Intel Z790 | DDR4 |
sizeX - 282
sizeY - 62
sizeZ - 260
Software - ASRock Motherboard Utility (Phantom Gaming Tuning) ASRock Polychrome SYNC ASRock XFast LAN
Sound card - 7.1-channel HD audio (Realtek ALC897 audio codec) Nahimic Audio
Special functions -
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Supported operating systems - Windows 11
Technical details > Net weight - 1.80 kg
Technical details > Producer - ASRock
USB ports at back panel - 8
USB ports on motherboard - 7
vendpn - Z790M PG Lightning/D4
Warranty - 24
Warranty - 24 month(s)
warrantyLength - 36
warrantyType - G
Weight - 1.15
weight - 1150
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 244 mm
