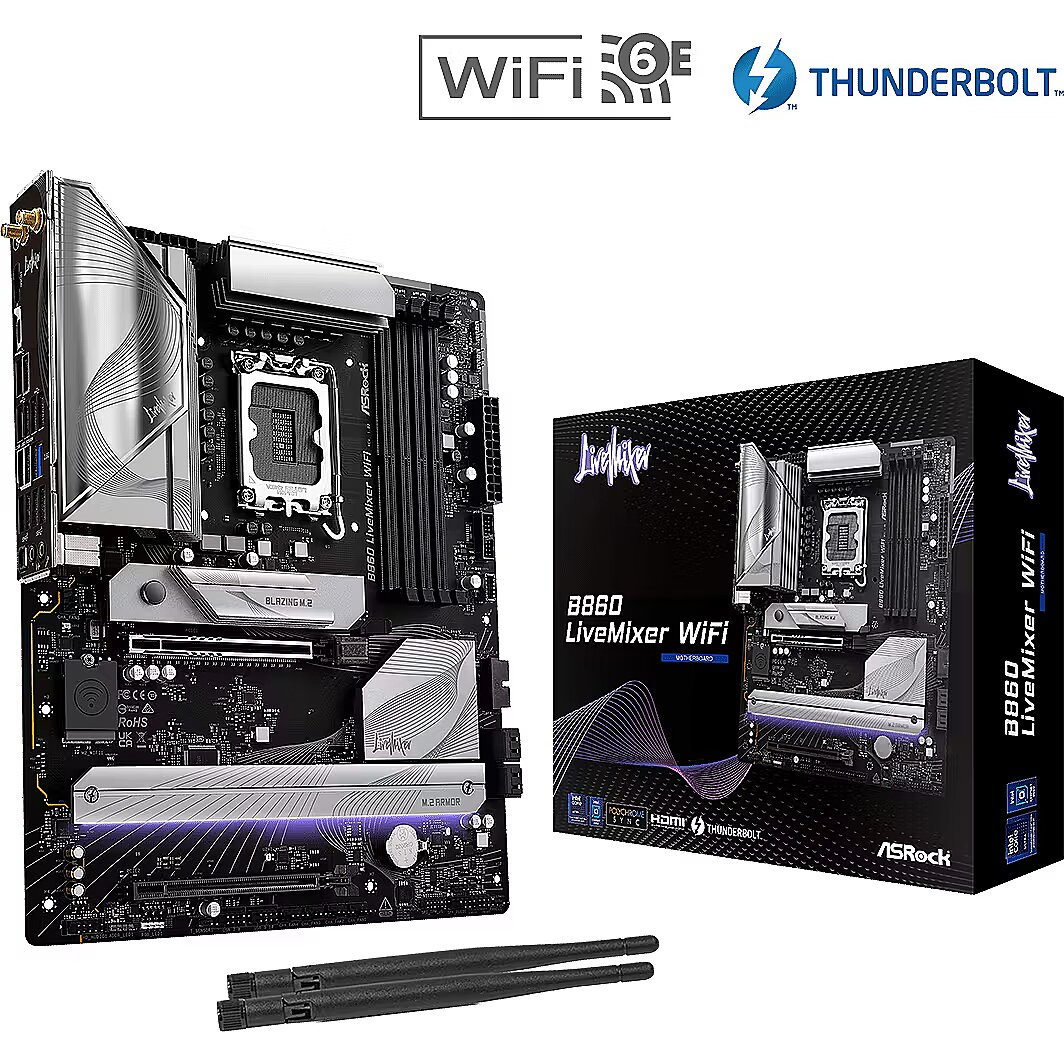

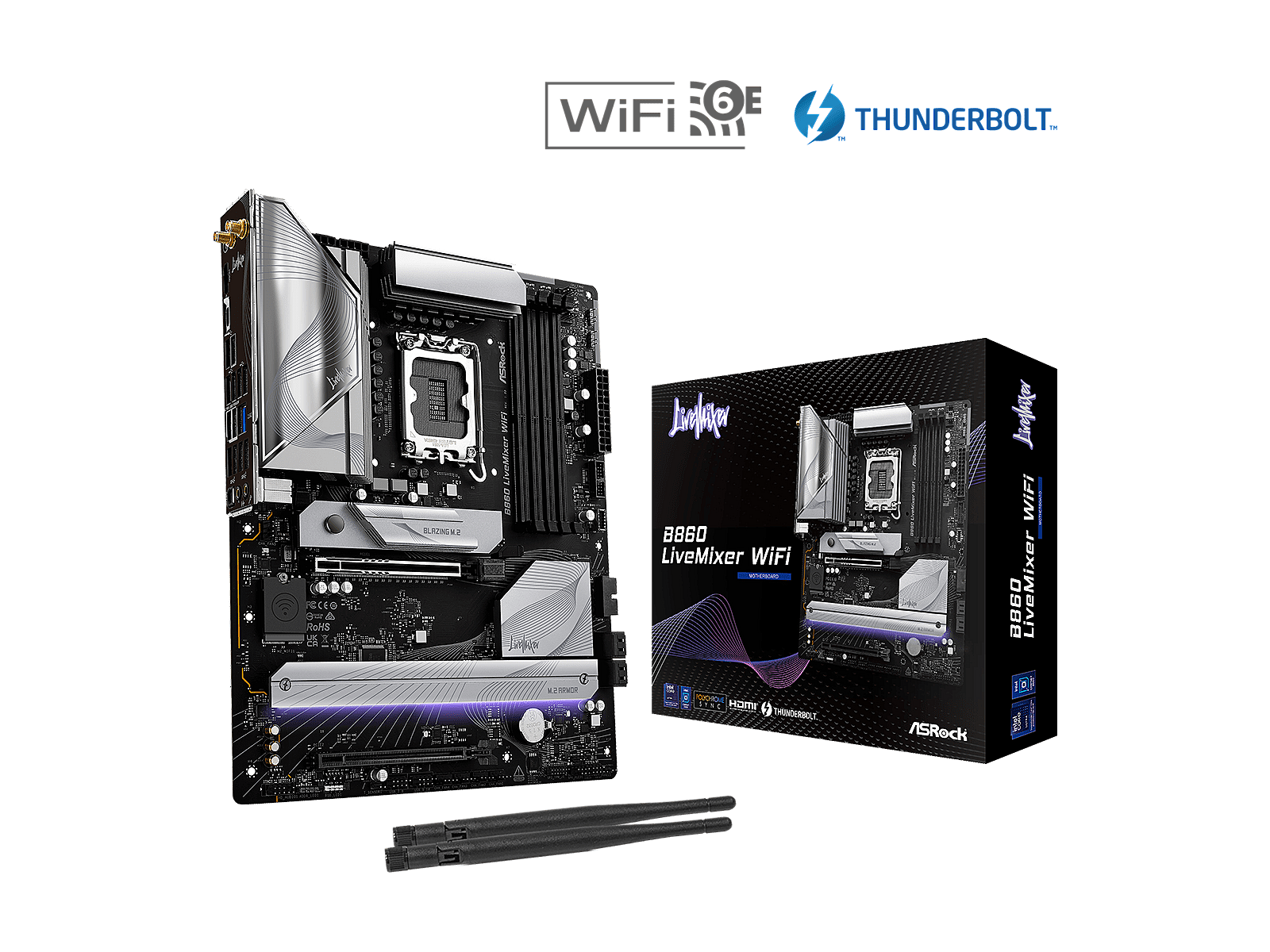

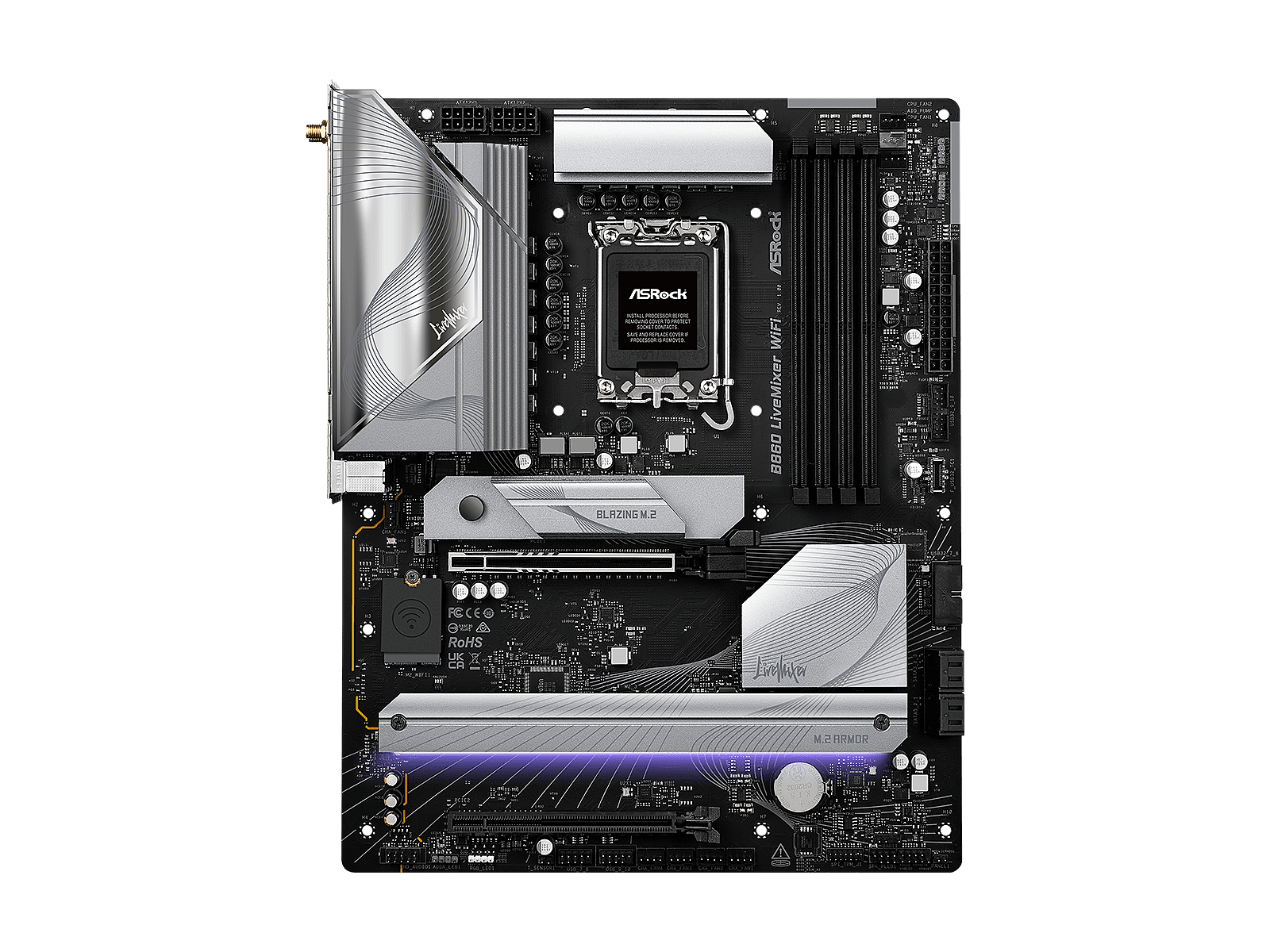

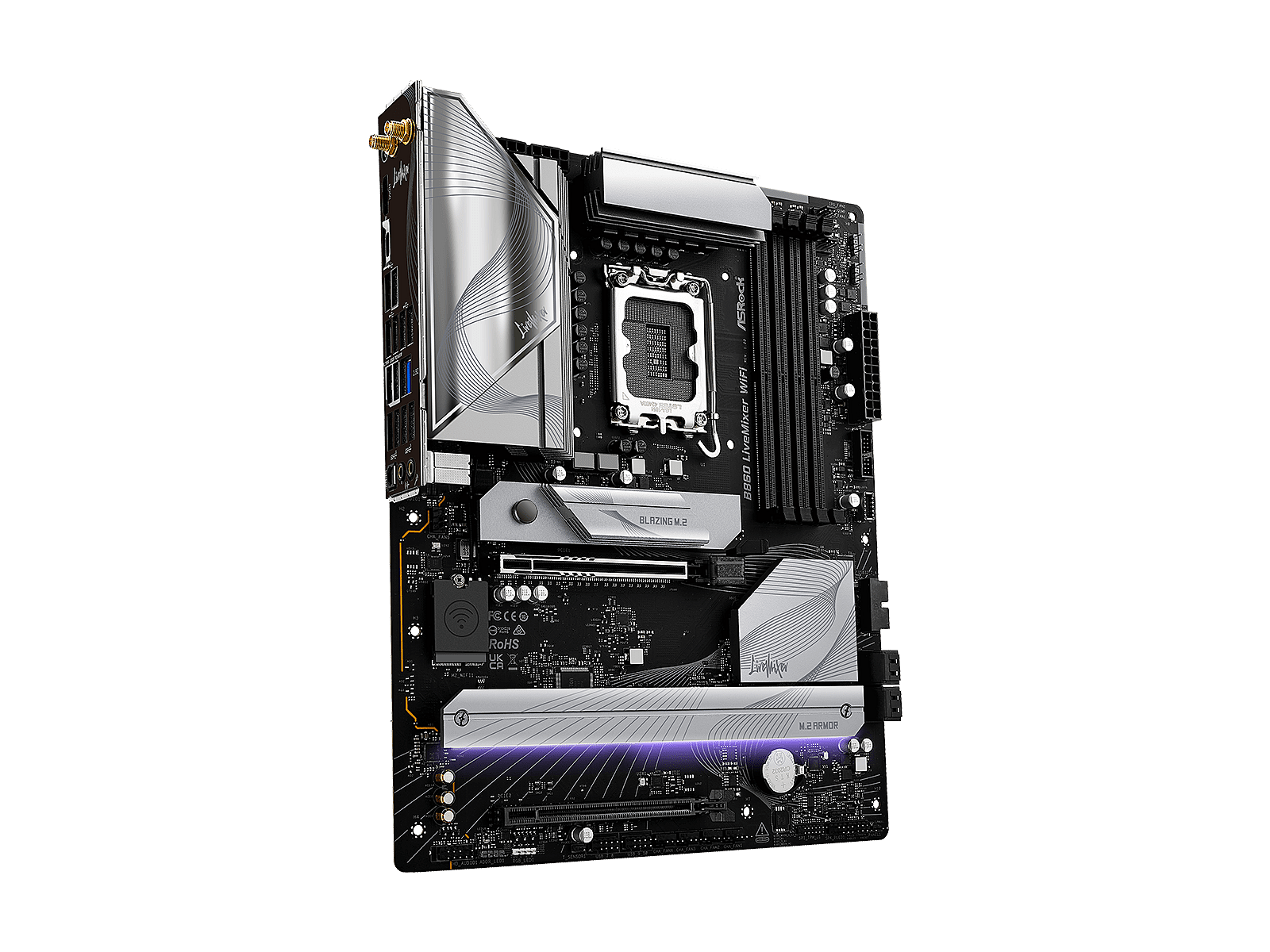

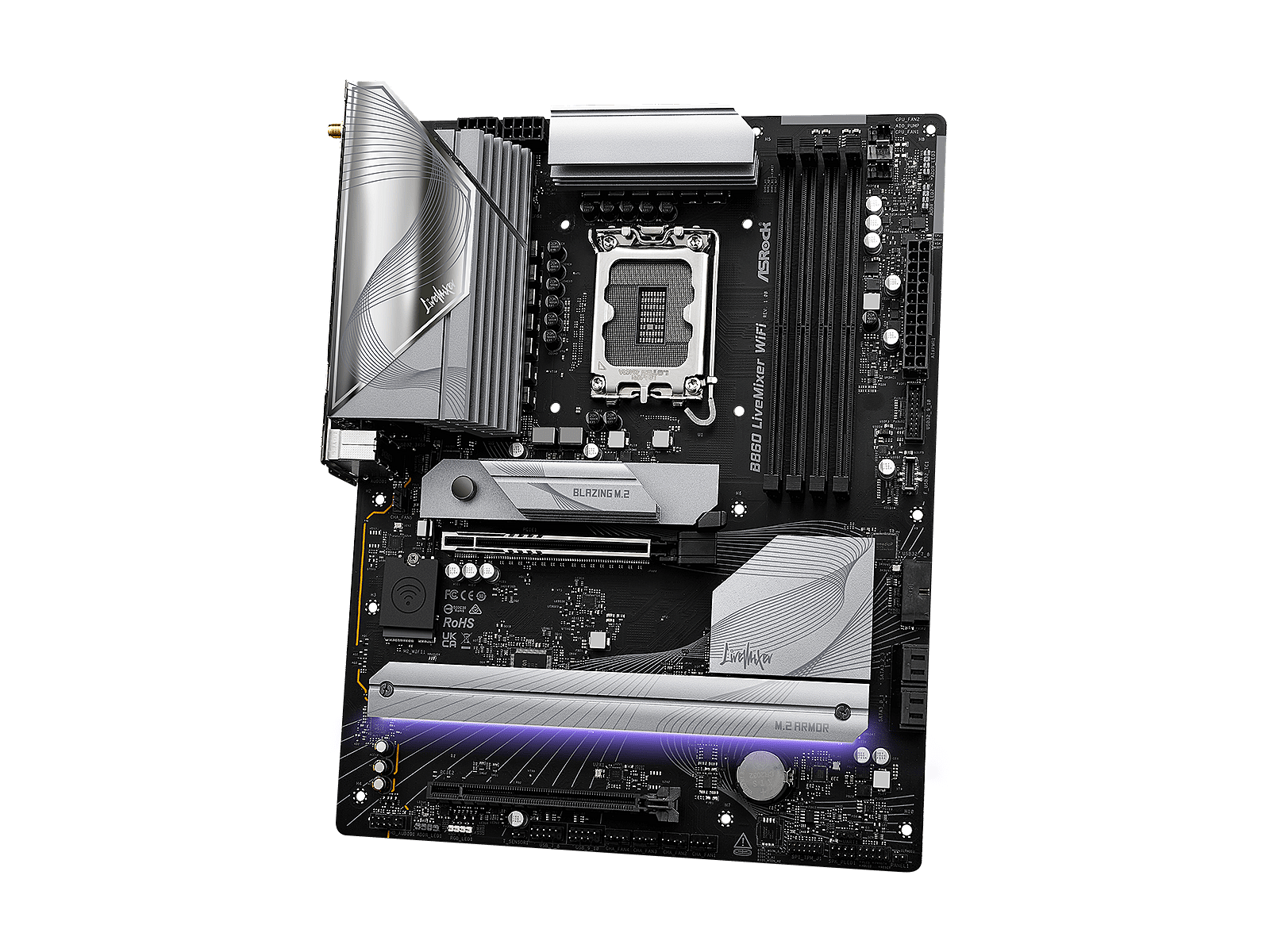

Asrock B860 LIVEMIXER WIFI

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1181039 Product code: B860 LIVEMIXER WIFI
In stock 4 units
Warranty: 3 years
241.60 €
Delivery options More about shipping
  • Delivery to Smartpost free of charge: on Wednesday, 26.02.2025
  • Delivery to Omniva parcel machine free of charge: on Wednesday, 26.02.2025
  • Piegāde uz DPD Pickup Paku Skapi free of charge: on Wednesday, 26.02.2025
  • Delivery to Latvian post office or parcel locker free of charge: on Wednesday, 26.02.2025
  • Delivery to address in Riga 3.99 €: on Wednesday, 26.02.2025
  • Delivery to address in Latvia 6.99 €: on Wednesday, 26.02.2025
  • Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: on Monday, 24.02.2025 after 15:00
Main product parameters All parameters
  • Series: ASRock LiveMixer
  • CPU Socket: LGA 1851
  • Chipset: Intel B860
  • Form factor: ATX
  • Type: DDR5
  • RAM Slots: 4
  • Built-in Wi-Fi: Ir
Basic information
Series : ASRock LiveMixer
CPU Socket LGA 1851
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset Intel B860

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor ATX

The physical size of the motherboard. Dateks.lv offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Random-access memory (RAM)
Type : DDR5
RAM Slots 4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR5 6400 (OC 8600)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
Video card port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready CPU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
PCI ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub : 0
DVI : 0
HDMI : 1
DisplayPort : 0
Integrated sound card : Realtek ALC1220
Wireless connections
Built-in Bluetooth : Ir
Built-in Wi-Fi : Ir
External ports
External USB Type-C : 1
External USB 2.0 : 6
External USB 3.0 (USB 3.2 Gen1) : 6
External USB 3.1 (USB 3.2 Gen2) : 0
Internal ports
Internal A-RGB 5V (3-pin) : 3
Internal RGB 12V (4-pin) : 1
Internal USB 2.0 : 2
Internal USB 3.0 : 2
Internal USB Type-C : 1
M.2 Port : 3
SATA3 ports : 4
More detailed specification
Accessories included - 2 x Kabel danych SATA 2 x Antena ASRock WiFi 2,4/5/6 GHz Kabel termistora
Audio-Out Input/Output connectors - 1
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
BIOS - BIOS type - UEFI AMI
Bluetooth Interface - Yes
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Chipset - Intel B860 Express
Chipset manufacturer - Intel
Chipset type - Intel B860
COM connector / port - No
CPU socket - LGA1851
Description - B860 LiveMixer WiFi
Seria LiveMixer została stworzona z myślą o potrzebach współczesnych twórców treści, oferując doskonałą łączność do przesyłania strumieniowego i wielu urządzeń pomocniczych. Jej niezawodna wydajność zapewnia bezproblemowe tworzenie treści i efektywne zarządzanie czasem. Ekskluzywny kondensator 20K o pojemności 1000uF
Ulepszony czarny kondensator 20K nie tylko wydłuża żywotność do 20 000 godzin, ale także zwiększa wartość pojemności z 560uF do 1000uF, co przynosi kilka korzyści: Większa pojemność: Większe magazynowanie ładunku dla lepszego wsparcia przy dużych obciążeniach. Niższe tętnienie: Zmniejszone wahania mocy wyjściowej, poprawa jakości. Bardziej stabilny prąd wyjściowy: Stabilne zasilanie, minimalizujące wpływ napięcia. Lepsza wydajność i stabilność systemu: Zwiększona niezawodność i stała wydajność. 12+1+1 Power Phase Design
Wyposażony w solidne komponenty i całkowicie płynne dostarczanie mocy do procesora. Ponadto oferuje niezrównane możliwości podkręcania i zwiększoną wydajność przy najniższej temperaturze, co jest również przydatne dla zaawansowanych graczy. Dr. MOS
Dr.MOS to zintegrowane rozwiązanie stopnia mocy, które jest zoptymalizowane pod kątem synchronicznych zastosowań obniżających napięcie buck-set! W porównaniu do tradycyjnych dyskretnych tranzystorów MOSFET inteligentnie dostarcza wyższy prąd dla każdej fazy, zapewniając tym samym lepszy wynik termiczny i lepszą wydajność. Złącze zasilania Hi-Density
Podkręcanie procesora wymaga wyższego prądu. Złącza zasilania ASRock Hi-Density są zaprojektowane tak, aby wytrzymywać wyższe prądy w porównaniu do tradycyjnych złączy zasilania procesora i ATX, zapewniając bardziej stabilny system i zmniejszając ryzyko pożaru podczas intensywnego podkręcania.king. Obsługa DDR5 XMP i EXPO
Wywodząca się z koncepcji projektowania zbudowanego dla stabilności i niezawodności, ASRock nie idzie na żadne kompromisy w kwestii szczegółów. Ta płyta główna jest zbudowana z wysokiej jakości materiałów, entuzjaści mogą cieszyć się zwiększoną wydajnością podkręcania pamięci DDR5, włączając wstępnie przetestowane profile. Upewnij się, że moduły pamięci są zgodne z Intel XMP/AMD EXPO, a podkręcanie może być tak niedrogie, satysfakcjonujące i absolutnie bezproblemowe.
Description - LiveMixer series is crafted with the needs of modern content creators in mind, offering excellent connectivity for streaming and multiple auxiliary devices. Its reliable performance ensures seamless content creation and efficient time management Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851) 12+1+1+1+1 Power Phase, Dr.MOS for VCore+GT+SA 4 x DDR5 DIMMs Supports Dual Channel, up to 8666+ (OC) 1 PCIe 5.0 x16, 1 PCIe 4.0 x16 Graphics Output Options: 1 HDMI, 1 Thunderbolt™ 4 Type-C Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio 4 SATA3 1 Blazing M.2 (PCIe Gen5x4) 2 Hyper M.2 (PCIe Gen4x4) 1 Thunderbolt™ 4 Type-C (Rear) 1 USB 3.2 Gen1 Type-C (Front) 10 USB 3.2 Gen1 (6 Rear, 4 Front) 10 USB 2.0 (6 Rear, 4 Front) Realtek 2.5G LAN 802.11axe Wi-Fi 6E + Bluetooth Supports BIOS Flashback, 20K Caps with 1000uF Capacitance
Designation - CE+WEEE
Detailed data on disk/drive interfaces - CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors
dimensionalWeight - 1458
dimensionalWeight - 1617
dimension depth - 75 mm
dimension height - 280 mm
Dimensions - 30.5 cm x 24.4 cm
dimension weight - 1950 g
dimension width - 355 mm
ean - 4711581490147
EAN - 4711581490147
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 1st M.2 highest PCI Express generation - 5.0
Expansion slots - 1st M.2 largest key size - 2280
Expansion slots - 2nd M.2 highest PCI Express generation - 4.0
Expansion slots - 2nd M.2 largest key size - 2280
Expansion slots - 3rd M.2 highest PCI Express generation - 4.0
Expansion slots - 3rd M.2 largest key size - 2280
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1

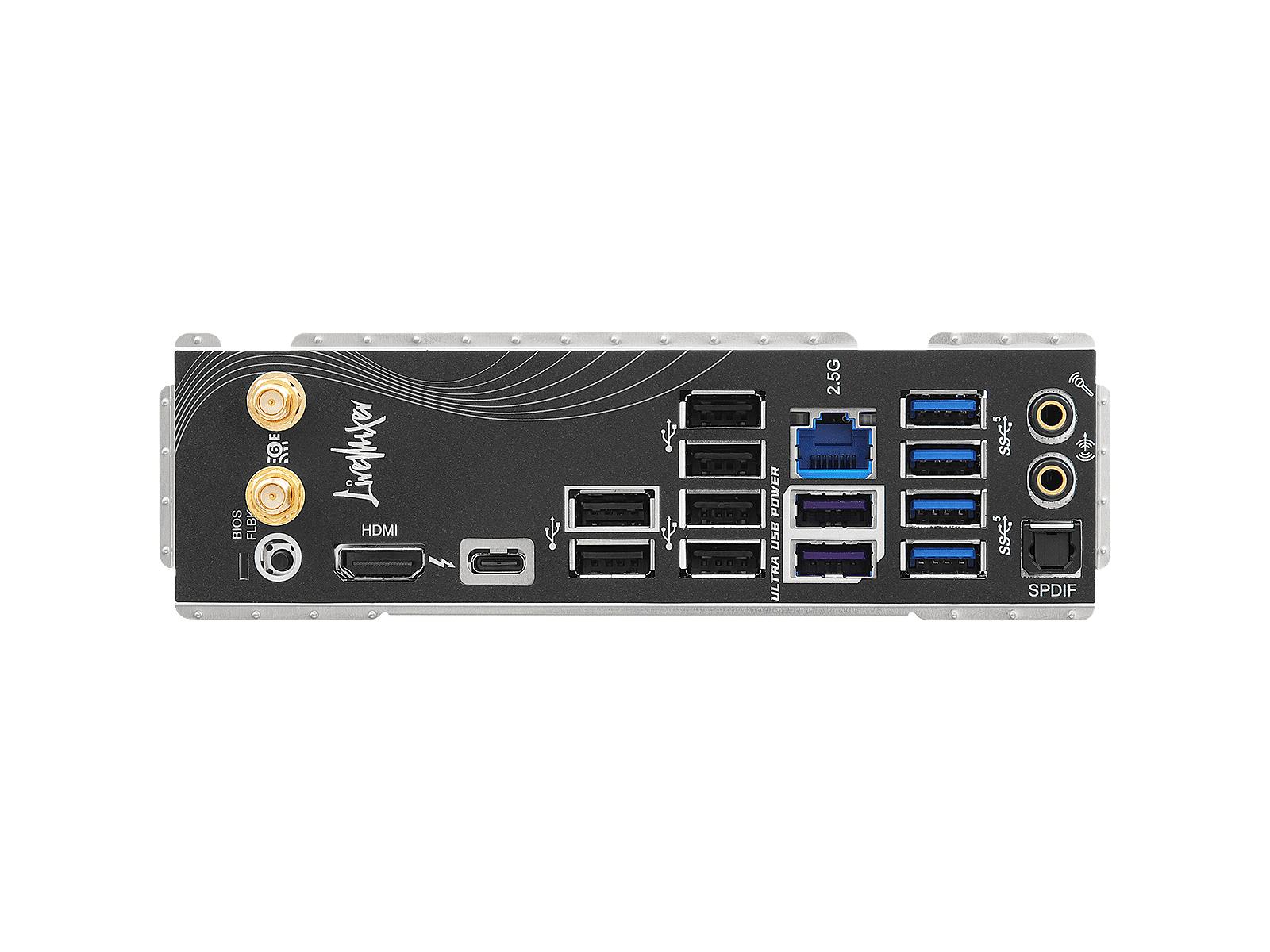

External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 1 x Thunderbolt 4
External connectors - 2 x SMA
External connectors - 6 x USB 2.0
External connectors - 6 x USB 3.0
Features - Audio chip - Realtek ALC1220
Features - Audio output channels - 7.1 channels
Features - Certification - FCC, CE, ErP/EuP
Features - Motherboard chipset - Intel B860
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 8666 MHz
Full Description Line - Intel B860 Express|LGA1851|ATX|DDR5|8666 MHz|Memory slots 4|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|1xM.2|1xHDMI|1xAudio-Out|1xMicrophone|6xUSB 2.0|6xUSB 3.2|1xUSB-C w/Thunderbolt|1xOptical S/PDIF|1xRJ45|SATA|USB-C|USB 2.0|USB 3.2|Thunderbolt|Bluetooth|WiFi|SATA 3.0|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC1220|RAID SATA 0, 1, 5, 10|TPM Header
Graphics - Architektura grafiki Intel Xe LPG 1 x HDMI 2.1 TMDS/FRL 8G, obsługuje HDR, HDCP 2.3 i maks. rozdzielczość do 4K 120Hz 1 x Intel Thunderbolt 4, obsługuje HDCP 2.3 i maks. rozdzielczość do 8K 60Hz / 5K 120Hz
Graphics - HDCP - Yes
Graphics - Maximum resolution - 7680 x 4320 pixels
Graphics - Parallel processing technology support - Not supported
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC1220
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 5
Internal I/O - Number of CPU fan connectors - 2
Internal I/O - Number of EPS power connectors (8-pin) - 2
Internal I/O - Number of RGB LED pin headers - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Number of water pump connectors - 1
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 3
LPT connector / port - No
M.2 Expansion slots - 1
Manufacturer - ASRock
Max. number of SATA devices - 4
Max memory size - 256 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 8666 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Microphone Input/Output connectors - 1
Model - B860 LiveMixer WiFi
Model - B860 LIVEMIXER WIFI
MPN - 90-MXBQV0-A0UAYZ
Name - LGA1851 ASROCK B860 LiveMixer WiFi
name - Motherboard B860 LIVEMIXER WIFI s18 51 4DDR5 ATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Dragon RTL8125BG
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - LAN 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control Wireless LAN 802.11axe Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax/axe Supports Dual-Band 2x2 with extended 6GHz band* support 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.3 Supports MU-MIMO
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 11
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 1
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power LED and Speaker Header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x SPI
Onboard connectors - 1 x Thermistor Cable Header
Onboard connectors - 1 x USB 3.2 Gen 1 Type-C
Onboard connectors - 2 x 4pin wentylator CPU
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.2 Gen 1 Type-A
Onboard connectors - 3 x Addressable LED
Onboard connectors - 5 x 4pin Chassis fan
Optical S/PDIF Input/Output connectors - 1
Other information -
Packaging content - Antenna included - Yes
Packaging content - Cables included - SATA
PCI-Express 4.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel Core Ultra (Series 2)
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Processor - Supported processor sockets - LGA 1851
Processor family - Intel Core Ultra
producer - ASRock
producerCode - B860 LIVEMIXER WIFI
producerCode - B860 LiveMixer WiFi
productName - Asrock B860 LiveMixer WiFi Intel B860 LGA 1851 (Socket V1) ATX
productSize - Normal
RAID - SATA 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - Thunderbolt ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 6
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 6
Rear panel I/O ports - USB connector type - USB Type-A
Rear panel I/O ports - USB connector type - USB Type-C
Rear panel I/O ports - WiFi-AP antenna jack - 2
RJ45 Input/Output connectors - 1
SATA 3.0 Interface - Yes
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 40 cm
Shipping Box Height Shipping/Package Box Dimensions - 30.5 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 10.92 kg
Shipping Box Width Shipping/Package Box Dimensions - 36 cm
sizeX - 346
sizeX - 385
sizeY - 281
sizeY - 300
sizeZ - 70
sizeZ - 75
Socket - LGA1851
Software - Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC* UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash
Sound card - 7.1 CH HD Audio z ochroną treści (kodek audio Realtek ALC1220) Wykrywanie impedancji na tylnym porcie wyjściowym Oddzielne warstwy PCB dla kanału audio R/L Nahimic Audio
Special functions -
Storage controllers - Number of storage drives supported - 7
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - PCI Express 4.0, PCI Express 5.0, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
Thunderbolt Interface - Yes
TPM - Header
Unit Box Height - 0.075
Unit Box Length - 0.35
Unit Box Width - 0.28
Unit Brutto Volume - 0.008784 cubm
Unit Gross Weight - 2.18 kg
Unit Net Weight - 1.4 kg
USB-C Interface - Yes
USB-C w/Thunderbolt Input/Output connectors - 1
USB 2.0 Input/Output connectors - 6
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 6
USB 3.2 Interface - Yes
USB ports at back panel - 13
USB ports on motherboard - 9
Vendor Homepage - www.asrock.com/MB/Intel/B860%20LiveMixer%20WiFi/index.asp
vendpn - B860 LIVEMIXER WIFI
Warranty - 36 months
warrantyLength - 36
warrantyType - G
Weight - 1.98
weight - 1550
weight - 1950
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
241.60 €
Asrock B860 LIVEMIXER WIFI
Tālr. 67275758 gsm 26117175 (p.o.t.c.p. 9:00-18:00)
Intel technology provider Platinum 2020
All categories
