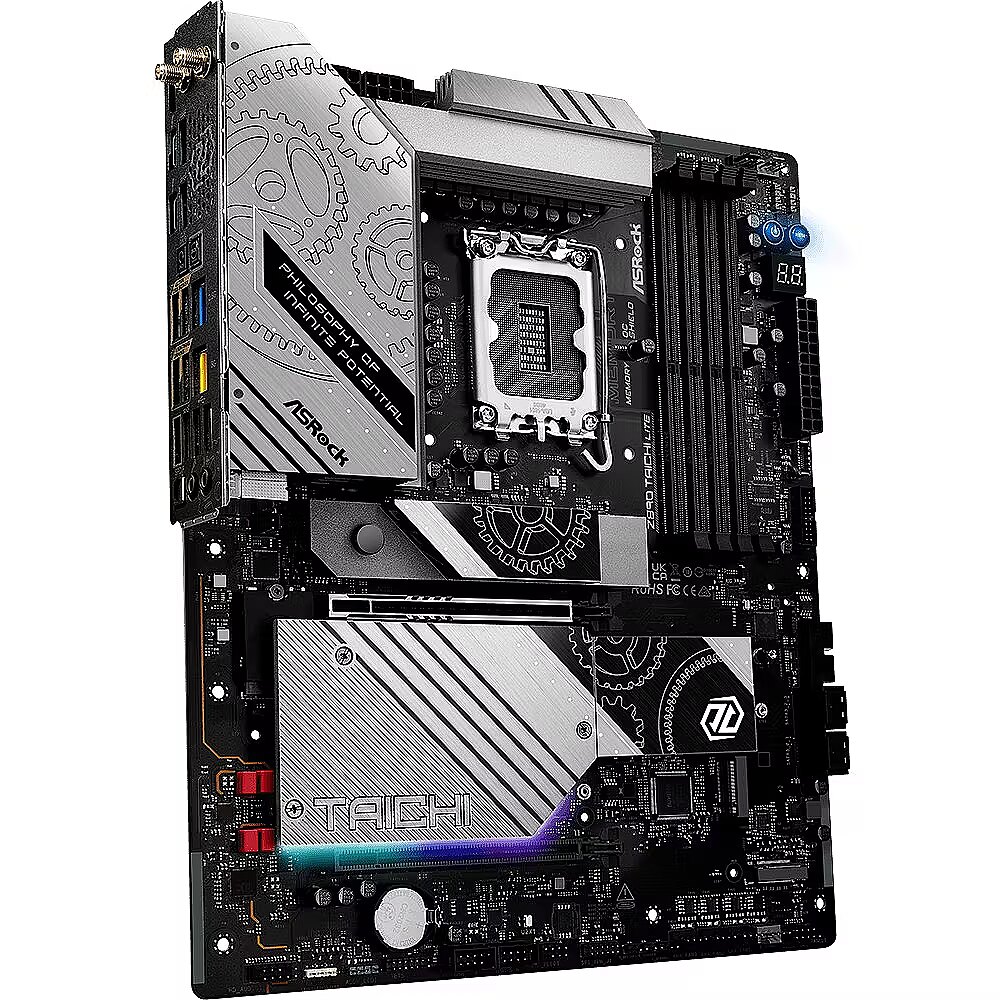

Asrock Z890 TAICHI LITE

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
News
ID: 1154999 Product code: Z890 TAICHI LITE
Can be ordered 7 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
476.41 €
Delivery options More about shipping
  • Delivery to Smartpost free of charge: 22.11.2024
  • Delivery to Omniva parcel machine free of charge: 22.11.2024
  • Piegāde uz DPD Pickup Paku Skapi free of charge: 22.11.2024
  • Delivery to Latvian post office, parcel locker or Circle K free of charge: 22.11.2024
  • Delivery to address in Riga 3.99 €: 22.11.2024
  • Delivery to address in Latvia 6.99 €: 22.11.2024
  • Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 20.11.2024 after 15:00
Main product parameters All parameters
  • Series: ASRock Taichi
  • CPU Socket: LGA 1851
  • Chipset: Intel Z890
  • Form factor: ATX
  • Type: DDR5
  • RAM Slots: 4
  • Built-in Wi-Fi: Ir
Basic information
Series : ASRock Taichi
CPU Socket LGA 1851
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset Intel Z890

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor ATX

The physical size of the motherboard. Dateks.lv offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Random-access memory (RAM)
Type : DDR5
RAM Slots 4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR5 6400 (OC 9600)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
Video card port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready CPU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
PCI ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub : 0
DVI : 0
HDMI : 1
DisplayPort : 0
Integrated sound card : Realtek ALC4082
Wireless connections
Built-in Bluetooth : Ir
Built-in Wi-Fi : Ir
External ports
External USB Type-C : 2
External USB 2.0 : 2
External USB 3.0 (USB 3.2 Gen1) : 4
External USB 3.1 (USB 3.2 Gen2) : 4
Internal ports
Internal A-RGB 5V (3-pin) : 3
Internal RGB 12V (4-pin) : 1
Internal USB 2.0 : 2
Internal USB 3.0 : 2
Internal USB Type-C : 1
M.2 Port : 6
SATA3 ports : 4
More detailed specification
Accessories included - 4 x Kabel danych SATA Antena ASRock WiFi 2,4/5/6 GHz Kabel rozdzielający ARGB 3 x Kabel termistorowy 2 x Śrubki do gniazd M.2 2 x Dystanse do gniazd M.2
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
category - PC Components|Mainboards
Chipset manufacturer - Intel
Chipset type - Intel Z890
code - 90-MXBPQ0-A0UAYZ
COM connector / port - No
CPU socket - LGA1851
Description - Z890 Taichi Lite
Seria Taichi Lite jest po prostu genialna, oferując najwyższą wydajność w opływowej, zorientowanej na funkcjonalność konstrukcji. Filozofia nieskończonego potencjału
Taichi reprezentuje filozoficzny stan niezróżnicowanego absolutnego i nieskończonego potencjału. Płyta główna, która spełnia każde zadanie ze stylem! Stań się jak woda. Bezkształtna, bezpostaciowa, wszechstronna w każdej sytuacji. Radiator aluminiowy
Pierwszą rzeczą, która rzuca się w oczy, jest zoptymalizowana konstrukcja radiatora aluminiowego. Radiatory są kluczowe dla wydajnego odprowadzania ciepła, szczególnie podczas dużych obciążeń, takich jak gry lub zadania związane z produktywnością. Płyta główna zbudowana z radiatorami może skutecznie zarządzać wydajnością cieplną, zapewniając tym samym stabilność i trwałość systemu bez wysiłku. Thunderbolt 4 Type-C
Technologia Thunderbolt 4 zapewnia prędkość i wszechstronność najbardziej zaawansowanemu USB Type-C, oferując szybki i prosty poziom połączenia w pracy lub w domu. Umożliwia błyskawiczną transmisję danych do 40 Gb/s i łączy zewnętrzne monitory, Thunderbolt i urządzenia USB za pomocą jednego kabla Thunderbolt 4. Zoptymalizowana sieć LAN 5 Gb/s
Złącze LAN 5 Gb/s firmy ASRock charakteryzuje się wyjątkową, opatentowaną konstrukcją, która charakteryzuje się doskonałą odpornością na zakłócenia elektromagnetyczne, zapewniając stabilną pracę przy dużej prędkości i lepsze wrażenia sieciowe. Obsługuje procesory Intel Core Ultra (seria 2) (LGA1851) 20+1+2+1+1 faz zasilania, 110 A SPS dla VCore 4 x DDR5 DIMM Obsługuje Dual Channel, do 9200+ (OC) 1 PCIe 5.0 x16, 1 PCIe 4.0 x16 Opcje wyjścia graficznego: 1 HDMI, 2 Thunderbolt 4 Type-C Kodek audio Realtek ALC4082 5.1 CH HD, Przetwornik cyfrowo-analogowy ESS SABRE9219, WIMA Audio Cap, Nahimic Audio 4 SATA3 1 Blazing M.2 (PCIe Gen5 x4) 4 Hyper M.2 (PCIe Gen4 x4) 1 Hyper M.2 (PCIe Gen4 x4 i SATA3) 2 Thunderbolt 4 Type-C (tył) 1 USB 3.2 Gen2x2 Type-C (przód) 4 USB 3.2 Gen2 Type-A (tył) 8 USB 3.2 Gen1 (4 z tyłu, 4 z przodu) 6 USB 2.0 (2 z tyłu, 4 z przodu) 5 Gb/s LAN, 2.5G LAN 802.11be Wi-Fi 7 + Bluetooth Obsługuje Memory OC Shield, BIOS Flashback, 20K Caps o pojemności 1000uF
Detailed data on disk/drive interfaces - CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_6, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors
dimension depth - 80 mm
dimension height - 280 mm
Dimensions - 30.5 cm x 24.4 cm
dimension weight - 2330 g
dimension width - 350 mm
ean - 4710483949692
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 1 x PCIe 5.0 x 16
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Przycisk Clear CMOS
External connectors - 1 x S/PDIF
External connectors - 2 x RJ-45
External connectors - 2 x SMA
External connectors - 2 x Thunderbolt 4
External connectors - 2 x USB 2.0
External connectors - 4 x USB 3.2 Gen 1 Type-A
External connectors - 4 x USB 3.2 Gen 2 Type-A
FireWire (IEEE 1394) - No
Form factor - ATX
Graphics - Intel Xe LPG Graphics Architecture 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 2 x Intel Thunderbolt 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
guarantee - 36
guarantee_type - normal
Integrated CPU - No
LPT connector / port - No
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 256 GB
Memory bus frequency - 5800 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 9200 MHz
Memory type - DDR5
Model - Z890 TAICHI LITE
name - ASRock Z890 Taichi Lite, Intel Z890 Mainboard - Sockel 1851 - DDR5
name - Motherboard Z890 TAICHI LITE ATX
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - 1 x 10/100/1000/2500/5000 Mbit/s
Network interface - Bluetooth
Network interface - LAN 1 x 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s (Realtek RTL8126) 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control Wireless LAN 802.11be 2x2 Wi-Fi 7 Module Supports IEEE 802.11a/b/g/n/ac/ax/axe/be Supports 2.4GHz/5GHz/6GHz* frequency band Supports 320MHz channel bandwidth with 6GHz* frequency band 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.4 Supports MU-MIMO
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 8
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 7
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Debug card header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power button
Onboard connectors - 1 x Power led header
Onboard connectors - 1 x Reset button
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.2 Gen 2 Type-C
Onboard connectors - 2 x 4pin wentylator CPU
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.2 Gen 1 Type-A
Onboard connectors - 3 x Addressable LED
Onboard connectors - 3 x Thermistor Cable Header
Onboard connectors - 4 x 4pin Chassis fan
Other information - Certyfikaty FCC, CE Gotowość do ErP/EuP (wymagany zasilacz gotowy do ErP/EuP) Gotowość do CEC Tier II
Processor family - Intel Core Ultra
producer - ASRock
RAID - Yes
Software - Software ASRock Motherboard Utility (A-Tuning) ASRock Polychrome SYNC ASRock Dragon 2.5G LAN Software UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash
Sound card - 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) WIMA Audio Capacitors (For Rear Outputs) ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR) Individual PCB Layers for R/L Audio Channel Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets) Nahimic Audio
Special functions -
Supported operating systems - Windows 11
USB ports at back panel - 12
USB ports on motherboard - 9
vendpn - Z890 TAICHI LITE
476.41 €
