ID: 1154905
Product code: Z890 AERO G
In stock 15 units
Warranty: 3 years

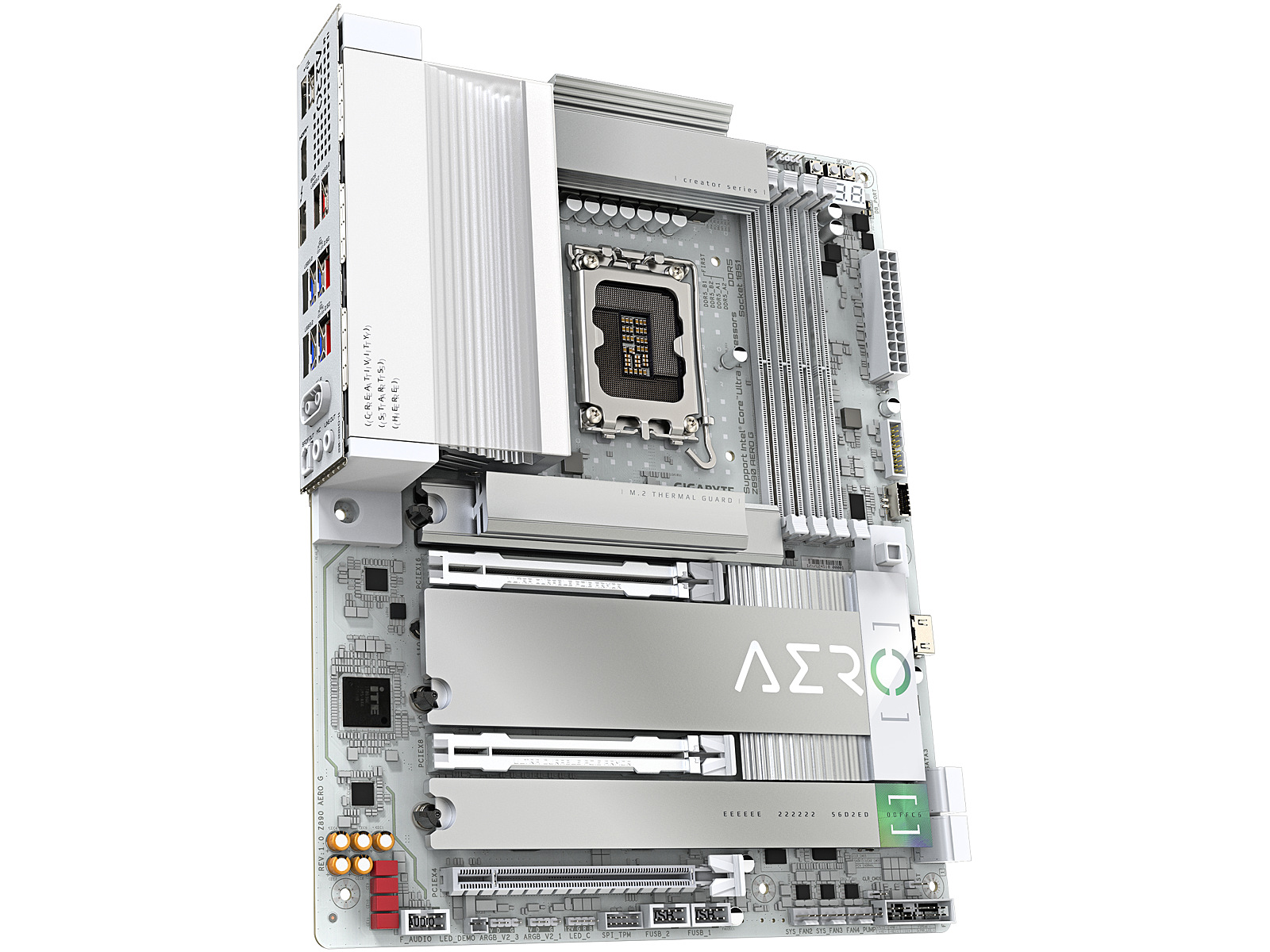

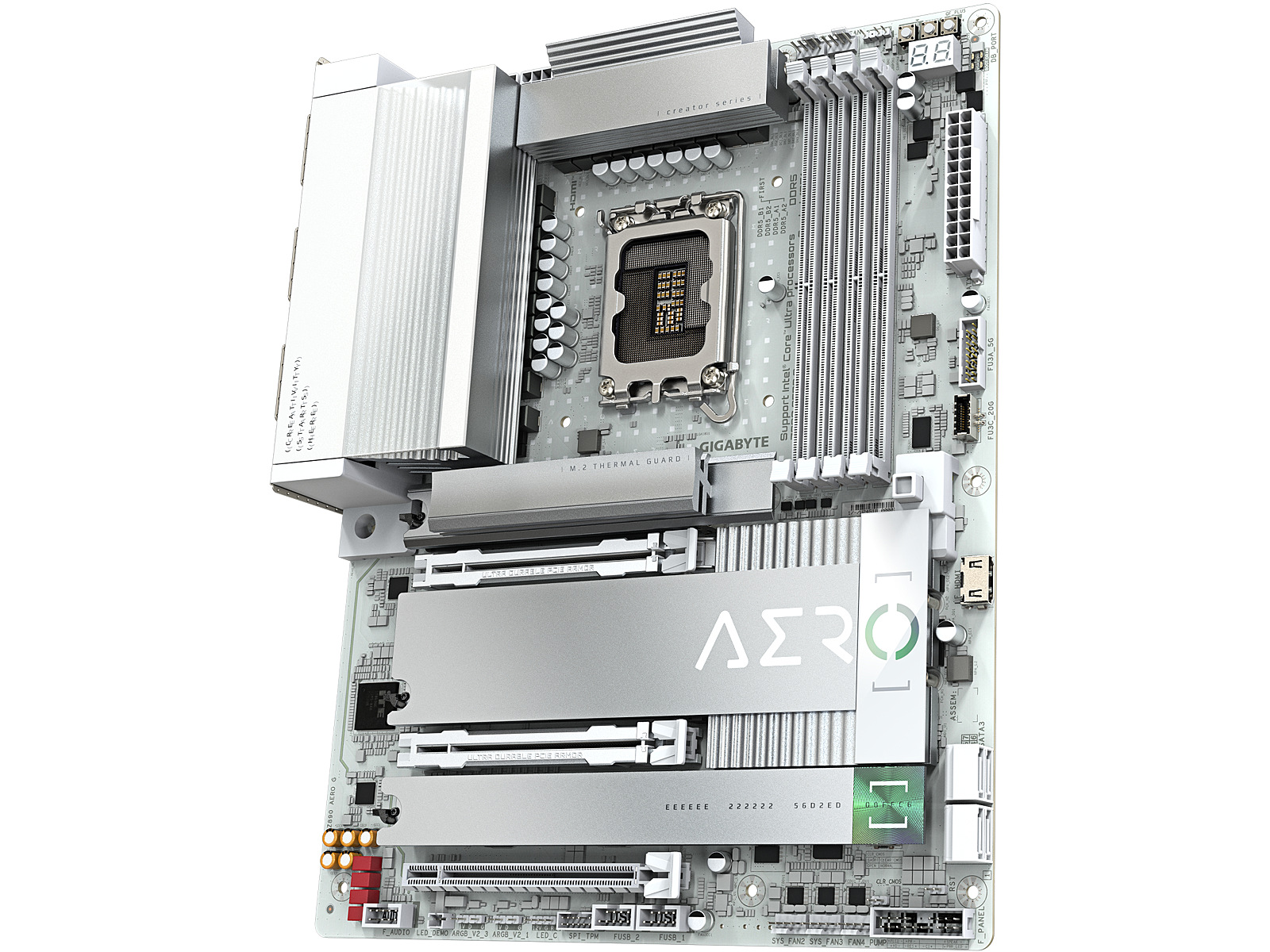

Gigabyte Z890 AERO G WIFI7
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: on Wednesday, 27.11.2024
- Delivery to Omniva parcel machine free of charge: on Wednesday, 27.11.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: on Wednesday, 27.11.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: on Wednesday, 27.11.2024
- Delivery to address in Riga 3.99 €: on Wednesday, 27.11.2024
- Delivery to address in Latvia 6.99 €: on Wednesday, 27.11.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: on Monday, 25.11.2024 after 15:00
Main product parameters All parameters
- Series: Gigabyte AERO
- CPU Socket: LGA 1851
- Chipset: Intel Z890
- Form factor: ATX
- Type: DDR5
- RAM Slots: 4
- Built-in Wi-Fi: Ir
Basic information
Series
: Gigabyte AERO
CPU Socket
LGA 1851
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel Z890
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
ATX
The physical size of the motherboard. Dateks.lv offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR5
RAM Slots
4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR5 6400 (OC 9200)
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 0
Integrated sound card
: Realtek ALC1220
Wireless connections
Built-in Bluetooth
: Ir
Built-in Wi-Fi
: Ir
External ports
External USB Type-C
: 1
External USB 2.0
: 2
External USB 3.0 (USB 3.2 Gen1)
: 4
External USB 3.1 (USB 3.2 Gen2)
: 2
Internal ports
Internal A-RGB 5V (3-pin)
: 3
Internal RGB 12V (4-pin)
: 1
Internal USB 2.0
: 2
Internal USB 3.0
: 1
Internal USB Type-C
: 1
M.2 Port
: 5
SATA3 ports
: 4
More detailed specification
Accessories included -
Audio port Input/Output connectors - 2
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Bluetooth Interface - Yes
Brand - GIGABYTE
BrandPartCode - Z890 AERO G
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards
Category Code - MBI
Chipset - Intel Z890
Chipset manufacturer - Intel
Chipset type - Intel Z890 Express Chipset
CnCode CnCode - 84733020
code - Z890 AERO G
COM connector / port - No
CPU socket - LGA1851
Description - Kreatywność zaczyna się tutaj
Płyty główne z serii AERO to innowacyjne rozwiązanie dla twórców treści, które pozwala im sprostać wymagającym zadaniom kreatywnym, takim jak renderowanie 3D i edycja długich filmów. Doskonała łączność Rozszerzalna grafika Ultraszybka pamięć masowa Obsługuje procesory Intel Core Ultra (seria 2) VisionLINK/TB: jeden port USB-C do przesyłania wideo, danych i ładowania Maksymalna skalowalność: 2 gniazda PCIe x16 dla wielu procesorów graficznych Rozszerzona łączność: THUNDERBOLT 4 Type-C z DP-Alt, HDMI Ultraszybkie przechowywanie danych: 5 gniazd M.2, w tym 1 PCIe 5.0 x4 Błyskawiczne sieci: Daul 2,5 GbE LAN i Wi-Fi 7 z kierunkową anteną o bardzo wysokim wzmocnieniu Cyfrowe podwójne rozwiązanie VRM 16+1+2 faz WIFI EZ-Plug: szybka i łatwa konstrukcja do instalacji anteny Wi-Fi EZ-Latch Plus: gniazda PCIe i M.2 z szybkim zwalnianiem i konstrukcją bezśrubową EZ-Latch Click: radiatory M.2 z konstrukcją bezśrubową Sensor Panel Link: wbudowany port wideo dla bezproblemowej konfiguracja panelu w obudowie Przyjazny interfejs użytkownika: Multi-Theme, sterowanie wentylatorem AIO i automatyczne skanowanie Q-Flash w BIOS-ie i oprogramowaniu D5 Bionic Corsa dla nieskończonej wydajności pamięci AI Perfdrive: zapewnia użytkownikom optymalny i dostosowany profil ustawień BIOS-u Zgodność z klasą Premium: 4*DDR5 z obsługą modułów pamięci XMP Wydajne chłodzenie: VRM Thermal Armor Advanced i M.2 Thermal Guard L Dźwięk wysokiej rozdzielczości: ALC1220 i kondensatory klasy audiofilskiej WIMA Gniazdo PCIe UD X: gniazdo PCIe 5.0 x16 o 10-krotnie większej wytrzymałości dla karty graficznej Ultratrwała osłona PCIe: metalowa tylna płyta gniazda PCIe x16 zapewniająca zwiększoną trwałość
Description - Z890 AERO G Supports Intel® Core™ Ultra processors (Series 2) VisionLINK/TB : One USB-C® Port for Video, Data Transfer and Charging Ultimate Scalibility : 2*PCIe x16 slots for Multi-GPU Extended Connectivity : THUNDERBOLT™ 4 Type-C®with DP-Alt, HDMI Ultra-Fast Storage : 5*M.2 slots, including 1* PCIe 5.0 x4 Blazing Fast Networks : Daul 2.5 GbE LAN and Wi-Fi 7 with directional Ultra-high gain antenna Digital twin 16+1+2 phases VRM solution WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design EZ-Latch Click : M.2 heatsinks with screwless design Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW D5 Bionic Corsa for Infinite Memory Performance AI Perfdrive : Provides optimal and customized BIOS preset profile for users Premium Compatibility : 4*DDR5 with XMP Memory Module Support Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L High-Res Audio : ALC1220 & WIMA Audiophile Grade Capacitors PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
Detailed data on disk/drive interfaces - CPU:
- 1 x złącze M.2 (Socket 3, klucz M, typ 25110/22110/2580/2280 PCIe 5.0 x4/x2 obsługa SSD) (M2A_CPU)
- 1 x złącze M.2 (Socket 3, klucz M, typ 25110/22110/2580/2280 PCIe 4.0 x4/x2 obsługa SSD) (M2B_CPU)
Chipset:
- 1 x złącze M.2 (Socket 3, klucz M, typ 22110/2280 PCIe 4.0 x4/x2 obsługa SSD) (M2Q_SB)
- 1 x złącze M.2 (Socket 3, klucz M, typ 2280 PCIe 4.0 x4/x2 obsługa SSD) (M2P_SB)
- 1 x złącze M.2 (Socket 3, klucz M, typ 2280 SATA i obsługa dysków SSD PCIe 4.0 x4/x2) (M2M_SB)
- 4 złącza SATA 6 Gb/s
Obsługa RAID 0, RAID 1, RAID 5 i RAID 10 dla urządzeń pamięci masowej NVMe SSD
Obsługa RAID 0, RAID 1, RAID 5 i RAID 10 dla urządzeń pamięci masowej SATA
dimension depth - 80 mm
dimension height - 340 mm
Dimensions - 30.5 cm x 24.4 cm
dimension weight - 2335 g
dimension width - 275 mm
ean - 4719331865139
EAN - 4719331865139
Expansion slots - 1 x PCIe 4.0 x 4
Expansion slots - 1 x PCIe 5.0 x 8
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 2 x M.2
Expansion slots - Number of M.2 (M) slots - 5

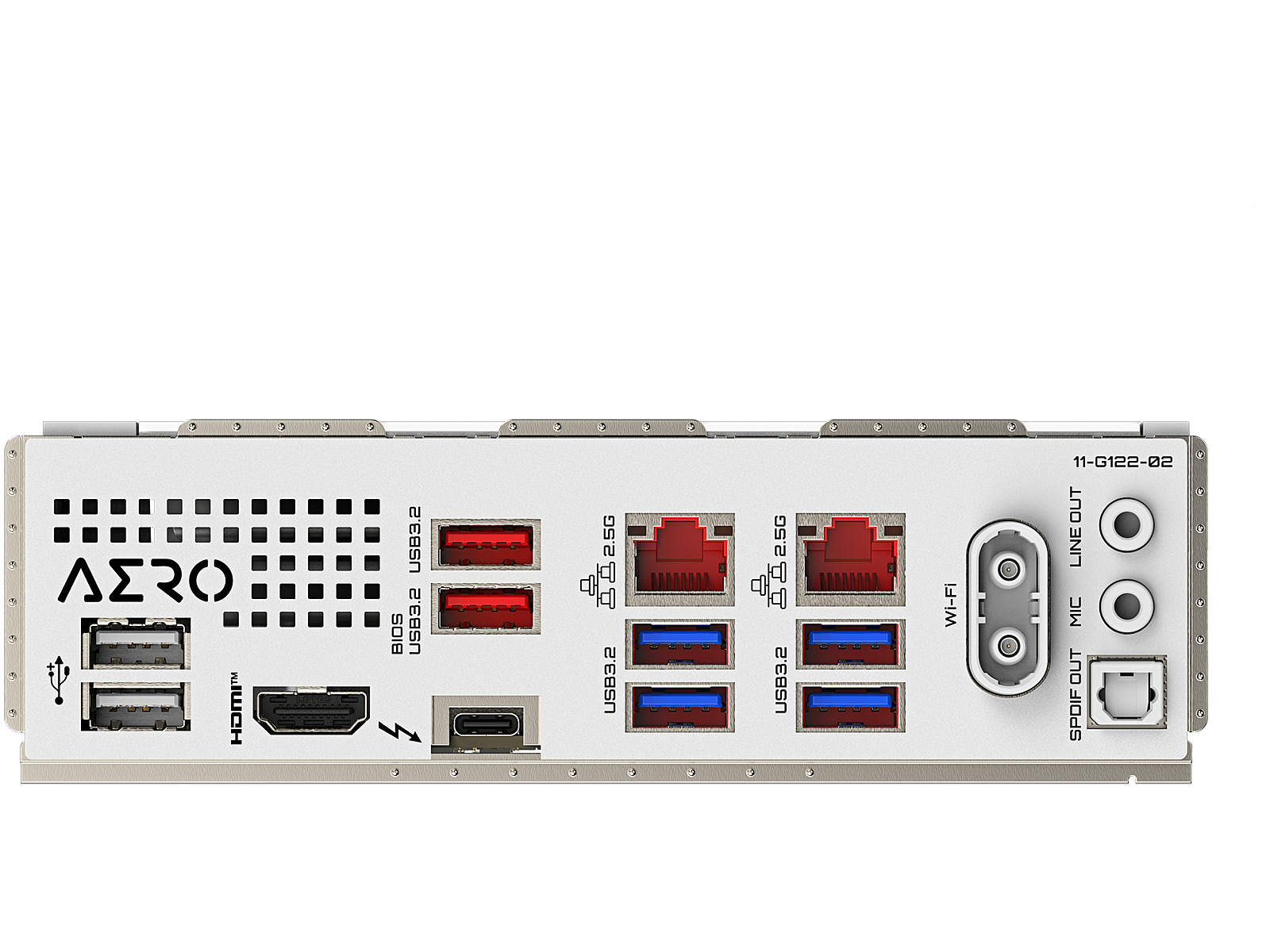

External connectors - 1 x HDMI
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x S/PDIF
External connectors - 1 x Thunderbolt 4
External connectors - 2 x RJ-45
External connectors - 2 x SMA
External connectors - 2 x USB 2.0
External connectors - 2 x USB 3.2 Gen 2 Type-A
External connectors - 4 x USB 3.2 Gen 1 Type-A
Features - Audio chip - Realtek ALC1220
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - PC health monitoring - Fan, Temperature, Voltage
Features - Product colour - White
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200/8266/8400/8600/8800/8933/9066/9200 MHz
Full Description Line - Intel Z890|LGA1851|ATX|DDR5|9200/9066/8933/8800/8600/8400/8266/8200/8000/7950/7900/7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600 MHz|Memory slots 4|1xPCI-Express 4.0 4x |1xPCI-Express 5.0 8x|1xPCI-Express 5.0 16x|5xM.2|1xHDMI|2xUSB 2.0|4xUSB 3.2|1xUSB-C w/Thunderbolt|1xOptical S/PDIF|2xRJ45|2xAudio port|SATA|USB-C|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC1220|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10|TPM Header
Graphics - Zintegrowany procesor graficzny - obsługa Intel HD Graphics:
- 1 złącze Intel Thunderbolt 4 (port USB4 USB Type-C), obsługujące wyjścia wideo DisplayPort i Thunderbolt
Gdy zainstalowany jest monitor Thunderbolt, maksymalna obsługiwana rozdzielczość to 5120x2880@60 Hz z 24 bpp (wyjście pojedynczego wyświetlacza).
Gdy zainstalowany jest monitor USB4 USB Type-C, maksymalna obsługiwana rozdzielczość to 3840x2160@240 Hz (wyjście pojedynczego wyświetlacza).
* Ze względu na ograniczone zasoby I/O architektury komputera, liczba urządzeń Thunderbolt, których można użyć, zależy od liczby instalowanych urządzeń PCI Express. (Więcej informacji można znaleźć w rozdziale 2-6 Złącza tylnego panelu.)
* Obsługa wersji DisplayPort 2.1 i HDCP 2.3
- 1 x port HDMI, obsługujący maksymalną rozdzielczość 4096x2160@60 Hz
* Obsługa wersji HDMI 2.1 i HDCP 2.3.
- 1 x przedni port HDMI, obsługujący maksymalną rozdzielczość 1920x1080@30 Hz
* Obsługa wersji HDMI 1.4.
(Specyfikacja grafiki może się różnić w zależności od obsługi procesora.)
Obsługa do trzech wyświetlaczy jednocześnie
Graphics - DirectX version - 12.0
Gross Weight Kg - 3,54
GTIN - 4719331865139
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC1220
Integrated CPU - Yes
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Total number of SATA connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2x2 connectors - 1
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
LongProductName - Z890 AERO G Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 16+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 + 4xPCIe 4.0,Wi-Fi 7, 2.5GbE LAN, Thunderbolt 4
LongSummaryDescription - GIGABYTE Z890 AERO G Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 16+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 + 4xPCIe 4.0,Wi-Fi 7, 2.5GbE LAN, Thunderbolt 4. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
LPT connector / port - No
M.2 Expansion slots - 5
Manufacturer Code - Z890 AERO G
Manufacturer Name - Gigabyte
Max. number of SATA devices - 4
Max memory size - 256 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8800 MHz
Memory - Supported memory clock speeds - 5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600,8800 MHz
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB
Memory - Supported memory types - DDR5-SDRAM
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7400 MHz
Memory bus frequency - 7600 MHz
Memory bus frequency - 7800 MHz
Memory bus frequency - 7900 MHz
Memory bus frequency - 7950 MHz
Memory bus frequency - 8000 MHz
Memory bus frequency - 8200 MHz
Memory bus frequency - 8266 MHz
Memory bus frequency - 8400 MHz
Memory bus frequency - 8600 MHz
Memory bus frequency - 8800 MHz
Memory bus frequency - 8933 MHz
Memory bus frequency - 9066 MHz
Memory bus frequency - 9200 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - Z890 AERO G
name - GIGABYTE Z890 AERO G, Intel Z890 Mainboard - Sockel LGA 1851 - DDR5
name - Motherboard Z890 AERO
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Network - WLAN controller model - Intel Wi-Fi 7 BE202
Network interface - 2 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - LAN 2 x układy Intel 2.5GbE LAN (2,5 Gbps/1 Gbps/100 Mb/s) Moduł komunikacji bezprzewodowej Intel Wi-Fi 7 BE202 (BE200NGW M) 802.11a, b, g, n, ac, ax, be, obsługujące pasma częstotliwości nośnej 2,4/5/6 GHz BLUETOOTH 5.4 Obsługa standardu bezprzewodowego 11be 160MHz
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 5
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x HDMI
Onboard connectors - 1 x Power button
Onboard connectors - 1 x Q-Flash Plus button
Onboard connectors - 1 x Reset button
Onboard connectors - 1 x Reset jumper
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.2 Gen 1 Type-A
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 3 x 4pin Chassis fan
Onboard connectors - 3 x Addressable LED
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 5 x M.2
Optical S/PDIF Input/Output connectors - 1
Other features - Weight - 2.29 kg
Other information -
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton® Internet Security (OEM version)
LAN bandwidth management software
Packaging data - Package depth - 270 mm
Packaging data - Package height - 80 mm
Packaging data - Package weight - 2.61 kg
Packaging data - Package width - 335 mm
PCI-Express 4.0 4x Expansion slots - 1
PCI-Express 5.0 8x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel Core Ultra (Series 2)
Processor - Maximum internal memory supported by processor - 256 GB
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Processor - Supported processor sockets - LGA 1851
Processor family - Intel Core Ultra
producer - Gigabyte
ProductName - Z890 AERO G Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 16+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 + 4xPCIe 4.0,Wi-Fi 7, 2.5GbE LAN, Thunderbolt 4
RAID - SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 2
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - Thunderbolt ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
RJ45 Input/Output connectors - 2
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 44.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 37.5 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 13.26 kg
Shipping Box Width Shipping/Package Box Dimensions - 30.5 cm
Short description - GIGA Z890 AERO G S1851/DDR5/ATX
ShortSummaryDescription - GIGABYTE Z890 AERO G Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 16+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 + 4xPCIe 4.0,Wi-Fi 7, 2.5GbE LAN, Thunderbolt 4, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), LGA 1851, 256 GB, DDR5-SDRAM
Socket - LGA1851
Software - Norton Internet Security (OEM version) LAN bandwidth management software
Sound card - Realtek ALC1220 CODEC
* Gniazdo wyjścia liniowego na tylnym panelu obsługuje dźwięk DSD.
Dźwięk wysokiej rozdzielczości
2/4/5.1/7.1-kanałowy
* Funkcjonalność gniazda audio można zmienić za pomocą oprogramowania audio. Aby skonfigurować dźwięk 7.1-kanałowy, należy uzyskać dostęp do oprogramowania audio w celu uzyskania ustawień audio.
Obsługa wyjścia S/PDIF
Special functions -
Storage controllers - Number of HDDs supported - 9
Storage controllers - Number of storage drives supported - 4
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
Technical details - Warranty period - 3 year(s)
Title - GIGABYTE Z890 AERO G Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 16+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 + 4xPCIe 4.0,Wi-Fi 7, 2.5GbE LAN, Thunderbolt 4
TPM - Header
Unit Brutto Volume - 0.01018 cubm
Unit Gross Weight - 2.65 kg
Unit Net Weight - 2 kg
URL - https://www.gigabyte.com/
USB-C Interface - Yes
USB-C w/Thunderbolt Input/Output connectors - 1
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 4
USB 3.2 Interface - Yes
USB ports at back panel - 9
USB ports on motherboard - 8
Vendor Homepage - www.gigabyte.com/Motherboard/Z890-AERO-G#kf
vendpn - Z890 AERO G
Warranty - 36 months
WarrantyInfo - 3 years
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
Audio port Input/Output connectors - 2
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Bluetooth Interface - Yes
Brand - GIGABYTE
BrandPartCode - Z890 AERO G
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards
Category Code - MBI
Chipset - Intel Z890
Chipset manufacturer - Intel
Chipset type - Intel Z890 Express Chipset
CnCode CnCode - 84733020
code - Z890 AERO G
COM connector / port - No
CPU socket - LGA1851
Description - Kreatywność zaczyna się tutaj
Płyty główne z serii AERO to innowacyjne rozwiązanie dla twórców treści, które pozwala im sprostać wymagającym zadaniom kreatywnym, takim jak renderowanie 3D i edycja długich filmów. Doskonała łączność Rozszerzalna grafika Ultraszybka pamięć masowa Obsługuje procesory Intel Core Ultra (seria 2) VisionLINK/TB: jeden port USB-C do przesyłania wideo, danych i ładowania Maksymalna skalowalność: 2 gniazda PCIe x16 dla wielu procesorów graficznych Rozszerzona łączność: THUNDERBOLT 4 Type-C z DP-Alt, HDMI Ultraszybkie przechowywanie danych: 5 gniazd M.2, w tym 1 PCIe 5.0 x4 Błyskawiczne sieci: Daul 2,5 GbE LAN i Wi-Fi 7 z kierunkową anteną o bardzo wysokim wzmocnieniu Cyfrowe podwójne rozwiązanie VRM 16+1+2 faz WIFI EZ-Plug: szybka i łatwa konstrukcja do instalacji anteny Wi-Fi EZ-Latch Plus: gniazda PCIe i M.2 z szybkim zwalnianiem i konstrukcją bezśrubową EZ-Latch Click: radiatory M.2 z konstrukcją bezśrubową Sensor Panel Link: wbudowany port wideo dla bezproblemowej konfiguracja panelu w obudowie Przyjazny interfejs użytkownika: Multi-Theme, sterowanie wentylatorem AIO i automatyczne skanowanie Q-Flash w BIOS-ie i oprogramowaniu D5 Bionic Corsa dla nieskończonej wydajności pamięci AI Perfdrive: zapewnia użytkownikom optymalny i dostosowany profil ustawień BIOS-u Zgodność z klasą Premium: 4*DDR5 z obsługą modułów pamięci XMP Wydajne chłodzenie: VRM Thermal Armor Advanced i M.2 Thermal Guard L Dźwięk wysokiej rozdzielczości: ALC1220 i kondensatory klasy audiofilskiej WIMA Gniazdo PCIe UD X: gniazdo PCIe 5.0 x16 o 10-krotnie większej wytrzymałości dla karty graficznej Ultratrwała osłona PCIe: metalowa tylna płyta gniazda PCIe x16 zapewniająca zwiększoną trwałość
Description - Z890 AERO G Supports Intel® Core™ Ultra processors (Series 2) VisionLINK/TB : One USB-C® Port for Video, Data Transfer and Charging Ultimate Scalibility : 2*PCIe x16 slots for Multi-GPU Extended Connectivity : THUNDERBOLT™ 4 Type-C®with DP-Alt, HDMI Ultra-Fast Storage : 5*M.2 slots, including 1* PCIe 5.0 x4 Blazing Fast Networks : Daul 2.5 GbE LAN and Wi-Fi 7 with directional Ultra-high gain antenna Digital twin 16+1+2 phases VRM solution WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design EZ-Latch Click : M.2 heatsinks with screwless design Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW D5 Bionic Corsa for Infinite Memory Performance AI Perfdrive : Provides optimal and customized BIOS preset profile for users Premium Compatibility : 4*DDR5 with XMP Memory Module Support Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L High-Res Audio : ALC1220 & WIMA Audiophile Grade Capacitors PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
Detailed data on disk/drive interfaces - CPU:
- 1 x złącze M.2 (Socket 3, klucz M, typ 25110/22110/2580/2280 PCIe 5.0 x4/x2 obsługa SSD) (M2A_CPU)
- 1 x złącze M.2 (Socket 3, klucz M, typ 25110/22110/2580/2280 PCIe 4.0 x4/x2 obsługa SSD) (M2B_CPU)
Chipset:
- 1 x złącze M.2 (Socket 3, klucz M, typ 22110/2280 PCIe 4.0 x4/x2 obsługa SSD) (M2Q_SB)
- 1 x złącze M.2 (Socket 3, klucz M, typ 2280 PCIe 4.0 x4/x2 obsługa SSD) (M2P_SB)
- 1 x złącze M.2 (Socket 3, klucz M, typ 2280 SATA i obsługa dysków SSD PCIe 4.0 x4/x2) (M2M_SB)
- 4 złącza SATA 6 Gb/s
Obsługa RAID 0, RAID 1, RAID 5 i RAID 10 dla urządzeń pamięci masowej NVMe SSD
Obsługa RAID 0, RAID 1, RAID 5 i RAID 10 dla urządzeń pamięci masowej SATA
dimension depth - 80 mm
dimension height - 340 mm
Dimensions - 30.5 cm x 24.4 cm
dimension weight - 2335 g
dimension width - 275 mm
ean - 4719331865139
EAN - 4719331865139
Expansion slots - 1 x PCIe 4.0 x 4
Expansion slots - 1 x PCIe 5.0 x 8
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 2 x M.2
Expansion slots - Number of M.2 (M) slots - 5
External connectors - 1 x HDMI
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x S/PDIF
External connectors - 1 x Thunderbolt 4
External connectors - 2 x RJ-45
External connectors - 2 x SMA
External connectors - 2 x USB 2.0
External connectors - 2 x USB 3.2 Gen 2 Type-A
External connectors - 4 x USB 3.2 Gen 1 Type-A
Features - Audio chip - Realtek ALC1220
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - PC health monitoring - Fan, Temperature, Voltage
Features - Product colour - White
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200/8266/8400/8600/8800/8933/9066/9200 MHz
Full Description Line - Intel Z890|LGA1851|ATX|DDR5|9200/9066/8933/8800/8600/8400/8266/8200/8000/7950/7900/7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600 MHz|Memory slots 4|1xPCI-Express 4.0 4x |1xPCI-Express 5.0 8x|1xPCI-Express 5.0 16x|5xM.2|1xHDMI|2xUSB 2.0|4xUSB 3.2|1xUSB-C w/Thunderbolt|1xOptical S/PDIF|2xRJ45|2xAudio port|SATA|USB-C|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC1220|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10|TPM Header
Graphics - Zintegrowany procesor graficzny - obsługa Intel HD Graphics:
- 1 złącze Intel Thunderbolt 4 (port USB4 USB Type-C), obsługujące wyjścia wideo DisplayPort i Thunderbolt
Gdy zainstalowany jest monitor Thunderbolt, maksymalna obsługiwana rozdzielczość to 5120x2880@60 Hz z 24 bpp (wyjście pojedynczego wyświetlacza).
Gdy zainstalowany jest monitor USB4 USB Type-C, maksymalna obsługiwana rozdzielczość to 3840x2160@240 Hz (wyjście pojedynczego wyświetlacza).
* Ze względu na ograniczone zasoby I/O architektury komputera, liczba urządzeń Thunderbolt, których można użyć, zależy od liczby instalowanych urządzeń PCI Express. (Więcej informacji można znaleźć w rozdziale 2-6 Złącza tylnego panelu.)
* Obsługa wersji DisplayPort 2.1 i HDCP 2.3
- 1 x port HDMI, obsługujący maksymalną rozdzielczość 4096x2160@60 Hz
* Obsługa wersji HDMI 2.1 i HDCP 2.3.
- 1 x przedni port HDMI, obsługujący maksymalną rozdzielczość 1920x1080@30 Hz
* Obsługa wersji HDMI 1.4.
(Specyfikacja grafiki może się różnić w zależności od obsługi procesora.)
Obsługa do trzech wyświetlaczy jednocześnie
Graphics - DirectX version - 12.0
Gross Weight Kg - 3,54
GTIN - 4719331865139
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC1220
Integrated CPU - Yes
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Total number of SATA connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2x2 connectors - 1
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
LongProductName - Z890 AERO G Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 16+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 + 4xPCIe 4.0,Wi-Fi 7, 2.5GbE LAN, Thunderbolt 4
LongSummaryDescription - GIGABYTE Z890 AERO G Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 16+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 + 4xPCIe 4.0,Wi-Fi 7, 2.5GbE LAN, Thunderbolt 4. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
LPT connector / port - No
M.2 Expansion slots - 5
Manufacturer Code - Z890 AERO G
Manufacturer Name - Gigabyte
Max. number of SATA devices - 4
Max memory size - 256 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8800 MHz
Memory - Supported memory clock speeds - 5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600,8800 MHz
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB
Memory - Supported memory types - DDR5-SDRAM
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7400 MHz
Memory bus frequency - 7600 MHz
Memory bus frequency - 7800 MHz
Memory bus frequency - 7900 MHz
Memory bus frequency - 7950 MHz
Memory bus frequency - 8000 MHz
Memory bus frequency - 8200 MHz
Memory bus frequency - 8266 MHz
Memory bus frequency - 8400 MHz
Memory bus frequency - 8600 MHz
Memory bus frequency - 8800 MHz
Memory bus frequency - 8933 MHz
Memory bus frequency - 9066 MHz
Memory bus frequency - 9200 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - Z890 AERO G
name - GIGABYTE Z890 AERO G, Intel Z890 Mainboard - Sockel LGA 1851 - DDR5
name - Motherboard Z890 AERO
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Network - WLAN controller model - Intel Wi-Fi 7 BE202
Network interface - 2 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - LAN 2 x układy Intel 2.5GbE LAN (2,5 Gbps/1 Gbps/100 Mb/s) Moduł komunikacji bezprzewodowej Intel Wi-Fi 7 BE202 (BE200NGW M) 802.11a, b, g, n, ac, ax, be, obsługujące pasma częstotliwości nośnej 2,4/5/6 GHz BLUETOOTH 5.4 Obsługa standardu bezprzewodowego 11be 160MHz
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 5
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x HDMI
Onboard connectors - 1 x Power button
Onboard connectors - 1 x Q-Flash Plus button
Onboard connectors - 1 x Reset button
Onboard connectors - 1 x Reset jumper
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.2 Gen 1 Type-A
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 3 x 4pin Chassis fan
Onboard connectors - 3 x Addressable LED
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 5 x M.2
Optical S/PDIF Input/Output connectors - 1
Other features - Weight - 2.29 kg
Other information -
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton® Internet Security (OEM version)
LAN bandwidth management software
Packaging data - Package depth - 270 mm
Packaging data - Package height - 80 mm
Packaging data - Package weight - 2.61 kg
Packaging data - Package width - 335 mm
PCI-Express 4.0 4x Expansion slots - 1
PCI-Express 5.0 8x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel Core Ultra (Series 2)
Processor - Maximum internal memory supported by processor - 256 GB
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Processor - Supported processor sockets - LGA 1851
Processor family - Intel Core Ultra
producer - Gigabyte
ProductName - Z890 AERO G Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 16+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 + 4xPCIe 4.0,Wi-Fi 7, 2.5GbE LAN, Thunderbolt 4
RAID - SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 2
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - Thunderbolt ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
RJ45 Input/Output connectors - 2
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 44.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 37.5 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 13.26 kg
Shipping Box Width Shipping/Package Box Dimensions - 30.5 cm
Short description - GIGA Z890 AERO G S1851/DDR5/ATX
ShortSummaryDescription - GIGABYTE Z890 AERO G Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 16+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 + 4xPCIe 4.0,Wi-Fi 7, 2.5GbE LAN, Thunderbolt 4, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), LGA 1851, 256 GB, DDR5-SDRAM
Socket - LGA1851
Software - Norton Internet Security (OEM version) LAN bandwidth management software
Sound card - Realtek ALC1220 CODEC
* Gniazdo wyjścia liniowego na tylnym panelu obsługuje dźwięk DSD.
Dźwięk wysokiej rozdzielczości
2/4/5.1/7.1-kanałowy
* Funkcjonalność gniazda audio można zmienić za pomocą oprogramowania audio. Aby skonfigurować dźwięk 7.1-kanałowy, należy uzyskać dostęp do oprogramowania audio w celu uzyskania ustawień audio.
Obsługa wyjścia S/PDIF
Special functions -
Storage controllers - Number of HDDs supported - 9
Storage controllers - Number of storage drives supported - 4
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
Technical details - Warranty period - 3 year(s)
Title - GIGABYTE Z890 AERO G Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 16+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 + 4xPCIe 4.0,Wi-Fi 7, 2.5GbE LAN, Thunderbolt 4
TPM - Header
Unit Brutto Volume - 0.01018 cubm
Unit Gross Weight - 2.65 kg
Unit Net Weight - 2 kg
URL - https://www.gigabyte.com/
USB-C Interface - Yes
USB-C w/Thunderbolt Input/Output connectors - 1
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 4
USB 3.2 Interface - Yes
USB ports at back panel - 9
USB ports on motherboard - 8
Vendor Homepage - www.gigabyte.com/Motherboard/Z890-AERO-G#kf
vendpn - Z890 AERO G
Warranty - 36 months
WarrantyInfo - 3 years
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
