ID: 1154088
Product code: Z890 EAGLE
In stock 17 units
Warranty: 3 years

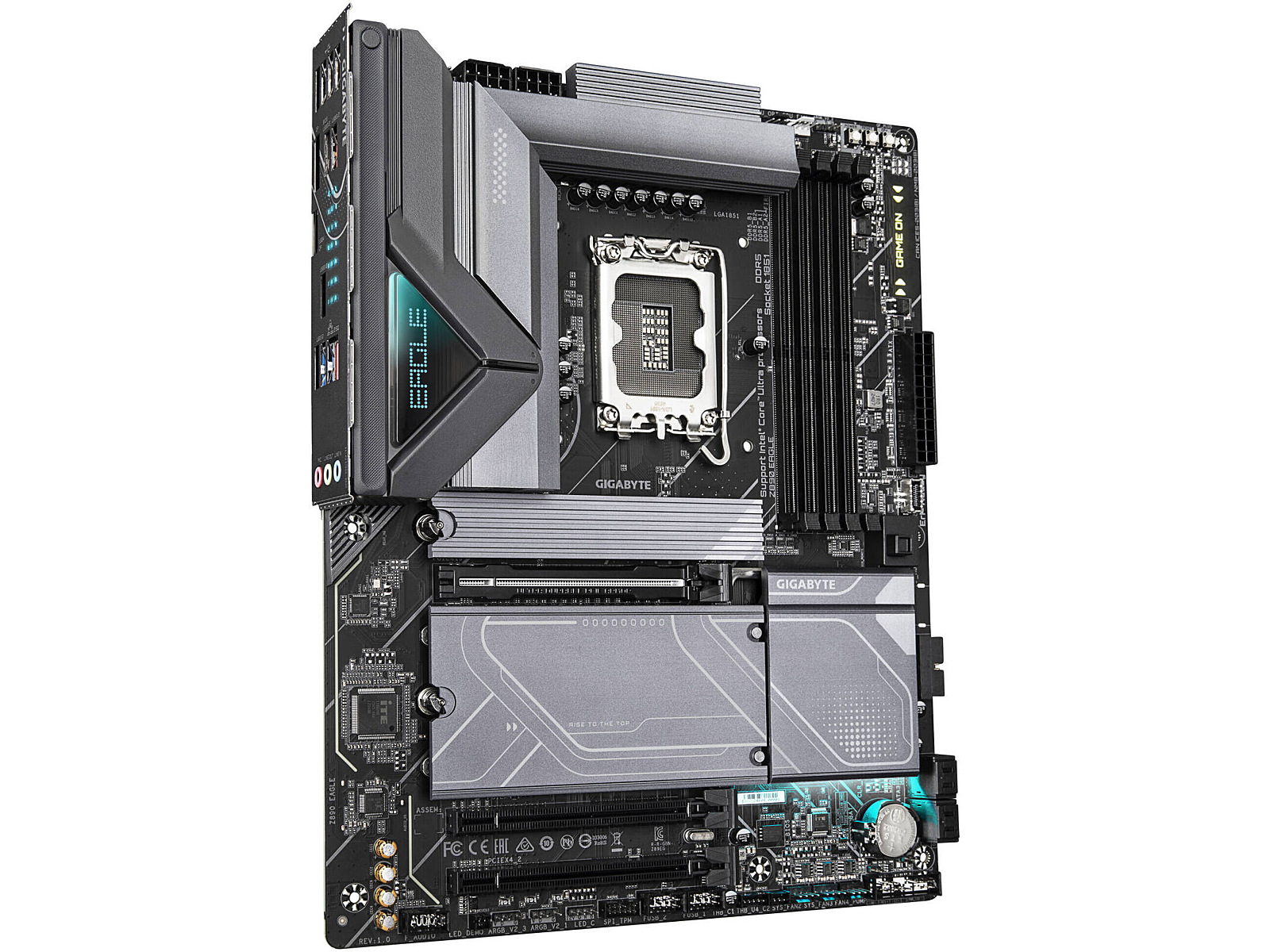

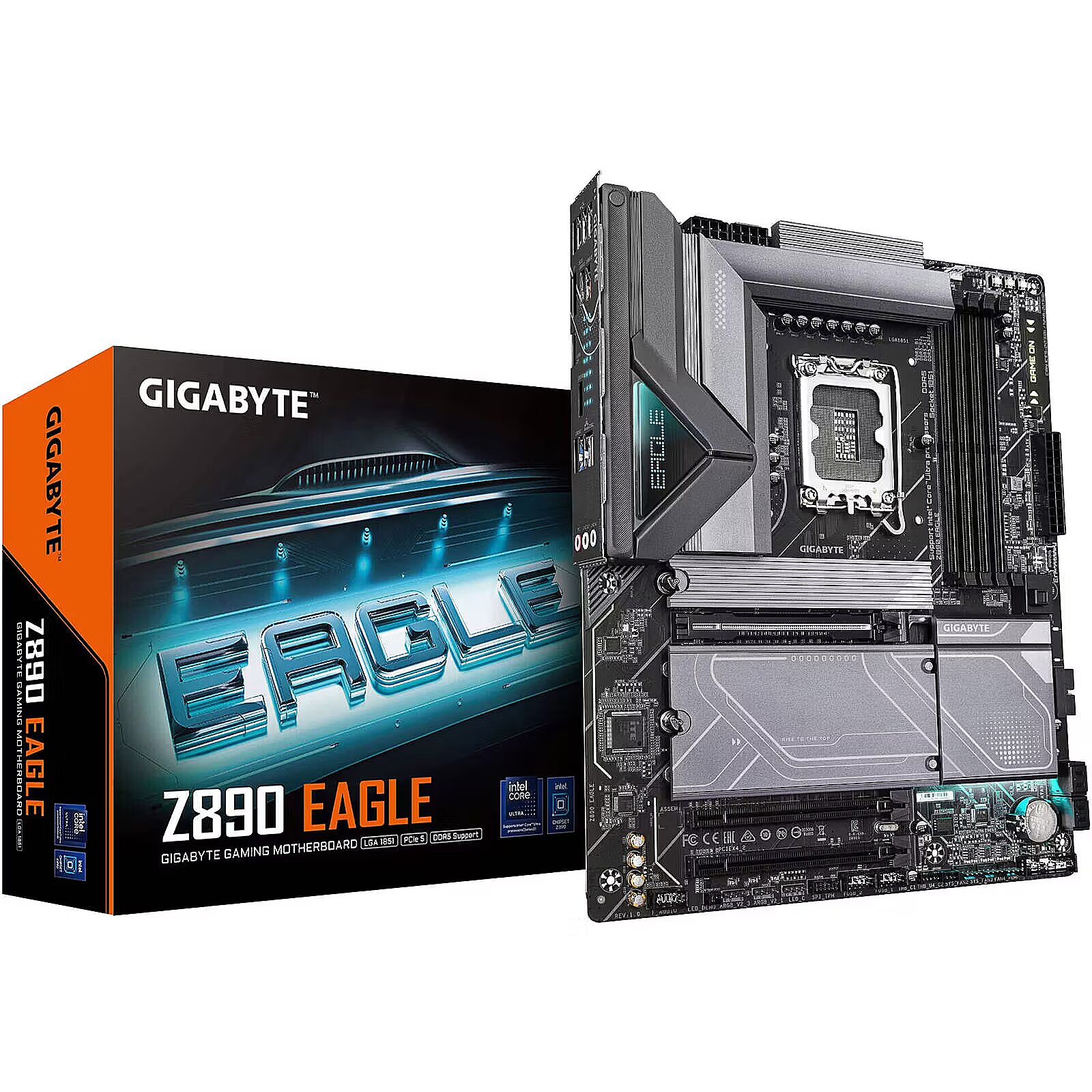

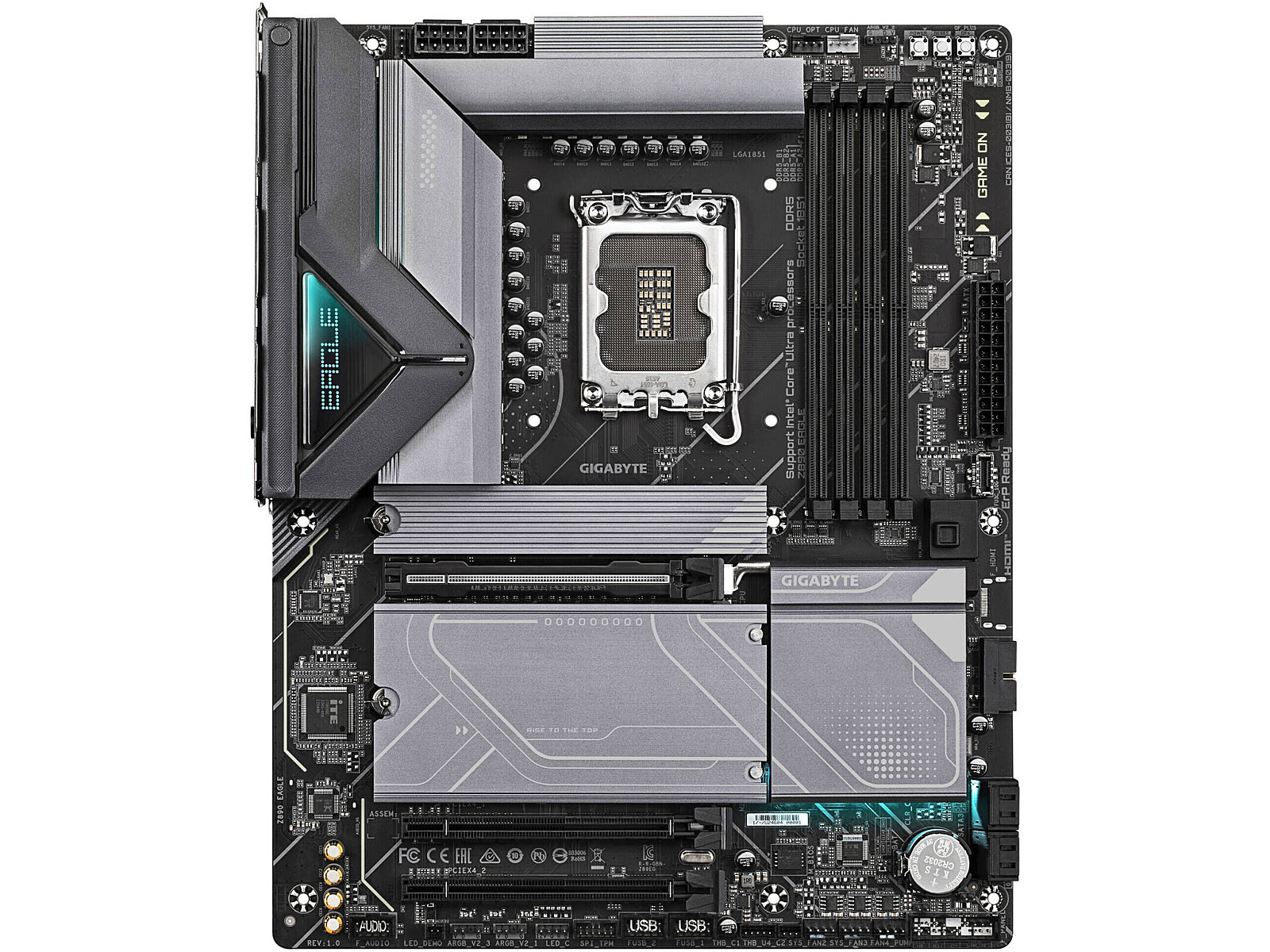

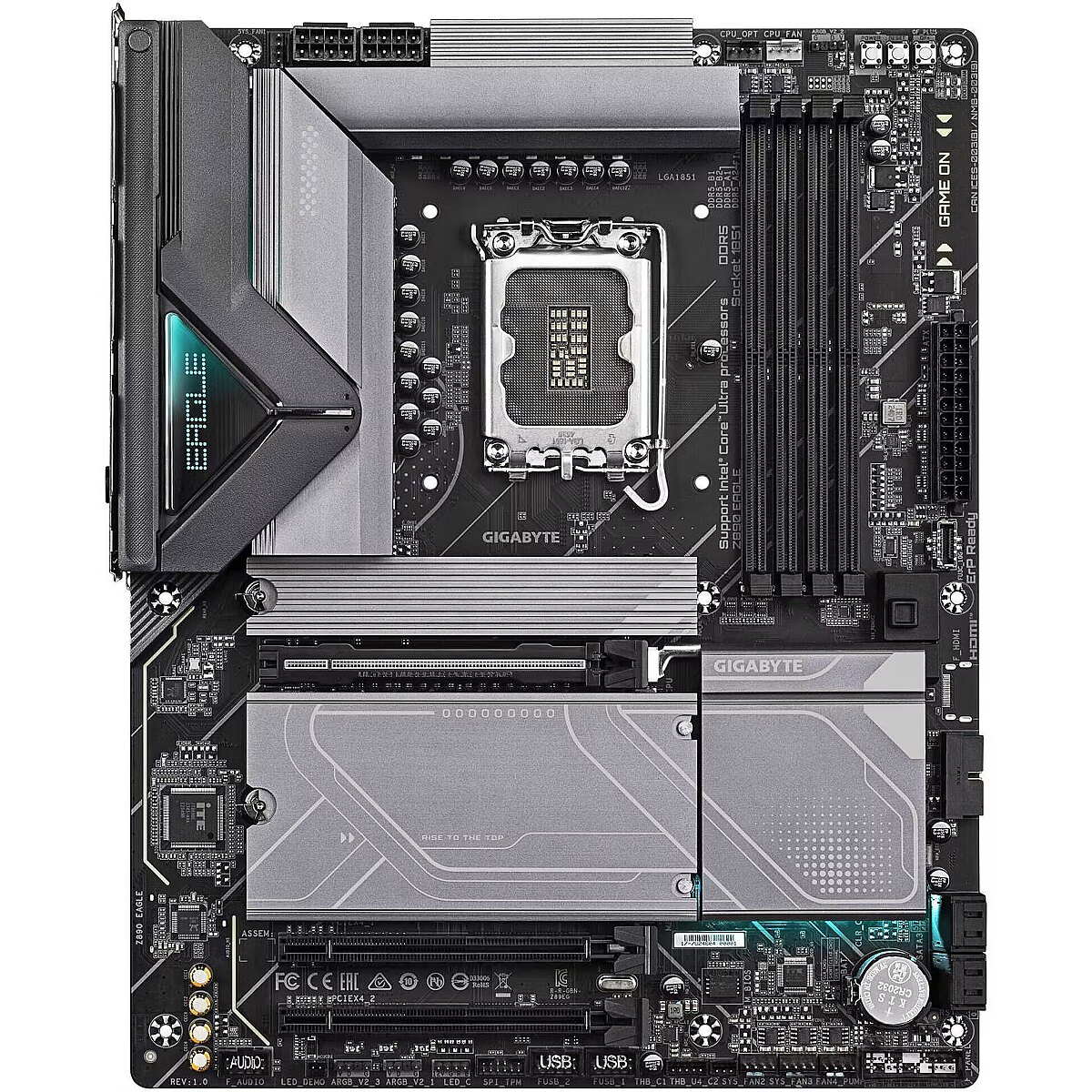

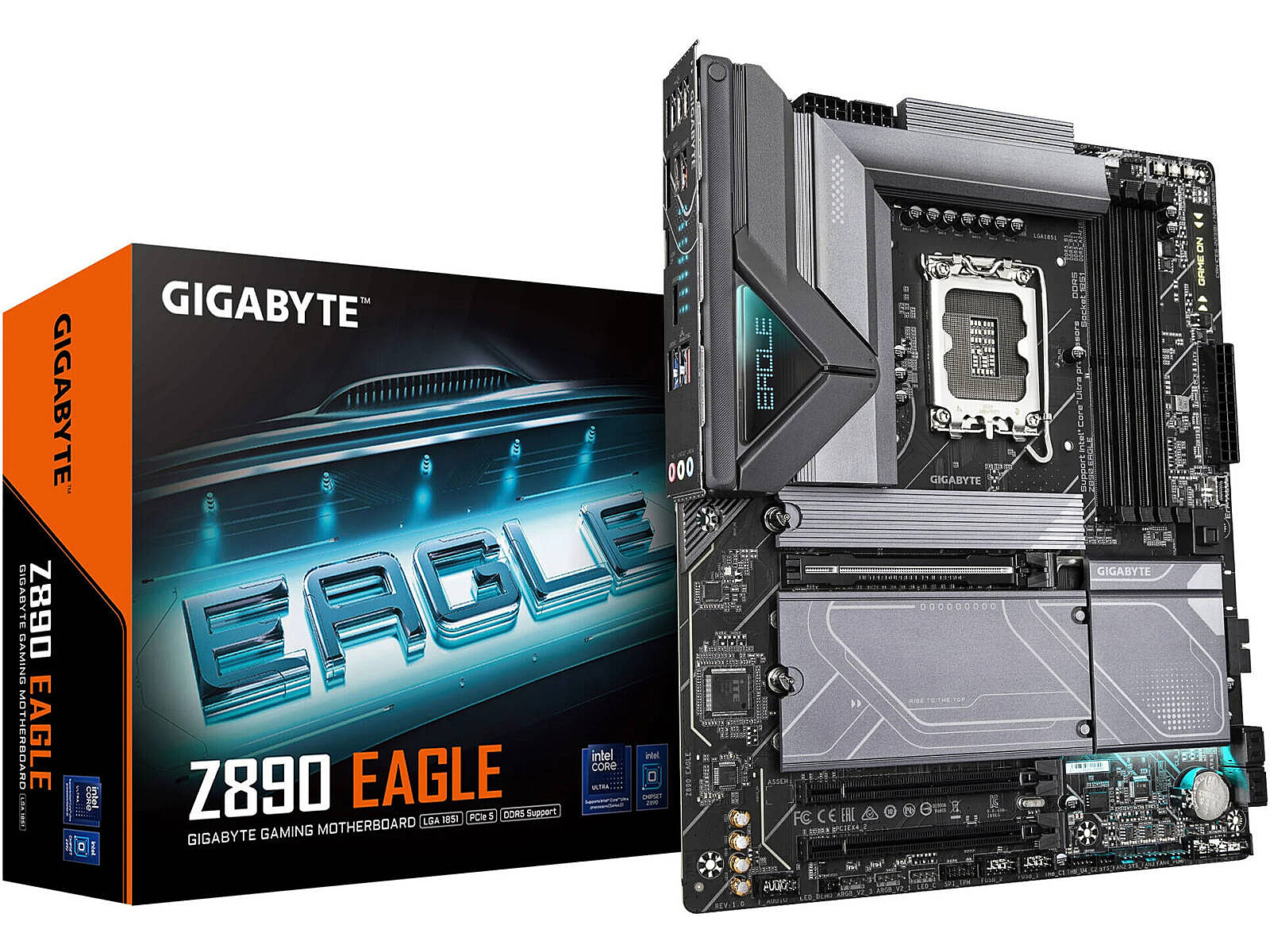

Gigabyte Z890 EAGLE
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: on Wednesday, 27.11.2024
- Delivery to Omniva parcel machine free of charge: on Wednesday, 27.11.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: on Wednesday, 27.11.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: on Wednesday, 27.11.2024
- Delivery to address in Riga 3.99 €: on Wednesday, 27.11.2024
- Delivery to address in Latvia 6.99 €: on Wednesday, 27.11.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: on Monday, 25.11.2024 after 15:00
Main product parameters All parameters
- Series: Gigabyte Eagle
- CPU Socket: LGA 1851
- Chipset: Intel Z890
- Form factor: ATX
- Type: DDR5
- RAM Slots: 4
- Built-in Wi-Fi: Nav
Basic information
Series
: Gigabyte Eagle
CPU Socket
LGA 1851
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel Z890
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
ATX
The physical size of the motherboard. Dateks.lv offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR5
RAM Slots
4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR5 6400 (OC 9200)
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 0
DVI
: 0
HDMI
: 0
DisplayPort
: 1
Integrated sound card
: Realtek Audio CODEC
Wireless connections
Built-in Bluetooth
: Nav
Built-in Wi-Fi
: Nav
External ports
External USB Type-C
: 1
External USB 2.0
: 4
External USB 3.0 (USB 3.2 Gen1)
: 3
External USB 3.1 (USB 3.2 Gen2)
: 2
Internal ports
Internal A-RGB 5V (3-pin)
: 3
Internal RGB 12V (4-pin)
: 1
Internal USB 2.0
: 2
Internal USB 3.0
: 1
Internal USB Type-C
: 1
M.2 Port
: 4
SATA3 ports
: 4
More detailed specification
Accessories included -
Audio port Input/Output connectors - 3
BIOS - 1 x 256 Mbit flash Użycie licencjonowanego BIOS-u AMI UEFI PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
category - PC Components|Mainboards|Intel Mainboards
Category Code - MBI
Chipset - Intel Z890
Chipset manufacturer - Intel
Chipset type - Intel Z890 Express
code - Z890 EAGLE
COM connector / port - No
CPU socket - LGA1851
Description - Z890 EAGLE - Supports Intel® Core™ Ultra processors (Series 2) - Digital twin 14+1+2 phases VRM solution - D5 Bionic Corsa for Infinite Memory Performance - AI Perfdrive : Provides optimal and customized BIOS preset profile for users - Premium Compatibility : 4*DDR5 with XMP Memory Module Support - EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design - EZ-Latch Click : M.2 heatsinks with screwless design - Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW - New Power Monitor in HWinfo for real-time monitoring on CPU power phases - Ultra-Fast Storage : 4*M.2 slots, including 1* PCIe 5.0 x4 - PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card - Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard - Fast Networking : 2.5GbE LAN - Extended Connectivity : USB4 Type-C with DP-Alt, DisplayPort
Description - Z890 EAGLE Obsługuje procesory Intel Core Ultra (seria 2) Cyfrowe podwójne rozwiązanie VRM 14+1+2 fazy D5 Bionic Corsa dla nieskończonej wydajności pamięci AI Perfdrive: Zapewnia użytkownikom optymalny i dostosowany profil BIOS-u Kompatybilność Premium: 4*DDR5 z obsługą modułów pamięci XMP EZ-Latch Plus: Gniazda PCIe i M.2 z szybkozłączką i konstrukcją bezśrubową EZ-Latch Click: Radiatory M.2 o konstrukcji bezśrubowej Przyjazny interfejs użytkownika: obsługa wielu motywów, sterowanie wentylatorami AIO i automatyczne skanowanie Q-Flash w BIOS-ie i oprogramowaniu Nowy monitor zasilania w HWinfo do monitorowania w czasie rzeczywistym faz zasilania procesora Ultraszybka pamięć masowa: 4 gniazda M.2, w tym 1 PCIe 5.0 x4 Gniazdo PCIe UD X: gniazdo PCIe 5.0 x16 o 10-krotnej wytrzymałości dla karty graficznej Wydajne chłodzenie: VRM Thermal Armor Advanced i M.2 Thermal Guard Szybka sieć: 2,5 GbE LAN Rozszerzona łączność: USB4 Type-C z DP-Alt, DisplayPort
Detailed data on disk/drive interfaces - CPU: 1 x M.2 connector (Socket 3, M key, obsługuje 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, obsługuje 22110/2280 PCIe 4.0 x4/x2 SSD) (M2B_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, obsługuje 22110/2280 PCIe 4.0 x4/x2 SSD) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, obsługuje 22110/2280 SATA and PCIe 4.0 x4/x2 SSD) (M2M_SB) 4 x złącze SATA 6Gb/s Obsługa RAID 0, RAID 1, RAID 5 i RAID 10 dla urządzeń pamięci masowej NVMe SSD
Obsługa RAID 0, RAID 1, RAID 5 i RAID 10 dla urządzeń pamięci masowej SATA
dimensionalWeight - 1610
dimension depth - 80 mm
dimension height - 340 mm
Dimensions - 30.5 x 24.4 cm
dimension weight - 1945 g
dimension width - 270 mm
DisplayPort Input/Output connectors - 1
ean - 4719331865214
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 2 x PCIe 4.0 x 16
Expansion slots - PCI Express x16 slots - 3

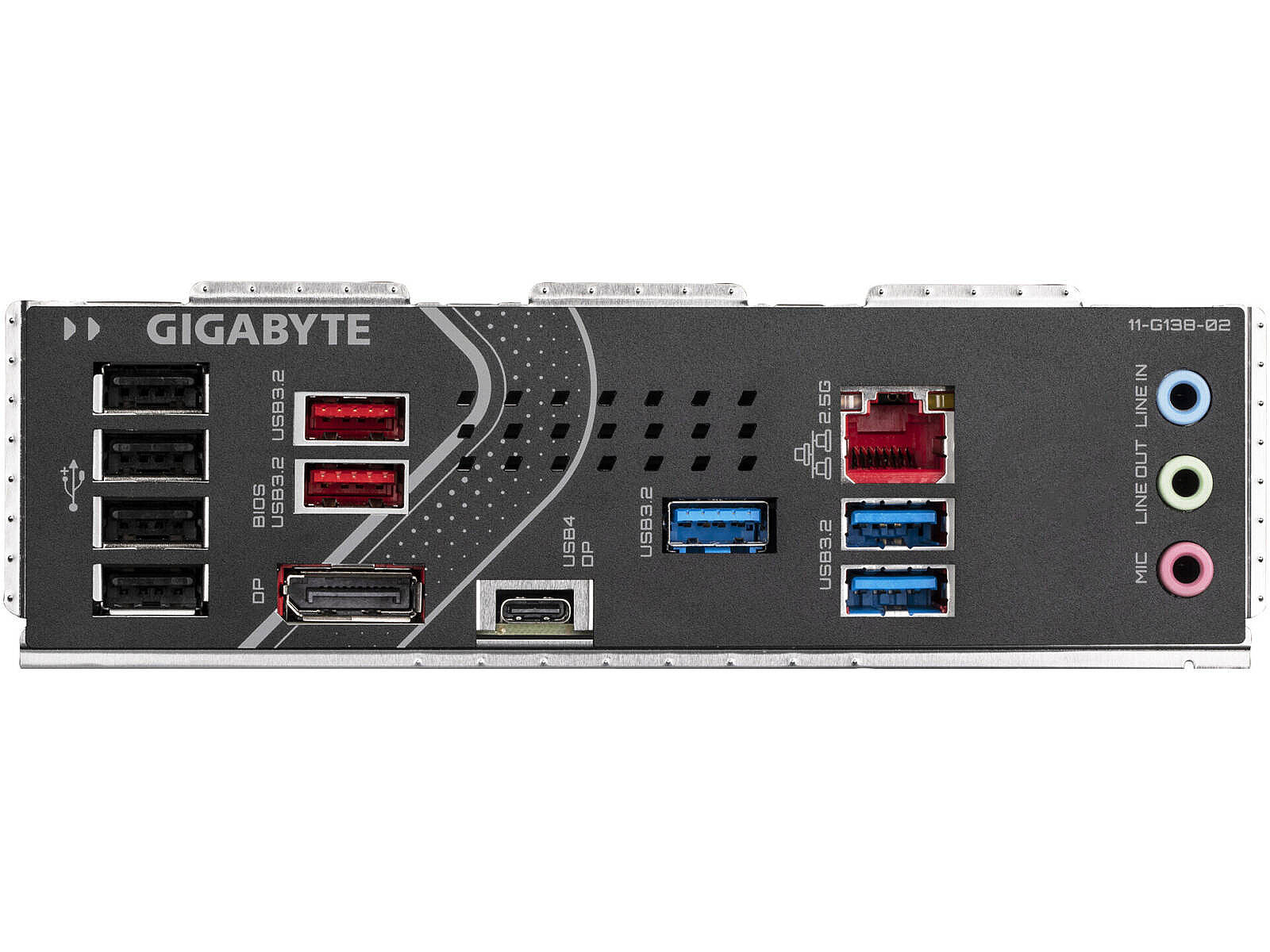

External connectors - 1 x DisplayPort
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x USB4 Type-C
External connectors - 2 x SMA
External connectors - 2 x USB 3.2 Gen 2 Type-A
External connectors - 3 x USB 3.2 Gen 1 Type-A
External connectors - 4 x USB 2.0
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - Intel Z890
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - PC health monitoring - Fan
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - Product colour - Black
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200/8266/8400/8600/8800 MHz
Full Description Line - Intel Z890|LGA1851|ATX|DDR5|8800/8600/8400/8266/8200/8000/7950/7900/7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600 MHz|Memory slots 4|2xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x|4xM.2|1xDisplayPort|4xUSB 2.0|5xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|USB-C|USB 2.0|USB 3.2|Video Depending on CPU|LAN 2.5 Gigabit|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10|TPM Header
Graphics - Zintegrowany procesor graficzny - obsługa Intel HD Graphics: 1 x port USB4 USB Type-C, obsługujący wyjścia wideo USB4 i DisplayPort oraz maksymalną rozdzielczość 3840x2160@144 Hz. Obsługa wersji DisplayPort 2.1. 1 x DisplayPort, obsługujący maksymalną rozdzielczość 3840x2160@144 Hz. Obsługa wersji DisplayPort 2.1. (Specyfikacja graficzna może się różnić w zależności od obsługi procesora.)
guarantee - 36
guarantee_type - normal
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 3
LPT connector / port - No
M.2 Expansion slots - 4
Max. number of SATA devices - 4
Max memory size - 256 GB
Memory - Maximum internal memory - 256 GB
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8800 MHz
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 5800
Memory - Supported memory clock speeds - 6000
Memory - Supported memory clock speeds - 6200
Memory - Supported memory clock speeds - 6400
Memory - Supported memory clock speeds - 6600
Memory - Supported memory clock speeds - 6800
Memory - Supported memory clock speeds - 7000
Memory - Supported memory clock speeds - 7200
Memory - Supported memory clock speeds - 7400
Memory - Supported memory clock speeds - 7600
Memory - Supported memory clock speeds - 7800
Memory - Supported memory clock speeds - 7900
Memory - Supported memory clock speeds - 7950
Memory - Supported memory clock speeds - 8000
Memory - Supported memory clock speeds - 8200
Memory - Supported memory clock speeds - 8266
Memory - Supported memory clock speeds - 8400
Memory - Supported memory clock speeds - 8600 MHz
Memory - Supported memory types - DDR5 UDIMM
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7400 MHz
Memory bus frequency - 7600 MHz
Memory bus frequency - 7800 MHz
Memory bus frequency - 7900 MHz
Memory bus frequency - 7950 MHz
Memory bus frequency - 8000 MHz
Memory bus frequency - 8200 MHz
Memory bus frequency - 8266 MHz
Memory bus frequency - 8400 MHz
Memory bus frequency - 8600 MHz
Memory bus frequency - 8800 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - Z890 EAGLE
name - GIGABYTE Z890 EAGLE Mainboard, Sockel LGA 1851, Intel Z890, ATX, DDR5
name - Motherboard Z890 EAGLE s1851 4DDR5 DP/TB4 ATX
Network - Bluetooth - Yes
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 3
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power button
Onboard connectors - 1 x Q-Flash Plus button
Onboard connectors - 1 x Reset button
Onboard connectors - 1 x Reset jumper
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.2 Gen 2 Type-C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x Thunderbolt
Onboard connectors - 2 x USB 3.2 Gen 1 Type-A
Onboard connectors - 3 x 4pin Chassis fan
Onboard connectors - 3 x Addressable LED
Onboard connectors - 4 x M.2
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 4 x USB 2.0/1.1
Other information -
PCI-Express 4.0 4x Expansion slots - 2
PCI-Express 5.0 16x Expansion slots - 1
Processor - Maximum internal memory supported by processor - 256 GB
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Processor - Supported processor sockets - LGA 1851
Processor family - Intel Core Ultra
producer - Gigabyte
producerCode - Z890 EAGLE
productName - Gigabyte Z890 EAGLE motherboard
productSize - Normal
RAID - SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
RJ45 Input/Output connectors - 1
Shipping Box Depth Shipping/Package Box Dimensions - 57.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 37.5 cm
Shipping box quantity - 8
Shipping Box Weight Shipping/Package Box Dimensions - 17.46 kg
Shipping Box Width Shipping/Package Box Dimensions - 36.5 cm
sizeX - 84
sizeY - 282
sizeZ - 340
Socket - LGA1851
Software - Norton Internet Security (OEM version) Oprogramowanie do zarządzania przepustowością sieci LAN
Sound card - Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Special functions - Obsługa GIGABYTE Control Center (GCC) Obsługa Q-Flash Obsługa Q-Flash Plus Obsługa Smart Backup
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
TPM - Header
Unit Box Height - 0.08
Unit Box Length - 0.34
Unit Box Width - 0.27
Unit Brutto Volume - 0.009838 cubm
Unit Gross Weight - 2.18 kg
Unit Net Weight - 2 kg
USB-C Input/Output connectors - 1
USB-C Interface - Yes
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 5
USB 3.2 Interface - Yes
USB ports at back panel - 10
USB ports on motherboard - 7
Vendor Homepage - www.gigabyte.com/Motherboard/Z890-EAGLE#kf
vendpn - Z890 EAGLE
Warranty - 36 months
warrantyLength - 36
warrantyType - G
weight - 1942
Audio port Input/Output connectors - 3
BIOS - 1 x 256 Mbit flash Użycie licencjonowanego BIOS-u AMI UEFI PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
category - PC Components|Mainboards|Intel Mainboards
Category Code - MBI
Chipset - Intel Z890
Chipset manufacturer - Intel
Chipset type - Intel Z890 Express
code - Z890 EAGLE
COM connector / port - No
CPU socket - LGA1851
Description - Z890 EAGLE - Supports Intel® Core™ Ultra processors (Series 2) - Digital twin 14+1+2 phases VRM solution - D5 Bionic Corsa for Infinite Memory Performance - AI Perfdrive : Provides optimal and customized BIOS preset profile for users - Premium Compatibility : 4*DDR5 with XMP Memory Module Support - EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design - EZ-Latch Click : M.2 heatsinks with screwless design - Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW - New Power Monitor in HWinfo for real-time monitoring on CPU power phases - Ultra-Fast Storage : 4*M.2 slots, including 1* PCIe 5.0 x4 - PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card - Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard - Fast Networking : 2.5GbE LAN - Extended Connectivity : USB4 Type-C with DP-Alt, DisplayPort
Description - Z890 EAGLE Obsługuje procesory Intel Core Ultra (seria 2) Cyfrowe podwójne rozwiązanie VRM 14+1+2 fazy D5 Bionic Corsa dla nieskończonej wydajności pamięci AI Perfdrive: Zapewnia użytkownikom optymalny i dostosowany profil BIOS-u Kompatybilność Premium: 4*DDR5 z obsługą modułów pamięci XMP EZ-Latch Plus: Gniazda PCIe i M.2 z szybkozłączką i konstrukcją bezśrubową EZ-Latch Click: Radiatory M.2 o konstrukcji bezśrubowej Przyjazny interfejs użytkownika: obsługa wielu motywów, sterowanie wentylatorami AIO i automatyczne skanowanie Q-Flash w BIOS-ie i oprogramowaniu Nowy monitor zasilania w HWinfo do monitorowania w czasie rzeczywistym faz zasilania procesora Ultraszybka pamięć masowa: 4 gniazda M.2, w tym 1 PCIe 5.0 x4 Gniazdo PCIe UD X: gniazdo PCIe 5.0 x16 o 10-krotnej wytrzymałości dla karty graficznej Wydajne chłodzenie: VRM Thermal Armor Advanced i M.2 Thermal Guard Szybka sieć: 2,5 GbE LAN Rozszerzona łączność: USB4 Type-C z DP-Alt, DisplayPort
Detailed data on disk/drive interfaces - CPU: 1 x M.2 connector (Socket 3, M key, obsługuje 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, obsługuje 22110/2280 PCIe 4.0 x4/x2 SSD) (M2B_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, obsługuje 22110/2280 PCIe 4.0 x4/x2 SSD) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, obsługuje 22110/2280 SATA and PCIe 4.0 x4/x2 SSD) (M2M_SB) 4 x złącze SATA 6Gb/s Obsługa RAID 0, RAID 1, RAID 5 i RAID 10 dla urządzeń pamięci masowej NVMe SSD
Obsługa RAID 0, RAID 1, RAID 5 i RAID 10 dla urządzeń pamięci masowej SATA
dimensionalWeight - 1610
dimension depth - 80 mm
dimension height - 340 mm
Dimensions - 30.5 x 24.4 cm
dimension weight - 1945 g
dimension width - 270 mm
DisplayPort Input/Output connectors - 1
ean - 4719331865214
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 2 x PCIe 4.0 x 16
Expansion slots - PCI Express x16 slots - 3
External connectors - 1 x DisplayPort
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x USB4 Type-C
External connectors - 2 x SMA
External connectors - 2 x USB 3.2 Gen 2 Type-A
External connectors - 3 x USB 3.2 Gen 1 Type-A
External connectors - 4 x USB 2.0
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - Intel Z890
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - PC health monitoring - Fan
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - Product colour - Black
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200/8266/8400/8600/8800 MHz
Full Description Line - Intel Z890|LGA1851|ATX|DDR5|8800/8600/8400/8266/8200/8000/7950/7900/7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600 MHz|Memory slots 4|2xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x|4xM.2|1xDisplayPort|4xUSB 2.0|5xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|USB-C|USB 2.0|USB 3.2|Video Depending on CPU|LAN 2.5 Gigabit|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10|TPM Header
Graphics - Zintegrowany procesor graficzny - obsługa Intel HD Graphics: 1 x port USB4 USB Type-C, obsługujący wyjścia wideo USB4 i DisplayPort oraz maksymalną rozdzielczość 3840x2160@144 Hz. Obsługa wersji DisplayPort 2.1. 1 x DisplayPort, obsługujący maksymalną rozdzielczość 3840x2160@144 Hz. Obsługa wersji DisplayPort 2.1. (Specyfikacja graficzna może się różnić w zależności od obsługi procesora.)
guarantee - 36
guarantee_type - normal
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 3
LPT connector / port - No
M.2 Expansion slots - 4
Max. number of SATA devices - 4
Max memory size - 256 GB
Memory - Maximum internal memory - 256 GB
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8800 MHz
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 5800
Memory - Supported memory clock speeds - 6000
Memory - Supported memory clock speeds - 6200
Memory - Supported memory clock speeds - 6400
Memory - Supported memory clock speeds - 6600
Memory - Supported memory clock speeds - 6800
Memory - Supported memory clock speeds - 7000
Memory - Supported memory clock speeds - 7200
Memory - Supported memory clock speeds - 7400
Memory - Supported memory clock speeds - 7600
Memory - Supported memory clock speeds - 7800
Memory - Supported memory clock speeds - 7900
Memory - Supported memory clock speeds - 7950
Memory - Supported memory clock speeds - 8000
Memory - Supported memory clock speeds - 8200
Memory - Supported memory clock speeds - 8266
Memory - Supported memory clock speeds - 8400
Memory - Supported memory clock speeds - 8600 MHz
Memory - Supported memory types - DDR5 UDIMM
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7400 MHz
Memory bus frequency - 7600 MHz
Memory bus frequency - 7800 MHz
Memory bus frequency - 7900 MHz
Memory bus frequency - 7950 MHz
Memory bus frequency - 8000 MHz
Memory bus frequency - 8200 MHz
Memory bus frequency - 8266 MHz
Memory bus frequency - 8400 MHz
Memory bus frequency - 8600 MHz
Memory bus frequency - 8800 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - Z890 EAGLE
name - GIGABYTE Z890 EAGLE Mainboard, Sockel LGA 1851, Intel Z890, ATX, DDR5
name - Motherboard Z890 EAGLE s1851 4DDR5 DP/TB4 ATX
Network - Bluetooth - Yes
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 3
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power button
Onboard connectors - 1 x Q-Flash Plus button
Onboard connectors - 1 x Reset button
Onboard connectors - 1 x Reset jumper
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.2 Gen 2 Type-C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x Thunderbolt
Onboard connectors - 2 x USB 3.2 Gen 1 Type-A
Onboard connectors - 3 x 4pin Chassis fan
Onboard connectors - 3 x Addressable LED
Onboard connectors - 4 x M.2
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 4 x USB 2.0/1.1
Other information -
PCI-Express 4.0 4x Expansion slots - 2
PCI-Express 5.0 16x Expansion slots - 1
Processor - Maximum internal memory supported by processor - 256 GB
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Processor - Supported processor sockets - LGA 1851
Processor family - Intel Core Ultra
producer - Gigabyte
producerCode - Z890 EAGLE
productName - Gigabyte Z890 EAGLE motherboard
productSize - Normal
RAID - SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
RJ45 Input/Output connectors - 1
Shipping Box Depth Shipping/Package Box Dimensions - 57.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 37.5 cm
Shipping box quantity - 8
Shipping Box Weight Shipping/Package Box Dimensions - 17.46 kg
Shipping Box Width Shipping/Package Box Dimensions - 36.5 cm
sizeX - 84
sizeY - 282
sizeZ - 340
Socket - LGA1851
Software - Norton Internet Security (OEM version) Oprogramowanie do zarządzania przepustowością sieci LAN
Sound card - Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Special functions - Obsługa GIGABYTE Control Center (GCC) Obsługa Q-Flash Obsługa Q-Flash Plus Obsługa Smart Backup
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
TPM - Header
Unit Box Height - 0.08
Unit Box Length - 0.34
Unit Box Width - 0.27
Unit Brutto Volume - 0.009838 cubm
Unit Gross Weight - 2.18 kg
Unit Net Weight - 2 kg
USB-C Input/Output connectors - 1
USB-C Interface - Yes
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 5
USB 3.2 Interface - Yes
USB ports at back panel - 10
USB ports on motherboard - 7
Vendor Homepage - www.gigabyte.com/Motherboard/Z890-EAGLE#kf
vendpn - Z890 EAGLE
Warranty - 36 months
warrantyLength - 36
warrantyType - G
weight - 1942
