ID: 1153580
Product code: 90-MXBPK0-A0UAYZ
Can be ordered 20 units Availability: 14 days after order approval
Warranty: 3 years

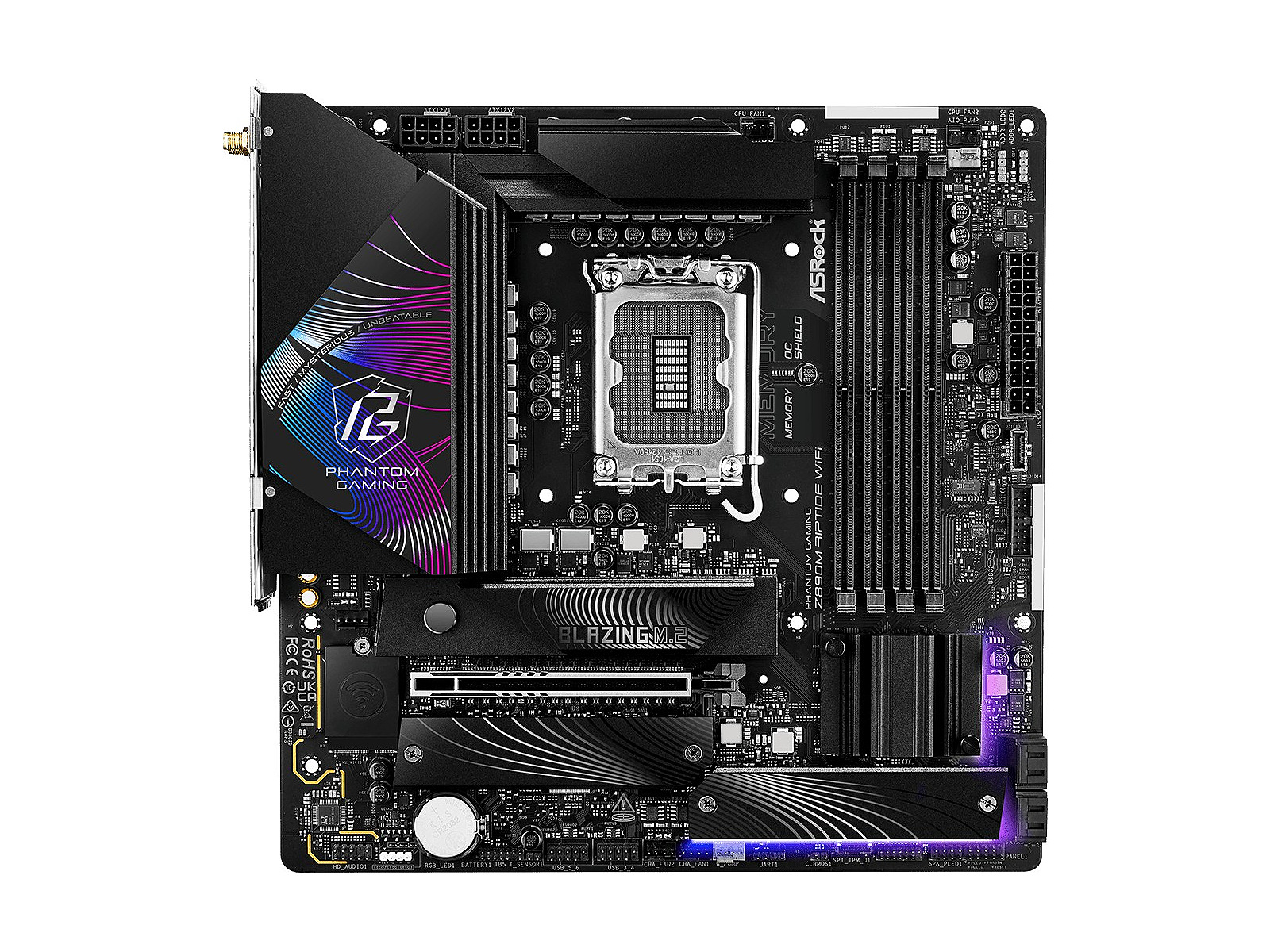

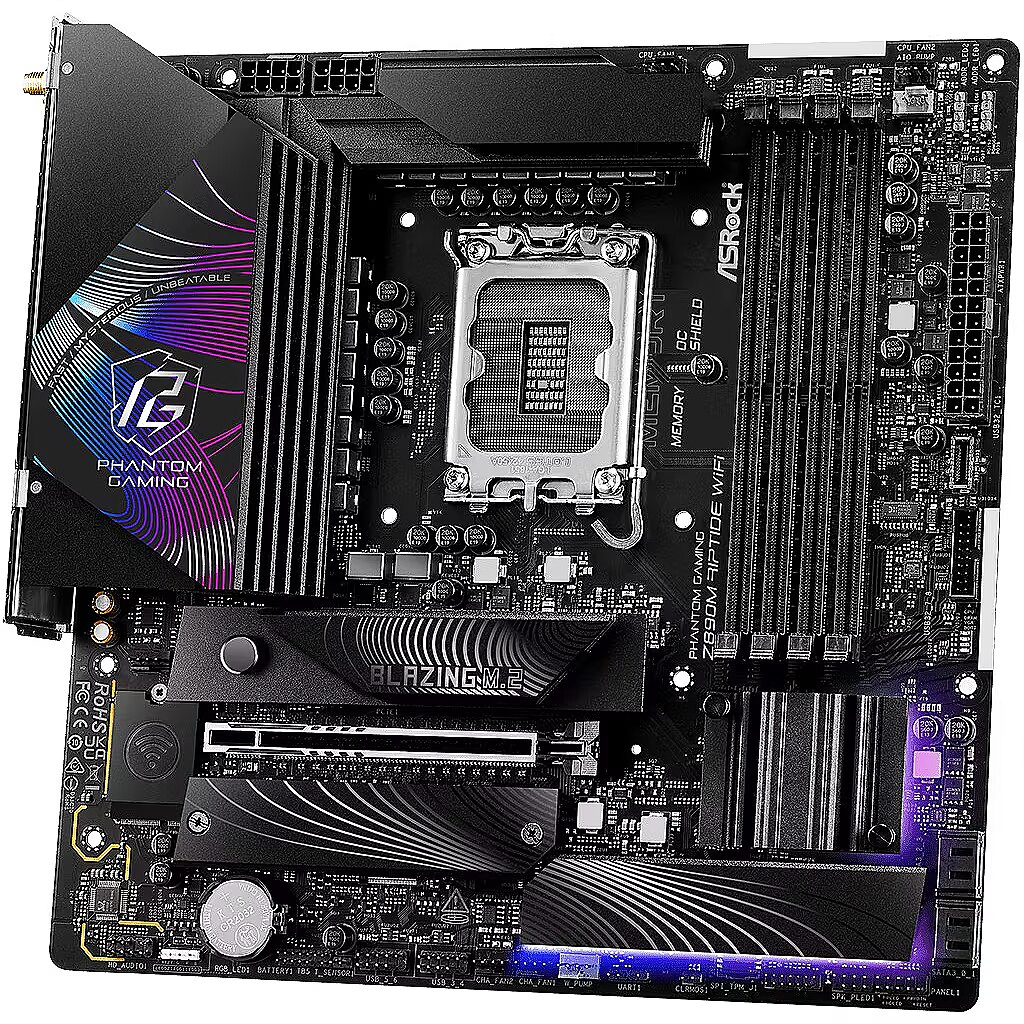

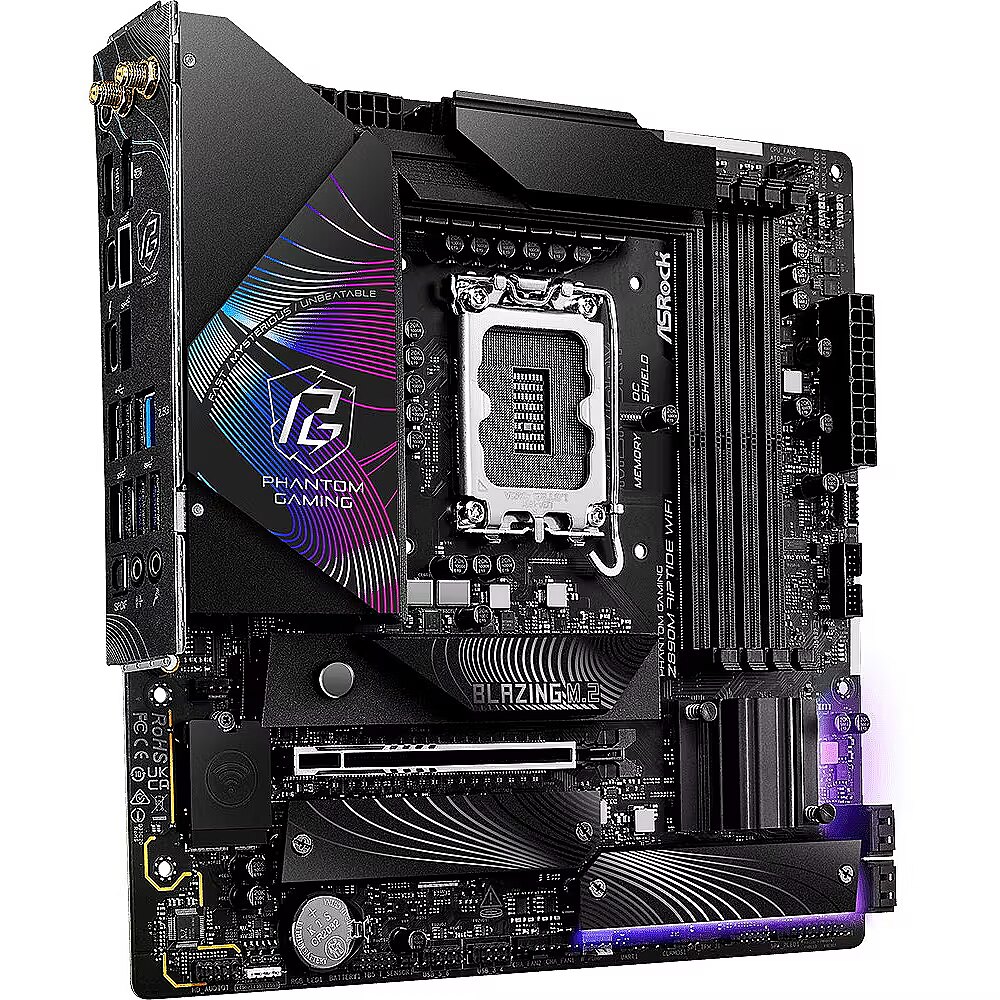

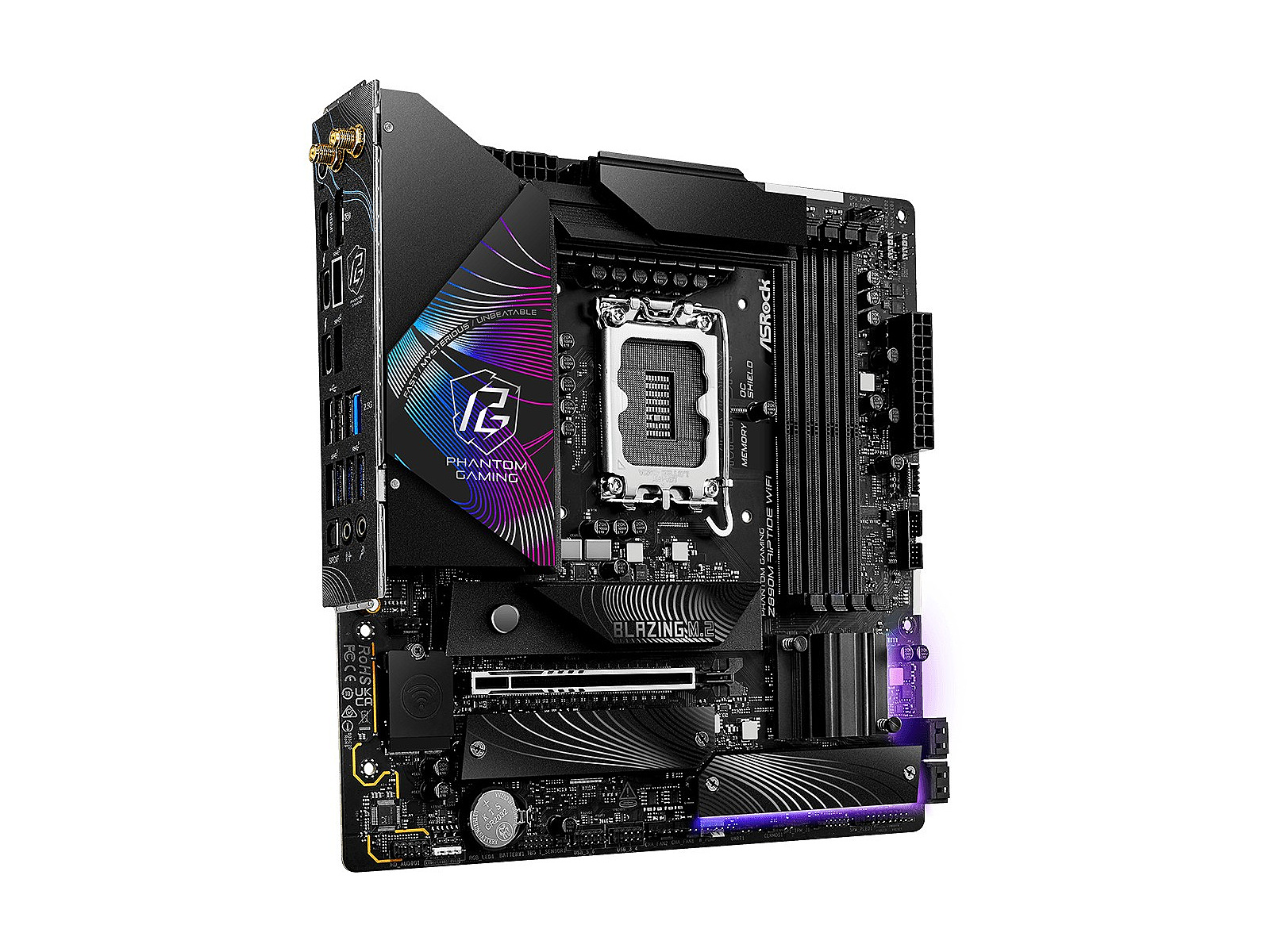

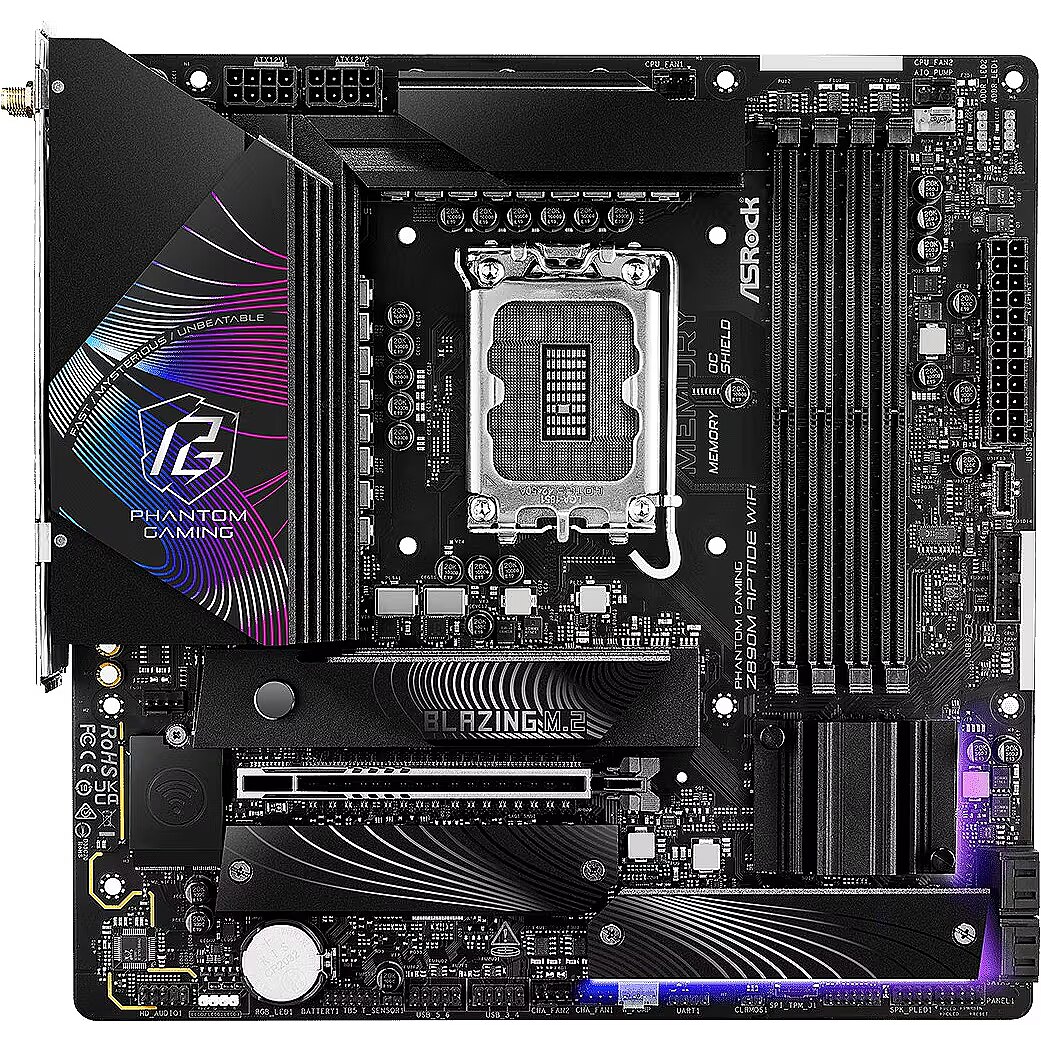

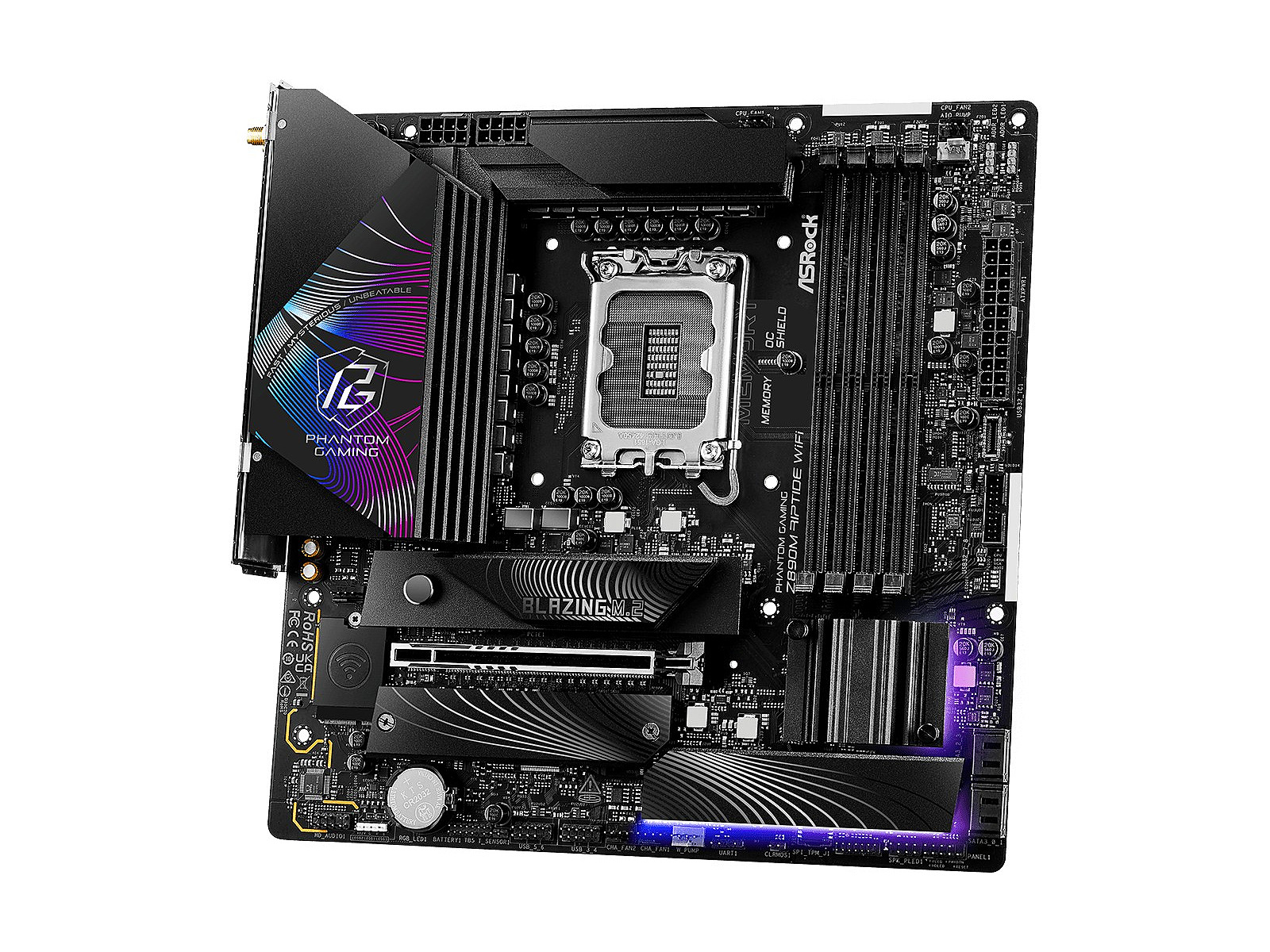

Asrock Z890M RIPTIDE WIFI
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Receiving goods at the Dateks office0.00 € -
DPD Pickup Parcel CabinetWithin 1-2 working days0.00 € -
Parcel terminalWithin 1-2 working days0.00 € -
Post OfficeWithin 1-2 working days0.00 €
-
Omniva parcel machineWithin 1-2 working days0.00 € -
SmartPosti parcel terminalWithin 1-2 working days0.00 € -
Delivery throughout Latvia.Within 1-2 working days4.99 €
Main product parameters All parameters
- Series: ASRock Phantom Gaming
- CPU Socket: LGA 1851
- Chipset: Intel Z890
- Form factor: Micro ATX
- Type: DDR5
- RAM Slots: 4
- Built-in Wi-Fi: Ir
Basic information
Series
: ASRock Phantom Gaming
CPU Socket
LGA 1851
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel Z890
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
Micro ATX
The physical size of the motherboard. Dateks.lv offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR5
RAM Slots
4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR5 6400 (OC 9466)
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 1
Integrated sound card
: Realtek ALC897
Wireless connections
Built-in Bluetooth
: Ir
Built-in Wi-Fi
: Ir
External ports
External USB Type-C
: 2
External USB 2.0
: 2
External USB 3.0 (USB 3.2 Gen1)
: 4
External USB 3.1 (USB 3.2 Gen2)
: 2
Internal ports
Internal A-RGB 5V (3-pin)
: 2
Internal RGB 12V (4-pin)
: 1
Internal USB 2.0
: 2
Internal USB 3.0
: 1
Internal USB Type-C
: 1
M.2 Port
: 3
SATA3 ports
: 4
More detailed specification
Accessories included - 2 x SATA Data Cables 2 x ASRock WiFi 2.4/5/6 GHz Antennas ARGB Splitter Cable Thermistor Cable
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
BIOS - BIOS type - UEFI AMI
category - PC Components|Mainboards|Intel Mainboards
Category - Root/Electronics/PC parts/Motherboards
Category_1 - Motherboards
Category_2 - Motherboards - other
category_en - Computers & Components > Computer components > AMD graphics cards
category_lv - Datortehnika > Datoru komponentes > AMD grafiskās kartes
category_ru - Datortehnika > Datoru komponentes > AMD grafiskās kartes
Certificates - Certificates - CE
Certificates - Certificates - ErP/EuP ready
Certificates - Certificates - FCC
Chipset manufacturer - Intel
Chipset type - Intel Z890
code - 90-MXBPK0-A0UAYZ
COM connector / port - No
CPU socket - LGA1851
Dane techniczne: Chipset płyty głównej - Intel Z890
Dane techniczne: Grupa produktowa - Płyty główne ASRock
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Producent - ASRock
Dane techniczne: Przeznaczenie - Intel
Dane techniczne: Standard płyty - micro-ATX
Description - PHANTOM GAMING
Z890M Riptide WiFi
Riptide was named after a specific type of water current with strong waves that occurs in the ocean, representing the philosophy of the two-sided, calm and unlimited potential of the sea. Built around powerful gaming features, Riptide packed a powerful punch and immersed users in a sense of stability. Supports Intel Core Ultra (Series 2) Processors (LGA1851) 16+1+1+1+1 Power Phase, 80A Dr.MOS for VCore+GT+SA 4 x DDR5 DIMM Supports Dual Channel, up to 9066+ (OC) 1 PCIe 5.0 x16 Graphics Output Options: 1 HDMI, 1 DisplayPort, 2 Thunderbolt 4 Type-C Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio 4 SATA3 1 Blazing M.2 (PCIe Gen5 x4) 1 Hyper M.2 (PCIe Gen4 x4) 1 Hyper M.2 (PCIe Gen4 x4 and SATA3) 2 Thunderbolt 4 Type-C (back) 1 USB 3.2 Gen2x2 Type-C (front), 2 USB 3.2 Gen2 Type-A (back), 6 USB 3.2 Gen1 (4 back, 2 front), 6 USB 2.0 (2 back, 4 front) Killer 2.5G LAN 802.11axe Wi-Fi 6E + Bluetooth Supports BIOS Flashback, Memory OC Shield, 20k 1000uF Capacitors
description_en - Take your gaming and computing experience to the next level with the ASRock Phantom Gaming Z890M RIPTIDE WIFI motherboard. Built on the Intel Z890 chipset and supporting the latest LGA1851 processors, this board delivers excellent stability, connectivity, and performance in a compact Micro ATX form factor.
Key Features: Form Factor: Micro ATX Socket: LGA1851 (for next-gen Intel CPUs) Chipset: Intel Z890 Built-in Wi-Fi and Bluetooth PCIe 5.0 and DDR5 memory support Optimized for gaming and overclocking
description_lv - ASRock Phantom Gaming Z890M RIPTIDE WIFI – Micro ATX mātesplate (LGA1851, Intel Z890)
Izveidojiet jaudīgu spēļu vai darba datoru ar ASRock Phantom Gaming Z890M RIPTIDE WIFI mātesplati. Tā ir aprīkota ar Intel Z890 čipkopu un atbalsta jaunākos LGA1851 procesorus, nodrošinot lielisku veiktspēju un savienojamību Micro ATX formātā.
Galvenās īpašības: Formāts: Micro ATX Ligzda: LGA1851 (jaunākajiem Intel procesoriem) Čipkopa: Intel Z890 Iebūvēts Wi-Fi un Bluetooth Atbalsts PCIe 5.0 un DDR5 atmiņai Piemērota spēlēm un sistēmas pielāgošanai (overclocking)
description_ru - Повысьте производительность вашего ПК с мощной материнской платой ASRock Phantom Gaming Z890M RIPTIDE WIFI. Создана для геймеров и энтузиастов, эта плата на базе чипсета Intel Z890 поддерживает новейшие процессоры с сокетом LGA1851, обеспечивает стабильную работу и расширенные возможности подключения.
Ключевые особенности: Форм-фактор: Micro ATX Сокет: LGA1851 (поддержка новых Intel процессоров) Чипсет: Intel Z890 Встроенный Wi-Fi и Bluetooth Поддержка PCIe 5.0, DDR5 памяти Расширенные функции для геймеров и разгонщиков
Designation - CE+WEEE
Detailed data on disk/drive interfaces - CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
- 4 x SATA3 6.0 Gb/s Connectors
dimensionalWeight - 906
dimension depth - 60 mm
dimension height - 270 mm
Dimensions - 24.4 cm x 24.4 cm
dimension weight - 1571 g
dimension width - 300 mm
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek ALC897 7.1)
ean - 4710483949722
EAN - 4710483949722
Eans - 4710483949722
EAN_code - 4710483949722
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1

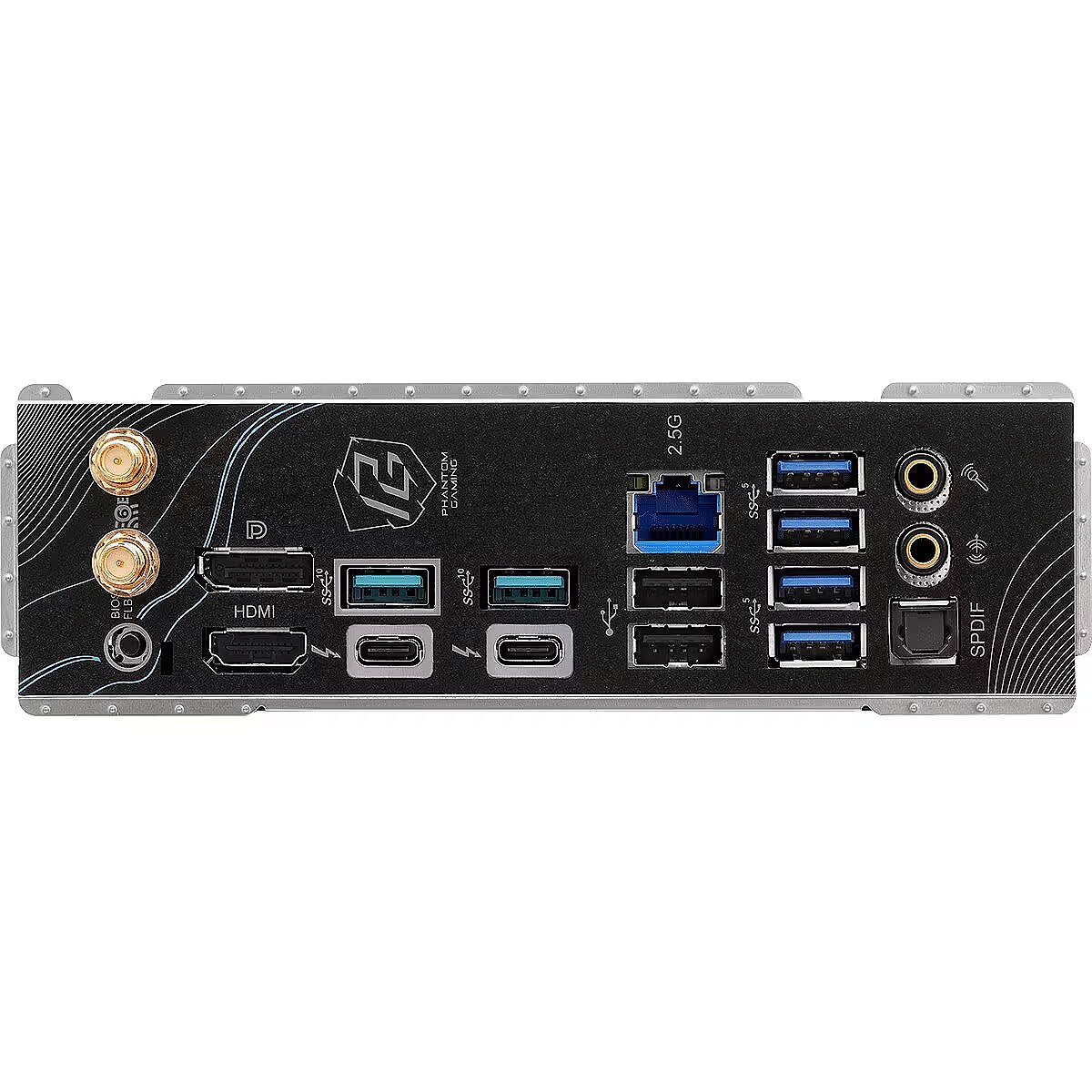

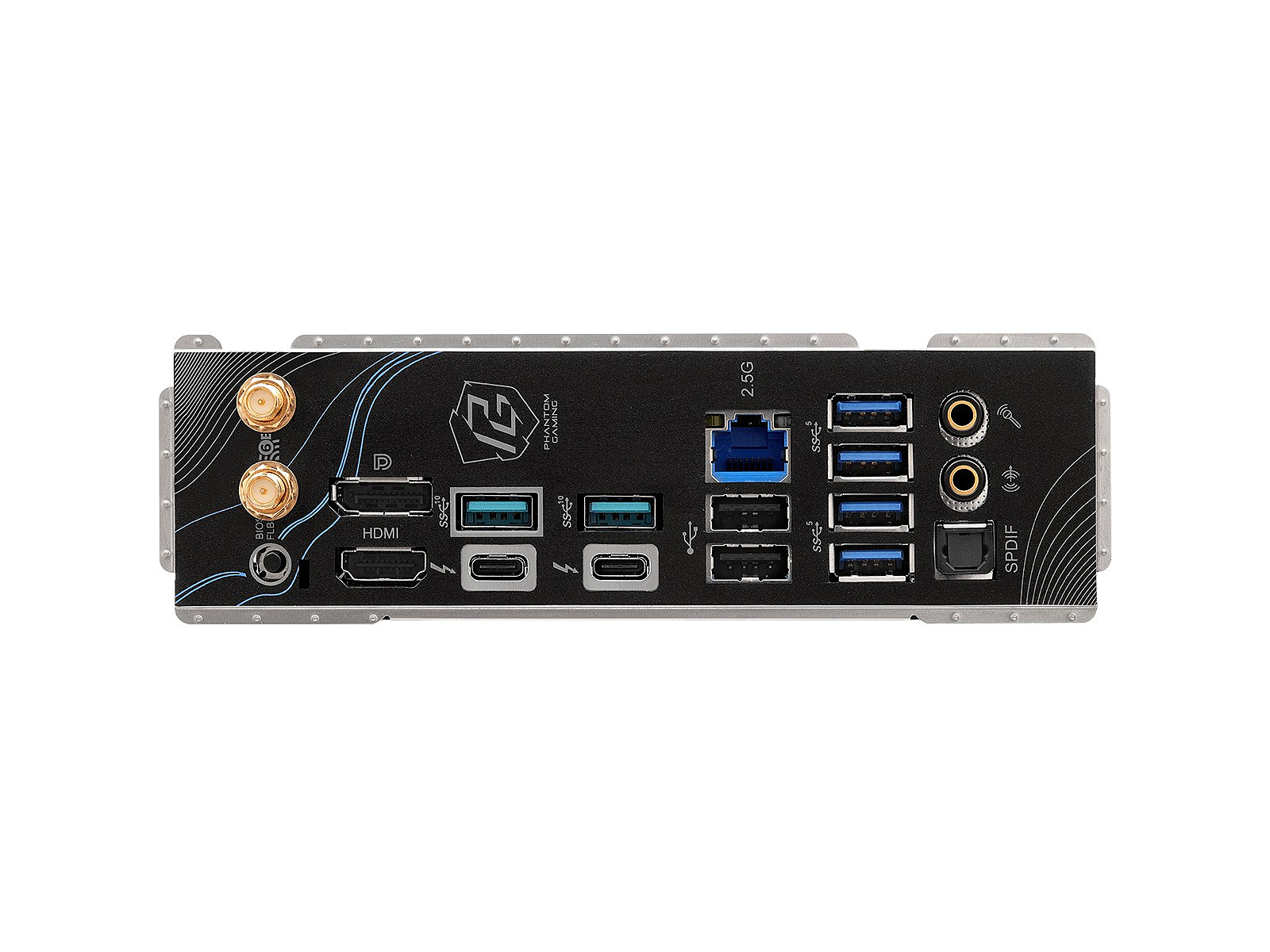

External connectors - 1 x DisplayPort
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 2 x SMA
External connectors - 2 x Thunderbolt 4
External connectors - 2 x USB 2.0
External connectors - 2 x USB 3.2 Gen 2 Type-A
External connectors - 4 x USB 3.2 Gen 1 Type-A
Features - Audio chip - Realtek ALC1220
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - Intel Z890
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - micro ATX
Graphics - Intel Xe LPG Graphics Architecture 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz 2 x Intel Thunderbolt 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
gross_weight - 0.3 kg
guarantee - 36
guarantee_type - normal
Integrated CPU - No
Internal I/O - 8-pin power connector 12 V - 2
Internal I/O - AIO pump fan connector - 1
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis fan connector (4-pin) - 4
Internal I/O - CPU fan connector - 2
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Number of USB 3.2 Gen 2x2 (3.1 Gen 2x2) Type-C ports - 1
Internal I/O - Pump connector - 1
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Komunikacja: Karta bezprzewodowa - Intel Wi-Fi 6E | Bluetooth 5.3
Komunikacja: Transmisja danych - Wi-Fi
Komunikacja: Zintegrowana karta sieciowa - tak (2.5 Gigabit LAN)
LPT connector / port - No
Manufacturer - Asrock
Manufacturer_code - 90-MXBPK0-A0UAYZ
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 256 GB
Memory - ECC сompatibility - Non-ECC
Memory - Intel Extreme Memory Profile (XMP) version - 3.0
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 4400 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 9066 MHz
Memory type - DDR5
Model - 90-MXBPK0-A0UAYZ
Model - Z890M RIPTIDE WIFI
Name - ASRock Z890M Riptide WiFi
Name - ASRock Z890M RIPTIDE WIFI - Socekt 1851 - motherboard (black)
name - ASRock Z890M RIPTIDE WiFi Mainboard, Sockel LGA 1851, Intel Z890, Micro-ATX, DDR5
name - Motherboard Z890M RIPTIDE WIFI mATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Killer E3100G
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi frequency - 2,4 Ghz / 5 GHz / 6 GHz
Network - Wi-Fi standards - 802.11 axe
Network - Wi-Fi standards - IEEE 802.11a
Network - Wi-Fi standards - IEEE 802.11ac
Network - Wi-Fi standards - IEEE 802.11ax
Network - Wi-Fi standards - IEEE 802.11b
Network - Wi-Fi standards - IEEE 802.11be
Network - Wi-Fi standards - IEEE 802.11g
Network - Wi-Fi standards - IEEE 802.11n
Network - Wireless statistics - Yes
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - LAN 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Killer E3100G Supports Killer LAN Software Supports Killer DoubleShot Pro Wireless LAN 802.11axe Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax/axe Supports Dual-Band 2x2 160MHz with extended 6GHz band* support 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.3 Supports MU-MIMO Supports Killer LAN Software Supports Killer DoubleShot Pro
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 5
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power LED and Speaker Header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x Thermistor Cable Header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.2 Gen 1 Type-A
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 4pin wentylator CPU
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x Addressable LED
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 3 x 4pin Chassis fan
Other information - Certyfikaty FCC, CE ErP/EuP ready (wymagany zasilacz ErP/EuP ready)

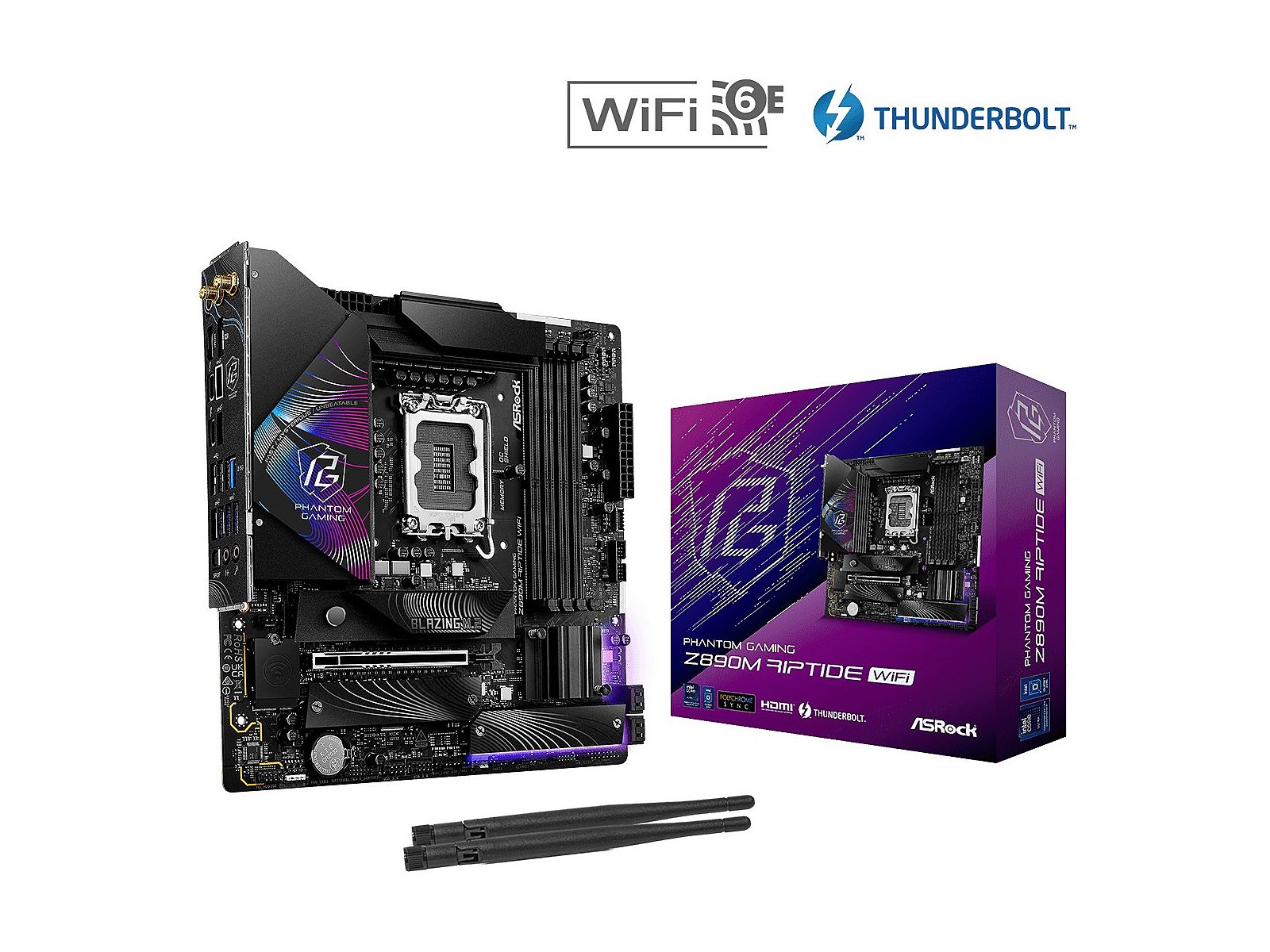

Packaging content - Cables included - ARGB Splitter Cable x 1
Packaging content - Cables included - SATA III 2 pcs.
Packaging content - Cables included - Thermistor Cable x 1
Packaging content - Motherboard - Yes
Packaging content - Wi-Fi antenna - Yes
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 4 szt.
Pamięć: Maks. pojemność pamięci - 256 GB
Pamięć: Obsługiwana pamięć - DDR5
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR5-4800 (PC5-38400)
Pamięć: Typ obsługiwanej pamięci - DDR5-5000 (PC5-40000)
Pamięć: Typ obsługiwanej pamięci - DDR5-5200 (PC5-41600)
Pamięć: Typ obsługiwanej pamięci - DDR5-5400 (PC5-43200)
Pamięć: Typ obsługiwanej pamięci - DDR5-5600 (PC5-44800)
Pamięć: Typ obsługiwanej pamięci - DDR5-5800 (PC5-46400)
Pamięć: Typ obsługiwanej pamięci - DDR5-6000 (PC5-48000)
Pamięć: Typ obsługiwanej pamięci - DDR5-6200 (PC5-49600)
Pamięć: Typ obsługiwanej pamięci - DDR5-6400 (PC5-51200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6600 (PC5-52800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6800 (PC5-54400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7000 (PC5-56000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7400 (PC5-59200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7600 (PC5-60800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7800 (PC5-62400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7900 (PC5-63200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7950 (PC5-63600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8000 (PC5-64000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8200 (PC5-65600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8266 (PC5-66128)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8400 (PC5-67200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8600 (PC5-68800)
Procesor: Gniazdo procesora - Socket 1851
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 5 seria 2
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 7 seria 2
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 9 seria 2
Processor - Compatible processor series - Intel Core Ultra (Series 2)
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Processor family - Intel Core Ultra
Producent: Nazwa producenta / importera - ASRockASRock Europe B.V.Bijsterhuizen 11-116546 AR NijmegenEmail: sales@asrock.nl
producer - ASRock
Producer - ASRock
producerCode - Z890M Riptide WiFi
ProducerCode - Z890M Riptide WiFi
productName - ASRock Z890M Riptide WiFi Motherboard
productSize - Normal
RAID - Yes
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - Number of antenna connectors - 2
Rear panel I/O ports - Number of Thunderbolt 4 USB-C ports - 2
Rear panel I/O ports - SPDIF optical output - Y
Rear panel I/O ports - USB 2.0 Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
ShortDescription - Socket 1851 | Chipset Intel Z890 | DDR5 |
sizeX - 296
sizeY - 264
sizeZ - 58
Software - Software ASRock Motherboard Utility (Phantom Gaming Tuning) Killer Control Center ASRock Polychrome SYNC UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash
Sound card - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Special functions -
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
title_en - ASRock Phantom Gaming Z890M Motherboard
title_lv - ASRock Phantom Gaming Z890M Mātesplate
title_ru - ASRock Phantom Gaming Z890M Материнская Плата
USB ports at back panel - 10
USB ports on motherboard - 7
vendpn - Z890M RIPTIDE WIFI
warrantyLength - 36
warrantyType - G
weight - 0.2 kg
Weight - 1,70
weight - 1675
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
Wymiary: Szerokość - 244 mm
Wymiary: Wysokość - 244 mm
Złącza: Obsługa Raid - tak (0, 1, 5, 10)
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 4 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x Audio
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2 (PCIe 5.0)
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen2 x2) typ C
Złącza: Złącza na płycie głównej - 2 x 8-pin ATX 12V
Złącza: Złącza na płycie głównej - 2 x gniazdo M.2 (PCIe 4.0)
Złącza: Złącza na płycie głównej - 2 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - 1 x Display Port
Złącza: Złącza na tylnym panelu - 1 x HDMI
Złącza: Złącza na tylnym panelu - 1 x RJ45
Złącza: Złącza na tylnym panelu - 2 x Thunderbolt 4
Złącza: Złącza na tylnym panelu - 2 x USB
Złącza: Złącza na tylnym panelu - 2 x USB 3.2 (Gen2)
Złącza: Złącza na tylnym panelu - 4 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza na tylnym panelu - gniazdo anteny Wi-Fi
Złącza: Złącza na tylnym panelu - SPDIF out
Złącza: Złącza PCI-E (liczba slotów) - 1 x PCI-Express x16
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
BIOS - BIOS type - UEFI AMI
category - PC Components|Mainboards|Intel Mainboards
Category - Root/Electronics/PC parts/Motherboards
Category_1 - Motherboards
Category_2 - Motherboards - other
category_en - Computers & Components > Computer components > AMD graphics cards
category_lv - Datortehnika > Datoru komponentes > AMD grafiskās kartes
category_ru - Datortehnika > Datoru komponentes > AMD grafiskās kartes
Certificates - Certificates - CE
Certificates - Certificates - ErP/EuP ready
Certificates - Certificates - FCC
Chipset manufacturer - Intel
Chipset type - Intel Z890
code - 90-MXBPK0-A0UAYZ
COM connector / port - No
CPU socket - LGA1851
Dane techniczne: Chipset płyty głównej - Intel Z890
Dane techniczne: Grupa produktowa - Płyty główne ASRock
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Producent - ASRock
Dane techniczne: Przeznaczenie - Intel
Dane techniczne: Standard płyty - micro-ATX
Description - PHANTOM GAMING
Z890M Riptide WiFi
Riptide was named after a specific type of water current with strong waves that occurs in the ocean, representing the philosophy of the two-sided, calm and unlimited potential of the sea. Built around powerful gaming features, Riptide packed a powerful punch and immersed users in a sense of stability. Supports Intel Core Ultra (Series 2) Processors (LGA1851) 16+1+1+1+1 Power Phase, 80A Dr.MOS for VCore+GT+SA 4 x DDR5 DIMM Supports Dual Channel, up to 9066+ (OC) 1 PCIe 5.0 x16 Graphics Output Options: 1 HDMI, 1 DisplayPort, 2 Thunderbolt 4 Type-C Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio 4 SATA3 1 Blazing M.2 (PCIe Gen5 x4) 1 Hyper M.2 (PCIe Gen4 x4) 1 Hyper M.2 (PCIe Gen4 x4 and SATA3) 2 Thunderbolt 4 Type-C (back) 1 USB 3.2 Gen2x2 Type-C (front), 2 USB 3.2 Gen2 Type-A (back), 6 USB 3.2 Gen1 (4 back, 2 front), 6 USB 2.0 (2 back, 4 front) Killer 2.5G LAN 802.11axe Wi-Fi 6E + Bluetooth Supports BIOS Flashback, Memory OC Shield, 20k 1000uF Capacitors
description_en - Take your gaming and computing experience to the next level with the ASRock Phantom Gaming Z890M RIPTIDE WIFI motherboard. Built on the Intel Z890 chipset and supporting the latest LGA1851 processors, this board delivers excellent stability, connectivity, and performance in a compact Micro ATX form factor.
Key Features: Form Factor: Micro ATX Socket: LGA1851 (for next-gen Intel CPUs) Chipset: Intel Z890 Built-in Wi-Fi and Bluetooth PCIe 5.0 and DDR5 memory support Optimized for gaming and overclocking
description_lv - ASRock Phantom Gaming Z890M RIPTIDE WIFI – Micro ATX mātesplate (LGA1851, Intel Z890)
Izveidojiet jaudīgu spēļu vai darba datoru ar ASRock Phantom Gaming Z890M RIPTIDE WIFI mātesplati. Tā ir aprīkota ar Intel Z890 čipkopu un atbalsta jaunākos LGA1851 procesorus, nodrošinot lielisku veiktspēju un savienojamību Micro ATX formātā.
Galvenās īpašības: Formāts: Micro ATX Ligzda: LGA1851 (jaunākajiem Intel procesoriem) Čipkopa: Intel Z890 Iebūvēts Wi-Fi un Bluetooth Atbalsts PCIe 5.0 un DDR5 atmiņai Piemērota spēlēm un sistēmas pielāgošanai (overclocking)
description_ru - Повысьте производительность вашего ПК с мощной материнской платой ASRock Phantom Gaming Z890M RIPTIDE WIFI. Создана для геймеров и энтузиастов, эта плата на базе чипсета Intel Z890 поддерживает новейшие процессоры с сокетом LGA1851, обеспечивает стабильную работу и расширенные возможности подключения.
Ключевые особенности: Форм-фактор: Micro ATX Сокет: LGA1851 (поддержка новых Intel процессоров) Чипсет: Intel Z890 Встроенный Wi-Fi и Bluetooth Поддержка PCIe 5.0, DDR5 памяти Расширенные функции для геймеров и разгонщиков
Designation - CE+WEEE
Detailed data on disk/drive interfaces - CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
- 4 x SATA3 6.0 Gb/s Connectors
dimensionalWeight - 906
dimension depth - 60 mm
dimension height - 270 mm
Dimensions - 24.4 cm x 24.4 cm
dimension weight - 1571 g
dimension width - 300 mm
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek ALC897 7.1)
ean - 4710483949722
EAN - 4710483949722
Eans - 4710483949722
EAN_code - 4710483949722
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x DisplayPort
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 2 x SMA
External connectors - 2 x Thunderbolt 4
External connectors - 2 x USB 2.0
External connectors - 2 x USB 3.2 Gen 2 Type-A
External connectors - 4 x USB 3.2 Gen 1 Type-A
Features - Audio chip - Realtek ALC1220
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - Intel Z890
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - micro ATX
Graphics - Intel Xe LPG Graphics Architecture 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz 2 x Intel Thunderbolt 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
gross_weight - 0.3 kg
guarantee - 36
guarantee_type - normal
Integrated CPU - No
Internal I/O - 8-pin power connector 12 V - 2
Internal I/O - AIO pump fan connector - 1
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis fan connector (4-pin) - 4
Internal I/O - CPU fan connector - 2
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Number of USB 3.2 Gen 2x2 (3.1 Gen 2x2) Type-C ports - 1
Internal I/O - Pump connector - 1
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Komunikacja: Karta bezprzewodowa - Intel Wi-Fi 6E | Bluetooth 5.3
Komunikacja: Transmisja danych - Wi-Fi
Komunikacja: Zintegrowana karta sieciowa - tak (2.5 Gigabit LAN)
LPT connector / port - No
Manufacturer - Asrock
Manufacturer_code - 90-MXBPK0-A0UAYZ
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 256 GB
Memory - ECC сompatibility - Non-ECC
Memory - Intel Extreme Memory Profile (XMP) version - 3.0
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 4400 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 9066 MHz
Memory type - DDR5
Model - 90-MXBPK0-A0UAYZ
Model - Z890M RIPTIDE WIFI
Name - ASRock Z890M Riptide WiFi
Name - ASRock Z890M RIPTIDE WIFI - Socekt 1851 - motherboard (black)
name - ASRock Z890M RIPTIDE WiFi Mainboard, Sockel LGA 1851, Intel Z890, Micro-ATX, DDR5
name - Motherboard Z890M RIPTIDE WIFI mATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Killer E3100G
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi frequency - 2,4 Ghz / 5 GHz / 6 GHz
Network - Wi-Fi standards - 802.11 axe
Network - Wi-Fi standards - IEEE 802.11a
Network - Wi-Fi standards - IEEE 802.11ac
Network - Wi-Fi standards - IEEE 802.11ax
Network - Wi-Fi standards - IEEE 802.11b
Network - Wi-Fi standards - IEEE 802.11be
Network - Wi-Fi standards - IEEE 802.11g
Network - Wi-Fi standards - IEEE 802.11n
Network - Wireless statistics - Yes
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - LAN 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Killer E3100G Supports Killer LAN Software Supports Killer DoubleShot Pro Wireless LAN 802.11axe Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax/axe Supports Dual-Band 2x2 160MHz with extended 6GHz band* support 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.3 Supports MU-MIMO Supports Killer LAN Software Supports Killer DoubleShot Pro
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 5
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power LED and Speaker Header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x Thermistor Cable Header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.2 Gen 1 Type-A
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 4pin wentylator CPU
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x Addressable LED
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 3 x 4pin Chassis fan
Other information - Certyfikaty FCC, CE ErP/EuP ready (wymagany zasilacz ErP/EuP ready)
Packaging content - Cables included - ARGB Splitter Cable x 1
Packaging content - Cables included - SATA III 2 pcs.
Packaging content - Cables included - Thermistor Cable x 1
Packaging content - Motherboard - Yes
Packaging content - Wi-Fi antenna - Yes
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 4 szt.
Pamięć: Maks. pojemność pamięci - 256 GB
Pamięć: Obsługiwana pamięć - DDR5
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR5-4800 (PC5-38400)
Pamięć: Typ obsługiwanej pamięci - DDR5-5000 (PC5-40000)
Pamięć: Typ obsługiwanej pamięci - DDR5-5200 (PC5-41600)
Pamięć: Typ obsługiwanej pamięci - DDR5-5400 (PC5-43200)
Pamięć: Typ obsługiwanej pamięci - DDR5-5600 (PC5-44800)
Pamięć: Typ obsługiwanej pamięci - DDR5-5800 (PC5-46400)
Pamięć: Typ obsługiwanej pamięci - DDR5-6000 (PC5-48000)
Pamięć: Typ obsługiwanej pamięci - DDR5-6200 (PC5-49600)
Pamięć: Typ obsługiwanej pamięci - DDR5-6400 (PC5-51200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6600 (PC5-52800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6800 (PC5-54400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7000 (PC5-56000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7400 (PC5-59200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7600 (PC5-60800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7800 (PC5-62400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7900 (PC5-63200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7950 (PC5-63600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8000 (PC5-64000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8200 (PC5-65600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8266 (PC5-66128)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8400 (PC5-67200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8600 (PC5-68800)
Procesor: Gniazdo procesora - Socket 1851
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 5 seria 2
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 7 seria 2
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 9 seria 2
Processor - Compatible processor series - Intel Core Ultra (Series 2)
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Processor family - Intel Core Ultra
Producent: Nazwa producenta / importera - ASRockASRock Europe B.V.Bijsterhuizen 11-116546 AR NijmegenEmail: sales@asrock.nl
producer - ASRock
Producer - ASRock
producerCode - Z890M Riptide WiFi
ProducerCode - Z890M Riptide WiFi
productName - ASRock Z890M Riptide WiFi Motherboard
productSize - Normal
RAID - Yes
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - Number of antenna connectors - 2
Rear panel I/O ports - Number of Thunderbolt 4 USB-C ports - 2
Rear panel I/O ports - SPDIF optical output - Y
Rear panel I/O ports - USB 2.0 Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
ShortDescription - Socket 1851 | Chipset Intel Z890 | DDR5 |
sizeX - 296
sizeY - 264
sizeZ - 58
Software - Software ASRock Motherboard Utility (Phantom Gaming Tuning) Killer Control Center ASRock Polychrome SYNC UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash
Sound card - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Special functions -
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
title_en - ASRock Phantom Gaming Z890M Motherboard
title_lv - ASRock Phantom Gaming Z890M Mātesplate
title_ru - ASRock Phantom Gaming Z890M Материнская Плата
USB ports at back panel - 10
USB ports on motherboard - 7
vendpn - Z890M RIPTIDE WIFI
warrantyLength - 36
warrantyType - G
weight - 0.2 kg
Weight - 1,70
weight - 1675
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
Wymiary: Szerokość - 244 mm
Wymiary: Wysokość - 244 mm
Złącza: Obsługa Raid - tak (0, 1, 5, 10)
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 4 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x Audio
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2 (PCIe 5.0)
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen2 x2) typ C
Złącza: Złącza na płycie głównej - 2 x 8-pin ATX 12V
Złącza: Złącza na płycie głównej - 2 x gniazdo M.2 (PCIe 4.0)
Złącza: Złącza na płycie głównej - 2 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - 1 x Display Port
Złącza: Złącza na tylnym panelu - 1 x HDMI
Złącza: Złącza na tylnym panelu - 1 x RJ45
Złącza: Złącza na tylnym panelu - 2 x Thunderbolt 4
Złącza: Złącza na tylnym panelu - 2 x USB
Złącza: Złącza na tylnym panelu - 2 x USB 3.2 (Gen2)
Złącza: Złącza na tylnym panelu - 4 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza na tylnym panelu - gniazdo anteny Wi-Fi
Złącza: Złącza na tylnym panelu - SPDIF out
Złącza: Złącza PCI-E (liczba slotów) - 1 x PCI-Express x16
