ID: 1152189
Product code: Z890 Pro RS
In stock 7 units
Warranty: 3 years

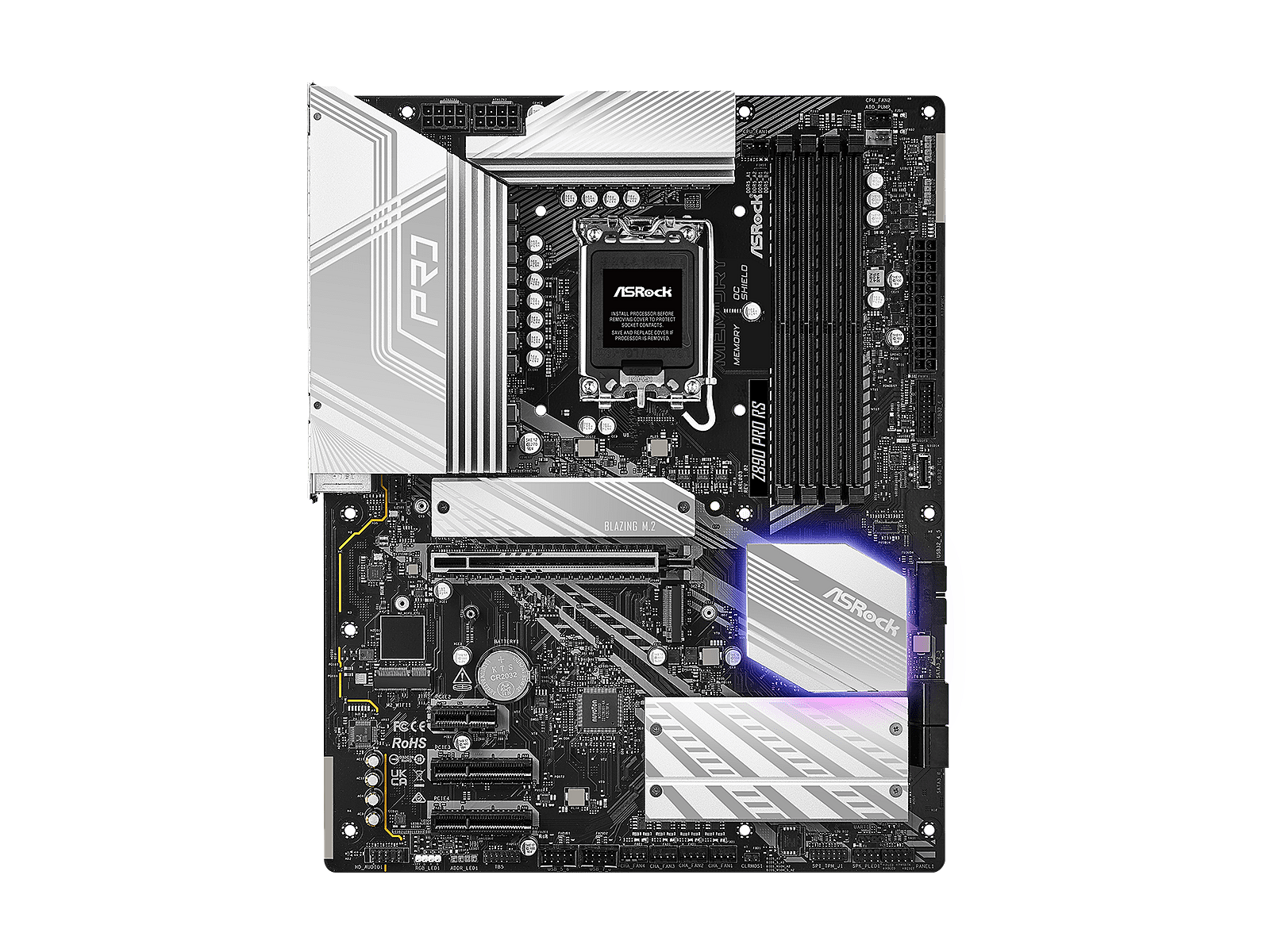

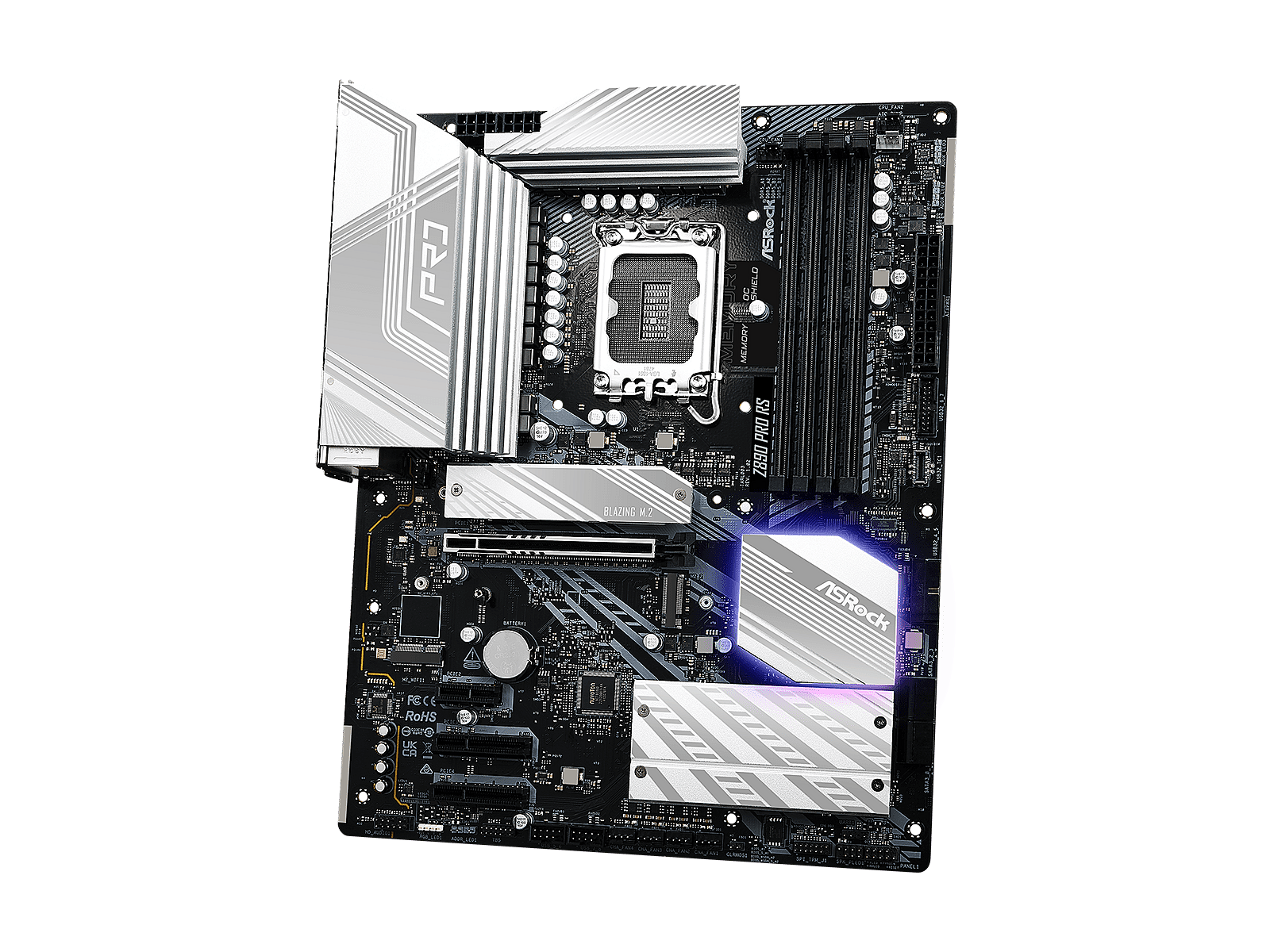

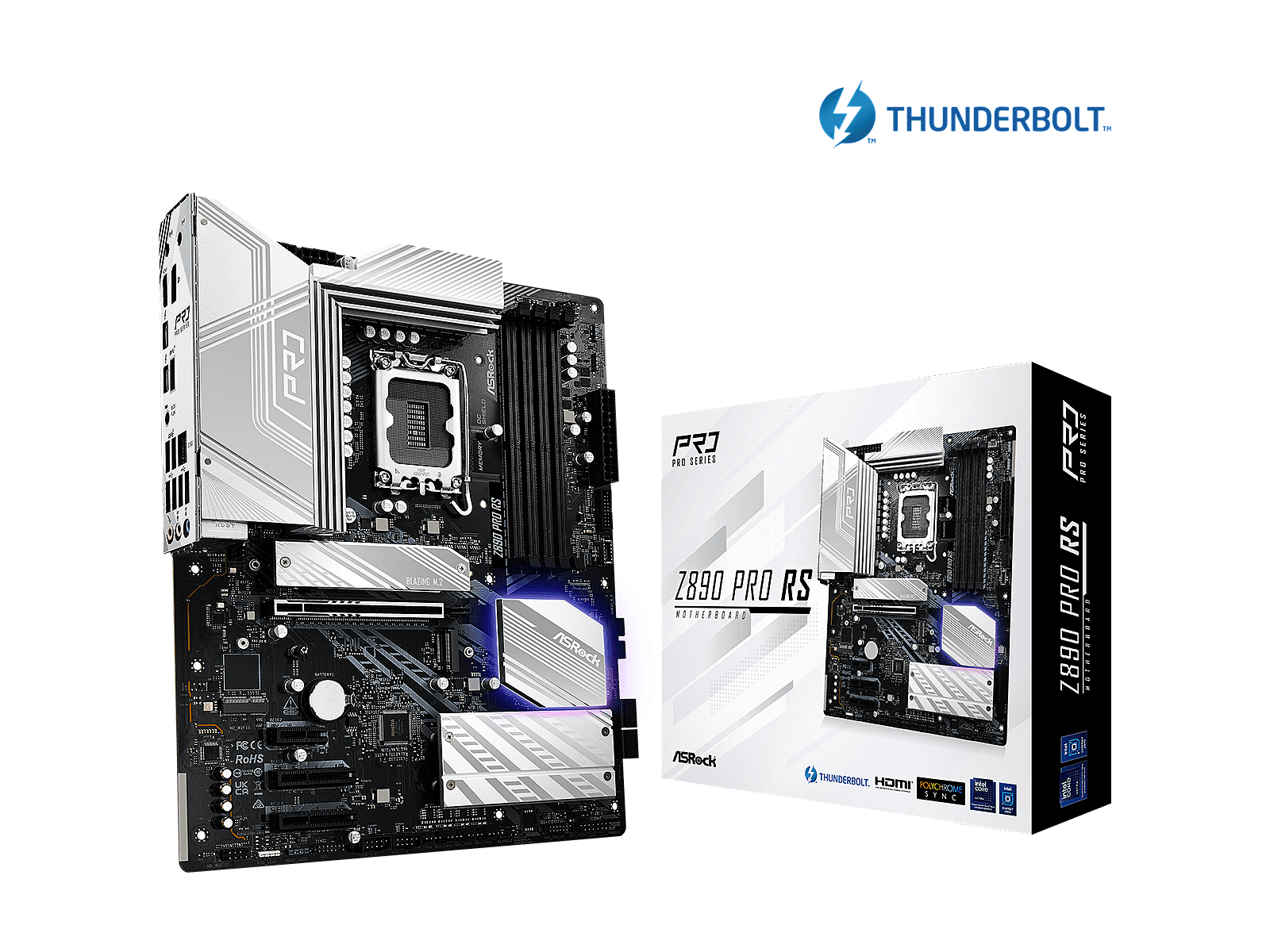

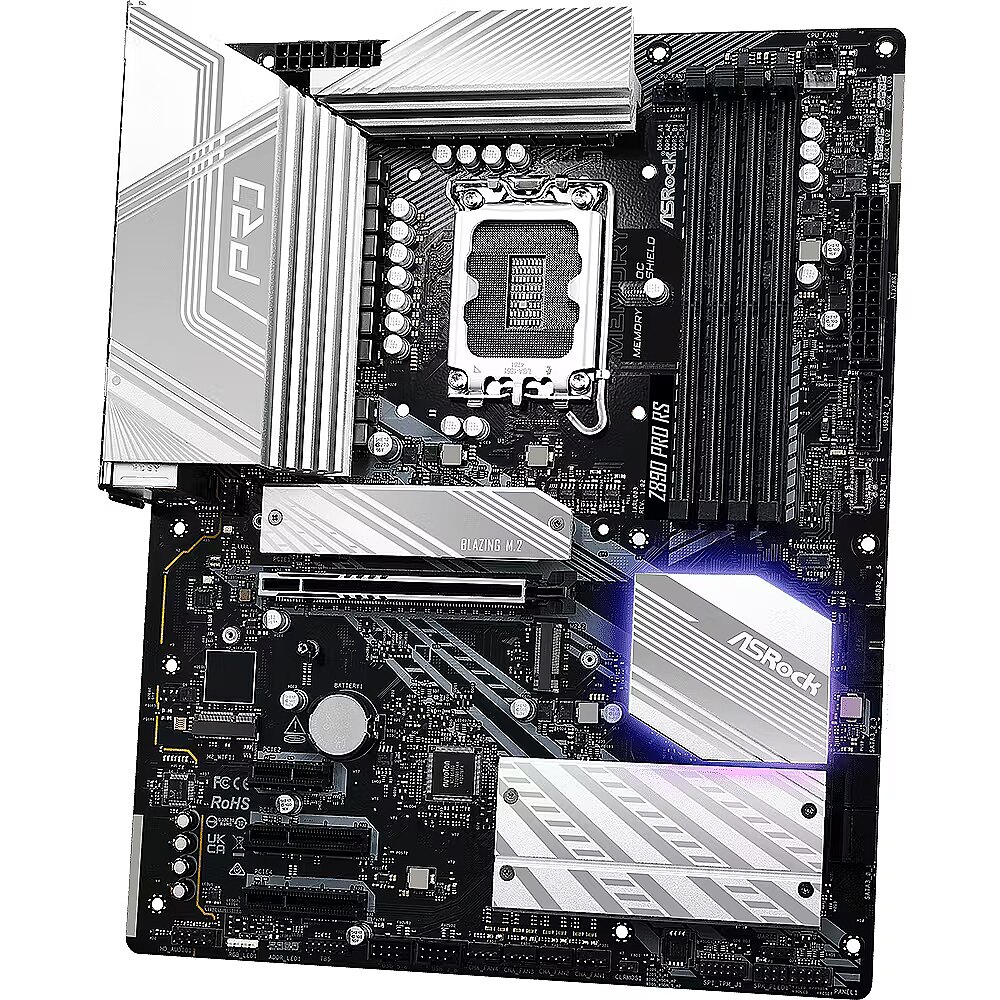

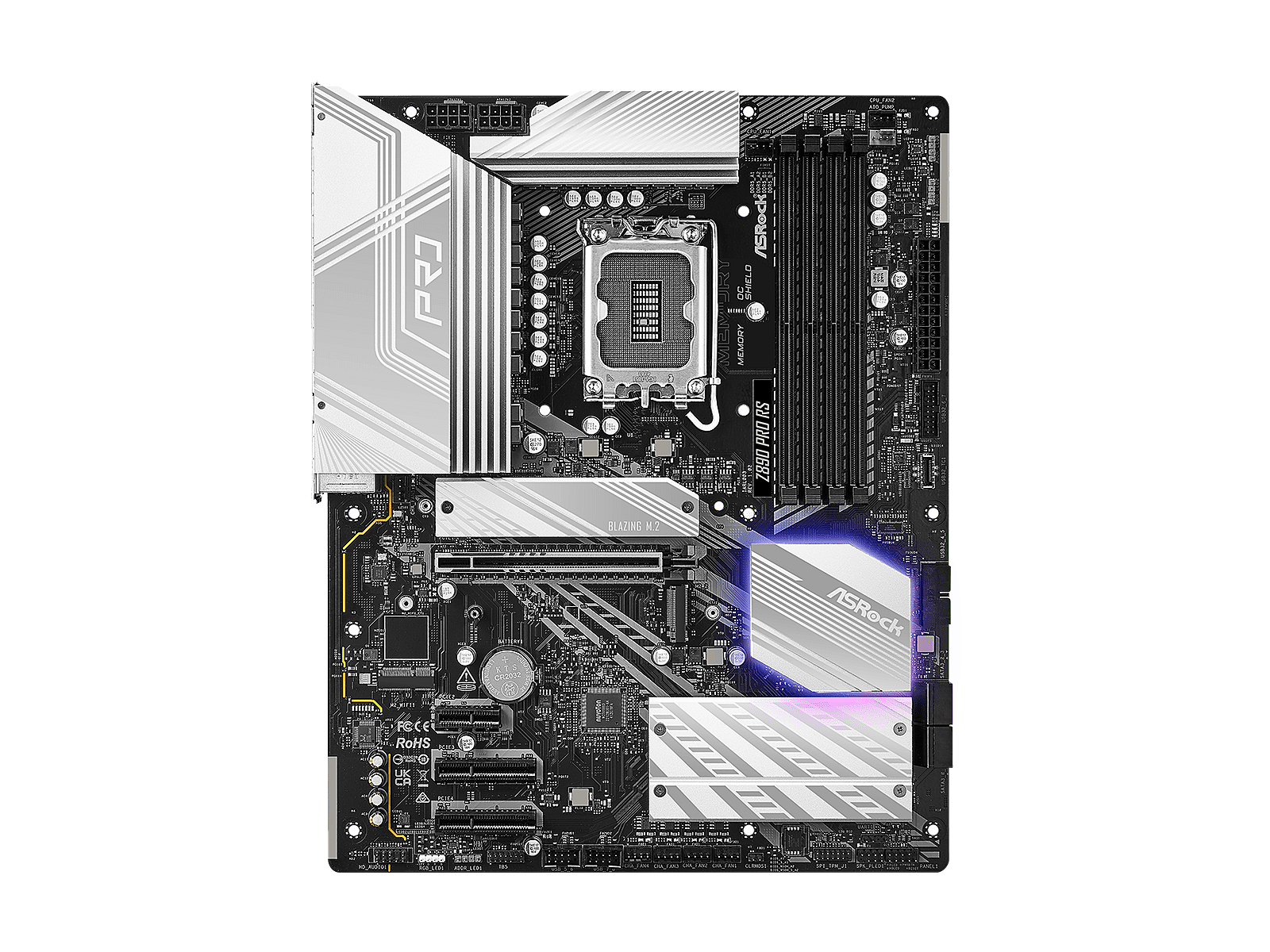

Asrock Z890 PRO RS
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 02.01.2025
- Delivery to Omniva parcel machine free of charge: 02.01.2025
- Piegāde uz DPD Pickup Paku Skapi free of charge: 02.01.2025
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 02.01.2025
- Delivery to address in Riga 3.99 €: 02.01.2025
- Delivery to address in Latvia 6.99 €: 02.01.2025
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: on Friday, 27.12.2024 after 15:00
Main product parameters All parameters
- Series: ASRock Pro
- CPU Socket: LGA 1851
- Chipset: Intel Z890
- Form factor: ATX
- Type: DDR5
- RAM Slots: 4
- Built-in Wi-Fi: Nav
Basic information
Series
: ASRock Pro
CPU Socket
LGA 1851
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel Z890
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
ATX
The physical size of the motherboard. Dateks.lv offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR5
RAM Slots
4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR5 5600 (OC 9066)
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 1
Integrated sound card
: Realtek ALC897
Wireless connections
Built-in Bluetooth
: Nav
Built-in Wi-Fi
: Nav
External ports
External USB Type-C
: 2
External USB 2.0
: 4
External USB 3.0 (USB 3.2 Gen1)
: 2
External USB 3.1 (USB 3.2 Gen2)
: 1
Internal ports
Internal A-RGB 5V (3-pin)
: 3
Internal RGB 12V (4-pin)
: 1
Internal USB 2.0
: 2
Internal USB 3.0
: 2
Internal USB Type-C
: 1
M.2 Port
: 1
SATA3 ports
: 4
More detailed specification
Accessories included - 2 x kable danych SATA 2 x śrubki do gniazd M.2 Dystans do gniazda M.2
Audio port Input/Output connectors - 3
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
category - PC Components|Mainboards|Intel Mainboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Chipset - Intel Z890
Chipset manufacturer - Intel
Chipset type - Intel Z890
code - 90-MXBP10-A0UAYZ
COM connector / port - No
CPU socket - LGA1851
Description - Z890 Pro RS Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard. - Supports Intel® Core™ Ultra Processors (Series 2)(LGA1851) - 16+1+1+1+1 Power Phase, Dr.MOS for VCore+GT - 4 x DDR5 DIMMs - Supports Dual Channel, up to 9066+ (OC) - 1 PCIe 5.0 x16, 2 PCIe 4.0 x4, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi - Graphics Output Options: 1 HDMI, 1 DisplayPort, - 2 Thunderbolt™ 4 Type-C - Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio - 4 SATA3 - 1 Blazing M.2 (PCIe Gen5 x4) - 2 Hyper M.2 (PCIe Gen4 x4) - 1 Hyper M.2 (PCIe Gen4 x4 & SATA3) - 2 Thunderbolt™ 4 Type-C (Rear) - 1 USB 3.2 Gen2x2 Type-C (Front), - 1 USB 3.2 Gen2 Type-A (Rear), - 6 USB 3.2 Gen1 (2 Rear, 4 Front), - 8 USB 2.0 (4 Rear, 4 Front) - Realtek 2.5G LAN - Supports BIOS Flashback, Memory OC Shield, M.2 Bottom Heatsink
Description - Z890 Pro RS
Nowoczesna i futurystyczna, z atrakcyjnymi specyfikacjami i doskonałą równowagą, Race Sport (RS) Edition to ewolucja najpopularniejszej płyty głównej z serii PRO. Obsługuje procesory Intel Core Ultra (seria 2) (LGA1851) 16+1+1+1+1 faza zasilania, Dr.MOS dla VCore+GT 4 x DDR5 DIMM Obsługuje Dual Channel, do 8666+ (OC) 1 PCIe 5.0 x16, 2 PCIe 4.0 x4, 1 PCIe 4.0 x1, 1 M.2 Key E dla WiFi Opcje wyjścia graficznego: 1 HDMI, 1 DisplayPort, 2 Thunderbolt 4 Type-C Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio 4 SATA3 1 Blazing M.2 (PCIe Gen5 x4) 2 Hyper M.2 (PCIe Gen4 x4) 1 Hyper M.2 (PCIe Gen4 x4 i SATA3) 2 Thunderbolt 4 Type-C (Tył) 1 USB 3.2 Gen2x2 Type-C (przód), 1 USB 3.2 Gen2 Type-A (tył), 6 USB 3.2 Gen1 (2 z tyłu, 4 z przodu), 8 USB 2.0 (4 z tyłu, 4 z przodu) Realtek 2.5G LAN Obsługuje BIOS Flashback, Memory OC Shield, M.2 Bottom Radiator
Detailed data on disk/drive interfaces - CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
- 4 x SATA3 6.0 Gb/s Connectors
dimensionalWeight - 1458
dimension depth - 80 mm
dimension height - 280 mm
Dimensions - 30.5 cm x 24.4 cm
dimension weight - 1840 g
dimension width - 350 mm
DisplayPort Input/Output connectors - 1
ean - 4710483947452
EAN - 4710483947452
Expansion slots - 1 x PCIe 4.0 x 1
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 2 x PCIe 4.0 x 4
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x DisplayPort
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.2 Gen 2 Type-A
External connectors - 2 x SMA
External connectors - 2 x Thunderbolt 4
External connectors - 2 x USB 3.2 Gen 1 Type-A
External connectors - 4 x USB 2.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z890
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Operating system architecture - 64-bit
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Full Description Line - Intel Z890|LGA1851|ATX|DDR5|Memory slots 4|1xPCI-Express 4.0 1x|2xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x|1xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|2xUSB 3.1|1xUSB 3.2|2xUSB-C w/Thunderbolt|1xRJ45|3xAudio port|SATA|USB|USB 3.2|Thunderbolt|WiFi|Video|LAN 2.5 Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
Graphics - Intel Xe LPG Graphics Architecture 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz 2 x Intel Thunderbolt 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Included Accessories - - 2 x SATA Data Cables
- 2 x Screws for M.2 Sockets
- 1 x Standoff for M.2 Socket
Integrated audio - Realtek ALC897
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Yes
Internal I/O - 8-pin power connector 12 V - 2
Internal I/O - AIO pump fan connector - 1
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis fan connector (4-pin) - 5
Internal I/O - CPU fan connector - 2
Internal I/O - Front panel audio connector - Yes
Internal I/O - LED and speaker power socket - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - SPI TPM socket - 1
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2x2 Type-C ports quantity - 1
LPT connector / port - No
M.2 Expansion slots - 1
Manufacturer - ASRock
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 256 GB
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 9066 MHz
Memory - Supported memory types - DDR5 non-ECC
Memory - Unbuffered memory - Yes
Memory bus frequency - 4400 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 6533 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 8666 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - Z890 Pro RS
Model - Z890 PRO RS
MPN - 90-MXBP10-A0UAYZ
Name - 1851 ASRock Z890 Pro RS DDR5
name - ASRock Z890 Pro RS, Intel Z890 Mainboard, Sockel LGA 1851, Intel Z890, ATX, DDR5
name - Motherboard Z890 PRO RS ATX
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Dragon RTL8125BG
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 4
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power LED and Speaker Header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 4pin wentylator CPU
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.2 Gen 1 Type-A
Onboard connectors - 3 x Addressable LED
Onboard connectors - 5 x 4pin Chassis fan
Other information - Certyfikaty FCC, CE ErP/EuP ready (wymagany zasilacz ErP/EuP ready)
PCI-Express 4.0 1x Expansion slots - 1
PCI-Express 4.0 4x Expansion slots - 2
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel Core Ultra (Series 2)
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Processor family - Intel Core Ultra
producer - ASRock
producerCode - Z890 Pro RS
productName - ASRock Z890 Pro RS - Motherboard
productSize - Normal
RAID - SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
RAID - Yes

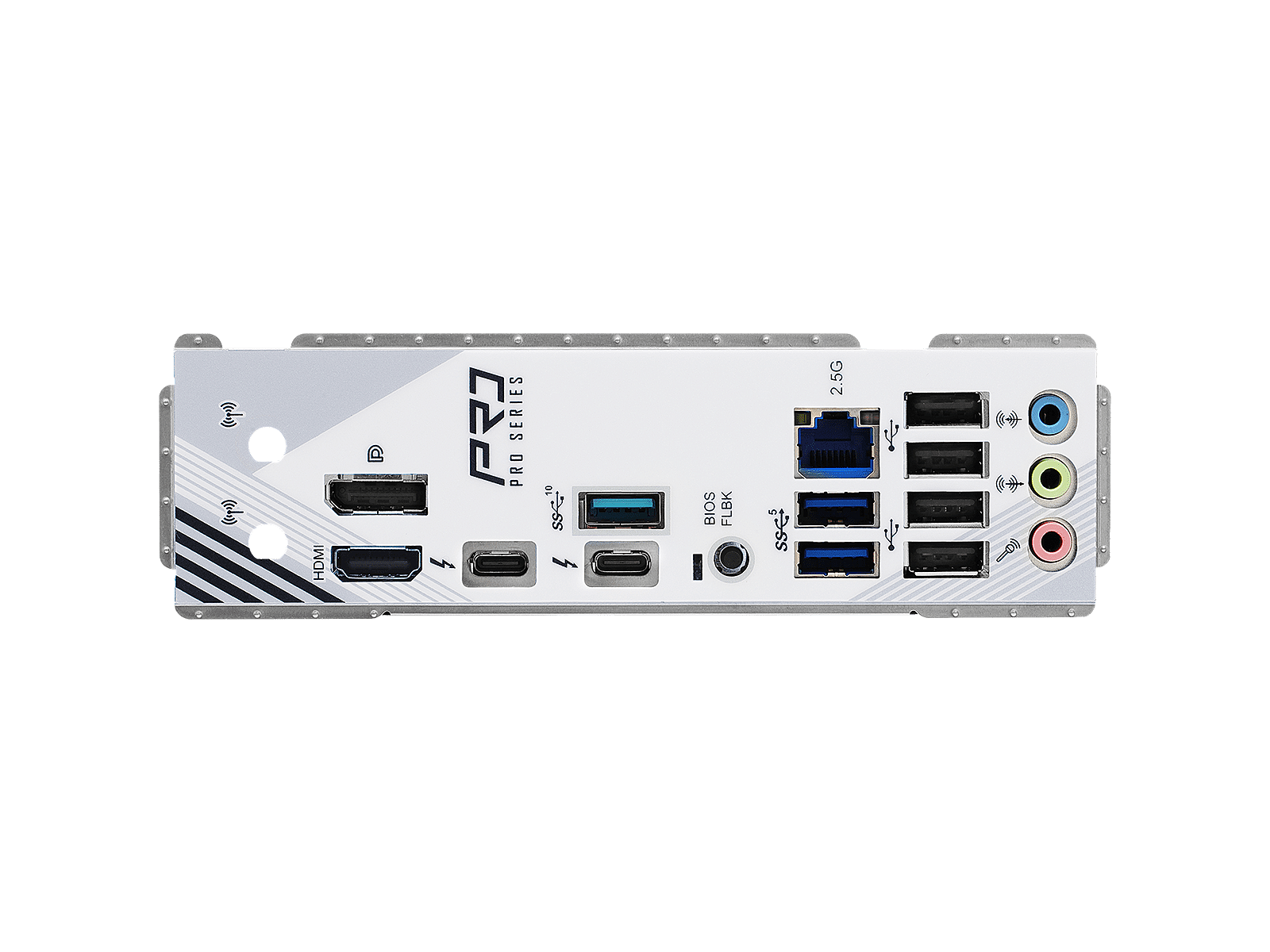

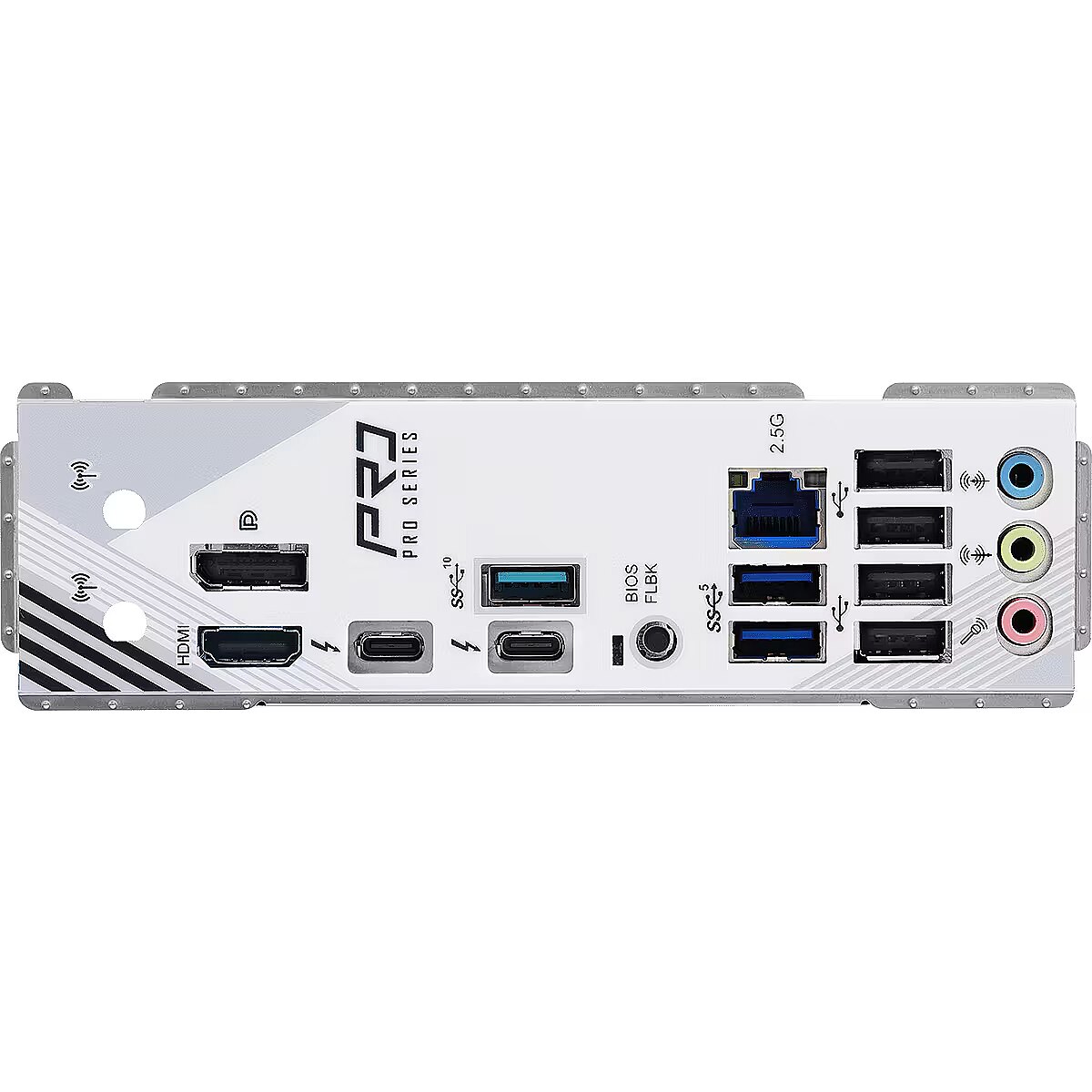

Rear panel I/O ports - DisplayPort 1.4 - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - External antenna connector - Yes, x 2
Rear panel I/O ports - Flashback BIOS button - Yes
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Line-out - Yes
Rear panel I/O ports - MIC input - 1
Rear panel I/O ports - Number of USB 3.2 Gen 1 ports - 2
Rear panel I/O ports - Speaker output - 1
Rear panel I/O ports - Thunderbolt 4 ports quantity - 2
Rear panel I/O ports - USB 2.0 connectors - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 39.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 31 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 10.3 kg
Shipping Box Width Shipping/Package Box Dimensions - 36.5 cm
sizeX - 346
sizeY - 281
sizeZ - 75
Socket - LGA1851
Software - Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash
Sound card - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Special functions -
Storage controllers - Supported storage drive interfaces - Blazing M.2 (PCIe Gen5 x4), Hyper M.2 (PCIe Gen4 x4)
Supported operating systems - Windows 11
Thunderbolt Interface - Yes
Unit Box Height - 0.075
Unit Box Length - 0.35
Unit Box Width - 0.28
Unit Brutto Volume - 0.008939 cubm
Unit Gross Weight - 2.06 kg
Unit Net Weight - 1.4 kg
USB-C w/Thunderbolt Input/Output connectors - 2
USB 2.0 Input/Output connectors - 4
USB 3.1 Input/Output connectors - 2
USB 3.2 Input/Output connectors - 1
USB 3.2 Interface - Yes
USB Interface - Yes
USB ports at back panel - 9
USB ports on motherboard - 9
Vendor Homepage - www.asrock.com/mb/Intel/Z890%20Pro%20RS/index.asp
vendpn - Z890 PRO RS
Warranty - 36 months
warrantyLength - 36
warrantyType - G
Weight - 1.84
weight - 1656
WiFi Interface - Yes
Audio port Input/Output connectors - 3
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
category - PC Components|Mainboards|Intel Mainboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Chipset - Intel Z890
Chipset manufacturer - Intel
Chipset type - Intel Z890
code - 90-MXBP10-A0UAYZ
COM connector / port - No
CPU socket - LGA1851
Description - Z890 Pro RS Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard. - Supports Intel® Core™ Ultra Processors (Series 2)(LGA1851) - 16+1+1+1+1 Power Phase, Dr.MOS for VCore+GT - 4 x DDR5 DIMMs - Supports Dual Channel, up to 9066+ (OC) - 1 PCIe 5.0 x16, 2 PCIe 4.0 x4, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi - Graphics Output Options: 1 HDMI, 1 DisplayPort, - 2 Thunderbolt™ 4 Type-C - Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio - 4 SATA3 - 1 Blazing M.2 (PCIe Gen5 x4) - 2 Hyper M.2 (PCIe Gen4 x4) - 1 Hyper M.2 (PCIe Gen4 x4 & SATA3) - 2 Thunderbolt™ 4 Type-C (Rear) - 1 USB 3.2 Gen2x2 Type-C (Front), - 1 USB 3.2 Gen2 Type-A (Rear), - 6 USB 3.2 Gen1 (2 Rear, 4 Front), - 8 USB 2.0 (4 Rear, 4 Front) - Realtek 2.5G LAN - Supports BIOS Flashback, Memory OC Shield, M.2 Bottom Heatsink
Description - Z890 Pro RS
Nowoczesna i futurystyczna, z atrakcyjnymi specyfikacjami i doskonałą równowagą, Race Sport (RS) Edition to ewolucja najpopularniejszej płyty głównej z serii PRO. Obsługuje procesory Intel Core Ultra (seria 2) (LGA1851) 16+1+1+1+1 faza zasilania, Dr.MOS dla VCore+GT 4 x DDR5 DIMM Obsługuje Dual Channel, do 8666+ (OC) 1 PCIe 5.0 x16, 2 PCIe 4.0 x4, 1 PCIe 4.0 x1, 1 M.2 Key E dla WiFi Opcje wyjścia graficznego: 1 HDMI, 1 DisplayPort, 2 Thunderbolt 4 Type-C Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio 4 SATA3 1 Blazing M.2 (PCIe Gen5 x4) 2 Hyper M.2 (PCIe Gen4 x4) 1 Hyper M.2 (PCIe Gen4 x4 i SATA3) 2 Thunderbolt 4 Type-C (Tył) 1 USB 3.2 Gen2x2 Type-C (przód), 1 USB 3.2 Gen2 Type-A (tył), 6 USB 3.2 Gen1 (2 z tyłu, 4 z przodu), 8 USB 2.0 (4 z tyłu, 4 z przodu) Realtek 2.5G LAN Obsługuje BIOS Flashback, Memory OC Shield, M.2 Bottom Radiator
Detailed data on disk/drive interfaces - CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
- 4 x SATA3 6.0 Gb/s Connectors
dimensionalWeight - 1458
dimension depth - 80 mm
dimension height - 280 mm
Dimensions - 30.5 cm x 24.4 cm
dimension weight - 1840 g
dimension width - 350 mm
DisplayPort Input/Output connectors - 1
ean - 4710483947452
EAN - 4710483947452
Expansion slots - 1 x PCIe 4.0 x 1
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 2 x PCIe 4.0 x 4
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x DisplayPort
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.2 Gen 2 Type-A
External connectors - 2 x SMA
External connectors - 2 x Thunderbolt 4
External connectors - 2 x USB 3.2 Gen 1 Type-A
External connectors - 4 x USB 2.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z890
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Operating system architecture - 64-bit
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Full Description Line - Intel Z890|LGA1851|ATX|DDR5|Memory slots 4|1xPCI-Express 4.0 1x|2xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x|1xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|2xUSB 3.1|1xUSB 3.2|2xUSB-C w/Thunderbolt|1xRJ45|3xAudio port|SATA|USB|USB 3.2|Thunderbolt|WiFi|Video|LAN 2.5 Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
Graphics - Intel Xe LPG Graphics Architecture 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz 2 x Intel Thunderbolt 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Included Accessories - - 2 x SATA Data Cables
- 2 x Screws for M.2 Sockets
- 1 x Standoff for M.2 Socket
Integrated audio - Realtek ALC897
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Yes
Internal I/O - 8-pin power connector 12 V - 2
Internal I/O - AIO pump fan connector - 1
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis fan connector (4-pin) - 5
Internal I/O - CPU fan connector - 2
Internal I/O - Front panel audio connector - Yes
Internal I/O - LED and speaker power socket - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - SPI TPM socket - 1
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2x2 Type-C ports quantity - 1
LPT connector / port - No
M.2 Expansion slots - 1
Manufacturer - ASRock
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 256 GB
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 9066 MHz
Memory - Supported memory types - DDR5 non-ECC
Memory - Unbuffered memory - Yes
Memory bus frequency - 4400 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 6533 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 8666 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - Z890 Pro RS
Model - Z890 PRO RS
MPN - 90-MXBP10-A0UAYZ
Name - 1851 ASRock Z890 Pro RS DDR5
name - ASRock Z890 Pro RS, Intel Z890 Mainboard, Sockel LGA 1851, Intel Z890, ATX, DDR5
name - Motherboard Z890 PRO RS ATX
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Dragon RTL8125BG
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 4
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power LED and Speaker Header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 4pin wentylator CPU
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.2 Gen 1 Type-A
Onboard connectors - 3 x Addressable LED
Onboard connectors - 5 x 4pin Chassis fan
Other information - Certyfikaty FCC, CE ErP/EuP ready (wymagany zasilacz ErP/EuP ready)
PCI-Express 4.0 1x Expansion slots - 1
PCI-Express 4.0 4x Expansion slots - 2
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel Core Ultra (Series 2)
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Processor family - Intel Core Ultra
producer - ASRock
producerCode - Z890 Pro RS
productName - ASRock Z890 Pro RS - Motherboard
productSize - Normal
RAID - SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - DisplayPort 1.4 - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - External antenna connector - Yes, x 2
Rear panel I/O ports - Flashback BIOS button - Yes
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Line-out - Yes
Rear panel I/O ports - MIC input - 1
Rear panel I/O ports - Number of USB 3.2 Gen 1 ports - 2
Rear panel I/O ports - Speaker output - 1
Rear panel I/O ports - Thunderbolt 4 ports quantity - 2
Rear panel I/O ports - USB 2.0 connectors - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 39.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 31 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 10.3 kg
Shipping Box Width Shipping/Package Box Dimensions - 36.5 cm
sizeX - 346
sizeY - 281
sizeZ - 75
Socket - LGA1851
Software - Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash
Sound card - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Special functions -
Storage controllers - Supported storage drive interfaces - Blazing M.2 (PCIe Gen5 x4), Hyper M.2 (PCIe Gen4 x4)
Supported operating systems - Windows 11
Thunderbolt Interface - Yes
Unit Box Height - 0.075
Unit Box Length - 0.35
Unit Box Width - 0.28
Unit Brutto Volume - 0.008939 cubm
Unit Gross Weight - 2.06 kg
Unit Net Weight - 1.4 kg
USB-C w/Thunderbolt Input/Output connectors - 2
USB 2.0 Input/Output connectors - 4
USB 3.1 Input/Output connectors - 2
USB 3.2 Input/Output connectors - 1
USB 3.2 Interface - Yes
USB Interface - Yes
USB ports at back panel - 9
USB ports on motherboard - 9
Vendor Homepage - www.asrock.com/mb/Intel/Z890%20Pro%20RS/index.asp
vendpn - Z890 PRO RS
Warranty - 36 months
warrantyLength - 36
warrantyType - G
Weight - 1.84
weight - 1656
WiFi Interface - Yes
