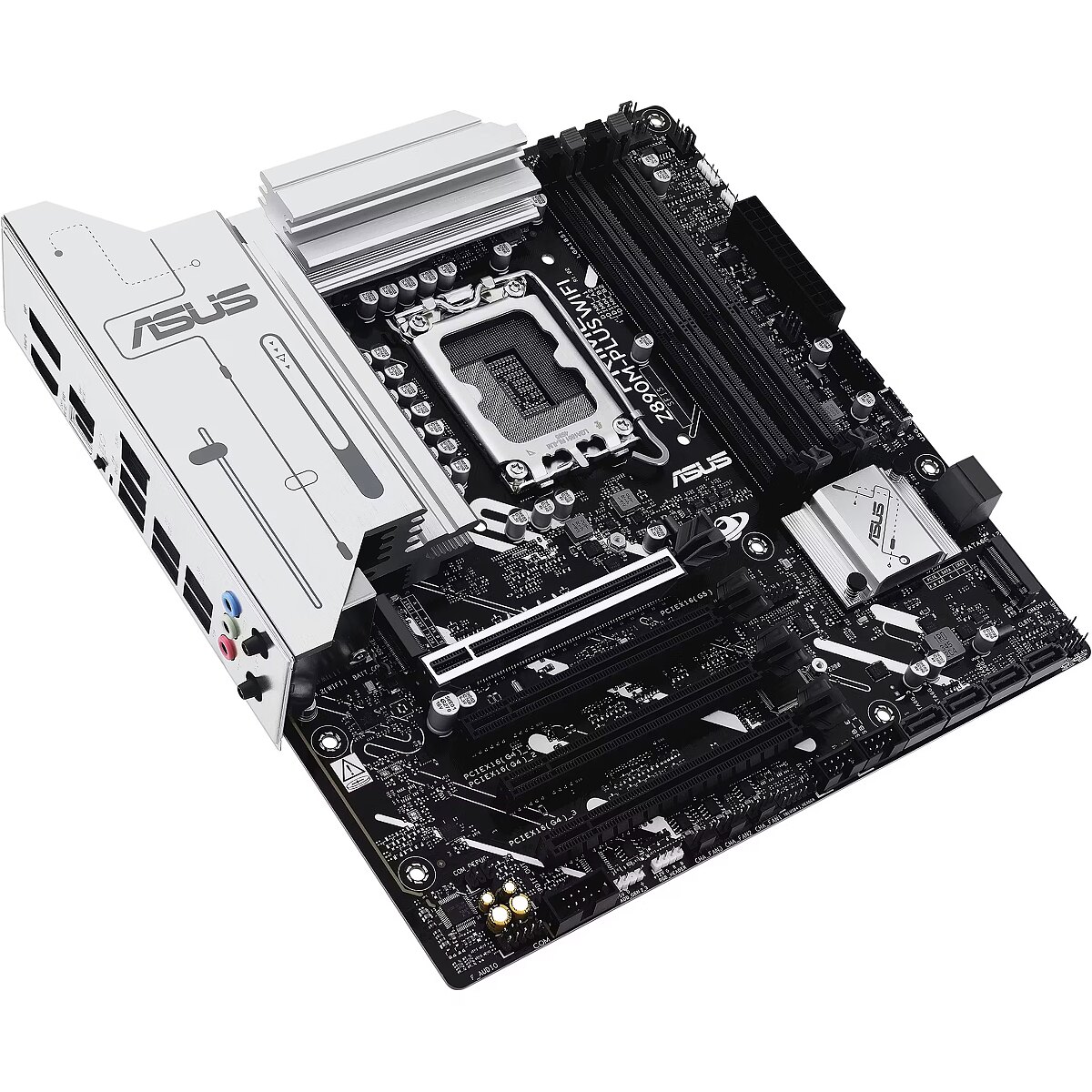

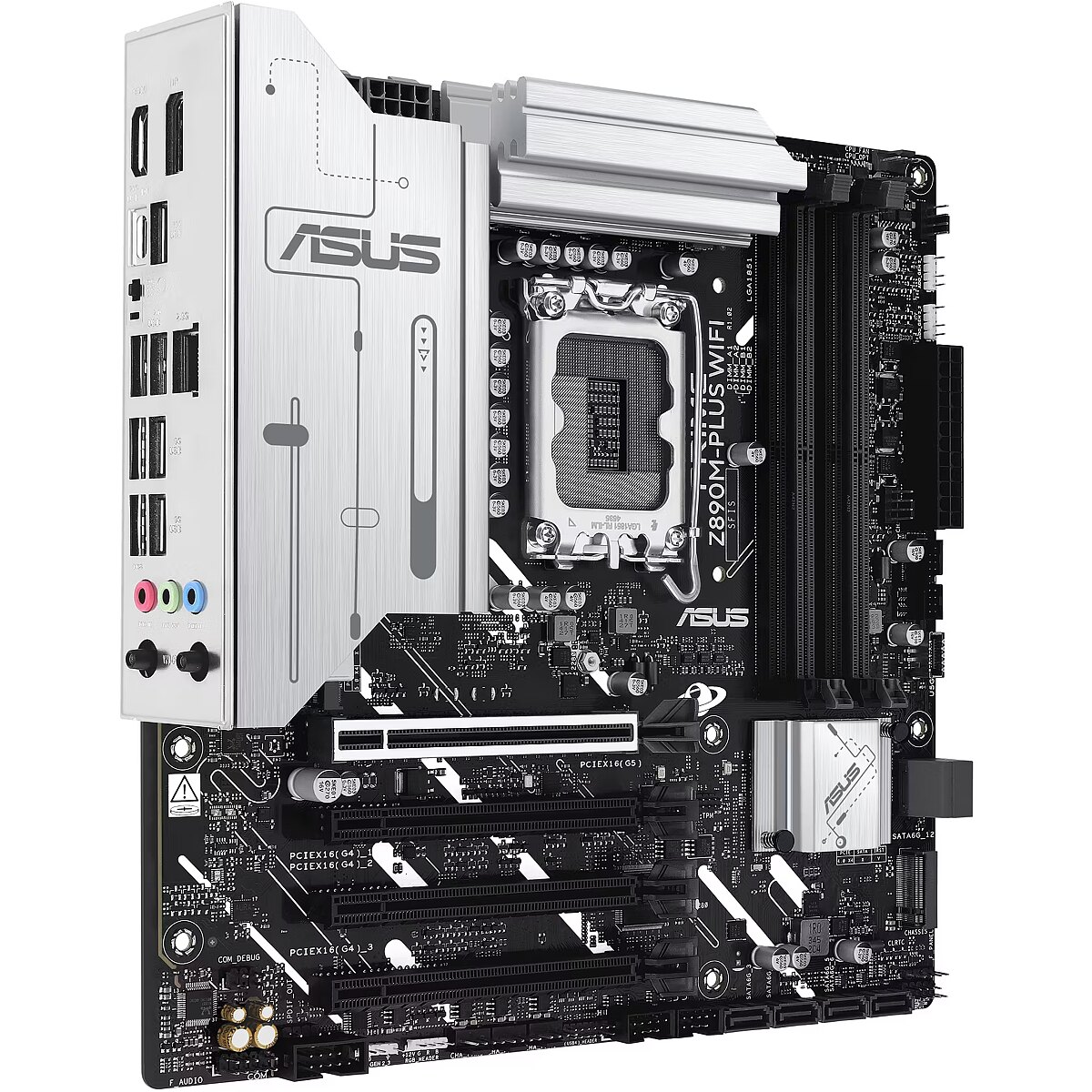

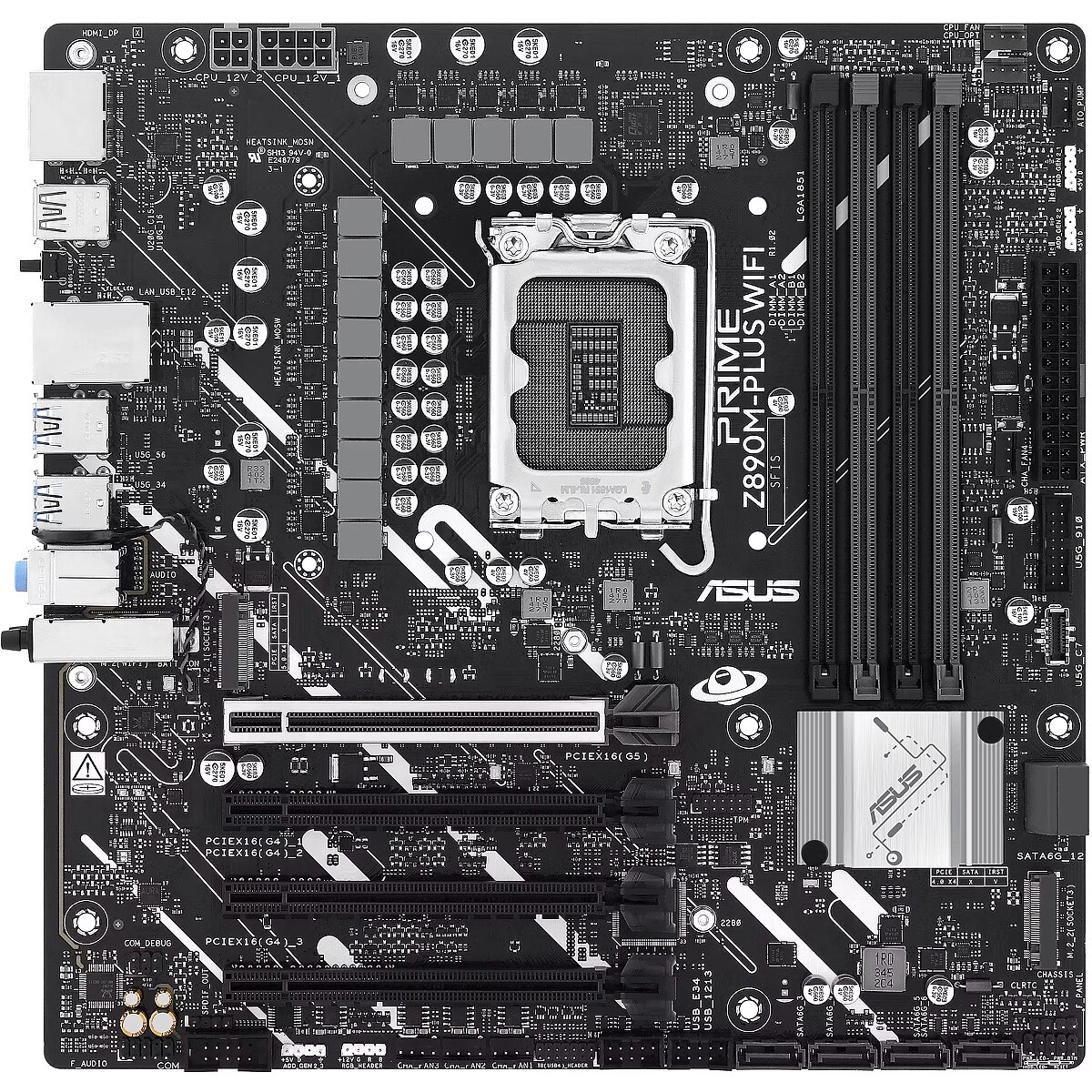

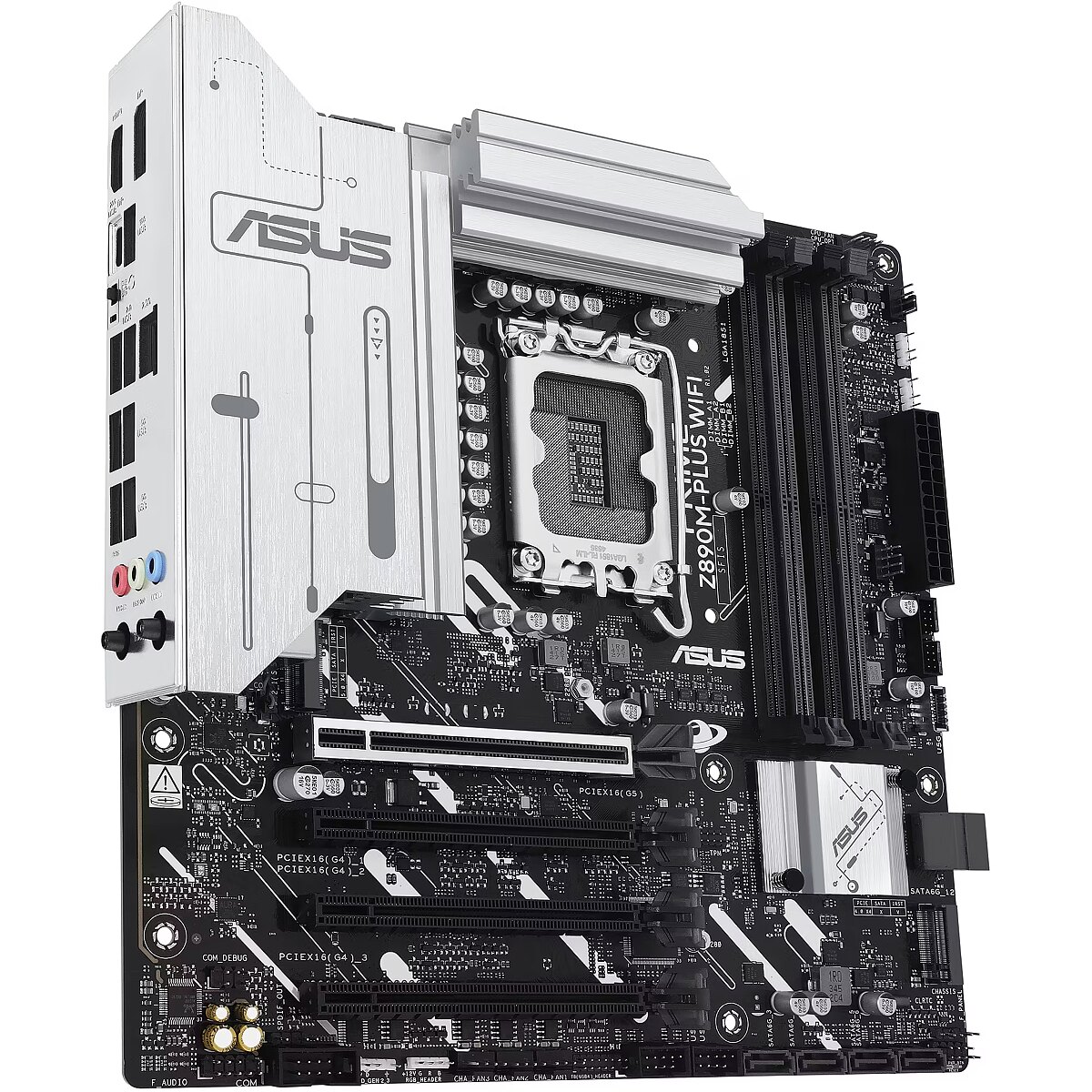

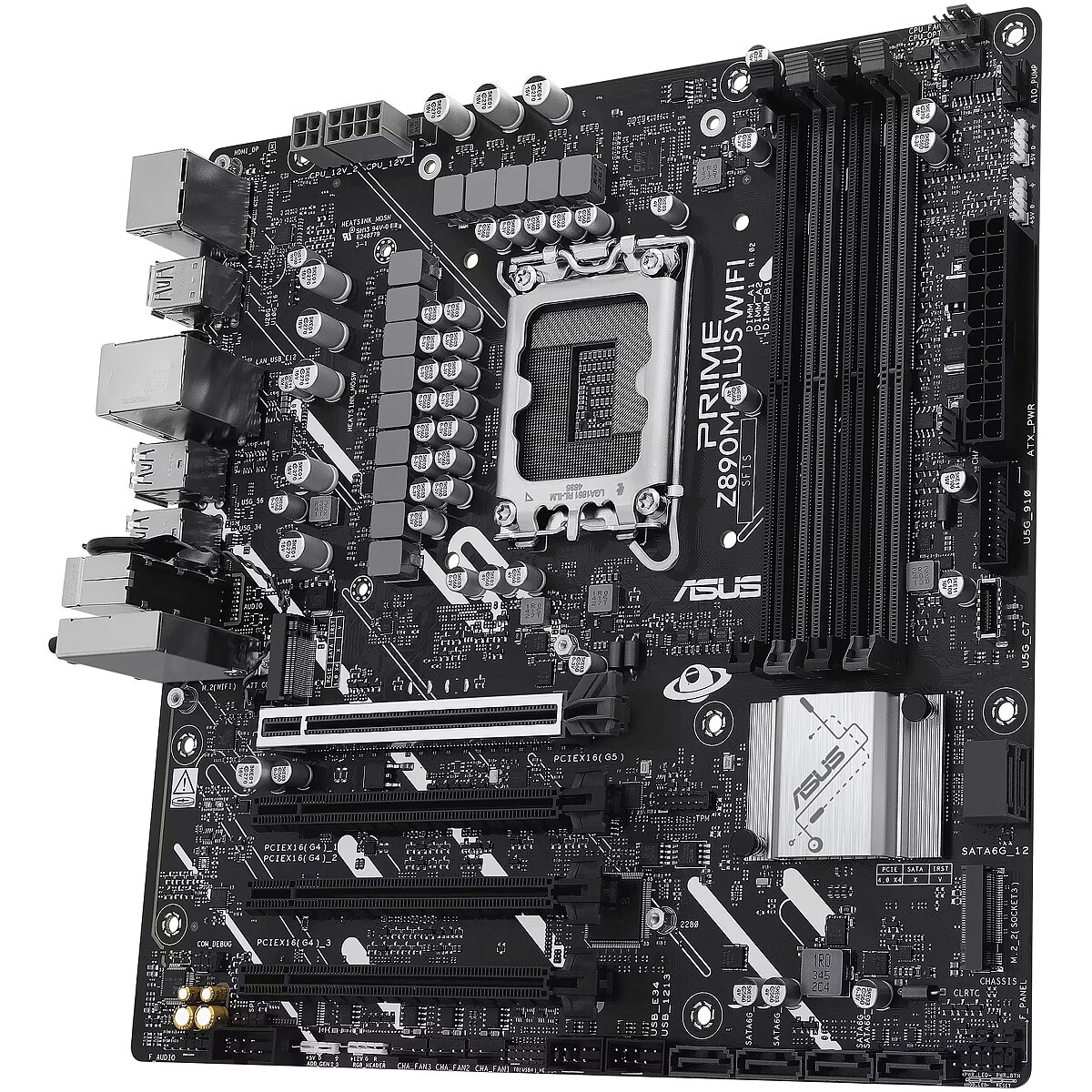

Asus PRIME Z890M-PLUS WIFI
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 10.12.2024
- Delivery to Omniva parcel machine free of charge: 10.12.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 10.12.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 10.12.2024
- Delivery to address in Riga 3.99 €: 10.12.2024
- Delivery to address in Latvia 6.99 €: 10.12.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 05.12.2024 after 15:00
Main product parameters All parameters
- Series: ASUS Prime
- CPU Socket: LGA 1851
- Chipset: Intel Z890
- Form factor: Micro ATX
- Type: DDR5
- RAM Slots: 4
- Built-in Wi-Fi: Ir
Basic information
Series
: ASUS Prime
CPU Socket
LGA 1851
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel Z890
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
Micro ATX
The physical size of the motherboard. Dateks.lv offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR5
RAM Slots
4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR5 6400 (OC 8400)
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 1
Integrated sound card
: Realtek 7.1 CODEC
Wireless connections
Built-in Bluetooth
: Ir
Built-in Wi-Fi
: Ir
External ports
External USB Type-C
: 1
External USB 2.0
: 2
External USB 3.0 (USB 3.2 Gen1)
: 4
External USB 3.1 (USB 3.2 Gen2)
: 1
Internal ports
Internal A-RGB 5V (3-pin)
: 3
Internal RGB 12V (4-pin)
: 1
Internal USB 2.0
: 2
Internal USB 3.0
: 1
Internal USB Type-C
: 1
M.2 Port
: 3
SATA3 ports
: 6
More detailed specification

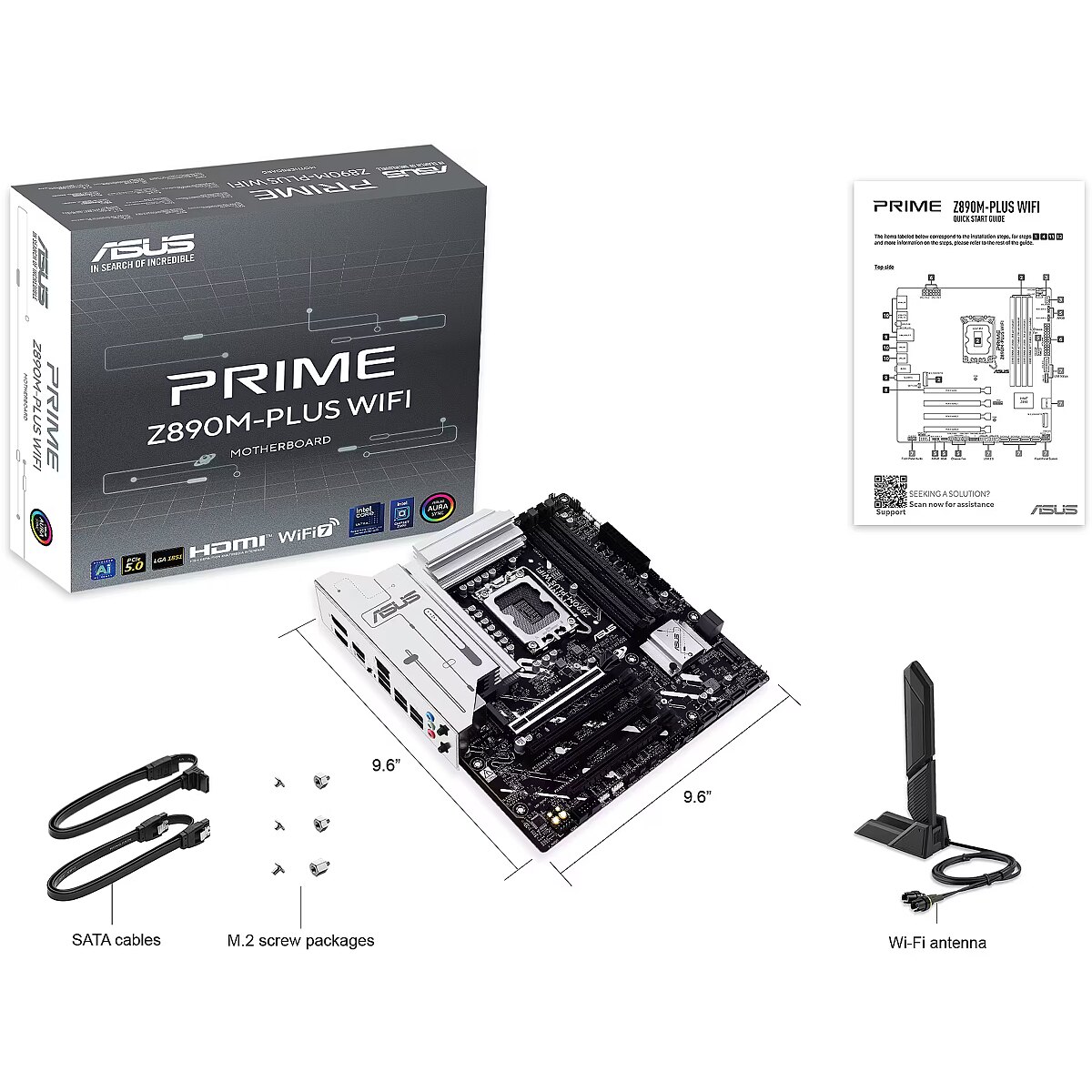

Accessories included - 2 x kable SATA 6Gb/s 1 x ASUS WiFi Q-Antenna 3 x pakiety śrub do dysku SSD M.2 1 x Skrócona instrukcja obsługi
BIOS - 256 (128+128) Mb Flash ROM, UEFI AMI BIOS
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
Brand - ASUS
BrandPartCode - 90MB1J80-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Chipset manufacturer - Intel
Chipset type - Intel Z890 Chipset
code - 90MB1J80-M0EAY0
COM connector / port - Yes
CPU socket - LGA1851
Description - Prime Z890M-PLUS WIFI
Płyty główne z serii ASUS PRIME zostały zaprojektowane przez ekspertów, aby uwolnić pełen potencjał najnowszych procesorów Intel Core Ultra (seria 2). Płyta główna PRIME Z890M-PLUS WIFI, charakteryzująca się solidną konstrukcją zasilania, kompleksowymi rozwiązaniami chłodzenia i inteligentnymi opcjami dostrajania, zapewnia użytkownikom i majsterkowiczom PC DIY szereg optymalizacji wydajności za pomocą intuicyjnych funkcji oprogramowania i oprogramowania układowego. Została zaprojektowana tak, aby była gotowa na komputery Advanced AI, oferując moc i łączność potrzebną do wymagających aplikacji AI.
Detailed data on disk/drive interfaces - Procesory Intel Core Ultra *
Gniazdo M.2_1 (klucz M), typ 2280 (obsługuje tryb PCIe 5.0 x4)
Chipset Intel Z890
Gniazdo M.2_2 (klucz M), typ 2280 (obsługuje tryb PCIe 4.0 x4)
Gniazdo M.2_3 (klucz M), typ 2280 (obsługuje tryb PCIe 4.0 x4)
6 portów SATA 6 Gb/s
* Technologia Intel Rapid Storage obsługuje PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, gniazdo M.2 z procesora obsługuje tylko RAID 0/1/5.
dimensionalWeight - 1193
dimension depth - 70 mm
dimension height - 275 mm
Dimensions - 24.4 cm x 24.4 cm
dimension weight - 1563 g
dimension width - 280 mm
ean - 4711387755419
EAN - 4711387755419
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 2 x PCIe 4.0 x 16
Expansion slots - 3 x M.2
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x16 (Gen 4.x) slots - 3
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.1
External connectors - 1 x USB 3.1 Type-C
External connectors - 1 x USB BIOS Flashback button
External connectors - 1 x Wi-Fi Module
External connectors - 2 x USB 2.0
External connectors - 4 x USB 3.0
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z890
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Product colour - Aluminium
Features - Product colour - Aluminium, Black
Features - Product colour - Black
Features - Windows operating systems supported - Windows 11
FireWire (IEEE 1394) - No
Form factor - micro ATX
Graphics - 1 x DisplayPort** 1 x port HDMI*** 1 x port USB 20 Gb/s (USB Type-C) obsługuje wyjście wideo DisplayPort**** *Specyfikacja grafiki może się różnić w zależności od typu procesora. Aby uzyskać aktualizacje, zapoznaj się z witryną www.intel.com.
**Obsługuje maks. 4K@60Hz zgodnie ze specyfikacją DisplayPort 1.4.
***Obsługuje 4K@60Hz zgodnie ze specyfikacją HDMI 2.1.
****Obsługuje maks. 4K@120Hz zgodnie ze specyfikacją DisplayPort 1.4.
***** Obsługa rozdzielczości VGA zależy od rozdzielczości procesorów lub kart graficznych.
Graphics - On-board graphics card - No
Graphics - Parallel processing technology support - Not supported
GTIN - 4711387755419
guarantee - 36
guarantee_type - normal
Integrated CPU - No
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 6
Internal I/O - S/PDIF out connector - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
LongDesc - Z890M-PLUS WIFIASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z890M-PLUS WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
LongProductName - Intel Z890 Chipset, 4 x DIMM slots, max. 192GB, DDR5
LongSummaryDescription - ASUS PRIME Z890M-PLUS WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
LPT connector / port - No
Manufacturer - ASUS
Max. number of SATA devices - 6
Max memory size - 192 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 7600 MHz
Memory type - DDR5
Model - PRIME Z890M-PLUS WIFI
MPN - 90MB1J80-M0EAY0
Name - 1851 ASUS PRIME Z890M-Plus Wifi DDR5
name - ASUS Prime Z890M Plus WiFi Mainboard, LGA 1851, Intel Z890, mATX, DDR5
name - Motherboard PRIME Z890M-PLUS WIFI S 1851 4DDR5 TB4/DP mATX /90MB1J80-M0EAY0
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - Ethernet 1 x Realtek 2.5Gb Ethernet ASUS LANGuard Bezprzewodowe i Bluetooth Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Obsługuje pasmo częstotliwości 2,4/5/6 GHz** Obsługuje pasmo Wi-Fi 7 160 MHz, do 2,9 Gb/s szybkości transferu. Bluetooth v5.4*** *Funkcje Wi-Fi mogą się różnić w zależności od systemu operacyjnego
W przypadku systemu Windows 11 Wi-Fi 7 będzie wymagać wersji 24H2 lub nowszej do pełnej funkcjonalności, Windows 11 21H2/22H2/23H2 obsługuje tylko Wi-Fi 6E.
W przypadku systemu Windows 10 obsługiwane jest tylko Wi-Fi 6.
** Pasmo częstotliwości Wi-Fi 6 GHz i przepisy dotyczące przepustowości mogą się różnić w zależności od kraju.
*** Wersja Bluetooth może się różnić, zapoznaj się ze stroną internetową producenta modułu Wi-Fi, aby uzyskać najnowsze specyfikacje.
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 2
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin 12V power
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 4pin wentylator OPT CPU
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x S/PDIF Out header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x Thunderbolt header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 3 x Addressable LED
Onboard connectors - 3 x M.2
Onboard connectors - 4 x 4pin Chassis fan
Onboard connectors - 6 x SATA III 6Gb/s
Other information -

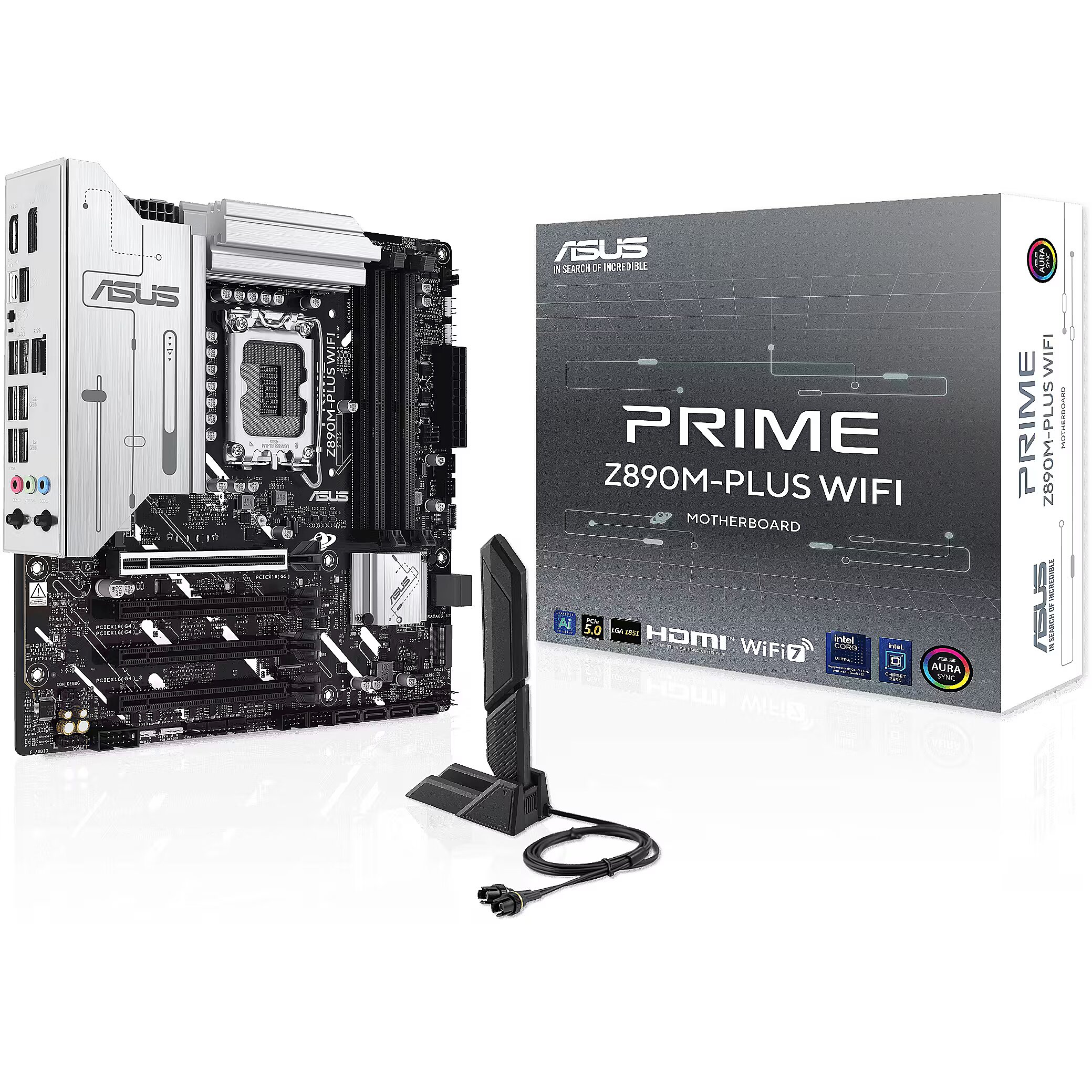

Packaging content - Cables included - SATA
Packaging content - Screws included - Yes

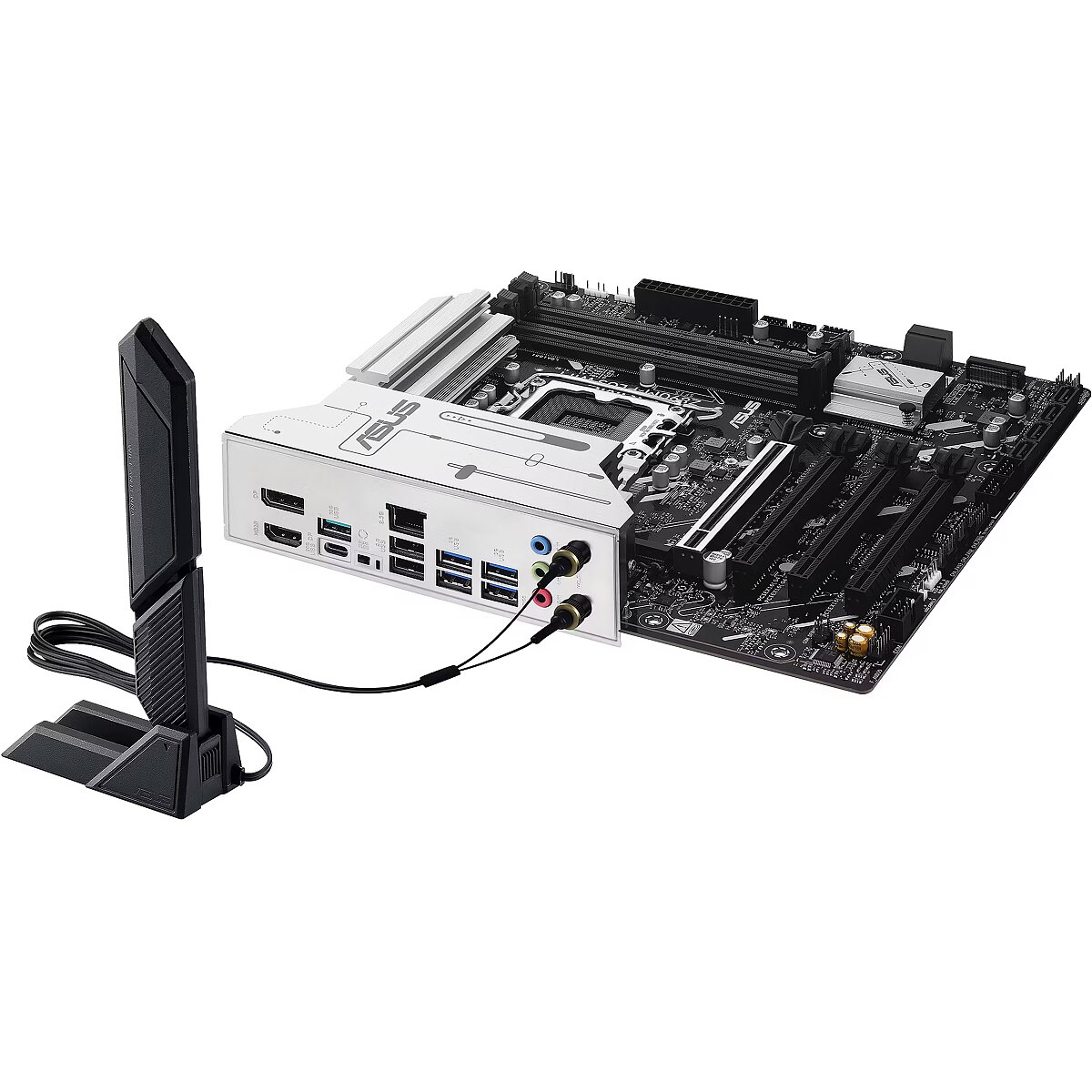

Packaging content - Wi-Fi antenna - Yes
Packaging data - Package depth - 275 mm
Packaging data - Package height - 67.5 mm
Packaging data - Package weight - 1.64 kg
Packaging data - Package width - 275 mm
Processor - Compatible processor series - Intel Core Ultra (Series 2)
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Processor - Supported processor sockets - LGA 1851
Processor family - Intel Core Ultra
producer - Asus
producerCode - 90MB1J80-M0EAY0
productName - ASUS PRIME Z890M-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) micro ATX
ProductName - PRIME Z890M-PLUS WIFI
productSize - Normal
RAID - Yes

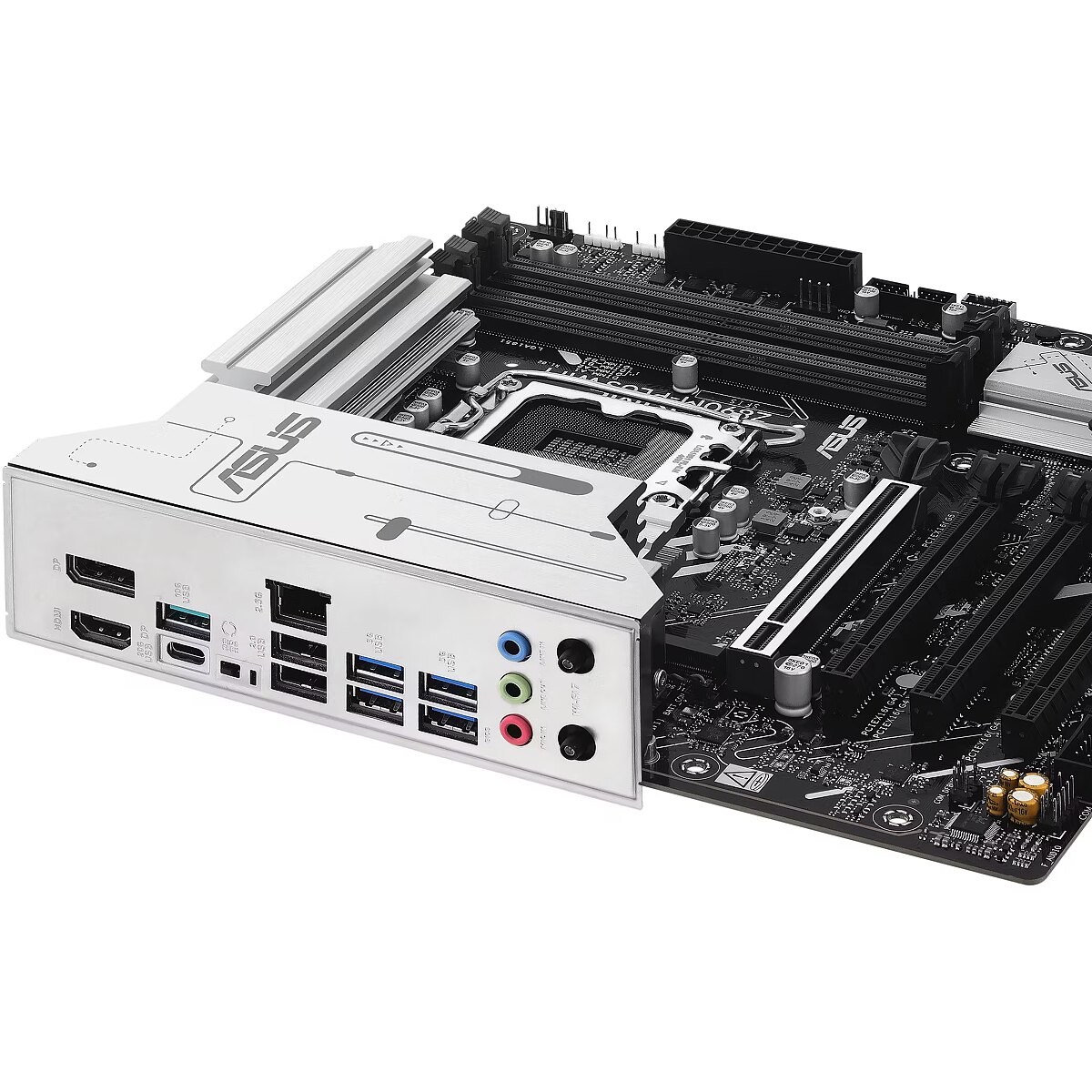

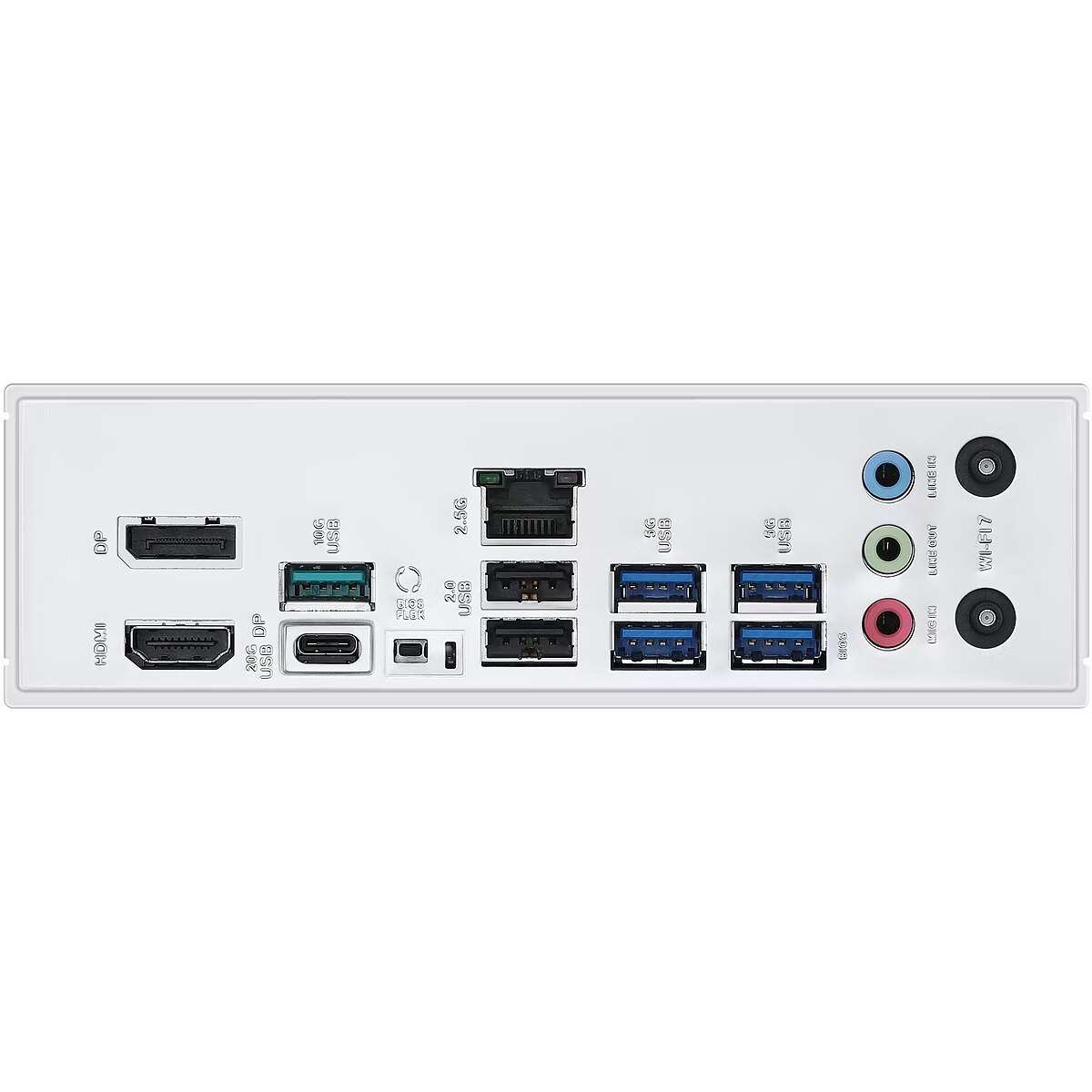

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Rear panel I/O ports - WiFi-AP antenna jack - 1
ShortSummaryDescription - ASUS PRIME Z890M-PLUS WIFI, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), LGA 1851, DDR5-SDRAM, 192 GB
sizeX - 350
sizeY - 310
sizeZ - 55
Software - ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving ASUS DriverHub ASUS GlideX TurboV Core ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
Sound card - Realtek 7.1 Surround Sound High Definition Audio CODEC* Obsługuje: wykrywanie gniazda, przesyłanie strumieniowe, zmianę przeznaczenia gniazda na przednim panelu Obsługuje odtwarzanie do 24 bitów/192 kHz Funkcje audio Ekranowanie audio Kondensatory audio klasy premium Dedykowane warstwy audio PCB * Do obsługi wyjścia audio 7.1 Surround Sound wymagana jest obudowa z modułem audio HD na przednim panelu.
Special functions - ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Storage controllers - Number of HDDs supported - 6
Storage controllers - Number of storage drives supported - 9
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
Title - ASUS PRIME Z890M-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) micro ATX
URL - https://www.asus.com/motherboards-components/motherboards/prime/prime-z890m-plus-wifi/
USB ports at back panel - 8
USB ports on motherboard - 7
vendpn - PRIME Z890M-PLUS WIFI
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 1.56
weight - 1550
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 244 mm
BIOS - 256 (128+128) Mb Flash ROM, UEFI AMI BIOS
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
Brand - ASUS
BrandPartCode - 90MB1J80-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Chipset manufacturer - Intel
Chipset type - Intel Z890 Chipset
code - 90MB1J80-M0EAY0
COM connector / port - Yes
CPU socket - LGA1851
Description - Prime Z890M-PLUS WIFI
Płyty główne z serii ASUS PRIME zostały zaprojektowane przez ekspertów, aby uwolnić pełen potencjał najnowszych procesorów Intel Core Ultra (seria 2). Płyta główna PRIME Z890M-PLUS WIFI, charakteryzująca się solidną konstrukcją zasilania, kompleksowymi rozwiązaniami chłodzenia i inteligentnymi opcjami dostrajania, zapewnia użytkownikom i majsterkowiczom PC DIY szereg optymalizacji wydajności za pomocą intuicyjnych funkcji oprogramowania i oprogramowania układowego. Została zaprojektowana tak, aby była gotowa na komputery Advanced AI, oferując moc i łączność potrzebną do wymagających aplikacji AI.
Detailed data on disk/drive interfaces - Procesory Intel Core Ultra *
Gniazdo M.2_1 (klucz M), typ 2280 (obsługuje tryb PCIe 5.0 x4)
Chipset Intel Z890
Gniazdo M.2_2 (klucz M), typ 2280 (obsługuje tryb PCIe 4.0 x4)
Gniazdo M.2_3 (klucz M), typ 2280 (obsługuje tryb PCIe 4.0 x4)
6 portów SATA 6 Gb/s
* Technologia Intel Rapid Storage obsługuje PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, gniazdo M.2 z procesora obsługuje tylko RAID 0/1/5.
dimensionalWeight - 1193
dimension depth - 70 mm
dimension height - 275 mm
Dimensions - 24.4 cm x 24.4 cm
dimension weight - 1563 g
dimension width - 280 mm
ean - 4711387755419
EAN - 4711387755419
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 2 x PCIe 4.0 x 16
Expansion slots - 3 x M.2
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x16 (Gen 4.x) slots - 3
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.1
External connectors - 1 x USB 3.1 Type-C
External connectors - 1 x USB BIOS Flashback button
External connectors - 1 x Wi-Fi Module
External connectors - 2 x USB 2.0
External connectors - 4 x USB 3.0
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z890
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Product colour - Aluminium
Features - Product colour - Aluminium, Black
Features - Product colour - Black
Features - Windows operating systems supported - Windows 11
FireWire (IEEE 1394) - No
Form factor - micro ATX
Graphics - 1 x DisplayPort** 1 x port HDMI*** 1 x port USB 20 Gb/s (USB Type-C) obsługuje wyjście wideo DisplayPort**** *Specyfikacja grafiki może się różnić w zależności od typu procesora. Aby uzyskać aktualizacje, zapoznaj się z witryną www.intel.com.
**Obsługuje maks. 4K@60Hz zgodnie ze specyfikacją DisplayPort 1.4.
***Obsługuje 4K@60Hz zgodnie ze specyfikacją HDMI 2.1.
****Obsługuje maks. 4K@120Hz zgodnie ze specyfikacją DisplayPort 1.4.
***** Obsługa rozdzielczości VGA zależy od rozdzielczości procesorów lub kart graficznych.
Graphics - On-board graphics card - No
Graphics - Parallel processing technology support - Not supported
GTIN - 4711387755419
guarantee - 36
guarantee_type - normal
Integrated CPU - No
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 6
Internal I/O - S/PDIF out connector - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
LongDesc - Z890M-PLUS WIFIASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z890M-PLUS WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
LongProductName - Intel Z890 Chipset, 4 x DIMM slots, max. 192GB, DDR5
LongSummaryDescription - ASUS PRIME Z890M-PLUS WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
LPT connector / port - No
Manufacturer - ASUS
Max. number of SATA devices - 6
Max memory size - 192 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 7600 MHz
Memory type - DDR5
Model - PRIME Z890M-PLUS WIFI
MPN - 90MB1J80-M0EAY0
Name - 1851 ASUS PRIME Z890M-Plus Wifi DDR5
name - ASUS Prime Z890M Plus WiFi Mainboard, LGA 1851, Intel Z890, mATX, DDR5
name - Motherboard PRIME Z890M-PLUS WIFI S 1851 4DDR5 TB4/DP mATX /90MB1J80-M0EAY0
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - Ethernet 1 x Realtek 2.5Gb Ethernet ASUS LANGuard Bezprzewodowe i Bluetooth Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Obsługuje pasmo częstotliwości 2,4/5/6 GHz** Obsługuje pasmo Wi-Fi 7 160 MHz, do 2,9 Gb/s szybkości transferu. Bluetooth v5.4*** *Funkcje Wi-Fi mogą się różnić w zależności od systemu operacyjnego
W przypadku systemu Windows 11 Wi-Fi 7 będzie wymagać wersji 24H2 lub nowszej do pełnej funkcjonalności, Windows 11 21H2/22H2/23H2 obsługuje tylko Wi-Fi 6E.
W przypadku systemu Windows 10 obsługiwane jest tylko Wi-Fi 6.
** Pasmo częstotliwości Wi-Fi 6 GHz i przepisy dotyczące przepustowości mogą się różnić w zależności od kraju.
*** Wersja Bluetooth może się różnić, zapoznaj się ze stroną internetową producenta modułu Wi-Fi, aby uzyskać najnowsze specyfikacje.
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 2
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin 12V power
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 4pin wentylator OPT CPU
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x S/PDIF Out header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x Thunderbolt header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 3 x Addressable LED
Onboard connectors - 3 x M.2
Onboard connectors - 4 x 4pin Chassis fan
Onboard connectors - 6 x SATA III 6Gb/s
Other information -
Packaging content - Cables included - SATA
Packaging content - Screws included - Yes
Packaging content - Wi-Fi antenna - Yes
Packaging data - Package depth - 275 mm
Packaging data - Package height - 67.5 mm
Packaging data - Package weight - 1.64 kg
Packaging data - Package width - 275 mm
Processor - Compatible processor series - Intel Core Ultra (Series 2)
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Processor - Supported processor sockets - LGA 1851
Processor family - Intel Core Ultra
producer - Asus
producerCode - 90MB1J80-M0EAY0
productName - ASUS PRIME Z890M-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) micro ATX
ProductName - PRIME Z890M-PLUS WIFI
productSize - Normal
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Rear panel I/O ports - WiFi-AP antenna jack - 1
ShortSummaryDescription - ASUS PRIME Z890M-PLUS WIFI, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), LGA 1851, DDR5-SDRAM, 192 GB
sizeX - 350
sizeY - 310
sizeZ - 55
Software - ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving ASUS DriverHub ASUS GlideX TurboV Core ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
Sound card - Realtek 7.1 Surround Sound High Definition Audio CODEC* Obsługuje: wykrywanie gniazda, przesyłanie strumieniowe, zmianę przeznaczenia gniazda na przednim panelu Obsługuje odtwarzanie do 24 bitów/192 kHz Funkcje audio Ekranowanie audio Kondensatory audio klasy premium Dedykowane warstwy audio PCB * Do obsługi wyjścia audio 7.1 Surround Sound wymagana jest obudowa z modułem audio HD na przednim panelu.
Special functions - ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Storage controllers - Number of HDDs supported - 6
Storage controllers - Number of storage drives supported - 9
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
Title - ASUS PRIME Z890M-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) micro ATX
URL - https://www.asus.com/motherboards-components/motherboards/prime/prime-z890m-plus-wifi/
USB ports at back panel - 8
USB ports on motherboard - 7
vendpn - PRIME Z890M-PLUS WIFI
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 1.56
weight - 1550
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 244 mm
