ID: 1151612
Product code: 90MB1I50-M0EAY0
In stock 10 units
Warranty: 3 years

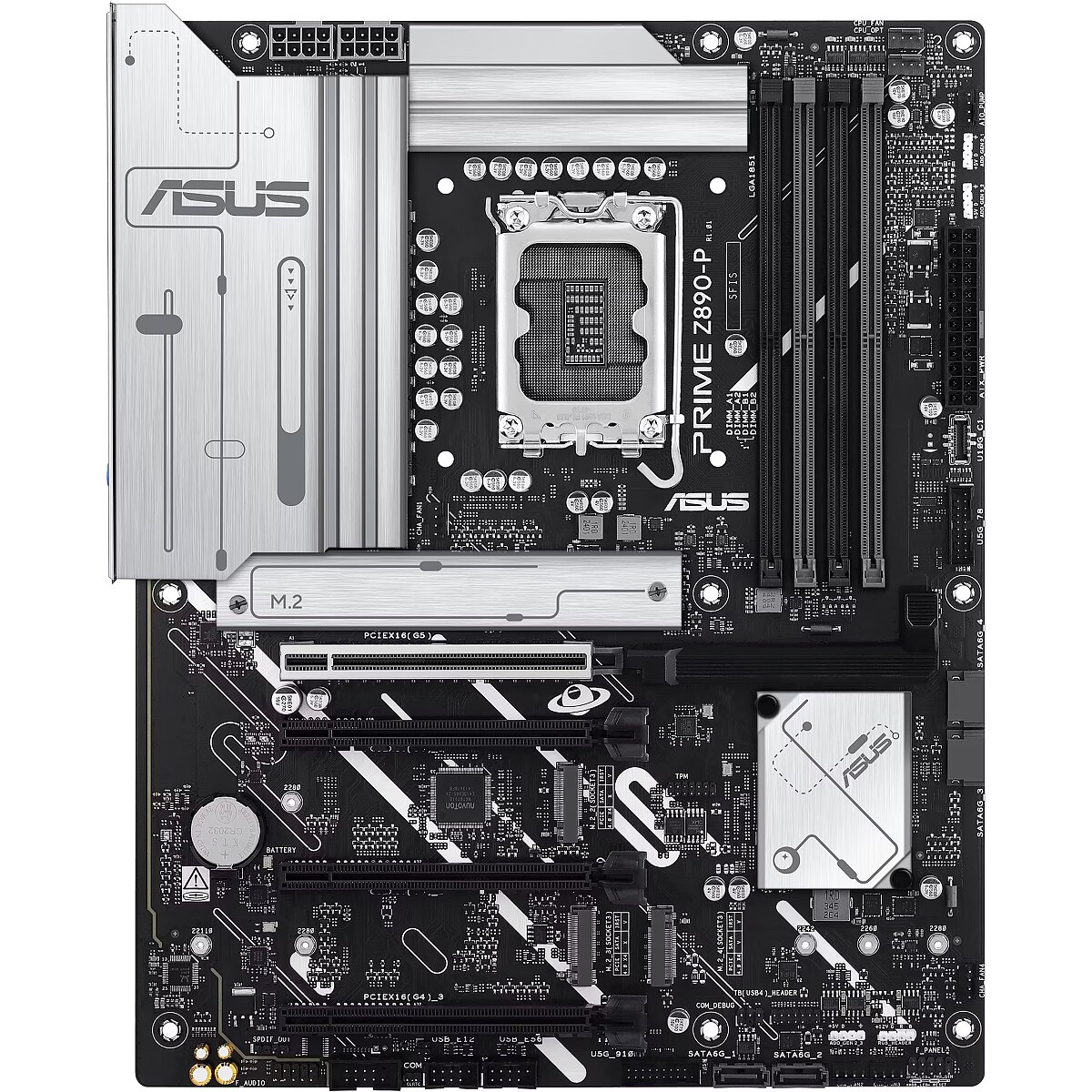

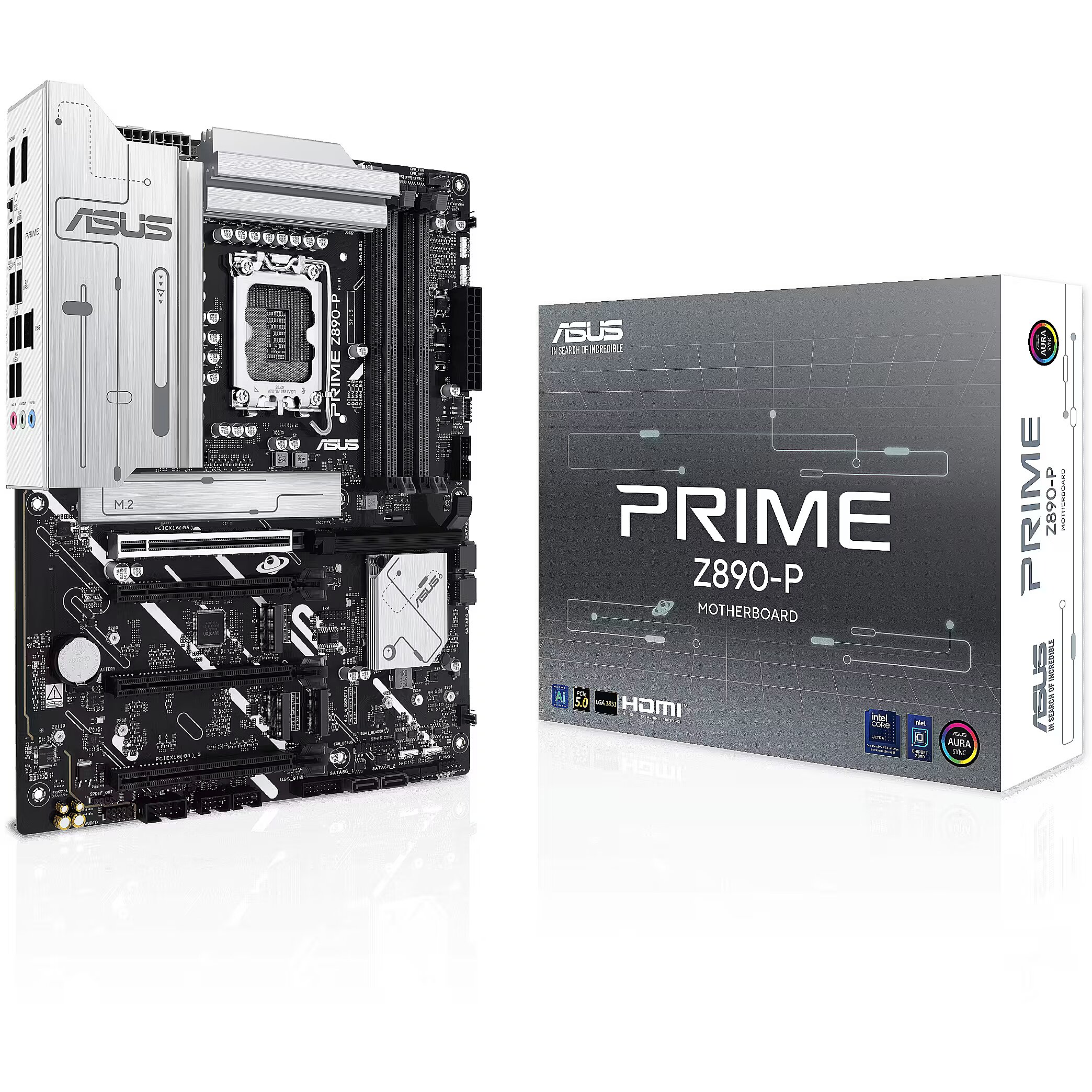

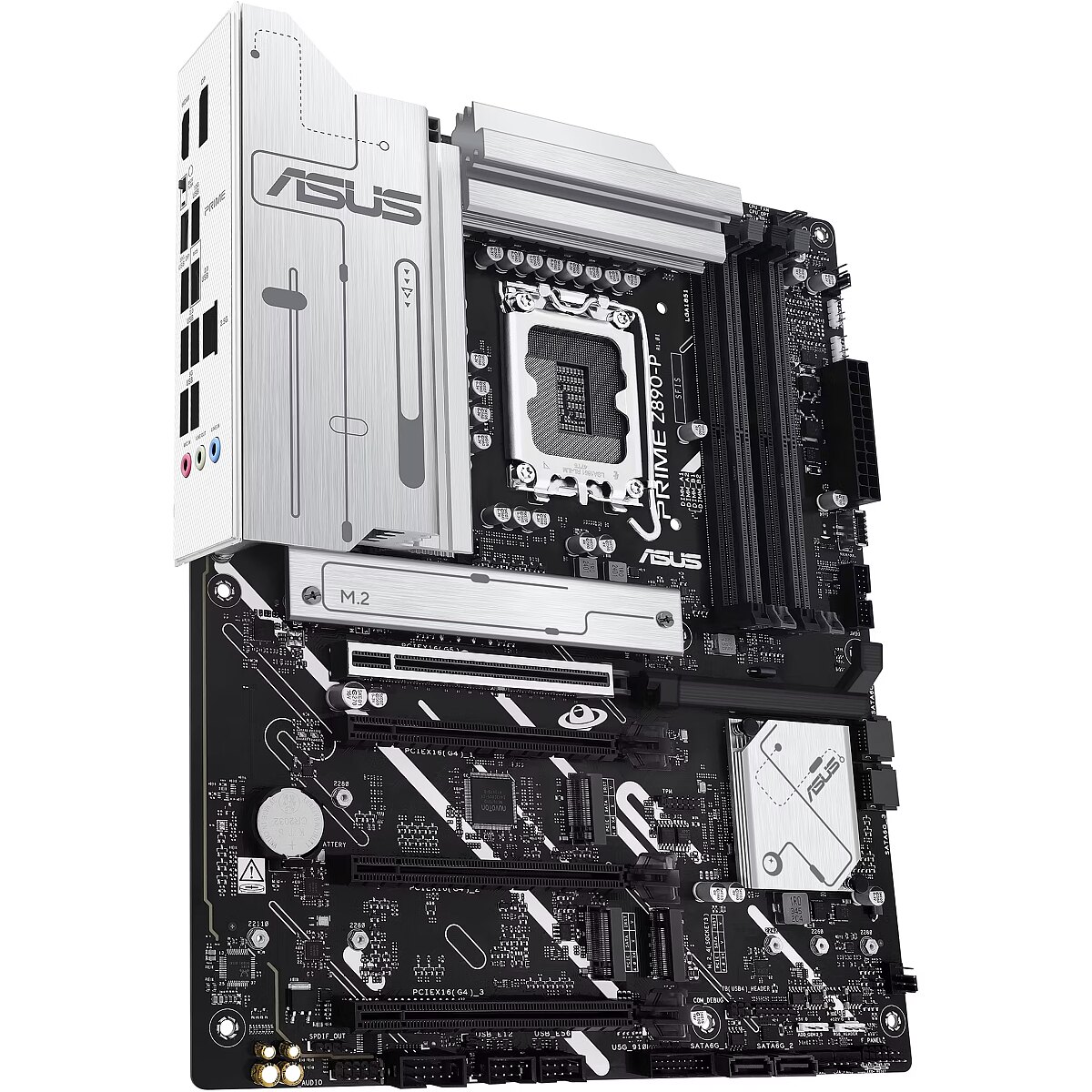

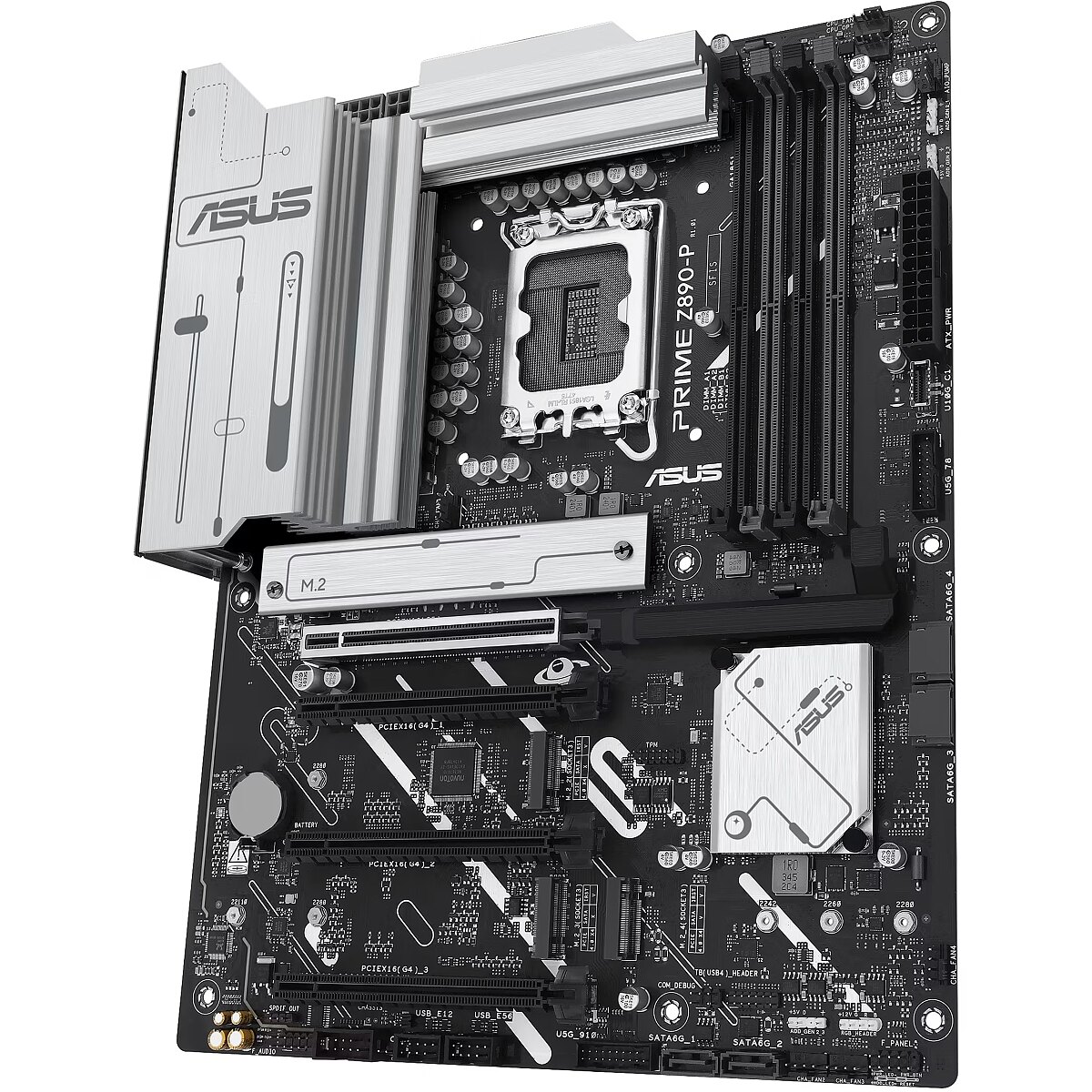

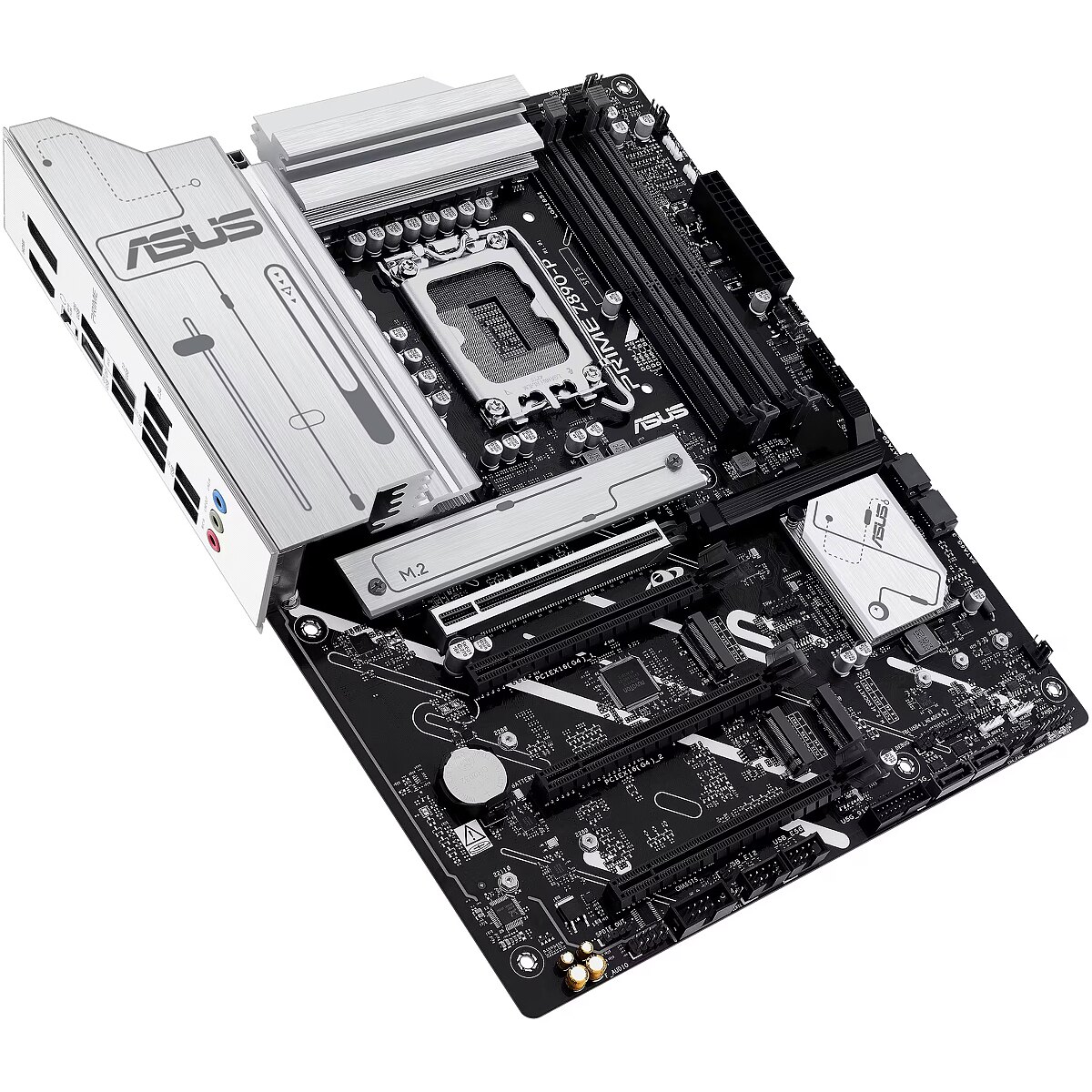

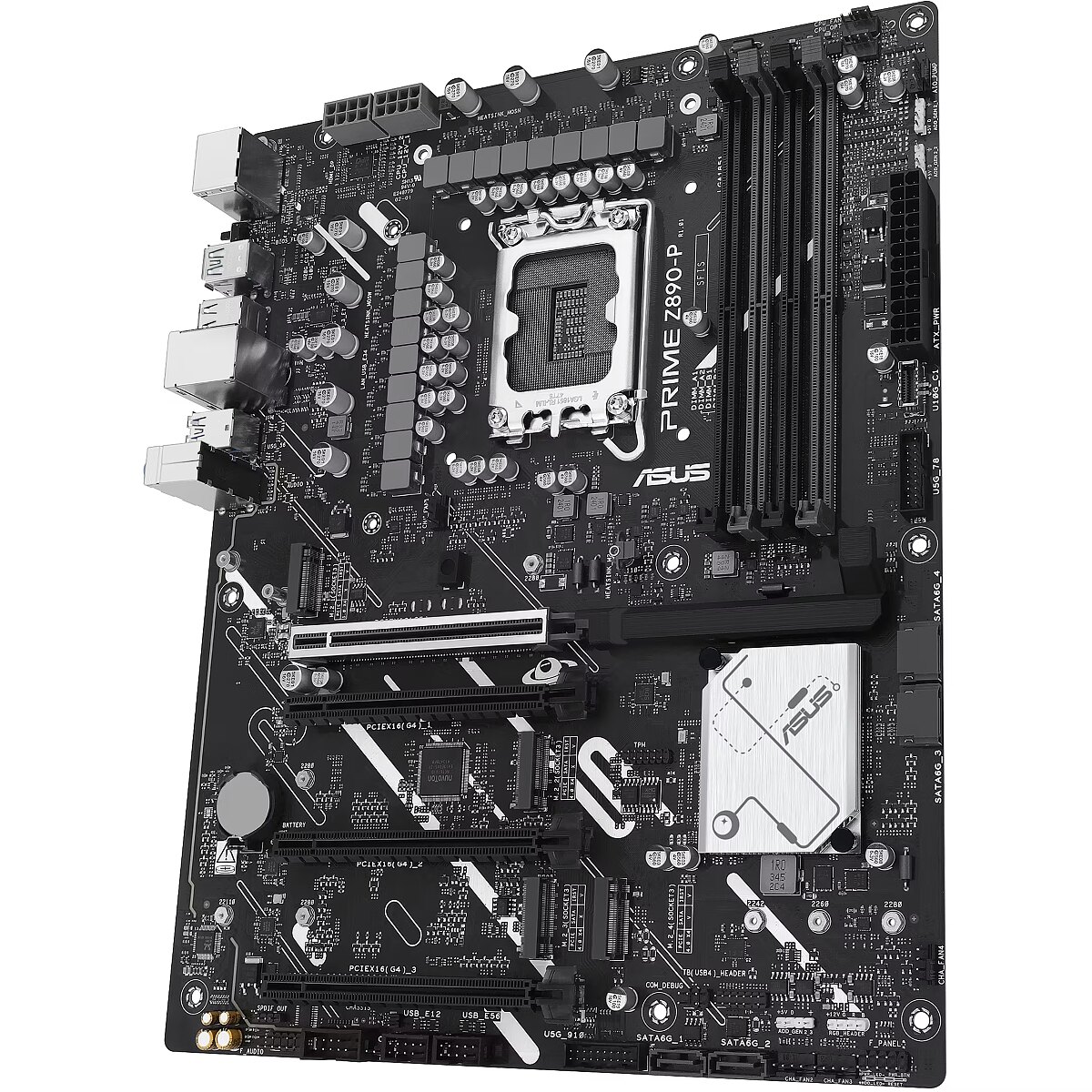

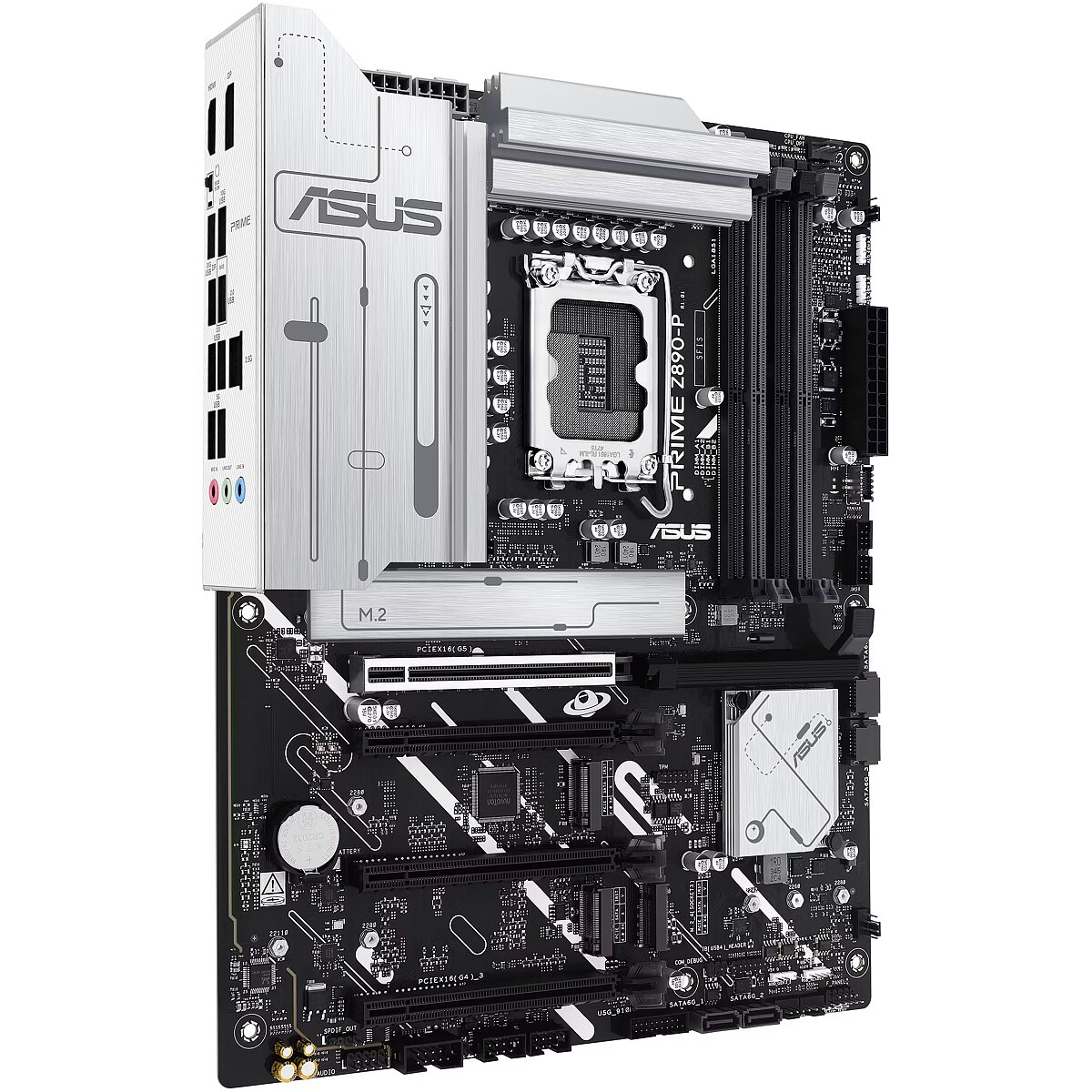

Asus PRIME Z890-P
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 29.11.2024
- Delivery to Omniva parcel machine free of charge: 29.11.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 29.11.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 29.11.2024
- Delivery to address in Riga 3.99 €: 29.11.2024
- Delivery to address in Latvia 6.99 €: 29.11.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: on Wednesday, 27.11.2024 after 15:00
Main product parameters All parameters
- Series: ASUS Prime
- CPU Socket: LGA 1851
- Chipset: Intel Z890
- Form factor: ATX
- Type: DDR5
- RAM Slots: 4
- Built-in Wi-Fi: Nav
Basic information
Series
: ASUS Prime
CPU Socket
LGA 1851
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel Z890
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
ATX
The physical size of the motherboard. Dateks.lv offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR5
RAM Slots
4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR5 6400 (OC 8600)
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 1
Integrated sound card
: Realtek 7.1 CODEC
Wireless connections
Built-in Bluetooth
: Nav
Built-in Wi-Fi
: Nav
External ports
External USB Type-C
: 1
External USB 2.0
: 4
External USB 3.0 (USB 3.2 Gen1)
: 2
External USB 3.1 (USB 3.2 Gen2)
: 1
Internal ports
Internal A-RGB 5V (3-pin)
: 3
Internal RGB 12V (4-pin)
: 1
Internal USB 2.0
: 2
Internal USB 3.0
: 2
Internal USB Type-C
: 1
M.2 Port
: 4
SATA3 ports
: 4
More detailed specification
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
Brand - ASUS
BrandPartCode - 90MB1I50-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
category_en - Computers & Components > Computer components > Motherboards > Intel motherboards
category_lv - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
category_ru - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
Chipset - Intel Z890
code - 90MB1I50-M0EAY0
Description - ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z890-P motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
description_en - ASUS PRIME Z890-P Intel Z890 LGA1851 ATX: - Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
- PC ATX Intel Z890 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 192 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 8
- BIOS type: UEFI AMI 256 Mbit
- 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4 Backpanel Ports: 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMITM port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
description_lv - ASUS PRIME Z890-P Intel Z890 LGA1851 ATX: - Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
- PC ATX Intel Z890 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 192 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 8
- BIOS type: UEFI AMI 256 Mbit
- 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4 Backpanel Ports: 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMITM port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
description_ru - ASUS PRIME Z890-P Intel Z890 LGA1851 ATX: - Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
- PC ATX Intel Z890 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 192 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 8
- BIOS type: UEFI AMI 256 Mbit
- 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4 Backpanel Ports: 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMITM port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
dimensionalWeight - 1366
DisplayPort Input/Output connectors - 1
ean - 4711387759103
EAN - 4711387759103
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x16 (Gen 4.x) slots - 3
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Passive
Features - Motherboard chipset - Intel Z890
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Power source type - ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 10
Features - Windows operating systems supported - Windows 10, Windows 11
Features - Windows operating systems supported - Windows 11
Form Factor - ATX
Full Description Line - Intel Z890|LGA1851|ATX|DDR5|Memory slots 4|3xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|4xM.2|1xHDMI|1xDisplayPort|1xAudio-In|1xAudio-Out|1xMicrophone|4xUSB 2.0|2xUSB 3.0|1xUSB 3.1|1xUSB-C|1xRJ45|SATA|USB 2.0|USB 3.0|SATA 3.0|Video|LAN 2.5 Gigabit|Audio|RAID SATA 0, 1, 5, 10
Graphics - Parallel processing technology support - Not supported
gross_weight - 2.1 kg
GTIN - 4711387759103
HDMI Input/Output connectors - 1

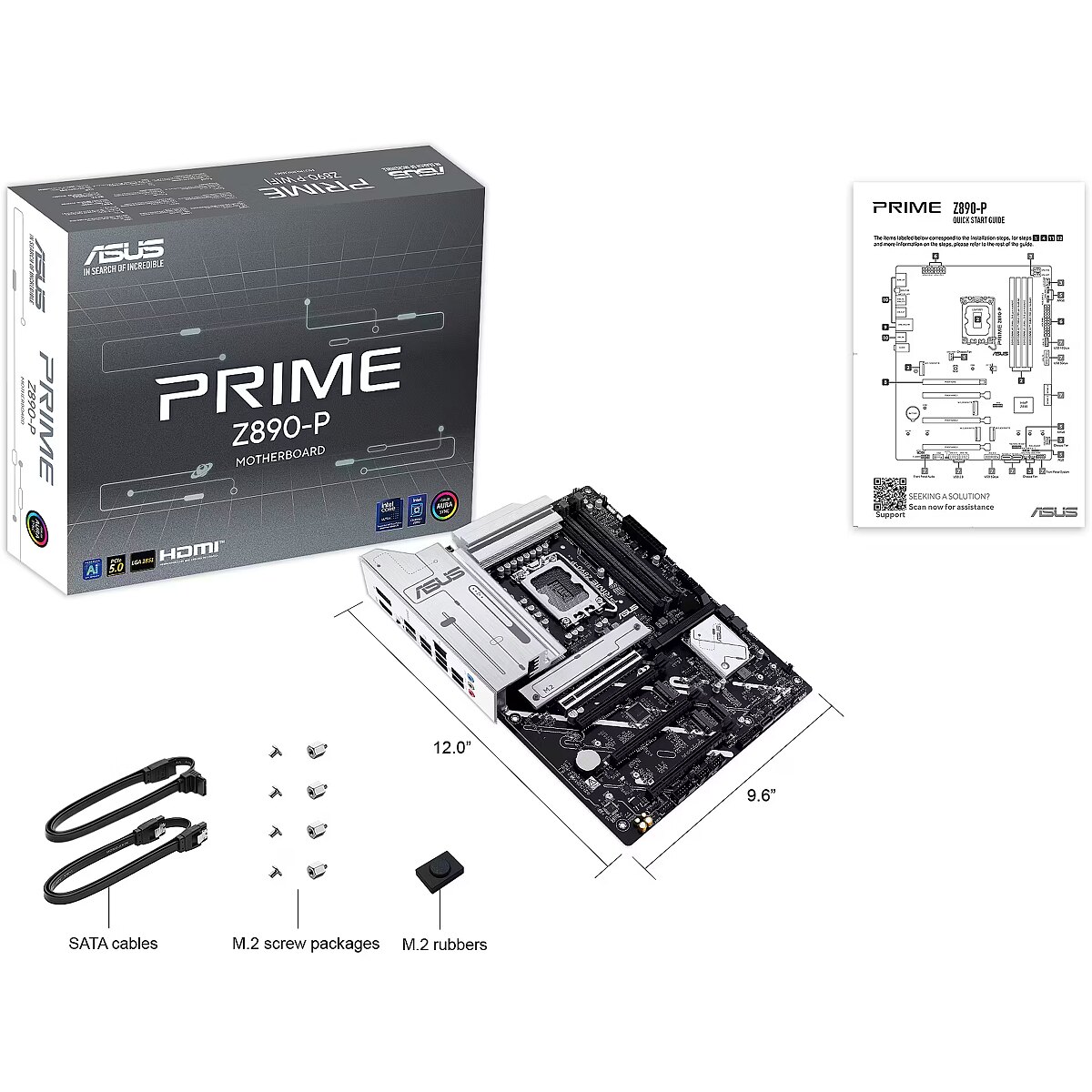

Included Accessories - Cables:
2 x SATA 6Gb/s cables
Miscellaneous:
1 x M.2 rubber package
2 x Screw packages for M.2 SSD
Documentation:
1 x Quick start guide
Integrated audio - Yes
Integrated LAN - 2.5 Gigabit
Integrated video - Yes
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - S/PDIF out connector - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
LongDesc - ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z890-P motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.PerformanceAI SolutionsASUS AI Solutions include AI Advisor as your technical expert with expertise in PC performance, and AI Cooling II for automated temperature control.AI AdvisorASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.1AI Cooling IIOptimized thermals and reduced noise via dynamic adjustment of fan speeds, based on CPU temperatures.PerformanceNPU BoostThe integrated NPU in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.2PerformanceRobust power designStable power is crucial for maximizing the performance of Intel® Core™ Ultra Processors (Series 2). The PRIME Z890-P is designed to meet the needs of high-core-count CPUs. It features 14(80A) + 1(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future Intel® processors.Enhanced Memory & Storage PerformanceAEMP III for Ultimate DDR5 PerformanceASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-7600 or higher.3DIMM FitDIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. This offers peak efficiency, compatibility, and system stability. Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay, or a content creator prioritizing rock-solid stability, DIMM Fit provides optimizations tailored to your needs and your hardware configuration.Four M.2 slots (up to 128Gbps)PRIME Z890-P offers a total of four M.2 slots, including one that supports data-transfer speeds of up to 128Gbps via PCIe 5.0, three that support 64Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.4CoolingCooler by designThe PRIME Z890-P motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.CoolingSmart cooling precisionASUS Fan Xpert 4ASUS Fan Xpert 4 software offers comprehensive control over fans and AIO coolers. Auto-Tuning mode configures settings with one click, while Extreme Quiet mode reduces fan speeds for silent operation during light tasks. Controls are also available via the UEFI BIOS.Cooler compatibilityASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new motherboards, empowering you to build your dream gaming rig.5FlexibilityEmpowering connectionsThe PRIME Z890-P motherboard offers a versatile range of connectivity, including the latest version of PCI Express, while an arsenal of USB ports includes Type-C® connections expands compatibility and bandwidth even further.USB 20Gbps port with DP Alt ModeA batch of USB ports supports high-end rigs loaded with peripherals, including a rear USB Type-C® port with transmission speeds of up to 20Gbps. The port can also support external 4K DisplayPort video output.PCIe 5.0 slotThe latest processors introduce PCIe 5.0 support, doubling data transfer speeds compared to PCIe 4.0, enhancing signal integrity, and providing backward-compatible CEM connectors and support for previous PCIe versions.CustomizationPersonalizationThe PRIME Z890-P enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.UEFI BIOSThe UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.TurboV CoreIntuitive overclocking within Windows. No BIOS interface, no reboots. Simple and swift performance tuning at your fingertips.ASUS DriverHubSimplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.Armoury CrateCustomize Aura Sync RGB and control ASUS devices. Includes product registration and updates.Aura SyncComplete RGB lighting control for enthusiast systems, ensuring seamless synchronization with compatible hardware.Addressable Gen2 RGB headersThree Addressable Gen2 headers detect LED counts on compatible RGB devices, automatically adjusting lighting effects accordingly.CustomizationDIY friendlyThe PRIME Z890-P motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.PCIe Slot Q-ReleaseA physical lever unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new graphics card or other compatible device.M.2 Q-LatchThe innovative ASUS Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap.Q-LED CoreThe Q-LED Core display produces color-coded lights during the Power-On Self-Test (POST) that can help you troubleshoot potential issues.Pre-mounted I/O shieldOur pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.BIOS FlashBack™BIOS FlashBack™ simplifies BIOS updates. Just load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack™ port, and press a button — no CPU or memory needed.SafeSlotPCIe 5.0 is twice as fast as PCIe 4.0. ASUS has adapted our SMT manufacturing for the faster SafeSlot, a reinforced metal sheath that ensures secure card installation and faster data speeds.
LongProductName - PRIME Z890-P Gaming motherboard socket Intel LGA1851 (ATX, DDR5, PCIe 5.0, 4x M.2, DisplayPort, HDMI, Advanced AI, Aura Sync, PCIe Slot Q-Release)
LongSummaryDescription - ASUS PRIME Z890-P. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
M.2 Expansion slots - 4
Manufacturer - ASUS
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 7600 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory slots - 4
Memory type - DDR5
Microphone Input/Output connectors - 1
Model - Asus PRIME Z890-P
Model - PRIME Z890-P
MPN - 90MB1I50-M0EAY0
Name - 1851 ASUS PRIME Z890-P DDR5
name - ASUS Prime Z890-P Mainboard, LGA 1851, Intel Z890, ATX, DDR5
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Other features - Back-to-BIOS button - Yes
Other features - Quick installation guide - Yes
Packaging content - Cables included - SATA
Packaging data - Package depth - 273 mm
Packaging data - Package height - 68 mm
Packaging data - Package weight - 1.89 kg
Packaging data - Package width - 353 mm
PCI-Express 4.0 16x Expansion slots - 3
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel Core Ultra (Series 2)
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Producer - ASUS
producerCode - 90MB1I50-M0EAY0
productName - ASUS PRIME Z890-P Intel Z890 LGA 1851 (Socket V1) ATX
ProductName - PRIME Z890-P
productSize - Normal
RAID - SATA 0, 1, 5, 10

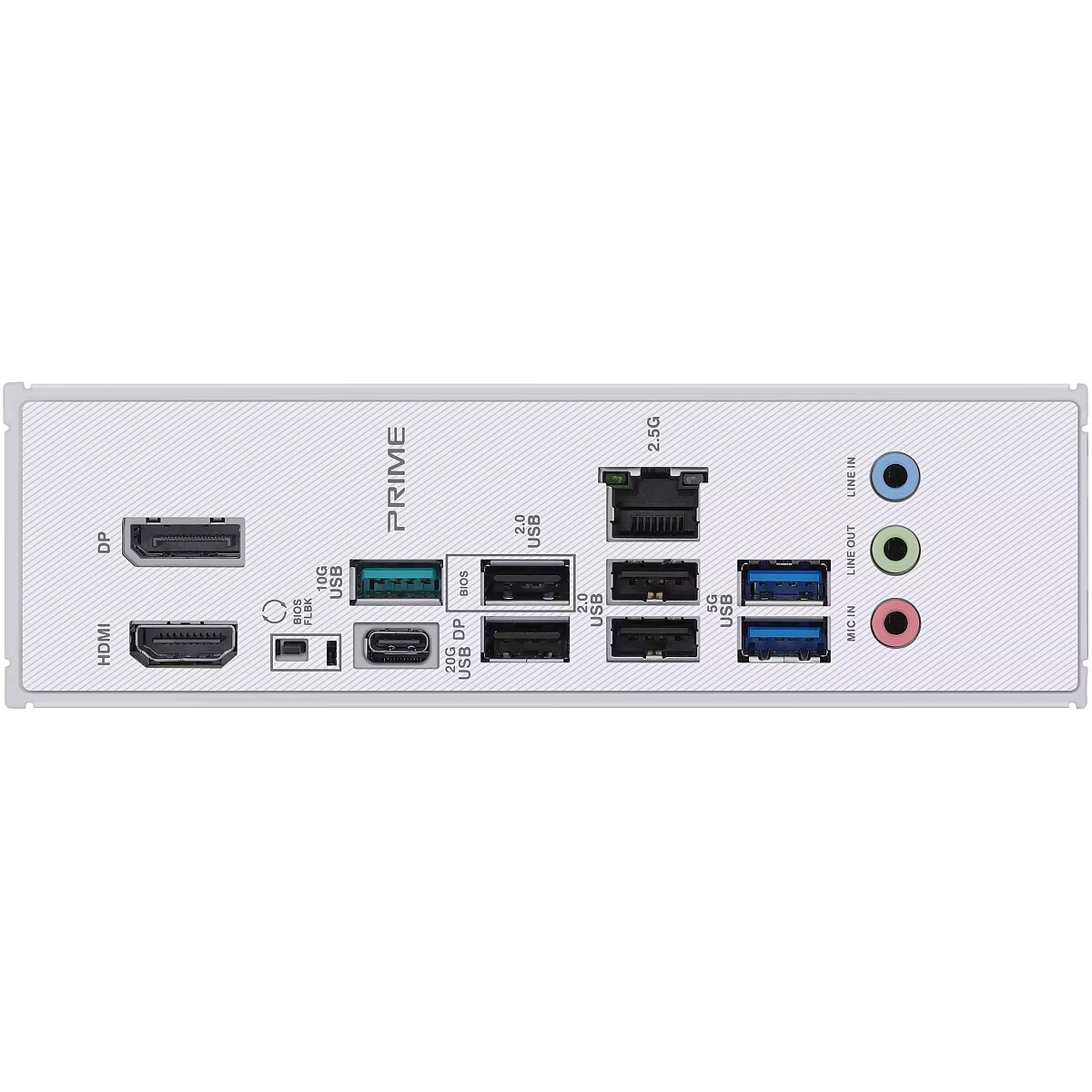

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
SATA 3.0 Interface - Yes
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 37 cm
Shipping Box Height Shipping/Package Box Dimensions - 30 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 9.7 kg
Shipping Box Width Shipping/Package Box Dimensions - 37 cm
ShortSummaryDescription - ASUS PRIME Z890-P, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), DDR5-SDRAM, 192 GB, DIMM
sizeX - 355
sizeY - 70
sizeZ - 275
Socket - LGA1851
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 8
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Title - ASUS PRIME Z890-P Intel Z890 LGA 1851 (Socket V1) ATX
title_en - Asus PRIME Z890-P ATX Motherboard LGA1851 / DDR5 / PCIe 5.0
title_lv - Asus PRIME Z890-P ATX Mātesplate LGA1851 / DDR5 / PCIe 5.0
title_ru - Asus PRIME Z890-P ATX Материнская плата LGA1851 / DDR5 / PCIe 5.0
Unit Box Height - 0.07
Unit Box Length - 0.275
Unit Box Width - 0.36
Unit Brutto Volume - 0.008214 cubm
Unit Gross Weight - 1.94 kg
Unit Net Weight - 1.4 kg
URL - https://www.asus.com/motherboards-components/motherboards/prime/prime-z890-p/
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.0 Input/Output connectors - 2
USB 3.0 Interface - Yes
USB 3.1 Input/Output connectors - 1
Vendor Homepage - www.asus.com/motherboards-components/motherboards/prime/prime-z890-p/
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 1.76
weight - 1.89 kg
weight - 1775
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
Audio-Out Input/Output connectors - 1
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
Brand - ASUS
BrandPartCode - 90MB1I50-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
category_en - Computers & Components > Computer components > Motherboards > Intel motherboards
category_lv - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
category_ru - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
Chipset - Intel Z890
code - 90MB1I50-M0EAY0
Description - ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z890-P motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
description_en - ASUS PRIME Z890-P Intel Z890 LGA1851 ATX: - Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
- PC ATX Intel Z890 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 192 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 8
- BIOS type: UEFI AMI 256 Mbit
- 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4 Backpanel Ports: 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMITM port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
description_lv - ASUS PRIME Z890-P Intel Z890 LGA1851 ATX: - Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
- PC ATX Intel Z890 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 192 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 8
- BIOS type: UEFI AMI 256 Mbit
- 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4 Backpanel Ports: 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMITM port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
description_ru - ASUS PRIME Z890-P Intel Z890 LGA1851 ATX: - Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
- PC ATX Intel Z890 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 192 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 8
- BIOS type: UEFI AMI 256 Mbit
- 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4 Backpanel Ports: 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMITM port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
dimensionalWeight - 1366
DisplayPort Input/Output connectors - 1
ean - 4711387759103
EAN - 4711387759103
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x16 (Gen 4.x) slots - 3
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Passive
Features - Motherboard chipset - Intel Z890
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Power source type - ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 10
Features - Windows operating systems supported - Windows 10, Windows 11
Features - Windows operating systems supported - Windows 11
Form Factor - ATX
Full Description Line - Intel Z890|LGA1851|ATX|DDR5|Memory slots 4|3xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|4xM.2|1xHDMI|1xDisplayPort|1xAudio-In|1xAudio-Out|1xMicrophone|4xUSB 2.0|2xUSB 3.0|1xUSB 3.1|1xUSB-C|1xRJ45|SATA|USB 2.0|USB 3.0|SATA 3.0|Video|LAN 2.5 Gigabit|Audio|RAID SATA 0, 1, 5, 10
Graphics - Parallel processing technology support - Not supported
gross_weight - 2.1 kg
GTIN - 4711387759103
HDMI Input/Output connectors - 1
Included Accessories - Cables:
2 x SATA 6Gb/s cables
Miscellaneous:
1 x M.2 rubber package
2 x Screw packages for M.2 SSD
Documentation:
1 x Quick start guide
Integrated audio - Yes
Integrated LAN - 2.5 Gigabit
Integrated video - Yes
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - S/PDIF out connector - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
LongDesc - ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z890-P motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.PerformanceAI SolutionsASUS AI Solutions include AI Advisor as your technical expert with expertise in PC performance, and AI Cooling II for automated temperature control.AI AdvisorASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.1AI Cooling IIOptimized thermals and reduced noise via dynamic adjustment of fan speeds, based on CPU temperatures.PerformanceNPU BoostThe integrated NPU in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.2PerformanceRobust power designStable power is crucial for maximizing the performance of Intel® Core™ Ultra Processors (Series 2). The PRIME Z890-P is designed to meet the needs of high-core-count CPUs. It features 14(80A) + 1(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future Intel® processors.Enhanced Memory & Storage PerformanceAEMP III for Ultimate DDR5 PerformanceASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-7600 or higher.3DIMM FitDIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. This offers peak efficiency, compatibility, and system stability. Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay, or a content creator prioritizing rock-solid stability, DIMM Fit provides optimizations tailored to your needs and your hardware configuration.Four M.2 slots (up to 128Gbps)PRIME Z890-P offers a total of four M.2 slots, including one that supports data-transfer speeds of up to 128Gbps via PCIe 5.0, three that support 64Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.4CoolingCooler by designThe PRIME Z890-P motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.CoolingSmart cooling precisionASUS Fan Xpert 4ASUS Fan Xpert 4 software offers comprehensive control over fans and AIO coolers. Auto-Tuning mode configures settings with one click, while Extreme Quiet mode reduces fan speeds for silent operation during light tasks. Controls are also available via the UEFI BIOS.Cooler compatibilityASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new motherboards, empowering you to build your dream gaming rig.5FlexibilityEmpowering connectionsThe PRIME Z890-P motherboard offers a versatile range of connectivity, including the latest version of PCI Express, while an arsenal of USB ports includes Type-C® connections expands compatibility and bandwidth even further.USB 20Gbps port with DP Alt ModeA batch of USB ports supports high-end rigs loaded with peripherals, including a rear USB Type-C® port with transmission speeds of up to 20Gbps. The port can also support external 4K DisplayPort video output.PCIe 5.0 slotThe latest processors introduce PCIe 5.0 support, doubling data transfer speeds compared to PCIe 4.0, enhancing signal integrity, and providing backward-compatible CEM connectors and support for previous PCIe versions.CustomizationPersonalizationThe PRIME Z890-P enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.UEFI BIOSThe UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.TurboV CoreIntuitive overclocking within Windows. No BIOS interface, no reboots. Simple and swift performance tuning at your fingertips.ASUS DriverHubSimplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.Armoury CrateCustomize Aura Sync RGB and control ASUS devices. Includes product registration and updates.Aura SyncComplete RGB lighting control for enthusiast systems, ensuring seamless synchronization with compatible hardware.Addressable Gen2 RGB headersThree Addressable Gen2 headers detect LED counts on compatible RGB devices, automatically adjusting lighting effects accordingly.CustomizationDIY friendlyThe PRIME Z890-P motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.PCIe Slot Q-ReleaseA physical lever unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new graphics card or other compatible device.M.2 Q-LatchThe innovative ASUS Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap.Q-LED CoreThe Q-LED Core display produces color-coded lights during the Power-On Self-Test (POST) that can help you troubleshoot potential issues.Pre-mounted I/O shieldOur pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.BIOS FlashBack™BIOS FlashBack™ simplifies BIOS updates. Just load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack™ port, and press a button — no CPU or memory needed.SafeSlotPCIe 5.0 is twice as fast as PCIe 4.0. ASUS has adapted our SMT manufacturing for the faster SafeSlot, a reinforced metal sheath that ensures secure card installation and faster data speeds.
LongProductName - PRIME Z890-P Gaming motherboard socket Intel LGA1851 (ATX, DDR5, PCIe 5.0, 4x M.2, DisplayPort, HDMI, Advanced AI, Aura Sync, PCIe Slot Q-Release)
LongSummaryDescription - ASUS PRIME Z890-P. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
M.2 Expansion slots - 4
Manufacturer - ASUS
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 7600 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory slots - 4
Memory type - DDR5
Microphone Input/Output connectors - 1
Model - Asus PRIME Z890-P
Model - PRIME Z890-P
MPN - 90MB1I50-M0EAY0
Name - 1851 ASUS PRIME Z890-P DDR5
name - ASUS Prime Z890-P Mainboard, LGA 1851, Intel Z890, ATX, DDR5
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Other features - Back-to-BIOS button - Yes
Other features - Quick installation guide - Yes
Packaging content - Cables included - SATA
Packaging data - Package depth - 273 mm
Packaging data - Package height - 68 mm
Packaging data - Package weight - 1.89 kg
Packaging data - Package width - 353 mm
PCI-Express 4.0 16x Expansion slots - 3
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel Core Ultra (Series 2)
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Producer - ASUS
producerCode - 90MB1I50-M0EAY0
productName - ASUS PRIME Z890-P Intel Z890 LGA 1851 (Socket V1) ATX
ProductName - PRIME Z890-P
productSize - Normal
RAID - SATA 0, 1, 5, 10
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
SATA 3.0 Interface - Yes
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 37 cm
Shipping Box Height Shipping/Package Box Dimensions - 30 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 9.7 kg
Shipping Box Width Shipping/Package Box Dimensions - 37 cm
ShortSummaryDescription - ASUS PRIME Z890-P, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), DDR5-SDRAM, 192 GB, DIMM
sizeX - 355
sizeY - 70
sizeZ - 275
Socket - LGA1851
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 8
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Title - ASUS PRIME Z890-P Intel Z890 LGA 1851 (Socket V1) ATX
title_en - Asus PRIME Z890-P ATX Motherboard LGA1851 / DDR5 / PCIe 5.0
title_lv - Asus PRIME Z890-P ATX Mātesplate LGA1851 / DDR5 / PCIe 5.0
title_ru - Asus PRIME Z890-P ATX Материнская плата LGA1851 / DDR5 / PCIe 5.0
Unit Box Height - 0.07
Unit Box Length - 0.275
Unit Box Width - 0.36
Unit Brutto Volume - 0.008214 cubm
Unit Gross Weight - 1.94 kg
Unit Net Weight - 1.4 kg
URL - https://www.asus.com/motherboards-components/motherboards/prime/prime-z890-p/
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.0 Input/Output connectors - 2
USB 3.0 Interface - Yes
USB 3.1 Input/Output connectors - 1
Vendor Homepage - www.asus.com/motherboards-components/motherboards/prime/prime-z890-p/
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 1.76
weight - 1.89 kg
weight - 1775
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
