ID: 1148811
Product code: Z890 GAMING PLUS WIFI
In stock >50 units
Warranty: 3 years

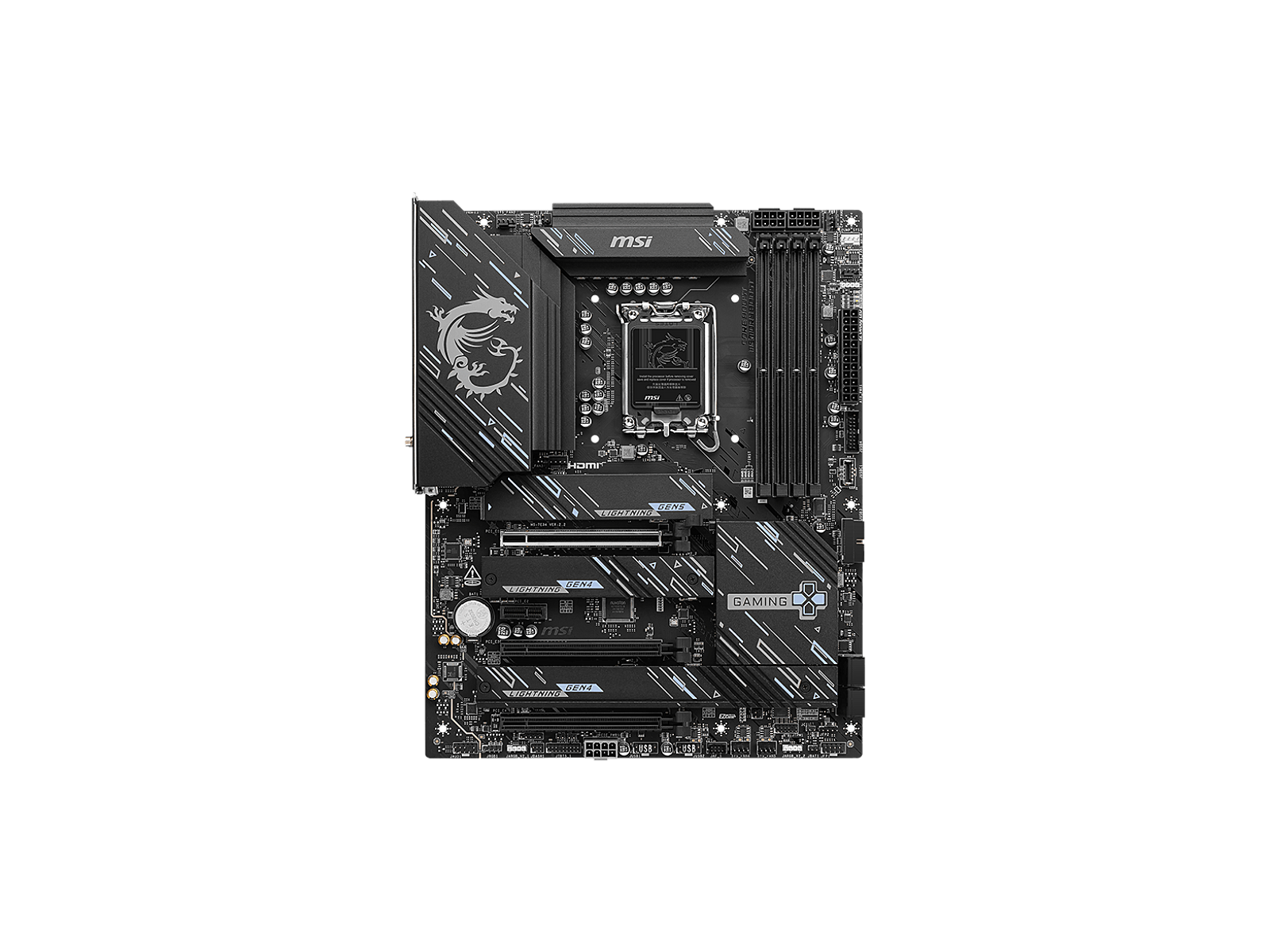

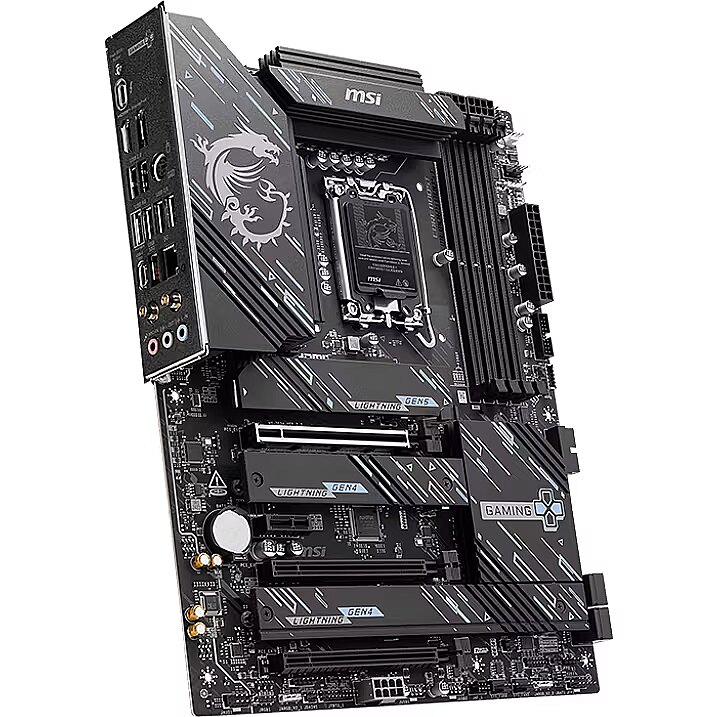

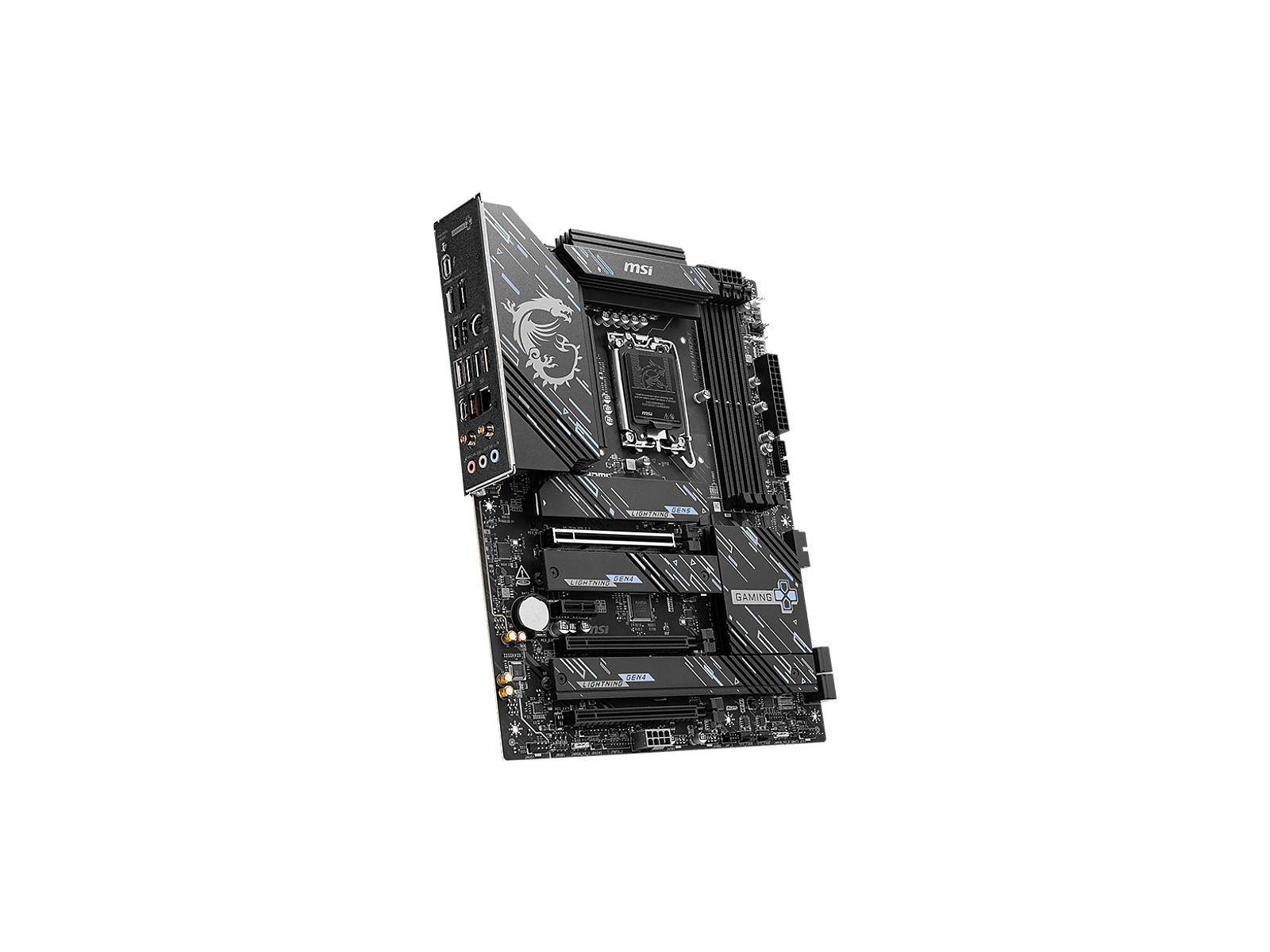

MSI Z890 GAMING PLUS WIFI
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 02.12.2024
- Delivery to Omniva parcel machine free of charge: 02.12.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 02.12.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 02.12.2024
- Delivery to address in Riga 3.99 €: 02.12.2024
- Delivery to address in Latvia 6.99 €: 02.12.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: on Thursday, 28.11.2024 after 15:00
Main product parameters All parameters
- Series: MSI Gaming
- CPU Socket: LGA 1851
- Chipset: Intel Z890
- Form factor: ATX
- Type: DDR5
- RAM Slots: 4
- Built-in Wi-Fi: Ir
Basic information
Series
: MSI Gaming
CPU Socket
LGA 1851
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel Z890
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
ATX
The physical size of the motherboard. Dateks.lv offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR5
RAM Slots
4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR5 6400 (OC 9200)
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 1
Integrated sound card
: Realtek ALC897
Wireless connections
Built-in Bluetooth
: Ir
Built-in Wi-Fi
: Ir
External ports
External USB Type-C
: 2
External USB 2.0
: 4
External USB 3.0 (USB 3.2 Gen1)
: 2
External USB 3.1 (USB 3.2 Gen2)
: 1
Internal ports
Internal A-RGB 5V (3-pin)
: 3
Internal RGB 12V (4-pin)
: 1
Internal USB 2.0
: 2
Internal USB 3.0
: 2
Internal USB Type-C
: 1
M.2 Port
: 4
SATA3 ports
: 4
More detailed specification
Audio port Input/Output connectors - 3
Bluetooth Interface - Yes
Brand - MSI
BrandPartCode - Z890 GAMING PLUS WIFI
Category - Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Chipset - Intel Z890
Description - Z890 GAMING PLUS WIFI is designed with durable components to provide great gaming experience. Designed with Killer Wi-Fi 7 and 5G LAN, Thunderbolt 4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for 24/7 non-stop gaming of Intel Core Ultra processors. - Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket - Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC) - Ultra Performance: 14+1+1+1 Duet Rail Power System 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material - Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience - EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna - Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2 - Ultra Connect: Thunderbolt™ 4 port, Intel® Killer™ 5G LAN & Intel® Killer™ Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission - Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
dimensionalWeight - 1425
DisplayPort Input/Output connectors - 1
EAN - 4711377257718
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x1 slots - 1
Expansion slots - PCI Express x16 slots - 3
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z890
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 11
Form Factor - ATX
Frequency speed - 4800/6400/7200/9200 MHz
Full Description Line - Intel Z890|LGA1851|ATX|DDR4|9200/7200/6400/4800 MHz|Memory slots 4|1xPCI-Express 4.0 1x|2xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x|4xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|3xUSB 3.2|1xUSB-C|1xUSB-C w/Thunderbolt|1xPS/2|1xRJ45|3xAudio port|SATA|USB-C|USB 2.0|USB 3.2|Thunderbolt|Bluetooth|WiFi|Video Depending on CPU|LAN 5 Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10|TPM Header
GTIN - 4711377257718
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC897
Integrated LAN - 5 Gigabit
Integrated video - Depending on CPU
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Total number of SATA connectors - 4
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 4
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
LongDesc - Z890 GAMING PLUS WIFIZ890 GAMING PLUS WIFI is designed with durable components to provide great gaming experience. Designed with Killer Wi-Fi 7 and 5G LAN, Thunderbolt 4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for 24/7 non-stop gaming of Intel Core Ultra processors.MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.14+1+1+1 DRPS POWER DESIGNUnleash and sustain maximum performance with a flagship VRM design built with a total of 14+1+1+1 digital power phases. Combining dual power connectors and 55A DrMOS, Z890 GAMING PLUS WIFI is ready for the challenge of high-end processors.HIGH-BANDWIDTH AND LOW-LATENCY NETWORKMSI's premium network solution provides incredible data transfer speed for demanding users.
LongProductName - 4 X DDR5 9200+ MT/s (OC, LGA 1851, 14+1+1+1 Duet Rail Power System 55A DrMOS, 5G LAN, Wi-Fi 7, 1x HDMI
LongSummaryDescription - MSI Z890 GAMING PLUS WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
M.2 Expansion slots - 4
Manufacturer - MSI
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 9200 MHz
Memory - Supported memory clock speeds - 6400
Memory - Supported memory clock speeds - 6400,9200 MHz
Memory - Supported memory clock speeds - 9200 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory slots - 4
Memory type - DDR4
Model - Z890 GAMING PLUS WIFI
MPN - 7E34-002R
Name - 1851 MSI Z890 Gaming Plus WIFI
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Network - WLAN controller model - Killer Wi-Fi 7 BE1750
PCI-Express 4.0 1x Expansion slots - 1
PCI-Express 4.0 4x Expansion slots - 2
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel Core Ultra (Series 2)
Processor - Maximum internal memory supported by processor - 256 GB
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Processor - Supported processor sockets - Intel LGA1851
producerCode - Z890 GAMING PLUS WIFI
productName - MSI Z890 GAMING PLUS WIFI motherboard Intel Z890 LGA 1851 (Socket V1) ATX
ProductName - Z890 GAMING PLUS WIFI
productSize - Normal
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10

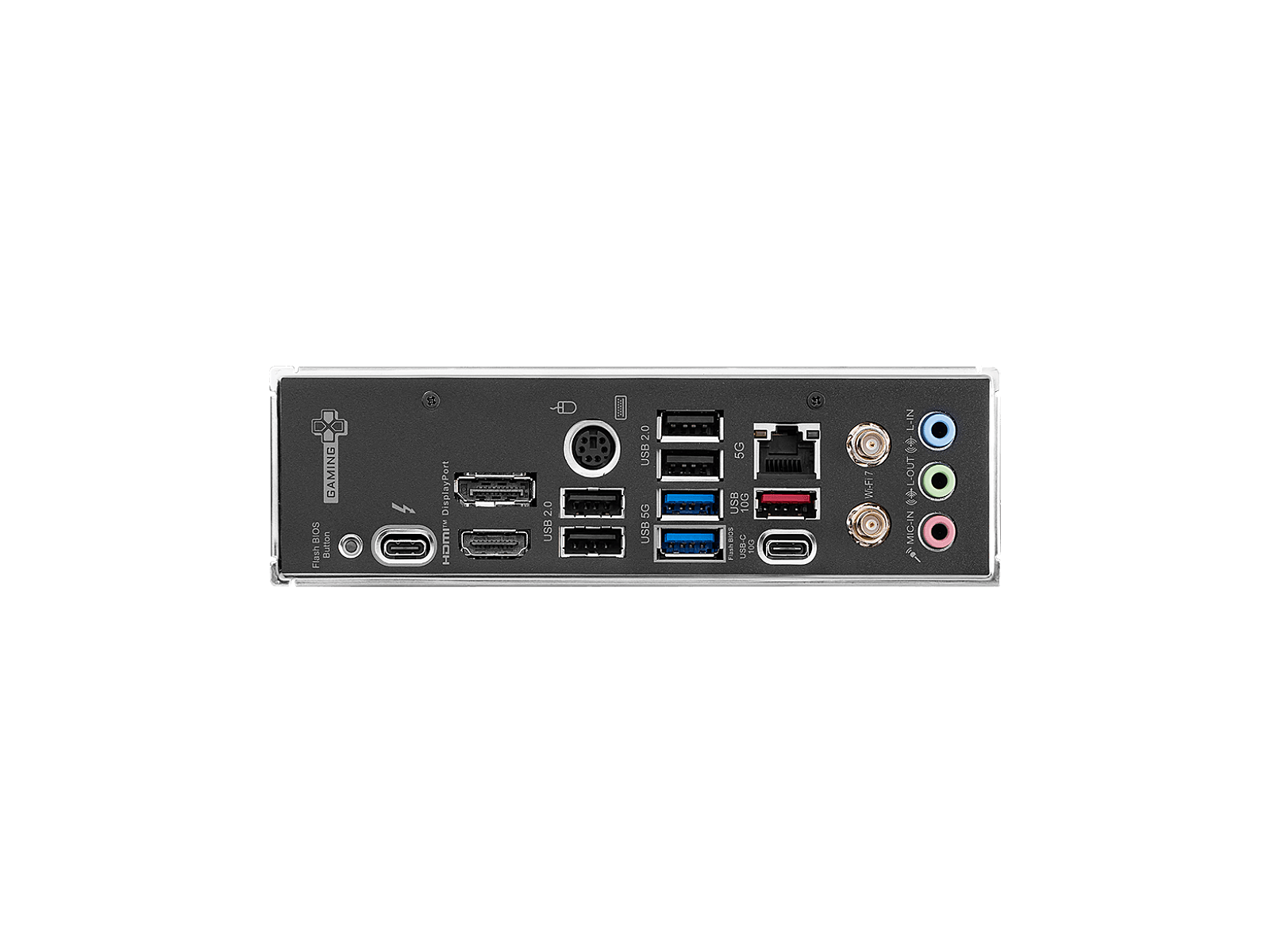

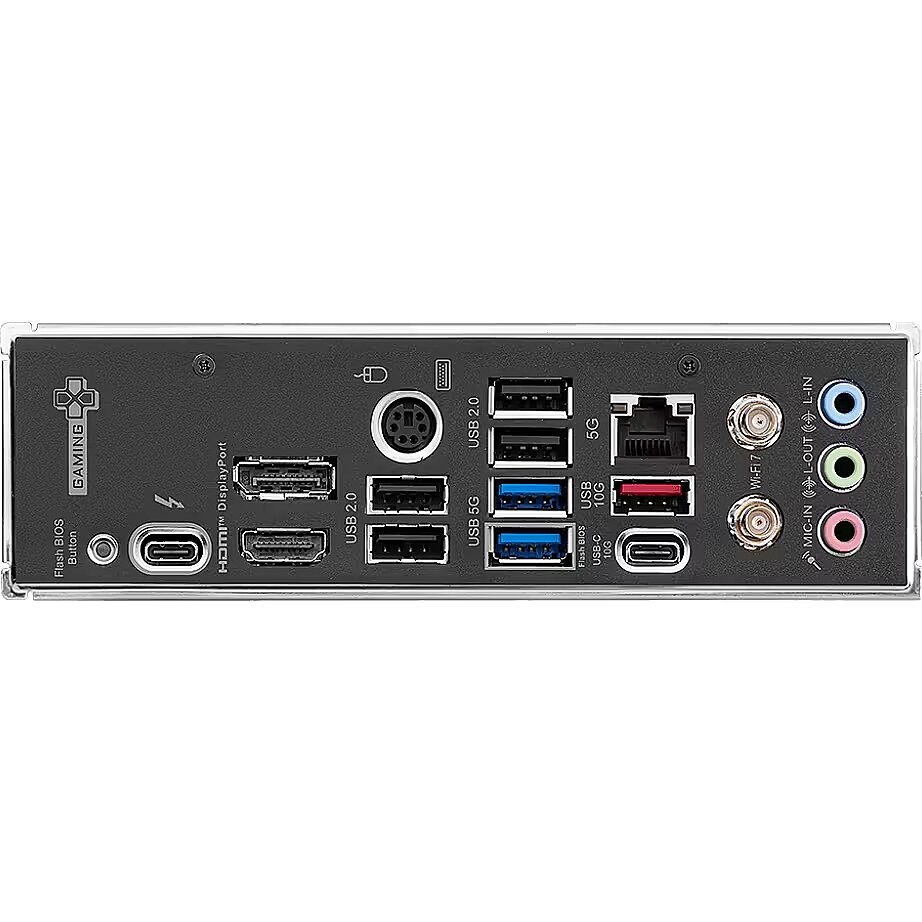

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Thunderbolt ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 38 cm
Shipping Box Height Shipping/Package Box Dimensions - 37.5 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 10.7 kg
Shipping Box Width Shipping/Package Box Dimensions - 28.5 cm
ShortSummaryDescription - MSI Z890 GAMING PLUS WIFI, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), Intel LGA1851, 256 GB, DDR5-SDRAM
sizeX - 75
sizeY - 343
sizeZ - 277
Socket - LGA1851
Storage controllers - Number of HDDs supported - 8
Storage controllers - Number of storage drives supported - 4
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Thunderbolt Interface - Yes
Title - MSI Z890 GAMING PLUS WIFI motherboard Intel Z890 LGA 1851 (Socket V1) ATX
TPM - Header
Unit Box Height - 0.072
Unit Box Length - 0.345
Unit Box Width - 0.275
Unit Brutto Volume - 0.008122 cubm
Unit Gross Weight - 2.14 kg
Unit Net Weight - 2 kg
URL - https://www.msi.com/index.php
USB-C Input/Output connectors - 1
USB-C Interface - Yes
USB-C w/Thunderbolt Input/Output connectors - 1
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 3
USB 3.2 Interface - Yes
Vendor Homepage - www.msi.com/Motherboard/Z890-GAMING-PLUS-WIFI
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 1.98
weight - 1980
Weight & dimensions - Depth - 304.8 mm
Weight & dimensions - Width - 243.8 mm
WiFi Interface - Yes
Bluetooth Interface - Yes
Brand - MSI
BrandPartCode - Z890 GAMING PLUS WIFI
Category - Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Chipset - Intel Z890
Description - Z890 GAMING PLUS WIFI is designed with durable components to provide great gaming experience. Designed with Killer Wi-Fi 7 and 5G LAN, Thunderbolt 4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for 24/7 non-stop gaming of Intel Core Ultra processors. - Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket - Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC) - Ultra Performance: 14+1+1+1 Duet Rail Power System 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material - Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience - EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna - Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2 - Ultra Connect: Thunderbolt™ 4 port, Intel® Killer™ 5G LAN & Intel® Killer™ Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission - Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
dimensionalWeight - 1425
DisplayPort Input/Output connectors - 1
EAN - 4711377257718
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x1 slots - 1
Expansion slots - PCI Express x16 slots - 3
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z890
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 11
Form Factor - ATX
Frequency speed - 4800/6400/7200/9200 MHz
Full Description Line - Intel Z890|LGA1851|ATX|DDR4|9200/7200/6400/4800 MHz|Memory slots 4|1xPCI-Express 4.0 1x|2xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x|4xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|3xUSB 3.2|1xUSB-C|1xUSB-C w/Thunderbolt|1xPS/2|1xRJ45|3xAudio port|SATA|USB-C|USB 2.0|USB 3.2|Thunderbolt|Bluetooth|WiFi|Video Depending on CPU|LAN 5 Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10|TPM Header
GTIN - 4711377257718
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC897
Integrated LAN - 5 Gigabit
Integrated video - Depending on CPU
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Total number of SATA connectors - 4
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 4
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
LongDesc - Z890 GAMING PLUS WIFIZ890 GAMING PLUS WIFI is designed with durable components to provide great gaming experience. Designed with Killer Wi-Fi 7 and 5G LAN, Thunderbolt 4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for 24/7 non-stop gaming of Intel Core Ultra processors.MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.14+1+1+1 DRPS POWER DESIGNUnleash and sustain maximum performance with a flagship VRM design built with a total of 14+1+1+1 digital power phases. Combining dual power connectors and 55A DrMOS, Z890 GAMING PLUS WIFI is ready for the challenge of high-end processors.HIGH-BANDWIDTH AND LOW-LATENCY NETWORKMSI's premium network solution provides incredible data transfer speed for demanding users.
LongProductName - 4 X DDR5 9200+ MT/s (OC, LGA 1851, 14+1+1+1 Duet Rail Power System 55A DrMOS, 5G LAN, Wi-Fi 7, 1x HDMI
LongSummaryDescription - MSI Z890 GAMING PLUS WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
M.2 Expansion slots - 4
Manufacturer - MSI
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 9200 MHz
Memory - Supported memory clock speeds - 6400
Memory - Supported memory clock speeds - 6400,9200 MHz
Memory - Supported memory clock speeds - 9200 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory slots - 4
Memory type - DDR4
Model - Z890 GAMING PLUS WIFI
MPN - 7E34-002R
Name - 1851 MSI Z890 Gaming Plus WIFI
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Network - WLAN controller model - Killer Wi-Fi 7 BE1750
PCI-Express 4.0 1x Expansion slots - 1
PCI-Express 4.0 4x Expansion slots - 2
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel Core Ultra (Series 2)
Processor - Maximum internal memory supported by processor - 256 GB
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Processor - Supported processor sockets - Intel LGA1851
producerCode - Z890 GAMING PLUS WIFI
productName - MSI Z890 GAMING PLUS WIFI motherboard Intel Z890 LGA 1851 (Socket V1) ATX
ProductName - Z890 GAMING PLUS WIFI
productSize - Normal
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Thunderbolt ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 38 cm
Shipping Box Height Shipping/Package Box Dimensions - 37.5 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 10.7 kg
Shipping Box Width Shipping/Package Box Dimensions - 28.5 cm
ShortSummaryDescription - MSI Z890 GAMING PLUS WIFI, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), Intel LGA1851, 256 GB, DDR5-SDRAM
sizeX - 75
sizeY - 343
sizeZ - 277
Socket - LGA1851
Storage controllers - Number of HDDs supported - 8
Storage controllers - Number of storage drives supported - 4
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Thunderbolt Interface - Yes
Title - MSI Z890 GAMING PLUS WIFI motherboard Intel Z890 LGA 1851 (Socket V1) ATX
TPM - Header
Unit Box Height - 0.072
Unit Box Length - 0.345
Unit Box Width - 0.275
Unit Brutto Volume - 0.008122 cubm
Unit Gross Weight - 2.14 kg
Unit Net Weight - 2 kg
URL - https://www.msi.com/index.php
USB-C Input/Output connectors - 1
USB-C Interface - Yes
USB-C w/Thunderbolt Input/Output connectors - 1
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 3
USB 3.2 Interface - Yes
Vendor Homepage - www.msi.com/Motherboard/Z890-GAMING-PLUS-WIFI
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 1.98
weight - 1980
Weight & dimensions - Depth - 304.8 mm
Weight & dimensions - Width - 243.8 mm
WiFi Interface - Yes
