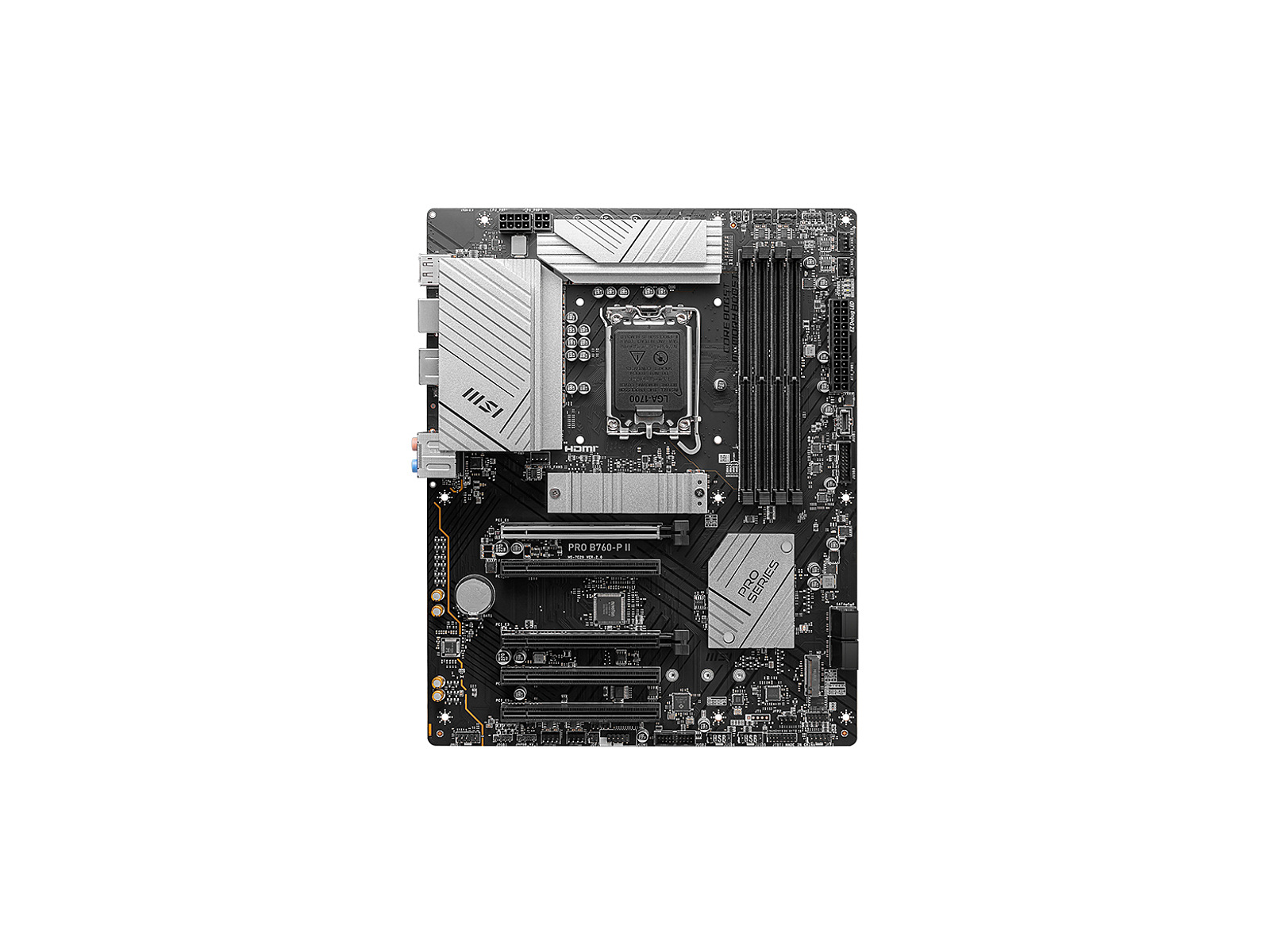

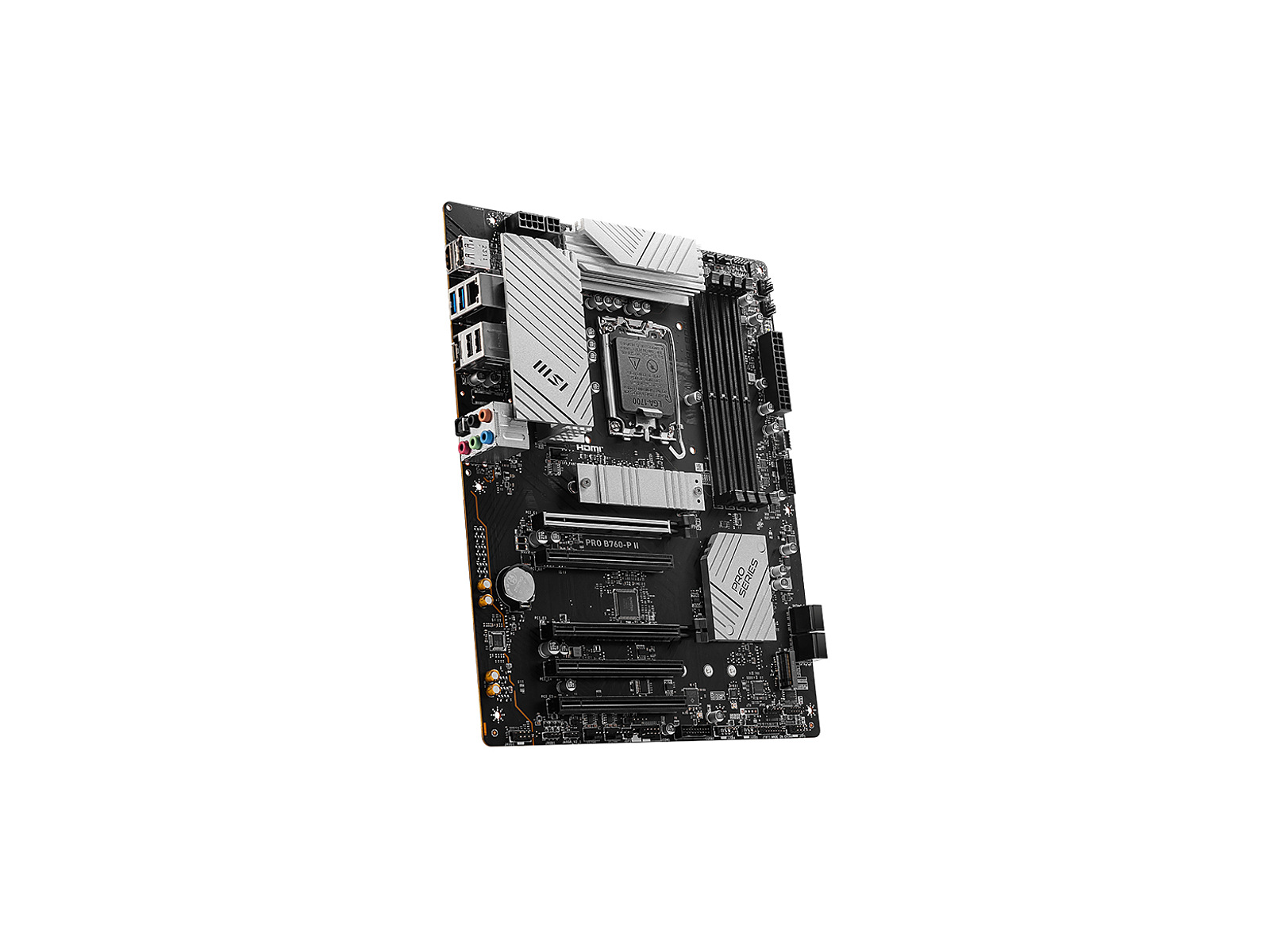

MSI PRO B760-P II

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1099746 Product code: 7E29-002R
In stock 8 units
Warranty: 3 years
168.97 €
Delivery options More about shipping
  • Delivery to Smartpost free of charge: on Friday, 21.02.2025
  • Delivery to Omniva parcel machine free of charge: on Friday, 21.02.2025
  • Piegāde uz DPD Pickup Paku Skapi free of charge: on Friday, 21.02.2025
  • Delivery to Latvian post office or parcel locker free of charge: on Friday, 21.02.2025
  • Delivery to address in Riga 3.99 €: on Friday, 21.02.2025
  • Delivery to address in Latvia 6.99 €: on Friday, 21.02.2025
  • Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: on Wednesday, 19.02.2025 after 15:00
Main product parameters All parameters
  • Series: MSI PRO
  • CPU Socket: LGA 1700
  • Chipset: Intel B760
  • Form factor: ATX
  • Type: DDR5
  • RAM Slots: 4
  • Built-in Wi-Fi: Nav
Basic information
Series : MSI PRO
CPU Socket LGA 1700
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset Intel B760

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor ATX

The physical size of the motherboard. Dateks.lv offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Random-access memory (RAM)
Type : DDR5
RAM Slots 4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR5 5600 (OC 7000)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
Video card port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready CPU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
PCI ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub : 0
DVI : 0
HDMI : 1
DisplayPort : 1
Integrated sound card : Realtek ALC897
Wireless connections
Built-in Bluetooth : Nav
Built-in Wi-Fi : Nav
External ports
External USB Type-C : 1
External USB 2.0 : 2
External USB 3.0 (USB 3.2 Gen1) : 2
External USB 3.1 (USB 3.2 Gen2) : 0
Internal ports
Internal A-RGB 5V (3-pin) : 2
Internal RGB 12V (4-pin) : 2
Internal USB 2.0 : 2
Internal USB 3.0 : 1
Internal USB Type-C : 1
M.2 Port : 2
SATA3 ports : 4
More detailed specification
Accessories included -
Audio port Input/Output connectors - 5
BIOS -
BIOS - ACPI version - 6.4
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - System Management BIOS (SMBIOS) version - 3.5
Brand - MSI
BrandPartCode - PRO B760-P II
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel B760 Express
Chipset manufacturer - Intel
Chipset type -  INTEL B760
code - 7E29-002R
Code - PRO B760-P II
COM connector / port - Yes
CPU socket - LGA1700
Description - BIZNESOWA ELEGANCJA Płyty główne z serii PRO zostały zoptymalizowane pod kątem zaspokojenia potrzeb profesjonalnych użytkowników, niezależnie od tego czym się zajmują. Linia ta charakteryzuje się imponującą wydajnością oraz wysoką jakością wykonania i jednocześnie może zapewnić swoim użytkownikom niesamowite wrażenia. Jeśli szczególnie zależy Ci na produktywności, to możesz liczyć na płyty główne z serii MSI PRO. Pomogą Ci one w wykonywaniu wielozadaniowej pracy i zwiększeniu Twojej wydajności. Obsługa procesorów 14./13./12. gen. Intel Core, a także obsługa układów Intel Pentium Gold i Celeron zgodnych z podstawką LGA 1700 Dwukanałowa obsługa pamięci DDR5 do 7000+ MHz (overclocking) Wzmocniony system zasilania: 12+1-fazowy, dwuszynowy system zasilania Duet Rail Power System z technologią P-PAK, 8- i 4-pinowe złącza zasilania procesora, technologie Core Boost i Memory Boost System chłodzenia klasy premium: wydłużony radiator Extended Heatsink, podkładki termiczne 7W/mK na tranzystorach mocy MOSFET i dodatkowe podkładki termiczne na dławikach zwiększają wydajność systemu i pozwalają na niezakłóconą wielogodzinną rozrywkę Najwyższej jakości płytka drukowana: 6-warstwowa płytka drukowana z dwoma uncjami rozmieszczonej warstwowo miedzi, którą wykonano z materiałów klasy serwerowej Wyjątkowa szybkość: złącza PCIe 4.0, Lightning Gen 4 x4 M.2 Intel Turbo USB 10 Gbit/s: Rozwiązanie korzysta z kontrolera Intel 10 Gbit/s. Technologia Turbo USB zapewnia nieprzerwane połączenie, większą stabilność transmisji USB z wyższymi prędkościami Sieć 2.5G LAN: Ulepszone rozwiązanie sieciowe do profesjonalnego i multimedialnego użytku. Oferuje bezpieczne, stabilne i szybkie połączenie sieciowe System dźwiękowy AUDIO BOOST: generowanie dźwięku o jakości studyjnej pozwalającej uzyskać efekt wyjątkowego zanurzenia w grze
Description - PRO B760-P II - Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket - Supports DDR5 Memory, Dual Channel DDR5 7000+MHz (OC) - Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost - Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience - High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material - Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 - Intel Turbo USB 10Gbps: Powered by Intel USB 10Gbps controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds - 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection - AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Designation - CE+WEEE
Detailed data on disk/drive interfaces - Slot     5x PCI-E x16 slot (Qty) PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) Storage     2x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices 4x SATA 6G (Qty) RAID     Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
dimensionalWeight - 1347
dimension depth - 270 mm
dimension height - 340 mm
Dimensions - 243.84 mm x 304.8 mm
dimension weight - 1403 g
dimension width - 260 mm
DisplayPort Input/Output connectors - 1
EAN - 4711377193887
ean - 4711377193887
EAN_code - 4711377193887
Expansion slots - 1 x PCIe 4.0 x 4
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 2 x M.2
Expansion slots - 3 x PCIe 3.0 x 1
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x1 (Gen 4.x) slots - 2
Expansion slots - PCI Express x4 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1

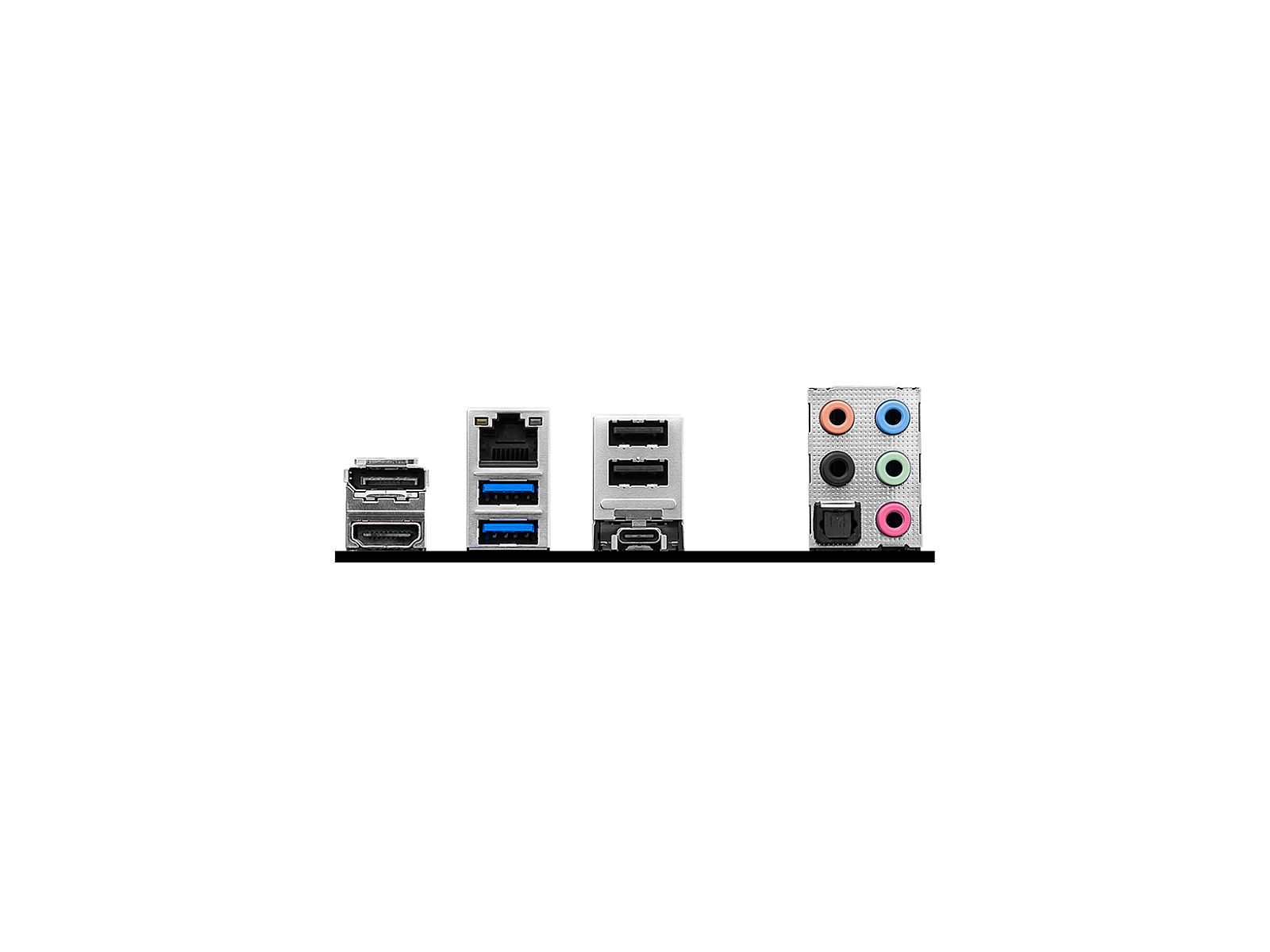

External connectors - 1 x Central Speaker / Subwoofer
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Rear Speaker
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 1 x USB 3.2 Gen 2 Type-C
External connectors - 2 x USB 2.0
External connectors - 2 x USB 3.2 Gen 1 Type-A
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel B760
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - ATX
Frequency speed - 5400/6800/5000/5800/6000/6600/6200/6400/5600/7000/5200/4800 MHz
Full Description Line - Intel B760 Express|LGA1700|DDR5|7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|5xPCI-Express 5.0 16x|2xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|2xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|5xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10|TPM Header
Graphics - 1x HDMI
Obsługa HDMI 2.1, maksymalna rozdzielczość 4K 60Hz*
1x DisplayPort
Obsługa DP 1.4, maksymalna rozdzielczość 4K 60Hz*
*Dostępne tylko na procesorach ze zintegrowaną grafiką. Specyfikacje graficzne mogą się różnić w zależności od zainstalowanego procesora.
GTIN - 4711377193887
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC897
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Power fan connector - Yes
Internal I/O - S/PDIF out connector - Yes
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 4
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 4
Link - https://www.msi.com/Motherboard/PRO-B760-P-II/Specification
LongDesc - Extended HeatsinkExtended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.M.2 Shield FrozrStrengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.Heavy Plated VRM HeatsinkThe VRM heatsink covers the upper MOS and helps dissipate the heat.7W/mK Thermal Pad & Additional Choke PadHigh-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.Chipset HeatsinkThe chipset heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.OPTIMIZED FOR WATER COOLINGDesigned to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.LIGHTNING GEN 4 PCI-EDoubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.REINFORCED,HEAVY SOLDERED CONNECTIONSSecure to the motherboard with extra solder points and support the weight of heavy graphics cards.FAST AND FUTURE-READY STORAGEMSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.THE ISOLATED ANALOGY STRUCTURE FOR AUDIO CONNECTORSTo provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.
LongProductName - 4x DDR5 7000+MHz (OC), 1x HDMI, 1x DisplayPort, 4x SATA 6G, 2x M.2, 2.5G LAN, ATX
LongSummaryDescription - MSI PRO B760-P II. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 4.0, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125-BG. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
LPT connector / port - No
M.2 Expansion slots - 2
Manufacturer - MSI
Manufacturer_code - 7E29-002R
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 256 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 7000 MHz
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000 MHz
Memory - Supported memory clock speeds - 5000
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5400
Memory - Supported memory clock speeds - 5600 MHz
Memory - Supported memory clock speeds - 5800
Memory - Supported memory clock speeds - 6000
Memory - Supported memory clock speeds - 6200
Memory - Supported memory clock speeds - 6400
Memory - Supported memory clock speeds - 6600
Memory - Supported memory clock speeds - 6800
Memory - Supported memory clock speeds - 7000
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5
Memory bus frequency - 4800 MHz
Memory bus frequency - 5000 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5400 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - PRO B760-P II
name - Motherboard PRO B760-P II S1700 4DDR5 DP/HDMI ATX
Name - MSI MSI PRO B760-P II - Socket 1700 - motherboard (black)
name - MSI Pro B760-P II, Intel B760 Mainboard - Sockel 1700, DDR5
Name - MSI | PRO B760-P II | Processor family Intel | Processor socket LGA1700 | DDR5 | Number of SATA connectors 4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8125-BG
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface -  Realtek RTL8125BG 2.5G LAN
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 1
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x Addressable LED
Onboard connectors - 2 x RGB LED Strip
Onboard connectors - 2 x System panel header
Onboard connectors - 4 x EZ Debug LED
Onboard connectors - 4 x USB 2.0/1.1
Onboard connectors - 4 x USB 3.0
Onboard connectors - 5 x 4pin Chassis fan
Optical S/PDIF Input/Output connectors - 1
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 319.00 mm
Package features > Gross height (mm) - 352.00 mm
Package features > Gross width (mm) - 86.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 89 pc(s)
Package features > Paper/Pasteboard - 600.00 g
Package features > Plastic (No PET) - 75.00 g
Package features > Tare weight (kg) - 0.68 kg
Package features > TI weight (kg) - 0.02 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
PCI-Express 5.0 16x Expansion slots - 5
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium® Gold
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Maximum internal memory supported by processor - 256 GB
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Celeron
Processor family - Intel Core
Processor family - Intel Pentium Gold
producer - MSI
producerCode - 7E29-002R
productName - MSI PRO B760-P II motherboard Intel B760 LGA 1700 ATX
ProductName - PRO B760-P II
productSize - Normal
RAID - SATA 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 56 cm
Shipping Box Height Shipping/Package Box Dimensions - 37 cm
Shipping box quantity - 10
Shipping Box Weight Shipping/Package Box Dimensions - 15.1 kg
Shipping Box Width Shipping/Package Box Dimensions - 35 cm
ShortSummaryDescription - MSI PRO B760-P II, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium® Gold, 256 GB, DDR5-SDRAM, 256 GB
sizeX - 350
sizeY - 275
sizeZ - 70
Socket - LGA1700
Software -
Sound card - Realtek ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Special functions -
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 6
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - PCI Express 4.0, SATA III
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Gross weight - 1.64 kg
Technical details > Net weight - 0.97 kg
Technical details > Producer - MSI
Technical details > Producer product name - PRO B760-P II
Title - MSI PRO B760-P II motherboard Intel B760 LGA 1700 ATX
TPM - Header
Unit Box Height - 0.27
Unit Box Length - 0.345
Unit Box Width - 0.07
Unit Brutto Volume - 0.007252 cubm
Unit Gross Weight - 1.51 kg
Unit Net Weight - 1.3 kg
URL - https://www.msi.com/Motherboard/PRO-B760-P-II/Overview
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 2
USB 3.2 Interface - Yes
USB ports at back panel - 5
USB ports on motherboard - 9
Vendor Homepage - www.msi.com/Motherboard/PRO-B760-P-II
vendpn - PRO B760-P II
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 1,10
weight - 1405
Weight & dimensions - Depth - 304.8 mm
Weight & dimensions - Width - 243.8 mm
168.97 €
MSI PRO B760-P II
Tālr. 67275758 gsm 26117175 (p.o.t.c.p. 9:00-18:00)
Intel technology provider Platinum 2020
All categories
