ID: 1072542
Product code: H610M S2H V2
In stock 17 units / In office 1 units
Warranty: 3 years

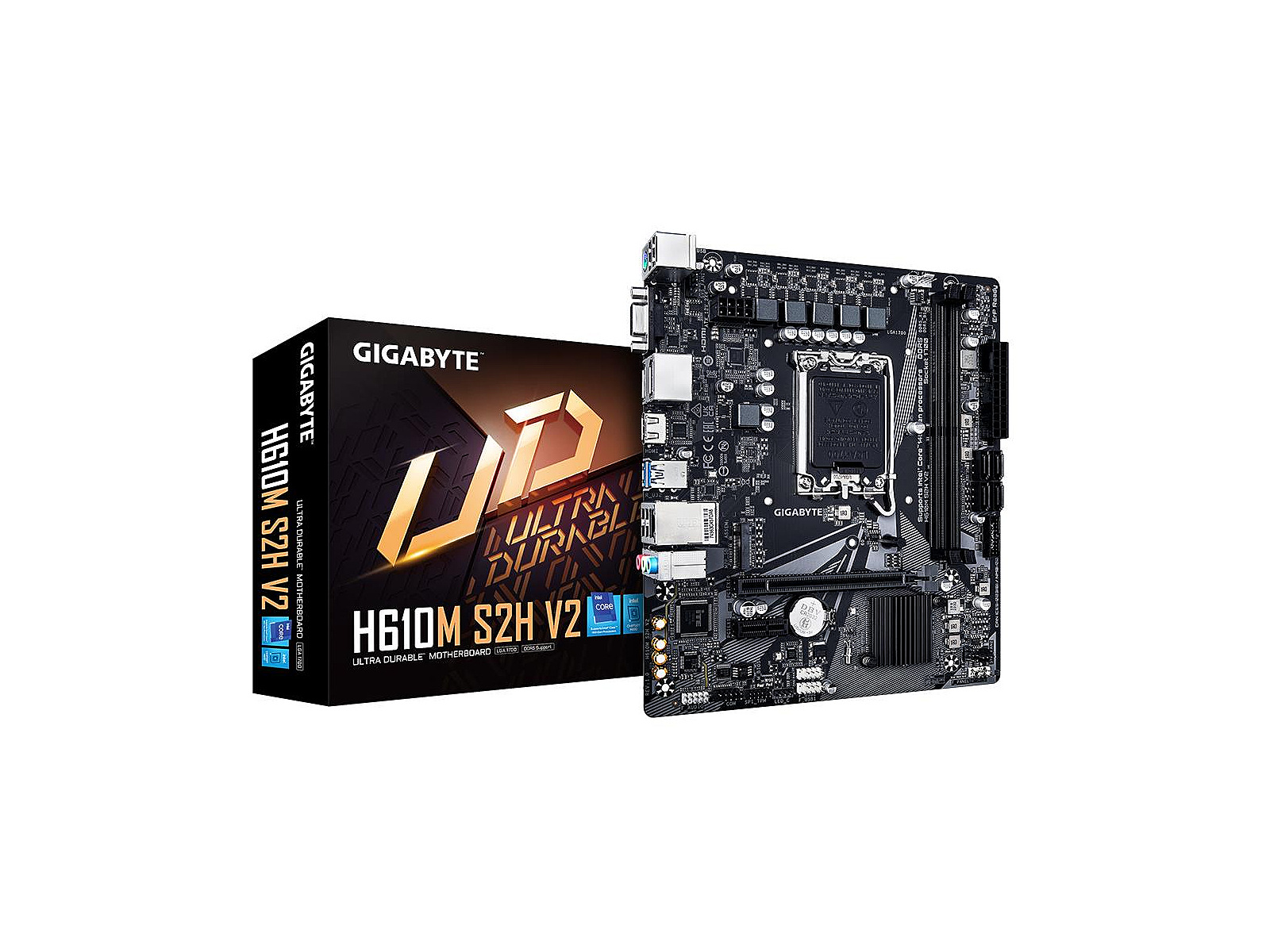

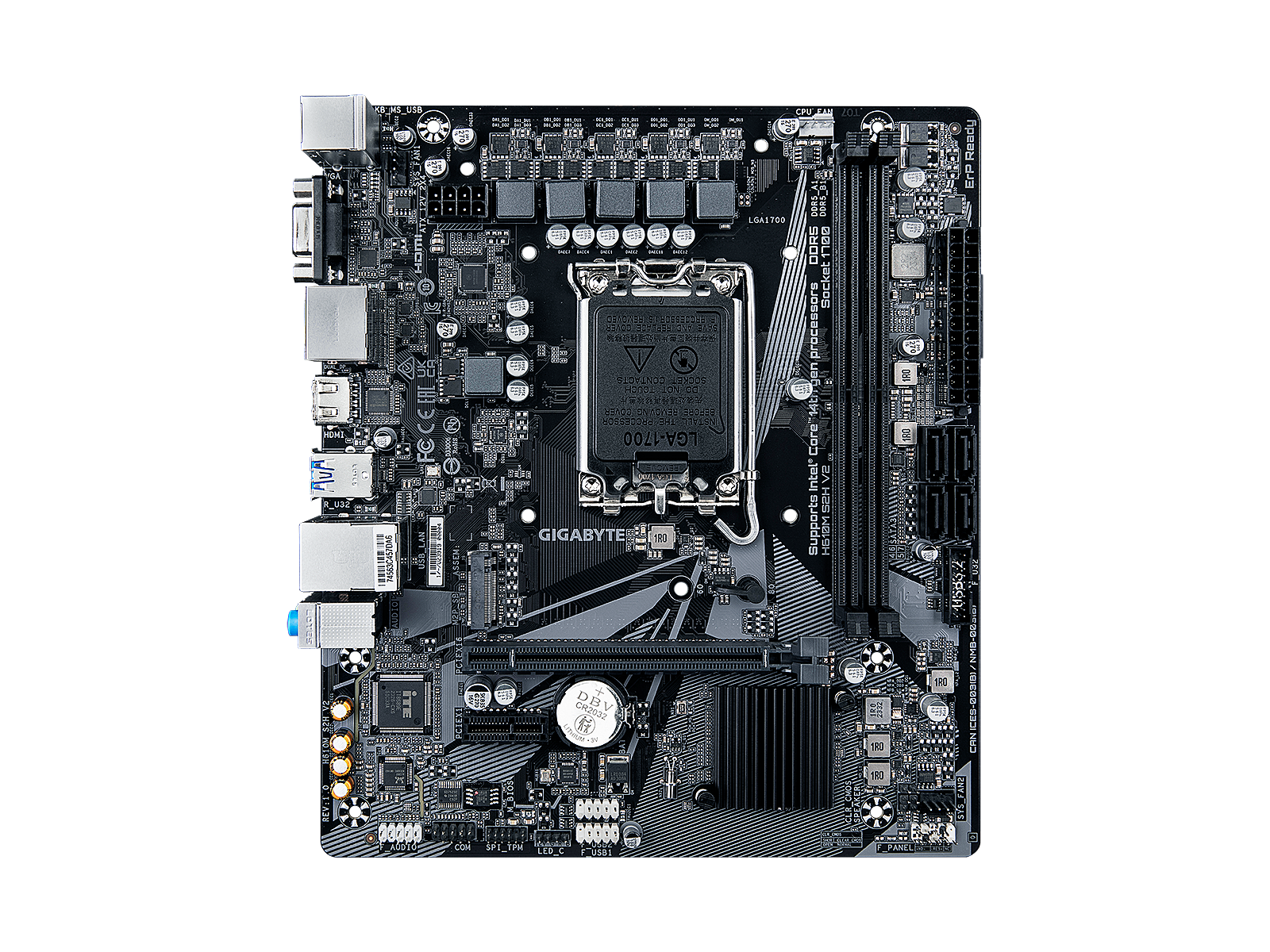

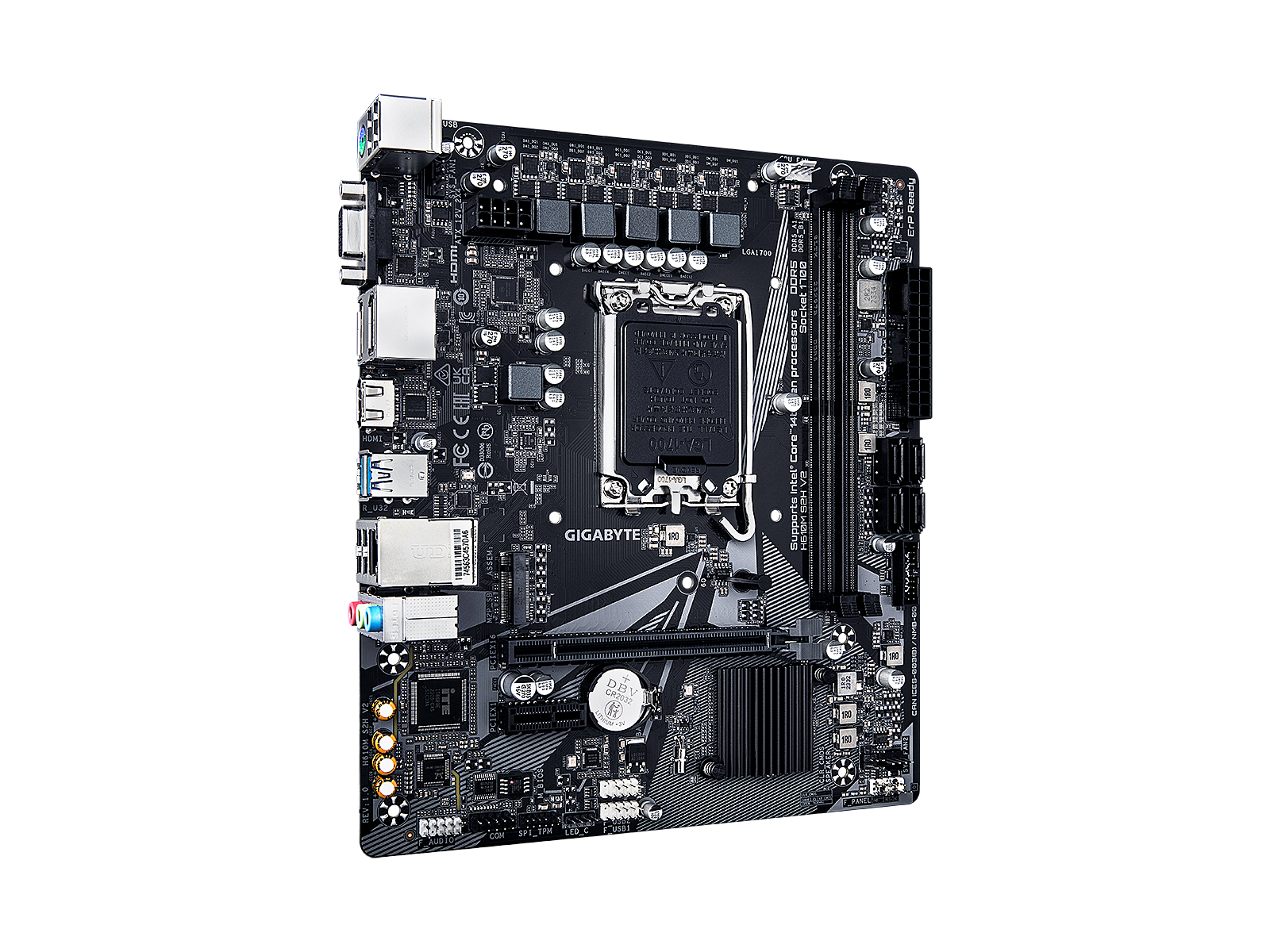

Gigabyte H610M S2H V2
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: on Wednesday, 27.11.2024
- Delivery to Omniva parcel machine free of charge: on Wednesday, 27.11.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: on Wednesday, 27.11.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: on Wednesday, 27.11.2024
- Delivery to address in Riga 3.99 €: on Wednesday, 27.11.2024
- Delivery to address in Latvia 6.99 €: on Wednesday, 27.11.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: on Monday, 25.11.2024 sākot no 9:00
Main product parameters All parameters
- Series: Nav
- CPU Socket: LGA 1700
- Chipset: Intel H610
- Form factor: Micro ATX
- Type: DDR5
- RAM Slots: 2
- Built-in Wi-Fi: Nav
Basic information
Series
: Nav
CPU Socket
LGA 1700
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel H610
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
Micro ATX
The physical size of the motherboard. Dateks.lv offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR5
RAM Slots
2
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR5 4800
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 1
DVI
: 1
HDMI
: 1
DisplayPort
: 1
Integrated sound card
: Realtek ALC897
Wireless connections
Built-in Bluetooth
: Nav
Built-in Wi-Fi
: Nav
External ports
External USB Type-C
: 0
External USB 2.0
: 2
External USB 3.0 (USB 3.2 Gen1)
: 2
External USB 3.1 (USB 3.2 Gen2)
: 0
Internal ports
Internal A-RGB 5V (3-pin)
: 0
Internal RGB 12V (4-pin)
: 1
Internal USB 2.0
: 2
Internal USB 3.0
: 1
Internal USB Type-C
: 0
M.2 Port
: 1
SATA3 ports
: 4
More detailed specification
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - GIGABYTE
BrandPartCode - H610M S2H V2
Category - Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Code - H610M S2H V2 1.0
dimensionalWeight - 760
EAN - 4719331859817
EAN_code - 4719331859817
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 slots - 1
Expansion slots - PCI Express x16 slots - 1
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Active
Features - Motherboard chipset - Intel H610 Express
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - Fan, LED, Temperature, Voltage, Water cooling
Features - Power source type - ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Graphics - Graphics card - HD Graphics
Graphics - Graphics card family - Intel
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2304 pixels
Graphics - On-board graphics card - Yes
Graphics - On-board graphics card model - Intel® HD Graphics
GTIN - 4719331859817
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Serial port headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - M.2, SATA
Link - https://www.gigabyte.com/Motherboard/H610M-S2H-V2-rev-10#kf
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - Intel H610 Motherboard with 4+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, 2*DisplayPort / HDMI / D-Sub Ports for Multiple Display , Anti-Sulfur Resistor, Smart Fan 6
LongSummaryDescription - GIGABYTE H610M S2H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD. Graphics card family: Intel, Graphics card: HD Graphics, Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: Gigabit Ethernet
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer_code - H610M S2H V2
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 96 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory clock speed (max) - 5600 MHz
Memory - Supported memory clock speeds - 5600, 5200, 4800, 4400 MHz
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 12GB, 32GB, 48GB
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5 DIMM
MPN - H610M S2H V2
Name - 1700 Gigabyte H610M S2H V2 mATX
Name - GIGABYTE H610M S2H V2 - Socket 1700 - motherboard
Name - Gigabyte | H610M S2H V2 1.0 | Processor family Intel | Processor socket LGA1700 | DDR5 DIMM | Supported hard disk drive interfaces M.2, SATA | Number of SATA connectors 4
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Other features - Supported DIMM module capacities - 8GB, 16GB
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 225 mm
Package features > Gross height (mm) - 20 mm
Package features > Gross width (mm) - 225 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 853 pc(s)
Package features > Paper/Pasteboard - 190 g
Package features > Plastic (No PET) - 10 g
Package features > Tare weight (kg) - 0.2 kg
Package features > Volume (m3) - 0.0010125 m³
Package features > WEEE tax - No
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton® Internet Security (OEM version)
LAN bandwidth management software
Packaging content - Cables included - SATA
Packaging data - Package depth - 235 mm
Packaging data - Package height - 52 mm
Packaging data - Package weight - 690 g
Packaging data - Package width - 265 mm
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Maximum internal memory supported by processor - 96 GB
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
producerCode - H610M S2H V2
Producer product name - H610M S2H V2 1.0
ProductName - H610M S2H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
productName - Płyta główna Gigabyte H610M S2H V2
productSize - Normal
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DVI-D ports quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
ShortSummaryDescription - GIGABYTE H610M S2H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, 96 GB, DDR5-SDRAM
sizeX - 272
sizeY - 58
sizeZ - 241
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 1
Storage controllers - Supported storage drive interfaces - M.2, SATA
Storage controllers - Supported storage drive types - HDD & SSD
Technical details - Warranty period - 3 year(s)
Technical details > Gross weight - 0.8 kg
Technical details > Net weight - 0.6 kg
Technical details > Producer - Gigabyte
Technical_details - The GIGABYTE H610M S2H V2 motherboard is based on the Intel® H610 chipset and supports Intel® processors for Socket 1700. It has two DDR5 DIMM slots in dual-channel operation for up to 96 GB of RAM. The GIGABYTE H610M S2H V2's additional features include a PCIe 4.0 x16 slot and a PCIe 3.0 x1 slot. The GIGABYTE H610M S2H V2 also has 8-channel sound, a Gigabit LAN interface, four SATA3 ports and a number of USB interfaces. Item no.: 100038227 Mainboard type EAN 4719331859817 Manufacturer no. H610M S2H V2 Base 1700 Max. supported CPUs 1 Operating system support Windows 10 ready, Windows 11 ready Processor Supported models Core i3 12xxx (Alder Lake), Core i3 12xxxT (Alder Lake), Core i3 12xxxF (Alder Lake), Core i3 13xxx (Raptor Lake), Core i3 13xxxF (Raptor Lake), Core i3 13xxxT (Raptor Lake) , Core i5 12xxx (Alder Lake), Core i5 12xxxK (Alder Lake), Core i5 12xxxKF (Alder Lake), Core i5 12xxxT (Alder Lake), Core i5 12xxxF (Alder Lake), Core i5 13xxx (Raptor Lake), Core i5 13xxxF (Raptor Lake), Core i5 13xxxT (Raptor Lake), Core i5 13xxxK (Raptor Lake), Core i5 13xxxKF (Raptor Lake), Core i7 12xxx (Alder Lake), Core i7 12xxxK (Alder Lake), Core i7 12xxxKF (Alder Lake), Core i7 12xxxT (Alder Lake), Core i7 12xxxF (Alder Lake), Core i7 13xxx (Raptor Lake), Core i7 13xxxF (Raptor Lake), Core i7 13xxxT (Raptor Lake), Core i7 13xxxK (Raptor Lake), Core i7 13xxxKF (Raptor Lake), Core i9 12xxx (Alder Lake), Core i9 12xxxK (Alder Lake), Core i9 12xxxKF (Alder Lake), Core i9 12xxxT (Alder Lake), Core i9 12xxxF (Alder Lake) , Core i9 12xxxKS (Alder Lake), Core i9 13xxx (Raptor Lake), Core i9 13xxxF (Raptor Lake), Core i9 13xxxT (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxKF (Raptor Lake), Core i9 13xxxKS (Raptor Lake), Pentium Gold Gxxxx (Alder Lake), Celeron Gxxxx (Alder Lake) Chipset Intel® H610 Slots PCIe x16 1x (of which: 1x PCIe x16) TPM Yes BIOS 128 Mbit UEFI AMI BIOS Form factor µATX Use PC Power supply ATX12V (24-pin + 8-pin) Memory maximum 96 GB Connections (external) Keyboard (PS/2) 1 Connectors (internal) SATA 4 Ports (optional) USB 3.2 Gen 1 (5 Gbit/s) 2 RGB Standard AURA Sync SATA controller Intel® H610 USB controller Intel® H610 Onboard graphics The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. Sound Realtek Audio CODEC LAN Realtek GbE LAN Further information In order to support the latest processor cores, a BIOS update may be required. Dimensions Width: 197mm x Height: 188mm
Title - GIGABYTE H610M S2H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
URL - https://www.gigabyte.com/uk/Motherboard/H610M-S2H-V2-rev-10#kf
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo - 3 years
warrantyLength - 36
warrantyType - G
Weight - 0.72
Weight - 1,30
weight - 730
Weight & dimensions - Depth - 215 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 230 mm
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - GIGABYTE
BrandPartCode - H610M S2H V2
Category - Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Code - H610M S2H V2 1.0
dimensionalWeight - 760
EAN - 4719331859817
EAN_code - 4719331859817
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 slots - 1
Expansion slots - PCI Express x16 slots - 1
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Active
Features - Motherboard chipset - Intel H610 Express
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - Fan, LED, Temperature, Voltage, Water cooling
Features - Power source type - ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Graphics - Graphics card - HD Graphics
Graphics - Graphics card family - Intel
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2304 pixels
Graphics - On-board graphics card - Yes
Graphics - On-board graphics card model - Intel® HD Graphics
GTIN - 4719331859817
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Serial port headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - M.2, SATA
Link - https://www.gigabyte.com/Motherboard/H610M-S2H-V2-rev-10#kf
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - Intel H610 Motherboard with 4+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, 2*DisplayPort / HDMI / D-Sub Ports for Multiple Display , Anti-Sulfur Resistor, Smart Fan 6
LongSummaryDescription - GIGABYTE H610M S2H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD. Graphics card family: Intel, Graphics card: HD Graphics, Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: Gigabit Ethernet
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer_code - H610M S2H V2
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 96 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory clock speed (max) - 5600 MHz
Memory - Supported memory clock speeds - 5600, 5200, 4800, 4400 MHz
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 12GB, 32GB, 48GB
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5 DIMM
MPN - H610M S2H V2
Name - 1700 Gigabyte H610M S2H V2 mATX
Name - GIGABYTE H610M S2H V2 - Socket 1700 - motherboard
Name - Gigabyte | H610M S2H V2 1.0 | Processor family Intel | Processor socket LGA1700 | DDR5 DIMM | Supported hard disk drive interfaces M.2, SATA | Number of SATA connectors 4
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Other features - Supported DIMM module capacities - 8GB, 16GB
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 225 mm
Package features > Gross height (mm) - 20 mm
Package features > Gross width (mm) - 225 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 853 pc(s)
Package features > Paper/Pasteboard - 190 g
Package features > Plastic (No PET) - 10 g
Package features > Tare weight (kg) - 0.2 kg
Package features > Volume (m3) - 0.0010125 m³
Package features > WEEE tax - No
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton® Internet Security (OEM version)
LAN bandwidth management software
Packaging content - Cables included - SATA
Packaging data - Package depth - 235 mm
Packaging data - Package height - 52 mm
Packaging data - Package weight - 690 g
Packaging data - Package width - 265 mm
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Maximum internal memory supported by processor - 96 GB
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
producerCode - H610M S2H V2
Producer product name - H610M S2H V2 1.0
ProductName - H610M S2H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
productName - Płyta główna Gigabyte H610M S2H V2
productSize - Normal
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DVI-D ports quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
ShortSummaryDescription - GIGABYTE H610M S2H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, 96 GB, DDR5-SDRAM
sizeX - 272
sizeY - 58
sizeZ - 241
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 1
Storage controllers - Supported storage drive interfaces - M.2, SATA
Storage controllers - Supported storage drive types - HDD & SSD
Technical details - Warranty period - 3 year(s)
Technical details > Gross weight - 0.8 kg
Technical details > Net weight - 0.6 kg
Technical details > Producer - Gigabyte
Technical_details - The GIGABYTE H610M S2H V2 motherboard is based on the Intel® H610 chipset and supports Intel® processors for Socket 1700. It has two DDR5 DIMM slots in dual-channel operation for up to 96 GB of RAM. The GIGABYTE H610M S2H V2's additional features include a PCIe 4.0 x16 slot and a PCIe 3.0 x1 slot. The GIGABYTE H610M S2H V2 also has 8-channel sound, a Gigabit LAN interface, four SATA3 ports and a number of USB interfaces. Item no.: 100038227 Mainboard type EAN 4719331859817 Manufacturer no. H610M S2H V2 Base 1700 Max. supported CPUs 1 Operating system support Windows 10 ready, Windows 11 ready Processor Supported models Core i3 12xxx (Alder Lake), Core i3 12xxxT (Alder Lake), Core i3 12xxxF (Alder Lake), Core i3 13xxx (Raptor Lake), Core i3 13xxxF (Raptor Lake), Core i3 13xxxT (Raptor Lake) , Core i5 12xxx (Alder Lake), Core i5 12xxxK (Alder Lake), Core i5 12xxxKF (Alder Lake), Core i5 12xxxT (Alder Lake), Core i5 12xxxF (Alder Lake), Core i5 13xxx (Raptor Lake), Core i5 13xxxF (Raptor Lake), Core i5 13xxxT (Raptor Lake), Core i5 13xxxK (Raptor Lake), Core i5 13xxxKF (Raptor Lake), Core i7 12xxx (Alder Lake), Core i7 12xxxK (Alder Lake), Core i7 12xxxKF (Alder Lake), Core i7 12xxxT (Alder Lake), Core i7 12xxxF (Alder Lake), Core i7 13xxx (Raptor Lake), Core i7 13xxxF (Raptor Lake), Core i7 13xxxT (Raptor Lake), Core i7 13xxxK (Raptor Lake), Core i7 13xxxKF (Raptor Lake), Core i9 12xxx (Alder Lake), Core i9 12xxxK (Alder Lake), Core i9 12xxxKF (Alder Lake), Core i9 12xxxT (Alder Lake), Core i9 12xxxF (Alder Lake) , Core i9 12xxxKS (Alder Lake), Core i9 13xxx (Raptor Lake), Core i9 13xxxF (Raptor Lake), Core i9 13xxxT (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxKF (Raptor Lake), Core i9 13xxxKS (Raptor Lake), Pentium Gold Gxxxx (Alder Lake), Celeron Gxxxx (Alder Lake) Chipset Intel® H610 Slots PCIe x16 1x (of which: 1x PCIe x16) TPM Yes BIOS 128 Mbit UEFI AMI BIOS Form factor µATX Use PC Power supply ATX12V (24-pin + 8-pin) Memory maximum 96 GB Connections (external) Keyboard (PS/2) 1 Connectors (internal) SATA 4 Ports (optional) USB 3.2 Gen 1 (5 Gbit/s) 2 RGB Standard AURA Sync SATA controller Intel® H610 USB controller Intel® H610 Onboard graphics The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. Sound Realtek Audio CODEC LAN Realtek GbE LAN Further information In order to support the latest processor cores, a BIOS update may be required. Dimensions Width: 197mm x Height: 188mm
Title - GIGABYTE H610M S2H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
URL - https://www.gigabyte.com/uk/Motherboard/H610M-S2H-V2-rev-10#kf
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo - 3 years
warrantyLength - 36
warrantyType - G
Weight - 0.72
Weight - 1,30
weight - 730
Weight & dimensions - Depth - 215 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 230 mm
