ID: 1046346
Product code: Z590MHP
Can be ordered 53 units Availability: 14 days after order approval
Warranty: 2 years

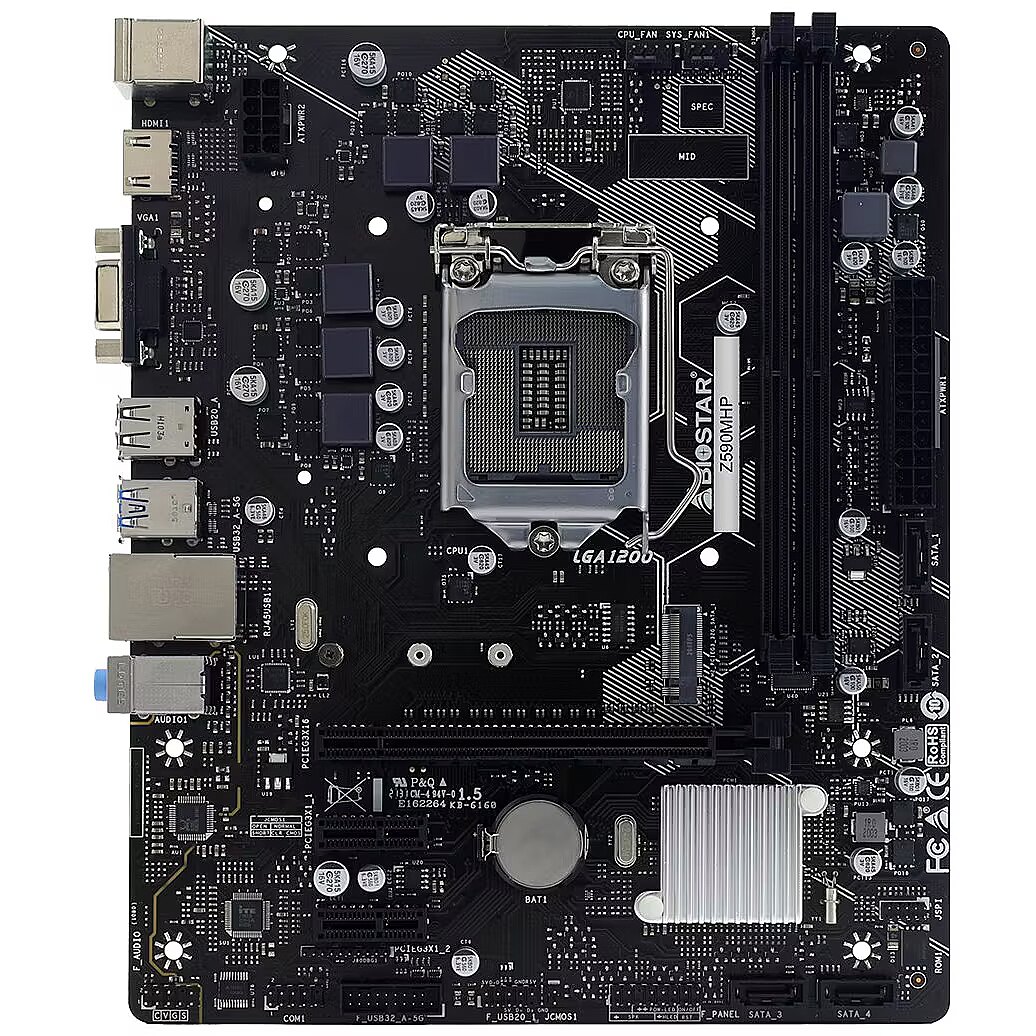

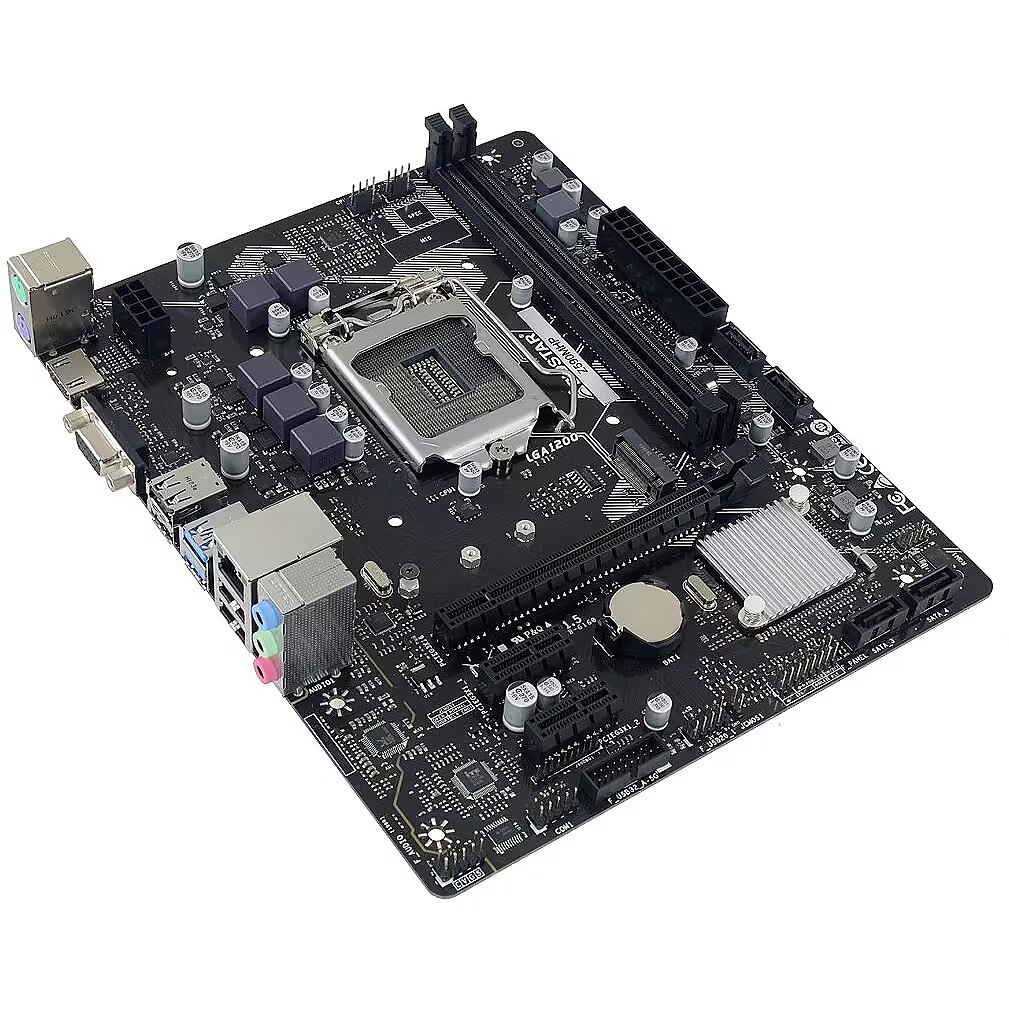

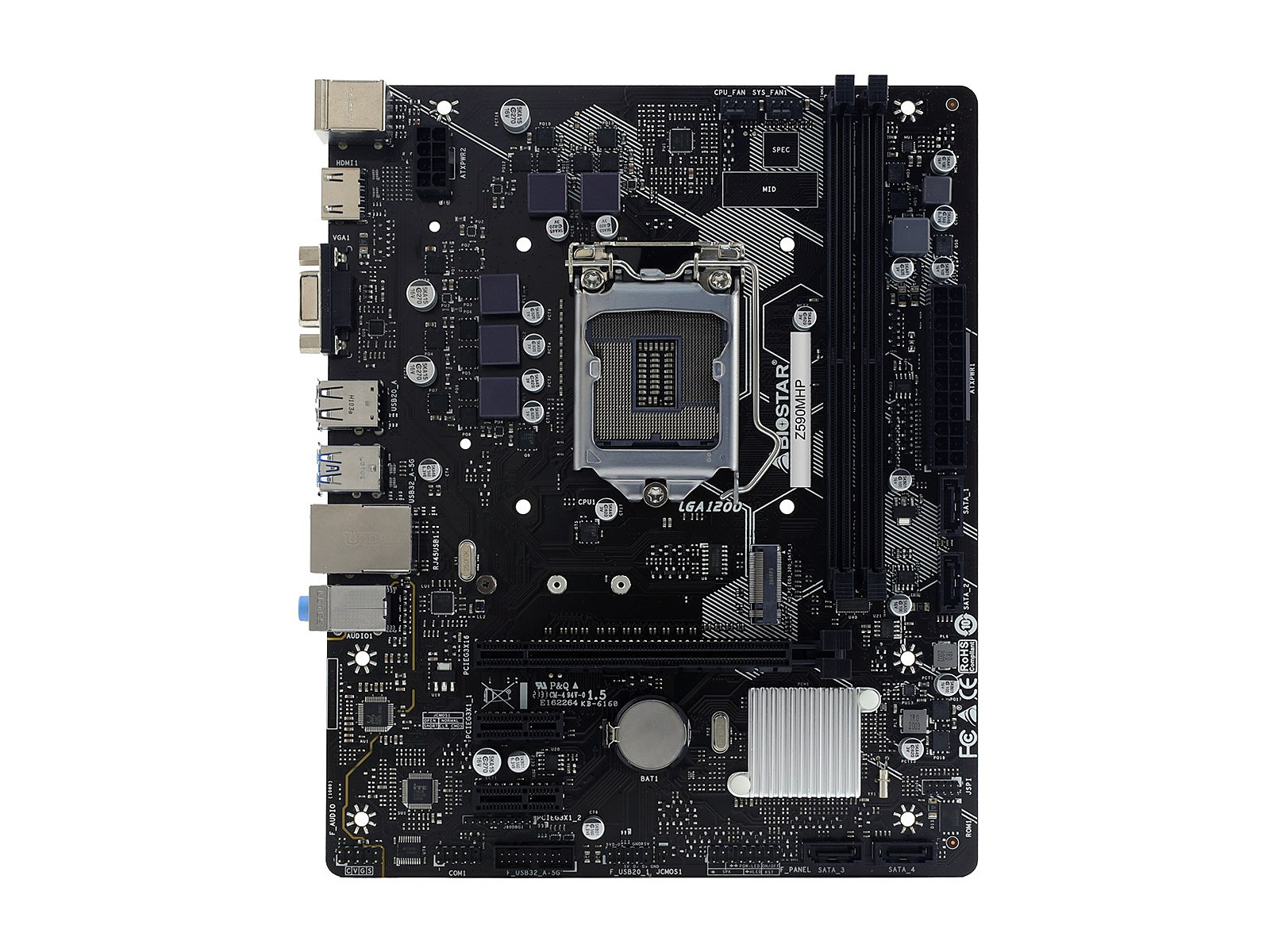

Biostar Z590MHP
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 06.01.2025
- Delivery to Omniva parcel machine free of charge: 06.01.2025
- Piegāde uz DPD Pickup Paku Skapi free of charge: 06.01.2025
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 06.01.2025
- Delivery to address in Riga 3.99 €: 06.01.2025
- Delivery to address in Latvia 6.99 €: 06.01.2025
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 30.12.2024 after 15:00
Main product parameters All parameters
- Series: Biostar Essentials
- CPU Socket: LGA 1200
- Chipset: Intel Z590
- Form factor: Micro ATX
- Type: DDR4
- RAM Slots: 2
- Built-in Wi-Fi: Nav
Basic information
Series
: Biostar Essentials
CPU Socket
LGA 1200
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel Z590
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
Micro ATX
The physical size of the motherboard. Dateks.lv offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR4
RAM Slots
2
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR4 3200 (OC 4000)
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 1
DVI
: 0
HDMI
: 1
DisplayPort
: 0
Integrated sound card
: Realtek ALC897
Wireless connections
Built-in Bluetooth
: Nav
Built-in Wi-Fi
: Nav
External ports
External USB Type-C
: 0
External USB 2.0
: 4
External USB 3.0 (USB 3.2 Gen1)
: 2
External USB 3.1 (USB 3.2 Gen2)
: 0
Internal ports
Internal A-RGB 5V (3-pin)
: 0
Internal RGB 12V (4-pin)
: 0
Internal USB 2.0
: 1
Internal USB 3.0
: 1
Internal USB Type-C
: 0
M.2 Port
: 1
SATA3 ports
: 4
More detailed specification
15pin D-sub Input/Output connectors - 1
Audio port Input/Output connectors - 3
BIOS - BIOS type - UEFI
BIOS - Clear CMOS jumper - Yes
Category Code - MBI
Chipset - Intel Z590 Express
Description - Z590MHP - Supports 10th /11th Generation Intel Core™ Processor - Intel Z590 single chip architecture - Supports 2-DIMM DDR4 up to 64 GB Memory - Supports PCIe 4.0 - Supports PCIe 3.0 M.2 (32Gb/s) - Supports USB 3.2 Gen1
dimensionalWeight - 699
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 (Gen 3.x) slots - 2
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - Intel Z590
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - CPU
Features - PC health monitoring - Fan
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Form Factor - Micro-ATX
Frequency speed - 2133/2400/2666/2800/2933/3200/3600/3733/3800/3866/4000 MHz
Full Description Line - Intel Z590 Express|LGA1200|Micro-ATX|DDR4|4000/3866/3800/3733/3600/3200/2933/2800/2666/2400/2133 MHz|Memory slots 2|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|4xUSB 2.0|2xUSB 3.2|2xPS/2|1xRJ45|3xAudio port|USB 2.0|USB 3.2|Serial|SATA 3.0|Video Depending on CPU|LAN Gigabit|Audio Realtek ALC897
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC897
Integrated LAN - Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Power fan connector - Yes
Internal I/O - USB 2.0 connectors - 1
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
M.2 Expansion slots - 1
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2666
Memory - Supported memory clock speeds - 2800
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3200
Memory - Supported memory clock speeds - 3600
Memory - Supported memory clock speeds - 3733
Memory - Supported memory clock speeds - 3800
Memory - Supported memory clock speeds - 3866
Memory - Supported memory clock speeds - 4000
Memory - Supported memory types - DDR4-SDRAM
Memory slots - 2
Memory type - DDR4
Model - Z590MHP
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Intel® I219-V
Network - Wi-Fi - No
Packaging content - Bundled software - BullGuard
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
PCI-Express 3.0 1x Expansion slots - 2
PCI-Express 4.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium®
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1200 (Socket H5)
producerCode - Z590MHP
productName - Biostar Z590MHP Intel Z590 LGA 1200 (Socket H5) micro ATX
productSize - Normal
PS/2 Input/Output connectors - 2

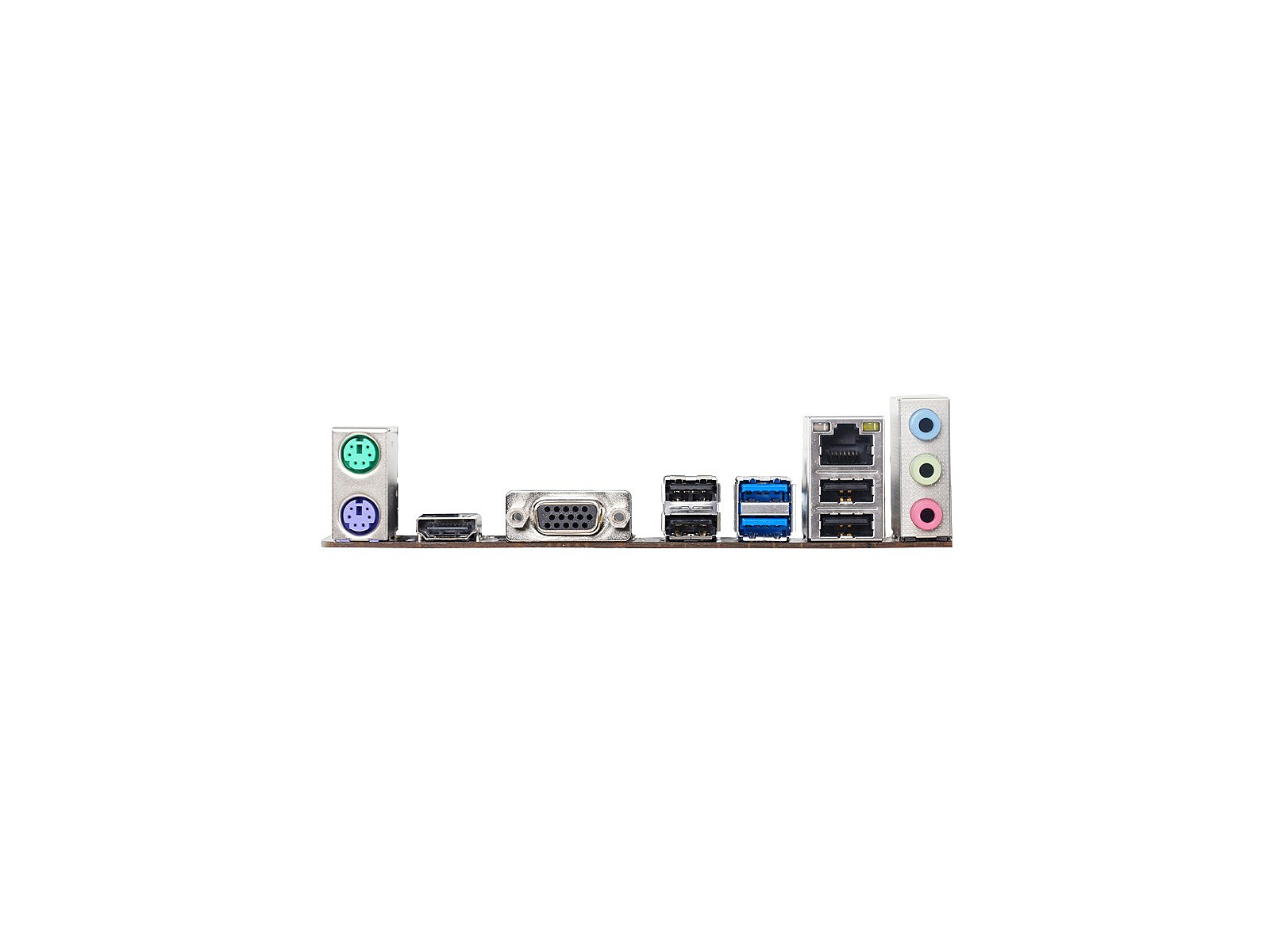

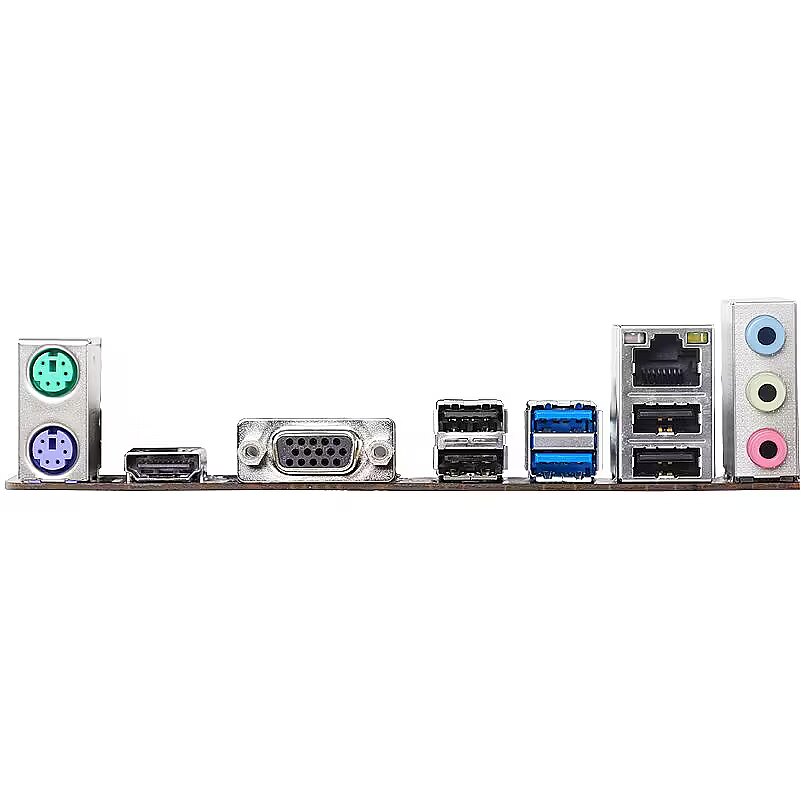

Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 1.4
Rear panel I/O ports - PS/2 ports quantity - 2
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RJ45 Input/Output connectors - 1
SATA 3.0 Interface - Yes
Serial Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 63.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 47 cm
Shipping box quantity - 20
Shipping Box Weight Shipping/Package Box Dimensions - 14.55 kg
Shipping Box Width Shipping/Package Box Dimensions - 28.5 cm
sizeX - 265
sizeY - 60
sizeZ - 220
Socket - LGA1200
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Unit Box Height - 0.06
Unit Box Length - 0.267
Unit Box Width - 0.221
Unit Brutto Volume - 0.004253 cubm
Unit Gross Weight - 0.728 kg
Unit Net Weight - 0.6 kg
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 2
USB 3.2 Interface - Yes
Vendor Homepage - www.biostar-europe.com/app/de/mb/introduction.php?S_ID=1141
Warranty - 36 months
warrantyLength - 24
warrantyType - G
weight - 680
Weight & dimensions - Depth - 226 mm
Weight & dimensions - Width - 185 mm
Audio port Input/Output connectors - 3
BIOS - BIOS type - UEFI
BIOS - Clear CMOS jumper - Yes
Category Code - MBI
Chipset - Intel Z590 Express
Description - Z590MHP - Supports 10th /11th Generation Intel Core™ Processor - Intel Z590 single chip architecture - Supports 2-DIMM DDR4 up to 64 GB Memory - Supports PCIe 4.0 - Supports PCIe 3.0 M.2 (32Gb/s) - Supports USB 3.2 Gen1
dimensionalWeight - 699
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 (Gen 3.x) slots - 2
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - Intel Z590
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - CPU
Features - PC health monitoring - Fan
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Form Factor - Micro-ATX
Frequency speed - 2133/2400/2666/2800/2933/3200/3600/3733/3800/3866/4000 MHz
Full Description Line - Intel Z590 Express|LGA1200|Micro-ATX|DDR4|4000/3866/3800/3733/3600/3200/2933/2800/2666/2400/2133 MHz|Memory slots 2|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|4xUSB 2.0|2xUSB 3.2|2xPS/2|1xRJ45|3xAudio port|USB 2.0|USB 3.2|Serial|SATA 3.0|Video Depending on CPU|LAN Gigabit|Audio Realtek ALC897
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC897
Integrated LAN - Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Power fan connector - Yes
Internal I/O - USB 2.0 connectors - 1
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
M.2 Expansion slots - 1
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2666
Memory - Supported memory clock speeds - 2800
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3200
Memory - Supported memory clock speeds - 3600
Memory - Supported memory clock speeds - 3733
Memory - Supported memory clock speeds - 3800
Memory - Supported memory clock speeds - 3866
Memory - Supported memory clock speeds - 4000
Memory - Supported memory types - DDR4-SDRAM
Memory slots - 2
Memory type - DDR4
Model - Z590MHP
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Intel® I219-V
Network - Wi-Fi - No
Packaging content - Bundled software - BullGuard
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
PCI-Express 3.0 1x Expansion slots - 2
PCI-Express 4.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium®
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1200 (Socket H5)
producerCode - Z590MHP
productName - Biostar Z590MHP Intel Z590 LGA 1200 (Socket H5) micro ATX
productSize - Normal
PS/2 Input/Output connectors - 2
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 1.4
Rear panel I/O ports - PS/2 ports quantity - 2
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RJ45 Input/Output connectors - 1
SATA 3.0 Interface - Yes
Serial Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 63.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 47 cm
Shipping box quantity - 20
Shipping Box Weight Shipping/Package Box Dimensions - 14.55 kg
Shipping Box Width Shipping/Package Box Dimensions - 28.5 cm
sizeX - 265
sizeY - 60
sizeZ - 220
Socket - LGA1200
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Unit Box Height - 0.06
Unit Box Length - 0.267
Unit Box Width - 0.221
Unit Brutto Volume - 0.004253 cubm
Unit Gross Weight - 0.728 kg
Unit Net Weight - 0.6 kg
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 2
USB 3.2 Interface - Yes
Vendor Homepage - www.biostar-europe.com/app/de/mb/introduction.php?S_ID=1141
Warranty - 36 months
warrantyLength - 24
warrantyType - G
weight - 680
Weight & dimensions - Depth - 226 mm
Weight & dimensions - Width - 185 mm
