ID: 1016934
Product code: ROG MAXIMUS Z790 DARK HERO
In stock 1 units
Warranty: 3 years

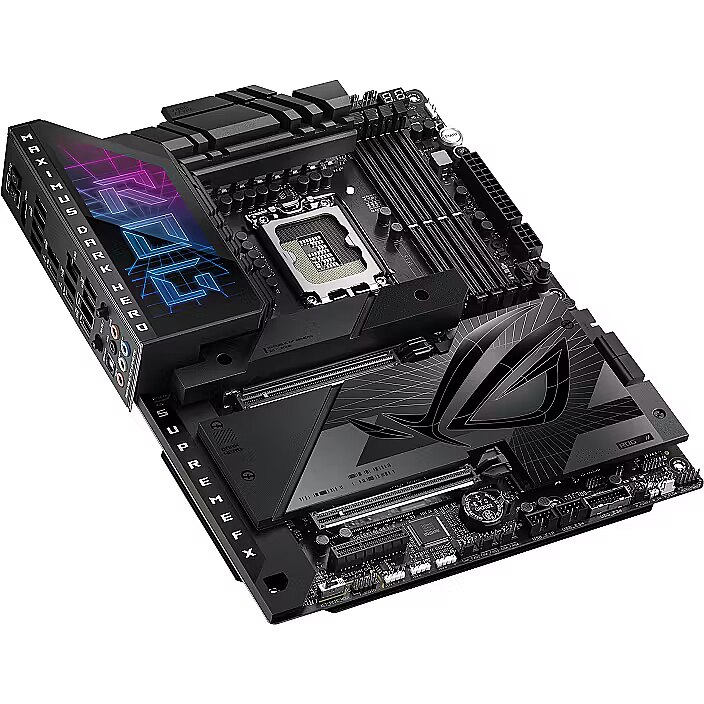

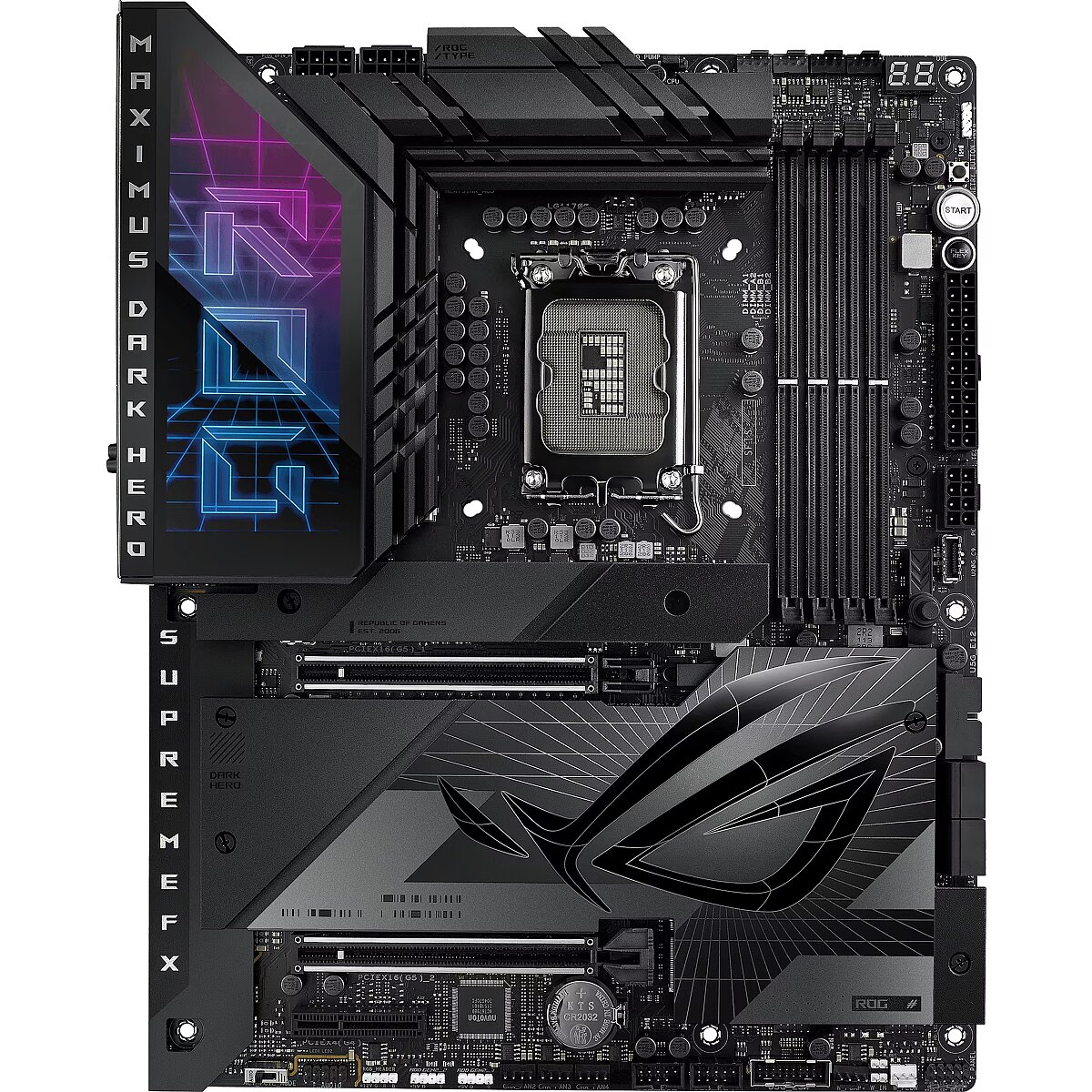

Asus ROG MAXIMUS Z790 DARK HERO
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: on Thursday, 28.11.2024
- Delivery to Omniva parcel machine free of charge: on Thursday, 28.11.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: on Thursday, 28.11.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: on Thursday, 28.11.2024
- Delivery to address in Riga 3.99 €: on Thursday, 28.11.2024
- Delivery to address in Latvia 6.99 €: on Thursday, 28.11.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: on Thuesday, 26.11.2024 after 15:00
Main product parameters All parameters
- Series: ASUS ROG MAXIMUS
- CPU Socket: LGA 1700
- Chipset: Intel Z790
- Form factor: ATX
- Type: DDR5
- RAM Slots: 4
- Built-in Wi-Fi: Ir
Basic information
Series
: ASUS ROG MAXIMUS
CPU Socket
LGA 1700
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel Z790
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
ATX
The physical size of the motherboard. Dateks.lv offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR5
RAM Slots
4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR5 5600 (OC 8000)
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 0
Integrated sound card
: Realtek ALC4082
Wireless connections
Built-in Bluetooth
: Ir
Built-in Wi-Fi
: Ir
External ports
External USB Type-C
: 3
External USB 2.0
: 2
External USB 3.0 (USB 3.2 Gen1)
: 4
External USB 3.1 (USB 3.2 Gen2)
: 5
Internal ports
Internal A-RGB 5V (3-pin)
: 3
Internal RGB 12V (4-pin)
: 1
Internal USB 2.0
: 2
Internal USB 3.0
: 2
Internal USB Type-C
: 1
M.2 Port
: 3
SATA3 ports
: 6
More detailed specification

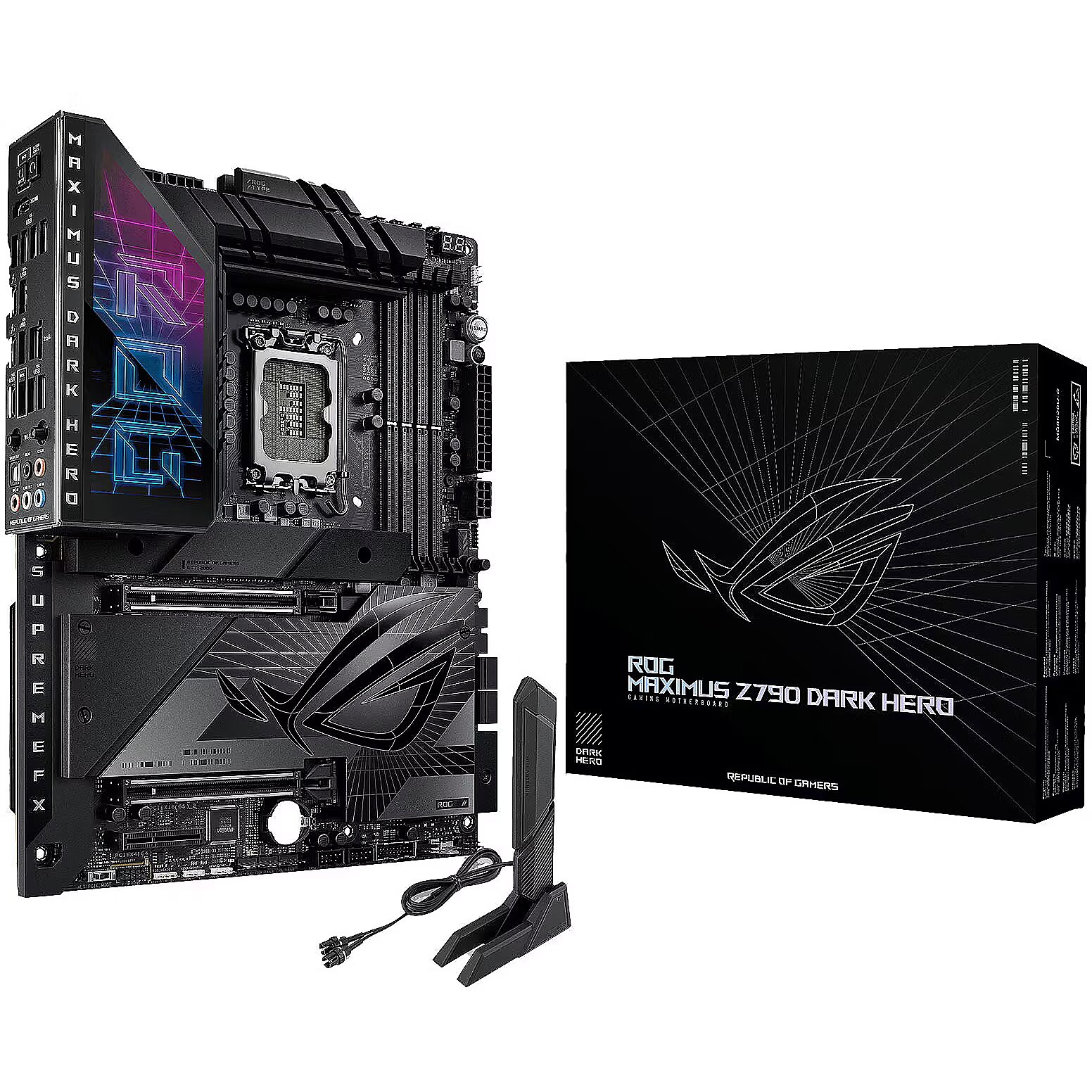

Accessories included - 1 x ARGB RGB extender 4 SATA 6 Gb/s cables 1 x Thermal Pad for M.2 1 x DDR5 fan holder 1 x ASUS WiFi Q Antenna 3 Q-Latch packs with M.2 backplate 3 rubber packs with M.2 backplate 1 x Q connector 1 x ROG stickers 1 x ROG Keychain 1 x M.2 Rubber Pack 1 x ROG VIP Card 1 x USB drive with tools and drivers 1 x Quick Start Guide
BIOS - 256 Mb Flash ROM, UEFI AMI BIOS
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Bluetooth Interface - Yes
Brand - ASUS
BrandPartCode - 90MB1F90-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel Z790
Chipset manufacturer - Intel
Chipset type - Intel Z790
CnCode CnCode - 84733020
code - 90MB1F90-M0EAY0
COM connector / port - No
CPU socket - LGA1700
Description - ROG MAXIMUS Z790 DARK HERO ROG Maximus Z790 Dark Hero boasts solid cooling, Wi-Fi 7 and a large PCIe 5.0 slot for unrivaled performance, and offers full compatibility with 14th Gen Intel Core processors. Meanwhile, its discreet design is highlighted by new Polymo lighting, which illuminates the I/O shield with a micro-structured dual-layer RGB array and adds a personalized touch of style to your gaming setup. ROG OVERCLOCKING TECHNOLOGIES Get your psyche up and turn on Dark Hero overclocking with built-in intelligence to scan, predict and adjust CPU performance parameters, and tools to control and track key system parameters. AI OVERCLOCKING Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles your CPU and cooling to predict the optimal configuration and push your system to its limits. The predicted values can be applied automatically or used as a starting point for further experiments. DIFFERENTIAL SENSOR Conventional motherboards use a single-ended sensor, drawn from a location that is not ideal, leading to a large discrepancy between the actual voltage supplied to the processor and the value reported to the software. ROG Maximus Z790 Dark Hero features differential detection circuitry and a delicate IC that simplify overclocking and tuning, allowing for more accurate voltage tracking.
Description - The ROG Maximus Z790 Dark Hero boasts robust cooling, WiFi 7 and ample PCIe 5.0 slot for unmatched performance, and it offers full compatibility with 14th Gen Intel Core processors. Meanwhile, its stealthy design is accentuated by new Polymo lighting, which illuminates the I/O shroud with a microstructural array of dual-layer RGB and adds a personalized touch of style to your gaming setup.
Detailed data on disk/drive interfaces - Total supports 5 M.2 slots and 4 SATA 6 Gb/s ports* Intel CoreTM processors (14th, 13th and 12th generation) M.2_1 slot (M Key), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode.)** M.2_2 slot (M Key), type 2242/2260/2280 (supports PCIe 4.0 x4 mode.) Intel Z790 Chipset** M.2_3 slot (M Key), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (M Key), 2280 type (supports PCIe 4.0 x4 mode) M.2_5 slot (M Key), 2280 type (supports PCIe 4.0 x4 mode) 4x SATA 6Gb/s ports * Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. **M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled and PCIEX16(G5)_1 will only work on x8 platform.
dimension depth - 120 mm
dimension height - 310 mm
Dimensions - 30.5 x 24.4 cm
dimension weight - 3875 g
dimension width - 370 mm
ean - 4711387339121
Eans - 4711387339121
EAN_code - 4711387339121
Expansion slots - 1 x PCIe 4.0 x 4
Expansion slots - 2 x PCIe 5.0 x16
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 2
External connectors - 1 x Central Speaker / Subwoofer
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Przycisk Clear CMOS
External connectors - 1 x Rear Speaker
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 1 x USB 3.1 Type-C
External connectors - 1 x USB BIOS Flashback button
External connectors - 2 x Thunderbolt 4
External connectors - 4 x USB 3.0
External connectors - 5 x USB 3.1
Features - Audio chip - Realtek ALC4082
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z790
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Power source type - ATX
Features - Windows operating systems supported - Windows 10, Windows 11
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/8000 MHz
Full Description Line - Intel Z790|LGA1700|ATX|DDR5|8000/7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|1xPCI-Express 4.0 4x |2xPCI-Express 5.0 16x|5xM.2|1xHDMI|5xUSB 3.2|1xUSB-C|2xUSB-C w/Thunderbolt|1xOptical S/PDIF|1xRJ45|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC4082|RAID SATA 0, 1, 5, 10; PCIe 0, 1, 5, 10
Graphics - 1 x HDMITM port** 2 x Intel Thunderbolt 4 (USB Type-C) ports supporting DisplayPort and Thunderbolt video output*** *Graphics specifications may vary depending on processor type. Please visit www.intel.com for any updates. ** Supports 4K resolution at 60 Hz according to HDMI 2.1 specifications. ***VGA resolution support depends on the resolution of the processors or graphics cards.
Graphics - Parallel processing technology support - Not supported
GTIN - 4711387339121
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC4082
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - Number of SATA III connectors - 6
Internal I/O - RGB LED pin header - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
LongSummaryDescription - ASUS ROG MAXIMUS Z790 DARK HERO. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
LPT connector / port - No
M.2 Expansion slots - 5
Manufacturer - Asus
Manufacturer_code - 90MB1F90-M0EAY0
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 192 GB
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 7800 MHz
Memory - Supported memory clock speeds - 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 4800 MHz
Memory bus frequency - 5000 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5400 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7400 MHz
Memory bus frequency - 7600 MHz
Memory bus frequency - 7800 MHz
Memory bus frequency - 8000 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - ROG MAXIMUS Z790 DARK HERO
Name - ASUS ROG MAXIMUS Z790 DARK HERO
name - ASUS ROG Maximus Z790 Dark Hero, Intel Z790 Mainboard, Sockel 1700, DDR5
Name - ASUS ROG MAXIMUS Z790 DARK HERO - Socket 1700 - motherboard (black)
name - Motherboard ROG MAXIMUS Z790 DARK HERO s1700 4DDR5 ATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - Intel Wi-Fi 7* Wi-Fi 2x2 7 (802.11be)** Supports 2.4/5/6 GHz frequency band*** Supports Wi-Fi 7 320 MHz band, transfer rate up to 5.76 Gb/s. Bluetooth v5.4**** * Compatible with Windows 11 or later. **Full support for Wi-Fi 7 MLO (Multi-link Operation) will be available on Windows 11 2024 (Windows 11 24H2) or later. ***Regulations regarding the Wi-Fi 6 GHz frequency band and bandwidth may vary by country. ****Bluetooth version may vary. The latest specifications can be found on the Wi-Fi module manufacturer's website.
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 9
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 4pin wentylator OPT CPU
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Flex Key pin
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power button
Onboard connectors - 1 x Reset button
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x Thermal sensor connector
Onboard connectors - 1 x USB C
Onboard connectors - 1x CPU/DRAM overvoltage jumper
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 3 x Addressable LED
Onboard connectors - 4 x 4pin Chassis fan
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 5 x M.2
Optical S/PDIF Input/Output connectors - 1
Other features - Back-to-BIOS button - Yes
Other information -
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
Packaging data - Package depth - 312 mm
Packaging data - Package height - 108 mm
Packaging data - Package weight - 4.07 kg
Packaging data - Package width - 370 mm
PCI-Express 4.0 4x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 2
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor family - Intel Celeron
Processor family - Intel Core
Processor family - Intel Pentium Gold
producer - Asus
Producer - Asus
ProducerCode - ROG MAXIMUS Z790 DARK HERO
ProductName - ROG MAXIMUS Z790 DARK HERO
RAID - SATA 0, 1, 5, 10; PCIe 0, 1, 5, 10
RAID - Yes

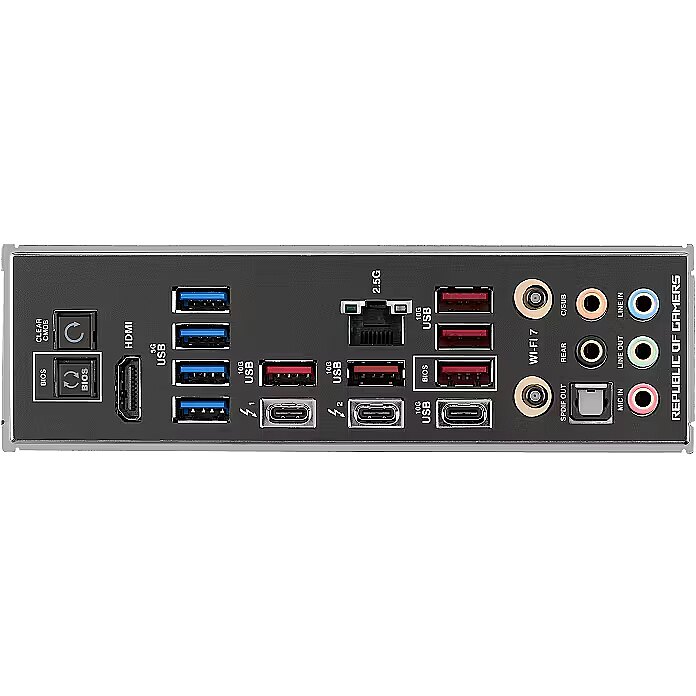

Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - Thunderbolt ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 5
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - WiFi-AP antenna jack - 2
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 47 cm
Shipping Box Height Shipping/Package Box Dimensions - 34 cm
Shipping box quantity - 4
Shipping Box Weight Shipping/Package Box Dimensions - 16.62 kg
Shipping Box Width Shipping/Package Box Dimensions - 39 cm
ShortDescription - Socket 1700| Chipset Intel Z790 | DDR5 |
ShortSummaryDescription - ASUS ROG MAXIMUS Z790 DARK HERO, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, DDR5-SDRAM, 128 GB
Socket - LGA1700
Software - Exclusive ROG software - ROG CPU-Z - DTS sound without limits - Internet security (full version for 1 year) ASUS exclusive software Armory Chest - AIDA64 Extreme (full version for 1 year) - Aura creator - Aura synchronization - Fan Xpert 4 (with AI Cooling II) - First game - Bi-directional AI noise reduction - Energy saving -Sonic Studio AI Pack 3 - Easy optimization with AI overclocking - TPU - DIGI+ power control - Turbo application - Computer cleaner My Asus USB power monitor Intel Unison Adobe Creative Cloud (free trial) WinRAR (40-day free trial) UEFI BIOS AI Overclocking Guide DIY ASUS EZ - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ mode - ASUS MyHotkey MemTest86
Sound card - ROG SupremeFX 7.1 Surround Sound High Resolution Audio CODEC ALC4082* Impedance detection for front and rear headphone outputs Supports: jack detection, multi-streaming, front panel jack reassignment High-quality 120 dB SNR stereo output and 110 dB SNR recording input Supports playback up to 32-bit/384 kHz Audio features SupremeFX shielding technology ESS ES9218 QUAD DAC Gold-plated audio sockets Rear optical S/PDIF output port High-quality audio capacitors *The LINE OUT port on the rear panel does not support surround sound. If you want to use surround sound, be sure to connect your audio output device to the audio jack on the front panel of the case, or use an audio device with a US interface
Special functions -
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 9
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Title - ASUS ROG MAXIMUS Z790 DARK HERO Intel Z790 LGA 1700 ATX
Unit Box Height - 0.31
Unit Box Length - 0.37
Unit Box Width - 0.11
Unit Brutto Volume - 0.01558 cubm
Unit Gross Weight - 4.16 kg
Unit Net Weight - 2.5 kg
USB-C Input/Output connectors - 1
USB-C w/Thunderbolt Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 5
USB 3.2 Interface - Yes
USB ports at back panel - 12
USB ports on motherboard - 9
Vendor Homepage - rog.asus.com/motherboards/rog-maximus/rog-maximus-z790-dark-hero/
vendpn - ROG MAXIMUS Z790 DARK HERO
Warranty - 36 months
Weight - 3,88
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
BIOS - 256 Mb Flash ROM, UEFI AMI BIOS
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Bluetooth Interface - Yes
Brand - ASUS
BrandPartCode - 90MB1F90-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel Z790
Chipset manufacturer - Intel
Chipset type - Intel Z790
CnCode CnCode - 84733020
code - 90MB1F90-M0EAY0
COM connector / port - No
CPU socket - LGA1700
Description - ROG MAXIMUS Z790 DARK HERO ROG Maximus Z790 Dark Hero boasts solid cooling, Wi-Fi 7 and a large PCIe 5.0 slot for unrivaled performance, and offers full compatibility with 14th Gen Intel Core processors. Meanwhile, its discreet design is highlighted by new Polymo lighting, which illuminates the I/O shield with a micro-structured dual-layer RGB array and adds a personalized touch of style to your gaming setup. ROG OVERCLOCKING TECHNOLOGIES Get your psyche up and turn on Dark Hero overclocking with built-in intelligence to scan, predict and adjust CPU performance parameters, and tools to control and track key system parameters. AI OVERCLOCKING Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles your CPU and cooling to predict the optimal configuration and push your system to its limits. The predicted values can be applied automatically or used as a starting point for further experiments. DIFFERENTIAL SENSOR Conventional motherboards use a single-ended sensor, drawn from a location that is not ideal, leading to a large discrepancy between the actual voltage supplied to the processor and the value reported to the software. ROG Maximus Z790 Dark Hero features differential detection circuitry and a delicate IC that simplify overclocking and tuning, allowing for more accurate voltage tracking.
Description - The ROG Maximus Z790 Dark Hero boasts robust cooling, WiFi 7 and ample PCIe 5.0 slot for unmatched performance, and it offers full compatibility with 14th Gen Intel Core processors. Meanwhile, its stealthy design is accentuated by new Polymo lighting, which illuminates the I/O shroud with a microstructural array of dual-layer RGB and adds a personalized touch of style to your gaming setup.
Detailed data on disk/drive interfaces - Total supports 5 M.2 slots and 4 SATA 6 Gb/s ports* Intel CoreTM processors (14th, 13th and 12th generation) M.2_1 slot (M Key), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode.)** M.2_2 slot (M Key), type 2242/2260/2280 (supports PCIe 4.0 x4 mode.) Intel Z790 Chipset** M.2_3 slot (M Key), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (M Key), 2280 type (supports PCIe 4.0 x4 mode) M.2_5 slot (M Key), 2280 type (supports PCIe 4.0 x4 mode) 4x SATA 6Gb/s ports * Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. **M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled and PCIEX16(G5)_1 will only work on x8 platform.
dimension depth - 120 mm
dimension height - 310 mm
Dimensions - 30.5 x 24.4 cm
dimension weight - 3875 g
dimension width - 370 mm
ean - 4711387339121
Eans - 4711387339121
EAN_code - 4711387339121
Expansion slots - 1 x PCIe 4.0 x 4
Expansion slots - 2 x PCIe 5.0 x16
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 2
External connectors - 1 x Central Speaker / Subwoofer
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Przycisk Clear CMOS
External connectors - 1 x Rear Speaker
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 1 x USB 3.1 Type-C
External connectors - 1 x USB BIOS Flashback button
External connectors - 2 x Thunderbolt 4
External connectors - 4 x USB 3.0
External connectors - 5 x USB 3.1
Features - Audio chip - Realtek ALC4082
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z790
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Power source type - ATX
Features - Windows operating systems supported - Windows 10, Windows 11
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/8000 MHz
Full Description Line - Intel Z790|LGA1700|ATX|DDR5|8000/7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|1xPCI-Express 4.0 4x |2xPCI-Express 5.0 16x|5xM.2|1xHDMI|5xUSB 3.2|1xUSB-C|2xUSB-C w/Thunderbolt|1xOptical S/PDIF|1xRJ45|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC4082|RAID SATA 0, 1, 5, 10; PCIe 0, 1, 5, 10
Graphics - 1 x HDMITM port** 2 x Intel Thunderbolt 4 (USB Type-C) ports supporting DisplayPort and Thunderbolt video output*** *Graphics specifications may vary depending on processor type. Please visit www.intel.com for any updates. ** Supports 4K resolution at 60 Hz according to HDMI 2.1 specifications. ***VGA resolution support depends on the resolution of the processors or graphics cards.
Graphics - Parallel processing technology support - Not supported
GTIN - 4711387339121
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC4082
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - Number of SATA III connectors - 6
Internal I/O - RGB LED pin header - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
LongSummaryDescription - ASUS ROG MAXIMUS Z790 DARK HERO. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
LPT connector / port - No
M.2 Expansion slots - 5
Manufacturer - Asus
Manufacturer_code - 90MB1F90-M0EAY0
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 192 GB
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 7800 MHz
Memory - Supported memory clock speeds - 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 4800 MHz
Memory bus frequency - 5000 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5400 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7400 MHz
Memory bus frequency - 7600 MHz
Memory bus frequency - 7800 MHz
Memory bus frequency - 8000 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - ROG MAXIMUS Z790 DARK HERO
Name - ASUS ROG MAXIMUS Z790 DARK HERO
name - ASUS ROG Maximus Z790 Dark Hero, Intel Z790 Mainboard, Sockel 1700, DDR5
Name - ASUS ROG MAXIMUS Z790 DARK HERO - Socket 1700 - motherboard (black)
name - Motherboard ROG MAXIMUS Z790 DARK HERO s1700 4DDR5 ATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - Intel Wi-Fi 7* Wi-Fi 2x2 7 (802.11be)** Supports 2.4/5/6 GHz frequency band*** Supports Wi-Fi 7 320 MHz band, transfer rate up to 5.76 Gb/s. Bluetooth v5.4**** * Compatible with Windows 11 or later. **Full support for Wi-Fi 7 MLO (Multi-link Operation) will be available on Windows 11 2024 (Windows 11 24H2) or later. ***Regulations regarding the Wi-Fi 6 GHz frequency band and bandwidth may vary by country. ****Bluetooth version may vary. The latest specifications can be found on the Wi-Fi module manufacturer's website.
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 9
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 4pin wentylator OPT CPU
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Flex Key pin
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power button
Onboard connectors - 1 x Reset button
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x Thermal sensor connector
Onboard connectors - 1 x USB C
Onboard connectors - 1x CPU/DRAM overvoltage jumper
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 3 x Addressable LED
Onboard connectors - 4 x 4pin Chassis fan
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 5 x M.2
Optical S/PDIF Input/Output connectors - 1
Other features - Back-to-BIOS button - Yes
Other information -
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
Packaging data - Package depth - 312 mm
Packaging data - Package height - 108 mm
Packaging data - Package weight - 4.07 kg
Packaging data - Package width - 370 mm
PCI-Express 4.0 4x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 2
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor family - Intel Celeron
Processor family - Intel Core
Processor family - Intel Pentium Gold
producer - Asus
Producer - Asus
ProducerCode - ROG MAXIMUS Z790 DARK HERO
ProductName - ROG MAXIMUS Z790 DARK HERO
RAID - SATA 0, 1, 5, 10; PCIe 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - Thunderbolt ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 5
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - WiFi-AP antenna jack - 2
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 47 cm
Shipping Box Height Shipping/Package Box Dimensions - 34 cm
Shipping box quantity - 4
Shipping Box Weight Shipping/Package Box Dimensions - 16.62 kg
Shipping Box Width Shipping/Package Box Dimensions - 39 cm
ShortDescription - Socket 1700| Chipset Intel Z790 | DDR5 |
ShortSummaryDescription - ASUS ROG MAXIMUS Z790 DARK HERO, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, DDR5-SDRAM, 128 GB
Socket - LGA1700
Software - Exclusive ROG software - ROG CPU-Z - DTS sound without limits - Internet security (full version for 1 year) ASUS exclusive software Armory Chest - AIDA64 Extreme (full version for 1 year) - Aura creator - Aura synchronization - Fan Xpert 4 (with AI Cooling II) - First game - Bi-directional AI noise reduction - Energy saving -Sonic Studio AI Pack 3 - Easy optimization with AI overclocking - TPU - DIGI+ power control - Turbo application - Computer cleaner My Asus USB power monitor Intel Unison Adobe Creative Cloud (free trial) WinRAR (40-day free trial) UEFI BIOS AI Overclocking Guide DIY ASUS EZ - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ mode - ASUS MyHotkey MemTest86
Sound card - ROG SupremeFX 7.1 Surround Sound High Resolution Audio CODEC ALC4082* Impedance detection for front and rear headphone outputs Supports: jack detection, multi-streaming, front panel jack reassignment High-quality 120 dB SNR stereo output and 110 dB SNR recording input Supports playback up to 32-bit/384 kHz Audio features SupremeFX shielding technology ESS ES9218 QUAD DAC Gold-plated audio sockets Rear optical S/PDIF output port High-quality audio capacitors *The LINE OUT port on the rear panel does not support surround sound. If you want to use surround sound, be sure to connect your audio output device to the audio jack on the front panel of the case, or use an audio device with a US interface
Special functions -
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 9
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Title - ASUS ROG MAXIMUS Z790 DARK HERO Intel Z790 LGA 1700 ATX
Unit Box Height - 0.31
Unit Box Length - 0.37
Unit Box Width - 0.11
Unit Brutto Volume - 0.01558 cubm
Unit Gross Weight - 4.16 kg
Unit Net Weight - 2.5 kg
USB-C Input/Output connectors - 1
USB-C w/Thunderbolt Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 5
USB 3.2 Interface - Yes
USB ports at back panel - 12
USB ports on motherboard - 9
Vendor Homepage - rog.asus.com/motherboards/rog-maximus/rog-maximus-z790-dark-hero/
vendpn - ROG MAXIMUS Z790 DARK HERO
Warranty - 36 months
Weight - 3,88
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
