ID: 1013539
Product code: 90MB1FP0-M0EAY0
In stock 1 units
Warranty: 2 years

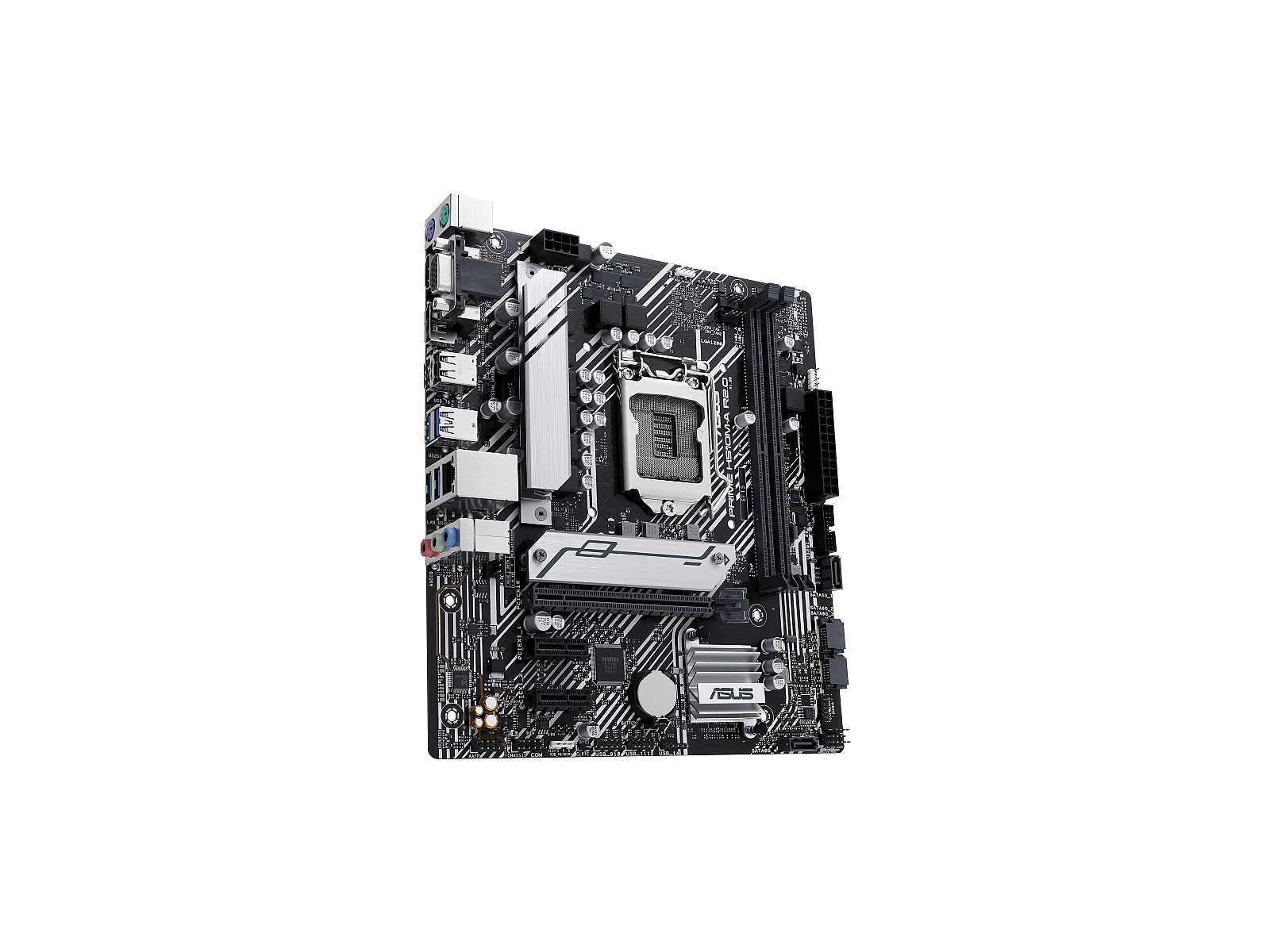

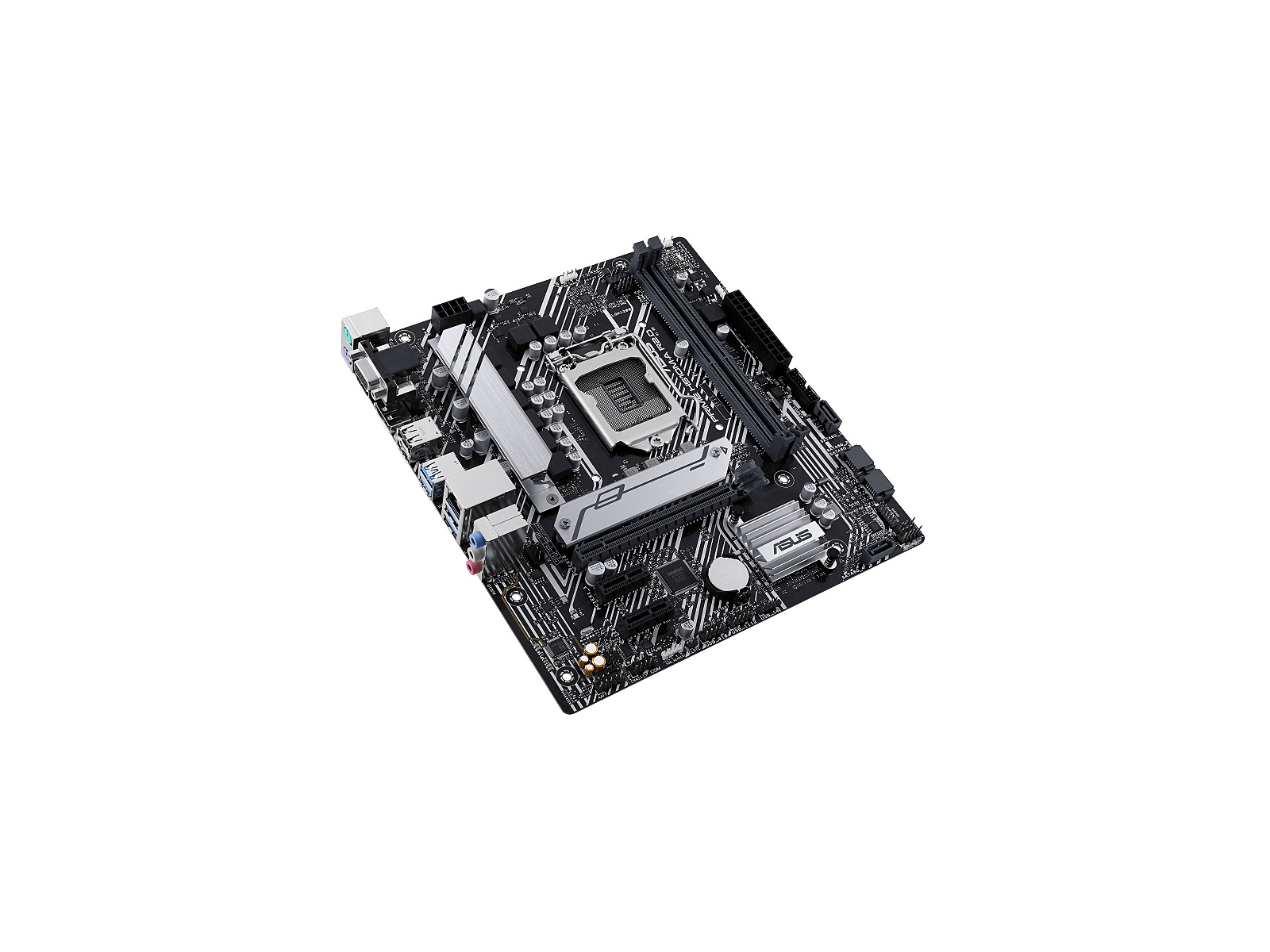

Asus Prime H510M-A R2.0
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 06.01.2025
- Delivery to Omniva parcel machine free of charge: 06.01.2025
- Piegāde uz DPD Pickup Paku Skapi free of charge: 06.01.2025
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 06.01.2025
- Delivery to address in Riga 3.99 €: 06.01.2025
- Delivery to address in Latvia 6.99 €: 06.01.2025
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 02.01.2025 after 15:00
Main product parameters All parameters
- Series: ASUS Prime
- CPU Socket: LGA 1200
- Chipset: Intel H510
- Form factor: Micro ATX
- Type: DDR4
- RAM Slots: 2
- Built-in Wi-Fi: Nav
Basic information
Series
: ASUS Prime
CPU Socket
LGA 1200
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel H510
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
Micro ATX
The physical size of the motherboard. Dateks.lv offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR4
RAM Slots
2
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR4 2933 (OC 3200)
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 1
DVI
: 0
HDMI
: 1
DisplayPort
: 1
Integrated sound card
: Realtek 7.1 CODEC
Wireless connections
Built-in Bluetooth
: Nav
Built-in Wi-Fi
: Nav
External ports
External USB Type-C
: 0
External USB 2.0
: 2
External USB 3.0 (USB 3.2 Gen1)
: 4
External USB 3.1 (USB 3.2 Gen2)
: 0
Internal ports
Internal A-RGB 5V (3-pin)
: 2
Internal RGB 12V (4-pin)
: 2
Internal USB 2.0
: 2
Internal USB 3.0
: 1
Internal USB Type-C
: 0
M.2 Port
: 1
SATA3 ports
: 4
More detailed specification
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
Brand - ASUS
BrandPartCode - 90MB1FP0-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Socket 1200
Category - Root/Electronics/PC parts/Motherboards
code - 90MB1FP0-M0EAY0
Code - 90MB1FP0-M0EAY0
dimensionalWeight - 715
EAN - 4711387234891
ean - 4711387234891
Eans - 4711387234891
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 (Gen 3.x) slots - 2
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel H510
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 10 x64
Graphics - Parallel processing technology support - Not supported
GTIN - 4711387234891
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Audio connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - S/PDIF out connector - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 3
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
LongDesc - H510M-A R2.0ASUS Prime series motherboards are expertly engineered to unleash the full potential of 11th and 10th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME H510M-A R2.0 provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.FLEXIBILITYComprehensive controls form the foundation of the ASUS Prime series. The Prime H510 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity.Intelligent ControlASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.All-Around Energy EfficiencyWith the Energy Processing Unit (EPU), you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode.COOLINGPrime H510 series is engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.M.2 HeatsinkM.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws, and these removable captive screws help reduce risk of drops or loss during heatsink removal.PERFORMANCEPrime H510 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel® Core™ processors. ASUS H510 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
LongProductName - Intel H470 (LGA 1200) micro ATX motherboard with PCIe 4.0, 32Gbps M.2 slot, DisplayPort/ HDMI/VGA, USB 3.2 Gen 1 ports, SATA 6 Gbps, AURA Addressable Gen 2 headers, AURA SYNC, Armoury Crate, Q-LED Core
LongSummaryDescription - ASUS PRIME H510M-A R2.0. Processor manufacturer: Intel, Processor socket: LGA 1200 (Socket H5), Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory clock speed (max) - 3200 MHz
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2133,2400,2666,2800,2933,3000,3200 MHz
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2666
Memory - Supported memory clock speeds - 2800
Memory - Supported memory clock speeds - 2933 MHz
Memory - Supported memory clock speeds - 3000
Memory - Supported memory clock speeds - 3200 MHz
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Name - ASUS PRIME H510M-A R2. 0
Name - Asus PRIME H510M-A R2.0 motherboard
name - ASUS Prime H510M-A R2.0, Intel H510 Mainboard, Sockel LGA1200, DDR4
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 270.00 mm
Package features > Gross height (mm) - 50.00 mm
Package features > Gross width (mm) - 260.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 246 pc(s)
Package features > Tare weight (kg) - 0.09 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEEE tax - No

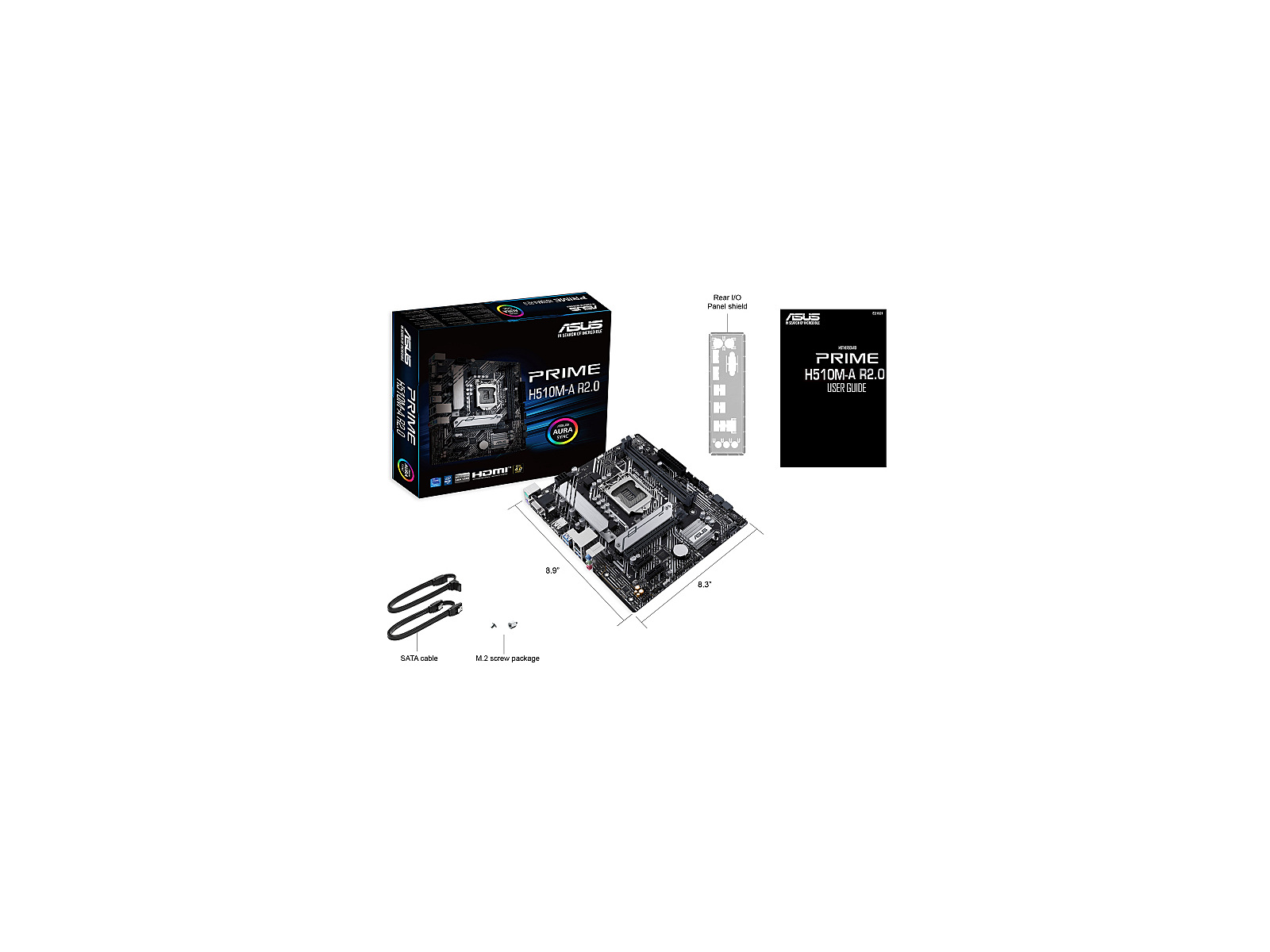

Packaging content - Cables included - SATA
Packaging data - Package depth - 270 mm
Packaging data - Package height - 51.5 mm
Packaging data - Package weight - 1.03 kg
Packaging data - Package width - 260 mm
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1200 (Socket H5)
Processor - Supported processor sockets - LGA 1200 (Socket H5)
Producer - Asus
producerCode - 90MB1FP0-M0EAY0
ProducerCode - PRIME H510M-A R2. 0
productName - ASUS PRIME H510M-A R2.0 Intel H510 LGA 1200 (Socket H5) micro ATX
ProductName - PRIME H510M-A R2.0
productSize - Normal

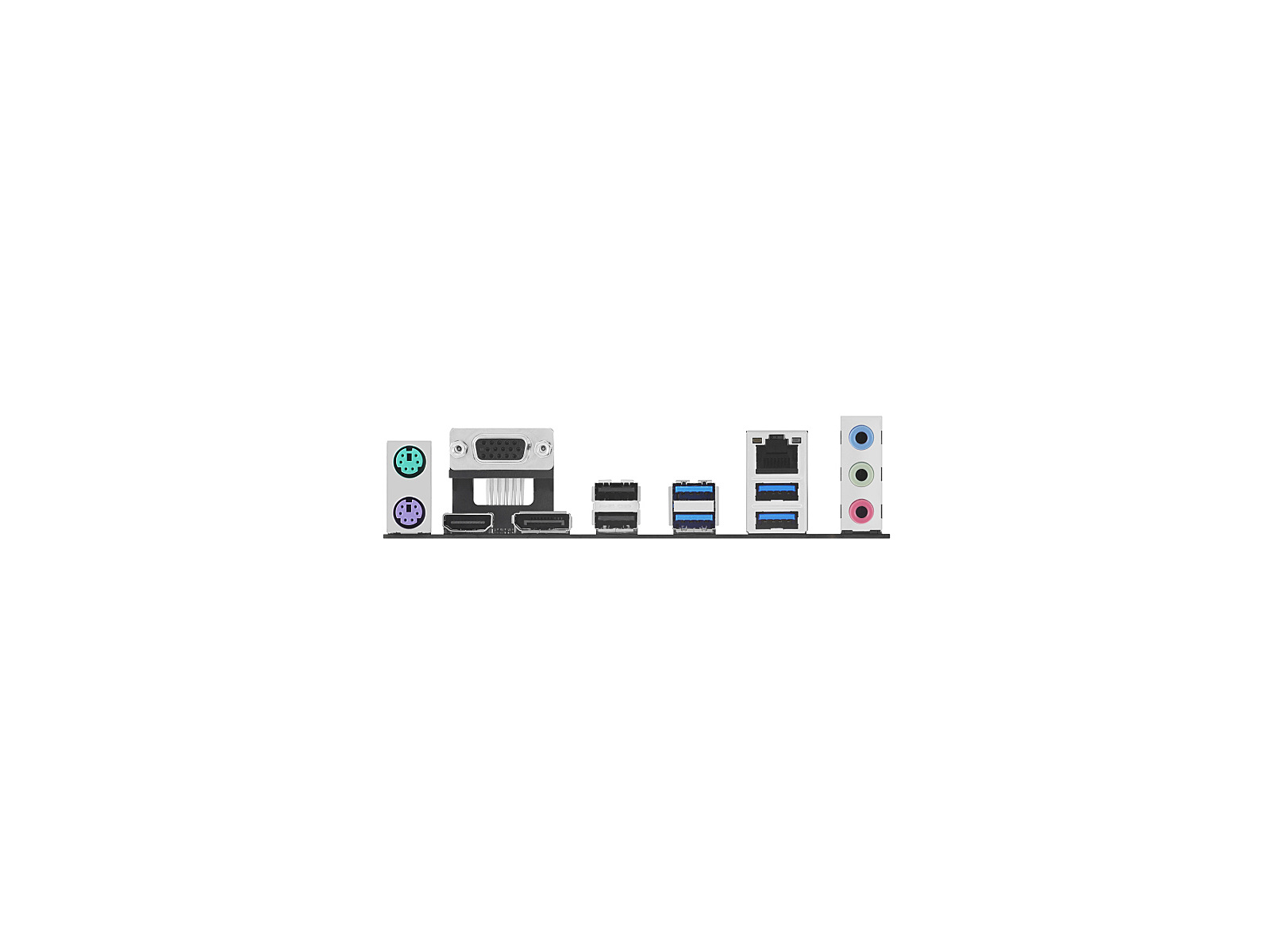

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 2
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
ShortDescription - Socket 1200| Chipset Intel H510 | DDR4 |
ShortSummaryDescription - ASUS PRIME H510M-A R2.0, Intel, LGA 1200 (Socket H5), Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™..., LGA 1200 (Socket H5), DDR4-SDRAM, 64 GB
sizeX - 270
sizeY - 265
sizeZ - 50
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 5
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details > Gross weight - 0.90 kg
Technical details > Net weight - 0.81 kg
Technical details > Producer - Asus
Title - ASUS PRIME H510M-A R2.0 Intel H510 LGA 1200 (Socket H5) micro ATX
URL - https://www.asus.com/motherboards-components/motherboards/prime/prime-h510m-a-r2-0/
Warranty - 24
Warranty - 24 month(s)
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 900
Weight & dimensions - Depth - 211 mm
Weight & dimensions - Width - 226 mm
