ID: 1013446
Product code: TUFGAMINGZ790-PROWIFI
Can be ordered 38 units Availability: 14 days after order approval
Warranty: 3 years

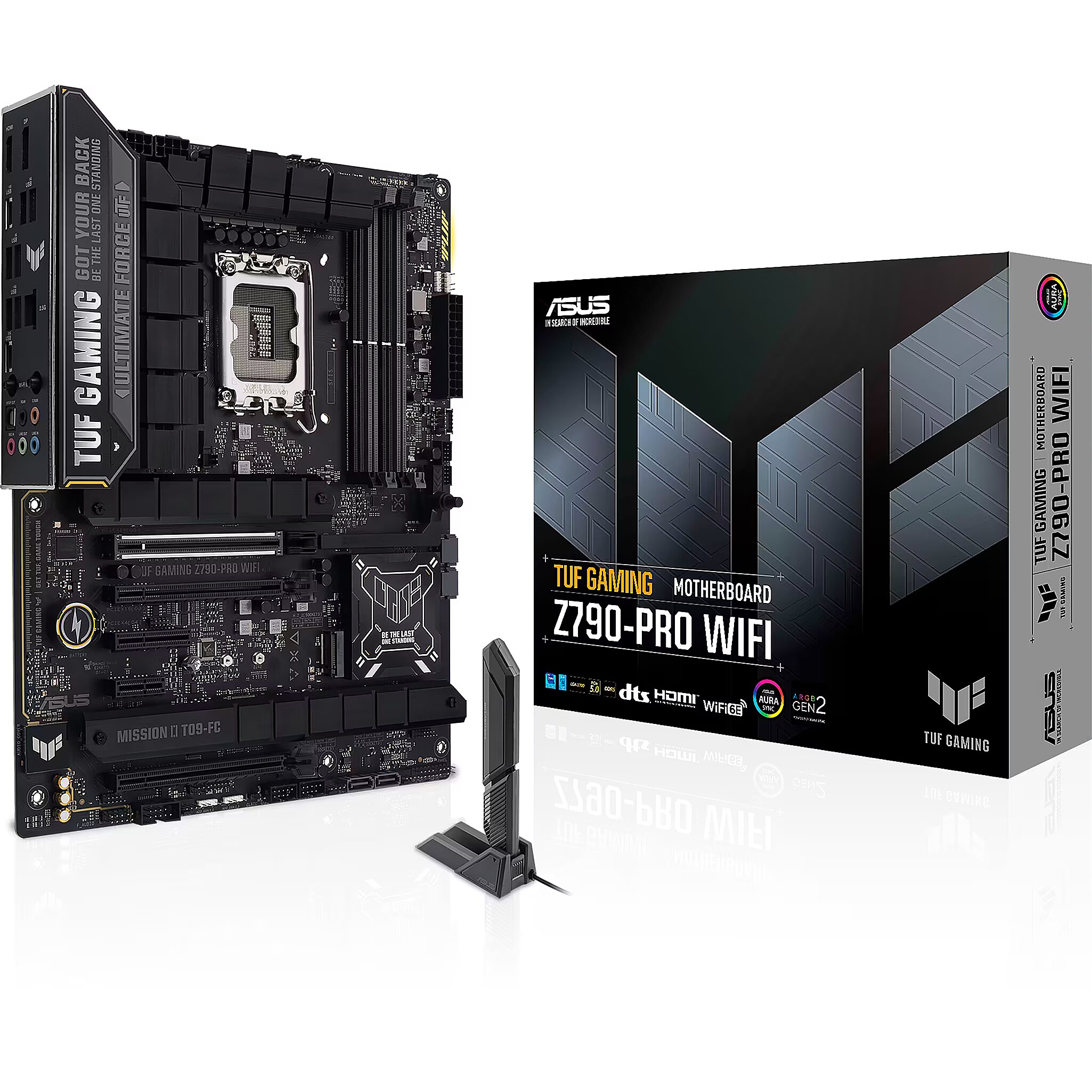

Asus TUF GAMING Z790-PRO WIFI
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 10.12.2024
- Delivery to Omniva parcel machine free of charge: 10.12.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 10.12.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 10.12.2024
- Delivery to address in Riga 3.99 €: 10.12.2024
- Delivery to address in Latvia 6.99 €: 10.12.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 05.12.2024 after 15:00
Main product parameters All parameters
- Series: ASUS TUF Gaming
- CPU Socket: LGA 1700
- Chipset: Intel Z790
- Form factor: ATX
- Type: DDR5
- RAM Slots: 4
- Built-in Wi-Fi: Ir
Basic information
Series
: ASUS TUF Gaming
CPU Socket
LGA 1700
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel Z790
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
ATX
The physical size of the motherboard. Dateks.lv offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR5
RAM Slots
4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR5 5600 (OC 7800)
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 1
Integrated sound card
: Realtek ALC S1220A
Wireless connections
Built-in Bluetooth
: Ir
Built-in Wi-Fi
: Ir
External ports
External USB Type-C
: 2
External USB 2.0
: 2
External USB 3.0 (USB 3.2 Gen1)
: 4
External USB 3.1 (USB 3.2 Gen2)
: 2
Internal ports
Internal A-RGB 5V (3-pin)
: 3
Internal RGB 12V (4-pin)
: 1
Internal USB 2.0
: 2
Internal USB 3.0
: 1
Internal USB Type-C
: 1
M.2 Port
: 4
SATA3 ports
: 4
More detailed specification

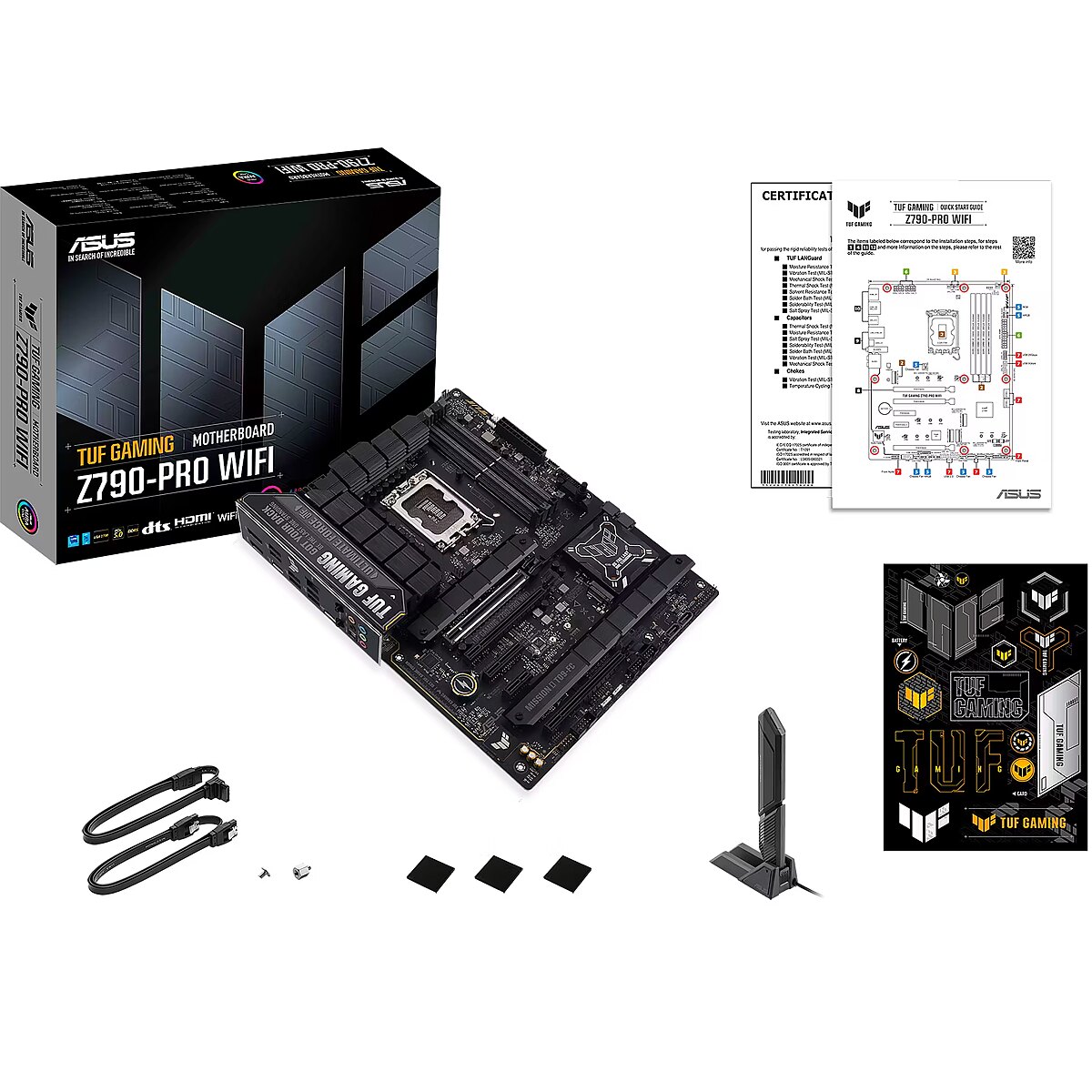

Accessories included - 2 SATA 6 Gb/s cables 1 x ASUS WiFi Q Antenna 1 x TUF GAMING sticker 2 M.2 rubber packs 1 x M.2 SSD Screw Pack 1 x TUF certification card 1 x Quick Start Guide
Audio port Input/Output connectors - 5
BIOS - 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
BIOS - BIOS memory size - 192 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Bluetooth Interface - Yes
Brand - ASUS
BrandPartCode - 90MB1FJ0-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel Z790
Chipset manufacturer - Intel
Chipset type - Intel Z790
CnCode CnCode - 84733020
code - 90MB1FJ0-M0EAY0
COM connector / port - Yes
CPU socket - LGA1700
Description - Intel Z790 (LGA1700) ATX gaming motherboard, 16 + 1 DrMOS power stages, PCIe 5.0, DDR5 memory support, four M.2 slots, Wi-Fi 6E and Intel 2.5 Gb Ethernet, HDMI, DisplayPort, USB 3.2 Gen 2x2 Type-C, USB 3.2 Gen 2 Type-C front panel connector, SATA 6 Gb/s, Thunderbolt 4 port and RGB lighting with Aura Sync Intel LGA 1700 socket: LGA1151 socket compatible with 13th generation Intel Core processors. Improved power design: 16+1 DrMOS power stages, six-layer PCB, ProCool headers, metal alloy chokes and heavy-duty capacitors for stable power delivery Exclusive memory technologies: ASUS Enhanced Memory Profile II and ASUS OptiMem II Next-gen connectivity: PCIe 5.0, USB 3.2 Gen2x2 Type-C, USB 3.2 Gen 2 Type-C front panel, Thunderbolt 4 support Built for online gaming: WiFi 6E, Intel Ethernet 2.5Gb and TUF LANGuard Bi-directional AI-powered noise cancellation: reduces background noise for crystal-clear voice communication during gameplay and video conferencing AI Cooling II: ensure balanced temperature and noise level of any system with one click Advanced Cooling: Oversized VRM and PCH heatsinks, M.2 heatsinks, hybrid fan headers, and Fan Xpert 4 utility software in Armory Crate Aura Sync RGB lighting effects: stylish edge lighting, addressable RGB lighting slots and support for connecting RGB light strips TUF GAMING Z790-PLUS WIFI TUF GAMING Z790-PLUS WIFI motherboard takes the core components of the latest Intel processors and combines them with gameplay-enhancing features and proven reliability. This model has been designed using military-grade components with improved power solutions and an extensive cooling system. As a result, the motherboard more than meets all expectations, ensuring solid performance during even the longest gaming sessions. TUF GAMING motherboards also undergo a series of rigorous durability tests to ensure they can withstand harsh environments where other models might fail. In terms of appearance, this model attracts attention with its embossed nameplate and honeycomb elements, exuding the reliability and stability that are typical of the entire TUF GAMING series.
Description - TUF GAMING Z790-PRO WIFI combines the latest Intel® processors with game-ready features and military-grade durability. With its premium power solution and comprehensive cooling system, this motherboard delivers rock-solid performance for marathon gaming. And it undergoes rigorous endurance testing to ensure reliability in challenging conditions. Meanwhile, a distinctive gray rubberized emblem adorns the VRM heatsink, celebrating the core essence of TUF GAMING vigor.
Detailed data on disk/drive interfaces - Supports 4 M.2 slots and 4 SATA 6 Gb/s ports* Intel Core processors (14th, 13th and 12th)* M.2_1 slot (M Key), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 chipset M.2_2 slot (M Key), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (M Key), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (M Key), type 2242/2260/2280 (supports PCIe 4.0 x4 and SATA modes) 4x SATA 6Gb/s ports * Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
dimension depth - 70 mm
dimension height - 350 mm
Dimensions - 30.5 x 24.4 cm
dimension weight - 1925 g
dimension width - 280 mm
DisplayPort Input/Output connectors - 1
ean - 4711387340844
Eans - 4711387340844
EAN_code - 4711387340844
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 3.0 x 16
Expansion slots - 1 x PCIe 4.0 x 4
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x1 (Gen 3.x) slots - 2
Expansion slots - PCI Express x4 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x Central Speaker / Subwoofer
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Rear Speaker
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 2 x USB 3.1
External connectors - 2 x USB 3.1 Type-C
External connectors - 4 x USB 3.0
Features - Audio chip - Realtek S1220A
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z790
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Power source type - ATX
Features - Windows operating systems supported - Windows 10, Windows 11
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800 MHz
Full Description Line - Intel Z790|LGA1700|ATX|DDR5|7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xPCI-Express 4.0 4x |1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|4xM.2|1xHDMI|1xDisplayPort|6xUSB 3.2|2xUSB-C|1xOptical S/PDIF|1xRJ45|5xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio
Graphics - 1 DisplayPort** 1 x HDMI port*** *Graphics specifications may vary depending on processor type. Please visit www.intel.com for any updates. ** Supports max. 4K at 60 Hz as per DisplayPort 1.4 specification. ***Supports 4K at 60Hz as per HDMI 2.1 specification.
Graphics - Parallel processing technology support - Not supported
GTIN - 4711387340844
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
LongSummaryDescription - ASUS TUF Gaming Z790-PRO. Processor manufacturer: AMD, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
LPT connector / port - No
M.2 Expansion slots - 4
Manufacturer - Asus
Manufacturer_code - 90MB1FJ0-M0EAY0
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 192 GB
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 7800 MHz
Memory - Supported memory clock speeds - 5333,5133,5066,5000,4800,4700,4600,4500,4400,4266,4133,4000,3866,3733,3600,3466,3400,3333,3200,3000,2933,2800,2666,2400,2133 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 4800 MHz
Memory bus frequency - 5000 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5400 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7400 MHz
Memory bus frequency - 7600 MHz
Memory bus frequency - 7800 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - TUF GAMING Z790-PRO WIFI
Model - TUF GAMING Z790-PRO WIFI
Name - ASUS TUF GAMING Z790-PRO WIFI
name - ASUS TUF Gaming Z790-Pro WiFi, Intel Z790 Mainboard, Sockel 1700, DDR5
Name - Asus TUF GAMING Z790-PRO WIFI - Socket 1700 - motherboard
name - Motherboard TUF GAMING Z790-PRO WIFI s1700 4DDR5 HDMI ATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.2
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - Wi-Fi 6E Wi-Fi 2x2 6E (802.11ax) Supports 2.4/5/6 GHz frequency band* Bluetooth v5.3** *Regulations regarding the 6 GHz Wi-Fi frequency band may vary by country. **Bluetooth version may vary. The latest specifications can be found on the Wi-Fi module manufacturer's website.
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 5
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 4pin wentylator OPT CPU
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Clear CMOS button
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x Thunderbolt header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x Addressable LED
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 4 x 4pin Chassis fan
Onboard connectors - 4 x M.2
Onboard connectors - 4 x SATA III 6Gb/s
Optical S/PDIF Input/Output connectors - 1
Other information -
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
Packaging content - User guide - Yes
Packaging data - Package depth - 275 mm
Packaging data - Package height - 70 mm
Packaging data - Package weight - 2.14 kg
Packaging data - Package width - 340 mm
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 3.0 16x Expansion slots - 1
PCI-Express 4.0 4x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Processor manufacturer - AMD
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor family - Intel Celeron
Processor family - Intel Core
Processor family - Intel Pentium Gold
producer - Asus
Producer - Asus
ProducerCode - TUF GAMING Z790-PRO WIFI
ProductName - TUF Gaming Z790-PRO
RAID - Yes

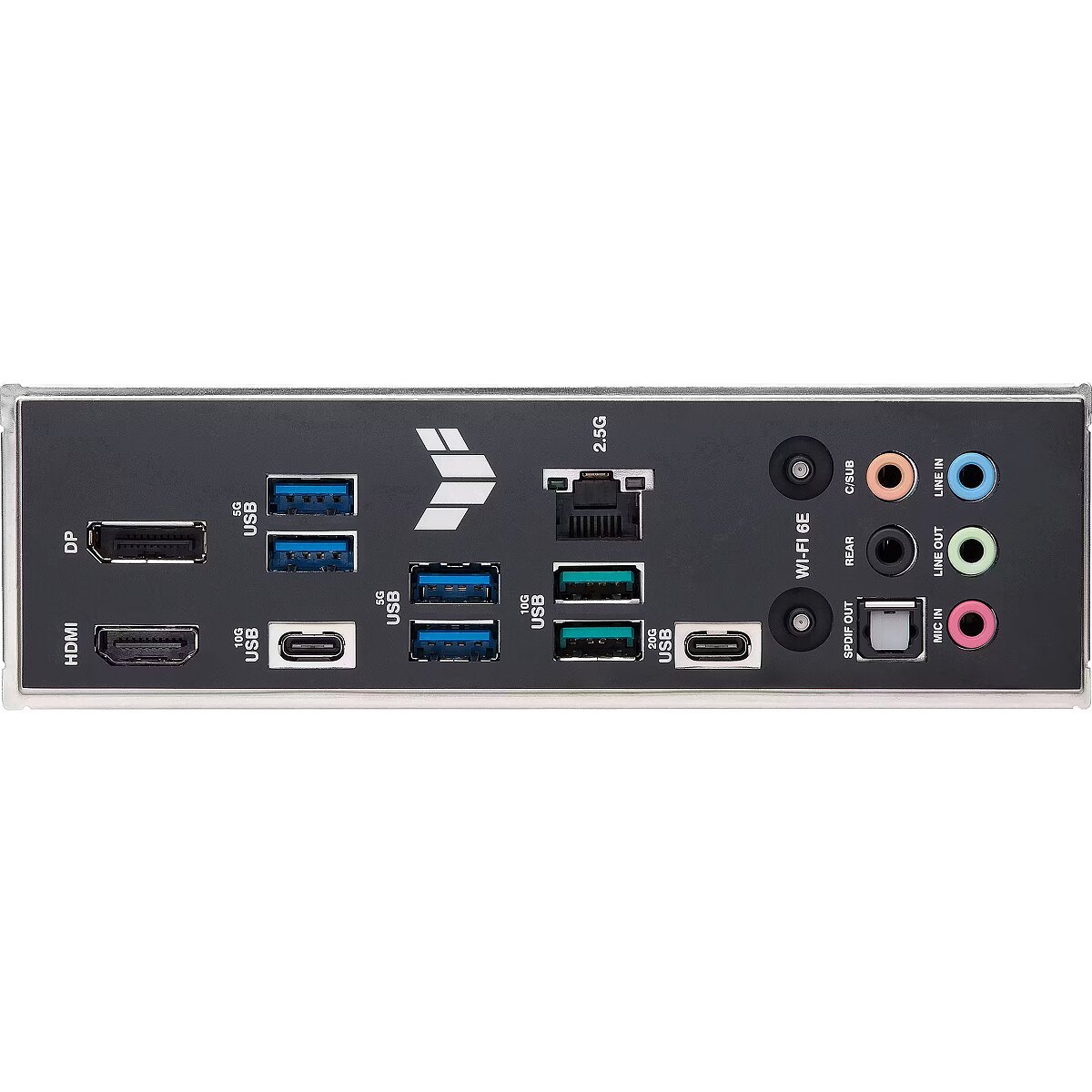

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Rear panel I/O ports - WiFi-AP antenna jack - 2
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 37.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 30 cm
Shipping box quantity - 4
Shipping Box Weight Shipping/Package Box Dimensions - 8.45 kg
Shipping Box Width Shipping/Package Box Dimensions - 29.5 cm
ShortDescription - Socket 1700| Chipset Intel Z790 | DDR5 |
ShortSummaryDescription - ASUS TUF Gaming Z790-PRO, AMD, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, DDR5-SDRAM, 192 GB
Socket - LGA1700
Software - ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 - Easy Optimization with AI Overclocking - TPU - DIGI+ VRM - Turbo app - PC Cleaner MyAsus USB Wattage Watcher TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkeys
Sound card - Realtek S1220A 7.1 surround High Definition audio codec* - Impedance detection for front and rear headphone outputs - Internal audio amplifier to improve the highest sound quality in headphones and speakers - Supports: jack detection, multi-streaming, front panel jack reassignment - High-quality 120 dB SNR stereo playback output and 113 dB SNR recording input (line input) - Supports playback up to 32-bit/192 kHz*" Audio features - Sound shielding - Rear optical S/PDIF output port - High-quality audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit * Due to HDA bandwidth limitations, 32-bit/192 kHz audio is not supported for 7.1 surround sound.
Special functions -
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Title - ASUS TUF Gaming Z790-PRO Intel Z790 LGA 1700 ATX
Unit Box Height - 0.275
Unit Box Length - 0.355
Unit Box Width - 0.07
Unit Brutto Volume - 0.008297 cubm
Unit Gross Weight - 2.11 kg
Unit Net Weight - 1.6 kg
USB-C Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 6
USB 3.2 Interface - Yes
USB ports at back panel - 8
USB ports on motherboard - 7
Vendor Homepage - www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-z790-pro-wifi/
vendpn - TUF GAMING Z790-PRO WIFI
Warranty - 36 months
Weight - 1,94
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
Audio port Input/Output connectors - 5
BIOS - 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
BIOS - BIOS memory size - 192 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Bluetooth Interface - Yes
Brand - ASUS
BrandPartCode - 90MB1FJ0-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel Z790
Chipset manufacturer - Intel
Chipset type - Intel Z790
CnCode CnCode - 84733020
code - 90MB1FJ0-M0EAY0
COM connector / port - Yes
CPU socket - LGA1700
Description - Intel Z790 (LGA1700) ATX gaming motherboard, 16 + 1 DrMOS power stages, PCIe 5.0, DDR5 memory support, four M.2 slots, Wi-Fi 6E and Intel 2.5 Gb Ethernet, HDMI, DisplayPort, USB 3.2 Gen 2x2 Type-C, USB 3.2 Gen 2 Type-C front panel connector, SATA 6 Gb/s, Thunderbolt 4 port and RGB lighting with Aura Sync Intel LGA 1700 socket: LGA1151 socket compatible with 13th generation Intel Core processors. Improved power design: 16+1 DrMOS power stages, six-layer PCB, ProCool headers, metal alloy chokes and heavy-duty capacitors for stable power delivery Exclusive memory technologies: ASUS Enhanced Memory Profile II and ASUS OptiMem II Next-gen connectivity: PCIe 5.0, USB 3.2 Gen2x2 Type-C, USB 3.2 Gen 2 Type-C front panel, Thunderbolt 4 support Built for online gaming: WiFi 6E, Intel Ethernet 2.5Gb and TUF LANGuard Bi-directional AI-powered noise cancellation: reduces background noise for crystal-clear voice communication during gameplay and video conferencing AI Cooling II: ensure balanced temperature and noise level of any system with one click Advanced Cooling: Oversized VRM and PCH heatsinks, M.2 heatsinks, hybrid fan headers, and Fan Xpert 4 utility software in Armory Crate Aura Sync RGB lighting effects: stylish edge lighting, addressable RGB lighting slots and support for connecting RGB light strips TUF GAMING Z790-PLUS WIFI TUF GAMING Z790-PLUS WIFI motherboard takes the core components of the latest Intel processors and combines them with gameplay-enhancing features and proven reliability. This model has been designed using military-grade components with improved power solutions and an extensive cooling system. As a result, the motherboard more than meets all expectations, ensuring solid performance during even the longest gaming sessions. TUF GAMING motherboards also undergo a series of rigorous durability tests to ensure they can withstand harsh environments where other models might fail. In terms of appearance, this model attracts attention with its embossed nameplate and honeycomb elements, exuding the reliability and stability that are typical of the entire TUF GAMING series.
Description - TUF GAMING Z790-PRO WIFI combines the latest Intel® processors with game-ready features and military-grade durability. With its premium power solution and comprehensive cooling system, this motherboard delivers rock-solid performance for marathon gaming. And it undergoes rigorous endurance testing to ensure reliability in challenging conditions. Meanwhile, a distinctive gray rubberized emblem adorns the VRM heatsink, celebrating the core essence of TUF GAMING vigor.
Detailed data on disk/drive interfaces - Supports 4 M.2 slots and 4 SATA 6 Gb/s ports* Intel Core processors (14th, 13th and 12th)* M.2_1 slot (M Key), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 chipset M.2_2 slot (M Key), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (M Key), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (M Key), type 2242/2260/2280 (supports PCIe 4.0 x4 and SATA modes) 4x SATA 6Gb/s ports * Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
dimension depth - 70 mm
dimension height - 350 mm
Dimensions - 30.5 x 24.4 cm
dimension weight - 1925 g
dimension width - 280 mm
DisplayPort Input/Output connectors - 1
ean - 4711387340844
Eans - 4711387340844
EAN_code - 4711387340844
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 3.0 x 16
Expansion slots - 1 x PCIe 4.0 x 4
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x1 (Gen 3.x) slots - 2
Expansion slots - PCI Express x4 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x Central Speaker / Subwoofer
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Rear Speaker
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 2 x USB 3.1
External connectors - 2 x USB 3.1 Type-C
External connectors - 4 x USB 3.0
Features - Audio chip - Realtek S1220A
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z790
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Power source type - ATX
Features - Windows operating systems supported - Windows 10, Windows 11
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800 MHz
Full Description Line - Intel Z790|LGA1700|ATX|DDR5|7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xPCI-Express 4.0 4x |1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|4xM.2|1xHDMI|1xDisplayPort|6xUSB 3.2|2xUSB-C|1xOptical S/PDIF|1xRJ45|5xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio
Graphics - 1 DisplayPort** 1 x HDMI port*** *Graphics specifications may vary depending on processor type. Please visit www.intel.com for any updates. ** Supports max. 4K at 60 Hz as per DisplayPort 1.4 specification. ***Supports 4K at 60Hz as per HDMI 2.1 specification.
Graphics - Parallel processing technology support - Not supported
GTIN - 4711387340844
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
LongSummaryDescription - ASUS TUF Gaming Z790-PRO. Processor manufacturer: AMD, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
LPT connector / port - No
M.2 Expansion slots - 4
Manufacturer - Asus
Manufacturer_code - 90MB1FJ0-M0EAY0
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 192 GB
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 7800 MHz
Memory - Supported memory clock speeds - 5333,5133,5066,5000,4800,4700,4600,4500,4400,4266,4133,4000,3866,3733,3600,3466,3400,3333,3200,3000,2933,2800,2666,2400,2133 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 4800 MHz
Memory bus frequency - 5000 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5400 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7400 MHz
Memory bus frequency - 7600 MHz
Memory bus frequency - 7800 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - TUF GAMING Z790-PRO WIFI
Model - TUF GAMING Z790-PRO WIFI
Name - ASUS TUF GAMING Z790-PRO WIFI
name - ASUS TUF Gaming Z790-Pro WiFi, Intel Z790 Mainboard, Sockel 1700, DDR5
Name - Asus TUF GAMING Z790-PRO WIFI - Socket 1700 - motherboard
name - Motherboard TUF GAMING Z790-PRO WIFI s1700 4DDR5 HDMI ATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.2
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - Wi-Fi 6E Wi-Fi 2x2 6E (802.11ax) Supports 2.4/5/6 GHz frequency band* Bluetooth v5.3** *Regulations regarding the 6 GHz Wi-Fi frequency band may vary by country. **Bluetooth version may vary. The latest specifications can be found on the Wi-Fi module manufacturer's website.
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 5
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 4pin wentylator OPT CPU
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Clear CMOS button
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x Thunderbolt header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x Addressable LED
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 4 x 4pin Chassis fan
Onboard connectors - 4 x M.2
Onboard connectors - 4 x SATA III 6Gb/s
Optical S/PDIF Input/Output connectors - 1
Other information -
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
Packaging content - User guide - Yes
Packaging data - Package depth - 275 mm
Packaging data - Package height - 70 mm
Packaging data - Package weight - 2.14 kg
Packaging data - Package width - 340 mm
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 3.0 16x Expansion slots - 1
PCI-Express 4.0 4x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Processor manufacturer - AMD
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor family - Intel Celeron
Processor family - Intel Core
Processor family - Intel Pentium Gold
producer - Asus
Producer - Asus
ProducerCode - TUF GAMING Z790-PRO WIFI
ProductName - TUF Gaming Z790-PRO
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Rear panel I/O ports - WiFi-AP antenna jack - 2
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 37.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 30 cm
Shipping box quantity - 4
Shipping Box Weight Shipping/Package Box Dimensions - 8.45 kg
Shipping Box Width Shipping/Package Box Dimensions - 29.5 cm
ShortDescription - Socket 1700| Chipset Intel Z790 | DDR5 |
ShortSummaryDescription - ASUS TUF Gaming Z790-PRO, AMD, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, DDR5-SDRAM, 192 GB
Socket - LGA1700
Software - ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 - Easy Optimization with AI Overclocking - TPU - DIGI+ VRM - Turbo app - PC Cleaner MyAsus USB Wattage Watcher TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkeys
Sound card - Realtek S1220A 7.1 surround High Definition audio codec* - Impedance detection for front and rear headphone outputs - Internal audio amplifier to improve the highest sound quality in headphones and speakers - Supports: jack detection, multi-streaming, front panel jack reassignment - High-quality 120 dB SNR stereo playback output and 113 dB SNR recording input (line input) - Supports playback up to 32-bit/192 kHz*" Audio features - Sound shielding - Rear optical S/PDIF output port - High-quality audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit * Due to HDA bandwidth limitations, 32-bit/192 kHz audio is not supported for 7.1 surround sound.
Special functions -
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Title - ASUS TUF Gaming Z790-PRO Intel Z790 LGA 1700 ATX
Unit Box Height - 0.275
Unit Box Length - 0.355
Unit Box Width - 0.07
Unit Brutto Volume - 0.008297 cubm
Unit Gross Weight - 2.11 kg
Unit Net Weight - 1.6 kg
USB-C Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 6
USB 3.2 Interface - Yes
USB ports at back panel - 8
USB ports on motherboard - 7
Vendor Homepage - www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-z790-pro-wifi/

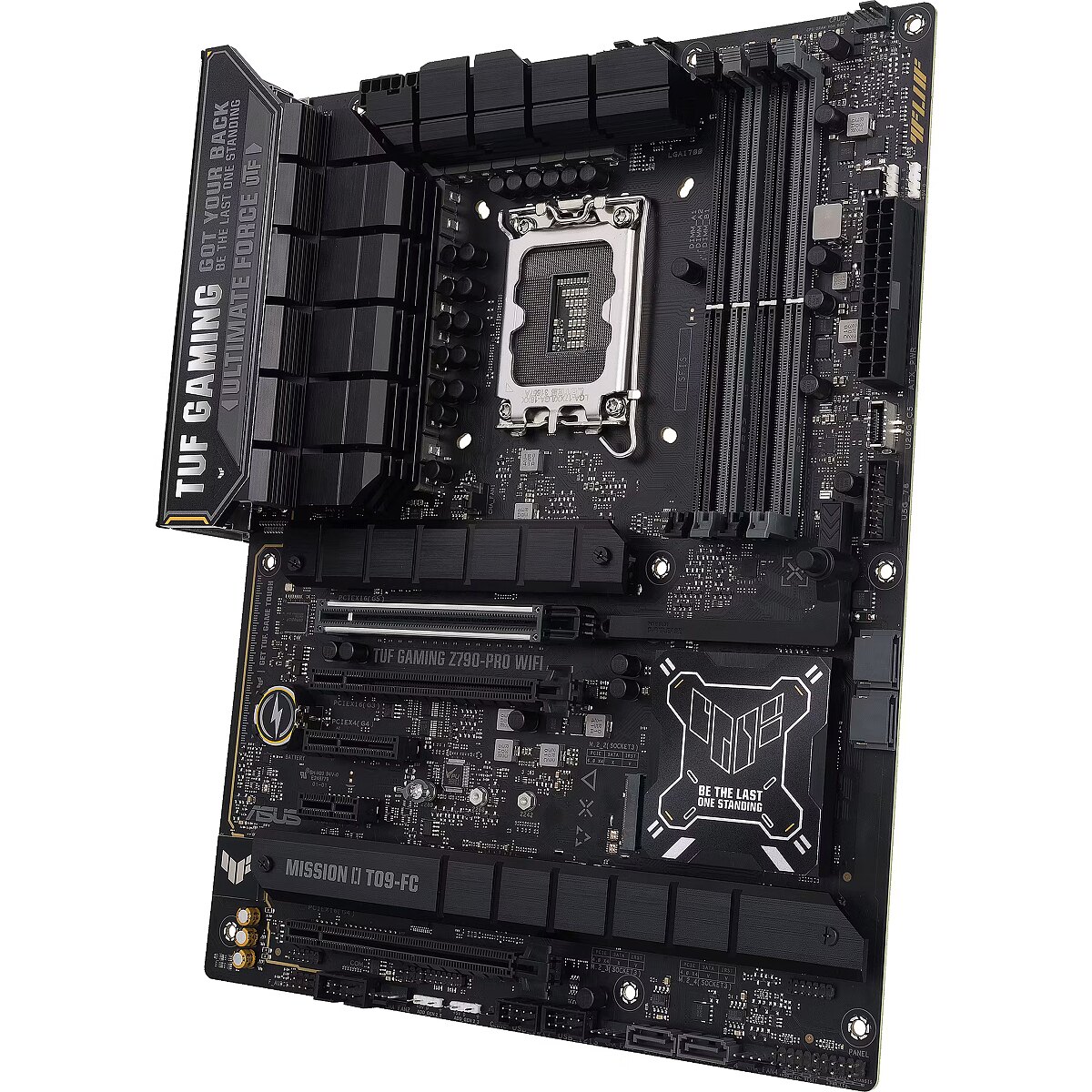

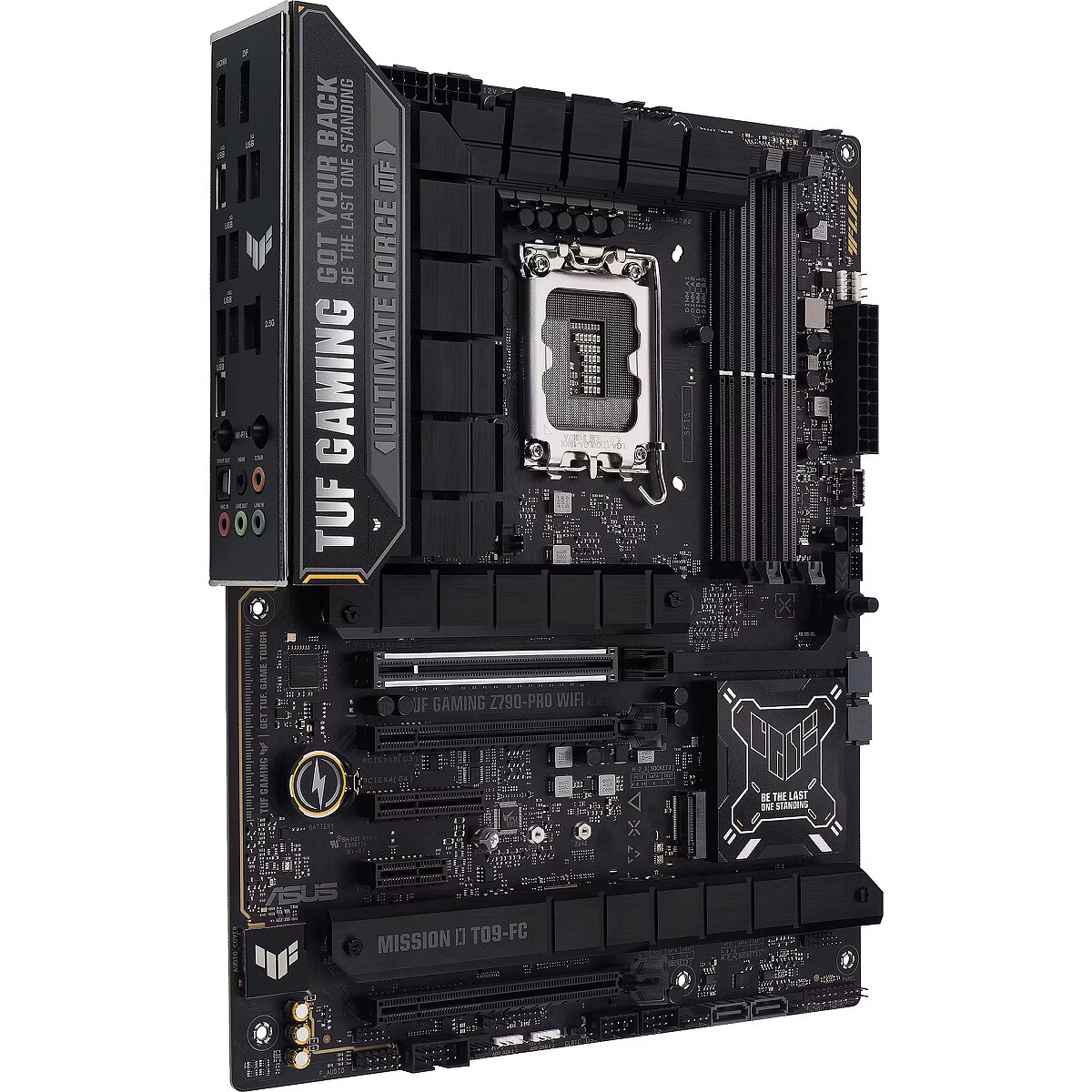

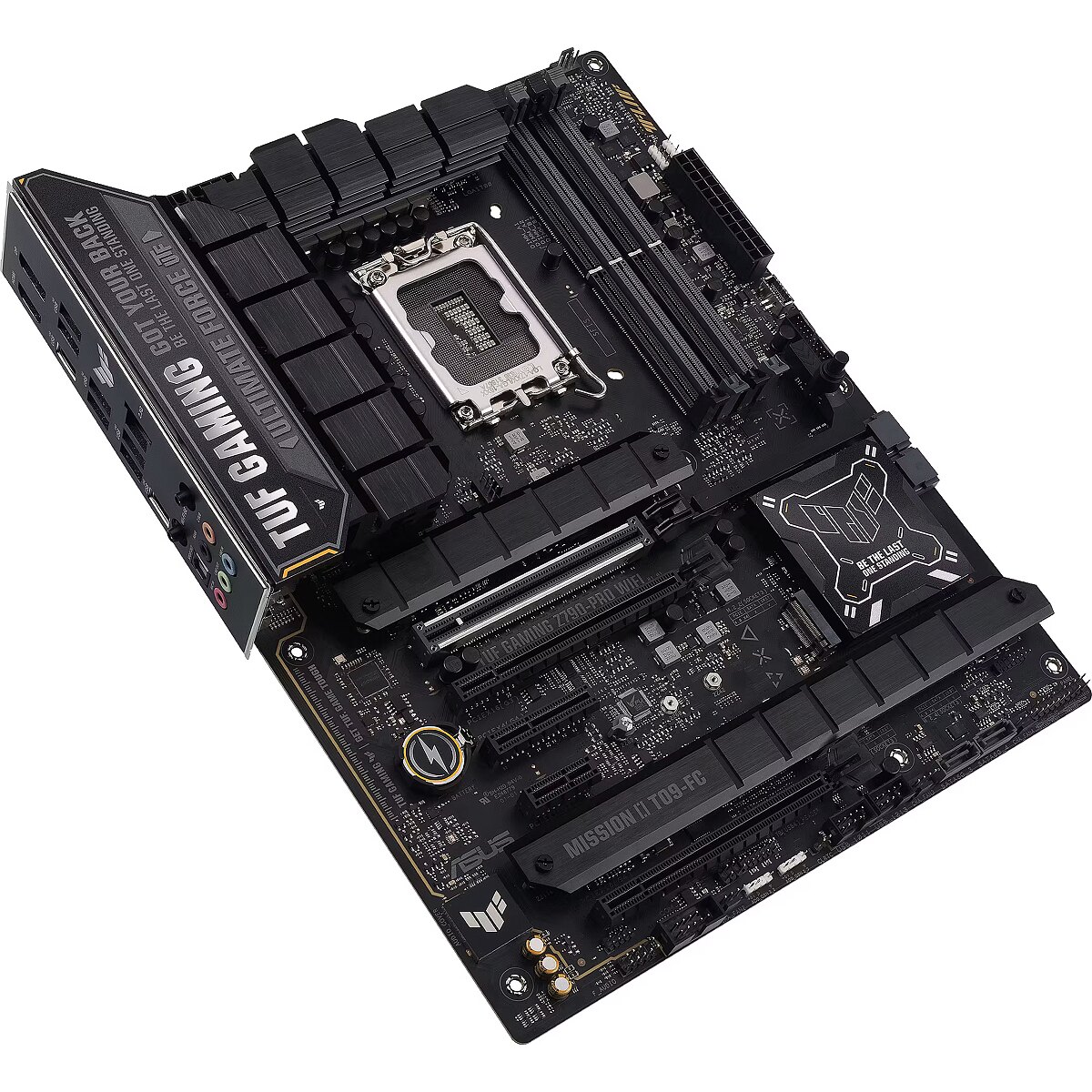

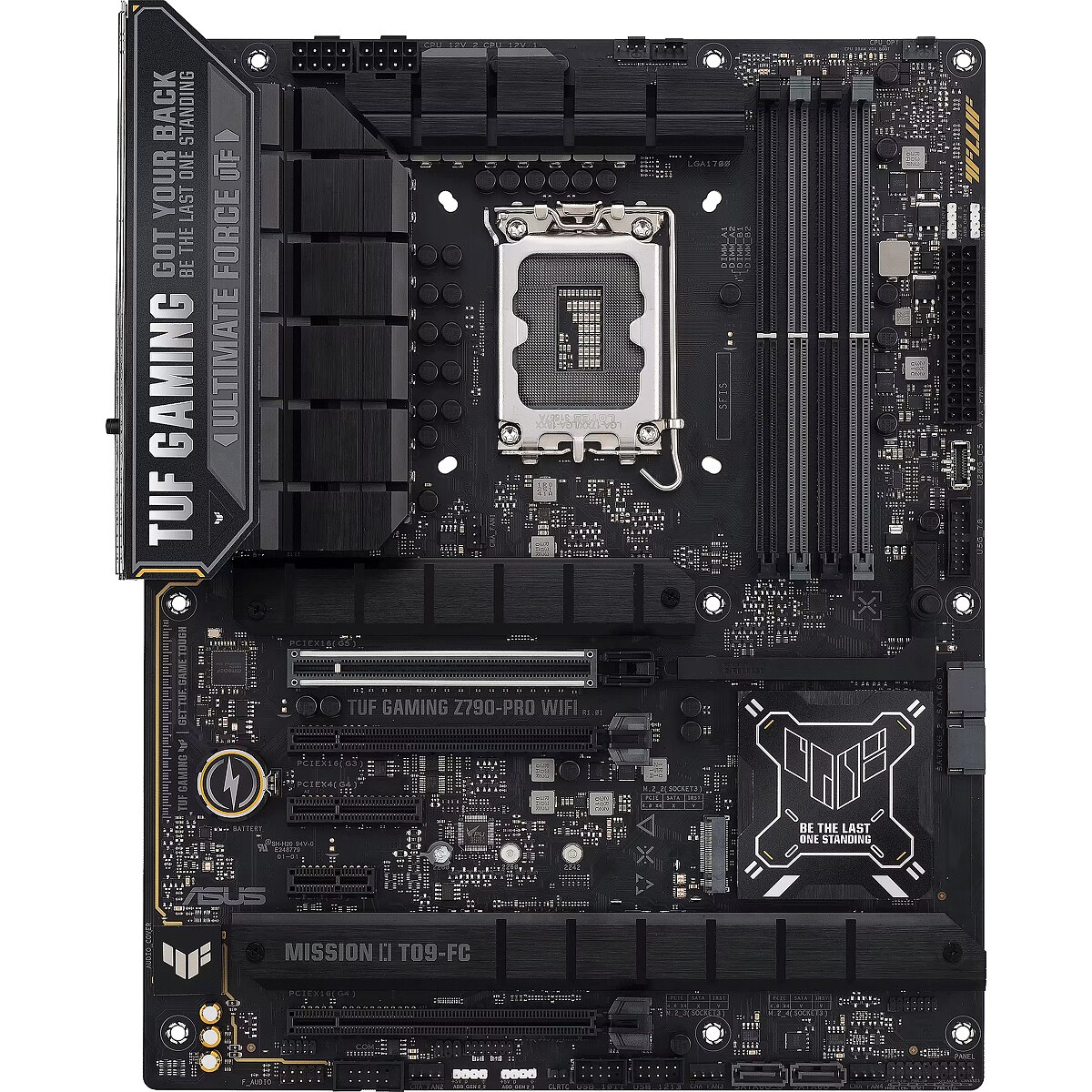

vendpn - TUF GAMING Z790-PRO WIFI
Warranty - 36 months
Weight - 1,94
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
