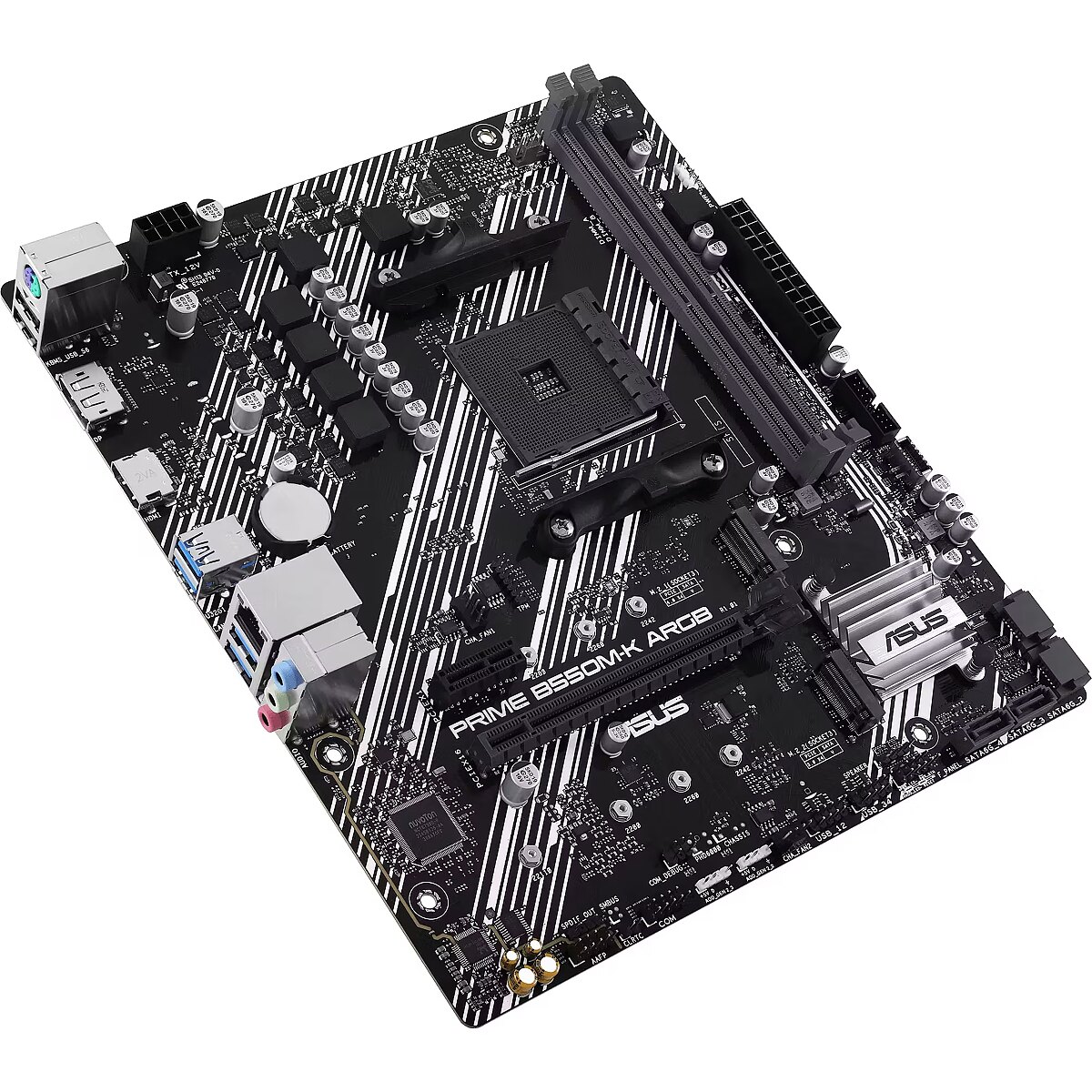

Asus PRIME B550M-K ARGB

Name: Asus PRIME B550M-K ARGB
Brand: Asus
SKU: 999691
Price: 112.19 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 999691 Product code: PRIME B550M-K ARGB

In stock 9 units

Warranty: 3 years

Compare

Delivery options More about shipping

Delivery to Smartpost free of charge: on Thursday, 28.11.2024
Delivery to Omniva parcel machine free of charge: on Thursday, 28.11.2024
Piegāde uz DPD Pickup Paku Skapi free of charge: on Thursday, 28.11.2024
Delivery to Latvian post office, parcel locker or Circle K free of charge: on Thursday, 28.11.2024
Delivery to address in Riga 3.99 €: on Thursday, 28.11.2024
Delivery to address in Latvia 6.99 €: on Thursday, 28.11.2024
Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: on Thuesday, 26.11.2024 after 15:00

Main product parameters All parameters

Series: ASUS Prime
Plate size: mATX
Chipset: AMD B550
Socket: AM4
Type: DDR4
RAM Slots: 2
Built-in Wi-Fi: Nav
M.2 ports: 2

Basic information

Series : ASUS Prime

Plate size mATX

The physical size of the motherboard. Dateks.lv offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD B550

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.

Socket AM4

The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.

Random-access memory (RAM)

Type : DDR4

RAM Slots 2

The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.

Memory support DDR4 3200MHz (5100MHz OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card

VGA Port PCI-EXPRESS

VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.

Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment

D-Sub : 0

DisplayPort : 1

DVI : 0

HDMI : 1

Integrated sound card : Nav norādīts

PCI Ports 0

PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.

Wireless connections

Built-in Bluetooth : Nav

Built-in Wi-Fi : Nav

External ports

External USB 2.0 : 2

External USB Type-C (USB 3.2 Gen2) : 0

External USB Type-C (USB 4.0) : 0

External USB 3.0 (USB 3.2 Gen1) : 4

External USB 3.1 (USB 3.2 Gen2) : 0

Internal ports

Internal A-RGB 5V (3-pin) : 3

Internal RGB 12V (4-pin) : 0

Internal USB 2.0 : 2

Internal USB 3.0 : 1

Internal USB Type-C : 1

M.2 ports : 2

SATA3 ports : 4

More detailed specification

Additional information in manufacturers website Asus PRIME B550M-K ARGB

Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - EFI AMI
BIOS - Clear CMOS jumper - Yes
Brand - ASUS
BrandPartCode - 90MB1GC0-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM4
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM4
category_en - Computers & Components > Computer components > Motherboards > AMD motherboards
category_lv - Datortehnika > Datoru komponentes > Pamatplates > AMD mātesplates
category_ru - Datortehnika > Datoru komponentes > Pamatplates > AMD mātesplates
Chipset - AMD B550
code - 90MB1GC0-M0EAY0
Description - AMD B550 (Ryzen™ AM4) mATX motherboard with dual M.2 slots, PCIe 4.0, Realtek 1Gb Ethernet, DisplayPort/HDMI™, SATA 6 Gbps, rear USB 3.2 Gen 1 ports, front USB 3.2 Gen 1 Type-C® and Aura Sync AMD AM4 Socket: Ready for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors Ultrafast Connectivity: PCIe 4.0, dual M.2 slots, Realtek 1Gb Ethernet, rear USB 3.2 Gen 1 ports and front USB 3.2 Gen 1 Type-C® Comprehensive Cooling: PCH heatsink, hybrid fan headers and Fan Xpert 2+ Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
description_en - ASUS PRIME B550M-K ARGB
Processor manufacturer: AMD
Processor socket: Socket AM4
Supported memory types: DDR4-SDRAM
Maximum internal memory: 64 GB
Memory slots type: DIMM
Supported storage drive interfaces: M.2
Supported storage drive types: HDD & SSD
RAID levels: 0, 1, 10
Ethernet interface type: Gigabit Ethernet
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
description_lv - ASUS PRIME B550M-K ARGB
Procesora ražotājs: AMD
Procesora ligzda: Socket AM4
Atbalstītie atmiņas veidi: DDR4-SDRAM
Maksimālā iekšējā atmiņa: 64 GB
Atmiņas slotu tips: DIMM
Atbalstītās atmiņas disku saskarnes: M.2
Atbalstītie atmiņas disku veidi: HDD un SSD
RAID līmeņi: 0, 1, 10
Ethernet interfeisa tips: Gigabit Ethernet
Komponents: PC
Mātesplates formas faktors: micro ATX
Mātesplates mikroshēmojumu saime: AMD
description_ru - ASUS PRIME B550M-K ARGB
Производитель процессора: AMD
Сокет процессора: Socket AM4
Поддерживаемые типы памяти: DDR4-SDRAM
Максимальный объем внутренней памяти: 64 ГБ
Тип слотов памяти: DIMM
Поддерживаемые интерфейсы накопителей: M.2
Поддерживаемые типы накопителей: HDD и SSD
Уровни RAID: 0, 1, 10
Тип интерфейса Ethernet: Gigabit Ethernet
Компонент для: ПК
Форм-фактор материнской платы: micro ATX
Семейство чипсетов материнской платы: AMD
DisplayPort Input/Output connectors - 1
ean - 4711387316030
EAN - 4711387316030
EAN_code - 4711387316030
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD B550
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 10 x64, Windows 11
Form Factor - Micro-ATX
Frequency speed - 2133/2400/2666/2800/2933/3000/3200/3333/3400/3466/3600/3733/3866/4000/4133/4200/4266/4333/4400/4466/4600/4866/5100 MHz
Full Description Line - AMD B550|SAM4|Micro-ATX|DDR4|5100/4866/4600/4466/4400/4333/4266/4200/4133/4000/3866/3733/3600/3466/3400/3333/3200/3000/2933/2800/2666/2400/2133 MHz|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|1xM.2|1xHDMI|1xDisplayPort|1xAudio-In|1xAudio-Out|1xMicrophone|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|SATA|USB|SATA 3.0|Video Depending on CPU|Audio|LAN Gigabit|RAID SATA 0, 1, 10|TPM Header
gross_weight - 0.96 kg
GTIN - 4711387316030
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated LAN - Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - S/PDIF out connector - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
LongDesc - ASUS PRIME series is expertly engineered to unleash the full potential of 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B550 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. FLEXIBILITYComprehensive controls form the foundation of the ASUS PRIME series. The PRIME B550 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. All-Around Energy EfficiencyWith the Energy Processing Unit (EPU), you‘ll enjoy system-wide power savings.The EPU automatically optimizes power consumption and maximizes savings with Away mode.COOLINGPRIME B550 series are engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. Cooler by DesignPRIME B550 series feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.Multiple Temperature SourcesEach header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.PERFORMANCEPRIME B550 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options. Dual M.2 Slots (up to 64 Gbps)PRIME B550M-K ARGB offers a total of two M.2 slots, one of which supports data-transfer speeds of up to 64Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives. FLEXIBILITYComprehensive controls form the foundation of the ASUS PRIME series. The PRIME B550 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.Intelligent ControlAll-Around Energy EfficiencyWith the Energy Processing Unit (EPU), you‘ll enjoy system-wide power savings.The EPU automatically optimizes power consumption and maximizes savings with Away mode.COOLINGPRIME B550 series are engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.Cooler by DesignPRIME B550 series feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.PRIME B550 series are engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. Multiple Temperature SourcesEach header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.PERFORMANCEPRIME B550 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.StorageDual M.2 Slots (up to 64 Gbps)PRIME B550M-K ARGB offers a total of two M.2 slots, one of which supports data-transfer speeds of up to 64Gbps* via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives.CUSTOMIZATIONThe PRIME B550 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.Outstanding AudioCombined onboard features deliver elevated audioIntelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.Audio ShieldingAudio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference.Dedicated Audio PCB LayersSeparate layers for left and right tracks ensures both channels deliver consistent, equal quality.Premium Audio CapacitorsProvides warm, natural, and immersive sound with exceptional clarity and fidelity.
LongProductName - AMD B550 (Ryzen™ AM4) mATX motherboard with dual M.2 slots, PCIe 4.0, Realtek 1Gb Ethernet, DisplayPort/HDMI™, SATA 6 Gbps, rear USB 3.2 Gen 1 ports, front USB 3.2 Gen 1 Type-C® and Aura Sync
LongSummaryDescription - ASUS PRIME B550M-K ARGB. Processor manufacturer: AMD, Processor socket: Socket AM4. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
M.2 Expansion slots - 1
Manufacturer - Asus
Manufacturer_code - 90MB1GC0-M0EAY0
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4133,4200,4266,4333,4400,4466,4600,4866,5100 MHz
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory slots - 2
Memory type - DDR4
Microphone Input/Output connectors - 1
Model - Mainboard Prime
Model - PRIME B550M-K ARGB
name - ASUS Prime B550M-K ARGB, AMD B550 Mainboard - Sockel AM4
Name - ASUS PRIME B550M-K ARGB - Socket AM4 - motherboard
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wake-on-LAN ready - Yes
Other features - Weight - 460 g
Packaging content - Cables included - SATA
Packaging data - Package depth - 270 mm
Packaging data - Package height - 515 mm
Packaging data - Package weight - 960 g
Packaging data - Package width - 260 mm
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 3.0 16x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM4
Producer - ASUS
ProductName - PRIME B550M-K ARGB
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 10
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
RJ45 Input/Output connectors - 1
SATA 3.0 Interface - Yes
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 56 cm
Shipping Box Height Shipping/Package Box Dimensions - 29 cm
Shipping box quantity - 10
Shipping Box Weight Shipping/Package Box Dimensions - 9.6 kg
Shipping Box Width Shipping/Package Box Dimensions - 28 cm
ShortSummaryDescription - ASUS PRIME B550M-K ARGB, AMD, Socket AM4, DDR4-SDRAM, 64 GB, DIMM, Dual-channel
Socket - SAM4
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2
Storage controllers - Supported storage drive types - HDD & SSD
Title - ASUS PRIME B550M-K ARGB AMD B550 Socket AM4 micro ATX
title_en - Asus Prime B550M-K ARGB AMD Motherboard
title_lv - Asus Prime B550M-K ARGB AMD Mātes Plate
title_ru - Asus Prime B550M-K ARGB AMD Материнская Плата
TPM - Header
Unit Brutto Volume - 0.004547 cubm
Unit Gross Weight - 0.96 kg
Unit Net Weight - 0.7 kg
URL - https://www.asus.com/motherboards-components/motherboards/prime/prime-b550m-k-argb/
USB 2.0 Input/Output connectors - 2
USB 3.2 Input/Output connectors - 4
USB Interface - Yes
Vendor Homepage - www.asus.com/motherboards-components/motherboards/prime/prime-b550m-k-argb/
Warranty - 36 months
WarrantyInfo -
Weight - 0,86
weight - 0.46 kg
Weight & dimensions - Depth - 221 mm
Weight & dimensions - Height - 36.5 mm
Weight & dimensions - Width - 244 mm
