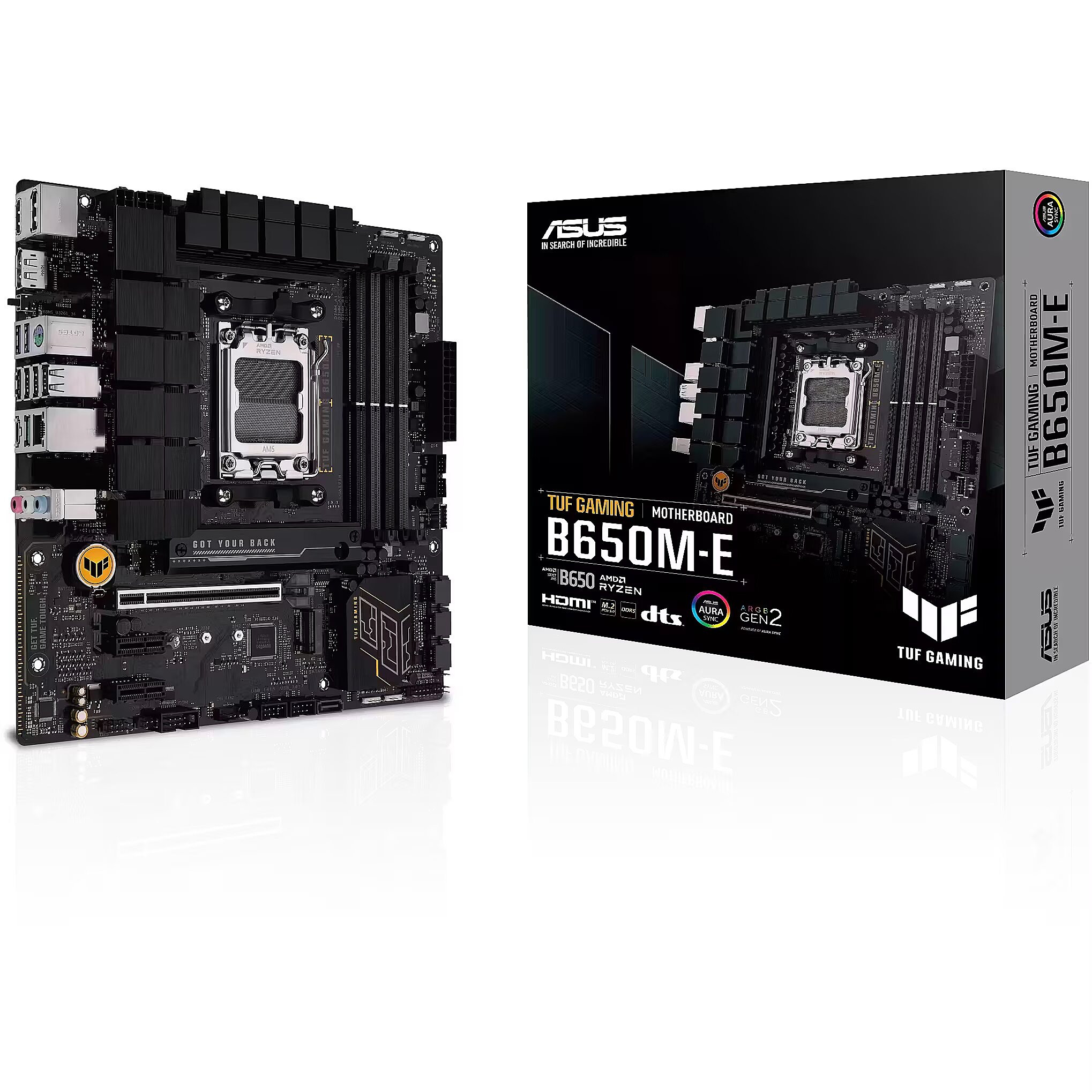

Asus TUF GAMING B650M-E

Name: Asus TUF GAMING B650M-E
Brand: Asus
SKU: 974422
Price: 169.11 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 974422 Product code: TUF GAMING B650M-E

In stock 16 units

Warranty: 3 years

Compare

Delivery options More about shipping

Delivery to Smartpost free of charge: on Thuesday, 26.11.2024
Delivery to Omniva parcel machine free of charge: on Thuesday, 26.11.2024
Piegāde uz DPD Pickup Paku Skapi free of charge: on Thuesday, 26.11.2024
Delivery to Latvian post office, parcel locker or Circle K free of charge: on Thuesday, 26.11.2024
Delivery to address in Riga 3.99 €: on Thuesday, 26.11.2024
Delivery to address in Latvia 6.99 €: on Thuesday, 26.11.2024
Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: tomorrow, 22.11.2024 after 15:00

Main product parameters All parameters

Series: ASUS TUF Gaming
Plate size: mATX
Chipset: AMD B650
Socket: AM5
Type: DDR5
RAM Slots: 4
Built-in Wi-Fi: Nav
M.2 ports: 2

Basic information

Series : ASUS TUF Gaming

Plate size mATX

The physical size of the motherboard. Dateks.lv offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD B650

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.

Socket AM5

The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.

Random-access memory (RAM)

Type : DDR5

RAM Slots 4

The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.

Memory support DDR5 5200MHz (6400MHz OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card

VGA Port PCI-EXPRESS

VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.

Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment

D-Sub : 0

DisplayPort : 2

DVI : 0

HDMI : 1

Integrated sound card : Nav norādīts

PCI Ports 0

PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.

Wireless connections

Built-in Bluetooth : Nav

Built-in Wi-Fi : Nav

External ports

External USB 2.0 : 4

External USB Type-C (USB 3.2 Gen2) : 1

External USB Type-C (USB 4.0) : 0

External USB 3.0 (USB 3.2 Gen1) : 2

External USB 3.1 (USB 3.2 Gen2) : 1

Internal ports

Internal A-RGB 5V (3-pin) : 3

Internal RGB 12V (4-pin) : 1

Internal USB 2.0 : 2

Internal USB 3.0 : 1

Internal USB Type-C : 1

M.2 ports : 2

SATA3 ports : 4

More detailed specification

Additional information in manufacturers website Asus TUF GAMING B650M-E

Audio port Input/Output connectors - 3
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
Brand - ASUS
BrandPartCode - 90MB1FU0-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM5
Chipset - AMD B650
code - 90MB1FU0-M0EAY0
Description - TUF GAMING B650M-E ASUS TUF GAMING B650M-E takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
DisplayPort Input/Output connectors - 2
ean - 4711387221969
EAN_code - 4711387221969
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x1 (Gen 4.x) slots - 2
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD B650
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 10 x64, Windows 11
Form Factor - Micro-ATX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000/6200/6400 MHz
Full Description Line - AMD B650|SAM5|Micro-ATX|DDR5|6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|2xPCI-Express 4.0 1x|1xPCI-Express 4.0 16x|2xM.2|1xHDMI|2xDisplayPort|4xUSB 2.0|2xUSB 3.2|2xUSB-C|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Audio|LAN 2.5 Gigabit|RAID SATA 0, 1, 10
Graphics - Parallel processing technology support - Not supported
GTIN - 4711387221969
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated LAN - 2.5 Gigabit
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 8
Internal I/O - Peripheral (Molex) power connectors (4-pin) - 1
Internal I/O - RGB LED pin header - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
LongDesc - TUF GAMING B650M-EASUS TUF GAMING B650M-E takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.INTELLIGENT CONTROLComprehensive controls form the foundation of the ASUS TUF GAMING series. The TUF GAMING B650 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.CPU Performance BoostAMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD‘s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.ROCK-SOLID PERFORMANCEWith upgraded power delivery and comprehensive cooling options to fuel AMD's latest CPUs, plus support for faster memory and storage, TUF GAMING B650 motherboards are the perfect foundation for your next high-core-count AMD battle rig.Teamed Power Stages8+2 power stages are each rated to handle 60 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible AMD processors.
LongProductName - Socket AM5, AMD B650 Chipset, 4 x DDR5-SDRAM up to 128GB, LAN, 1 x RJ-45, 4 x SATA III, 2 x M.2(M), UEFI AMI, Micro ATX
LongSummaryDescription - ASUS TUF GAMING B650M-E. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 5 7th Gen, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
M.2 Expansion slots - 2
Manufacturer - Asus
Manufacturer_code - 90MB1FU0-M0EAY0
Memory - ECC - Yes
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 6400 MHz
Memory - Supported memory clock speeds - 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory slots - 4
Memory type - DDR5
Model - TUF GAMING B650M-E
name - ASUS TUF Gaming B650M-E, AMD B650 Mainboard - Sockel AM5, DDR5
Name - ASUS TUF GAMING B650M-E - Socket AM5 - motherboard
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No

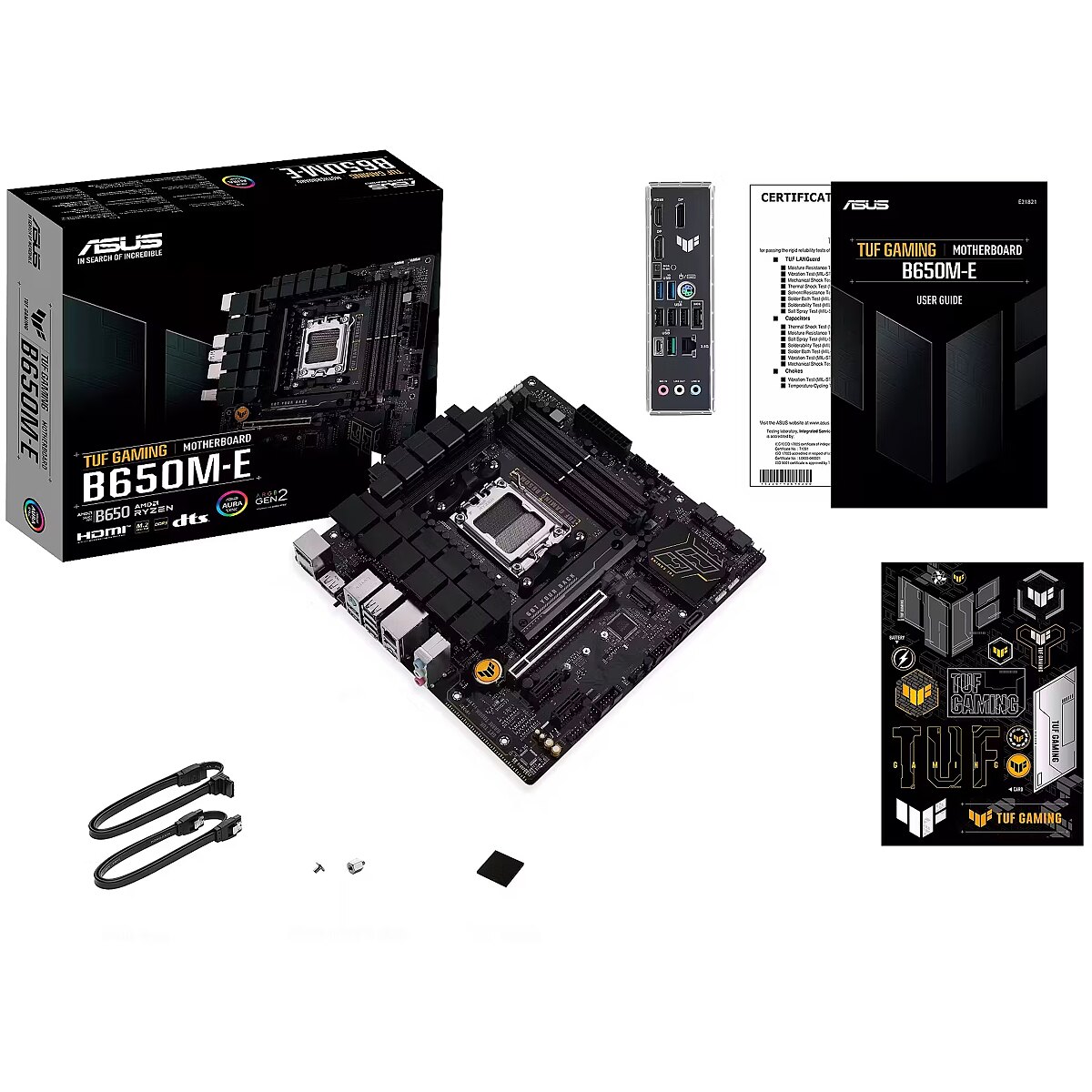

Packaging content - Cables included - SATA
Packaging data - Package depth - 275 mm
Packaging data - Package height - 67.4 mm
Packaging data - Package weight - 1.61 kg
Packaging data - Package width - 275 mm
PCI-Express 4.0 1x Expansion slots - 2
PCI-Express 4.0 16x Expansion slots - 1
Processor - Compatible processor series - AMD Ryzen 5 7th Gen, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
ProductName - TUF GAMING B650M-E
RAID - SATA 0, 1, 10

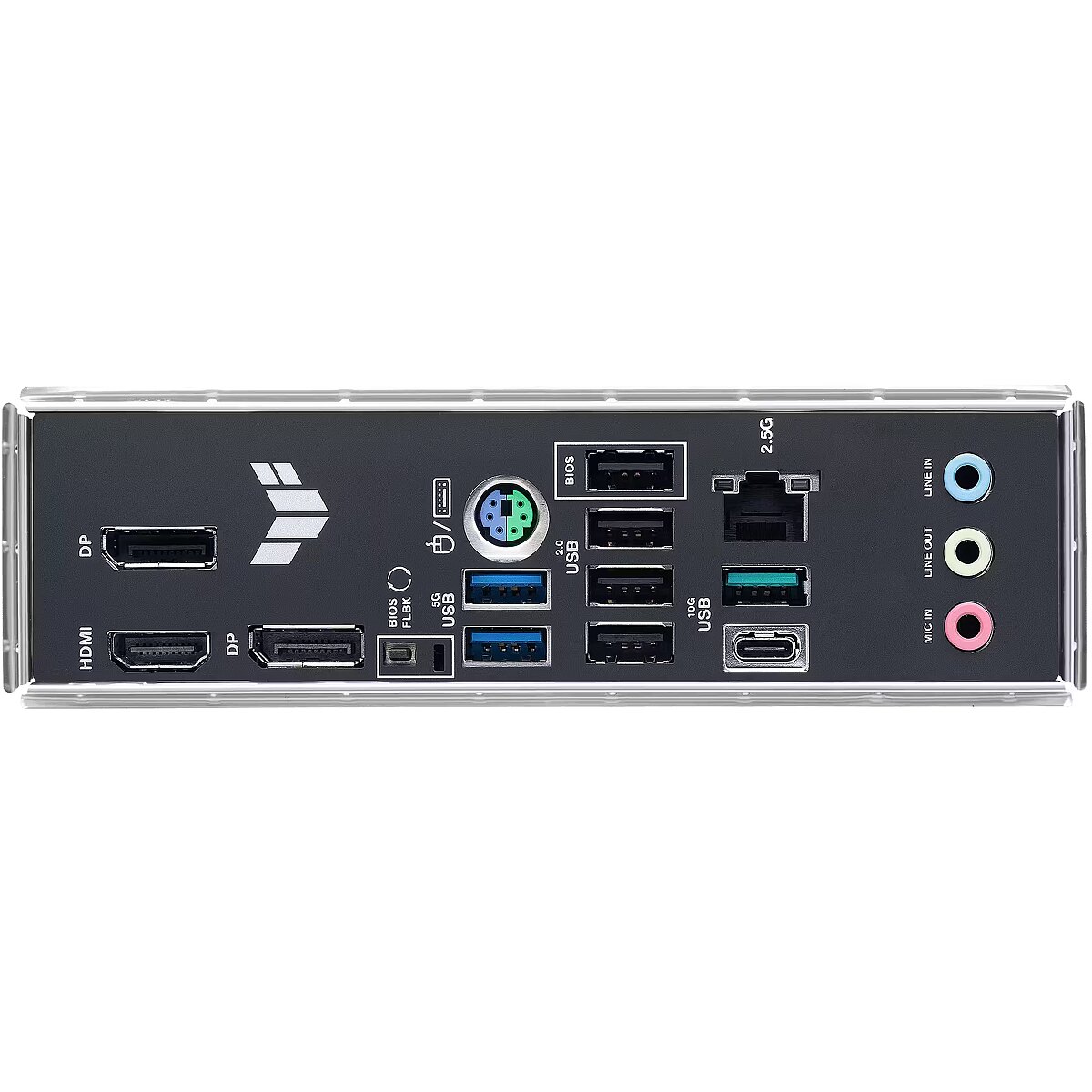

Rear panel I/O ports - DisplayPorts quantity - 2
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 28 cm
Shipping Box Height Shipping/Package Box Dimensions - 7 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.48 kg
Shipping Box Width Shipping/Package Box Dimensions - 27.5 cm
ShortSummaryDescription - ASUS TUF GAMING B650M-E, AMD, Socket AM5, AMD Ryzen 5 7th Gen, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen, Socket AM5, DDR5-SDRAM, 128 GB
Socket - SAM5
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 6
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Title - ASUS TUF GAMING B650M-E AMD B650 Socket AM5 micro ATX
Unit Box Height - 0.07
Unit Box Length - 0.28
Unit Box Width - 0.275
Unit Brutto Volume - 0.00539 cubm
Unit Gross Weight - 1.48 kg
Unit Net Weight - 1.17 kg
URL - https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b650m-e/
USB-C Input/Output connectors - 2
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 2
USB 3.2 Interface - Yes
Vendor Homepage - www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b650m-e/
Warranty - 36 months
WarrantyInfo -
Weight - 1,50
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 244 mm
