Accessories included - User manual 2 x SATA data cable 4 x Screws for M.2 slots Spacer for M.2 slot
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
BIOS - BIOS type - UEFI AMI
Category - Datortehnika :: Datoru komponentes :: Pamatplates
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM5
Chipset manufacturer - AMD
Chipset type - AMD A620
code - 90-MXBLN0-A0UAYZ
Code - A620M PRO RS
COM connector / port - No
CPU socket - Socket AM5
Desc - Mikroshēmu tips | chipset: AMD A620, Plates formfaktors: Micro ATX, Procesora ražotājs: AMD, Ligzda: AM5, DDR tips: DDR5, Atmiņas sloti: 4, Max atmiņas apjoms: 128 GB, WiFi: Nav, M.2 Pieslēgumi: 3, Garantija: 2 gadi
Description - A620M Pro RS Supports AMD Socket AM5 Ryzen 7000 series processors 6+2+1 Power Phase, Dr.MOS, 120W CPU Ready Supports DDR5 6000+ MHz (OC) 1 PCIe 4.0 x16, M.2 Key E for Wi-Fi Graphics inputs: HDMI, DisplayPort Realtek ALC897 7.1-channel HD audio codec Nahimic Audio 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4) 1 M.2 (PCIe Gen3x2) 2 USB 3.2 Gen1 Type-C ports (1 rear, 1 front) 5 USB 3.2 Gen1 Type-A ports (3 rear, 2 front) Realtek Gigabit LAN Supports ASRock Automatic Driver Installer BIOS Flashback Optimised VRM Design Robust components and smooth power transfer to the CPU translate into enhanced performance for gamers. Reinforced Steel Slot [PCIe 4.0 Version]. Reinforced steel slot along with the next generation PCI Express 4.0 standard. List of benefits: More solder points Stronger latch Ensures stable signal transmission Guarantees stable support for even the heaviest graphics cards Audio That Matters Whether you are using headphones, hands-free, external or internal speakers via USB, Wi-Fi, analogue output or HDMI, Nahimic Audio offers the best audio experience, vivid and full of detail. Improved Communication Quality Powerful algorithms for the best noise-free conversation, ensuring consistent voice levels regardless of the distance from the microphone. The Nahimic audio engine dynamically cleans the sound, removes noise and reduces voice variability. The result is better understanding and less fatigue. Static suppression Echo cancellation Side sound reduction Voice stabilisation Sound Tracker Sound Tracker is a visual indicator that shows the directions from which the dominant sounds are coming. Each sound is appropriately positioned on a 360° radar to ensure full immersion in the game. Works on all devices! Enjoy vivid and high quality surround sound on all your favourite audio devices: jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all your favourite audio tools and provides the best sound with each of them. Nahimic measures and improves to optimise our technology and provide the best experience. POLYCHROMATIC RGB In addition to the built-in RGB backlighting, the board also features integrated, regular and addressable RGB headers that allow compatible LED devices such as LED strips, CPU fans, fans, cases, etc. to be connected. Users can synchronise RGB LED devices with the certified Polychrome RGB Sync accessories to create their own unique backlighting style. PCIe 4.0 High Speed M.2 solution This motherboard is ready to accept a range of M.2 devices, including support for PCI Express 4.0 M.2 SSDs, ready to operate at twice the speed of the previous 3rd generation, delivering lightning fast data transfer rates. Front USB 3.2 Gen1 Type-C The USB 3.2 Gen1 Type-C front header enables data transfer speeds of up to 5 Gbps, what's more, the new generation reversible USB design is available on the front panel of the computer case. Automatic Driver Installation No need to worry about missing drivers! ASRock board comes with LAN driver pre-installed, offering you a convenient option to install the remaining drivers. Step 1: Install Auto Driver Installer Step 2: Update your drivers Step 3: Done! BIOS Flashback Update the BIOS with a simple click. Users can easily upload the latest BIOS with a USB stick and power supply. No processor, RAM or other components are needed for this. Pre-installed I/O Shield ASRock strives to offer only the latest technology with the most user-friendly design. The pre-installed I/O port cover makes the motherboard precisely installed in the case, prevents any interference and speeds up the installation process.
Detailed data on disk/drive interfaces - Processor: 1 x Hyper M.2 slot (M2_1, Key M), supports 2260/2280 mode PCIe Gen4x4 (64Gbps)* 1 x Hyper M.2 slot (M2_2, Key M), supports 2260/2280 mode PCIe Gen4x4 (64Gbps)* chipset: 1 x M.2 slot (M2_3, Key M), supports 2260/2280 mode PCIe Gen3x2 (16Gbps)* 4 SATA3 6.0 Gbps connectors * Supports booting from NVMe SSDs
dimensionalWeight - 963
dimension depth - 60 mm
dimension height - 260 mm
Dimensions - 24.4 x 24.4 cm
dimension weight - 1195 g
dimension width - 280 mm
EAN - 4710483943072
ean - 4710483943072
Eans - 4710483943072
EAN_code - 4710483943072
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
External connectors - 1 x DisplayPort
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.1 Type-C
External connectors - 3 x USB 3.0
External connectors - 4 x USB 2.0
Features - Audio output channels - 7.1 channels
Features - Certification - FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
Features - Motherboard chipset - AMD A620
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 10
Features - Windows operating systems supported - Windows 11
FireWire (IEEE 1394) - No
Form factor - micro ATX
Graphics - AMD RDNA 2 Integrated Graphics (Support may vary by CPU) HDMI 2.1 TMDS/FRL compatible with 8G, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Graphics - Graphics card - AMD RDNA 2
Graphics - Graphics card family - AMD
Graphics - On-board graphics card - Yes
guarantee - 36
guarantee_type - normal
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_103360_1.png
Integrated CPU - No
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Power fan connector - Yes
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 3
LargeDescHTML -
LPT connector / port - No
Manufacturer - Asrock
Manufacturer - ASRock
Manufacturer_code - 90-MXBLN0-A0UAYZ
Max. number of SATA devices - 4
Max memory size - 128 GB
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR5-SDRAM
Memory bus frequency - 6000 MHz
Memory type - DDR5
Model - A620M PRO RS
MPN - 90-MXBLN0-A0UAYZ
Name - ASRock A620M Pro RS
name - ASRock A620M Pro RS, AMD A620 Mainboard - Sockel AM5, DDR5
Name - ASRock A620M Pro RS AM5 mATX HDMI/DP DDR5 retail
Name - ASRock A620M Pro RS WiFi - AM5
name - Motherboard A620M PRO RS AM5 4DDR5 HDMI/DP M.2 mATX
Name - Pamatplate ASRock A620M Pro RS
Network - Bluetooth - No
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek 8111H
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - Gigabit LAN 10/100/1000Mbps Realtek 8111H
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 2
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power LED and Speaker Header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 3 x 4pin Chassis/Water Pump Fan Connectors
Onboard connectors - 3 x Addressable LED
Onboard connectors - 3 x M.2
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 4 x USB 2.0/1.1
Other information -
Packaging content - Bundled software - - ASRock Motherboard Utility (A-Tuning)
- ASRock Polychrome SYNC
- ASRock XFast LAN
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Processor - Compatible processor series - AMD Ryzen 9 7th Gen
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor family - AMD Ryzen
producer - ASRock
Producer - ASRock
producerCode - A620M PRO RS
ProducerCode - A620M Pro RS
productName - Asrock A620M Pro RS motherboard
productSize - Normal
RAID - Yes

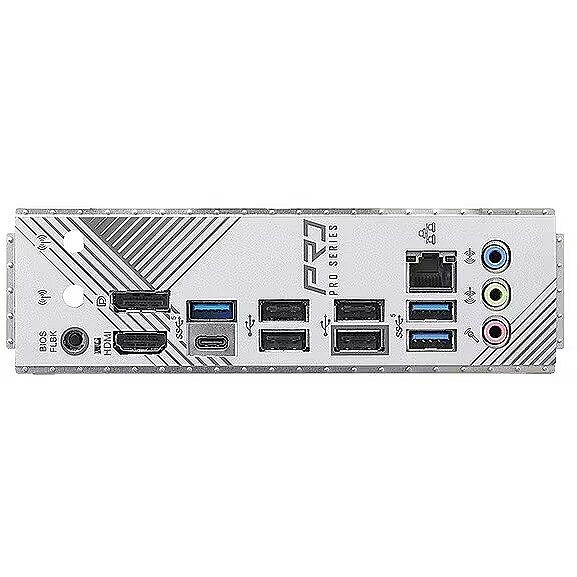

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 3
ShortDescription - Socket AM5 | Chipset AMD A620 | DDR5
sizeX - 285
sizeY - 65
sizeZ - 260
Software - Software: ASRock Motherboard Utility (A-Tuning) ASRock Polychrome SYNC ASRock XFast LAN UEFI: ASRock Full HD UEFI Automatic ASRock Driver Installer ASRock Instant Flash
Sound card - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Special functions - Incredible Productivity Dual Channel DDR5 Solid as Rock 6+2+1 Power Phase, 50A Dr.MOS Pre-Installed I/O Shield EZ Upgrades BIOS Flashback Button ASRock Auto Driver Installer EZ Troubleshooter ASRock Post Status Checker
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 3
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
USB ports at back panel - 8
USB ports on motherboard - 7
vendpn - A620M PRO RS
warrantyLength - 36
warrantyType - G
Weight - 0,80
Weight - 1.18
weight - 1170
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 244 mm
